Page 57 of 288
UNDERSTANDING THE FEATURES OF YOUR VEHICLE
3
CONTENTS
Mirror Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . 59Interior Mirror (Optional) . . . . . . . . . . . . . . . . . . 59Electrically Adjustable Exterior Mirror
(Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Seat Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60Driver’s and Front Passenger’s Seat . . . . . . . . . 60Lumbar Support . . . . . . . . . . . . . . . . . . . . . . . . . . 61Armrest (Optional) . . . . . . . . . . . . . . . . . . . . . . . . 62Head Restraint . . . . . . . . . . . . . . . . . . . . . . . . . . . 62Folding Seat at Partition (Optional) . . . . . . . . . 63
Seat Heater (Optional) . . . . . . . . . . . . . . . . . . . . . . 63
Rear Seat Bench Removal and Installation . . . . . 64Retrofitting Seat Mounting Cups . . . . . . . . . . . . 65
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Headlamp Range Control . . . . . . . . . . . . . . . . . . . . 68
Fog Lamp Switch (Optional) . . . . . . . . . . . . . . . . . 68
Interior Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69Interior Lamps in the Driver and Rear-Seat
Passenger Area/Cargo Area . . . . . . . . . . . . . . . . 69Interior Lamps with Interior Sensor
Protection (Optional) . . . . . . . . . . . . . . . . . . . . . . 69Interior Lighting with Reading Lamp, Front
Passenger Space Only . . . . . . . . . . . . . . . . . . . . . 70Interior Cargo Area Lighting (Optional) . . . . . 71
Multifunction Switch . . . . . . . . . . . . . . . . . . . . . . . . 72
Window Operation . . . . . . . . . . . . . . . . . . . . . . . . . 74Mechanical Window Operation . . . . . . . . . . . . . 74Electric Window Operation (Optional) . . . . . . . 74
Windshield Wiper Switch . . . . . . . . . . . . . . . . . . . . 75Windshield wipers with rain sensor
(Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Page 68 of 288
68 UNDERSTANDING THE FEATURES OF YOUR VEHICLEHEADLAMP RANGE CONTROLSee Section 4, Understanding Your Instrument Panel,
for switch locations. The range of the headlamps can be
adjusted to the load in the vehicle.
Turn the thumbwheel down to
headlamp beam down.
Turn the thumbwheel up to
headlamp beam up.
When the vehicle is not loaded (driver only), the
thumbwheel must be in position 0. Where necessary, adjust the headlamp range with the
thumbwheel to 82 yards (75 m).
Always keep the headlamp range less than 110 yards
(100 m), so that oncoming traffic is not blinded.
FOG LAMP SWITCH (OPTIONAL)See Section 4, Understanding Your Instrument Panel,
for switch locations.
Lamp switch position õ
To switch on:
Press the upper section of the switch.
To switch off:
Press the lower section.
WARNING!
Be sure the hood is properly closed before driving.
If the hood is not fully latched, it could fly up
when the vehicle is moving and block your for-
ward vision. Be sure all hood latches are latched
fully before driving.
When closing the hood, use extreme caution not to
catch hands or fingers.
Page 73 of 288
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 73
3

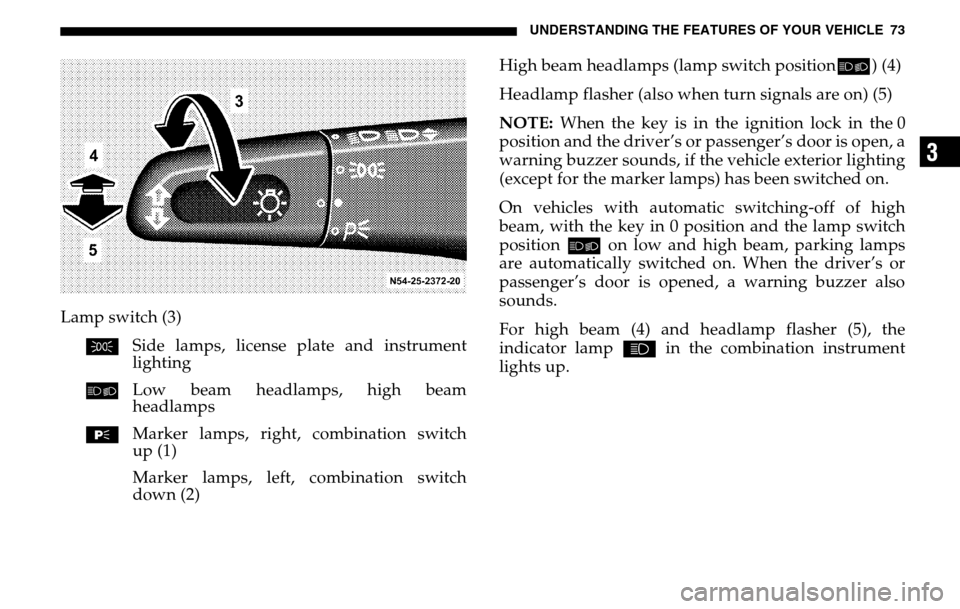

Lamp switch (3) C Side lamps, license plate and instrument
lighting
õ Low beam headlamps, high beam
headlamps
ƒ Marker lamps, right, combination switch
up (1)
Marker lamps, left, combination switch
down (2) High beam headlamps (lamp switch position
õ) (4)
Headlamp flasher (also when turn signals are on) (5)
NOTE: When the key is in the ignition lock in the 0
position and the driver’s or passenger’s door is open, a
warning buzzer sounds, if the vehicle exterior lighting
(except for the marker lamps) has been switched on.
On vehicles with automatic switching-off of high
beam, with the key in 0 position and the lamp switch
position õ on low and high beam, parking lamps
are automatically switched on. When the driver’s or
passenger’s door is opened, a warning buzzer also
sounds.
For high beam (4) and headlamp flasher (5), the
indicator lamp A in the combination instrument
lights up.
Page 109 of 288
UNDERSTANDING YOUR INSTRUMENT PANEL 109
4
Legend for Switch Locations
1. Fog lamp switch (Optional), refer to "Fog Lamp Switch".
2. Headlamp range control, refer to "Headlamp Range Control".
3. Auxiliary heat exchanger switch (Optional) .
4. Heated rear window (Optional) .
5. Left-hand seat heater switch (Optional) .
6. Central locking switch with load compartment lock (Optional) .
7. Alarm pushbutton .
8. Deactivate Acceleration skid control (ASR) switch . 9. Switch for auxiliary heater (Optional)
10. Right-hand seat heater switch (Optional),
11. Sun roof operation switch (Optional)
.
12. Interior cargo area lighting (Optional), refer to "Interior Cargo Area Lighting".
13. Towing/passenger compartment protection switch (Optional) .
14. Airflow switch for the air conditioner for rear passenger compartment (Optional) .
15. Temperature control (Optional) .
16. Electric blower switch (Optional) .
17. Windshield heater switch (Optional).
18. Constant RPM switch (Optional).
Page 214 of 288
214 MAINTAINING YOUR VEHICLE
Headlamps, Taillamps, Identification Lamps,
Turn Signal Lenses . . . . . . . . . . . . . . . . . . . . . . . 234Reversing Aid Sensors . . . . . . . . . . . . . . . . . . . . 235Window Cleaning . . . . . . . . . . . . . . . . . . . . . . . 235Wiper Blade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236Light Alloy Wheels . . . . . . . . . . . . . . . . . . . . . . 236Instrument Cluster . . . . . . . . . . . . . . . . . . . . . . . 236Steering Wheel and Gear Selector Lever . . . . 236Cup Holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237Headliner and Shelf Below Rear Window . . . 237Upholstery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237Hard Plastic Trim Items . . . . . . . . . . . . . . . . . . 237Plastic and Rubber Parts . . . . . . . . . . . . . . . . . . 238
Electrical Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238Standard Fuse and Relay Equipment . . . . . . . 239Relay Assignment, Standard Equipment . . . . 242Fuse and Relay Optional Equipment . . . . . . . 242
Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 245Front Lamp Unit . . . . . . . . . . . . . . . . . . . . . . . . . 245Taillamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250License Plate Lamps
(Cargo/Passenger Vans Only) . . . . . . . . . . . . . 252Additional Brake Lamp
(Cargo/Passenger Vans Only) . . . . . . . . . . . . . 252Side-Mounted Turn Signals . . . . . . . . . . . . . . . 253Side-Marker Lamps,
Standing Lamps (Optional) . . . . . . . . . . . . . . . . 253Identification Lamps (Cargo/
passenger vans only) . . . . . . . . . . . . . . . . . . . . . 254Interior Lighting in Passenger Compartment
and Load Compartment . . . . . . . . . . . . . . . . . . 254Interior Lighting with Reading Lamp . . . . . . . 255Interior Lighting with Interior Sensor
Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255Exit Lamps (Optional) . . . . . . . . . . . . . . . . . . . . 256
Capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257Recommended Fluids and Lubricants . . . . . . 258
Page 234 of 288
234 MAINTAINING YOUR VEHICLECorrosion protection, such as anticorrosion wax
should be applied to the engine compartment after
every engine cleaning. Before applying, all control
linkage bushings and joints should be lubricated. The
poly-V-belt and all pulleys should be protected from
any wax.Vehicle WashingDo not use hot water or wash your vehicle in direct
sunlight. Use only a mild car wash detergent.
Thoroughly spray the vehicle with a diffused jet of
water. Direct only a very weak spray towards the
ventilation intake. Use plenty of water and rinse the
sponge and chamois frequently.
Rinse with clear water and thoroughly wipe dry with a
chamois. Do not allow cleaning agents to dry on the
finish.
Due to the width of the vehicle, prior to running the
vehicle through an automatic car wash, fold back the
outside mirrors to prevent them from getting
damaged.
In the winter, thoroughly remove all traces of road salt
as soon as possible. When washing the underbody, do not forget to clean
the inner sides of the wheels.
Ornamental MoldingsFor regular cleaning and care of very dirty chrome-
plated parts, use a chrome cleaner.Headlamps, Taillamps, Identification Lamps, Turn
Signal LensesUse a mild car wash detergent with plenty of water.
To prevent scratches, never apply strong force and use
only a soft, non-scratchy cloth when cleaning the
lenses. Do not attempt to wipe dirty lenses with a dry
cloth or sponge.
WARNING!
Dirty or iced-up steps and entrances create a risk
of slipping or falling.
Keep steps, entrances and footwear free from dirt
(e.g. mud, clay, snow and ice).
Page 241 of 288
MAINTAINING YOUR VEHICLE 241
7
No. Rated Circuit
1. 10A Parking lamp right, taillamp right
2. 10A High beam head lamp,right
3. 10A High beam head lamp, left, high beam indicator lamp
4. 10A Backup lamp
5. 10A Brake lamp
6. 20A Windshield wiper motor
7. 15A Horn, heated rear window, air recirculation switch,
optional equipment relay (terminal 15)
8. 20A Interior lighting, cigarette lighter, radio (terminal 30)
9. 15A Clock, hazard warning lamps, parking lamps 10. 10A Instrument lighting, license plate lamp
daytime driving lamps
11. 10A Side lamp, left; taillamp, left
12. 10A Low beam headlamp, right
13. 10A Low beam headlamp, left
14. 15A Fog lamp
15. 10A Radio (terminal 15)
16. 25A Engine control unit
17. 15A Engine control unit
18. 15A Ignition (terminal 15)
19. 15A Not in use
20. 15A Heater controls (terminal 30)
21. 30A Heater blower (terminal 30)
Page 246 of 288

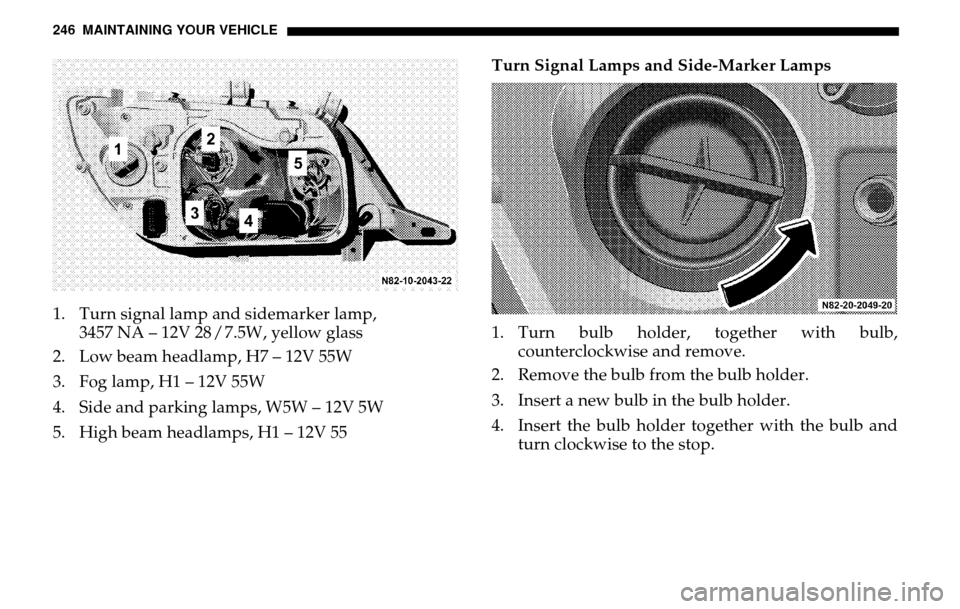

246 MAINTAINING YOUR VEHICLE1. Turn signal lamp and sidemarker lamp, 3457 NA – 12V 28 / 7.5W, yellow glass
2. Low beam headlamp, H7 – 12V 55W
3. Fog lamp, H1 – 12V 55W
4. Side and parking lamps, W5W – 12V 5W
5. High beam headlamps, H1 – 12V 55 Turn Signal Lamps and Side-Marker Lamps
1. Turn bulb holder, together with bulb,
counterclockwise and remove.
2. Remove the bulb from the bulb holder.
3. Insert a new bulb in the bulb holder.
4. Insert the bulb holder together with the bulb and turn clockwise to the stop.
Page 247 of 288
MAINTAINING YOUR VEHICLE 247
7
Low Beam Headlamps
1. Unplug the cable connector from the bulb.

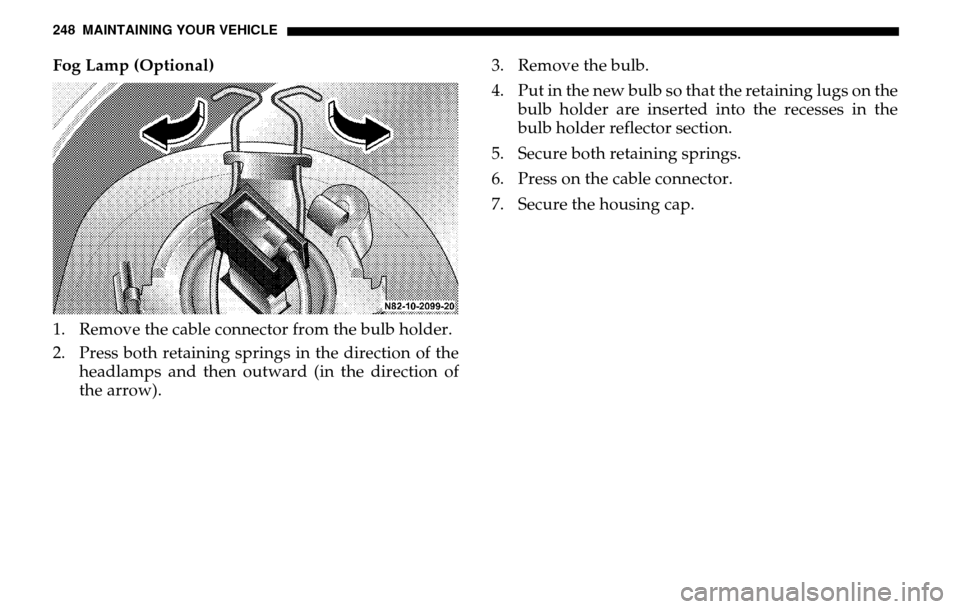

2. Unclip in the retaining springs. Press the retaining springs towards the headlamps and down
(direction of arrow). 3. Remove the bulb.
4. Insert the new bulb so that the retaining lugs are
fed into the recesses in the reflector section of the
bulb holder.
5. Clip in the retaining springs.
6. Press on the cable connector.
7. Secure the housing cap.
Page 248 of 288
248 MAINTAINING YOUR VEHICLEFog Lamp (Optional)

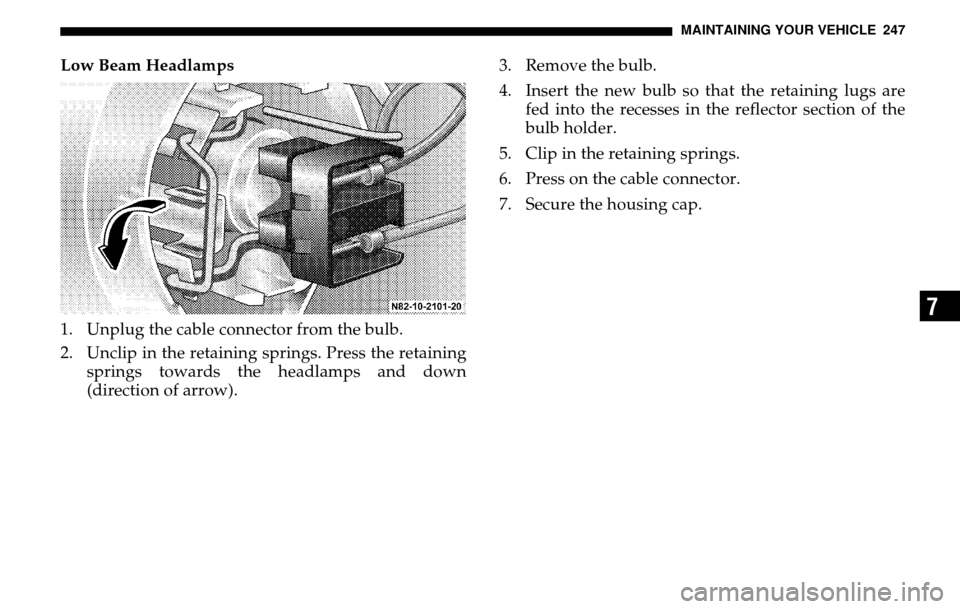

1. Remove the cable connector from the bulb holder.
2. Press both retaining springs in the direction of the headlamps and then outward (in the direction of
the arrow). 3. Remove the bulb.
4. Put in the new bulb so that the retaining lugs on the
bulb holder are inserted into the recesses in the
bulb holder reflector section.
5. Secure both retaining springs.
6. Press on the cable connector.
7. Secure the housing cap.
