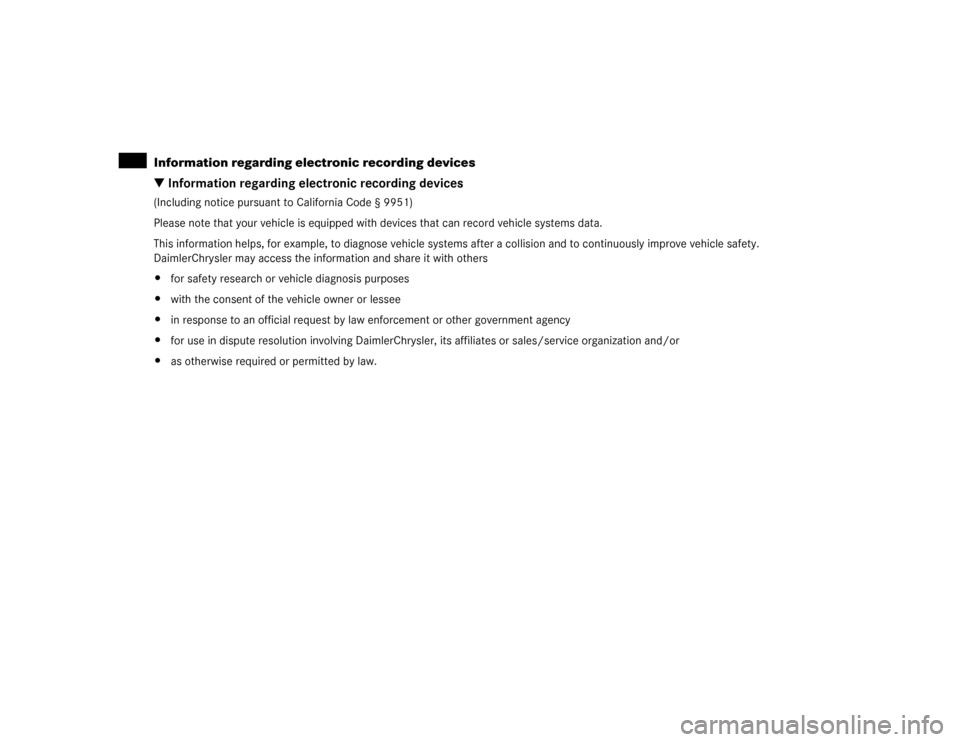

10 IntroductionInformation regarding electronic recording devices
\3 Information regarding electronic recording devices(Including notice pursuant to California Code § 9951)
Please note that your vehicle is equipped with devices that can record vehicle systems data.
This information helps, for example, to diagnose vehicle systems after a collision and to continuously improve vehicle safety.
DaimlerChrysler may access the information and share it with others
\4for safety research or vehicle diagnosis purposes
\4with the consent of the vehicle owner or lessee
\4in response to an official request by law enforcement or other government agency
\4for use in dispute resolution involving DaimlerChrysler, its affiliates or sales/service organization and/or
\4as otherwise required or permitted by law.
Page 12 of 393
11
1 At a glance
Cockpit ............12
Instrument cluster ............14
Steering wheel with buttons* ............17
Center console ............18
Overhead control panel* ............19
Switch units ............20
Door control panel ............22
Page 13 of 393
12 At a glanceCockpit
1

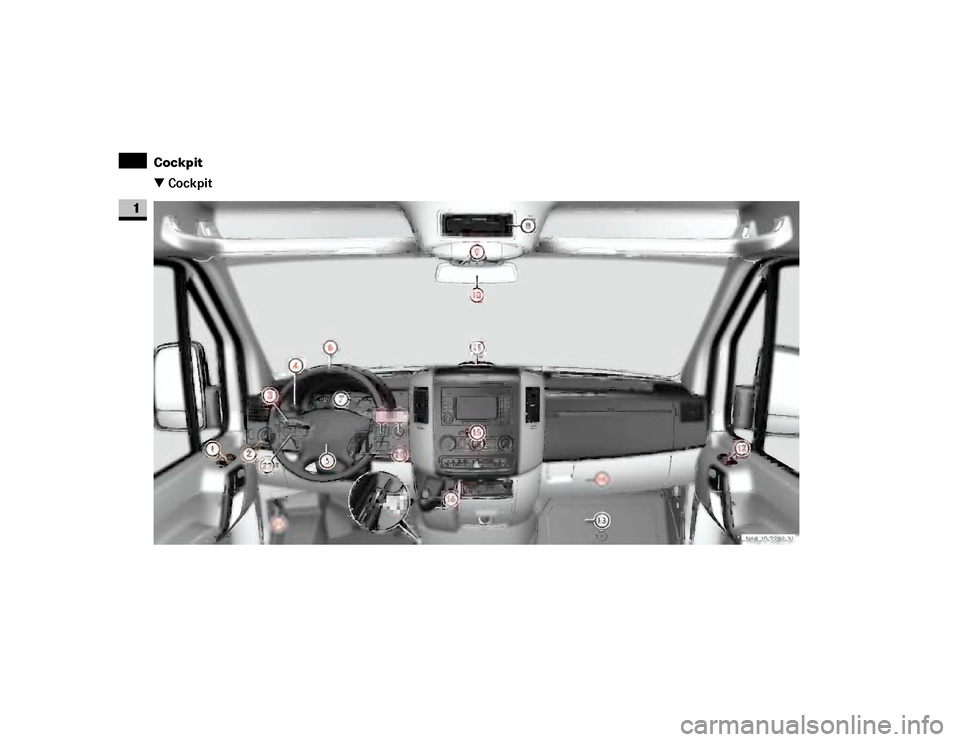

\3 Cockpit
N68.10-2287-31
Page 14 of 393
13 At a glance
Cockpit
1
Function
Page
1
Door control panel
22
2
Light switch
77
3
Combination switch\4Turn signals
\4High-beam headlamps
\4Windshield wipers
\4Rear window wiper*
79
77
126
127
4
Cruise control lever*
147
5
Horn
6
Steering wheel without/
with* buttons
17
Function
Page
7
Instrument cluster
14, 84
8
Storage compartment
9
Storage compartment with
interior lamp
80
Overhead control panel*
19
a
Rear-view mirror*
125
b
Warning display for Park-
tronic system*
150
c
Opens / closes the right-
hand side window
144
d
Jack and vehicle tool kit
300
e
Glove box
165
Function
Page
f
Center console
18
g
Selector lever (automatic
transmission)
111
h
Ignition lock
67
j
Additional switch unit
20
k
Handbrake
115
l
Steering wheel adjustment
76
m
Hood lock release
185
n
Additional switch unit
20
Page 15 of 393
14 At a glanceInstrument cluster
1

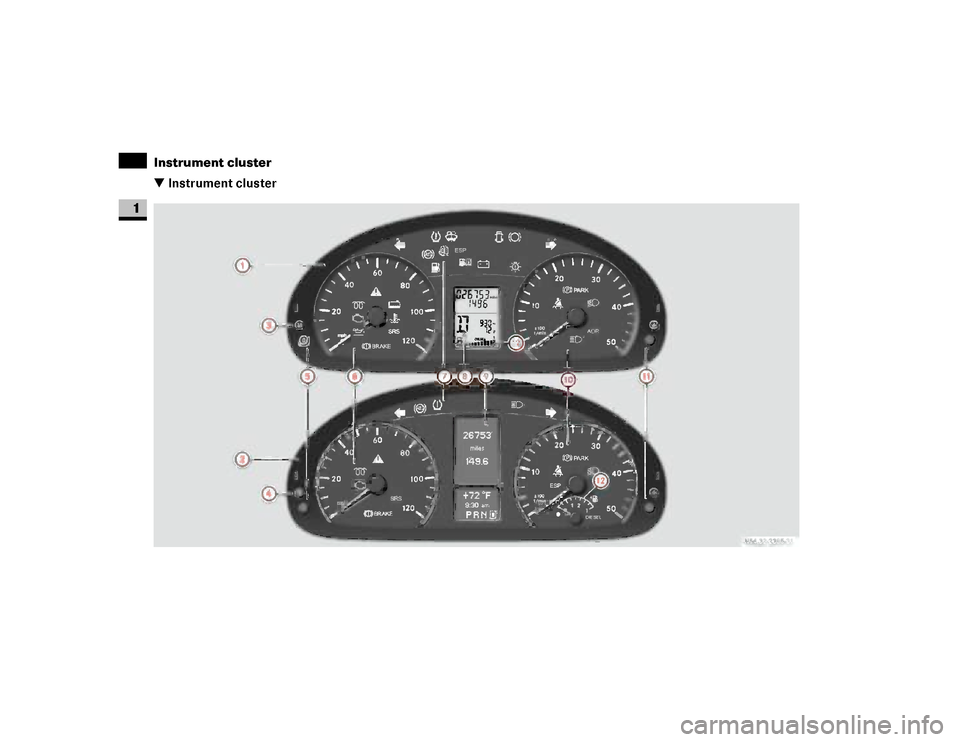

\3 Instrument cluster
N54.32-2250-31
Page 16 of 393
15 At a glance
Instrument cluster
1
Function
Page
1
Instrument cluster on vehi-
cles without steering wheel
buttons
84
2
Instrument cluster on vehi-
cles with steering wheel
buttons*
84
3
On vehicles without
steering wheel but-
tons:
\4Changes the stan-
dard display
\4Selects menus
87
4
On vehicles with
steering wheel but-
tons*:
Checks the engine oil
level
187
Function
Page
5
Reset button
84
6
Speedometer with:
85
Indicator and warning
lamps
16
7
Indicator and warning
lamps
16
8
Display on vehicles without
steering wheel buttons
87
9
Display on vehicles with
steering wheel buttons*
89
a
Tachometer with:
85
Indicator and warning
lamps
16
b
\4Instrument lighting
brighter / dimmer
85
Function
Page
c
Fuel gauge with:
\4Reserve fuel warning
lamp
\4Fuel filler flap location
indicator
Ö: Fuel filler flap is
on the left-hand
side
86
276
iVehicles without steering wheel
buttons:
Display8 contains a digital fuel
gauge.
Vehicles with steering wheel buttons*:
The tachometer contains an analog fuel
gauge.
Page 17 of 393
16 At a glanceInstrument cluster
1
Indicator and warning lamps
Page
v
ESP
® warning lamp
43
268
ASR warning lamp
44
45
268
/
Coolant level too low
275
D
Coolant temperature too
high
275
1
Restraint systems
malfunction
272
Brake fluid level too low
269
EBV malfunction
268
Malfunction in trailer's
brake booster
269
N
Engine oil level warning
274
±
Engine diagnostic
indicator lamp
277
q
Pre-glow system, diesel
engine only
111
276
Turn signal, left
79
Indicator and warning lamps
Page
X
Combination low tire
pressure/TPMS mal-
function telltale, USA
only
278
Low tire pressure tell-
tale, Canada only
278
J
Windshield washer/
headlamp cleaning sys-
tem* washer fluid level
too low
280
Door open
280
2
Brake pads / linings
worn
273
Turn signal, right
79
-
ABS malfunction
271
k
ASR malfunction
270
BAS malfunction
270
#
ESP
® malfunction
272
A
Reserve fuel
276
Fuel filler flap open
276
Indicator and warning lamps
Page
Water in the fuel
280
#
Battery charge malfunc-
tion
273
.
Defective bulb
280
Handbrake applied
115
B
Low-beam headlamps
on
77
™
Operating speed gover-
nor on*
154
A
High-beam headlamps
on
77
<
Seat belt reminder
280
iVehicles with steering wheel buttons:
Corresponding messages may also be
shown in display9 (\2page 93).
Page 18 of 393
17 At a glance
Steering wheel with buttons*
1
\3 Steering wheel with buttons*
N46.10-2074-31
Function
Page
1
Display
89
Controlling the operating
system
2
To select a submenu or
adjust the volume
89
+
-
Up / increases the
volume
Down / decreases
the volume
3
Telephone* functions
107
s
Accepts a call/
starts dialing
t
Ends a call / rejects
an incoming call
Function
Page
4
To jump from one menu to
another
89
è
·
Forward
Backward
5
To jump from one submenu
to another
89
j
k
Forward
Backward
Page 19 of 393
18 At a glanceCenter console
1

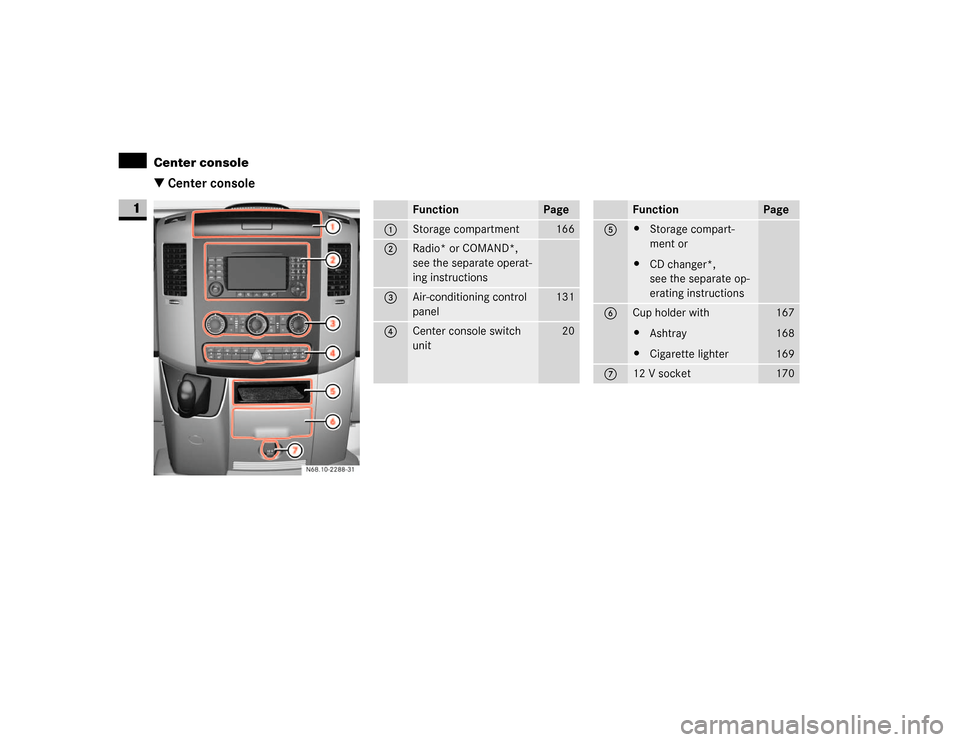

\3 Center console
N68.10-2288-31
Function
Page
1
Storage compartment
166
2
Radio* or COMAND*,
see the separate operat-
ing instructions
3
Air-conditioning control
panel
131
4
Center console switch
unit
20
Function
Page
5
\4Storage compart-
ment or
\4CD changer*,
see the separate op-
erating instructions
6
Cup holder with
\4Ashtray
\4Cigarette lighter
167
168
169
7
12 V socket
170
Page 20 of 393
19 At a glance

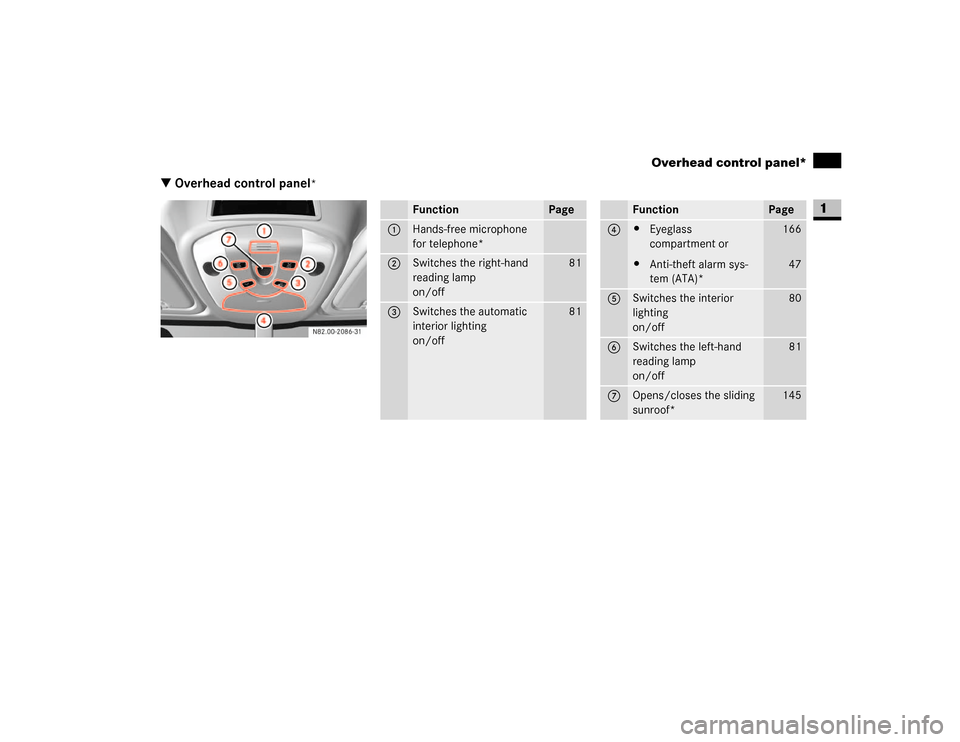

Overhead control panel*
1
\3 Overhead control panel
*
Function
Page
1
Hands-free microphone
for telephone*
2
Switches the right-hand
reading lamp
on/off
81
3
Switches the automatic
interior lighting
on/off
81
Function
Page
4
\4Eyeglass
compartment or
\4Anti-theft alarm sys-
tem (ATA)*
166
47
5
Switches the interior
lighting
on/off
80
6
Switches the left-hand
reading lamp
on/off
81
7
Opens/closes the sliding
sunroof*
145
