headlamp DODGE SPRINTER 2007 2.G User Guide

181 Operation
Driving tips
4
Check regularly, e.g. weekly or when refu-
eling:
\4the vehicle lighting
\4the condition of the tires (\2page 201)
and the tire pressures (\2page 210)
\4the engine oil level (\2page 187)
\4the brake fluid level (\2page 192)
\4the fluid level in the windshield washer
system / headlamp cleaning system
reservoir (\2page 193)
\4the contamination level of the rear air-
conditioning air cleaner (\2page 240)
Your vehicle is equipped with monolithic-
type catalytic converters, an important el-
ement in conjunction with the oxygen sen-
sors to achieve substantial control of the
pollutants in the exhaust emissions. Keep
your vehicle in proper operating condition
by following our recommended mainte-
nance instructions as outlined in your Ser-
vice Booklet.Your vehicle is equipped with an oxidation
catalyst, an important element in conjunc-
tion with the oxygen sensors to achieve
substantial control of the pollutants in the
exhaust emissions. Keep your vehicle in
proper operating condition by following
our recommended maintenance instruc-
tions as outlined in your Service Booklet.Regular checksCatalytic converter (gasoline engine)
!
CAUTION
To prevent damage to the catalytic con-
verters, only use premium unleaded
gasoline in this vehicle.
Any noticeable irregularities in engine
operation should be repaired promptly.
Otherwise, excessive unburned fuel
may reach the catalytic converter,
causing it to overheat and potentially
start a fire.
Warning
G
As with any vehicle, do not idle, park or op-
erate this vehicle in areas where combusti-
ble materials such as grass, hay, or leaves
can come into contact with the hot exhaust
system, as these materials could be ignited
and cause a vehicle fire.
Oxidation catalyst (diesel engine)Warning
G
As with any vehicle, do not idle, park or op-
erate this vehicle in areas where combusti-
ble materials such as grass, hay, or leaves
can come into contact with the hot exhaust
system, as these materials could be ignited
and cause a vehicle fire.

193 Operation
Engine
4
For specifications of brake fluid, see
"Service products and capacities"

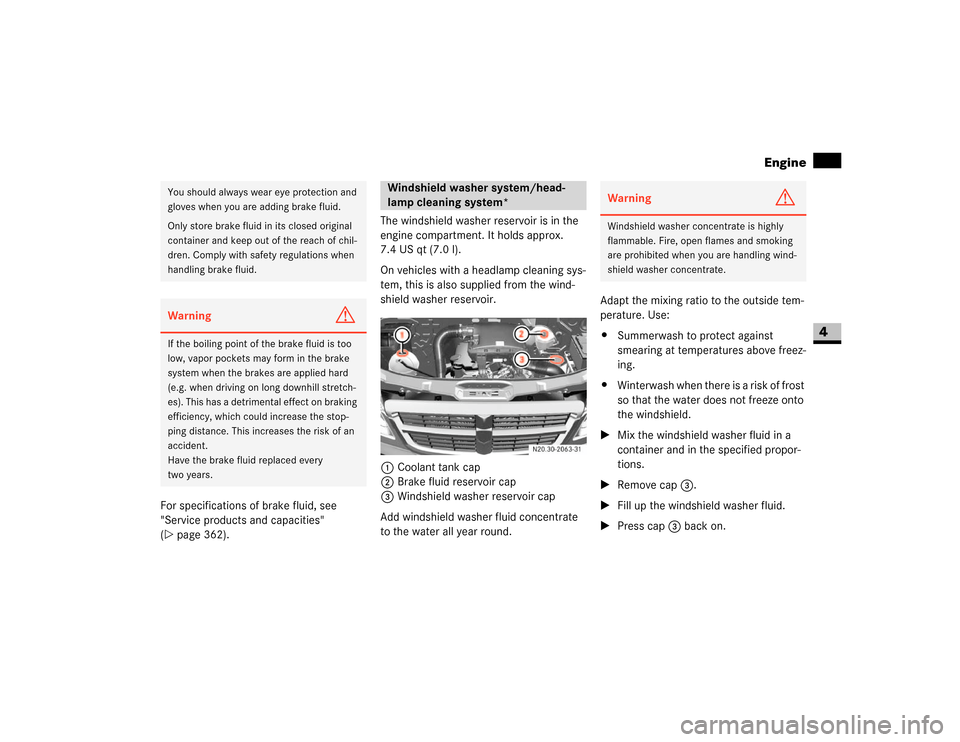

(\2page 362).The windshield washer reservoir is in the
engine compartment. It holds approx.
7.4 US qt (7.0 l).
On vehicles with a headlamp cleaning sys-
tem, this is also supplied from the wind-
shield washer reservoir.
1Coolant tank cap
2Brake fluid reservoir cap
3Windshield washer reservoir cap
Add windshield washer fluid concentrate
to the water all year round.Adapt the mixing ratio to the outside tem-
perature. Use:
\4Summerwash to protect against
smearing at temperatures above freez-
ing.
\4Winterwash when there is a risk of frost
so that the water does not freeze onto
the windshield.
\1Mix the windshield washer fluid in a
container and in the specified propor-
tions.
\1Remove cap3.
\1Fill up the windshield washer fluid.
\1Press cap3 back on.You should always wear eye protection and
gloves when you are adding brake fluid.
Only store brake fluid in its closed original
container and keep out of the reach of chil-
dren. Comply with safety regulations when
handling brake fluid.Warning
G
If the boiling point of the brake fluid is too
low, vapor pockets may form in the brake
system when the brakes are applied hard
(e.g. when driving on long downhill stretch-
es). This has a detrimental effect on braking
efficiency, which could increase the stop-
ping distance. This increases the risk of an
accident.
Have the brake fluid replaced every
two years.
Windshield washer system/head-
lamp cleaning system*
N20.30-2063-31
Warning
G
Windshield washer concentrate is highly
flammable. Fire, open flames and smoking
are prohibited when you are handling wind-
shield washer concentrate.

244 OperationCleaning and care of the vehicle
4
Windows
Headlamps
\1Wipe the headlamp lenses with a damp
sponge.Parktronic sensors*
The sensors are located in the front and
rear bumpers.
\1Clean the sensors in the bumpers using
water, shampoo and a soft cloth.
!
Do not use dry, coarse or hard cloths
and do not scrub. You will otherwise
scratch or damage the sensors.
If you clean the sensors with a high-pressu-
re cleaner or steam cleaner, observe the
information provided by the manufacturer
regarding the distance to be maintained
between the vehicle and the nozzle of the
high-pressure cleaner.
Rear view camera lens*
The rear view camera is located in the cen-
ter of the roof above the third brake lamp.
Rear view camera
!
CAUTION
Do not use a dry cloth, abrasive materi-
al, solvent or solvent-based cleaning
agent to clean the inside of the win-
dows. Clean the inside of the windows
with a damp cloth or a commercially
available glass cleaner. Do not touch
the inside of the rear and side windows
with hard objects, such as an ice scrap-
er or a ring. You could otherwise dam-
age the windows or the rear window
heating.
!
CAUTION
Only use washer fluid which is suitable
for plastic lamp lenses.
Unsuitable washer fluid may damage
the plastic headlamp lenses.
For this reason, do not use a dry cloth,
abrasive material, solvent or solvent-
based cleaning agent. You could other-
wise scratch or damage the lens sur-
face.
1Parktronic sensors
1Camera lens
2Microphone openings

257 Practical hints
What to do if ...
5

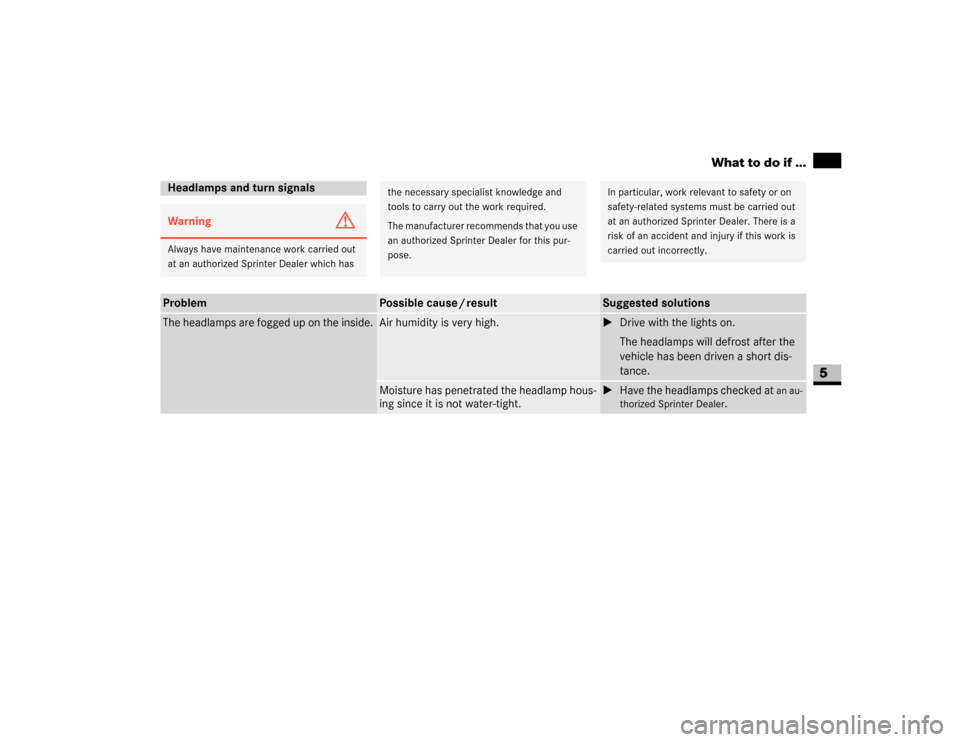

Headlamps and turn signalsWarning
G
Always have maintenance work carried out
at an authorized Sprinter Dealer which has
the necessary specialist knowledge and
tools to carry out the work required.
The manufacturer recommends that you use
an authorized Sprinter Dealer for this pur-
pose.
In particular, work relevant to safety or on
safety-related systems must be carried out
at an authorized Sprinter Dealer. There is a
risk of an accident and injury if this work is
carried out incorrectly.
Problem
Possible cause / result
Suggested solutions
The headlamps are fogged up on the inside.
Air humidity is very high.
\1Drive with the lights on.
The headlamps will defrost after the
vehicle has been driven a short dis-
tance.
Moisture has penetrated the headlamp hous-
ing since it is not water-tight.
\1Have the headlamps checked at
an au-
thorized Sprinter Dealer
.

280 Practical hintsWhat to do if ...
5

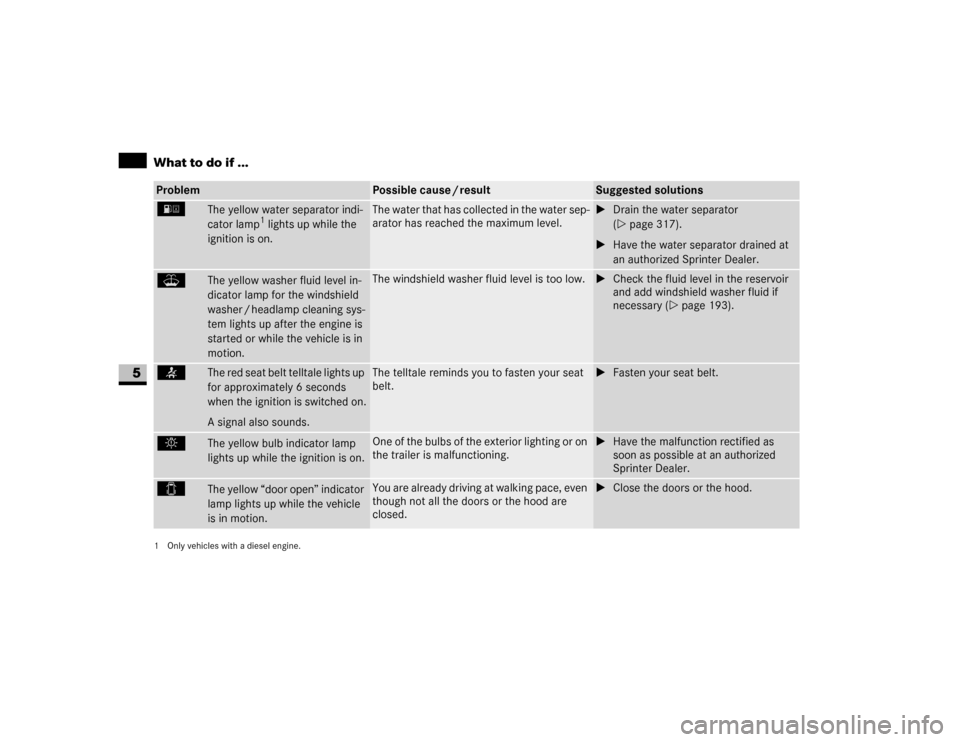

Problem
Possible cause / result
Suggested solutions
/
The yellow water separator indi-
cator lamp
1 lights up while the
ignition is on.
1 Only vehicles with a diesel engine.
The water that has collected in the water sep-
arator has reached the maximum level.
\1Drain the water separator
(\2page 317).
\1Have the water separator drained at
an authorized Sprinter Dealer.
W
The yellow washer fluid level in-
dicator lamp for the windshield
washer / headlamp cleaning sys-
tem lights up after the engine is
started or while the vehicle is in
motion.
The windshield washer fluid level is too low.
\1Check the fluid level in the reservoir
and add windshield washer fluid if
necessary (\2page 193).
<
The red seat belt telltale lights up
for approximately 6 seconds
when the ignition is switched on.
A signal also sounds.
The telltale reminds you to fasten your seat
belt.
\1Fasten your seat belt.
.
The yellow bulb indicator lamp
lights up while the ignition is on.
One of the bulbs of the exterior lighting or on
the trailer is malfunctioning.
\1Have the malfunction rectified as
soon as possible at an authorized
Sprinter Dealer.
9
The yellow “door open” indicator
lamp lights up while the vehicle
is in motion.
You are already driving at walking pace, even
though not all the doors or the hood are
closed.
\1Close the doors or the hood.

292 Practical hintsDisplay messages
5
Z
Coolant
Stop, turn engine
off
The coolant temperature is too high.
\1Do not drive any further.
\1Consult an authorized Sprinter Dealer.
If the vehicle is switched off after being
subjected to extreme loads (for example
driving in mountainous terrain, trailer tow-
ing, etc.), this message may be displayed
when the ignition is switched on or the en-
gine is restarted. Run the engine for approx-
imately 1 minute at idling speed.
Consult an authorized Sprinter Dealer if the
message remains displayed.
H
Coolant
Check level
The coolant level is too low.
Never run the engine if the coolant level
is too low. The engine could overheat and
be damaged.
\1Add coolant (\2page 191).
\1If you are having to add coolant frequent-
ly, have the cooling system checked at
an authorized Sprinter Dealer.
.
Low beam left
The left-hand low-beam headlamp is mal-
functioning.
\1Change the bulb as soon as possible.
Low beam right
The right-hand low-beam headlamp is
malfunctioning.
\1Change the bulb as soon as possible.
Turn signal left
The left-hand turn signal is malfunctioning.
\1Change the bulb as soon as possible.
Turn signal right
The right-hand turn signal is malfunction-
ing.
\1Change the bulb as soon as possible.
Brake lamp left
The left-hand brake lamp is malfunction-
ing.
\1Change the bulb as soon as possible.
Display symbol
Display message
Possible cause / result
Possible solution

293 Practical hints
Display messages
5
.

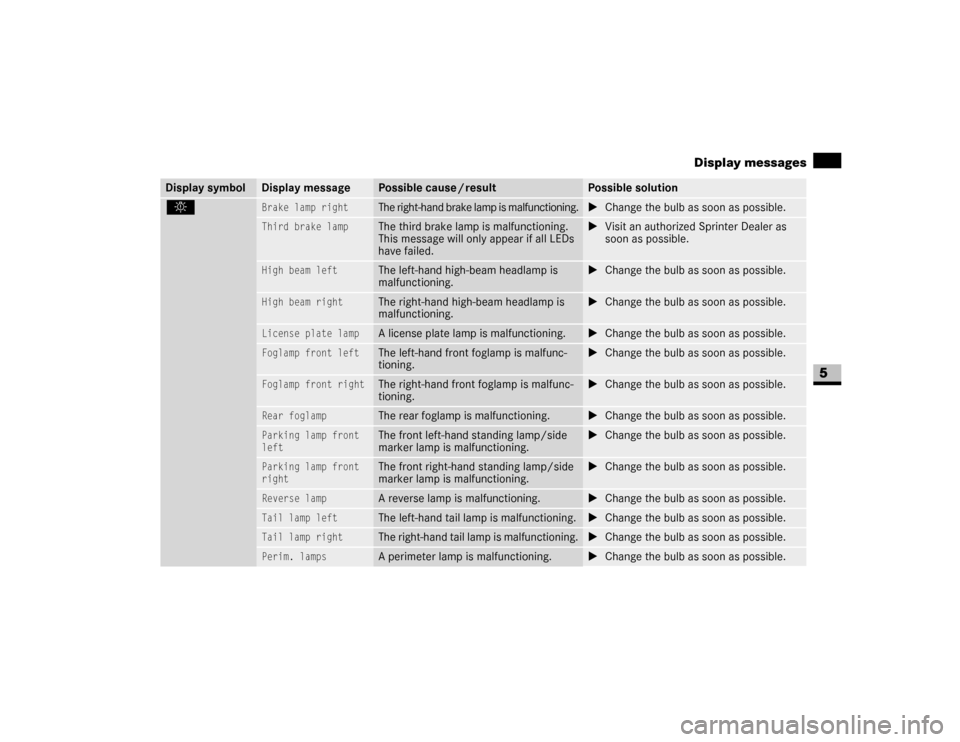

Brake lamp right
The right-hand brake lamp is malfunctioning.
\1Change the bulb as soon as possible.
Third brake lamp
The third brake lamp is malfunctioning.
This message will only appear if all LEDs
have failed.
\1Visit an authorized Sprinter Dealer as
soon as possible.
High beam left
The left-hand high-beam headlamp is
malfunctioning.
\1Change the bulb as soon as possible.
High beam right
The right-hand high-beam headlamp is
malfunctioning.
\1Change the bulb as soon as possible.
License plate lamp
A license plate lamp is malfunctioning.
\1Change the bulb as soon as possible.
Foglamp front left
The left-hand front foglamp is malfunc-
tioning.
\1Change the bulb as soon as possible.
Foglamp front right
The right-hand front foglamp is malfunc-
tioning.
\1Change the bulb as soon as possible.
Rear foglamp
The rear foglamp is malfunctioning.
\1Change the bulb as soon as possible.
Parking lamp front
left
The front left-hand standing lamp/side
marker lamp is malfunctioning.
\1Change the bulb as soon as possible.
Parking lamp front
right
The front right-hand standing lamp/side
marker lamp is malfunctioning.
\1Change the bulb as soon as possible.
Reverse lamp
A reverse lamp is malfunctioning.
\1Change the bulb as soon as possible.
Tail lamp left
The left-hand tail lamp is malfunctioning.
\1Change the bulb as soon as possible.
Tail lamp right
The right-hand tail lamp is malfunctioning.
\1Change the bulb as soon as possible.
Perim. lamps
A perimeter lamp is malfunctioning.
\1Change the bulb as soon as possible.
Display symbol
Display message
Possible cause / result
Possible solution

294 Practical hintsDisplay messages
5
.

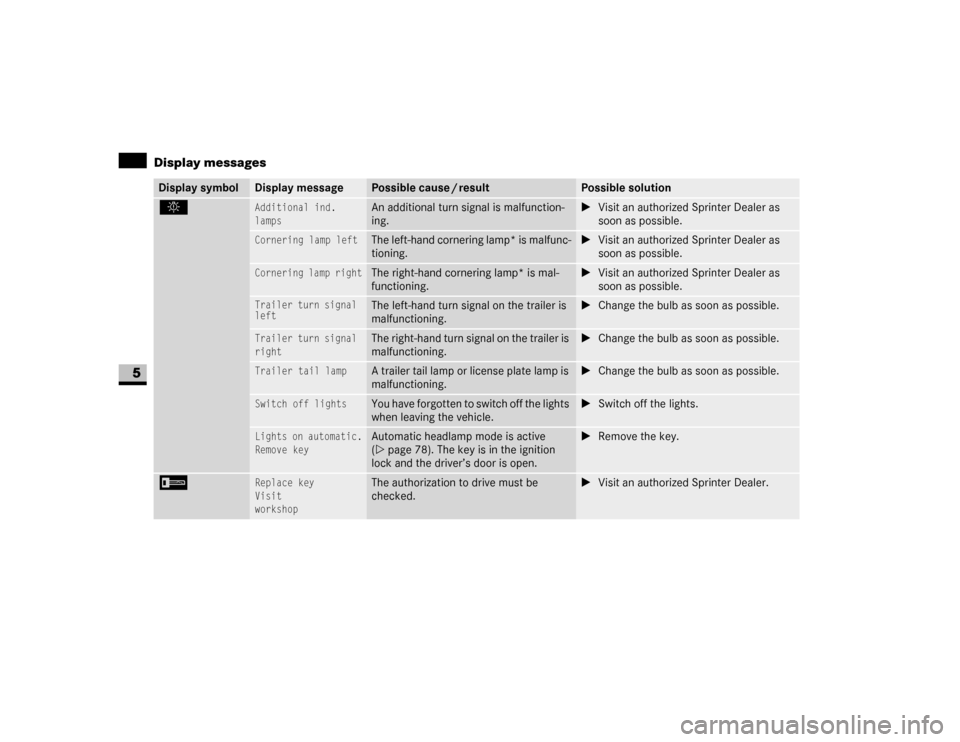

Additional ind.
lamps
An additional turn signal is malfunction-
ing.
\1Visit an authorized Sprinter Dealer as
soon as possible.
Cornering lamp left
The left-hand cornering lamp* is malfunc-
tioning.
\1Visit an authorized Sprinter Dealer as
soon as possible.
Cornering lamp right
The right-hand cornering lamp* is mal-
functioning.
\1Visit an authorized Sprinter Dealer as
soon as possible.
Trailer turn signal
left
The left-hand turn signal on the trailer is
malfunctioning.
\1Change the bulb as soon as possible.
Trailer turn signal
right
The right-hand turn signal on the trailer is
malfunctioning.
\1Change the bulb as soon as possible.
Trailer tail lamp
A trailer tail lamp or license plate lamp is
malfunctioning.
\1Change the bulb as soon as possible.
Switch off lights
You have forgotten to switch off the lights
when leaving the vehicle.
\1Switch off the lights.
Lights on automatic.
Remove key
Automatic headlamp mode is active
(\2page 78). The key is in the ignition
lock and the driver’s door is open.
\1Remove the key.
I
Replace key
Visit
workshop
The authorization to drive must be
checked.
\1Visit an authorized Sprinter Dealer.
Display symbol
Display message
Possible cause / result
Possible solution

306 Practical hintsChanging bulbs
5

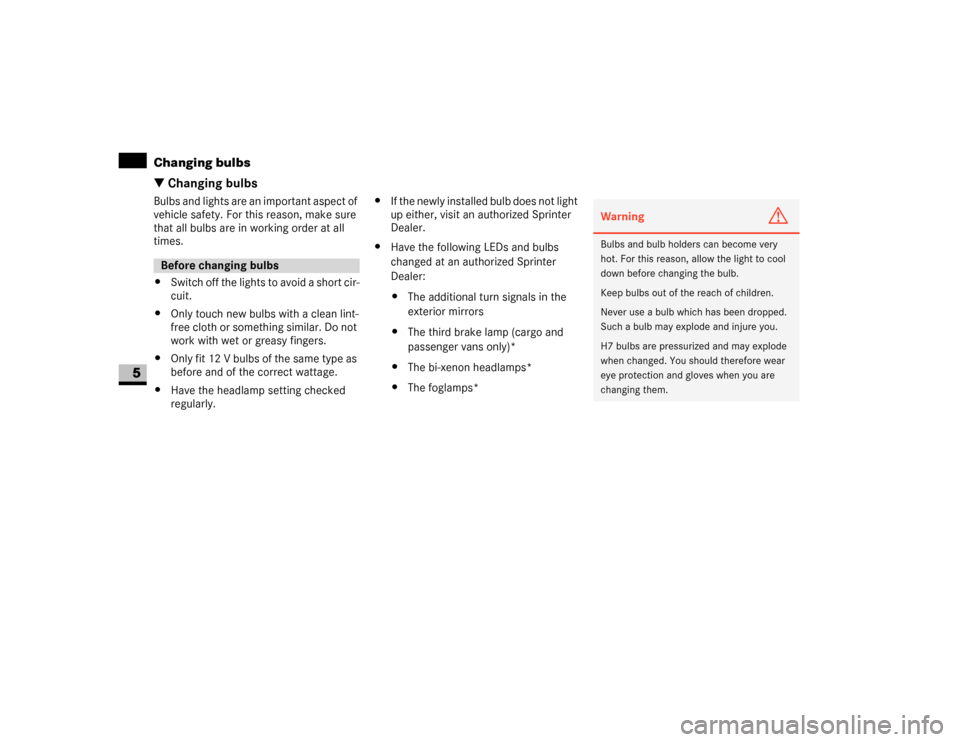

\3 Changing bulbsBulbs and lights are an important aspect of
vehicle safety. For this reason, make sure
that all bulbs are in working order at all
times.
\4Switch off the lights to avoid a short cir-
cuit.
\4Only touch new bulbs with a clean lint-
free cloth or something similar. Do not
work with wet or greasy fingers.
\4Only fit 12 V bulbs of the same type as
before and of the correct wattage.
\4Have the headlamp setting checked
regularly.\4If the newly installed bulb does not light
up either, visit an authorized Sprinter
Dealer.
\4Have the following LEDs and bulbs
changed at an authorized Sprinter
Dealer:
\4The additional turn signals in the
exterior mirrors
\4The third brake lamp (cargo and
passenger vans only)*
\4The bi-xenon headlamps*
\4The foglamps* Before changing bulbs
Warning
G
Bulbs and bulb holders can become very
hot. For this reason, allow the light to cool
down before changing the bulb.
Keep bulbs out of the reach of children.
Never use a bulb which has been dropped.
Such a bulb may explode and injure you.
H7 bulbs are pressurized and may explode
when changed. You should therefore wear
eye protection and gloves when you are
changing them.

307 Practical hints
Changing bulbs
5

\1Switch off the lighting.
\1Open the hood (\2page 185).

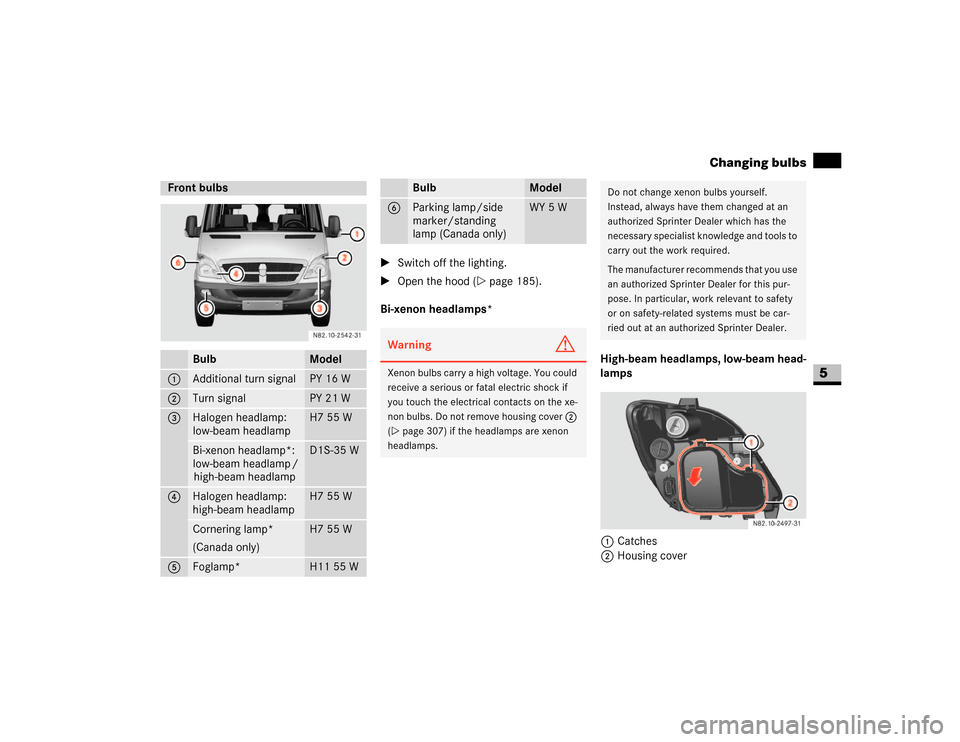

Bi-xenon headlamps*
High-beam headlamps, low-beam head-
lamps
1Catches
2Housing cover
Front bulbs
Bulb
Model
1
Additional turn signal
PY 16 W
2
Turn signal
PY 21 W
3
Halogen headlamp:
low-beam headlamp
H7 55 W
Bi-xenon headlamp*:
low-beam headlamp /
high-beam headlamp
D1S-35 W
4
Halogen headlamp:
high-beam headlamp
H7 55 W
Cornering lamp*
(Canada only)
H7 55 W
5
Foglamp*
H11 55 W
6
Parking lamp/side
marker/standing
lamp (Canada only)
WY 5 W
Warning
G
Xenon bulbs carry a high voltage. You could
receive a serious or fatal electric shock if
you touch the electrical contacts on the xe-
non bulbs. Do not remove housing cover 2
(\2page 307) if the headlamps are xenon
headlamps.
Bulb
Model
Do not change xenon bulbs yourself.
Instead, always have them changed at an
authorized Sprinter Dealer which has the
necessary specialist knowledge and tools to
carry out the work required.
The manufacturer recommends that you use
an authorized Sprinter Dealer for this pur-
pose. In particular, work relevant to safety
or on safety-related systems must be car-
ried out at an authorized Sprinter Dealer.
