Page 309 of 393

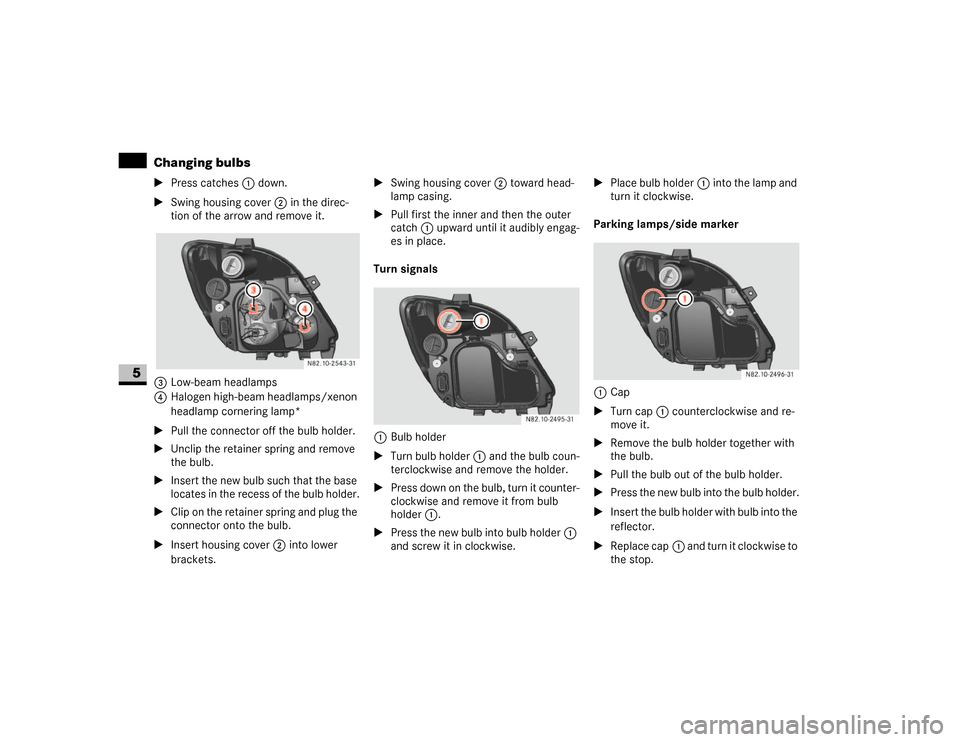

308 Practical hintsChanging bulbs
5
\1Press catches1 down.
\1Swing housing cover2 in the direc-
tion of the arrow and remove it.
3Low-beam headlamps
4Halogen high-beam headlamps/xenon
headlamp cornering lamp*
\1Pull the connector off the bulb holder.
\1Unclip the retainer spring and remove
the bulb.
\1Insert the new bulb such that the base
locates in the recess of the bulb holder.
\1Clip on the retainer spring and plug the
connector onto the bulb.
\1Insert housing cover 2 into lower
brackets.\1Swing housing cover 2 toward head-
lamp casing.
\1Pull first the inner and then the outer
catch1 upward until it audibly engag-
es in place.
Turn signals
1Bulb holder
\1Turn bulb holder1 and the bulb coun-
terclockwise and remove the holder.
\1Press down on the bulb, turn it counter-
clockwise and remove it from bulb
holder1.
\1Press the new bulb into bulb holder1
and screw it in clockwise.\1Place bulb holder1 into the lamp and
turn it clockwise.
Parking lamps/side marker
1Cap
\1Turn cap1 counterclockwise and re-
move it.
\1Remove the bulb holder together with
the bulb.
\1Pull the bulb out of the bulb holder.
\1Press the new bulb into the bulb holder.
\1Insert the bulb holder with bulb into the
reflector.
\1Replace cap1 and turn it clockwise to
the stop.
Page 348 of 393

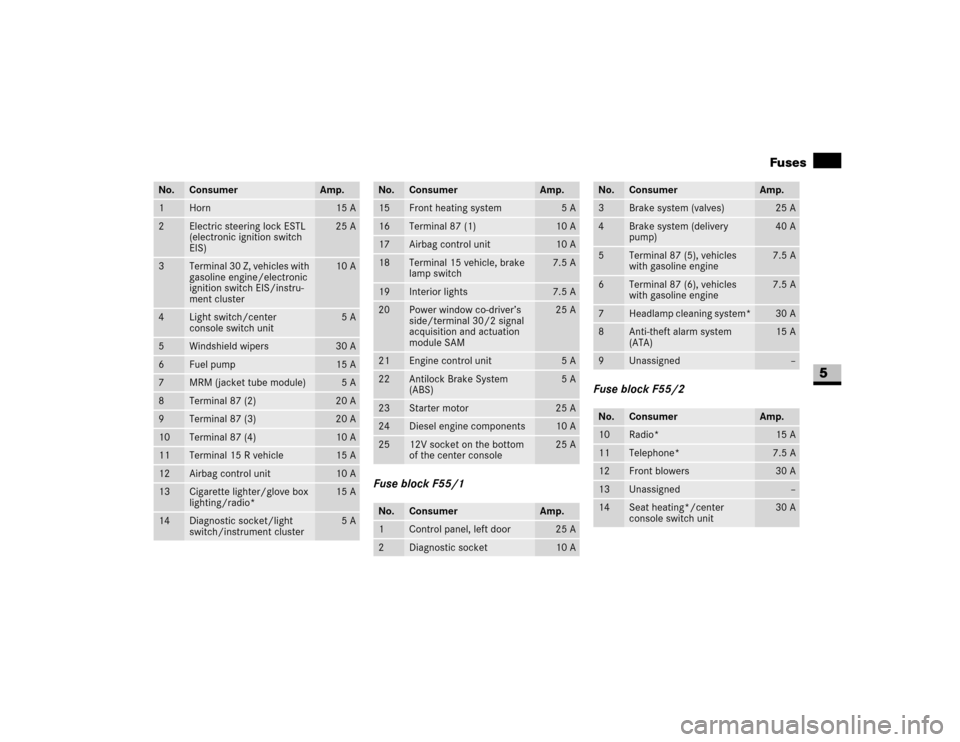

347 Practical hintsFuses
5
Fuse block F55/1Fuse block F55/2
No.
Consumer
Amp.
1
Horn
15 A
2
Electric steering lock ESTL
(electronic ignition switch
EIS)
25 A
3
Te rm ina l 30 Z , ve hi cle s wit h
gasoline engine/electronic
ignition switch EIS/instru-
ment cluster
10 A
4
Light switch/center
console switch unit
5A
5
Windshield wipers
30 A
6
Fuel pump
15 A
7
MRM (jacket tube module)
5A
8
Terminal 87 (2)
20 A
9
Terminal 87 (3)
20 A
10
Terminal 87 (4)
10 A
11
Terminal 15 R vehicle
15 A
12
Airbag control unit
10 A
13
Cigarette lighter/glove box
lighting/radio*
15 A
14
Diagnostic socket/light
switch/instrument cluster
5A
No.
Consumer
Amp.
15
Front heating system
5A
16
Terminal 87 (1)
10 A
17
Airbag control unit
10 A
18
Terminal 15 vehicle, brake
lamp switch
7.5 A
19
Interior lights
7.5 A
20
Power window co-driver’s
side/terminal 30/2 signal
acquisition and actuation
module SAM
25 A
21
Engine control unit
5A
22
Antilock Brake System
(ABS)
5A
23
Starter motor
25 A
24
Diesel engine components
10 A
25
12V socket on the bottom
of the center console
25 A
No.
Consumer
Amp.
1
Control panel, left door
25 A
2
Diagnostic socket
10 A
No.
Consumer
Amp.
3
Brake system (valves)
25 A
4
Brake system (delivery
pump)
40 A
5
Terminal 87 (5), vehicles
with gasoline engine
7.5 A
6
Terminal 87 (6), vehicles
with gasoline engine
7.5 A
7
Headlamp cleaning system*
30 A
8
Anti-theft alarm system
(ATA)
15 A
9
Unassigned
–
No.
Consumer
Amp.
10
Radio*
15 A
11
Telephone*
7.5 A
12
Front blowers
30 A
13
Unassigned
–
14
Seat heating*/center
console switch unit
30 A
Page 366 of 393
365 *Technical data
Service products and capacities
6
CapacitiesVehicle
Engine with
oil filter
Tank
Cooling
system
Windshield washer /
headlamp cleaning
system
Engine oil
Capacity
Including
reserve fuel
Coolant
1
1 Do not exceed a proportion of 55% by volume (antifreeze protection down to about -45 °C) as the heat dissipation properties deteriorate at higher concentrations.
Observe the Mercedes-Benz Specifications for Service Products, Sheet 310.
Water with MB windshield
washer fluid
2500 CRD, 3500 CRD
13.21 US qt.
(12.5 l)
25.0 US gal
(100 l)
5.3 US gal
(20 l)
10.75 US qt.
(10.0 l)
approx. 7.40 US qt. (7.0 l)
2500, 3500
10.04 US qt.
(9.5 l)
25.0 US gal
(100 l)
5.3 US gal
(20 l)
7.40 US qt.
(7.0 l)
approx. 7.40 US qt. (7.0 l)
Page 378 of 393
377
Numerics
12 V socket
. . . . . . . . . . . . . . . . . . . 170
A
ABS
see Antilock Brake System
Acceleration skid control (ASR)
. . . 44
activating/deactivating
. . . . . . . . . . 45
display message
. . . . . . . . . . . . . . 291
indicator lamp
. . . . . . . . . . . . 268
–270
malfunction
. . . . . . . . . . . . . . . . . . 270
warning lamp . . . . . . . . . . . . . . 44
, 268
Accessory weight
. . . . . . . . . . . . . . 228
Accident
. . . . . . . . . . . . . . . . . . . . . . 251
Additional turn signal lamp
. . . . . . 307
ADR
see Operating speed governor
Air conditioning in the rear . . . . . . 136
Air conditioning, regulated
refrigerant
. . . . . . . . . . . . . . . . . . . 362
Air pressure
see Tire inflation pressure
Air vents
air distribution
. . . . . . . . . . . . . . . . 133
in the rear
. . . . . . . . . . . . . . . . . . . 137
Airbag
co-driver's . . . . . . . . . . . . . . . . . . . . 33driver's
. . . . . . . . . . . . . . . . . . . . . . . 33
safety notes
. . . . . . . . . . . . . . . . . . . 31
thorax sidebag . . . . . . . . . . . . . . . . . 34
windowbag
. . . . . . . . . . . . . . . . . . . . 35
Air-conditioning system
see Tempmatic
Air-conditioning system in the rear
compartment
air cleaner . . . . . . . . . . . . . . . . . . . 240
Air-recirculation mode
air conditioning in the rear
. . . . . . . 136
rear heating
. . . . . . . . . . . . . . . . . . 136
Tempmatic . . . . . . . . . . . . . . . . . . . 133
Alarm
audible
. . . . . . . . . . . . . . . . . . . . . . 250
Anticorrosion/antifreeze fluid
. . . 363
Antilock Brake System (ABS)
. . . . . 42
display message
. . . . . . . . . . . . . . 285
indicator lamp
. . . . . . . 268
, 269
, 271
malfunction
. . . . . . . . . . . . . . . . . . 271
Anti-theft alarm system (ATA)
. . . . . 47
malfunction
. . . . . . . . . . . . . . . . . . 250
switching off the alarm
. . . . . . . . . . 47
Anti-theft system
immobilizer
. . . . . . . . . . . . . . . . . . . 47
see Anti-theft alarm
system (ATA)
Aquaplaning
see HydroplaningArmrest
. . . . . . . . . . . . . . . . . . . . . . . 72
Ashtray . . . . . . . . . . . . . . . . . . . . . . . 168
Aspect ratio
. . . . . . . . . . . . . . . . . . . 228
ASR
see Acceleration skid control
ASSYST
. . . . . . . . . . . . . . . . . . . . . . . 238
calling up the due date
vehicles with steering wheel
buttons
. . . . . . . . . . . . . . . . . . . . 239
vehicles without steering wheel but-
tons
. . . . . . . . . . . . . . . . . . . . . . 240
Attaching lashing straps
. . . . . . . . 158
Attaching locking rods
. . . . . . . . . . 158
Audible alarm
. . . . . . . . . . . . . . . . . 250
Automatic car wash
. . . . . . . . . . . . 242
headlamps
. . . . . . . . . . . . . . . . . . . 193
windshield . . . . . . . . . . . . . . . . . . . 193
Automatic headlamp control
. . . . . . 78
Automatic locking
. . . . . . . . . . . . . . . 64
entire vehicle
. . . . . . . . . . . . . . . . . . 65
rear doors
. . . . . . . . . . . . . . . . . . . . 65
Automatic transmission
. . . . . . . . . 121
accelerator pedal position . . . . . . . 123
changing gear yourself
. . . . . . . . . . 122
driving tips
. . . . . . . . . . . . . . . . . . . 123
fluid
. . . . . . . . . . . . . . . . . . . . . . . . 362
gearshift pattern
. . . . . . . . . . . . . . 121
kickdown
. . . . . . . . . . . . . . . . . . . . 123
malfunctions
. . . . . . . . . . . . . . . . . 256
Index
A
Page 379 of 393
378 Indexmaneuvering
. . . . . . . . . . . . . . . . . 124
one-touch gearshifting
. . . . . . . . . . 122
releasing the parking lock manually
305
selector lever positions
. . . . . . . . . 121
shift ranges
. . . . . . . . . . . . . . . . . . 123
stopping
. . . . . . . . . . . . . . . . . . . . . 124
towing
. . . . . . . . . . . . . . . . . . . . . . 343
trailer towing
. . . . . . . . . . . . . . . . . 124
working on the vehicle
. . . . . . . . . . 124
Auxiliary heating
. . . . . . . . . . . . . . . 139
heater booster function
. . . . . . . . . 137
malfunctions
. . . . . . . . . . . . . . . . . 264
with water heater
changing the remote control
batteries
. . . . . . . . . . . . . . . . . . . 316
remote control
. . . . . . . . . . . . . . 141
selecting a switch-on time
. . . . . 142
setting the switch-on time . . . . . 143
B
Bar
. . . . . . . . . . . . . . . . . . . . . . . . . . 228
BAS
see Brake Assist
Battery
auxiliary
. . . . . . . . . . . . . . . . . . . . . 337
charge indicator lamp
. . . . . . . . . . 273check lamp (auxiliary heating remote
control)
. . . . . . . . . . . . . . . . . . . . . 141
display message
. . . . . . . . . . . . . . . 289
in the auxiliary heating remote
control
. . . . . . . . . . . . . . . . . . . . . . 316
in the engine compartment
. . . . . . 337
in the key
. . . . . . . . . . . . . . . . . . . . 315
indicator lamp (key)
. . . . . . . . . . . . . 53
isolating switch
. . . . . . . . . . . . . . . 197
recharging
. . . . . . . . . . . . . . . . . . . 339
reconnecting . . . . . . . . . . . . . . . . . 339
removing
. . . . . . . . . . . . . . . . . . . . 337
safety notes . . . . . . . . . . . . . . . . . . 195
starter battery
disconnecting
. . . . . . . . . . . . . . . 336
Bead
. . . . . . . . . . . . . . . . . . . . . . . . . 228
Belt force limiters
. . . . . . . . . . . . . . . 30
Bi-xenon headlamps . . . . . . . . . . . . 307
driving abroad
. . . . . . . . . . . . . . . . 180
Body builder guideline
. . . . . . . . . . . . 6
Bottle holder
see Cup holders
Brake Assist (BAS)
. . . . . . . . . . . . . . 43
display message
. . . . . . . . . . . . . . . 291
indicator lamp
. . . . . . . 268
, 269
, 270
malfunction
. . . . . . . . . . . . . . . . . . 270Brake fluid
. . . . . . . . . . . . . . . . . . . . 362
checking the brake fluid level
. . . . 192
display message
. . . . . . . . . . . . . . . 290
Brake lamp
. . . . . . . . . . . . . . . . . . . . 309
changing bulbs
. . . . . . . . . . . . . . . . 310
high-mounted third brake lamp
. . . 309
Brake pads/linings
display message
. . . . . . . . . . . . . . . 289
wear indicator
. . . . . . . . . . . . . . . . 273
Brake system
brake pad/lining wear
indicator
. . . . . . . . . . . . . . . . . 273
, 289
indicator lamp
. . . . . . . . . . . . 268
–269
malfunction
. . . . . . . . . 270
, 271
, 291
Braking
driving tips
. . . . . . . . . . . . . . . . . . . 113
Breaking in . . . . . . . . . . . . . . . . . . . . 174
Bulbs
changing
see Changing bulbs
display message
. . . . . . . . . . . 292
, 293
C
Capacities
. . . . . . . . . . . . . . . . . . . . 365
Cards holder . . . . . . . . . . . . . . . . . . 165
Care
. . . . . . . . . . . . . . . . . . . . . . . . . 241
automatic car wash
. . . . . . . . . . . . 242
B
C
Page 380 of 393
379 Index
Care of batteries
. . . . . . . . . . . . . . . 196
Care of the vehicle . . . . . . . . . . . . . 241
after driving off-road or on
construction sites . . . . . . . . . . . . . 246
Carrier systems
. . . . . . . . . . . 162
, 372
Catalytic converter
. . . . . . . . . . . . . 181
CD player/CD changer
. . . . . . . . . . . 94
Cell phone
. . . . . . . . . . . . . . . . . . . . 171
Center console
. . . . . . . . . . . . . . . . . 18
switch unit
. . . . . . . . . . . . . . . . . . . . 20
Central locking
locking/unlocking
. . . . . . . . . . . . . . 52
(from the inside)
. . . . . . . . . . . . . . . 63
Central locking system
malfunctions
. . . . . . . . . . . . . . . . . 259
Certification label
. . . . . . . . . . . . . . 209
Changing bulbs
. . . . . . . . . . . . . . . . 306
clearance lamp . . . . . . . . . . . . . . . 312
headlamps
. . . . . . . . . . . . . . . . . . . 308
identification lamps
. . . . . . . . 311
, 313
interior lamp
. . . . . . . . . . . . . . . . . 314
license plate lamp
. . . . . . . . . . . . . 312
rear lamp units
chassis
. . . . . . . . . . . . . . . . . . . . 310
panel van/crewbus
. . . . . . . . . . 310
side marker lamps
. . . . . . . . . . . . . 312Checking tire pressure electronically
with the Advanced Tire Pressure
Monitoring System
(Advanced TPMS)
. . . . . . . . . . . . . . 217
Checking tire pressure electronically
with the Tire Pressure Monitoring
System (TPMS)
. . . . . . . . . . . . . . . . 214
Checks, regular . . . . . . . . . . . . . . . . 181
Children
in the vehicle
. . . . . . . . . . . . . . . . . . 36
ISOFIX seat securing system
. . . . . . 39
LATCH type child restraint system
. 39
restraint systems
. . . . . . . . . . . . . . . 37
Chock
. . . . . . . . . . . . . . . . . . . . . . . . 303
Cigarette lighter
. . . . . . . . . . . . . . . 169
Cleaning
. . . . . . . . . . . . . . . . . . . . . . 241
after driving off-road or
on construction sites
. . . . . . . . . . . 246
air cleaner element
. . . . . . . . . . . . 240
cockpit
. . . . . . . . . . . . . . . . . . . . . . 245
headlamps
. . . . . . . . . . . . . . . . . . . 244
padded boss of the steering wheel
245
rear view camera lens
. . . . . . . . . . 244
rear window
. . . . . . . . . . . . . . . . . . 244
side windows . . . . . . . . . . . . . . . . . 244
vehicle
. . . . . . . . . . . . . . . . . . . . . . 242
windshield . . . . . . . . . . . . . . . . . . . 243
windshield wipers
. . . . . . . . . . . . . 243Clearance lamp
changing bulbs
. . . . . . . . . . . . . . . . 312
see identification lamp
. . . . . . . . . . 311
Clock
setting
vehicles with steering wheel
buttons
. . . . . . . . . . . . . . . . . . . . 101
vehicles without steering wheel
buttons . . . . . . . . . . . . . . . . . . . . . 88
Cockpit
. . . . . . . . . . . . . . . . . . . . . . . . 12
Co-driver's seat
foldable . . . . . . . . . . . . . . . . . . . . . . 74
Cold tire inflation pressure
. . . . . . 228
COMAND
see the separate Operating Instructions
Comfort seat
. . . . . . . . . . . . . . . . . . . 69
Constant headlamp mode
. . . . . . . 102
Consumption statistics
(vehicles with steering wheel
buttons)
. . . . . . . . . . . . . . . . . . . . . . 106
Coolant . . . . . . . . . . . . . . . . . . . . . . . 363
adding . . . . . . . . . . . . . . . . . . . . . . 191
anticorrosion/antifreeze fluid
. . . . 363
display message
. . . . . . . . . . . . . . 292
temperature
. . . . . . . . . . . . . . . . . . 120
temperature display
(vehicle with steering wheel
buttons)
. . . . . . . . . . . . . . . . . . . . . . 93
Page 382 of 393

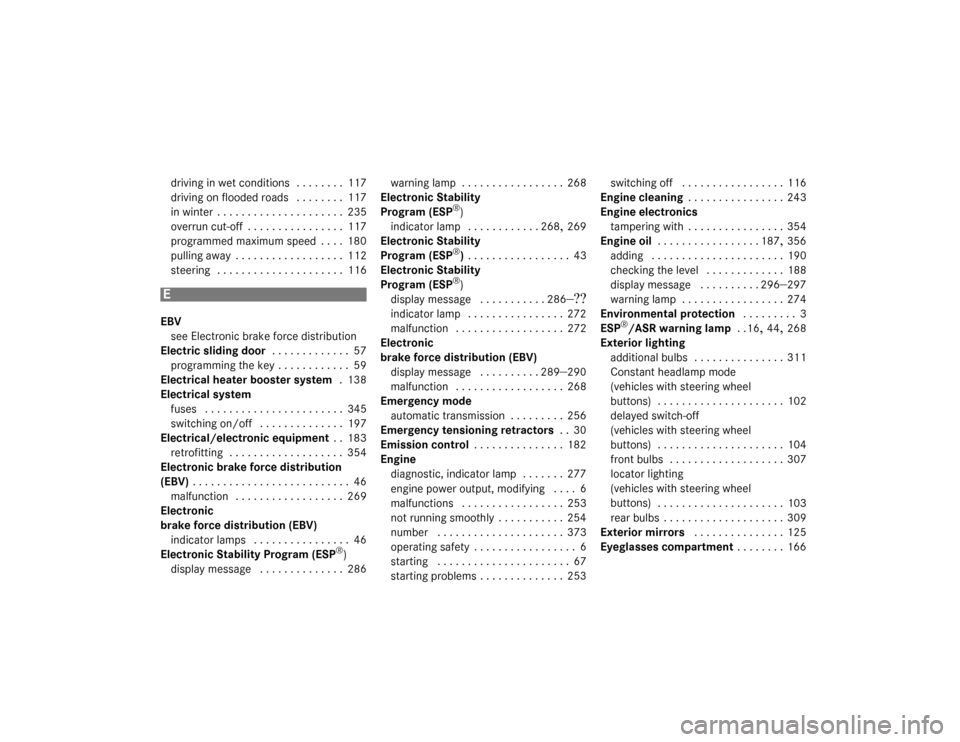

381 Index
driving in wet conditions
. . . . . . . . 117
driving on flooded roads . . . . . . . . 117
in winter
. . . . . . . . . . . . . . . . . . . . . 235
overrun cut-off
. . . . . . . . . . . . . . . . 117
programmed maximum speed
. . . . 180
pulling away
. . . . . . . . . . . . . . . . . . 112
steering
. . . . . . . . . . . . . . . . . . . . . 116
E
EBV
see Electronic brake force distribution
Electric sliding door
. . . . . . . . . . . . . 57
programming the key . . . . . . . . . . . . 59
Electrical heater booster system
. 138
Electrical system
fuses
. . . . . . . . . . . . . . . . . . . . . . . 345
switching on/off
. . . . . . . . . . . . . . 197
Electrical/electronic equipment
. . 183
retrofitting
. . . . . . . . . . . . . . . . . . . 354
Electronic brake force distribution
(EBV)
. . . . . . . . . . . . . . . . . . . . . . . . . . 46
malfunction
. . . . . . . . . . . . . . . . . . 269
Electronic
brake force distribution (EBV)
indicator lamps
. . . . . . . . . . . . . . . . 46
Electronic Stability Program (ESP
®)
display message
. . . . . . . . . . . . . . 286warning lamp
. . . . . . . . . . . . . . . . . 268
Electronic Stability
Program (ESP®)
indicator lamp . . . . . . . . . . . . 268
, 269
Electronic Stability
Program (ESP
®) . . . . . . . . . . . . . . . . . 43
Electronic Stability
Program (ESP
®)
display message . . . . . . . . . . . 286
–??
indicator lamp
. . . . . . . . . . . . . . . . 272
malfunction
. . . . . . . . . . . . . . . . . . 272
Electronic
brake force distribution (EBV)
display message
. . . . . . . . . . 289
–290
malfunction
. . . . . . . . . . . . . . . . . . 268
Emergency mode
automatic transmission
. . . . . . . . . 256
Emergency tensioning retractors
. . 30
Emission control
. . . . . . . . . . . . . . . 182
Engine
diagnostic, indicator lamp
. . . . . . . 277
engine power output, modifying
. . . . 6
malfunctions
. . . . . . . . . . . . . . . . . 253
not running smoothly
. . . . . . . . . . . 254
number
. . . . . . . . . . . . . . . . . . . . . 373
operating safety
. . . . . . . . . . . . . . . . . 6
starting
. . . . . . . . . . . . . . . . . . . . . . 67
starting problems
. . . . . . . . . . . . . . 253switching off
. . . . . . . . . . . . . . . . . 116
Engine cleaning . . . . . . . . . . . . . . . . 243
Engine electronics
tampering with . . . . . . . . . . . . . . . . 354
Engine oil
. . . . . . . . . . . . . . . . . 187
, 356
adding
. . . . . . . . . . . . . . . . . . . . . . 190
checking the level
. . . . . . . . . . . . . 188
display message
. . . . . . . . . . 296
–297
warning lamp
. . . . . . . . . . . . . . . . . 274
Environmental protection
. . . . . . . . . 3
ESP
®/ASR warning lamp
. .16
, 44
, 268
Exterior lighting
additional bulbs
. . . . . . . . . . . . . . . 311
Constant headlamp mode
(vehicles with steering wheel
buttons)
. . . . . . . . . . . . . . . . . . . . . 102
delayed switch-off
(vehicles with steering wheel
buttons) . . . . . . . . . . . . . . . . . . . . . 104
front bulbs . . . . . . . . . . . . . . . . . . . 307
locator lighting
(vehicles with steering wheel
buttons)
. . . . . . . . . . . . . . . . . . . . . 103
rear bulbs . . . . . . . . . . . . . . . . . . . . 309
Exterior mirrors
. . . . . . . . . . . . . . . 125
Eyeglasses compartment
. . . . . . . . 166
E
Page 383 of 393
382 IndexF
Fastening seat belts
see Wearing seat belts
Fault memory
see Malfunction memory
Fax machine
. . . . . . . . . . . . . . . . . . 183
Fire extinguisher
. . . . . . . . . . . . . . . 299
First-aid kit
. . . . . . . . . . . . . . . . . . . 299
Flat tire
changing a wheel
. . . . . . . . . . . . . . 320
Premium tire sealant . . . . . . . . . . . 326
Flow improvers
. . . . . . . . . . . . . . . . 361
Folding seat
. . . . . . . . . . . . . . . . . . . . 74
Folding table in the backrest
. . . . . 166
Front foglamps
. . . . . . . . . .77
, 79
, 307
changing bulbs
. . . . . . . . . . . . . . . . 307
Fuel
gauge
. . . . . . . . . . . . . . . . . . . . . . . . 86
line
. . . . . . . . . . . . . . . . . . . . . 251
, 252
loss
. . . . . . . . . . . . . . . . . . . . 251
, 252
malfunctions
. . . . . . . . . . . . . . . . . 252
see Gasoline or Diesel
Fuel filter with
water separator
draining
. . . . . . . . . . . . . . . . . . . . . 317
Fuel requirements
diesel engine
. . . . . . . . . . . . . . . . . 359gasoline engine
. . . . . . . . . . . . . . . 359
Fuse box
in the driver's seat . . . . . . . . . . . . . 348
main
. . . . . . . . . . . . . . . . . . . . . . . . 345
Fuse chart
. . . . . . . . . . . . . . . . . . . . 345
fuses in the driver’s seat base
. . . . 349
Fuses
. . . . . . . . . . . . . . . . . . . . . . . . 345
G
Gasoline
. . . . . . . . . . . . . . . . . . . . . . 358
consumption
. . . . . . . . . . . . . . . . . 366
reserve fuel warning lamp
. . . . . . . 276
tank capacity
. . . . . . . . . . . . . . . . . 365
Gauge
vehicles without steering wheel buttons
standard display
. . . . . . . . . . . . . . 87
GAWR
. . . . . . . . . . . . . . . . . . . . . . . . 229
Gear oil . . . . . . . . . . . . . . . . . . . . . . . 364
Glove box . . . . . . . . . . . . . . . . . . . . . 165
ventilated . . . . . . . . . . . . . . . . . . . . 136
Gross Axle Weight Rating
see GAWR
Gross Trailer Weight
see GTW
Gross Vehicle Weight
see GVWGross Vehicle Weight Rating
see GVWR
GTW
. . . . . . . . . . . . . . . . . . . . . . . . . 229
GVW . . . . . . . . . . . . . . . . . . . . . . . . . 229
GVWR . . . . . . . . . . . . . . . . . . . . . . . . 229
H
Handbrake
. . . . . . . . . . . . . . . . . . . . 115
applying
. . . . . . . . . . . . . . . . . . . . . 114
display message
. . . . . . . . . . . . . . . 290
emergency braking . . . . . . . . . . . . 115
indicator lamp
. . . . . . . . . . . . . . . . 114
releasing
. . . . . . . . . . . . . . . . . . . . . 115
Hazard warning lamps
. . . . . . . . . . . 80
switching on
. . . . . . . . . . . . . . . . . . . 80
Head restraints . . . . . . . . . . . . . . . . . 72
removing
. . . . . . . . . . . . . . . . . . . . . 73
Headlamp flasher
. . . . . . . . . . . . 77
, 78
Headlamps
bulbs
. . . . . . . . . . . . . . . . . . . . . . . 307
cleaning . . . . . . . . . . . . . . . . . . . . . 244
cleaning system
. . . . . . . . . . . 127
, 193
indicator lamp
. . . . . . . . . . . . . . . 280
fogged-up
. . . . . . . . . . . . . . . . . . . . 257
malfunctions . . . . . . . . . . . . . . . . . 257
Heated
rear window . . . . . . . . . . . . . . . . . . 128
GH F
Page 384 of 393
383 Index
seats
. . . . . . . . . . . . . . . . . . . . . . . . 73
windshield
. . . . . . . . . . . . . . . . . . . 127
Heater booster function
. . . . . . . . 137
Heater booster system
. . . . . . . . . 138
Heating
rear window
. . . . . . . . . . . . . . . . . . 128
seat
. . . . . . . . . . . . . . . . . . . . . . . . . 73
windshield
. . . . . . . . . . . . . . . 127
, 134
High-beam headlamps
. . . . . . . 77
, 307
changing bulbs
. . . . . . . . . . . . . . . 307
High-pressure cleaners
. . . . . . . . . 242
Hood
. . . . . . . . . . . . . . . . . . . . . . . . . 185
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Hydroplaning
. . . . . . . . . . . . . . . . . . 118
I
Identification lamps
. . . . . . . . . . . . 311
changing bulbs
. . . . . . . . . . . 311
, 313
Ignition lock
. . . . . . . . . . . . . . . . . . . 67
Immobilizer . . . . . . . . . . . . . . . . . . . . 47
Indicator
vehicles with steering wheel buttons
Service due date
. . . . . . . . . . . . 238
vehicles without steering wheel buttons
service due date . . . . . . . . . . . . . 239
Indicator and warning lamps
brake system
. . . . . . . . . . . . . . . . . 269braking
. . . . . . . . . . . . . . . . . . . 268
–??
engine oil level
. . . . . . . . . . . . . . . . 274
seat belt
. . . . . . . . . . . . . . . . . . . . . 280
seat belt reminder
. . . . . . . . . . . . . 280
SRS
. . . . . . . . . . . . . . . . . . . . . . . . 272
water separator
. . . . . . . . . . . . . . . 280
Indicator lamp
ABS
. . . . . . . . . . . . . . . . . . . . . . . . 271
ASR . . . . . . . . . . . . . . . 268
, 269
, 270
BAS
. . . . . . . . . . . . . . . 268
, 269
, 270
battery charge
. . . . . . . . . . . . . . . . 273
brake pad/lining wear
. . . . . . . . . . 273
coolant
. . . . . . . . . . . . . . . . . . . . . . 275
engine diagnostic
. . . . . . . . . . . . . . 277
ESP
® . . . . . . . . . . . . . . 268
, 269
, 272
handbrake
. . . . . . . . . . . . . . . . . . . 114
operating speed governor (ADR)
. . 154
poly-V-belt
. . . . . . . . . . . . . . . . . . . 273
preglow
. . . . . . . . . . . . . . . . . 111
, 276
reserve warning indicator (fuel)
. . . 276
windshield washer/headlamp cleaning
system washer fluid level
. . . . . . . . 280
Inflation pressure
see Tires, Inflation pressures
Information regarding electronic
recording devices
. . . . . . . . . . . . . . . 10
Instrument cluster . . . . . . . . . . . 14
, 84
lighting
. . . . . . . . . . . . . . . . . . . . . . . 85speedometer
. . . . . . . . . . . . . . . . . . 85
tachometer
. . . . . . . . . . . . . . . . . . . 85
vehicles with steering wheel buttons
selecting the language
. . . . . . . . 100
setting the status line . . . . . . . . . 100
Instrument lighting
. . . . . . . . . . . . . . 85
Interior lighting
changing bulbs
. . . . . . . . . . . . . . . . 314
front
. . . . . . . . . . . . . . . . . . . . . . . . . 80
rear . . . . . . . . . . . . . . . . . . . . . . . . . 82
Interior lighting, rear
. . . . . . . . . . . . 82
Interior motion sensor . . . . . . . . . . . 49
Intermittent wipe
. . . . . . . . . . . . . . 126
ISOFIX child seat securing system
. 39
TopTether
. . . . . . . . . . . . . . . . . . . . . 41
J
Jack
jacking points
. . . . . . . . . . . . . . . . 322
preparing
. . . . . . . . . . . . . . . . . . . . 322
storage location
. . . . . . . . . . . . . . . 300
Jump-starting
. . . . . . . . . . . . . . . . . 340
connection point
. . . . . . . . . . . . . . 340
Jump-starting connection point
. . 340
I
J
Page 385 of 393

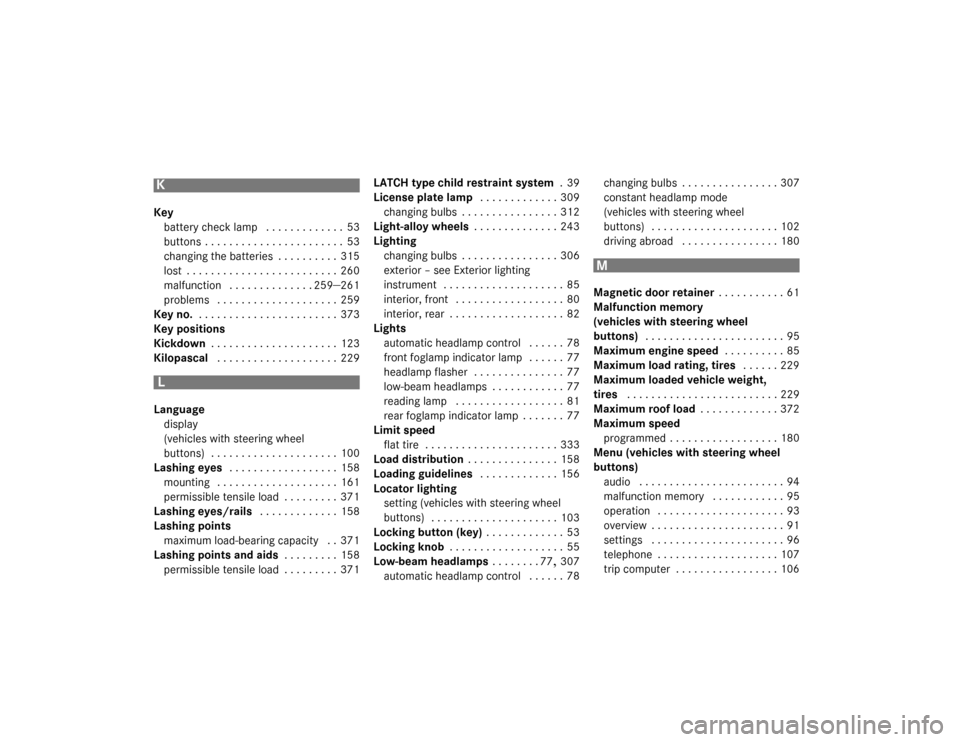

384 IndexK
Key
battery check lamp
. . . . . . . . . . . . . 53
buttons
. . . . . . . . . . . . . . . . . . . . . . . 53
changing the batteries
. . . . . . . . . . 315
lost
. . . . . . . . . . . . . . . . . . . . . . . . . 260
malfunction
. . . . . . . . . . . . . . 259
–261
problems
. . . . . . . . . . . . . . . . . . . . 259
Key no.
. . . . . . . . . . . . . . . . . . . . . . . 373
Key positions
Kickdown . . . . . . . . . . . . . . . . . . . . . 123
Kilopascal . . . . . . . . . . . . . . . . . . . . 229
L
Language
display
(vehicles with steering wheel
buttons)
. . . . . . . . . . . . . . . . . . . . . 100
Lashing eyes . . . . . . . . . . . . . . . . . . 158
mounting
. . . . . . . . . . . . . . . . . . . . 161
permissible tensile load
. . . . . . . . . 371
Lashing eyes/rails
. . . . . . . . . . . . . 158
Lashing points
maximum load-bearing capacity
. . 371
Lashing points and aids
. . . . . . . . . 158
permissible tensile load . . . . . . . . . 371LATCH type child restraint system
. 39
License plate lamp
. . . . . . . . . . . . . 309
changing bulbs
. . . . . . . . . . . . . . . . 312
Light-alloy wheels . . . . . . . . . . . . . . 243
Lighting
changing bulbs
. . . . . . . . . . . . . . . . 306
exterior – see Exterior lighting
instrument
. . . . . . . . . . . . . . . . . . . . 85
interior, front . . . . . . . . . . . . . . . . . . 80
interior, rear . . . . . . . . . . . . . . . . . . . 82
Lights
automatic headlamp control
. . . . . . 78
front foglamp indicator lamp . . . . . . 77
headlamp flasher
. . . . . . . . . . . . . . . 77
low-beam headlamps
. . . . . . . . . . . . 77
reading lamp
. . . . . . . . . . . . . . . . . . 81
rear foglamp indicator lamp
. . . . . . . 77
Limit speed
flat tire
. . . . . . . . . . . . . . . . . . . . . . 333
Load distribution
. . . . . . . . . . . . . . . 158
Loading guidelines . . . . . . . . . . . . . 156
Locator lighting
setting (vehicles with steering wheel
buttons)
. . . . . . . . . . . . . . . . . . . . . 103
Locking button (key)
. . . . . . . . . . . . . 53
Locking knob
. . . . . . . . . . . . . . . . . . . 55
Low-beam headlamps
. . . . . . . . 77
, 307
automatic headlamp control
. . . . . . 78changing bulbs
. . . . . . . . . . . . . . . . 307
constant headlamp mode
(vehicles with steering wheel
buttons)
. . . . . . . . . . . . . . . . . . . . . 102
driving abroad
. . . . . . . . . . . . . . . . 180
M
Magnetic door retainer
. . . . . . . . . . . 61
Malfunction memory
(vehicles with steering wheel
buttons)
. . . . . . . . . . . . . . . . . . . . . . . 95
Maximum engine speed
. . . . . . . . . . 85
Maximum load rating, tires . . . . . . 229
Maximum loaded vehicle weight,
tires
. . . . . . . . . . . . . . . . . . . . . . . . . 229
Maximum roof load
. . . . . . . . . . . . . 372
Maximum speed
programmed
. . . . . . . . . . . . . . . . . . 180
Menu (vehicles with steering wheel
buttons)
audio
. . . . . . . . . . . . . . . . . . . . . . . . 94
malfunction memory
. . . . . . . . . . . . 95
operation
. . . . . . . . . . . . . . . . . . . . . 93
overview . . . . . . . . . . . . . . . . . . . . . . 91
settings . . . . . . . . . . . . . . . . . . . . . . 96
telephone . . . . . . . . . . . . . . . . . . . . 107
trip computer
. . . . . . . . . . . . . . . . . 106
LM K
