579 Practical hints
Battery
5
\1
Pull retainer
3
upward and slide the
battery out of its anchorage in the di-
rection of travel.
\1
Fold the clip upward and remove the
battery from the battery recess.
Auxiliary battery* in the engine com-
partment
\1
Disconnect the battery
(\2
page 577).
\1
Unscrew the bolts preventing the
battery from moving around in the
engine compartment.
\1
Remove the battery retainer and
take out the battery.
\1
Recharge the removed battery. Ob-
serve the notes in the operating in-
structions for your battery charger.
\1
Reinstall the battery in the reverse
order.Recharging the battery!
CAUTION
Only charge the installed battery us-
ing a battery charger tested and ap-
proved by the manufacturer. These
devices allow you to charge the bat-
tery while it is installed. The vehicle’s
electronics system may otherwise be
damaged.
nf_BA.book Page 579 Friday, January 25, 2008 3:53 PM
Page 582 of 666
580 Practical hintsBattery
5
\1
Switch off all electrical consumers.
\1
Connect the positive terminal and
secure the cover.
\1
Connect the negative terminal.

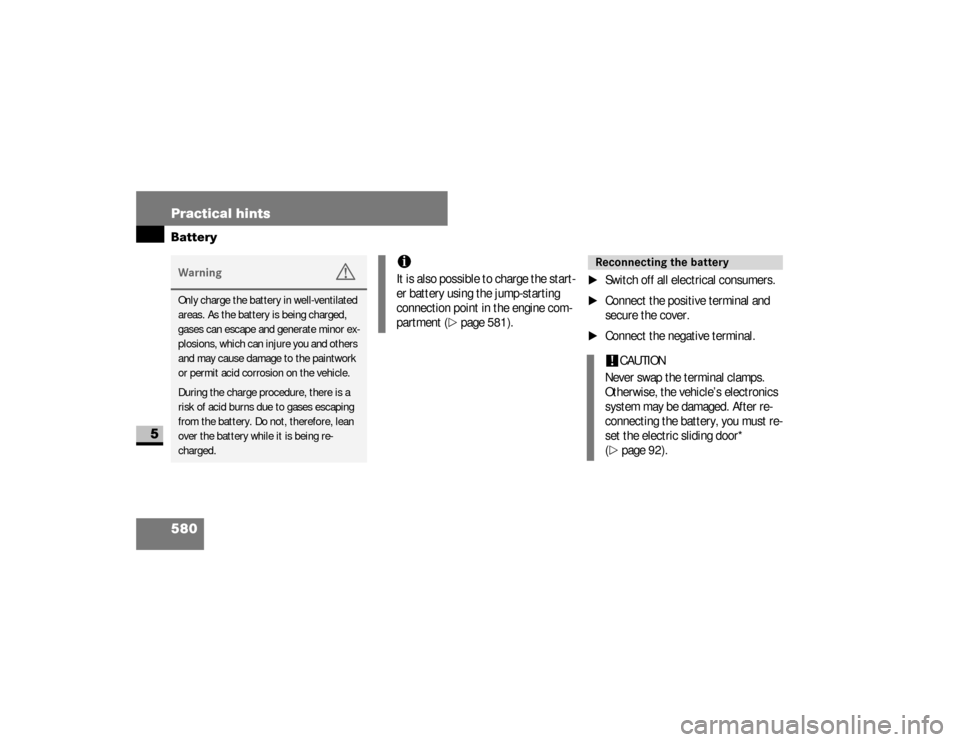

Warning
G
Only charge the battery in well-ventilated
areas. As the battery is being charged,
gases can escape and generate minor ex-
plosions, which can injure you and others
and may cause damage to the paintwork
or permit acid corrosion on the vehicle.
During the charge procedure, there is a
risk of acid burns due to gases escaping
from the battery. Do not, therefore, lean
over the battery while it is being re-
charged.
iIt is also possible to charge the start-
er battery using the jump-starting
connection point in the engine com-
partment (
\2
page 581).
Reconnecting the battery!
CAUTION
Never swap the terminal clamps.
Otherwise, the vehicle’s electronics
system may be damaged. After re-
connecting the battery, you must re-
set the electric sliding door*
(\2
page 92).
nf_BA.book Page 580 Friday, January 25, 2008 3:53 PM
Page 583 of 666
581 Practical hints
Jump-starting
5
\3 Jump-startingIf the starter battery in the battery re-
cess in the driver’s footwell is dis-
charged, the engine can be jump-started
from another vehicle using jump leads.
For this purpose, the vehicle is equipped
with a jump-starting connection point.
Please note:
\4
Jump-starting must only be per-
formed when the engine and catalyt-
ic converter are cold.
\4
Do not start the engine if the battery
has frozen. Let the battery thaw out
first.
\4
Only use a battery of the same rated
voltage and of approximately the
same capacity for jump-starting.
\4
Only use jumper cables of adequate
cross-section with insulated battery
terminal clamps.
iThe auxiliary battery* in the engine
compartment is not suitable for
jump-starting operations. Only use
the jump-starting connection in the
engine compartment if you require
jump-starting assistance or wish to
provide jump-starting assistance.
!
CAUTION
Avoid repeated and lengthy starting
attempts.
Never start the vehicle using a rapid
battery charger.
Warning
G
Avoid creating sparks. Keep naked flames
away from the battery, and do not smoke.
Comply with safety precautions and spe-
cial protective measures when handling
batteries (\2page 335).
nf_BA.book Page 581 Friday, January 25, 2008 3:53 PM
Page 584 of 666
582 Practical hintsJump-starting
5
\1
Make sure that the two vehicles do
not touch.
\1
Apply the handbrake or move the se-
lector lever to position
P.
\1
Switch off all electrical consumers.
\1
Switch on the battery isolating
switch* if necessary (
\2
page 338).
\1
Remove the key from the ignition
lock.
\1
Open the hood (
\2
page 318).
The jump-starting connection point is on
the left-hand side of the air cleaner in
the engine compartment when looking
in the direction of travel.

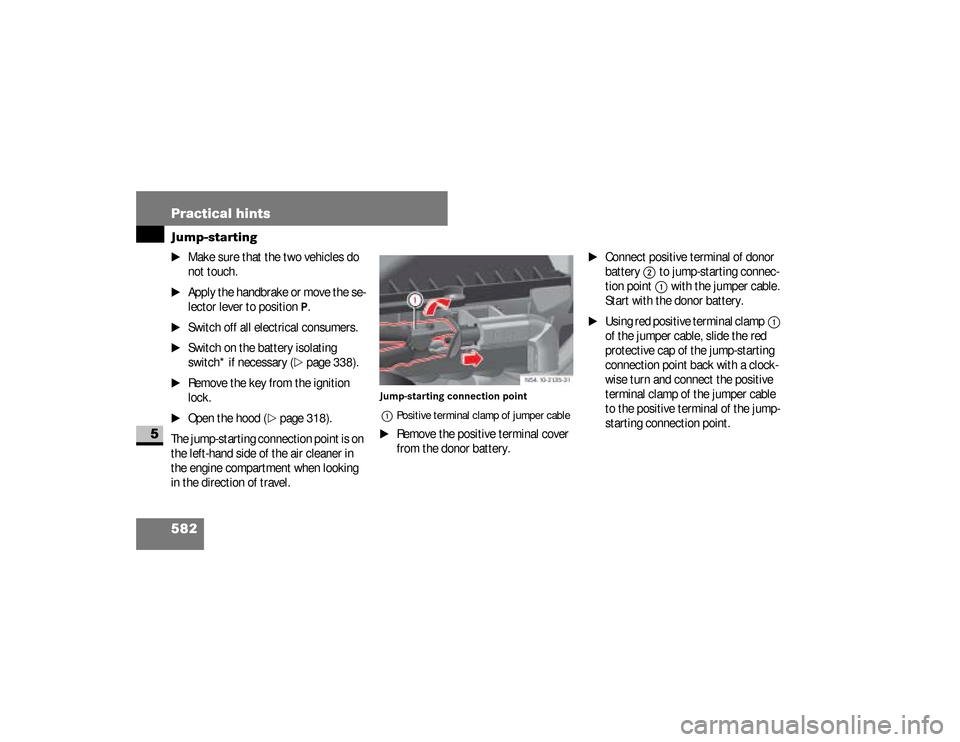

Jump-starting connection point
1Positive terminal clamp of jumper cable\1
Remove the positive terminal cover
from the donor battery.
\1
Connect positive terminal of donor
battery
2
to jump-starting connec-
tion point 1
with the jumper cable.
Start with the donor battery.
\1
Using red positive terminal clamp
1
of the jumper cable, slide the red
protective cap of the jump-starting
connection point back with a clock-
wise turn and connect the positive
terminal clamp of the jumper cable
to the positive terminal of the jump-
starting connection point.
nf_BA.book Page 582 Friday, January 25, 2008 3:53 PM
Page 585 of 666
583 Practical hints
Jump-starting
5
1Positive terminal of jump-starting con-
nection point (under cover)
2Positive terminal of donor battery
3Negative terminal of donor battery
4Ground contact of own vehicle
(negative terminal of your own battery)
\1
Run the other vehicle’s engine at
idling speed.
\1
Connect negative terminal
3
of the
donor battery to ground contact
4
of your own vehicle.
Start with the donor battery.
\1
Start the engine.
\1
Disconnect the jumper cable from
negative terminal
3
of the battery
and ground contact 4
first, then
from positive terminal 2
of the bat-
tery and jump-starting connection
point
1
.
The red protective cap springs back
to its initial position when the termi-
nal clamp is removed from the jump-
starting connection point.
\1
Have the battery checked at an
authorized Sprinter Dealer.
iDo not connect the jumper cable to
the auxiliary battery* in the engine
compartment. This is not suitable for
jump-starting operations.
nf_BA.book Page 583 Friday, January 25, 2008 3:53 PM
Page 586 of 666
584 Practical hintsJump-starting
5

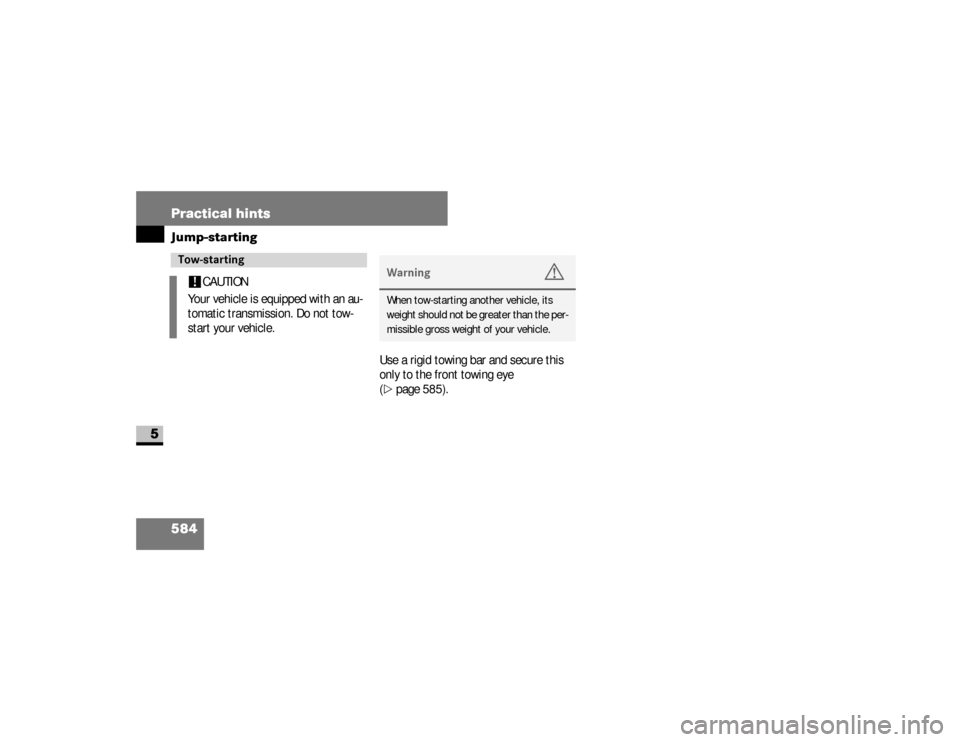

Use a rigid towing bar and secure this
only to the front towing eye
(\2
page 585).
Tow-starting!
CAUTION
Your vehicle is equipped with an au-
tomatic transmission. Do not tow-
start your vehicle.
Warning
G
When tow-starting another vehicle, its
weight should not be greater than the per-
missible gross weight of your vehicle.
nf_BA.book Page 584 Friday, January 25, 2008 3:53 PM
Page 587 of 666
585 Practical hints
Towing
5
\3 Towing

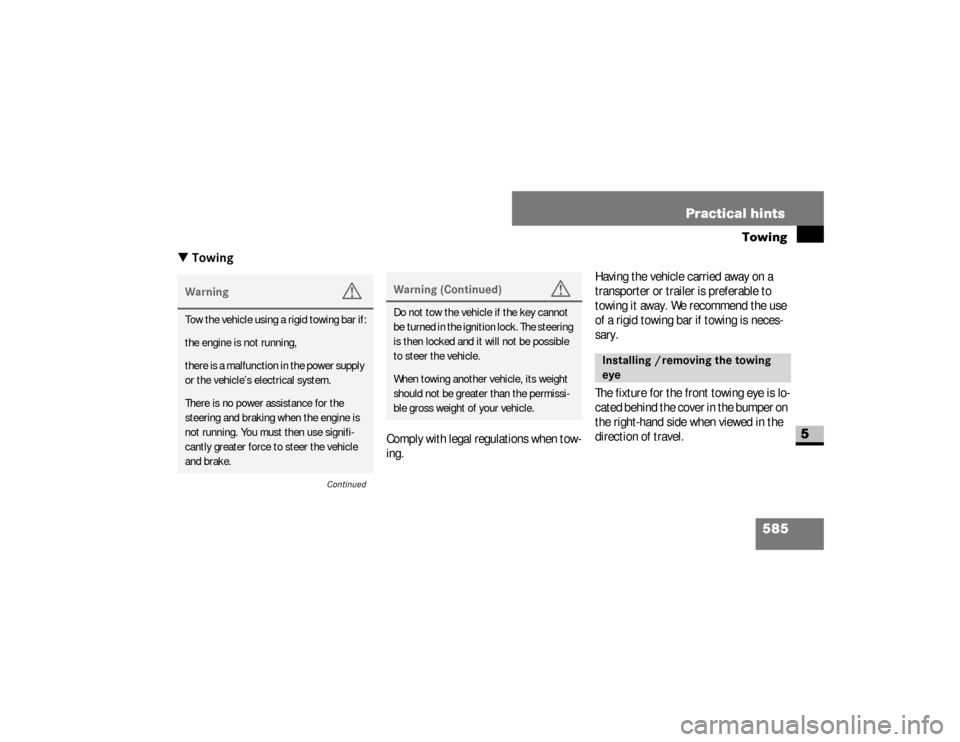

Comply with legal regulations when tow-
ing.Having the vehicle carried away on a
transporter or trailer is preferable to
towing it away. We recommend the use
of a rigid towing bar if towing is neces-
sary.
The fixture for the front towing eye is lo-
cated behind the cover in the bumper on
the right-hand side when viewed in the
direction of travel.
Warning
G
Tow the vehicle using a rigid towing bar if:the engine is not running,there is a malfunction in the power supply
or the vehicle’s electrical system.There is no power assistance for the
steering and braking when the engine is
not running. You must then use signifi-
cantly greater force to steer the vehicle
and brake.
Continued
Warning (Continued)
G
Do not tow the vehicle if the key cannot
be turned in the ignition lock. The steering
is then locked and it will not be possible
to steer the vehicle.When towing another vehicle, its weight
should not be greater than the permissi-
ble gross weight of your vehicle.
Installing / removing the towing
eye
nf_BA.book Page 585 Friday, January 25, 2008 3:53 PM
Page 588 of 666
586 Practical hintsTowing
5
1Cover

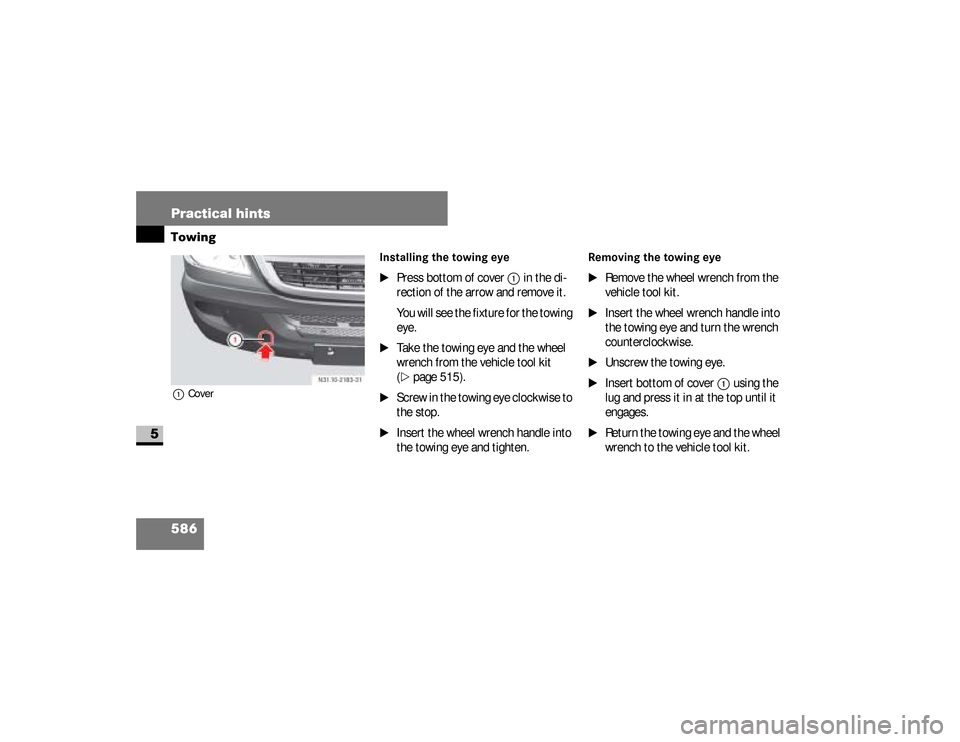

Installing the towing eye
\1
Press bottom of cover
1
in the di-
rection of the arrow and remove it.
You will see the fixture for the towing
eye.
\1
Take the towing eye and the wheel
wrench from the vehicle tool kit
(\2
page 515).
\1
Screw in the towing eye clockwise to
the stop.
\1
Insert the wheel wrench handle into
the towing eye and tighten.
Removing the towing eye
\1
Remove the wheel wrench from the
vehicle tool kit.
\1
Insert the wheel wrench handle into
the towing eye and turn the wrench
counterclockwise.
\1
Unscrew the towing eye.
\1
Insert bottom of cover
1
using the
lug and press it in at the top until it
engages.
\1
Return the towing eye and the wheel
wrench to the vehicle tool kit.
nf_BA.book Page 586 Friday, January 25, 2008 3:53 PM
Page 589 of 666
587 Practical hints
Towing
5
\1
Switch on the ignition (
\2
page 111).
\1
For a distance of up to 30 miles
(50 km), move the selector lever to
position
N.
\1
For a distance greater than 30 miles
(50 km), remove the propeller shafts
to the driven axles.
Take great care when attempting to tow
the vehicle free if its drive wheels have
become embedded in loose earth or
mud, particularly if the vehicle is loaded.
Tow the vehicle smoothly and straight-
ahead. The chassis could otherwise be
damaged.
Do not attempt to tow out the vehicle if
a trailer is coupled up.Where possible, tow the vehicle out
backwards along the track made by the
vehicle previously.
With transmission damage
\1
Always remove the propeller shafts
to the driven axles.
iDeactivate the automatic locking
while driving function when towing .
You could otherwise become locked
out when pushing or towing the vehi-
cle.!
CAUTION
Do not exceed a towing speed of
50 km / h, otherwise the transmis-
sion could be damaged.
Towing out a vehicle that is stuck
Towing the vehicle in the event of
particular malfunctions!
CAUTION
Use new self-securing nuts when in-
stalling the propeller shafts.
nf_BA.book Page 587 Friday, January 25, 2008 3:53 PM
Page 590 of 666
588 Practical hintsTowing
5

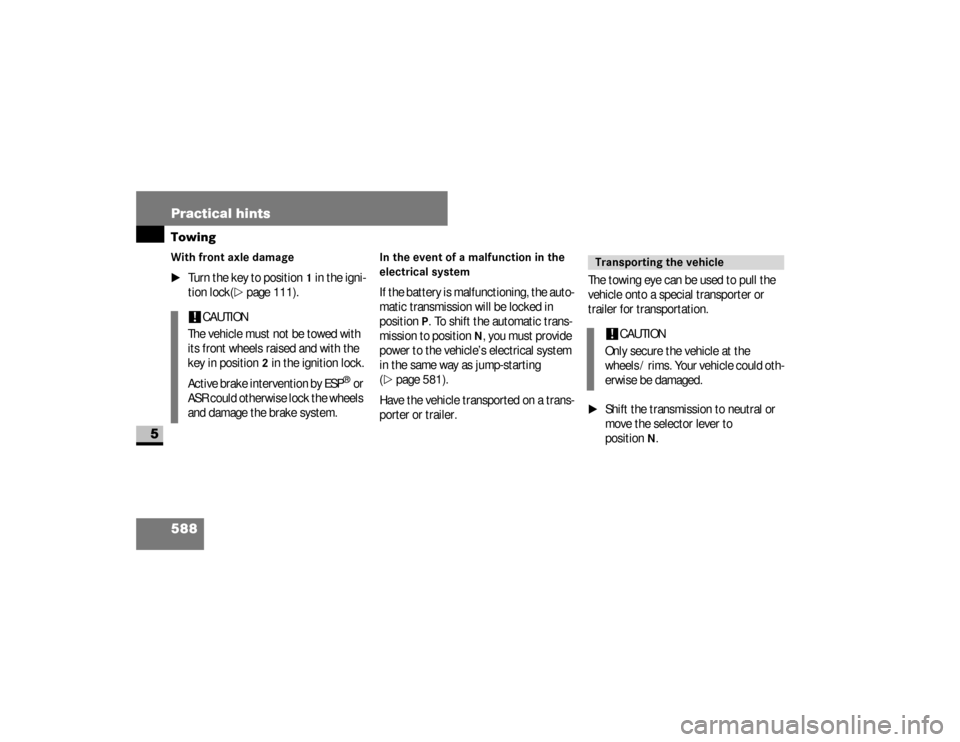

With front axle damage
