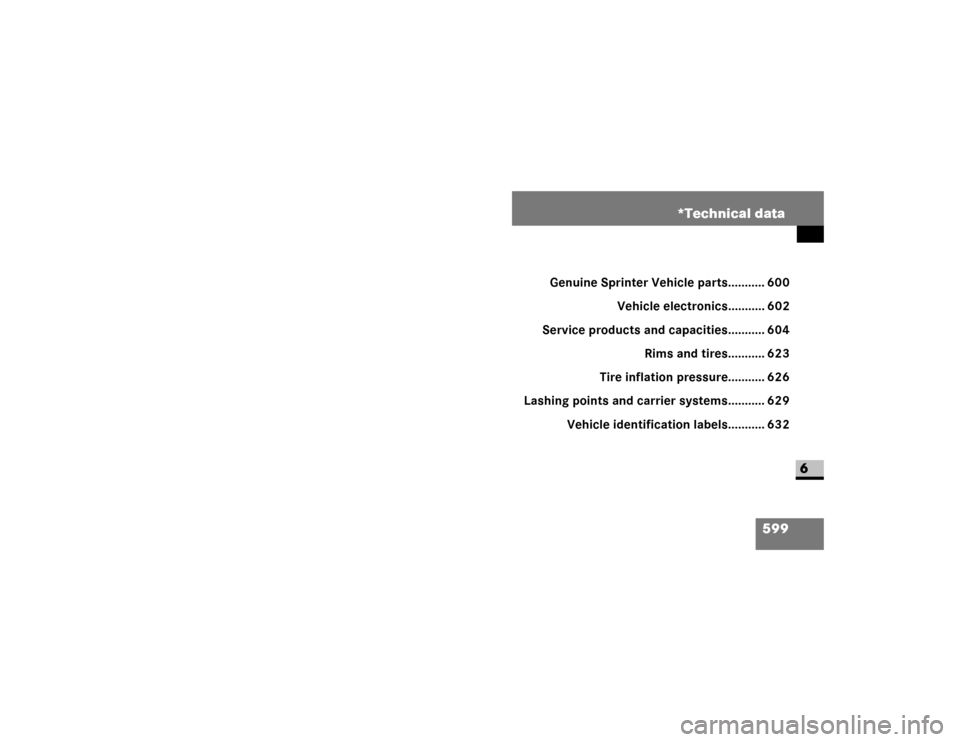

599 *Technical data
6 *Technical data
Genuine Sprinter Vehicle parts........... 600
Vehicle electronics........... 602
Service products and capacities........... 604
Rims and tires........... 623
Tire inflation pressure........... 626
Lashing points and carrier systems........... 629
Vehicle identification labels........... 632
nf_BA.book Page 599 Friday, January 25, 2008 3:53 PM
Page 602 of 666

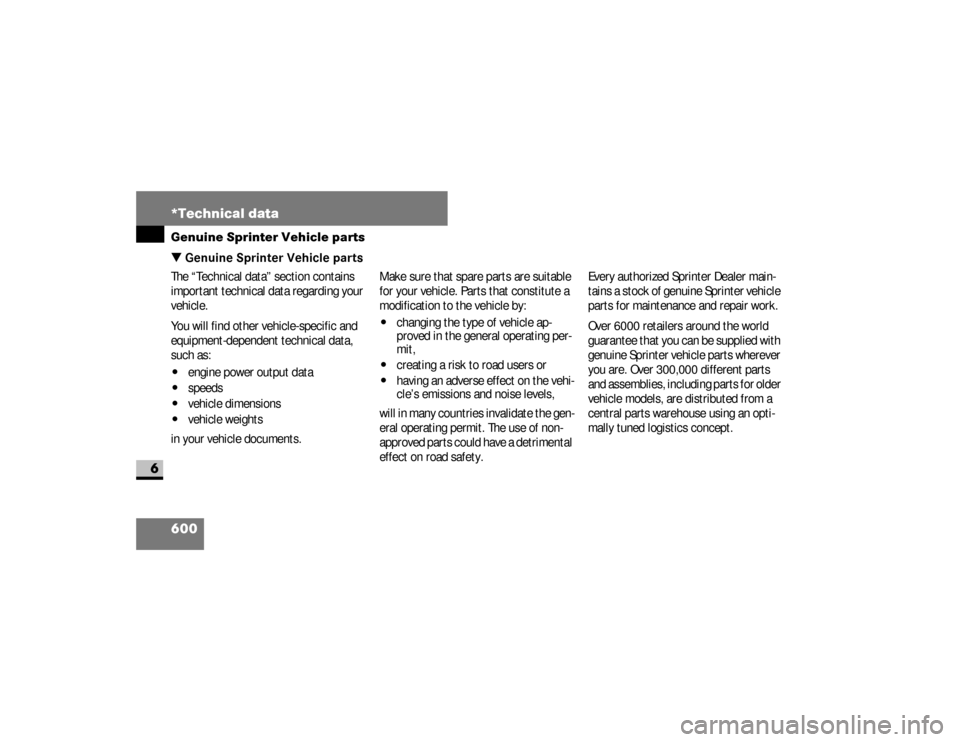

600 *Technical dataGenuine Sprinter Vehicle parts
6
\3 Genuine Sprinter Vehicle parts The “Technical data” section contains
important technical data regarding your
vehicle.
You will find other vehicle-specific and
equipment-dependent technical data,
such as:\4
engine power output data
\4
speeds
\4
vehicle dimensions
\4
vehicle weights
in your vehicle documents.Make sure that spare parts are suitable
for your vehicle. Parts that constitute a
modification to the vehicle by:
\4
changing the type of vehicle ap-
proved in the general operating per-
mit,
\4
creating a risk to road users or
\4
having an adverse effect on the vehi-
cle’s emissions and noise levels,
will in many countries invalidate the gen-
eral operating permit. The use of non-
approved parts could have a detrimental
effect on road safety.Every authorized Sprinter Dealer main-
tains a stock of genuine Sprinter vehicle
parts for maintenance and repair work.
Over 6000 retailers around the world
guarantee that you can be supplied with
genuine Sprinter vehicle parts wherever
you are. Over 300,000 different parts
and assemblies, including parts for older
vehicle models, are distributed from a
central parts warehouse using an opti-
mally tuned logistics concept.
nf_BA.book Page 600 Friday, January 25, 2008 3:53 PM
Page 603 of 666
601 *Technical data
Genuine Sprinter Vehicle parts
6

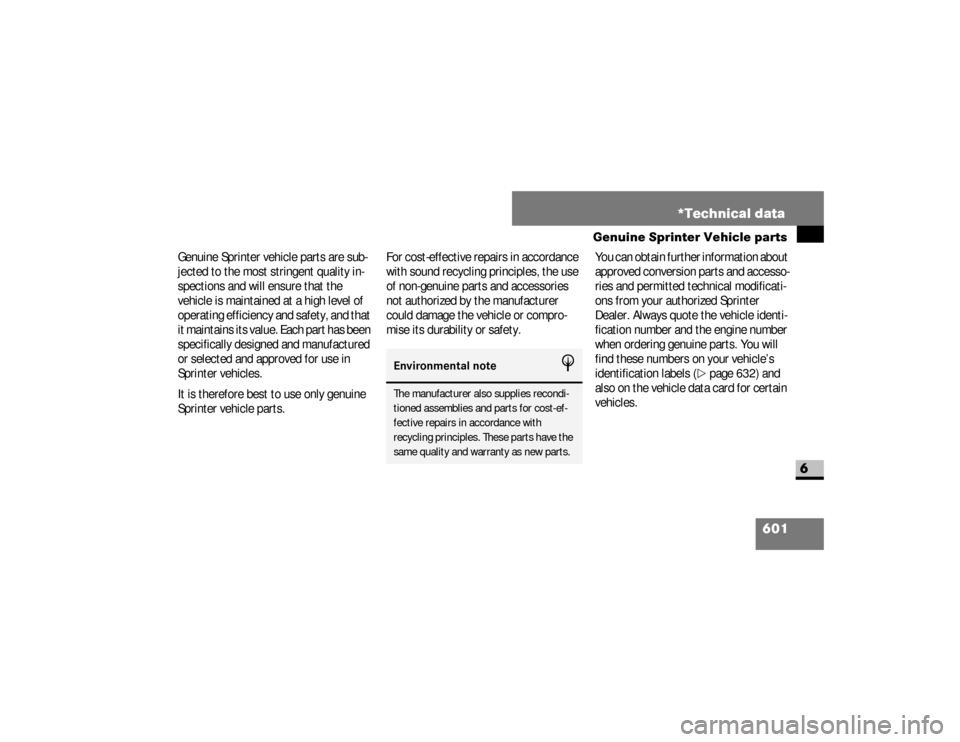

Genuine Sprinter vehicle parts are sub-
jected to the most stringent quality in-
spections and will ensure that the
vehicle is maintained at a high level of
operating efficiency and safety, and that
it maintains its value. Each part has been
specifically designed and manufactured
or selected and approved for use in
Sprinter vehicles.
It is therefore best to use only genuine
Sprinter vehicle parts.For cost-effective repairs in accordance
with sound recycling principles, the use
of non-genuine parts and accessories
not authorized by the manufacturer
could damage the vehicle or compro-
mise its durability or safety. You can obtain further information about
approved conversion parts and accesso-
ries and permitted technical modificati-
ons from your authorized Sprinter
Dealer. Always quote the vehicle identi-
fication number and the engine number
when ordering genuine parts. You will
find these numbers on your vehicle’s
identification labels (
\2
page 632) and
also on the vehicle data card for certain
vehicles.
Environmental note
H
The manufacturer also supplies recondi-
tioned assemblies and parts for cost-ef-
fective repairs in accordance with
recycling principles. These parts have the
same quality and warranty as new parts.
nf_BA.book Page 601 Friday, January 25, 2008 3:53 PM
Page 604 of 666
602 *Technical dataVehicle electronics
6
\3 Vehicle electronics
Electrical and electronic equipment can
jeopardize the operational safety of your
vehicle. If equipment of this kind is ret-
rofitted, it must be type-approved and
must bear the
e mark.
If you wish to install telephones or two-
way radios in the vehicle, you must ob-
tain formal approval.
The manufacturer recommends that you
consult an authorized Sprinter Dealer.
Tampering with the engine elec-
tronics !Work on the engine electronics and
all associated parts such as control
units, sensors and connector leads
should only be performed at an au-
thorized Sprinter Dealer. Vehicle
parts could otherwise wear more
quickly and the vehicle’s warranty or
general operating permit could be in-
validated.
Warning
G
For safety reasons and to avoid invalidat-
ing the general operating permit, always
have work on the engine electronics and
associated parts performed at an autho-
rized Sprinter Dealer which has the nec-
essary specialist knowledge and tools to
carry out the work required.
The manufacturer recommends that you
use an authorized Sprinter Dealer for this
purpose. In particular, work relevant to
safety or on safety-related systems must
be carried out at an authorized Sprinter
Dealer.
Retrofitting electrical / electronic
equipment
nf_BA.book Page 602 Friday, January 25, 2008 3:53 PM
Page 605 of 666
603 *Technical data
Vehicle electronics
6

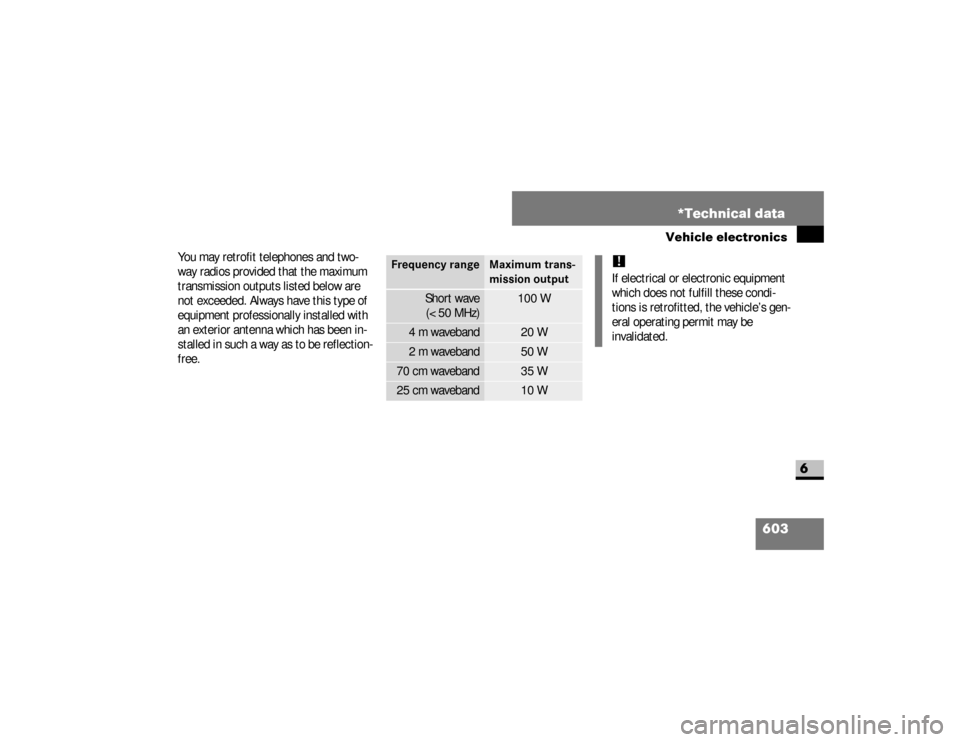

You may retrofit telephones and two-
way radios provided that the maximum
transmission outputs listed below are
not exceeded. Always have this type of
equipment professionally installed with
an exterior antenna which has been in-
stalled in such a way as to be reflection-
free.
.
Frequency range
Maximum trans-
mission output
Short wave
(< 50 MHz)
100 W
4m waveband
20 W
2m waveband
50 W
70 cm waveband
35 W
25 cm waveband
10 W
!If electrical or electronic equipment
which does not fulfill these condi-
tions is retrofitted, the vehicle’s gen-
eral operating permit may be
invalidated.
nf_BA.book Page 603 Friday, January 25, 2008 3:53 PM
Page 606 of 666
604 *Technical dataService products and capacities
6
\3 Service products and capacitiesService products are:\4
fuels
\4
lubricants (e.g. engine oils, transmis-
sion oils, hydraulic fluids, greases)
\4
antifreeze additives, coolant
\4
brake fluid
Service products are tested for suitabili-
ty in our assemblies. Approved service
products meet the highest quality stan-
dards and are listed in the
Mercedes-
Benz Specifications for Service Pro-
ducts
. For this reason, only use service
products that have been approved for
your vehicle. This is an important condi-
tion for warranty claims to be upheld. In-formation about approved service
products is available from all authorized
Sprinter Dealers.
You will find details about windshield
washer fluid in the “Operation” section
(
\2
page 333).
It is neither necessary nor permissible to
mix special additives with approved ser-
vice products (except for approved fuel
additives). Therefore, special additives
must not be mixed with fuels or lubri-
cants. The properties of the service
products could be adversely affected by
special additives and result in damage to
the assemblies.The vehicle operator is responsible at all
times for any use of special additives.
The use of special additives may result in
a limitation or an invalidation of your
warranty entitlement.
nf_BA.book Page 604 Friday, January 25, 2008 3:53 PM
Page 607 of 666
605 *Technical data
Service products and capacities
6
Warning
G
Failure to use fluids and lubricants which
meet the standards and specifications de-
scribed in this booklet or failure to adhere
to the specified replacement intervals
may result in damage to safety/ and/or
emissions-related systems of your vehi-
cle, such as the brake system, which
could cause an accident and/or serious
injury to you and others.
Use only fluids and lubricants meeting the
standards and specifications and adhere
to specified replacement intervals.
!
CAUTION
Damage caused by the use of non-ap-
proved service products is not cov-
ered by the Sprinter vehicle warranty.
Warning
G
Service products constitute a health haz-
ard. They contain toxic and highly corro-
sive constituents.For this reason, bear the following points
in mi n d t o avo i d i nj ur y to y o ur s el f a nd ot h -
ers:
Continued
Warning (Continued)
G
Do not inhale fumes. Make sure that en-
closed spaces are adequately ventilated
to prevent poisoning.Service products must not come into con-
tact with the skin, eyes or clothing. If con-
tact is made with a service product, clean
the affected areas of skin with water and
soap to prevent burns and other injuries.Rinse thoroughly with plenty of water in
case of contact with eyes. Consult a doc-
tor immediately if a service product is
swallowed.
Continued
nf_BA.book Page 605 Friday, January 25, 2008 3:53 PM
Page 608 of 666
606 *Technical dataService products and capacities
6
Warning (Continued)
G
Change out of clothing soiled with service
products immediately to avoid the risk of
fire and other injuries.Fire, naked flames and smoking are there-
fore prohibited when handling service
products due to their highly flammable
nature.Keep service products out of the reach of
children.You must observe the notes on danger
concerning the risk of poisoning, acid
burns and fire on the service product con-
tainers.

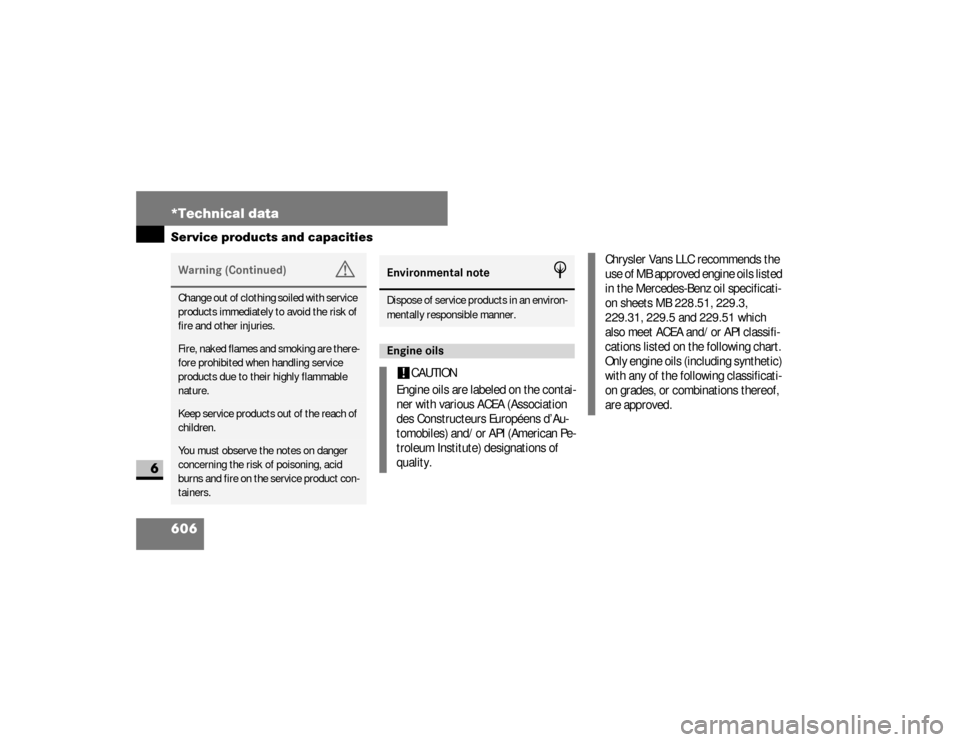

Environmental note
H
Dispose of service products in an environ-
mentally responsible manner.Engine oils!
CAUTION
Engine oils are labeled on the contai-
ner with various ACEA (Association
des Constructeurs Européens d’Au-
tomobiles) and/or API (American Pe-
troleum Institute) designations of
quality.
Chrysler Vans LLC recommends the
use of MB approved engine oils listed
in the Mercedes-Benz oil specificati-
on sheets MB 228.51, 229.3,
229.31, 229.5 and 229.51 which
also meet ACEA and/or API classifi-
cations listed on the following chart.
Only engine oils (including synthetic)
with any of the following classificati-
on grades, or combinations thereof,
are approved.
nf_BA.book Page 606 Friday, January 25, 2008 3:53 PM
Page 609 of 666
607 *Technical data
Service products and capacities
6

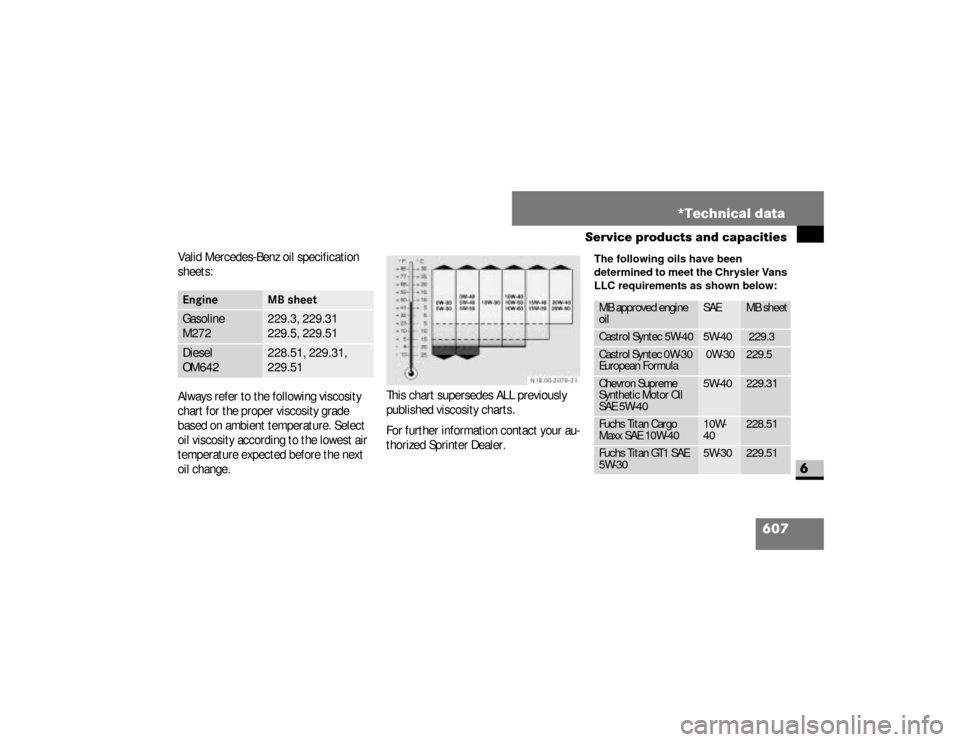

Valid Mercedes-Benz oil specification
sheets:
Always refer to the following viscosity
chart for the proper viscosity grade
based on ambient temperature. Select
oil viscosity according to the lowest air
temperature expected before the next
oil change. This chart supersedes ALL previously
published viscosity charts.
For further information contact your au-
thorized Sprinter Dealer.Engine
MB sheet
Gasoline
M272
229.3, 229.31
229.5, 229.51
Diesel
OM642
228.51, 229.31,
229.51
The following oils have been
determined to meet the Chrysler Vans
LLC requirements as shown below:MB approved engine
oil
SAE
MB sheet
Castrol Syntec 5W-40
5W-40
229.3
Castrol Syntec 0W-30
European Formula
0W-30
229.5
Chevron Supreme
Synthetic Motor Oil
SAE 5W-40
5W-40
229.31
Fuchs Titan Cargo
Maxx SAE 10W-40
10W-
40
228.51
Fuchs Titan GT1 SAE
5W-30
5W-30
229.51
nf_BA.book Page 607 Friday, January 25, 2008 3:53 PM
Page 610 of 666
608 *Technical dataService products and capacities
6
Fuchs Titan Supersyn
Longlife SAE 5W-30
5W-30
229.3
229.5
Havoline Ultra S 5W-
30
5W-30
229.31
Havoline Ultra S 5W-
40
5W-40
229.31
High Star
5W-30
229.3
Lotos Economic SL/
CF
5W-30
229.3
Lotos Syntetic Auto
Diesel CF
5W-40
229.3

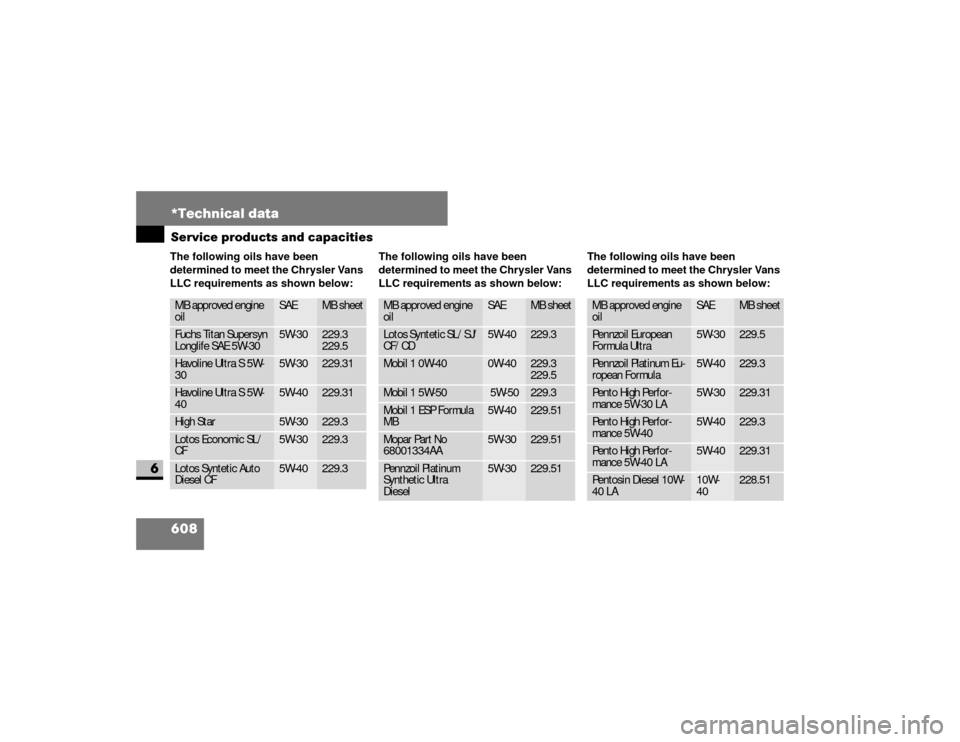

The following oils have been
determined to meet the Chrysler Vans
LLC requirements as shown below:MB approved engine
oil
SAE
MB sheet
Lotos Syntetic SL/SJ/
CF/CD
5W-40
229.3
Mobil 1 0W-40
0W-40
229.3
229.5
Mobil 1 5W-50
5W-50
229.3
Mobil 1 ESP Formula
MB
5W-40
229.51
Mopar Part No
68001334AA
5W-30
229.51
Pennzoil Platinum
Synthetic Ultra
Diesel
5W-30
229.51
The following oils have been
determined to meet the Chrysler Vans
LLC requirements as shown below:MB approved engine
oil
SAE
MB sheet
Pennzoil European
Formula Ultra
5W-30
229.5
Pennzoil Platinum Eu-
ropean Formula
5W-40
229.3
Pento High Perfor-
mance 5W-30 LA
5W-30
229.31
Pento High Perfor-
mance 5W-40
5W-40
229.3
Pento High Perfor-
mance 5W-40 LA
5W-40
229.31
Pentosin Diesel 10W-
40 LA
10W-
40
228.51
The following oils have been
determined to meet the Chrysler Vans
LLC requirements as shown below:MB approved engine
oil
SAE
MB sheet
nf_BA.book Page 608 Friday, January 25, 2008 3:53 PM
