DODGE STRATUS COUPE 2004 2.G Owners Manual

WARNING!
²Leaving children in a vehicle unattended is dan-
gerous for a number of reasons. A child or others
could be injured. Children should be warned not
to touch the parking brake or the gear selector.
Don't leave the keys in the ignition. A child could
operate power windows, other controls, or move
the vehicle.
²Be sure the parking brake is fully disengaged
before driving; failure to do so can lead to brake
failure and an accident.
BRAKE PEDAL
Excessive use of the brake can cause fading, resulting in
poor brake response and premature wear of brake lin-
ings.
When driving down a long or steep grade, use engine
braking by shifting the transaxle into a lower gear
(manual transaxle and Autostick A/T) or ª3º (THIRD) or
ª2º (SECOND) or ªLº (LOW) position (except Autostick
A/T).
WARNING!
Do not leave any objects on the floor near the brake
pedal or permit a floor mat to interfere with the
brake pedal. Doing so could prevent proper depres-
sion of the pedal. Make sure that the pedal can be
operated freely at all times.
STARTING AND DRIVING 171
5

WARNING!
Riding the brakes can lead to brake failure and
possibly an accident. Driving with your foot resting
or riding on the brake pedal can result in abnormally
high brake temperatures, excessive lining wear, and
possible brake damage. You wouldn't have your full
braking capacity in an emergency.
POWER BRAKES
Your vehicle is equipped with power brakes as standard
equipment. In the event you lose power assist for any
reason (for example, repeated brake applications with the
engine off), the brakes will still function. The effort
required to brake the vehicle will be substantially in-
creased over that required with the power system oper-
ating.
If either of the two hydraulic systems lose normal capa-
bility, the remaining system will still function with some
loss of overall braking effectiveness. This will be evidentby increased pedal travel during application, greater
pedal force required to slow or stop, and activation of the
Brake Warning Lamp during brake use.
WARNING!
²Never coast downhill with the engine OFF. Keep
the engine running whenever the vehicle is in
motion. If the engine is stopped while driving, the
power assist servomechanism will cease to func-
tion and braking efficiency will deteriorate.
²If power assist is lost or if either brake hydraulic
systems lose normal capability, take your vehicle
to an authorized dealer immediately.
BRAKE PAD WEAR ALARM
The disc brakes are equipped with an alarm device that
produces a metallic sound (squeal) when the brake pads
have worn down to the serviceable limit. If you hear this
sound, have the brake pads replaced at an authorized dealer.
172 STARTING AND DRIVING

WARNING!
Driving on worn brake pads can reduce your ability
to stop, and can result in an accident.
ANTI-LOCK BRAKING (ABS) SYSTEM (IF SO
EQUIPPED)
The ABS gives increased vehicle stability and brake
performance under most braking conditions. The system
automatically ªpumpsº the brakes during severe braking
conditions to prevent wheel lock up.
All vehicle wheels and tires must be the same size and
tires must be properly inflated to produce optimal signals
for the computer. However, the system will compensate
when the compact spare is in use.
During stops where ABS is activated, a vibration of the
brake pedal may be felt and associated system noises
may be heard.
NOTE:Pumping of the brake pedal will diminish the
effectiveness of Anti-lock brakes and may lead to anaccident. Pumping makes the stopping distance longer.
Just press firmly on your brake pedal when you need to
slow down or stop.
General driving hints (standard/anti-lock brakes)
1. During anti-lock braking, steering differs slightly from
normal driving conditions. Be sure to operate steering
wheel carefully.
2. The anti-lock braking system is not restricted to situ-
ations where brakes are applied suddenly. This system
may also operate to prevent wheel lock when driving
over manholes, steel roadwork plates, road markings, or
any uneven road surface.
3. Always maintain a safe distance from vehicles in front
of you. If your vehicle is equipped with Anti-lock braking
system, allow for a greater braking distance when:
·Driving on gravel or snow-covered roads.
·Driving with tire chains installed.
·Driving on uneven road surfaces.
STARTING AND DRIVING 173
5

CAUTION!
²Anti-lock braking system can not prevent acci-
dents. It remains the driver's task to exercise
safety precautions and to drive prudently.
²To prevent failure of the anti-lock braking system,
be sure all 4-wheels and tires are the same size
and type (space saver spare excluded).
²If the anti-lock brake system warning light illu-
minates after starting the engine or while driving,
it indicates that the anti-lock braking system is
not functioning and that only the normal brake
system is in operation. (The normal brake system
will still function properly.)
NOTE
1. After the vehicle is driven for a while a whining sound
and the sound of a motor operating will be heard from
the engine compartment. These are normal sounds of the
anti-lock braking system performing a self check and do
not indicate a malfunction.
2. The anti-lock braking system becomes operative after
the vehicle has accelerated to a speed over approximately
I24A1590
174 STARTING AND DRIVING

6 mph (10 km/h). It stops operating when the vehicle
decelerates to a speed below approximately 3 mph (5
km/h).
3. After driving on snow or icy roads, remove any snow
and ice that may have adhered to the wheel areas. When
doing this be careful not to damage the wheel speed
sensors and cables located at each wheel on vehicles
equipped with an anti-lock braking system.STEERING WHEEL TILT LOCK LEVER
To adjust the steering wheel height, release the tilt lock
lever while raising or lowering the steering wheel to the
desired height.
After adjustment, securely lock the lever by pulling it
downward.
I24A0060
Wheel speed
sensorG09A0270
Unlock
Lock
STARTING AND DRIVING 175
5

WARNING!
²After adjustment, to the desired height, check to
be sure that the lever is locked.
²Do not attempt to adjust the steering wheel while
driving. This can be dangerous.
POWER STEERING
Your vehicle is equipped with power assisted steering as
standard equipment. The power assisted steering system
of your vehicle provides mechanical steering capability
in the event power assist is lost.
If for some reason the hydraulic pressure is interrupted,
it will still be possible to steer your vehicle. Under these
conditions you will observe a substantial increase in
steering effort. Should loss of hydraulic pressure occur
take your vehicle to an authorized dealer.
WARNING!
Never turn off the engine while the vehicle is
moving. Your ability to control the vehicle may be
seriously reduced.
CAUTION!
Do not leave the steering wheel in the fully turned
position. This can cause the power steering pump to
be damaged due to poor lubrication.
176 STARTING AND DRIVING

INSIDE DAY/NIGHT REARVIEW MIRRORS
WARNING!
²Do not attempt to adjust the rearview mirrors
while driving. This can be dangerous.
²Your passenger's side mirror is convex. The ob-
jects you see in the mirror will look smaller and
farther away than they actually are. Do not use
this mirror to estimate the distance of following
vehicles when changing lanes.
Adjust the inside mirror to maximize the view through
the rear window. Make this adjustment while the day/
night knob (A) is in the daytime position (1). To reduce
glare from other vehicle's headlights, switch the lever to
the night position (2).
I08A0620
STARTING AND DRIVING 177
5

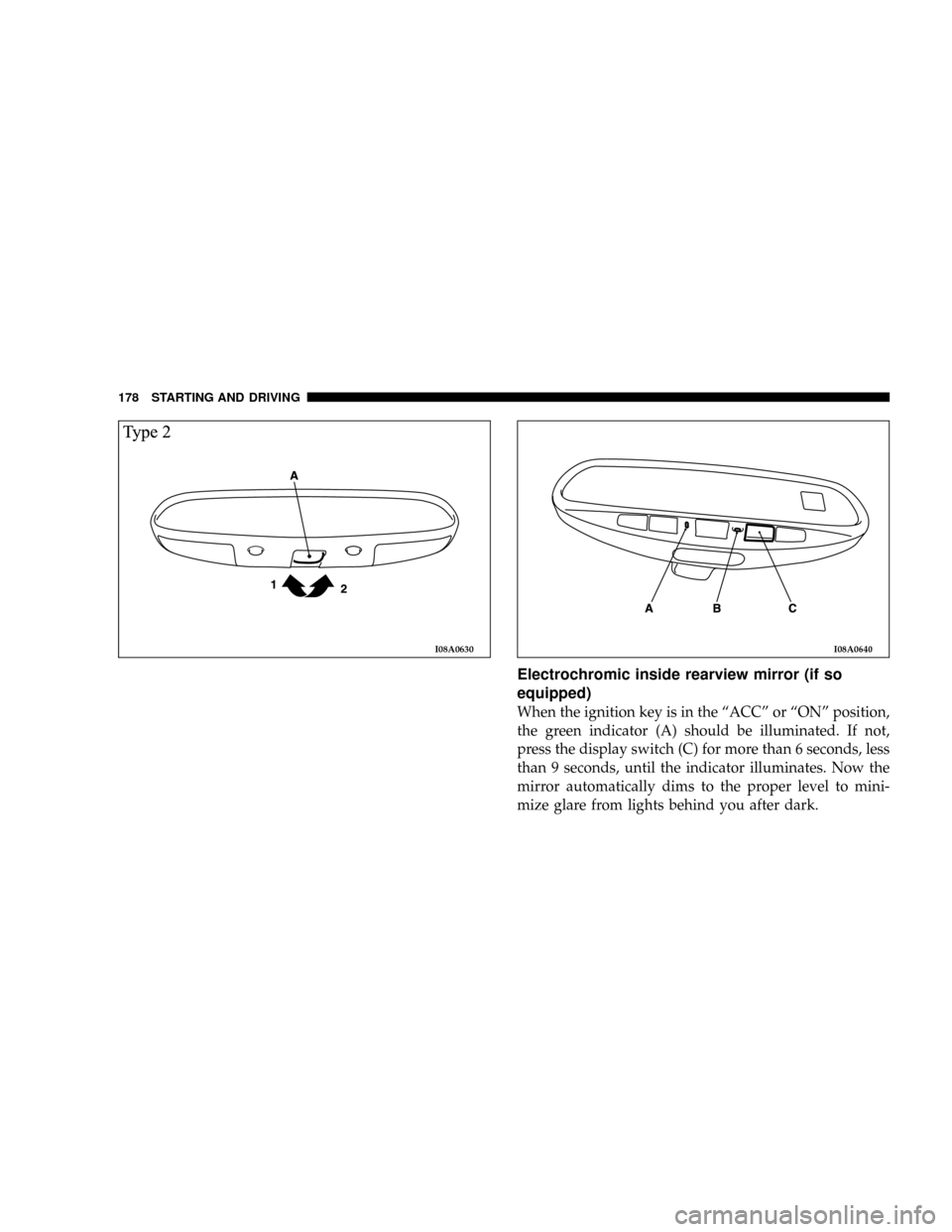

Electrochromic inside rearview mirror (if so
equipped)
When the ignition key is in the ªACCº or ªONº position,
the green indicator (A) should be illuminated. If not,
press the display switch (C) for more than 6 seconds, less
than 9 seconds, until the indicator illuminates. Now the
mirror automatically dims to the proper level to mini-
mize glare from lights behind you after dark.
I08A0630I08A0640
178 STARTING AND DRIVING

To turn off the function, press the display switch (C) more
than 6 seconds, less than 9 seconds. When the green
indicator (A) goes off, the automatic anti-glare will not
function.
To turn the function back on, press the display switch (C)
more than 6 seconds, less than 9 seconds.
NOTE:
²
Do not spray glass cleaner on the sensor (B), as
reduced sensitivity could result.
Electrochromic mirror operation (if so equipped)
A-Garage door opener button
Press the button to operate devices such as garage
door openers, motorized gates, or home lighting.!P.
132
NOTE:Garage door button must be programmed.B-Display switch
Press the switch to change the mode of compass,
outside temperature and anti-glare operation.!P.
178.
C-Dome light switch!P. 177.
D-Display.
The compass and outside temperature are displayed.
To turn on/off the display, press the display switch
(C) less than 3 seconds.!P. 179.I08A0560
STARTING AND DRIVING 179
5

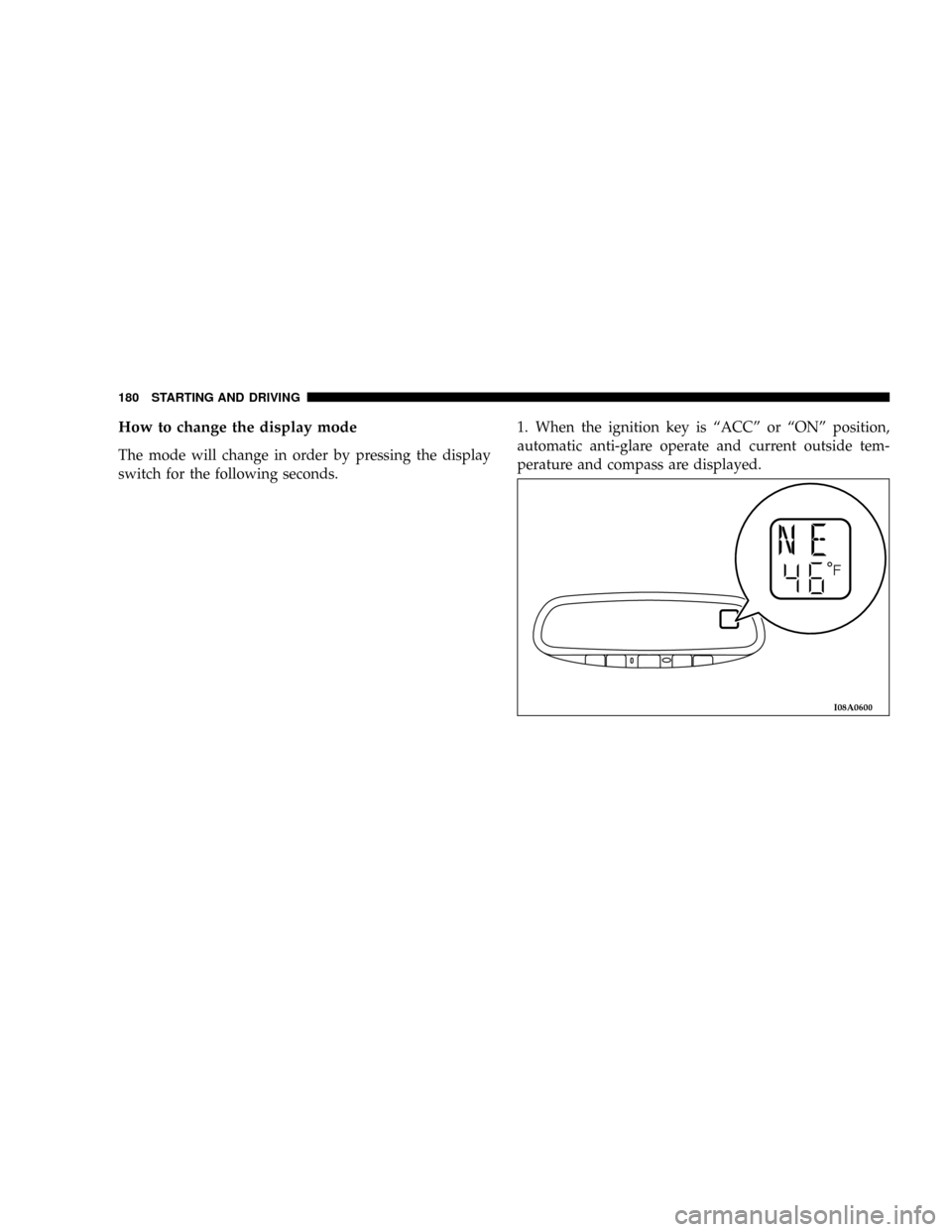

How to change the display mode
The mode will change in order by pressing the display
switch for the following seconds.1. When the ignition key is ªACCº or ªONº position,
automatic anti-glare operate and current outside tem-
perature and compass are displayed.
I08A0600
180 STARTING AND DRIVING
