Page 411 of 2321

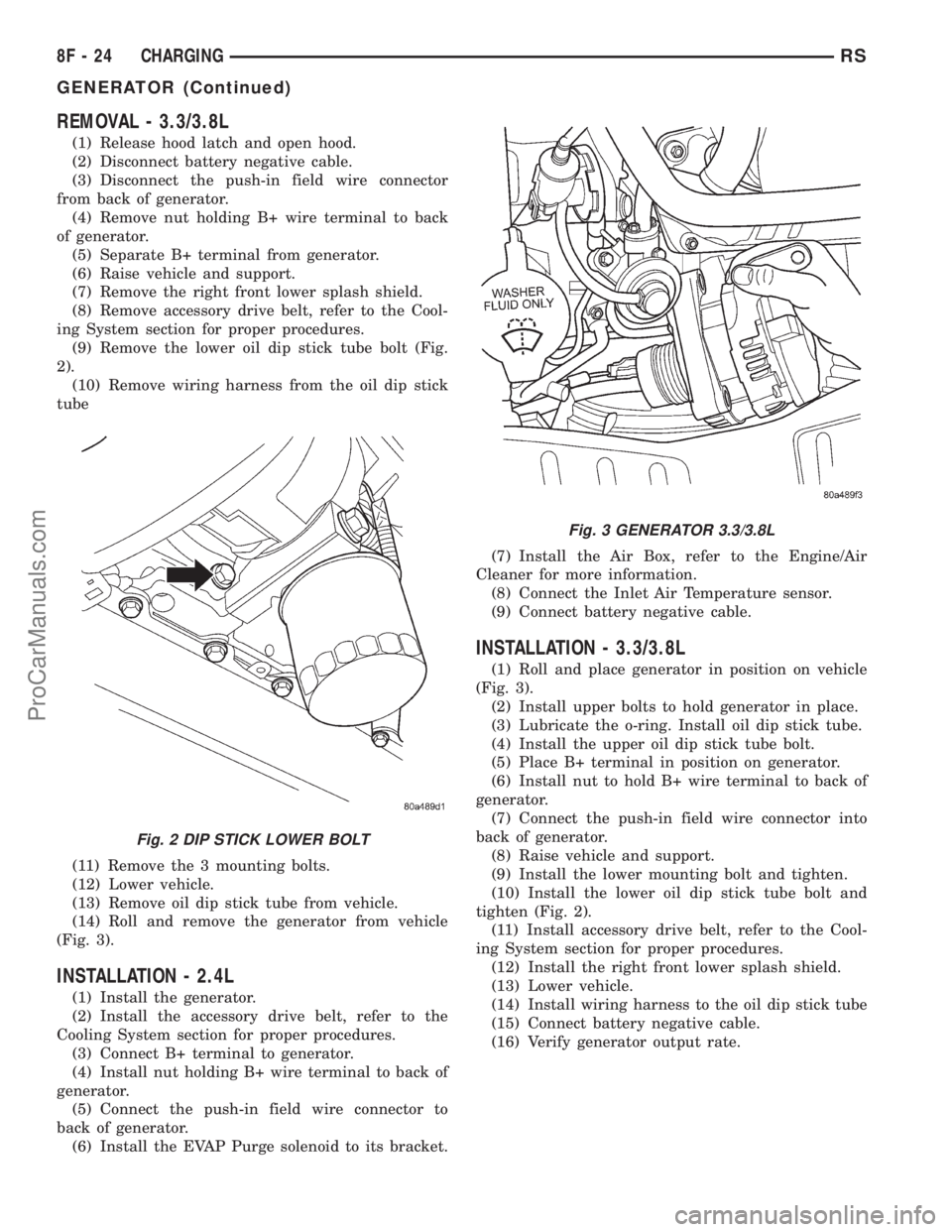

DODGE TOWN AND COUNTRY 2001  Service Manual REMOVAL - 3.3/3.8L
(1) Release hood latch and open hood.
(2) Disconnect battery negative cable.
(3) Disconnect the push-in field wire connector
from back of generator.
(4) Remove nut holding B+ wire t

Page 412 of 2321

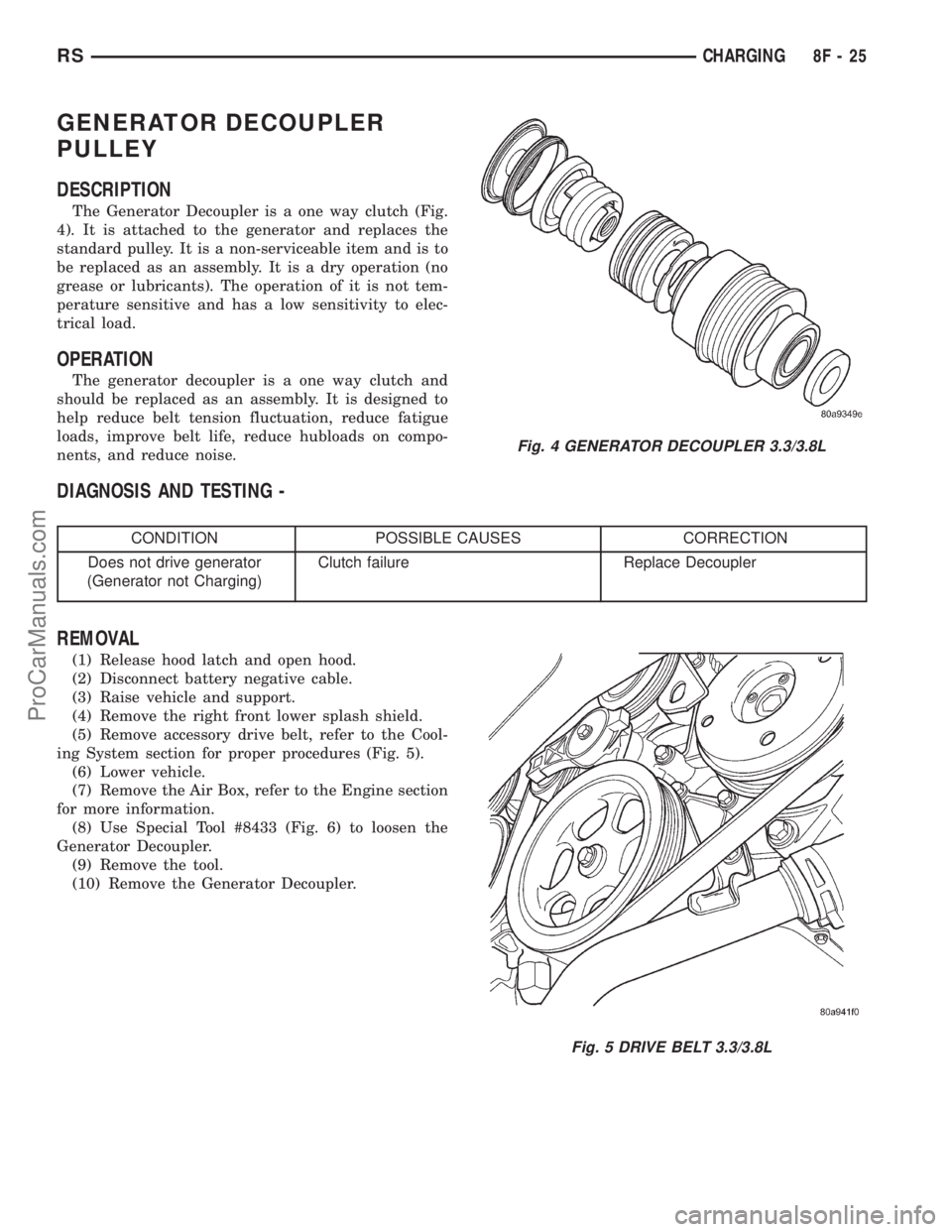

DODGE TOWN AND COUNTRY 2001  Service Manual GENERATOR DECOUPLER
PULLEY
DESCRIPTION
The Generator Decoupler is a one way clutch (Fig.
4). It is attached to the generator and replaces the
standard pulley. It is a non-serviceable item and is to
be

Page 413 of 2321

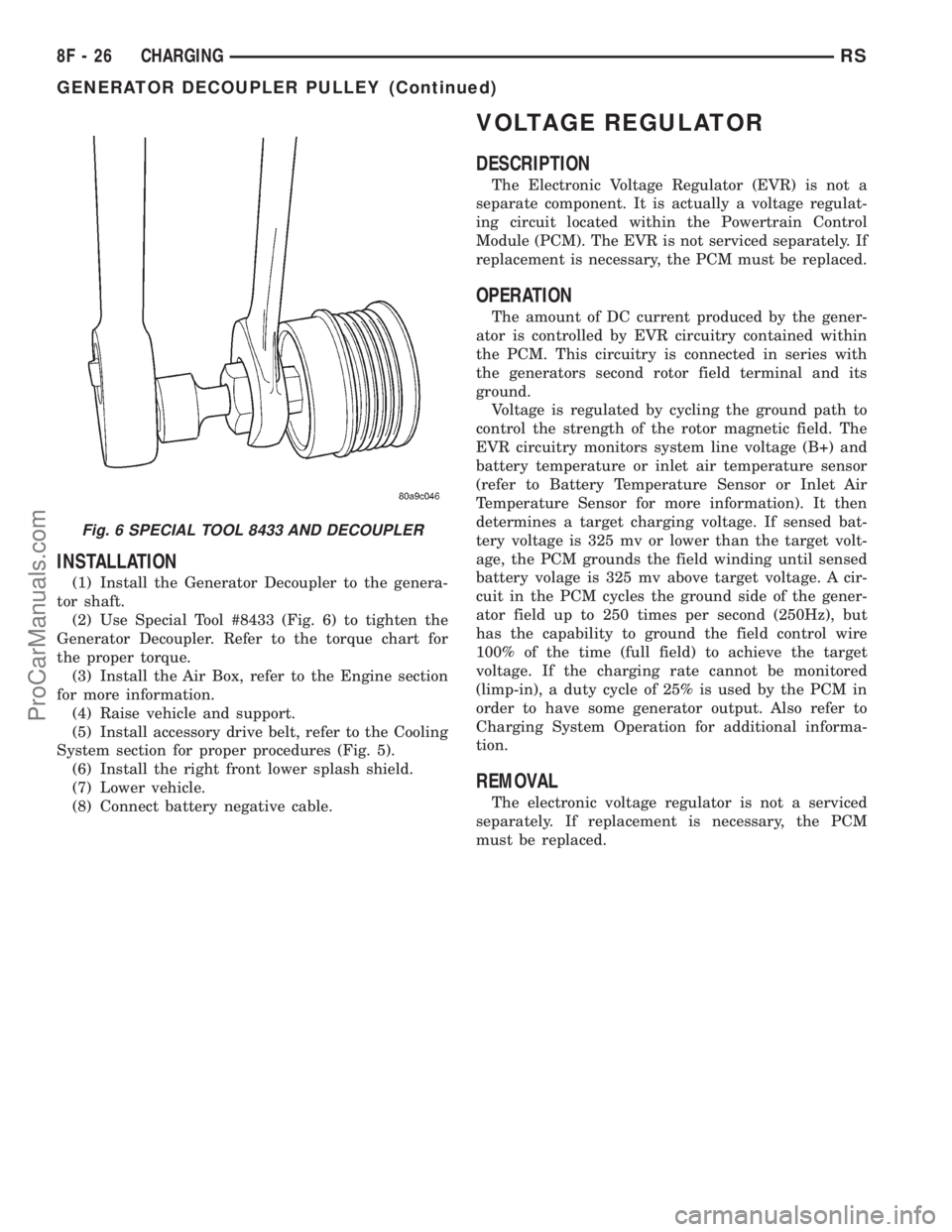

DODGE TOWN AND COUNTRY 2001  Service Manual INSTALLATION
(1) Install the Generator Decoupler to the genera-
tor shaft.
(2) Use Special Tool #8433 (Fig. 6) to tighten the
Generator Decoupler. Refer to the torque chart for
the proper torque.
(3)

Page 414 of 2321

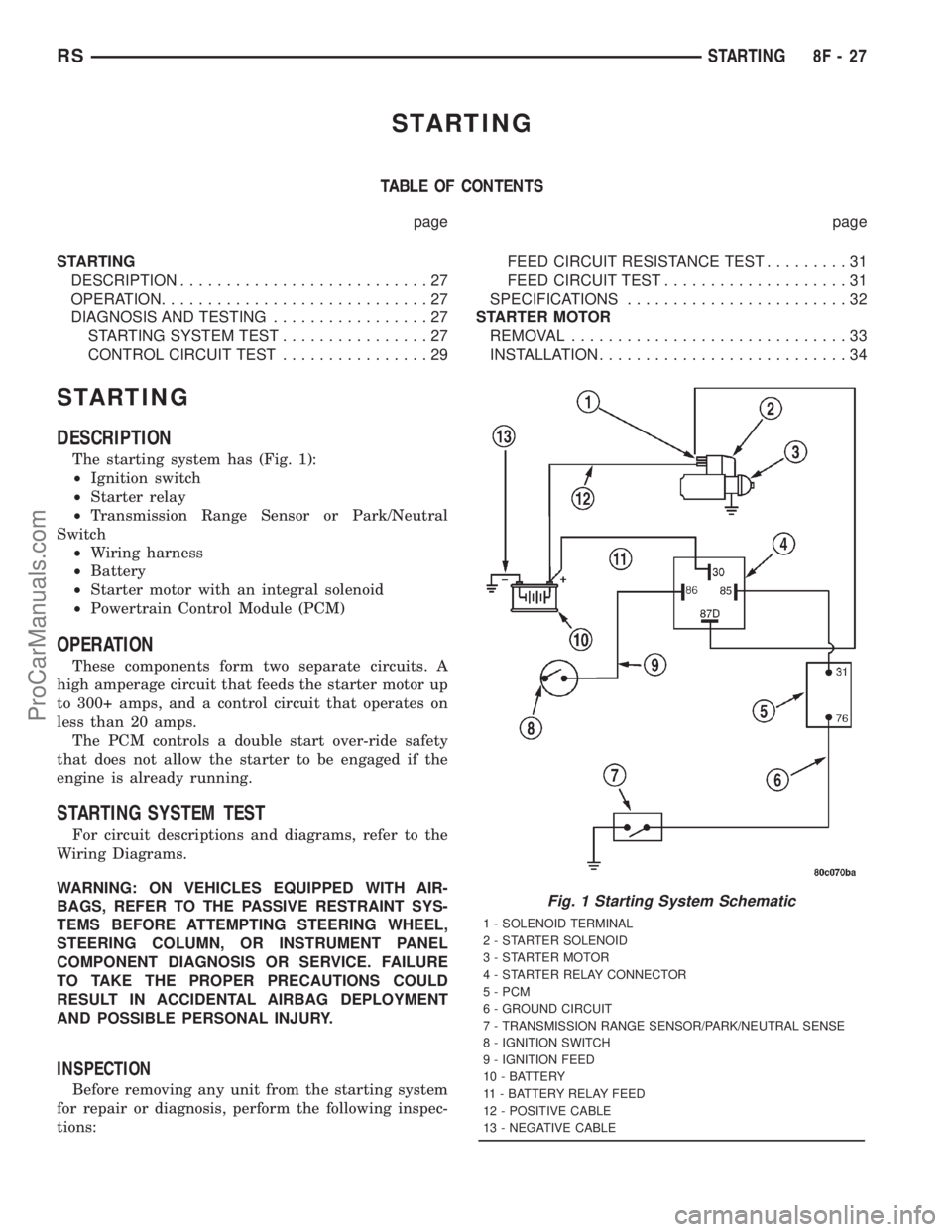

DODGE TOWN AND COUNTRY 2001  Service Manual STARTING
TABLE OF CONTENTS
page page
STARTING
DESCRIPTION...........................27
OPERATION.............................27
DIAGNOSIS AND TESTING.................27
STARTING SYSTEM TEST...........

Page 415 of 2321

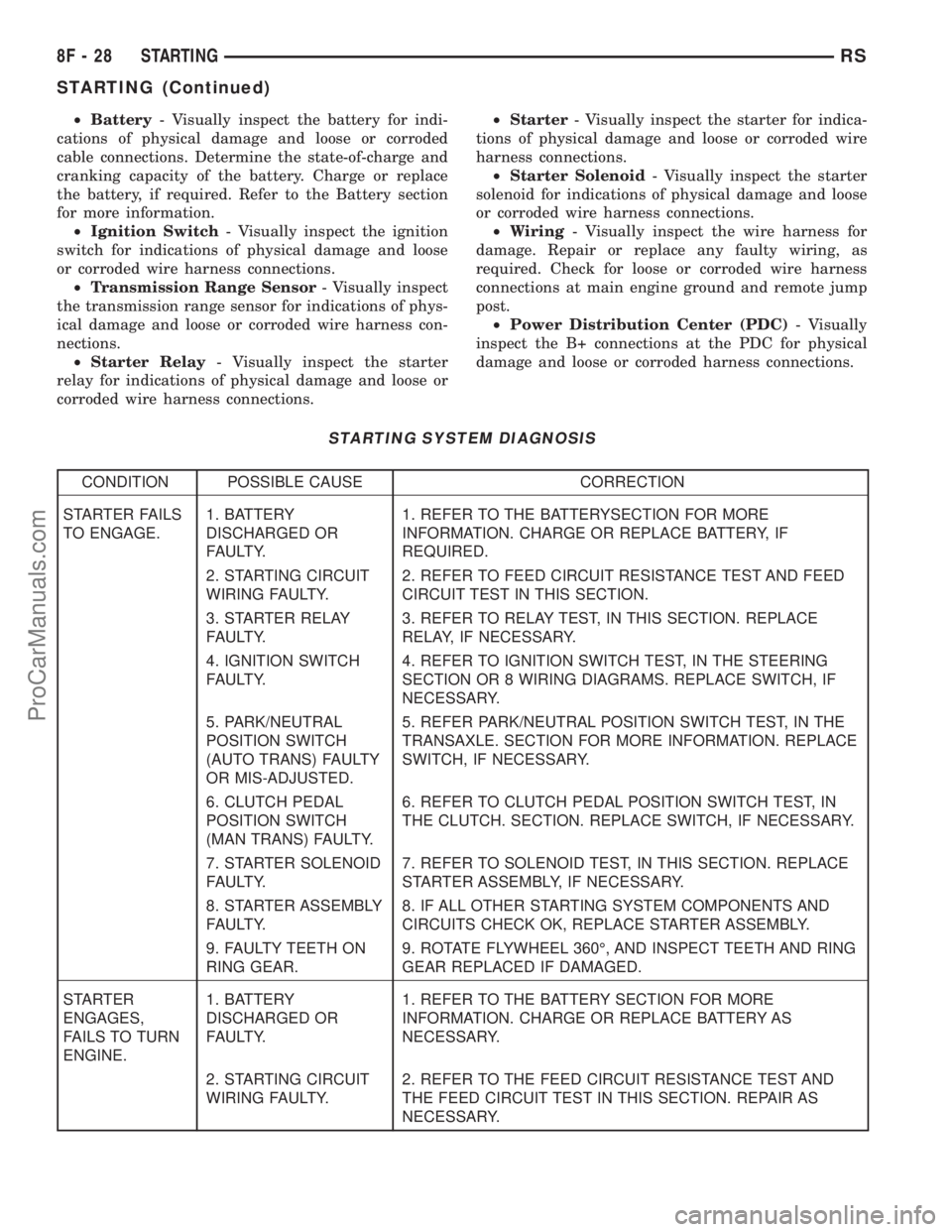

DODGE TOWN AND COUNTRY 2001  Service Manual ²Battery- Visually inspect the battery for indi-
cations of physical damage and loose or corroded
cable connections. Determine the state-of-charge and
cranking capacity of the battery. Charge or repl

Page 416 of 2321

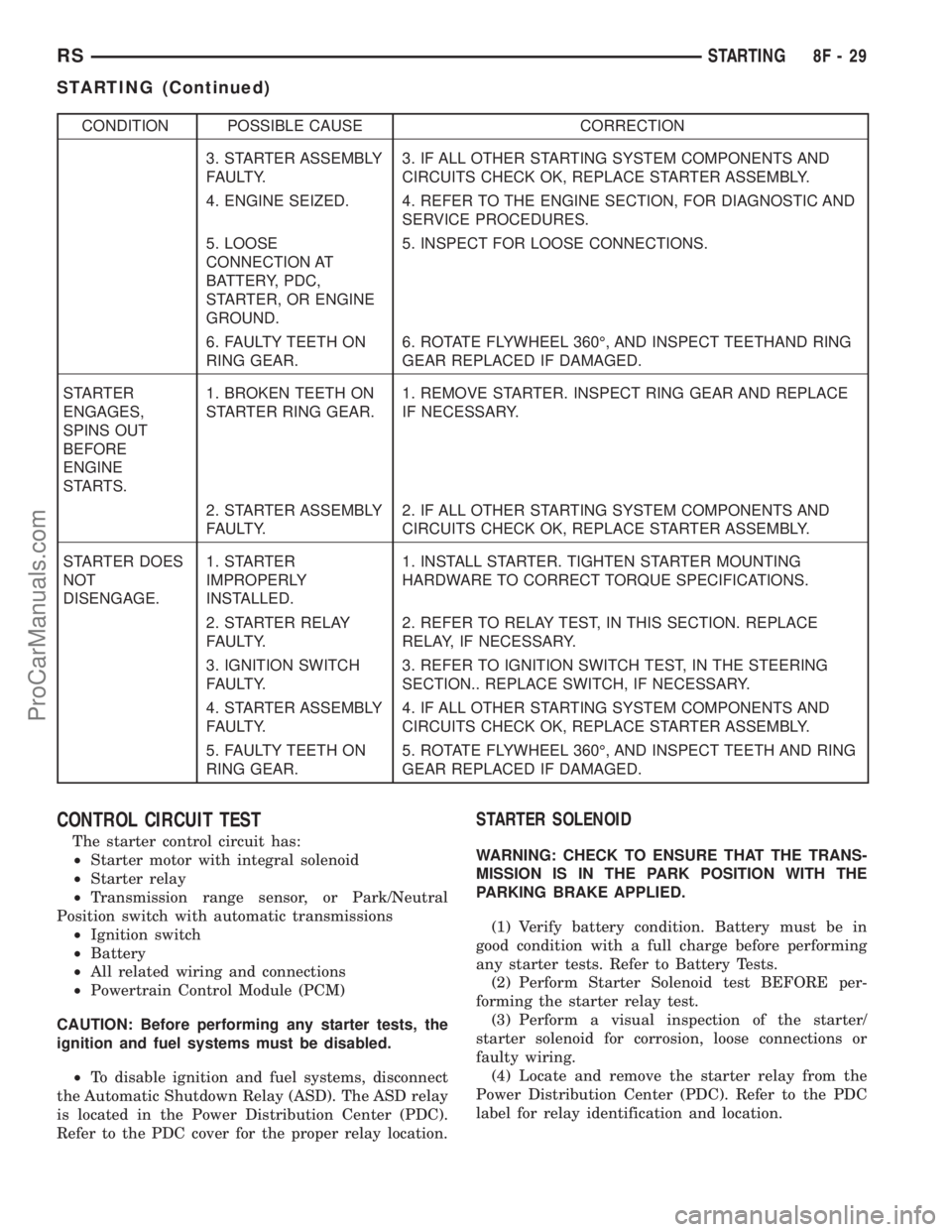

DODGE TOWN AND COUNTRY 2001  Service Manual CONDITION POSSIBLE CAUSE CORRECTION
3. STARTER ASSEMBLY
FAULTY.3. IF ALL OTHER STARTING SYSTEM COMPONENTS AND
CIRCUITS CHECK OK, REPLACE STARTER ASSEMBLY.
4. ENGINE SEIZED. 4. REFER TO THE ENGINE SECT

Page 417 of 2321

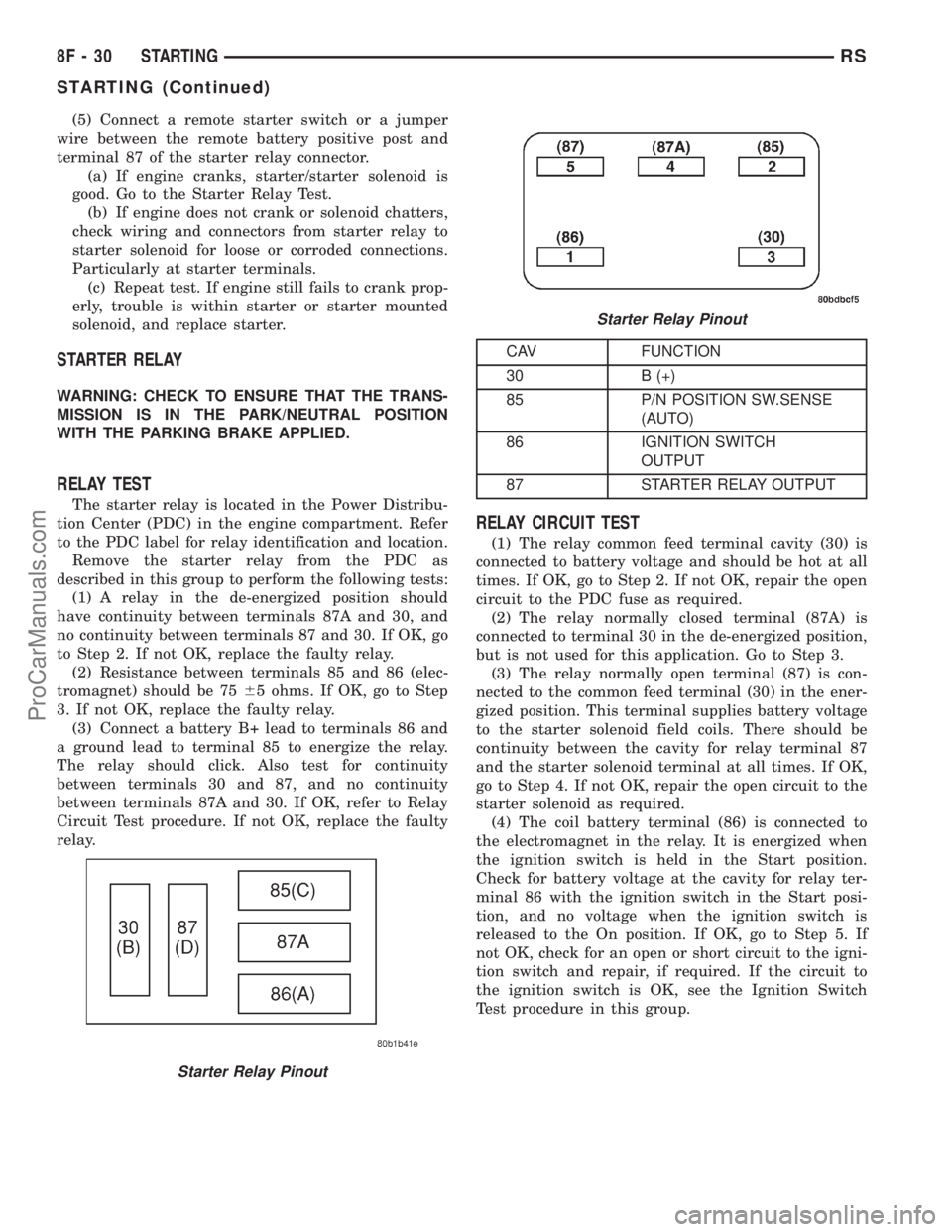

DODGE TOWN AND COUNTRY 2001  Service Manual (5) Connect a remote starter switch or a jumper
wire between the remote battery positive post and
terminal 87 of the starter relay connector.
(a) If engine cranks, starter/starter solenoid is
good. Go

Page 418 of 2321

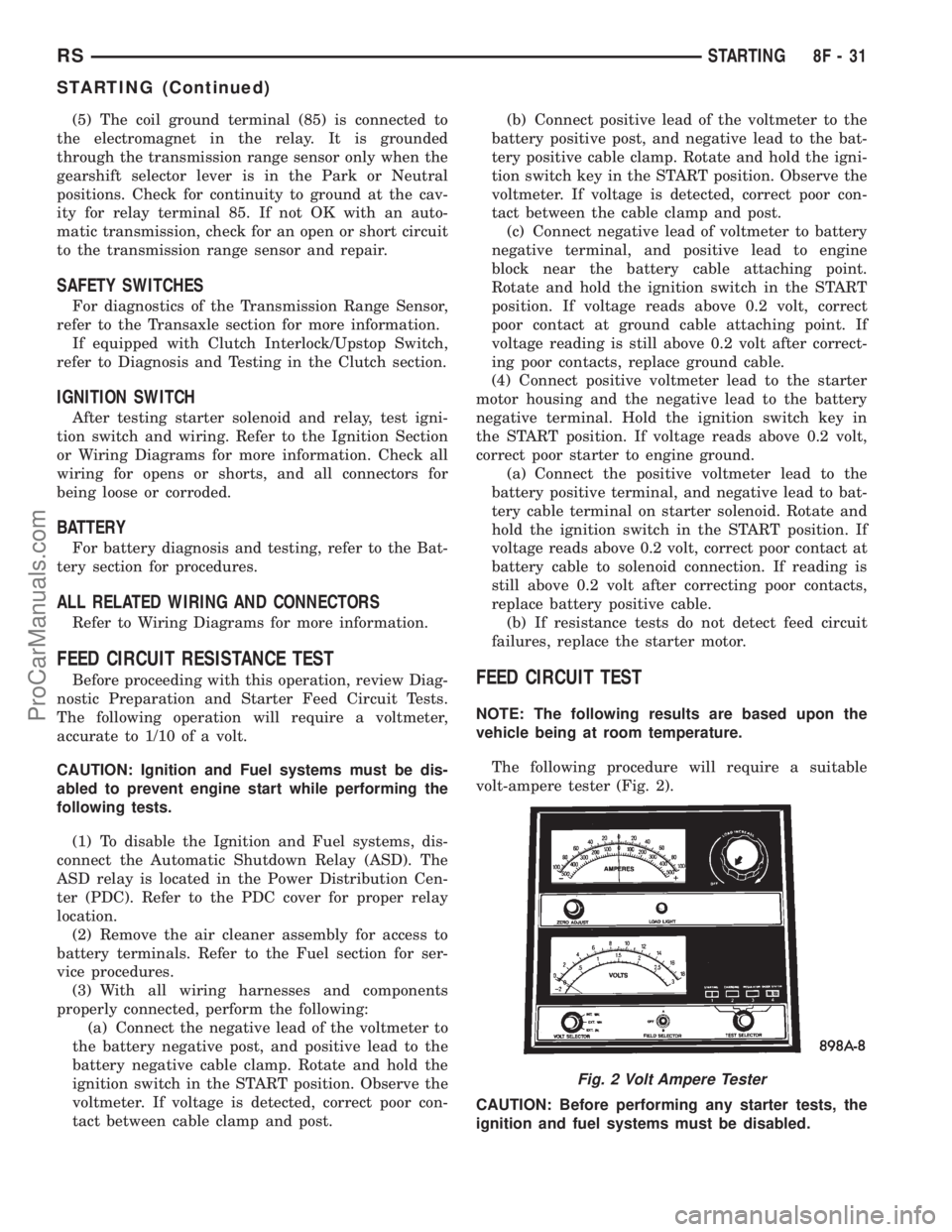

DODGE TOWN AND COUNTRY 2001  Service Manual (5) The coil ground terminal (85) is connected to
the electromagnet in the relay. It is grounded
through the transmission range sensor only when the
gearshift selector lever is in the Park or Neutral

Page 419 of 2321

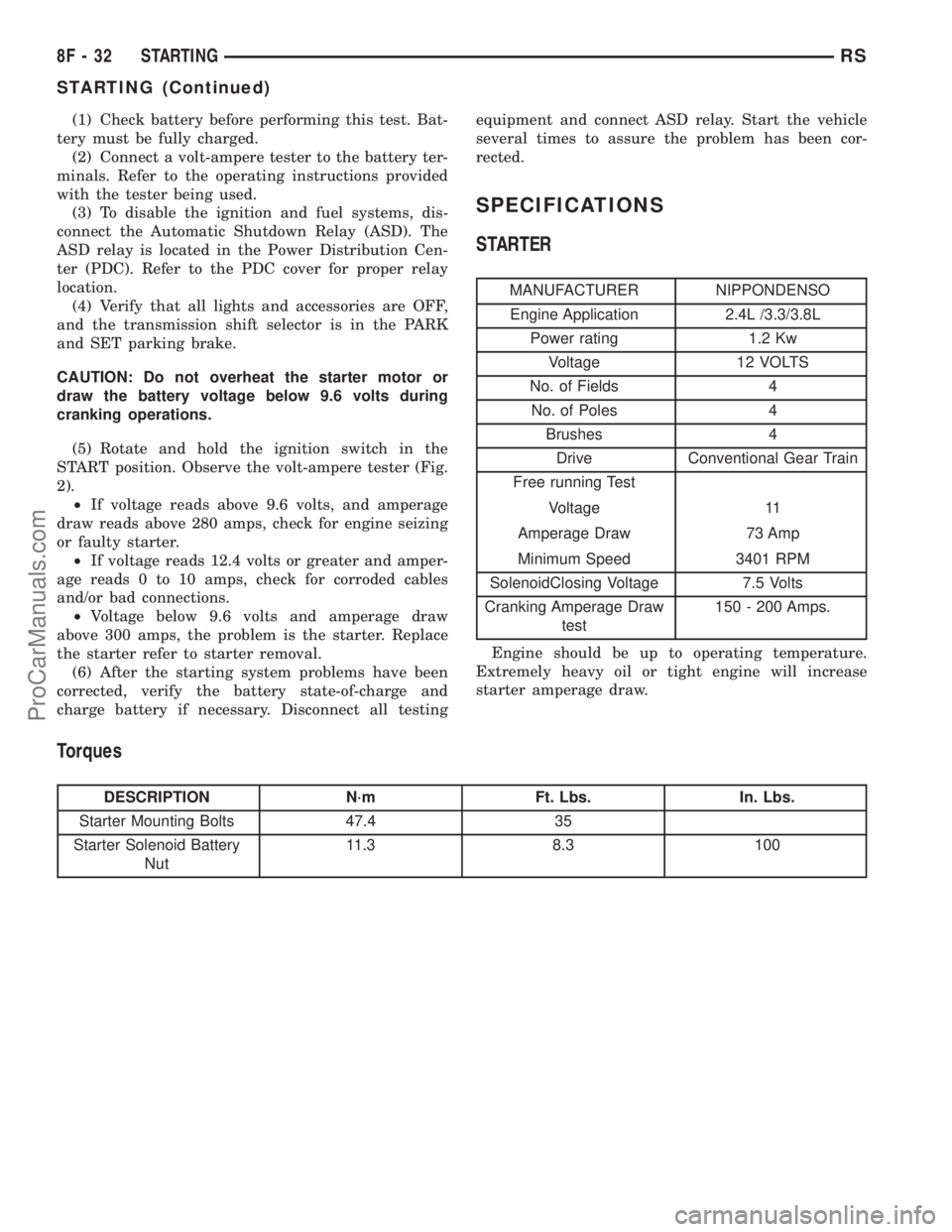

DODGE TOWN AND COUNTRY 2001  Service Manual (1) Check battery before performing this test. Bat-
tery must be fully charged.
(2) Connect a volt-ampere tester to the battery ter-
minals. Refer to the operating instructions provided
with the teste

Page 420 of 2321

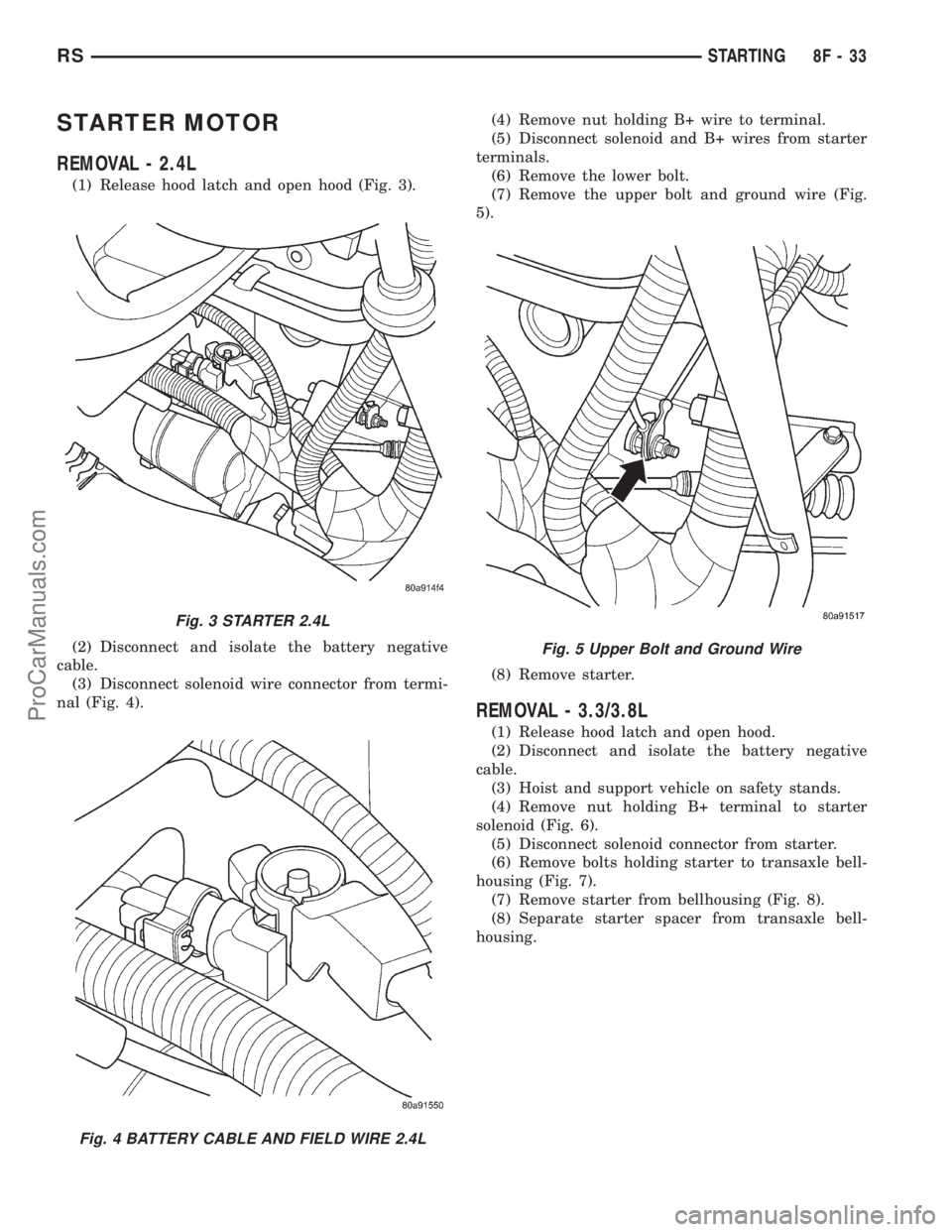

DODGE TOWN AND COUNTRY 2001  Service Manual STARTER MOTOR
REMOVAL - 2.4L
(1) Release hood latch and open hood (Fig. 3).
(2) Disconnect and isolate the battery negative
cable.
(3) Disconnect solenoid wire connector from termi-
nal (Fig. 4).(4) R
