Page 421 of 2321

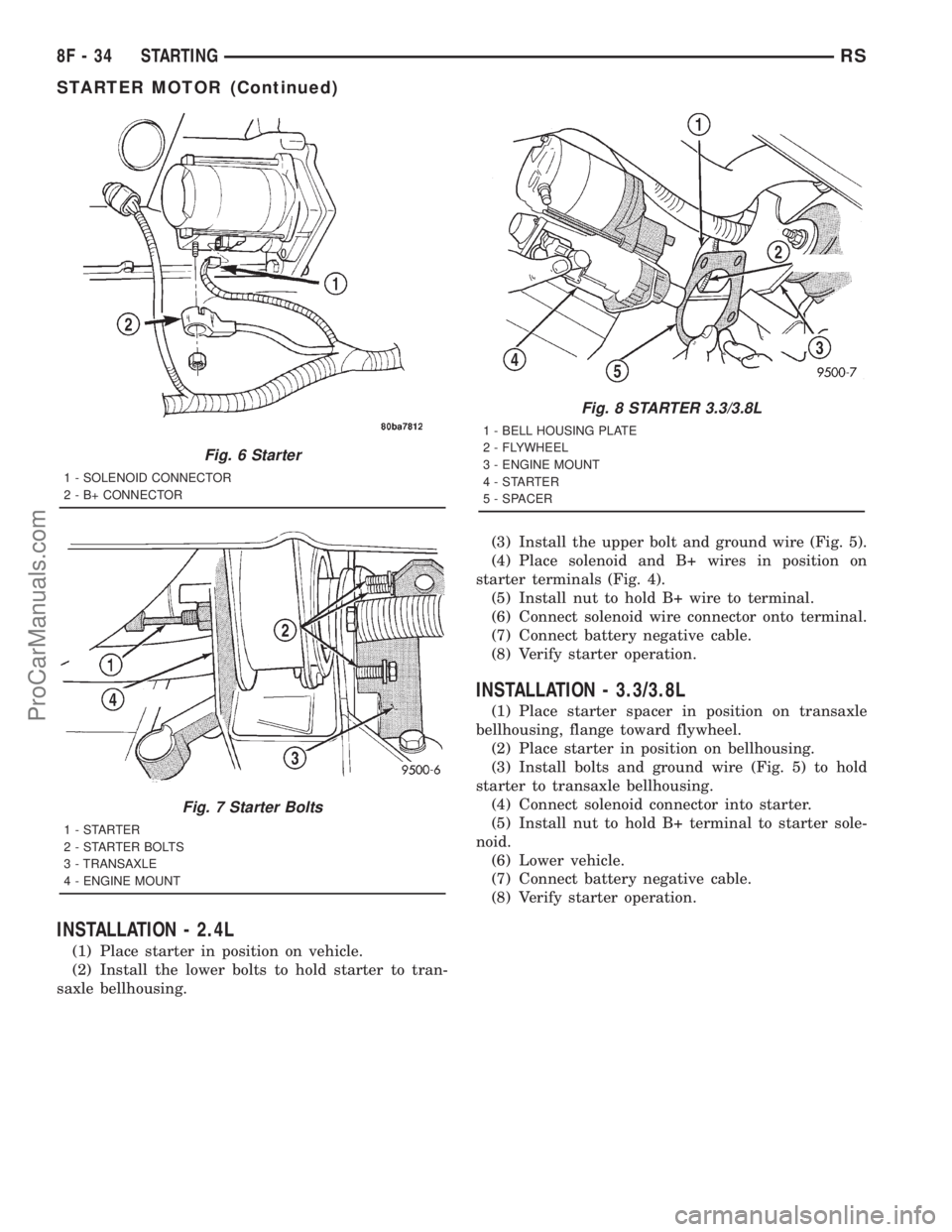

DODGE TOWN AND COUNTRY 2001  Service Manual INSTALLATION - 2.4L
(1) Place starter in position on vehicle.
(2) Install the lower bolts to hold starter to tran-
saxle bellhousing.(3) Install the upper bolt and ground wire (Fig. 5).
(4) Place sole

Page 422 of 2321

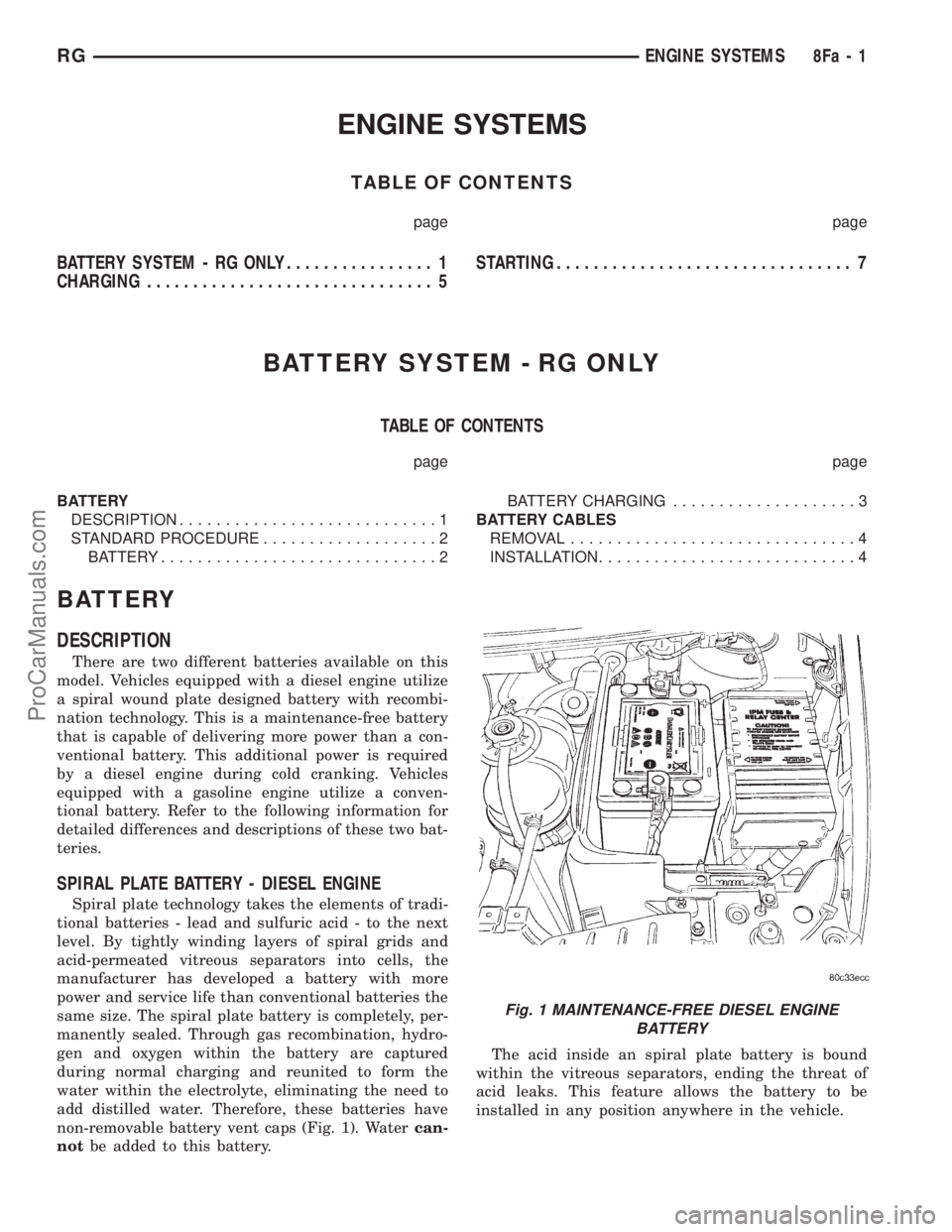

DODGE TOWN AND COUNTRY 2001  Service Manual ENGINE SYSTEMS
TABLE OF CONTENTS
page page
BATTERY SYSTEM - RG ONLY................ 1
CHARGING............................... 5STARTING................................ 7
BATTERY SYSTEM - RG ONLY
TABLE

Page 423 of 2321

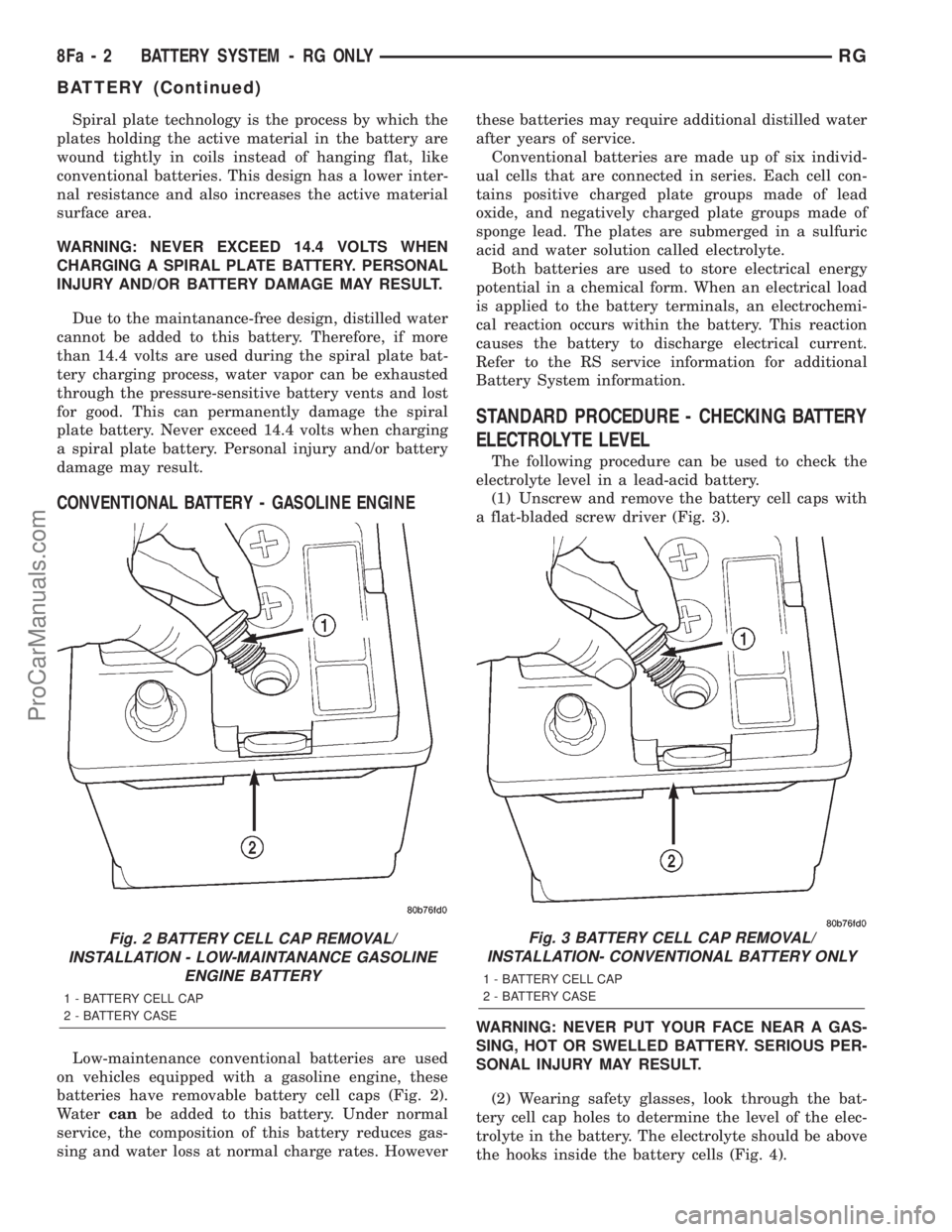

DODGE TOWN AND COUNTRY 2001  Service Manual Spiral plate technology is the process by which the
plates holding the active material in the battery are
wound tightly in coils instead of hanging flat, like
conventional batteries. This design has a

Page 424 of 2321

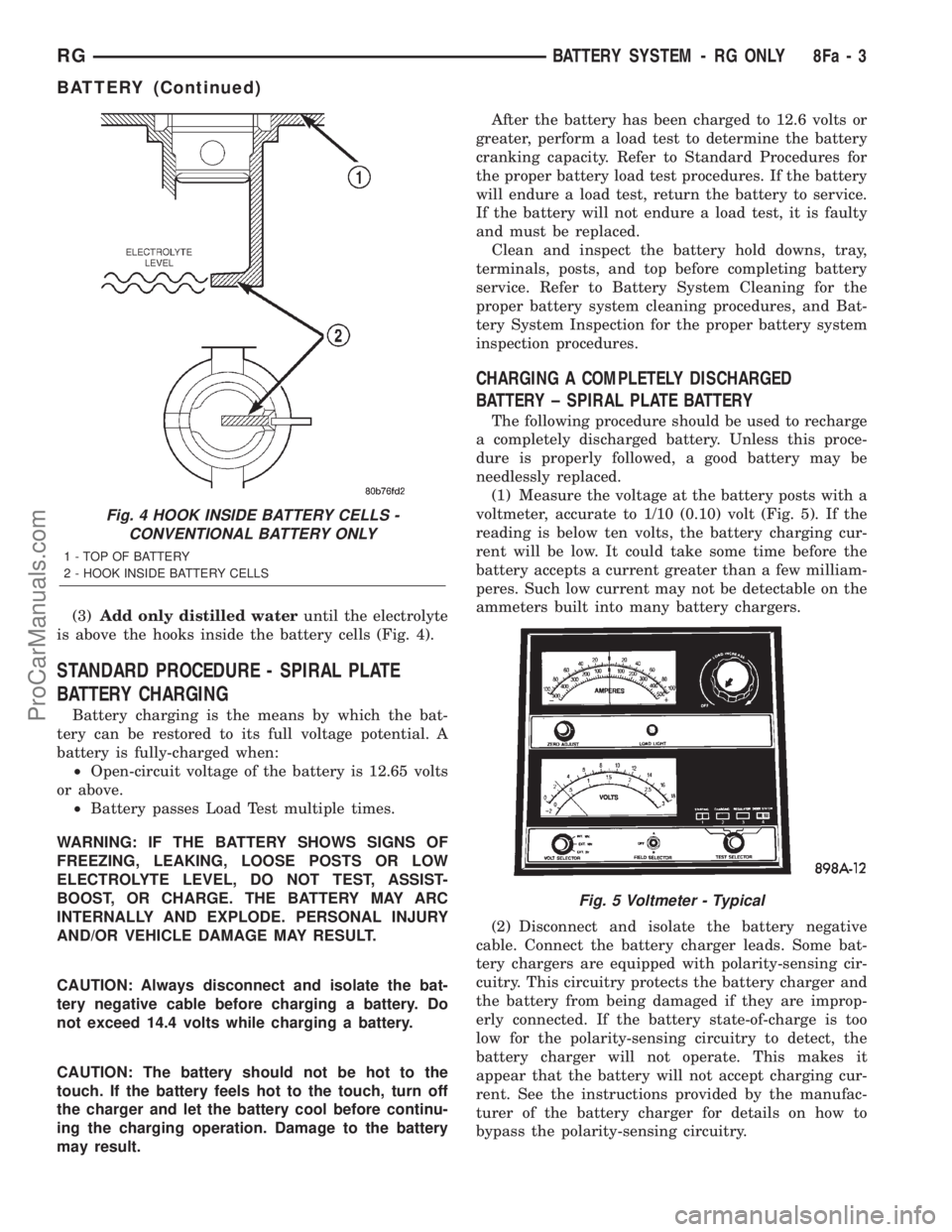

DODGE TOWN AND COUNTRY 2001  Service Manual (3)Add only distilled wateruntil the electrolyte
is above the hooks inside the battery cells (Fig. 4).
STANDARD PROCEDURE - SPIRAL PLATE
BATTERY CHARGING
Battery charging is the means by which the bat

Page 425 of 2321

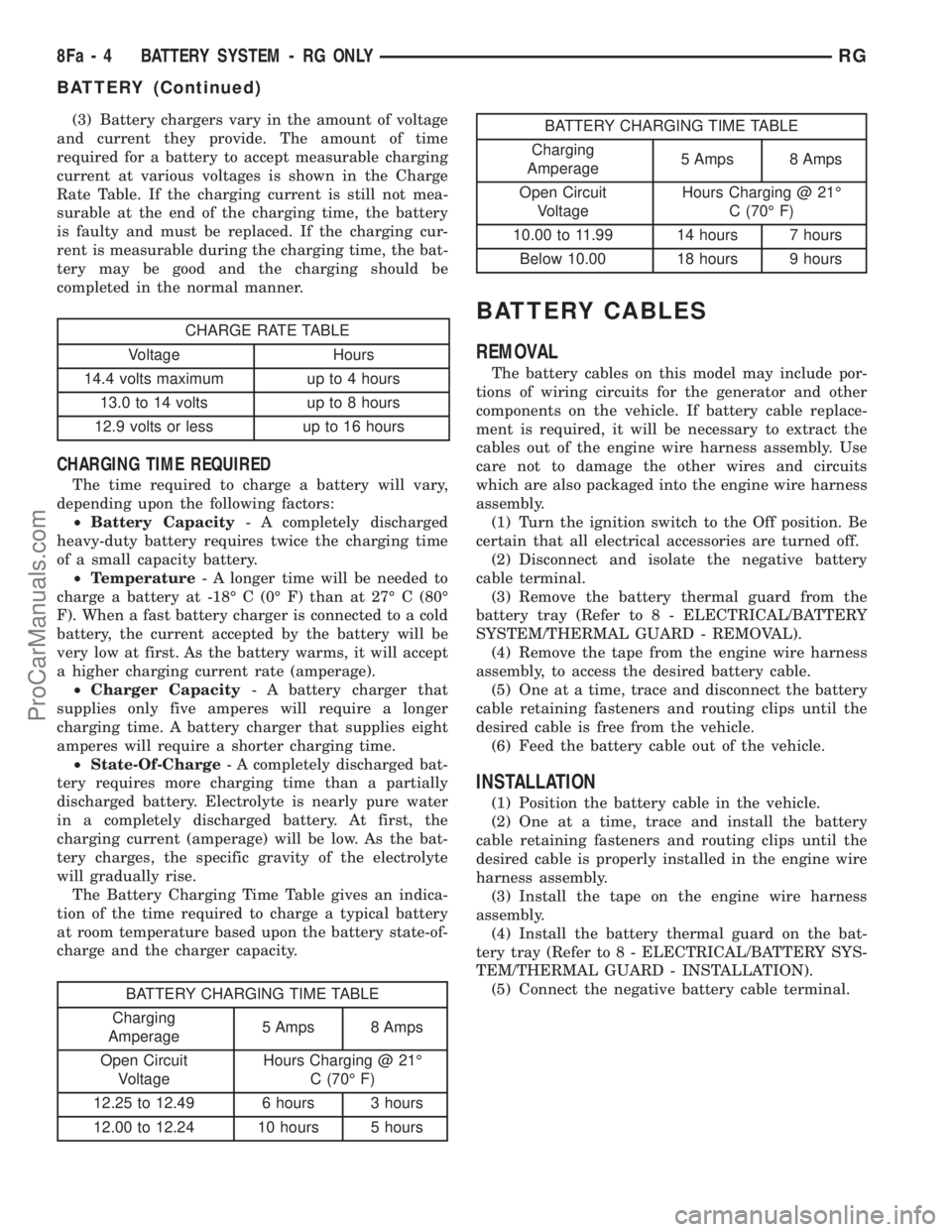

DODGE TOWN AND COUNTRY 2001  Service Manual (3) Battery chargers vary in the amount of voltage
and current they provide. The amount of time
required for a battery to accept measurable charging
current at various voltages is shown in the Charge

Page 426 of 2321

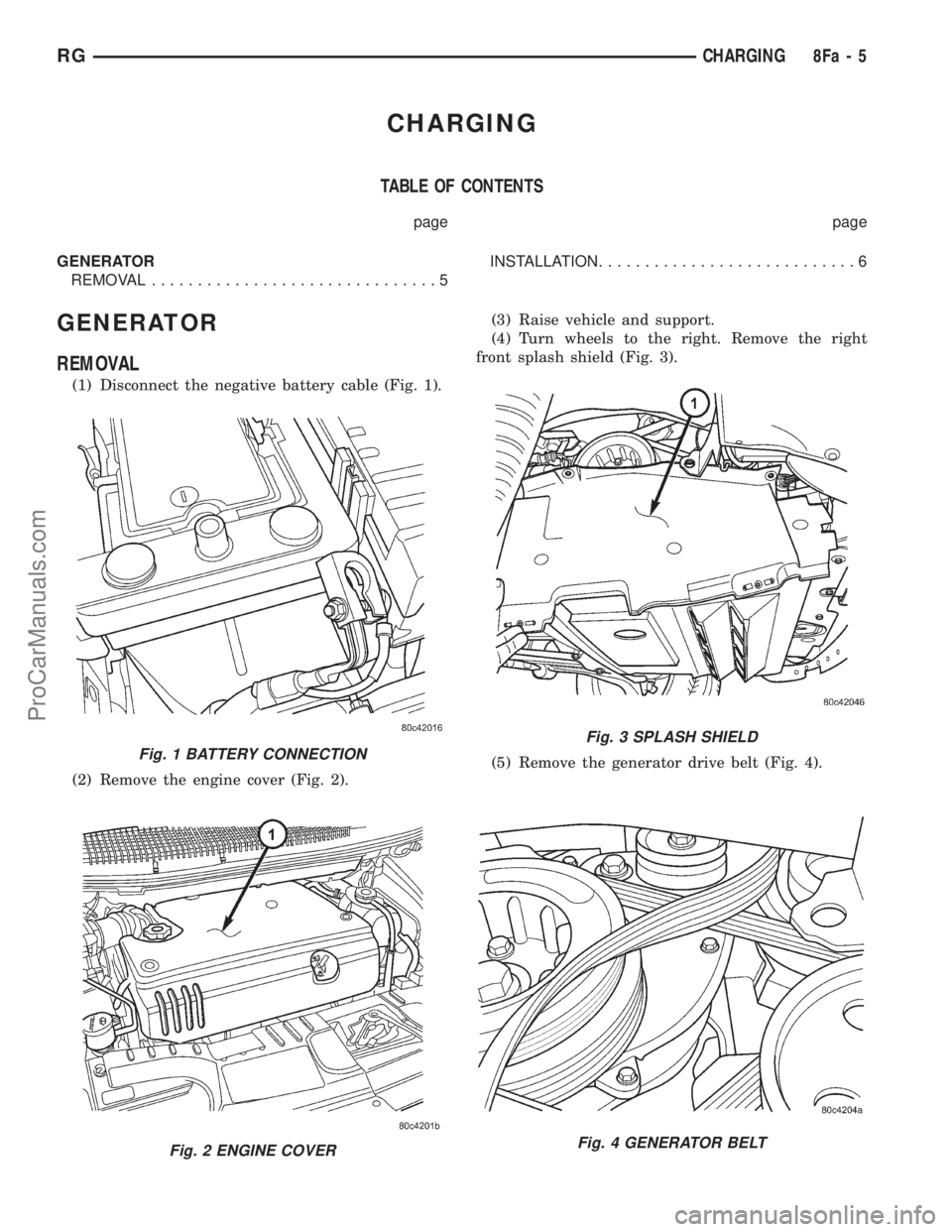

DODGE TOWN AND COUNTRY 2001  Service Manual CHARGING
TABLE OF CONTENTS
page page
GENERATOR
REMOVAL...............................5INSTALLATION............................6
GENERATOR
REMOVAL
(1) Disconnect the negative battery cable (Fig. 1).
(2

Page 427 of 2321

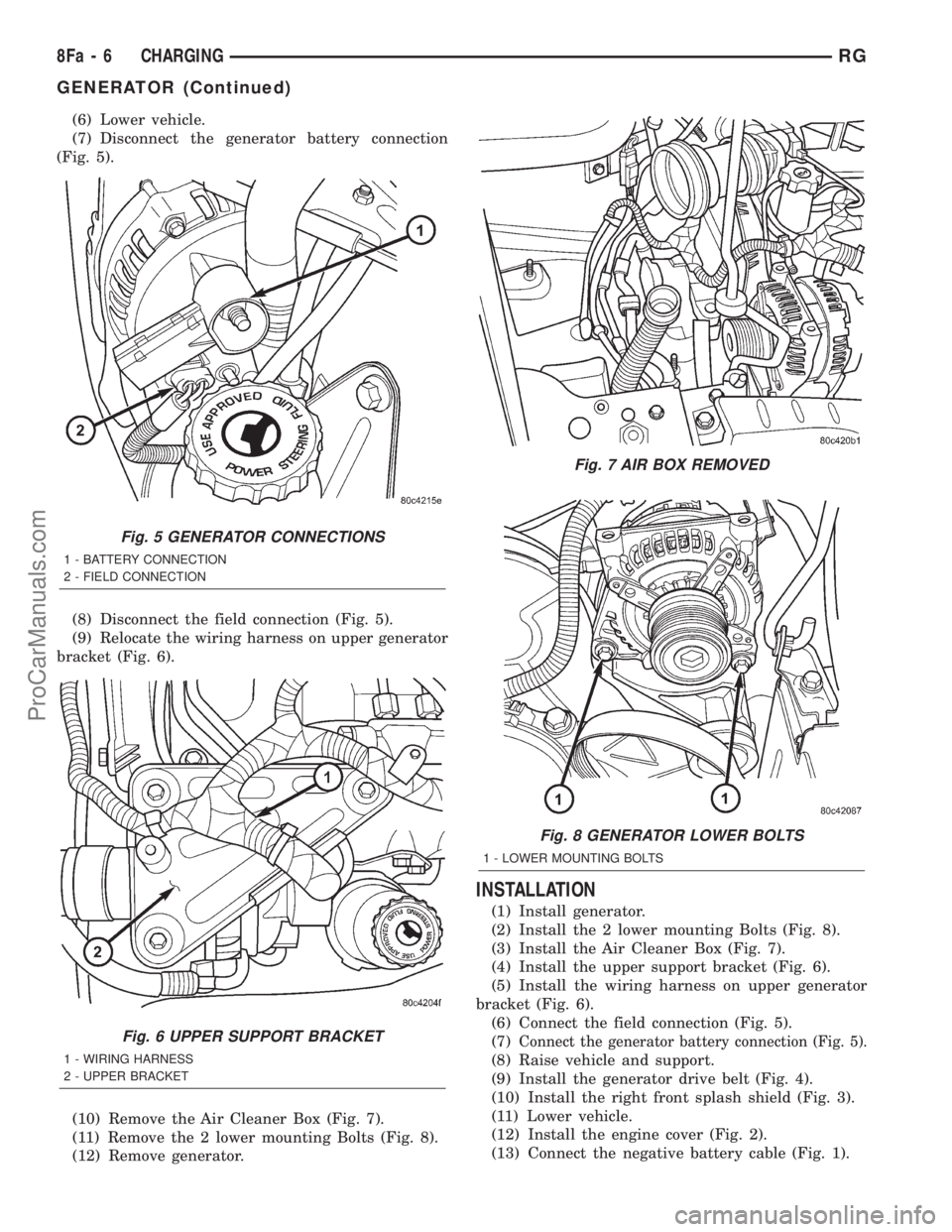

DODGE TOWN AND COUNTRY 2001  Service Manual (6) Lower vehicle.
(7) Disconnect the generator battery connection
(Fig. 5).
(8) Disconnect the field connection (Fig. 5).
(9) Relocate the wiring harness on upper generator
bracket (Fig. 6).
(10) Rem

Page 428 of 2321

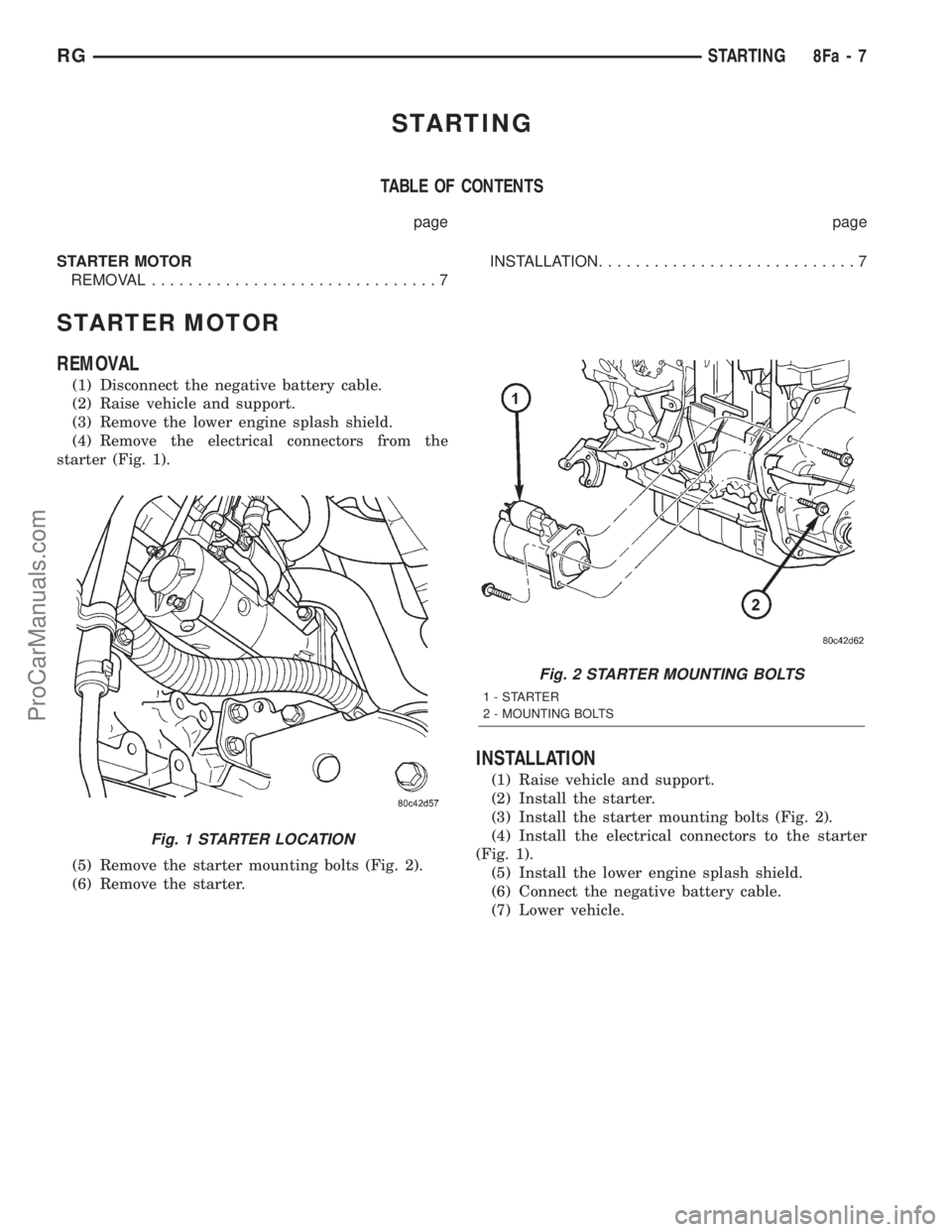

DODGE TOWN AND COUNTRY 2001  Service Manual STARTING
TABLE OF CONTENTS
page page
STARTER MOTOR
REMOVAL...............................7INSTALLATION............................7
STARTER MOTOR
REMOVAL
(1) Disconnect the negative battery cable.
(2)

Page 429 of 2321

DODGE TOWN AND COUNTRY 2001  Service Manual ProCarManuals.com

Page 430 of 2321

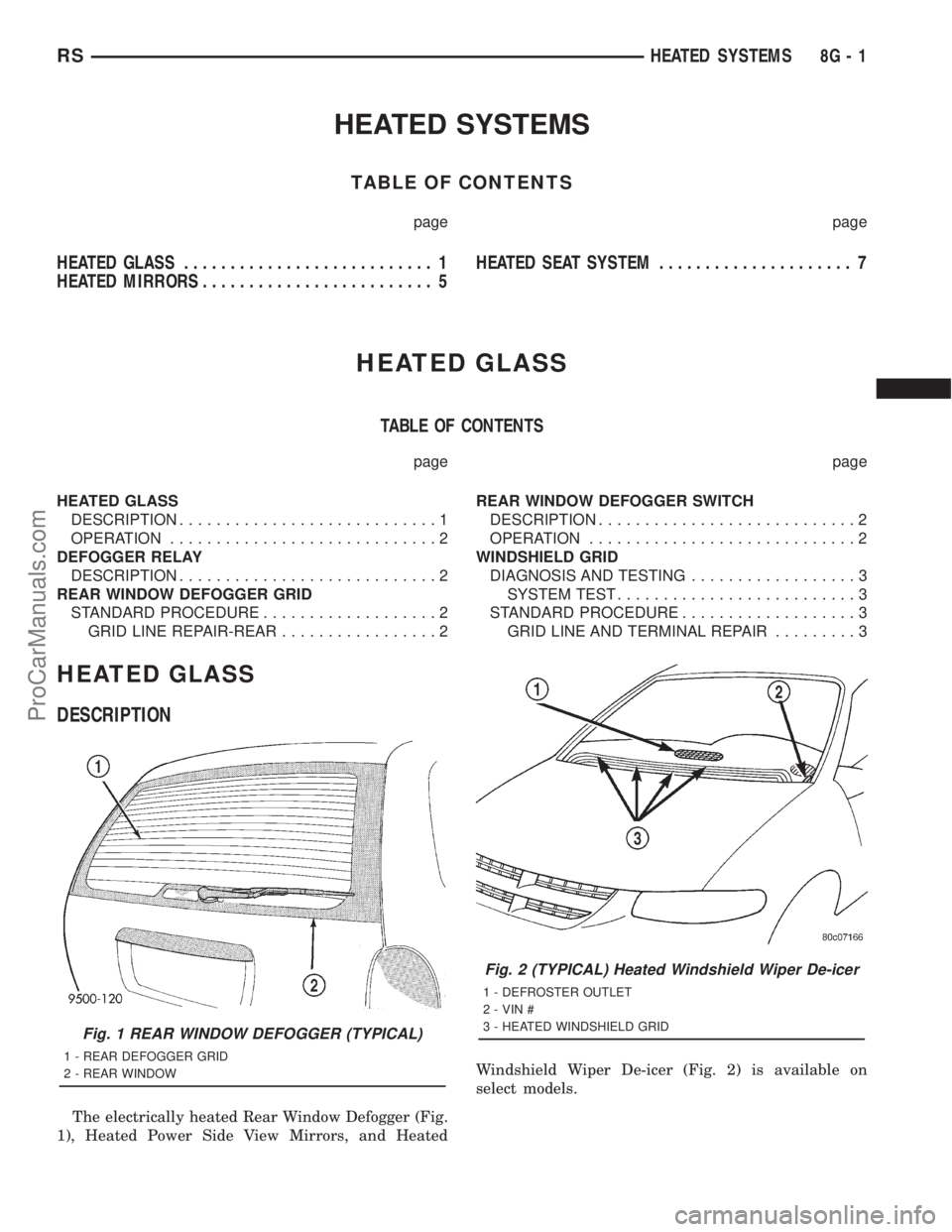

DODGE TOWN AND COUNTRY 2001  Service Manual HEATED SYSTEMS
TABLE OF CONTENTS
page page
HEATED GLASS........................... 1
HEATED MIRRORS......................... 5HEATED SEAT SYSTEM..................... 7
HEATED GLASS
TABLE OF CONTENTS
p
