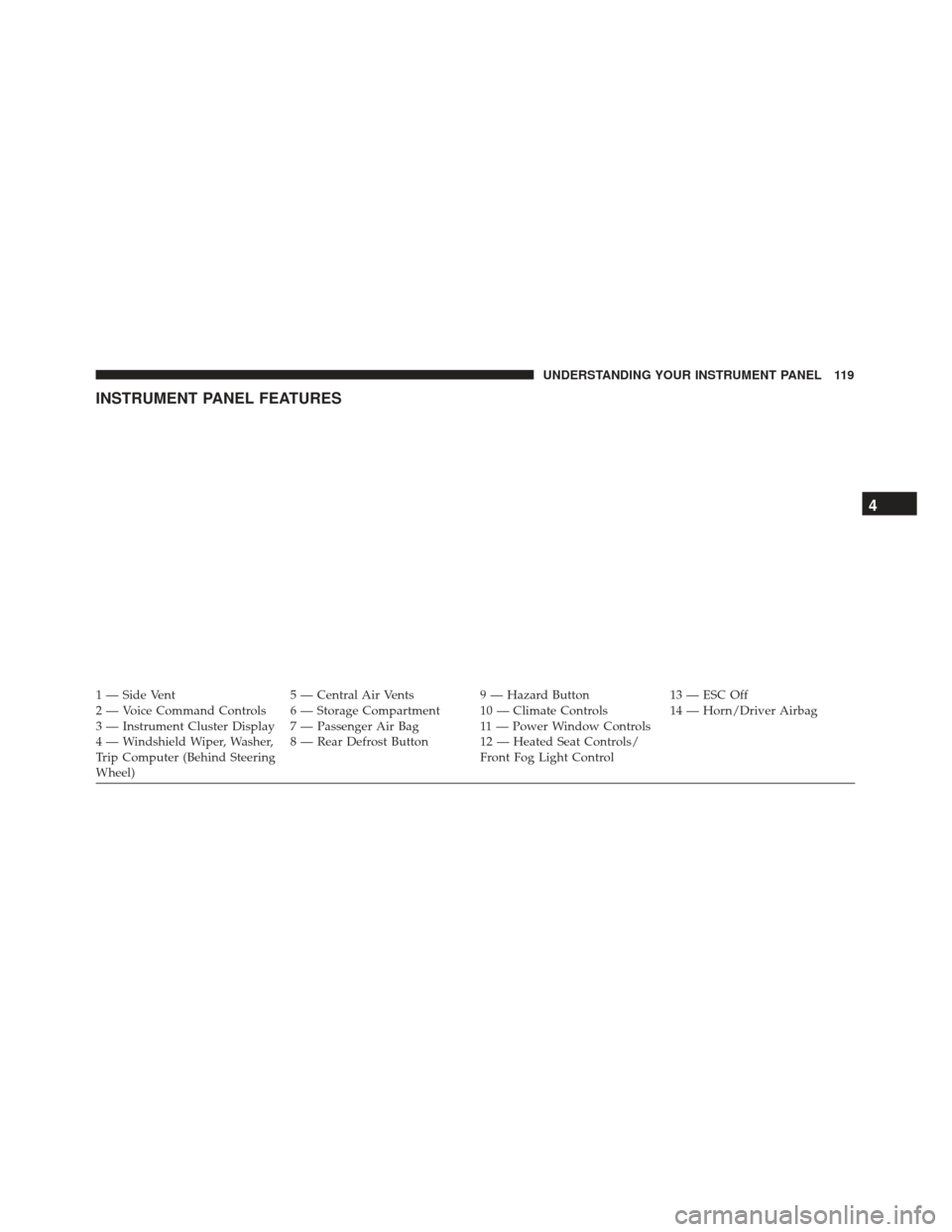

INSTRUMENT PANEL FEATURES
1 — Side Vent5 — Central Air Vents9 — Hazard Button13 — ESC Off
2 — Voice Command Controls 6 — Storage Compartment 10 — Climate Controls 14 — Horn/Driver Airbag
3 — Instrument Cluster Display 7 — Passenger Air Bag 11 — Power Window Controls
4 — Windshield Wiper, Washer,
Trip Computer (Behind Steering
Wheel) 8 — Rear Defrost Button 12 — Heated Seat Controls/
Front Fog Light Control
4
UNDERSTANDING YOUR INSTRUMENT PANEL 119

INSTRUMENT CLUSTER
Instrument Cluster
120 UNDERSTANDING YOUR INSTRUMENT PANEL

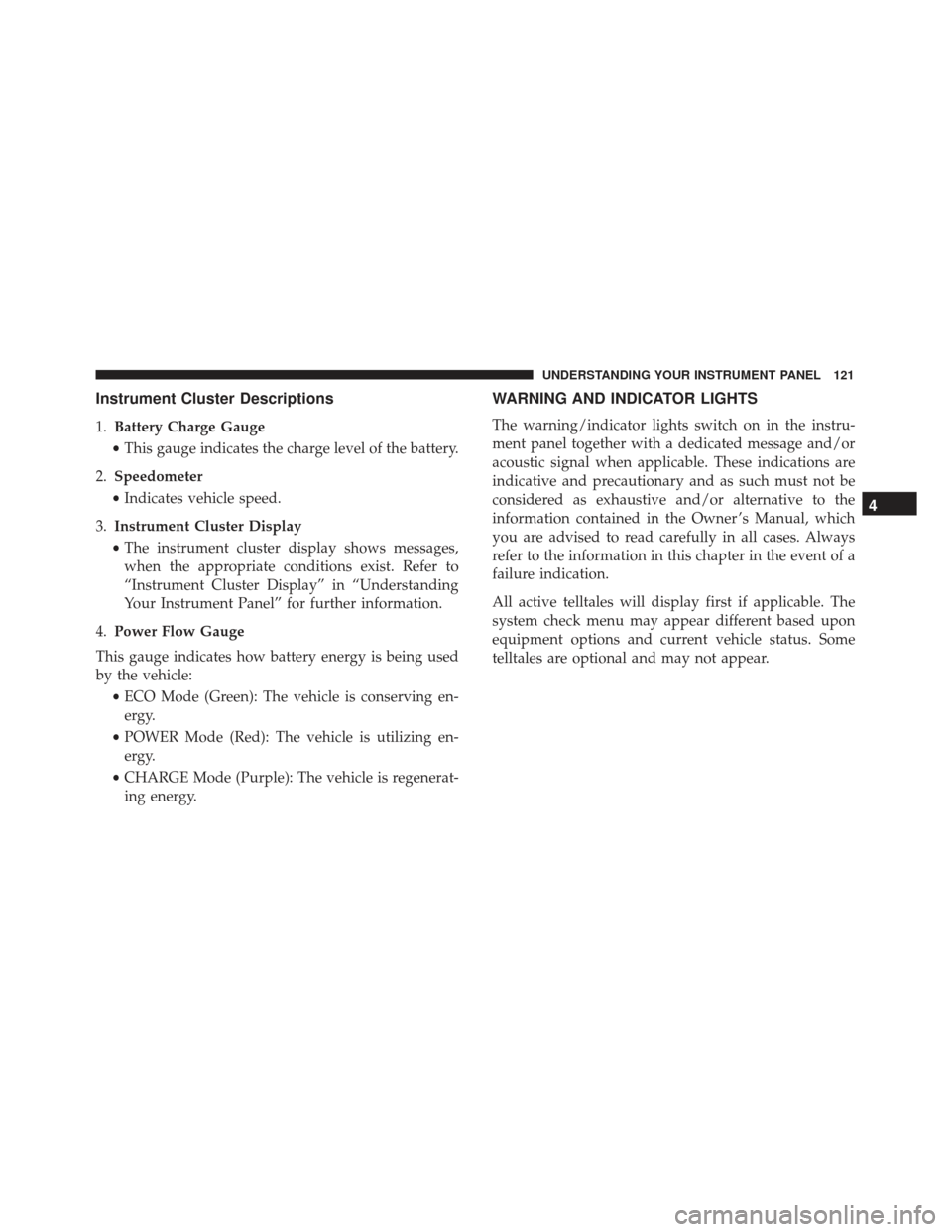

Instrument Cluster Descriptions
1.Battery Charge Gauge
• This gauge indicates the charge level of the battery.
2. Speedometer
• Indicates vehicle speed.
3. Instrument Cluster Display
• The instrument cluster display shows messages,
when the appropriate conditions exist. Refer to
“Instrument Cluster Display” in “Understanding
Your Instrument Panel” for further information.
4. Power Flow Gauge
This gauge indicates how battery energy is being used
by the vehicle: •ECO Mode (Green): The vehicle is conserving en-
ergy.
• POWER Mode (Red): The vehicle is utilizing en-
ergy.
• CHARGE Mode (Purple): The vehicle is regenerat-
ing energy.
WARNING AND INDICATOR LIGHTS
The warning/indicator lights switch on in the instru-
ment panel together with a dedicated message and/or
acoustic signal when applicable. These indications are
indicative and precautionary and as such must not be
considered as exhaustive and/or alternative to the
information contained in the Owner ’s Manual, which
you are advised to read carefully in all cases. Always
refer to the information in this chapter in the event of a
failure indication.
All active telltales will display first if applicable. The
system check menu may appear different based upon
equipment options and current vehicle status. Some
telltales are optional and may not appear.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 121

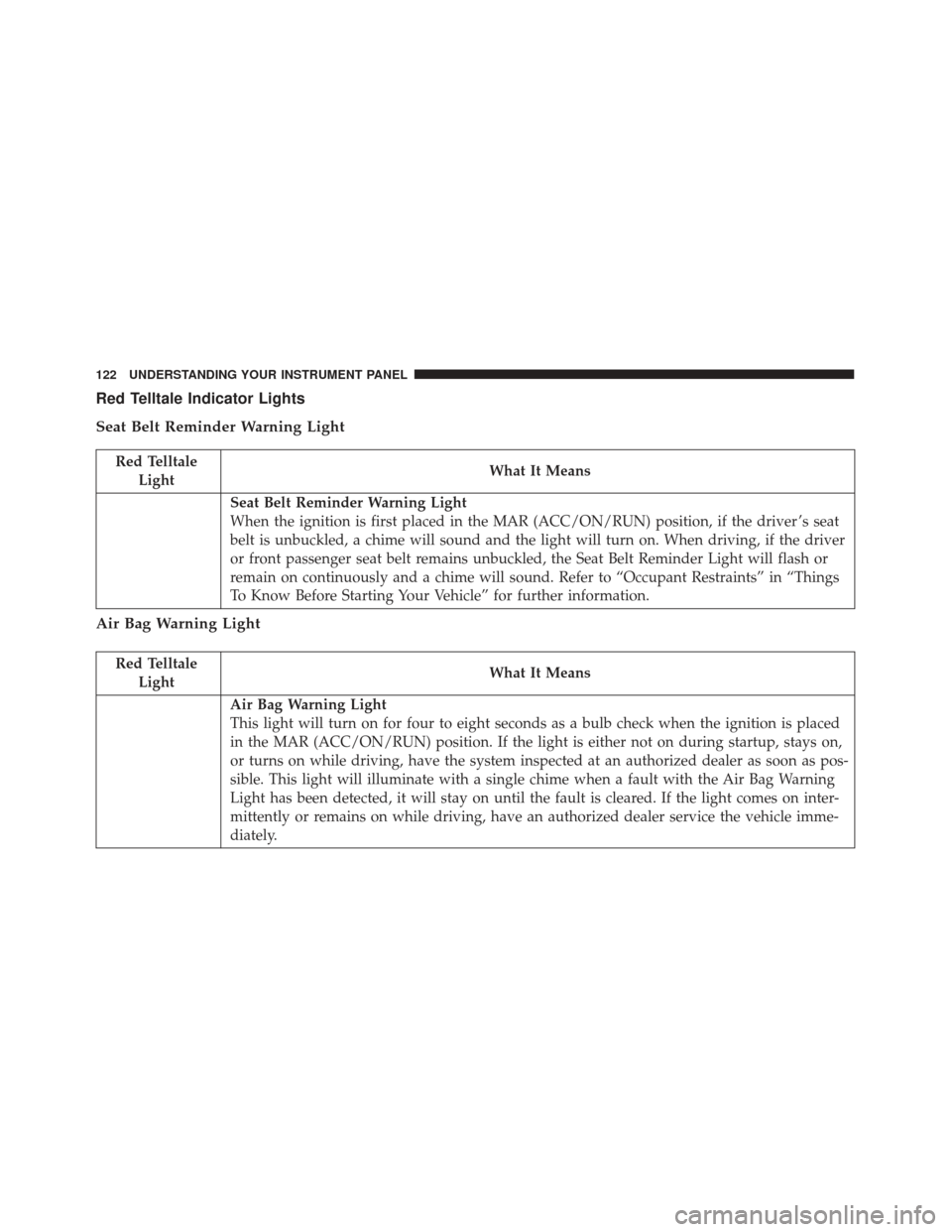

Red Telltale Indicator Lights
Seat Belt Reminder Warning Light
Red TelltaleLight What It Means
Seat Belt Reminder Warning Light
When the ignition is first placed in the MAR (ACC/ON/RUN) position, if the driver ’s seat
belt is unbuckled, a chime will sound and the light will turn on. When driving, if the driver
or front passenger seat belt remains unbuckled, the Seat Belt Reminder Light will flash or
remain on continuously and a chime will sound. Refer to “Occupant Restraints” in “Things
To Know Before Starting Your Vehicle” for further information.
Air Bag Warning Light
Red Telltale
Light What It Means
Air Bag Warning Light
This light will turn on for four to eight seconds as a bulb check when the ignition is placed
in the MAR (ACC/ON/RUN) position. If the light is either not on during startup, stays on,
or turns on while driving, have the system inspected at an authorized dealer as soon as pos-
sible. This light will illuminate with a single chime when a fault with the Air Bag Warning
Light has been detected, it will stay on until the fault is cleared. If the light comes on inter-
mittently or remains on while driving, have an authorized dealer service the vehicle imme-
diately.
122 UNDERSTANDING YOUR INSTRUMENT PANEL

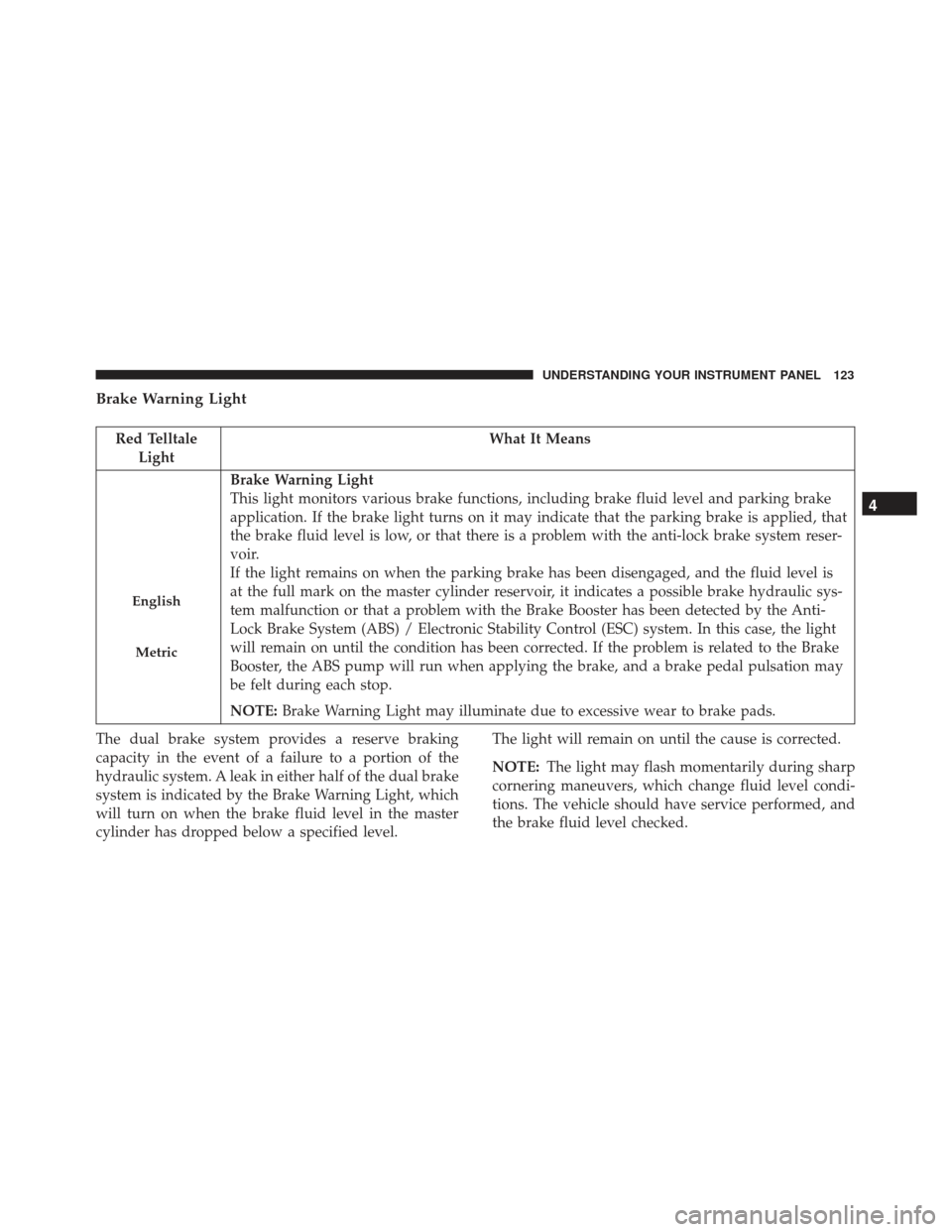

Brake Warning Light
Red TelltaleLight What It Means
English
Metric
Brake Warning Light
This light monitors various brake functions, including brake fluid level and parking brake
application. If the brake light turns on it may indicate that the parking brake is applied, that
the brake fluid level is low, or that there is a problem with the anti-lock brake system reser-
voir.
If the light remains on when the parking brake has been disengaged, and the fluid level is
at the full mark on the master cylinder reservoir, it indicates a possible brake hydraulic sys-
tem malfunction or that a problem with the Brake Booster has been detected by the Anti-
Lock Brake System (ABS) / Electronic Stability Control (ESC) system. In this case, the light
will remain on until the condition has been corrected. If the problem is related to the Brake
Booster, the ABS pump will run when applying the brake, and a brake pedal pulsation may
be felt during each stop.
NOTE:
Brake Warning Light may illuminate due to excessive wear to brake pads.
The dual brake system provides a reserve braking
capacity in the event of a failure to a portion of the
hydraulic system. A leak in either half of the dual brake
system is indicated by the Brake Warning Light, which
will turn on when the brake fluid level in the master
cylinder has dropped below a specified level. The light will remain on until the cause is corrected.
NOTE:
The light may flash momentarily during sharp
cornering maneuvers, which change fluid level condi-
tions. The vehicle should have service performed, and
the brake fluid level checked.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 123

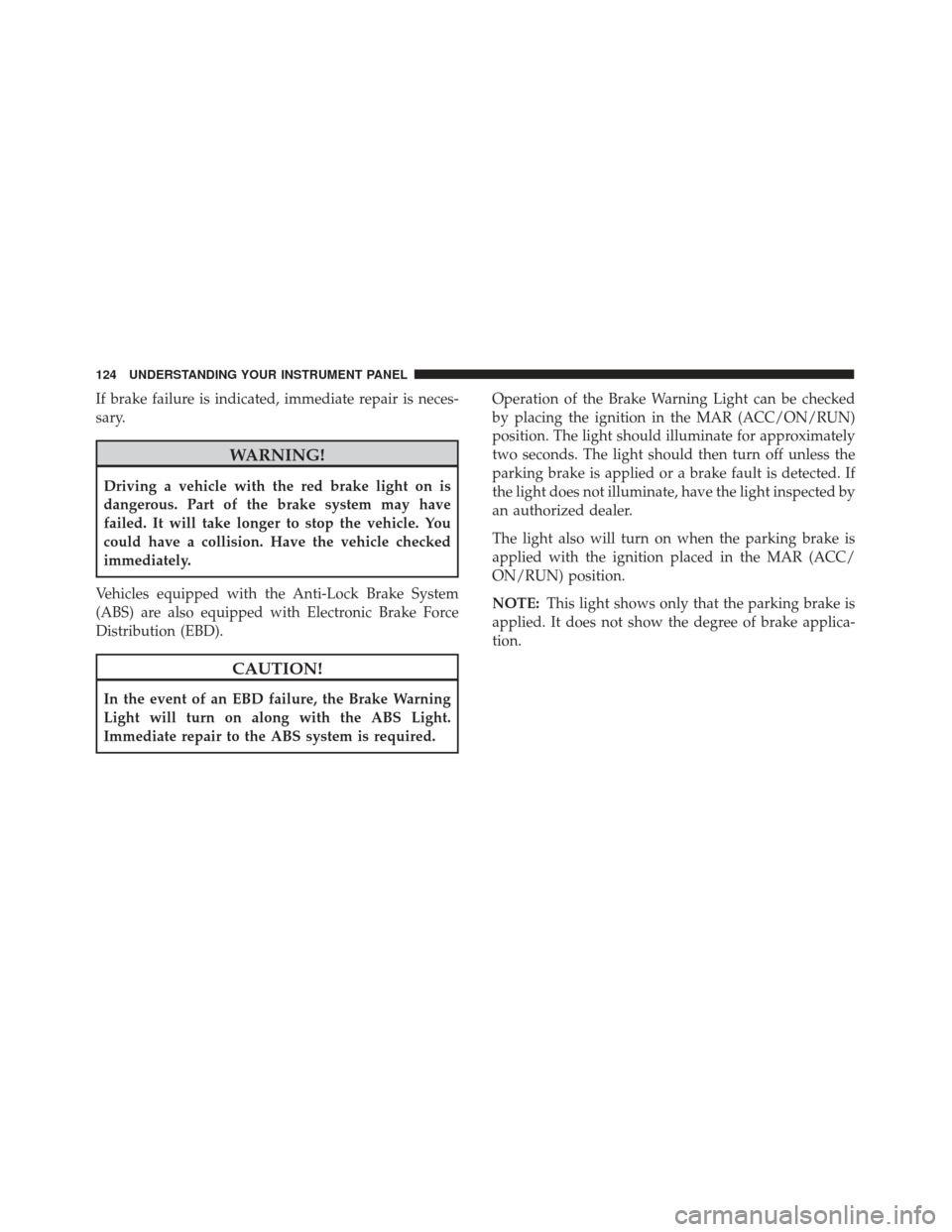

If brake failure is indicated, immediate repair is neces-
sary.
WARNING!
Driving a vehicle with the red brake light on is
dangerous. Part of the brake system may have
failed. It will take longer to stop the vehicle. You
could have a collision. Have the vehicle checked
immediately.
Vehicles equipped with the Anti-Lock Brake System
(ABS) are also equipped with Electronic Brake Force
Distribution (EBD).
CAUTION!
In the event of an EBD failure, the Brake Warning
Light will turn on along with the ABS Light.
Immediate repair to the ABS system is required. Operation of the Brake Warning Light can be checked
by placing the ignition in the MAR (ACC/ON/RUN)
position. The light should illuminate for approximately
two seconds. The light should then turn off unless the
parking brake is applied or a brake fault is detected. If
the light does not illuminate, have the light inspected by
an authorized dealer.
The light also will turn on when the parking brake is
applied with the ignition placed in the MAR (ACC/
ON/RUN) position.
NOTE:
This light shows only that the parking brake is
applied. It does not show the degree of brake applica-
tion.
124 UNDERSTANDING YOUR INSTRUMENT PANEL

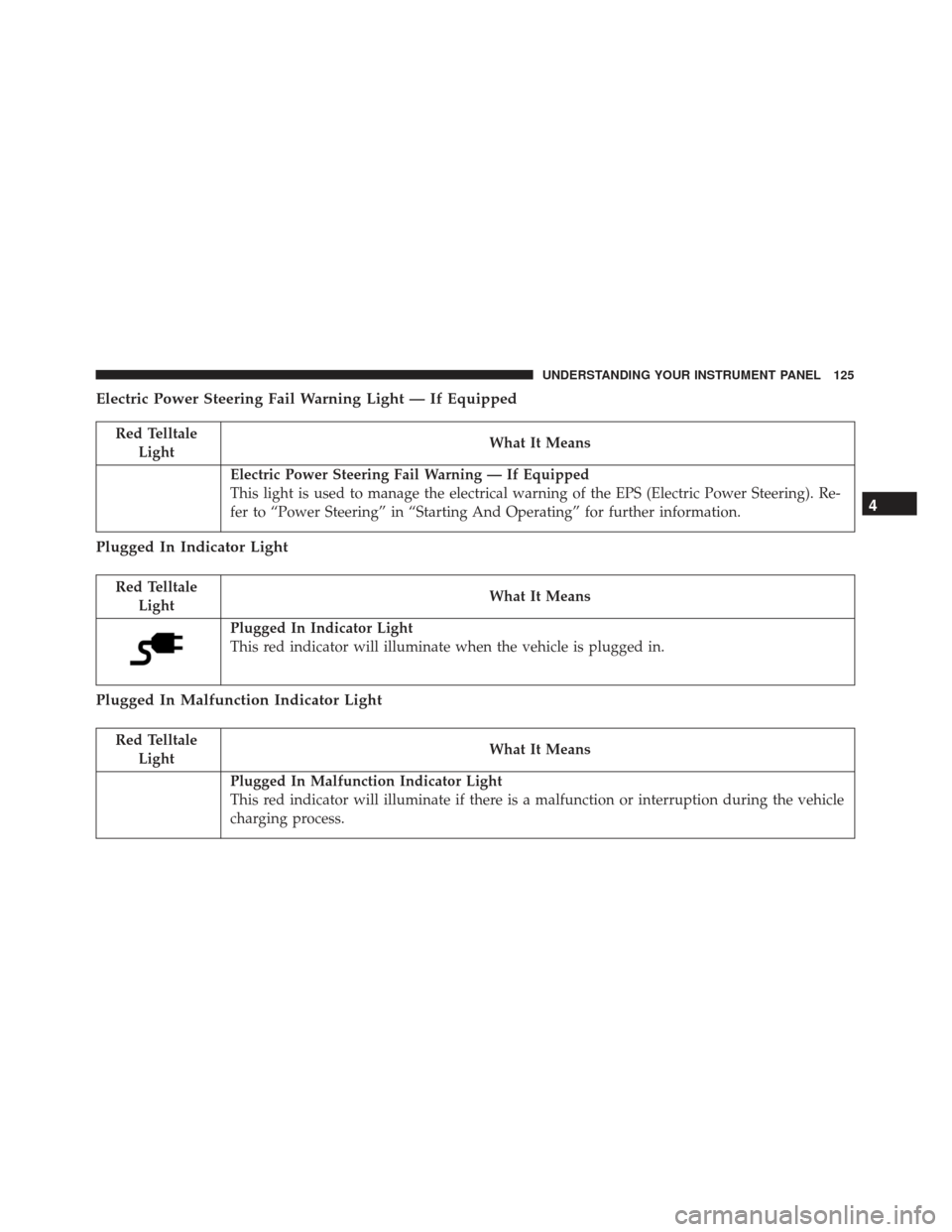

Electric Power Steering Fail Warning Light — If Equipped
Red TelltaleLight What It Means
Electric Power Steering Fail Warning — If Equipped
This light is used to manage the electrical warning of the EPS (Electric Power Steering). Re-
fer to “Power Steering” in “Starting And Operating” for further information.
Plugged In Indicator Light
Red Telltale
Light What It Means
Plugged In Indicator Light
This red indicator will illuminate when the vehicle is plugged in.
Plugged In Malfunction Indicator Light
Red Telltale
Light What It Means
Plugged In Malfunction Indicator Light
This red indicator will illuminate if there is a malfunction or interruption during the vehicle
charging process.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 125

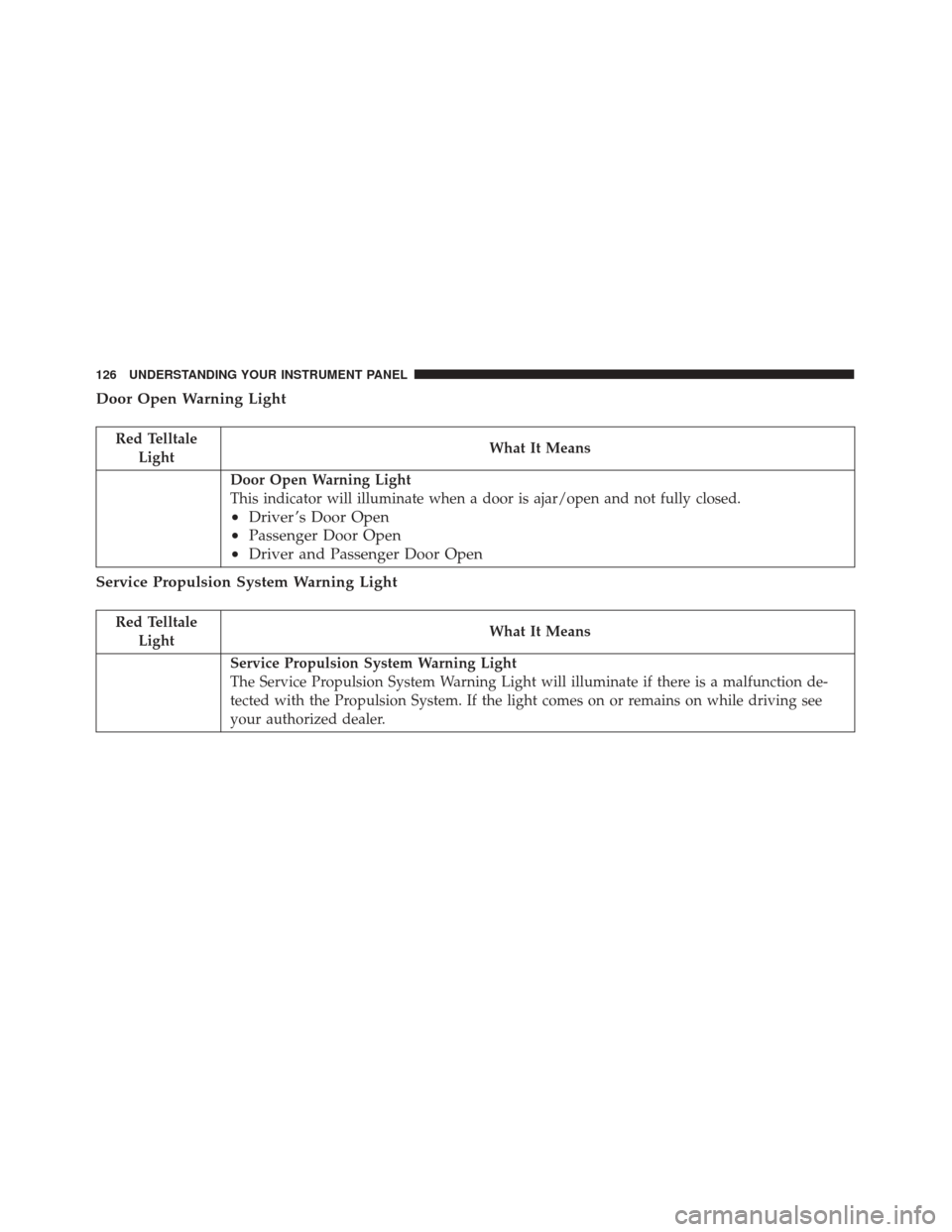

Door Open Warning Light
Red TelltaleLight What It Means
Door Open Warning Light
This indicator will illuminate when a door is ajar/open and not fully closed.
•
Driver ’s Door Open
• Passenger Door Open
• Driver and Passenger Door Open
Service Propulsion System Warning Light
Red Telltale Light What It Means
Service Propulsion System Warning Light
The Service Propulsion System Warning Light will illuminate if there is a malfunction de-
tected with the Propulsion System. If the light comes on or remains on while driving see
your authorized dealer.
126 UNDERSTANDING YOUR INSTRUMENT PANEL

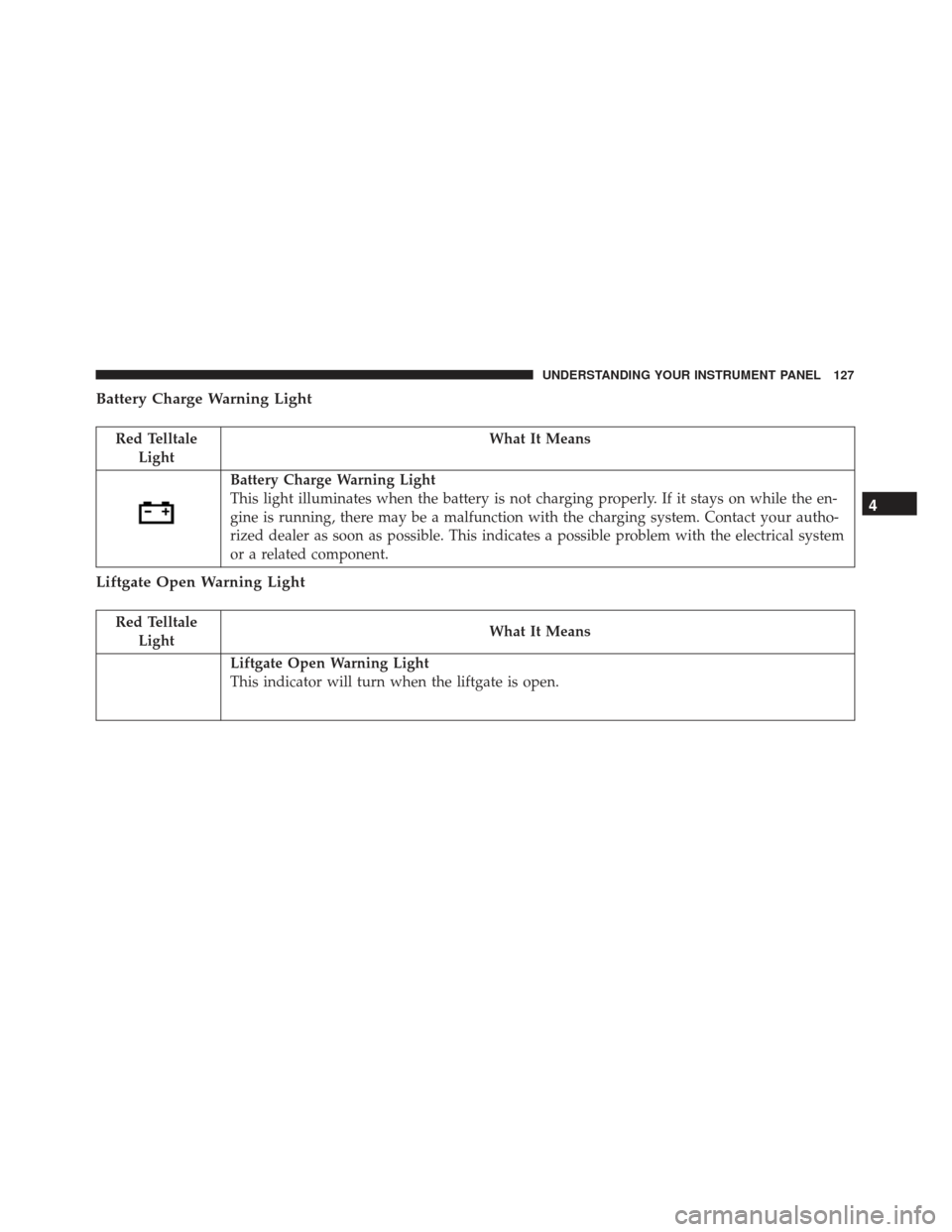

Battery Charge Warning Light
Red TelltaleLight What It Means
Battery Charge Warning Light
This light illuminates when the battery is not charging properly. If it stays on while the en-
gine is running, there may be a malfunction with the charging system. Contact your autho-
rized dealer as soon as possible. This indicates a possible problem with the electrical system
or a related component.
Liftgate Open Warning Light
Red Telltale
Light What It Means
Liftgate Open Warning Light
This indicator will turn when the liftgate is open.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 127

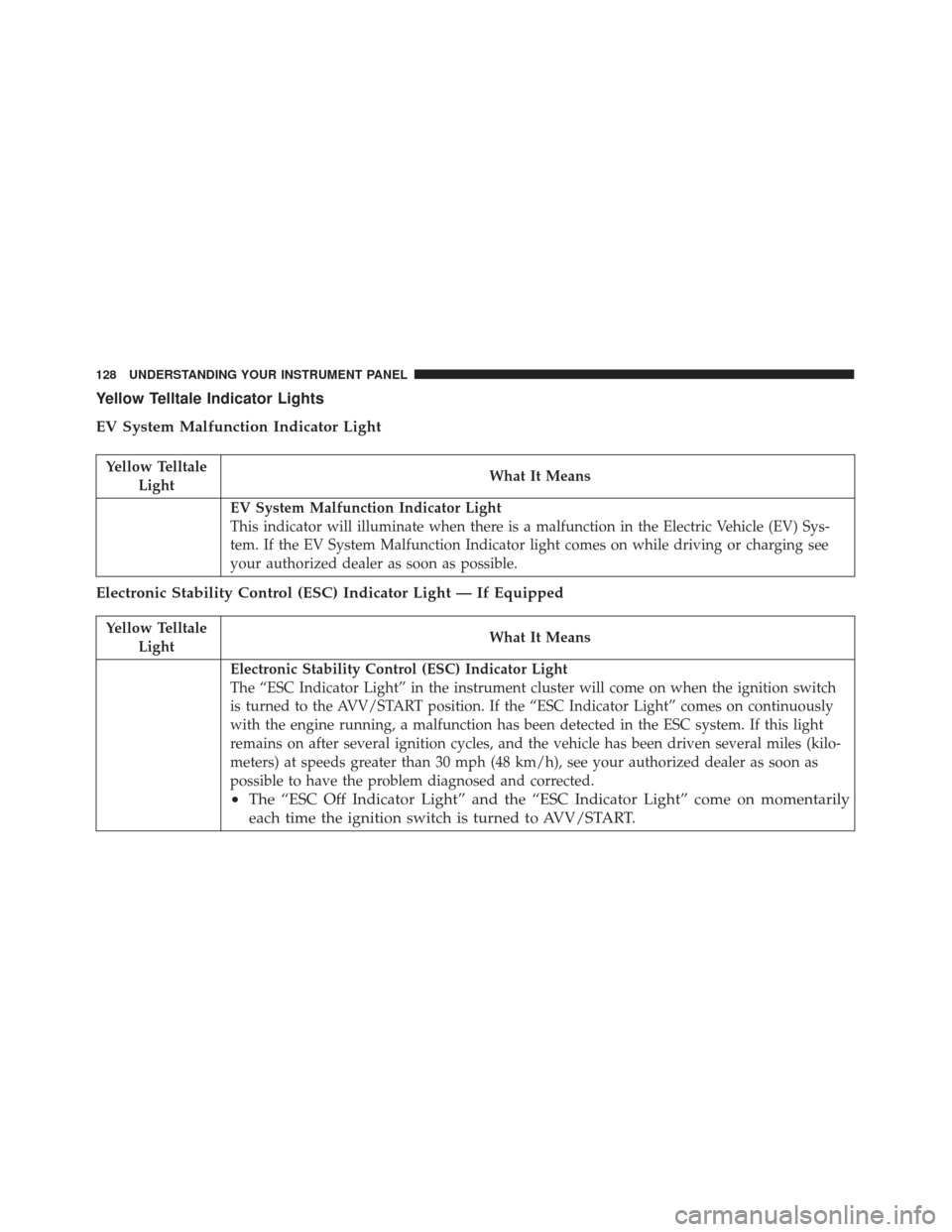

Yellow Telltale Indicator Lights
EV System Malfunction Indicator Light
Yellow TelltaleLight What It Means
EV System Malfunction Indicator Light
This indicator will illuminate when there is a malfunction in the Electric Vehicle (EV) Sys-
tem. If the EV System Malfunction Indicator light comes on while driving or charging see
your authorized dealer as soon as possible.
Electronic Stability Control (ESC) Indicator Light — If Equipped
Yellow Telltale
Light What It Means
Electronic Stability Control (ESC) Indicator Light
The “ESC Indicator Light” in the instrument cluster will come on when the ignition switch
is turned to the AVV/START position. If the “ESC Indicator Light” comes on continuously
with the engine running, a malfunction has been detected in the ESC system. If this light
remains on after several ignition cycles, and the vehicle has been driven several miles (kilo-
meters) at speeds greater than 30 mph (48 km/h), see your authorized dealer as soon as
possible to have the problem diagnosed and corrected.
•
The “ESC Off Indicator Light” and the “ESC Indicator Light” come on momentarily
each time the ignition switch is turned to AVV/START.
