Instrument Cluster Display Control Buttons
The instrument cluster display control buttons are lo-
cated on the right side of the instrument cluster. There
are three control buttons that are used to navigate
through the instrument cluster display functions:
•“+” Up Button
• —” Down Button
• MENU Button Push and release the
MENUbutton briefly to access the
instrument cluster display. Push and hold the MENU
button (approximately one second) to return to the
main screen.
Push and release the “+” up button to scroll upward
through the displayed menu and the related options or
to increase the displayed value.
Push and release the “—” down button to scroll down-
ward through the displayed menu and the related
options or to decrease the value displayed.
NOTE: The “+” up and “—” down buttons activate
different functions according to the following situa-
tions:
• To scroll the menu options upwards or downwards.
• To increase or decrease values during settings.
NOTE: When opening one of the front doors, the
instrument cluster display will turn on the clock and the
miles or kilometers covered (if equipped) for a few
seconds.
Instrument Cluster Display Control Buttons
4
UNDERSTANDING YOUR INSTRUMENT PANEL 139

NOTE:When the Uconnect “Display Mode” feature is
set to “Auto” the instrument cluster display control
(+/-) buttons may be used to adjust the brightness of
the entire Instrument Panel (e.g. Instrument Cluster,
Radio, and Climate Controls). Refer to “Display” lo-
cated in “Uconnect Settings” for further information.

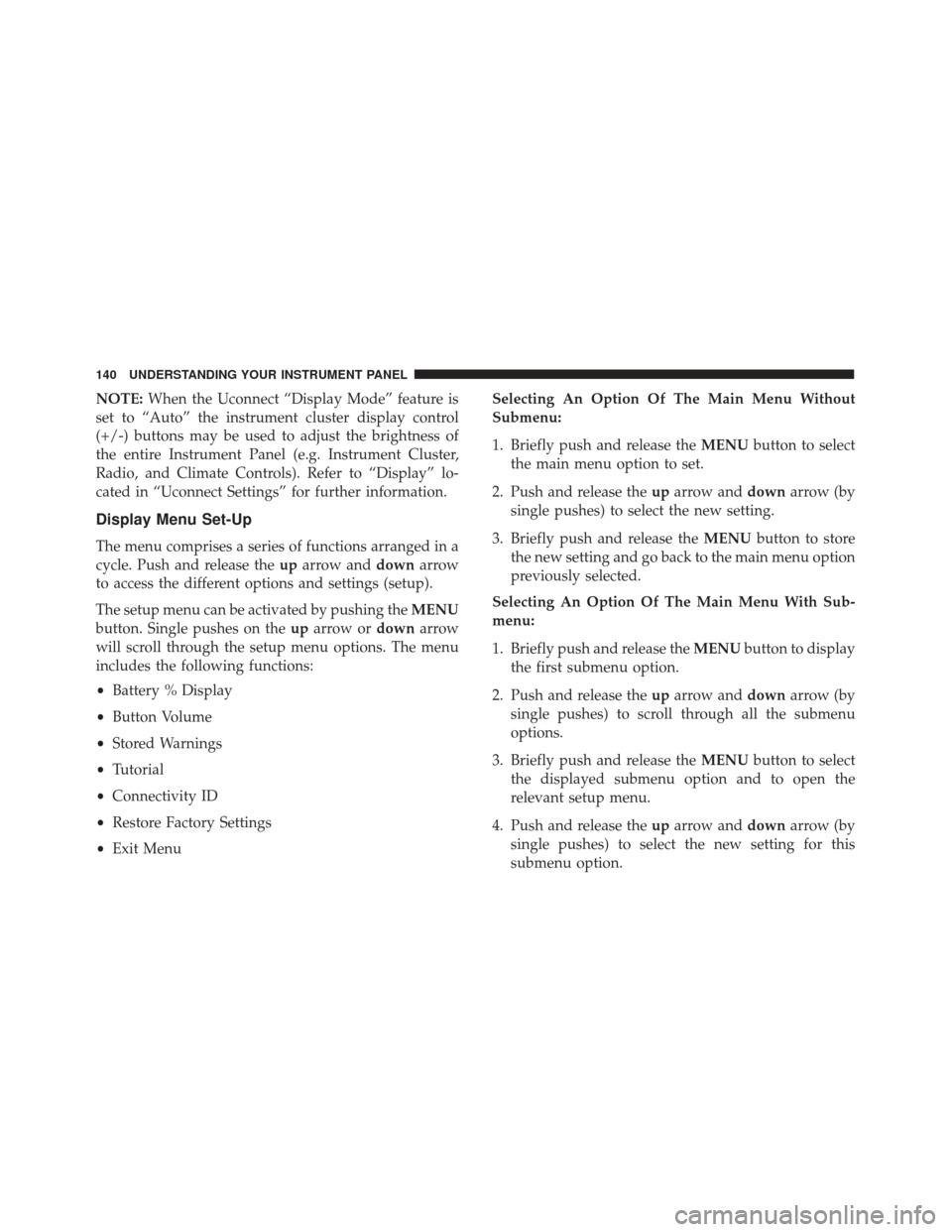

Display Menu Set-Up
The menu comprises a series of functions arranged in a
cycle. Push and release the uparrow and downarrow
to access the different options and settings (setup).
The setup menu can be activated by pushing the MENU
button. Single pushes on the uparrow or downarrow
will scroll through the setup menu options. The menu
includes the following functions:
• Battery % Display
• Button Volume
• Stored Warnings
• Tutorial
• Connectivity ID
• Restore Factory Settings
• Exit Menu Selecting An Option Of The Main Menu Without
Submenu:
1. Briefly push and release the
MENUbutton to select
the main menu option to set.
2. Push and release the uparrow and downarrow (by
single pushes) to select the new setting.
3. Briefly push and release the MENUbutton to store
the new setting and go back to the main menu option
previously selected.
Selecting An Option Of The Main Menu With Sub-
menu:
1. Briefly push and release the MENUbutton to display
the first submenu option.
2. Push and release the uparrow and downarrow (by
single pushes) to scroll through all the submenu
options.
3. Briefly push and release the MENUbutton to select
the displayed submenu option and to open the
relevant setup menu.
4. Push and release the uparrow and downarrow (by
single pushes) to select the new setting for this
submenu option.
140 UNDERSTANDING YOUR INSTRUMENT PANEL

5. Briefly push and release theMENUbutton to store
the new setting and go back to the previously
selected submenu option.
6. Push and hold the MENUbutton to return to the
main menu (short hold) or the main screen (longer
hold).

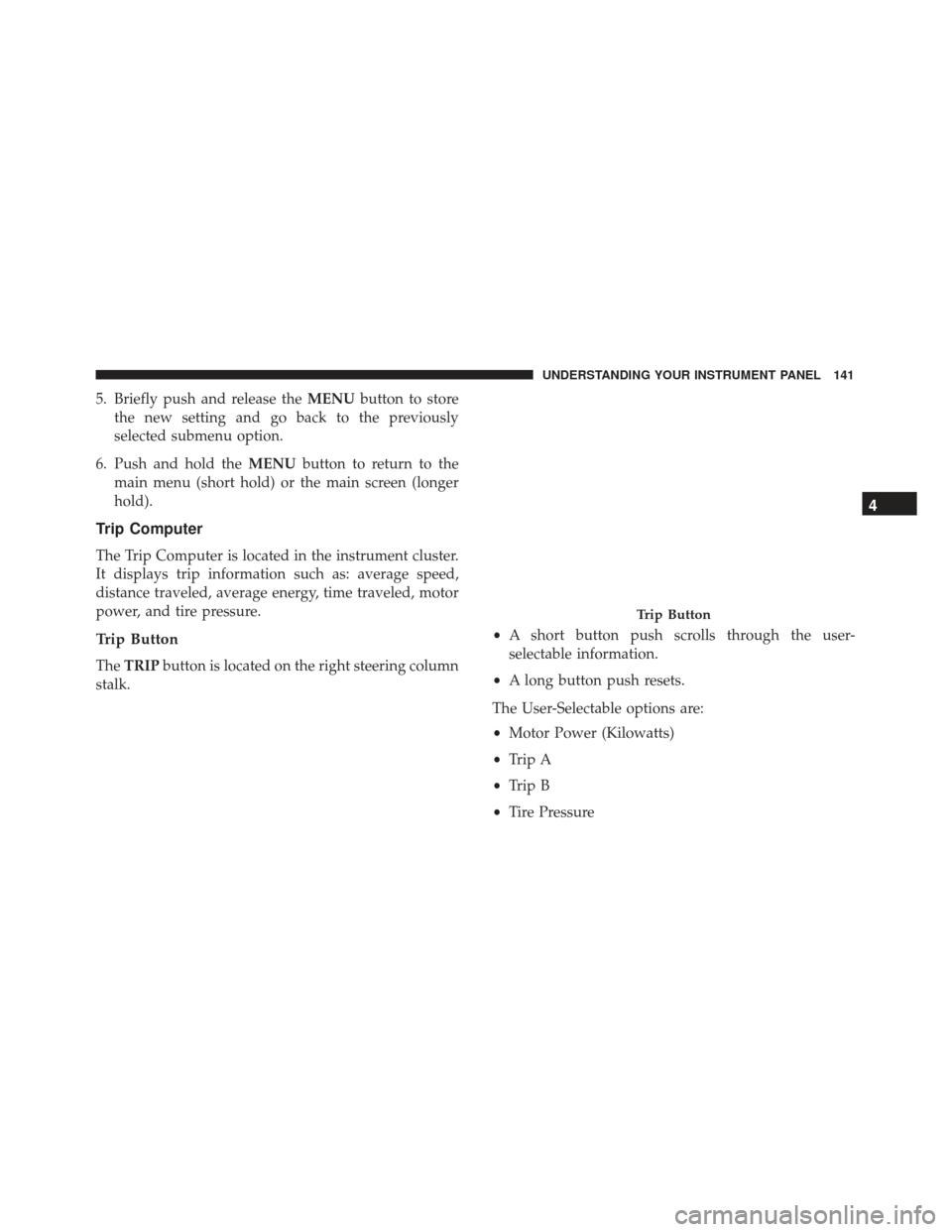

Trip Computer
The Trip Computer is located in the instrument cluster.
It displays trip information such as: average speed,
distance traveled, average energy, time traveled, motor
power, and tire pressure.
Trip Button
The TRIP button is located on the right steering column
stalk. •
A short button push scrolls through the user-
selectable information.
• A long button push resets.
The User-Selectable options are:
• Motor Power (Kilowatts)
• Trip A
• Trip B
• Tire Pressure
Trip Button
4
UNDERSTANDING YOUR INSTRUMENT PANEL 141

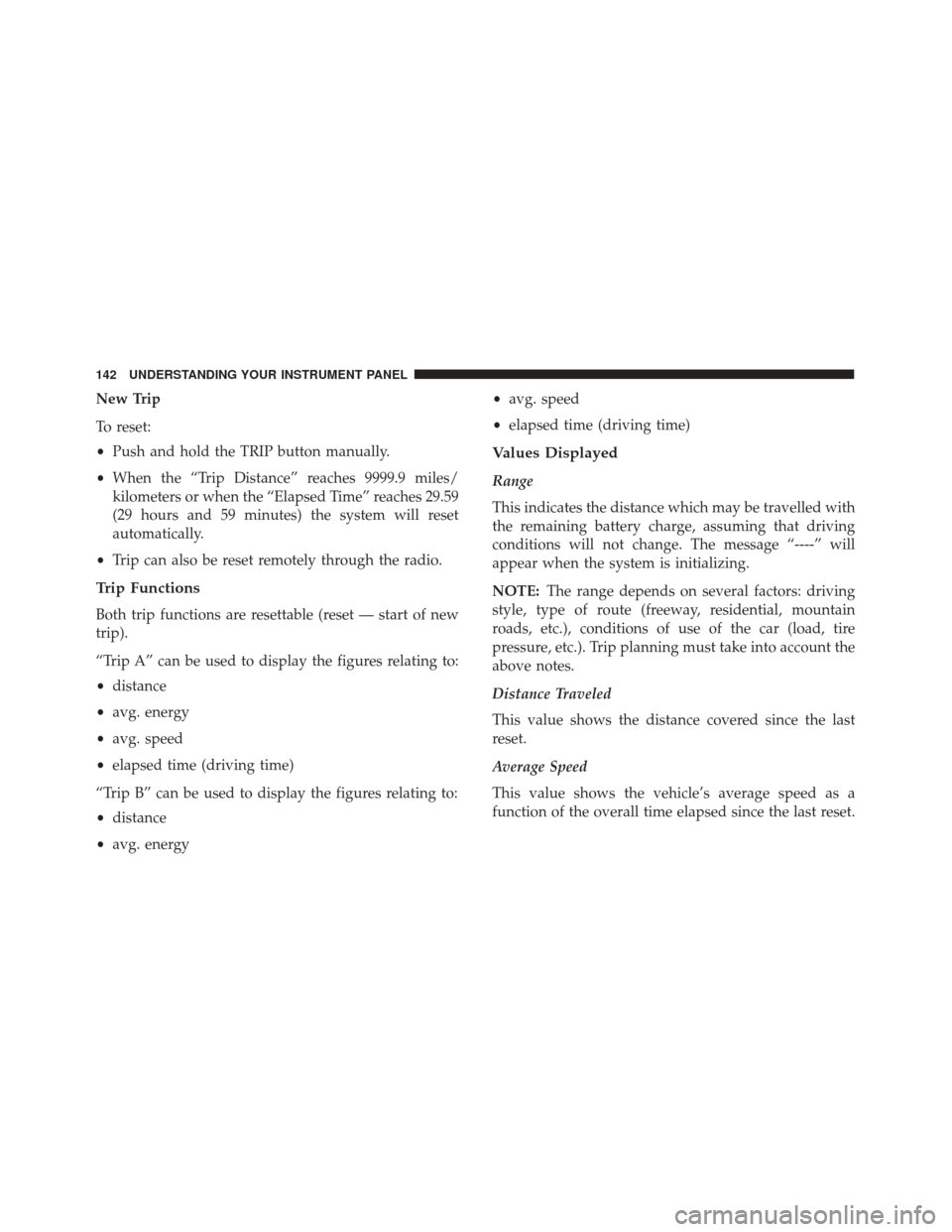

New Trip
To reset:
•Push and hold the TRIP button manually.
• When the “Trip Distance” reaches 9999.9 miles/
kilometers or when the “Elapsed Time” reaches 29.59
(29 hours and 59 minutes) the system will reset
automatically.
• Trip can also be reset remotely through the radio.
Trip Functions
Both trip functions are resettable (reset — start of new
trip).
“Trip A” can be used to display the figures relating to:
•distance
• avg. energy
• avg. speed
• elapsed time (driving time)
“Trip B” can be used to display the figures relating to:
• distance
• avg. energy •
avg. speed
• elapsed time (driving time)
Values Displayed
Range
This indicates the distance which may be travelled with
the remaining battery charge, assuming that driving
conditions will not change. The message “----” will
appear when the system is initializing.
NOTE: The range depends on several factors: driving
style, type of route (freeway, residential, mountain
roads, etc.), conditions of use of the car (load, tire
pressure, etc.). Trip planning must take into account the
above notes.
Distance Traveled
This value shows the distance covered since the last
reset.
Average Speed
This value shows the vehicle’s average speed as a
function of the overall time elapsed since the last reset.
142 UNDERSTANDING YOUR INSTRUMENT PANEL

Average Energy
This value shows the vehicle’s average energy con-
sumption as a function of the overall time elapsed since
the last reset.
Elapsed Time
This value shows the time elapsed since the last reset.

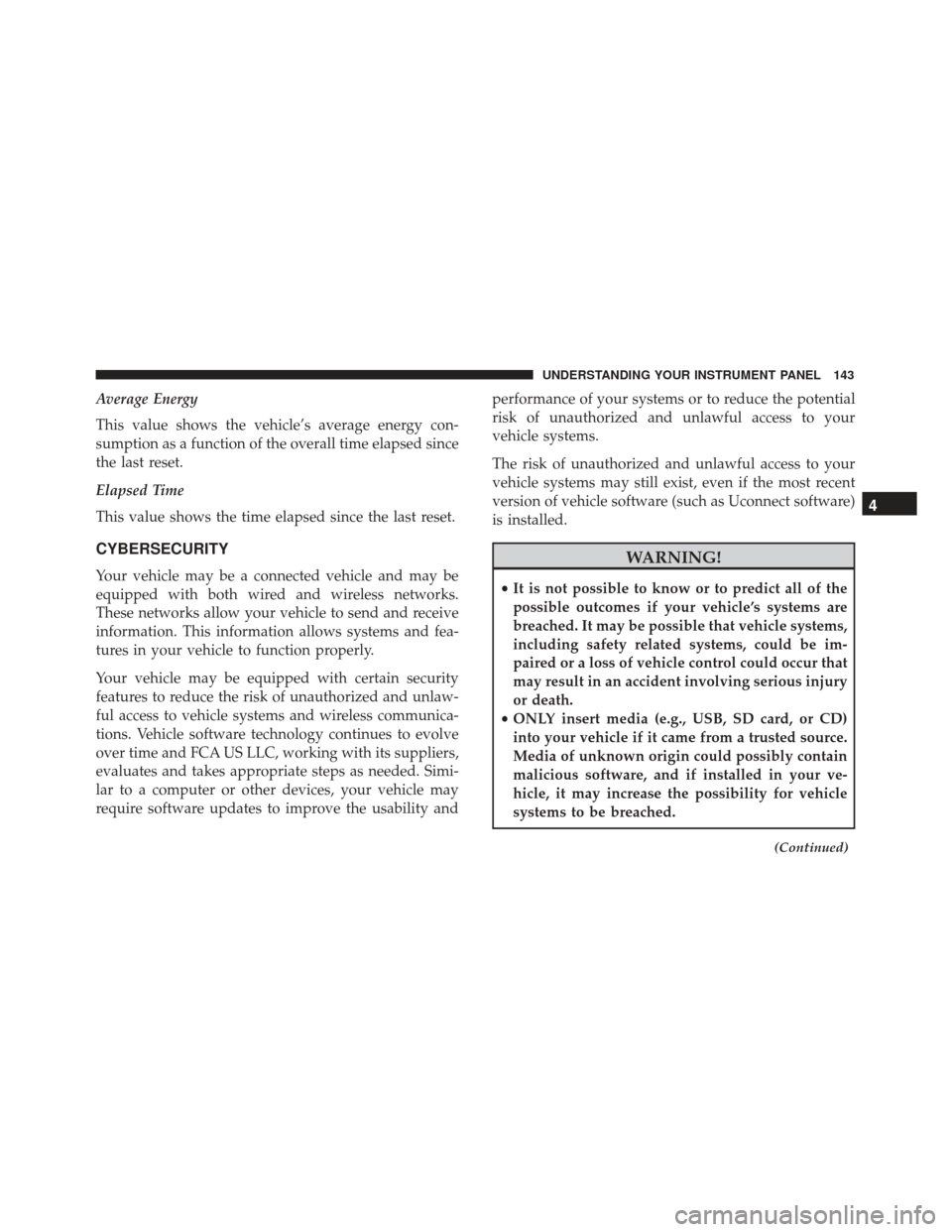

CYBERSECURITY
Your vehicle may be a connected vehicle and may be
equipped with both wired and wireless networks.
These networks allow your vehicle to send and receive
information. This information allows systems and fea-
tures in your vehicle to function properly.
Your vehicle may be equipped with certain security
features to reduce the risk of unauthorized and unlaw-
ful access to vehicle systems and wireless communica-
tions. Vehicle software technology continues to evolve
over time and FCA US LLC, working with its suppliers,
evaluates and takes appropriate steps as needed. Simi-
lar to a computer or other devices, your vehicle may
require software updates to improve the usability andperformance of your systems or to reduce the potential
risk of unauthorized and unlawful access to your
vehicle systems.
The risk of unauthorized and unlawful access to your
vehicle systems may still exist, even if the most recent
version of vehicle software (such as Uconnect software)
is installed.
WARNING!
•
It is not possible to know or to predict all of the
possible outcomes if your vehicle’s systems are
breached. It may be possible that vehicle systems,
including safety related systems, could be im-
paired or a loss of vehicle control could occur that
may result in an accident involving serious injury
or death.
• ONLY insert media (e.g., USB, SD card, or CD)
into your vehicle if it came from a trusted source.
Media of unknown origin could possibly contain
malicious software, and if installed in your ve-
hicle, it may increase the possibility for vehicle
systems to be breached.
(Continued)
4
UNDERSTANDING YOUR INSTRUMENT PANEL 143

WARNING!(Continued)
•As always, if you experience unusual vehicle
behavior, take your vehicle to your nearest autho-
rized dealer immediately.
NOTE:
• FCA or your dealer may contact you directly regard-
ing software updates.
• To help further improve vehicle security and mini-
mize the potential risk of a security breach, vehicle
owners should:
• Routinely check www.driveuconnect.com/
software-update to learn about available Uconnect
software updates.
• Only connect and use trusted media devices (e.g.
personal mobile phones, USBs, CDs).
Privacy of any wireless and wired communications
cannot be assured. Third parties may unlawfully inter-
cept information and private communications without
your consent. For further information, refer to “On-
board Diagnostic System (OBD II) Cybersecurity” in
“Maintaining Your Vehicle”.
UCONNECT RADIOS
For detailed information about your Uconnect radio,
refer to your Uconnect Owner ’s Manual Supplement.
IPOD/USB/MEDIA PLAYER CONTROL — IF
EQUIPPED
This feature allows an iPod or external USB device to be
plugged into the USB or AUX port, located in the center
console.
USB/AUX Port
1 — Auxiliary Cable Jack
2 — USB Connector
144 UNDERSTANDING YOUR INSTRUMENT PANEL

UCONNECT SETTINGS
The Uconnect system uses a combination of buttons on
the touchscreen and buttons on the faceplate located on
the center of the instrument panel that allow you to
access and change the customer programmable fea-
tures. Many features can vary by vehicle.
Buttons On The Faceplate
Buttons on the faceplate are located below, and beside
the Uconnect system in the center of the instrument
panel. In addition, there is a Scroll/Enter control knob
located on the right side. Turn the control knob to scroll
through menus and change settings (i.e., 30, 60, 90),
push the center of the control knob one or more times to
select or change a setting (i.e., ON, OFF).
Your Uconnect system may also have Display Off and
back arrow buttons on the faceplate.
Push the Display Off button on the faceplate to turn off
the Uconnect screen. Push the Display Off button on the
faceplate a second time to turn the screen on.
Push the Back Arrow button on the faceplate to exit out
of a Menu or certain option on the Uconnect system.
Buttons On The Touchscreen
Buttons on the touchscreen are accessible on the
Uconnect touchscreen.
Uconnect 5.0/5.0 NAV Buttons On The TouchscreenAnd Buttons On The Faceplate
1 — Uconnect Buttons On The Touchscreen
2 — Uconnect Buttons On The Faceplate
4
UNDERSTANDING YOUR INSTRUMENT PANEL 145

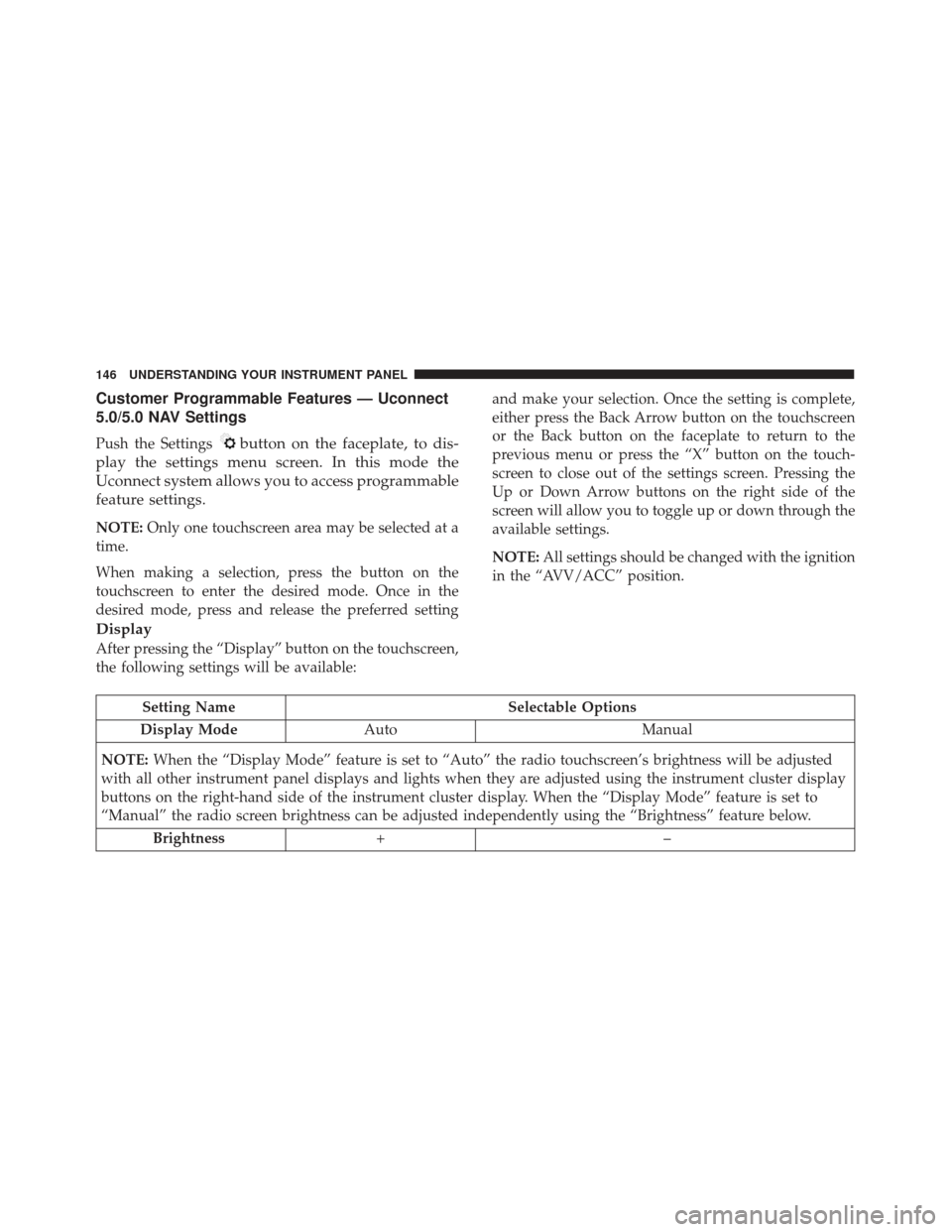

Customer Programmable Features — Uconnect
5.0/5.0 NAV Settings
Push the Settingsbutton on the faceplate, to dis-
play the settings menu screen. In this mode the
Uconnect system allows you to access programmable
feature settings.
NOTE: Only one touchscreen area may be selected at a
time.
When making a selection, press the button on the
touchscreen to enter the desired mode. Once in the
desired mode, press and release the preferred setting and make your selection. Once the setting is complete,
either press the Back Arrow button on the touchscreen
or the Back button on the faceplate to return to the
previous menu or press the “X” button on the touch-
screen to close out of the settings screen. Pressing the
Up or Down Arrow buttons on the right side of the
screen will allow you to toggle up or down through the
available settings.
NOTE:
All settings should be changed with the ignition
in the “AVV/ACC” position.
Display
After pressing the “Display” button on the touchscreen,
the following settings will be available:
Setting Name Selectable Options
Display Mode Auto Manual
NOTE: When the “Display Mode” feature is set to “Auto” the radio touchscreen’s brightness will be adjusted
with all other instrument panel displays and lights when they are adjusted using the instrument cluster display
buttons on the right-hand side of the instrument cluster display. When the “Display Mode” feature is set to
“Manual” the radio screen brightness can be adjusted independently using the “Brightness” feature below.
Brightness +–
146 UNDERSTANDING YOUR INSTRUMENT PANEL

Setting NameSelectable Options
Language EnglishEspañol Français
Touchscreen Beep On Off
Charge Low Pop-Up On Off
NOTE: When in the “Charge Low Pop-Up” display, you may turn on or shut off a low charge indicator.
Units
After pressing the “Units” button on the touchscreen,
you may select each unit of measure independently
displayed in the instrument cluster display. The follow-
ing selectable units of measure are listed below:
Setting Name Selectable Options
US Changes the instrument cluster display to US units of measure.
Metric Changes the instrument cluster display to Metric units of measure.
After pressing the “Custom” button on the touchscreen,
you may select from the following menu items:
Setting Name Selectable Options
Distance mi km
Pressure psi kPa
Temperature °C °F
Energy MPGemi/kWh km/kWH KM/Le
4
UNDERSTANDING YOUR INSTRUMENT PANEL 147

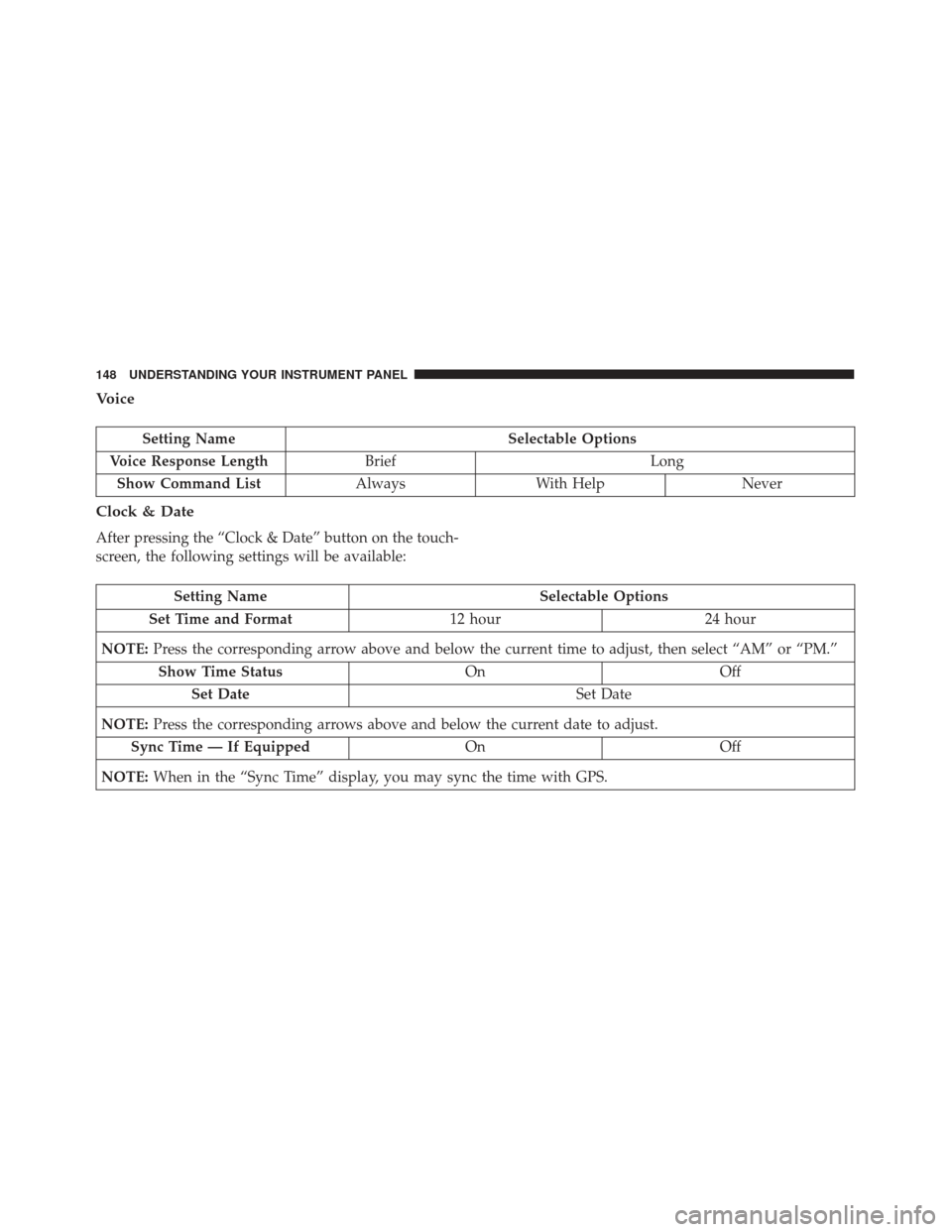

Voice
Setting NameSelectable Options
Voice Response Length Brief Long
Show Command List AlwaysWith Help Never
Clock & Date
After pressing the “Clock & Date” button on the touch-
screen, the following settings will be available:
Setting Name Selectable Options
Set Time and Format 12 hour24 hour
NOTE: Press the corresponding arrow above and below the current time to adjust, then select “AM” or “PM.”
Show Time Status OnOff
Set Date Set Date
NOTE: Press the corresponding arrows above and below the current date to adjust.
Sync Time — If Equipped OnOff
NOTE: When in the “Sync Time” display, you may sync the time with GPS.
148 UNDERSTANDING YOUR INSTRUMENT PANEL
