Use Features SpecificationOriginal fluids and
lubricantsApplications
Protective agent for
radiatorsRed protective agent with
antifreeze action, based
on inhibited monoethylene
glycol with organic
formula. Exceeds CUNA
NC 956-16, ASTM D
3306 specifications.9.55523 or MS.90032PARAFLUUP
Contractual Technical
Reference N° F101.M01Cooling circuits
proportions of use: 50%
water 50% PARAFLUUP(*)
Windscreen/rear
window washer fluidMixture of spirits and
surfactants. Exceeds
CUNA NC 956-11
specifications.9.55522 or MS.90043PETRONAS DURANCE
SC 35
Contractual Technical
Reference N° F001.D16To be used diluted or
undiluted in screen
washer/wiper systems
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%PARAFLUUPand 40% demineralised water.
209

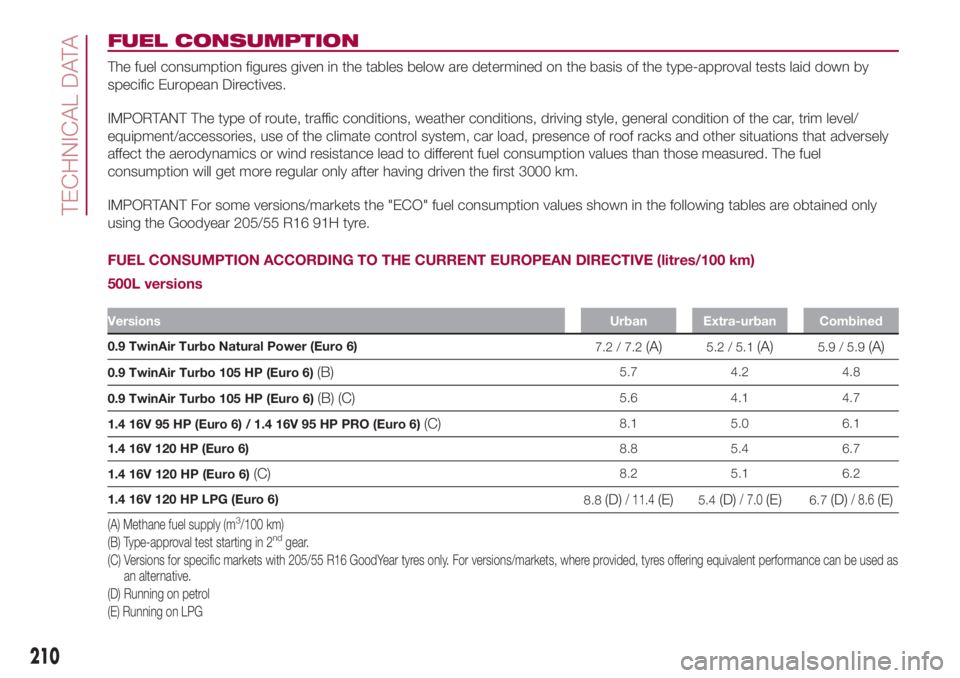

FUEL CONSUMPTION
The fuel consumption figures given in the tables below are determined on the basis of the type-approval tests laid down by
specific European Directives.
IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition of the car, trim level/
equipment/accessories, use of the climate control system, car load, presence of roof racks and other situations that adversely
affect the aerodynamics or wind resistance lead to different fuel consumption values than those measured. The fuel
consumption will get more regular only after having driven the first 3000 km.
IMPORTANT For some versions/markets the "ECO" fuel consumption values shown in the following tables are obtained only
using the Goodyear 205/55 R16 91H tyre.
FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE (litres/100 km)
500L versions
VersionsUrban Extra-urban Combined
0.9 TwinAir Turbo Natural Power (Euro 6)
7.2 / 7.2(A)5.2 / 5.1(A)5.9 / 5.9(A)
0.9 TwinAir Turbo 105 HP (Euro 6)(B)5.7 4.2 4.8
0.9 TwinAir Turbo 105 HP (Euro 6)
(B) (C)5.6 4.1 4.7
1.4 16V 95 HP (Euro 6) / 1.4 16V 95 HP PRO (Euro 6)
(C)8.1 5.0 6.1
1.4 16V 120 HP (Euro 6)8.8 5.4 6.7
1.4 16V 120 HP (Euro 6)
(C)8.2 5.1 6.2
1.4 16V 120 HP LPG (Euro 6)
8.8
(D)/ 11.4(E)5.4(D)/ 7.0(E)6.7(D)/ 8.6(E)
(A) Methane fuel supply (m3/100 km)
(B) Type-approval test starting in 2ndgear.
(C) Versions for specific markets with 205/55 R16 GoodYear tyres only. For versions/markets, where provided, tyres offering equivalent performance can be used as
an alternative.
(D) Running on petrol
(E) Running on LPG
210
TECHNICAL DATA

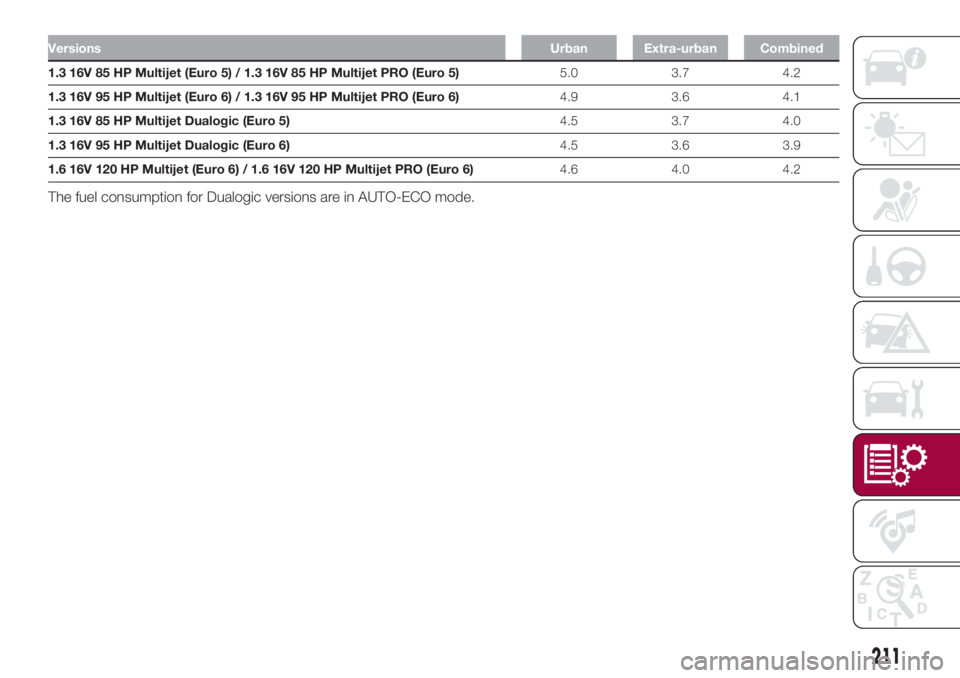

VersionsUrban Extra-urban Combined
1.3 16V 85 HP Multijet (Euro 5) / 1.3 16V 85 HP Multijet PRO (Euro 5)5.0 3.7 4.2
1.3 16V 95 HP Multijet (Euro 6) / 1.3 16V 95 HP Multijet PRO (Euro 6)4.9 3.6 4.1
1.3 16V 85 HP Multijet Dualogic (Euro 5)4.5 3.7 4.0
1.3 16V 95 HP Multijet Dualogic (Euro 6)4.5 3.6 3.9
1.6 16V 120 HP Multijet (Euro 6) / 1.6 16V 120 HP Multijet PRO (Euro 6)4.6 4.0 4.2
The fuel consumption for Dualogic versions are in AUTO-ECO mode.
211

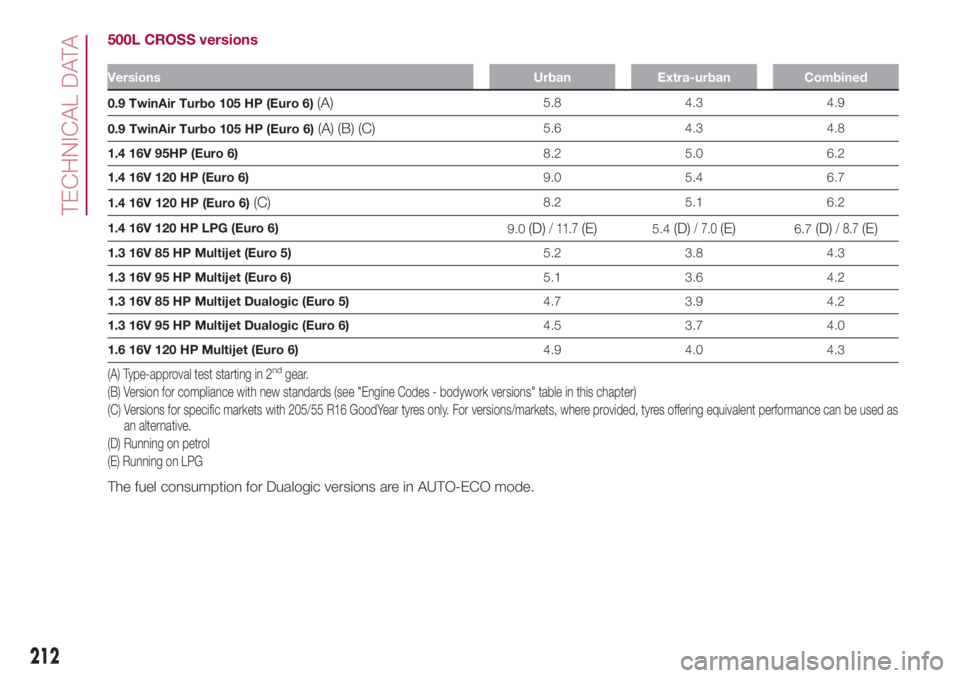

500L CROSS versions
Versions Urban Extra-urban Combined
0.9 TwinAir Turbo 105 HP (Euro 6)(A)5.8 4.3 4.9
0.9 TwinAir Turbo 105 HP (Euro 6)
(A) (B) (C)5.6 4.3 4.8
1.4 16V 95HP (Euro 6)8.2 5.0 6.2
1.4 16V 120 HP (Euro 6)9.0 5.4 6.7
1.4 16V 120 HP (Euro 6)
(C)8.2 5.1 6.2
1.4 16V 120 HP LPG (Euro 6)
9.0
(D)/ 11.7(E)5.4(D)/ 7.0(E)6.7(D)/ 8.7(E)
1.3 16V 85 HP Multijet (Euro 5)5.2 3.8 4.3
1.3 16V 95 HP Multijet (Euro 6)5.1 3.6 4.2
1.3 16V 85 HP Multijet Dualogic (Euro 5)4.7 3.9 4.2
1.3 16V 95 HP Multijet Dualogic (Euro 6)4.5 3.7 4.0
1.6 16V 120 HP Multijet (Euro 6)4.9 4.0 4.3
(A) Type-approval test starting in 2ndgear.
(B) Version for compliance with new standards (see "Engine Codes - bodywork versions" table in this chapter)
(C) Versions for specific markets with 205/55 R16 GoodYear tyres only. For versions/markets, where provided, tyres offering equivalent performance can be used as
an alternative.
(D) Running on petrol
(E) Running on LPG
The fuel consumption for Dualogic versions are in AUTO-ECO mode.
212
TECHNICAL DATA

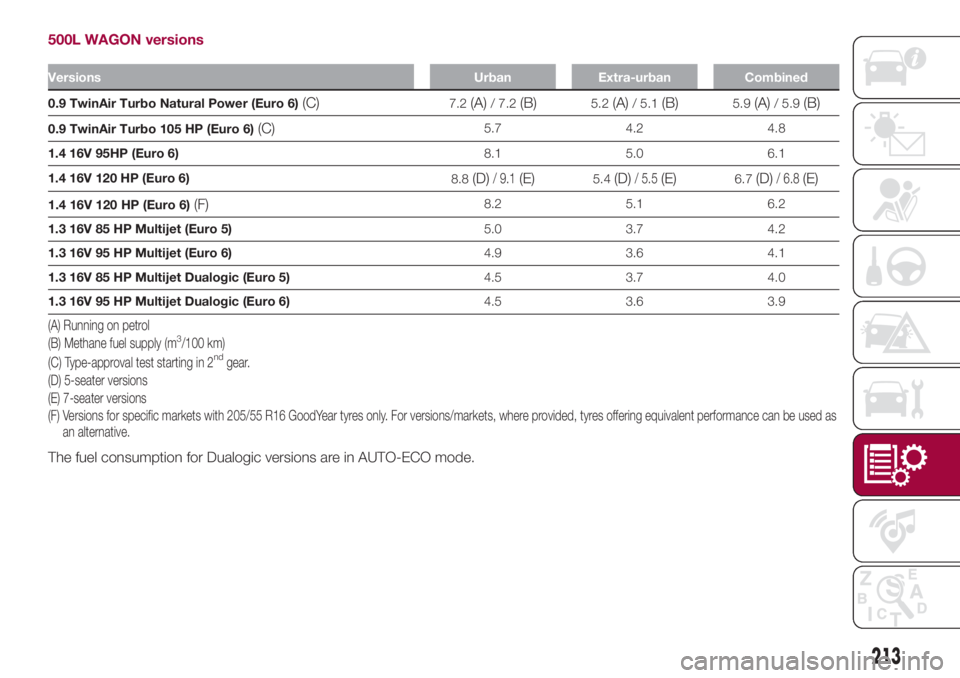

500L WAGON versions
Versions Urban Extra-urban Combined
0.9 TwinAir Turbo Natural Power (Euro 6)(C)7.2(A)/ 7.2(B)5.2(A)/ 5.1(B)5.9(A)/ 5.9(B)
0.9 TwinAir Turbo 105 HP (Euro 6)(C)5.7 4.2 4.8
1.4 16V 95HP (Euro 6)8.1 5.0 6.1
1.4 16V 120 HP (Euro 6)
8.8
(D)/ 9.1(E)5.4(D)/ 5.5(E)6.7(D)/ 6.8(E)
1.4 16V 120 HP (Euro 6)(F)8.2 5.1 6.2
1.3 16V 85 HP Multijet (Euro 5)5.0 3.7 4.2
1.3 16V 95 HP Multijet (Euro 6)4.9 3.6 4.1
1.3 16V 85 HP Multijet Dualogic (Euro 5)4.5 3.7 4.0
1.3 16V 95 HP Multijet Dualogic (Euro 6)4.5 3.6 3.9
(C) Type-approval test starting in 2ndgear. (A) Running on petrol
(B) Methane fuel supply (m
3/100 km)
(D) 5-seater versions
(E) 7-seater versions
(F) Versions for specific markets with 205/55 R16 GoodYear tyres only. For versions/markets, where provided, tyres offering equivalent performance can be used as
an alternative.
The fuel consumption for Dualogic versions are in AUTO-ECO mode.
213

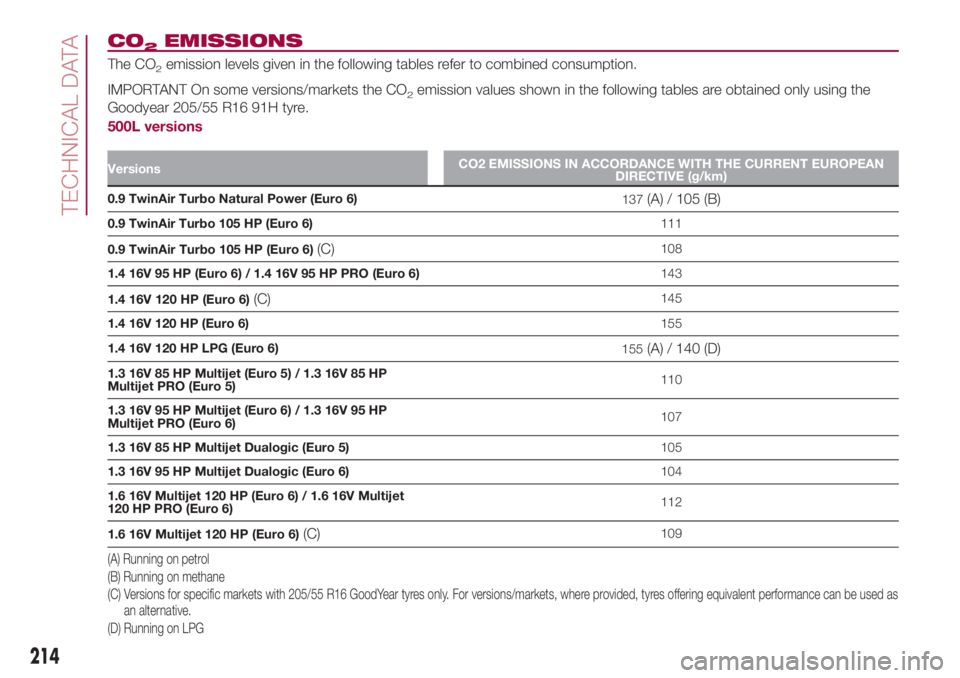

CO2EMISSIONS
The CO2emission levels given in the following tables refer to combined consumption.
IMPORTANT On some versions/markets the CO
2emission values shown in the following tables are obtained only using the
Goodyear 205/55 R16 91H tyre.
500L versions
VersionsCO2 EMISSIONS IN ACCORDANCE WITH THE CURRENT EUROPEAN
DIRECTIVE (g/km)
0.9 TwinAir Turbo Natural Power (Euro 6)
137(A) / 105 (B)
0.9 TwinAir Turbo 105 HP (Euro 6)111
0.9 TwinAir Turbo 105 HP (Euro 6)
(C)108
1.4 16V 95 HP (Euro 6) / 1.4 16V 95 HP PRO (Euro 6)143
1.4 16V 120 HP (Euro 6)
(C)145
1.4 16V 120 HP (Euro 6)155
1.4 16V 120 HP LPG (Euro 6)
155
(A) / 140 (D)
1.3 16V 85 HP Multijet (Euro 5) / 1.3 16V 85 HP
Multijet PRO (Euro 5)110
1.3 16V 95 HP Multijet (Euro 6) / 1.3 16V 95 HP
Multijet PRO (Euro 6)107
1.3 16V 85 HP Multijet Dualogic (Euro 5)105
1.3 16V 95 HP Multijet Dualogic (Euro 6)104
1.6 16V Multijet 120 HP (Euro 6) / 1.6 16V Multijet
120 HP PRO (Euro 6)112
1.6 16V Multijet 120 HP (Euro 6)
(C)109
(A) Running on petrol
(B) Running on methane
(C) Versions for specific markets with 205/55 R16 GoodYear tyres only. For versions/markets, where provided, tyres offering equivalent performance can be used as
an alternative.
(D) Running on LPG
214
TECHNICAL DATA

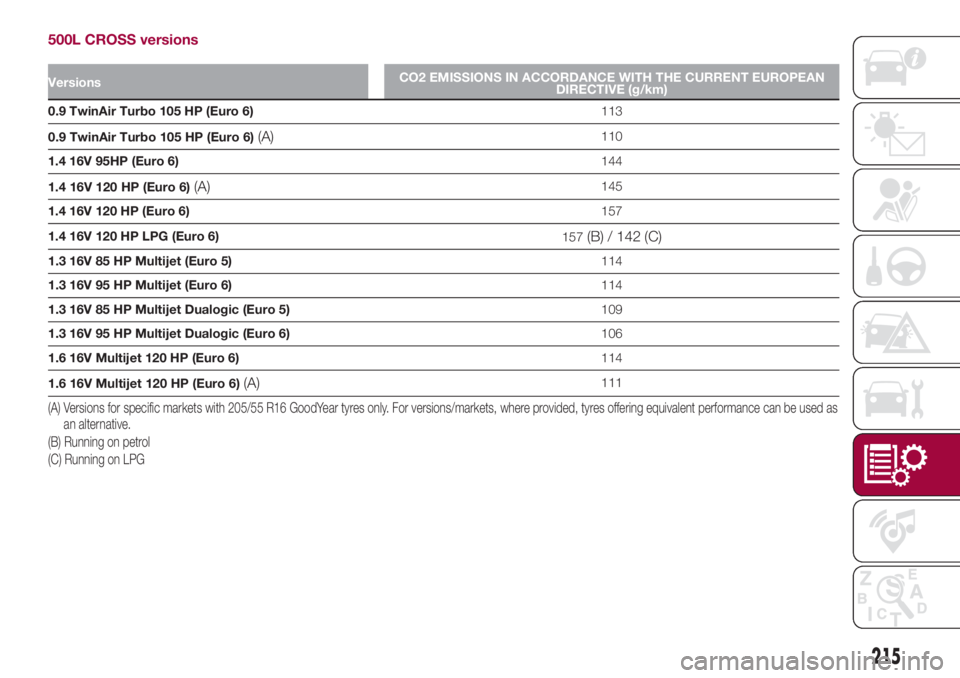

500L CROSS versions
VersionsCO2 EMISSIONS IN ACCORDANCE WITH THE CURRENT EUROPEAN
DIRECTIVE (g/km)
0.9 TwinAir Turbo 105 HP (Euro 6)113
0.9 TwinAir Turbo 105 HP (Euro 6)
(A)110
1.4 16V 95HP (Euro 6)144
1.4 16V 120 HP (Euro 6)
(A)145
1.4 16V 120 HP (Euro 6)157
1.4 16V 120 HP LPG (Euro 6)
157
(B) / 142 (C)
1.3 16V 85 HP Multijet (Euro 5)114
1.3 16V 95 HP Multijet (Euro 6)114
1.3 16V 85 HP Multijet Dualogic (Euro 5)109
1.3 16V 95 HP Multijet Dualogic (Euro 6)106
1.6 16V Multijet 120 HP (Euro 6)114
1.6 16V Multijet 120 HP (Euro 6)
(A)111
(A) Versions for specific markets with 205/55 R16 GoodYear tyres only. For versions/markets, where provided, tyres offering equivalent performance can be used as
an alternative.
(B) Running on petrol
(C) Running on LPG
215

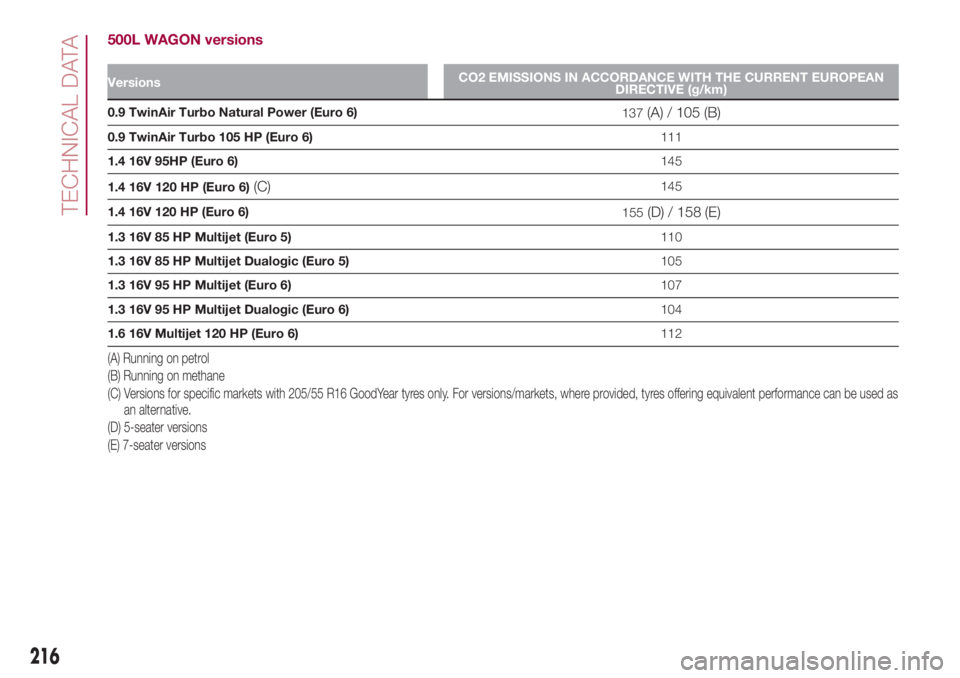

500L WAGON versions
VersionsCO2 EMISSIONS IN ACCORDANCE WITH THE CURRENT EUROPEAN
DIRECTIVE (g/km)
0.9 TwinAir Turbo Natural Power (Euro 6)
137(A) / 105 (B)
0.9 TwinAir Turbo 105 HP (Euro 6)111
1.4 16V 95HP (Euro 6)145
1.4 16V 120 HP (Euro 6)
(C)145
1.4 16V 120 HP (Euro 6)
155
(D) / 158 (E)
1.3 16V 85 HP Multijet (Euro 5)110
1.3 16V 85 HP Multijet Dualogic (Euro 5)105
1.3 16V 95 HP Multijet (Euro 6)107
1.3 16V 95 HP Multijet Dualogic (Euro 6)104
1.6 16V Multijet 120 HP (Euro 6)112
(A) Running on petrol
(B) Running on methane
(C) Versions for specific markets with 205/55 R16 GoodYear tyres only. For versions/markets, where provided, tyres offering equivalent performance can be used as
an alternative.
(D) 5-seater versions
(E) 7-seater versions
216
TECHNICAL DATA

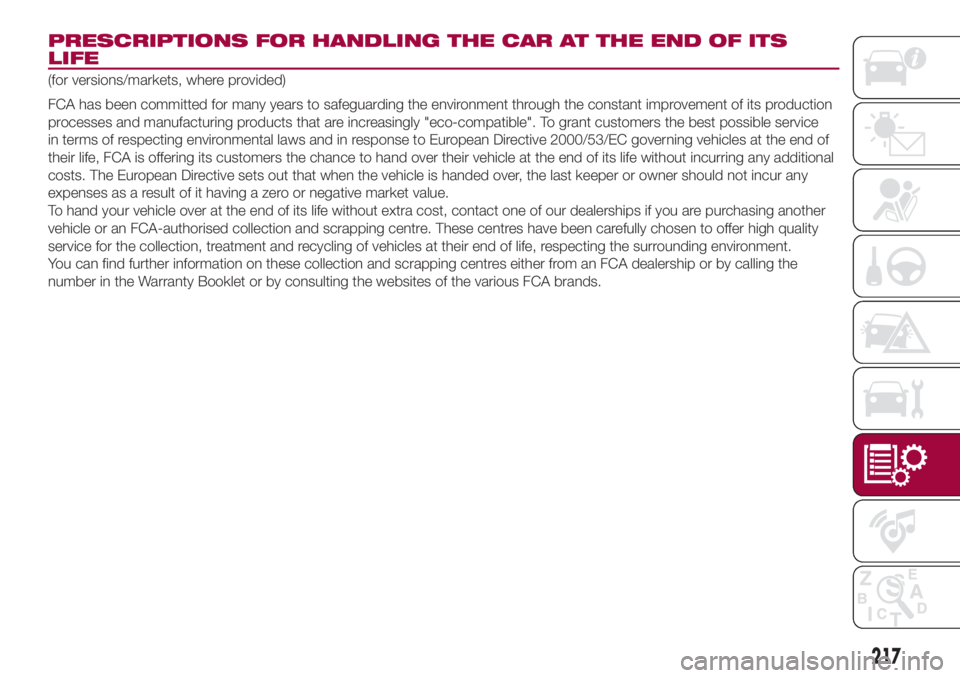

PRESCRIPTIONS FOR HANDLING THE CAR AT THE END OF ITS
LIFE
(for versions/markets, where provided)
FCA has been committed for many years to safeguarding the environment through the constant improvement of its production
processes and manufacturing products that are increasingly "eco-compatible". To grant customers the best possible service
in terms of respecting environmental laws and in response to European Directive 2000/53/EC governing vehicles at the end of
their life, FCA is offering its customers the chance to hand over their vehicle at the end of its life without incurring any additional
costs. The European Directive sets out that when the vehicle is handed over, the last keeper or owner should not incur any
expenses as a result of it having a zero or negative market value.
To hand your vehicle over at the end of its life without extra cost, contact one of our dealerships if you are purchasing another
vehicle or an FCA-authorised collection and scrapping centre. These centres have been carefully chosen to offer high quality
service for the collection, treatment and recycling of vehicles at their end of life, respecting the surrounding environment.
You can find further information on these collection and scrapping centres either from an FCA dealership or by calling the
number in the Warranty Booklet or by consulting the websites of the various FCA brands.
217

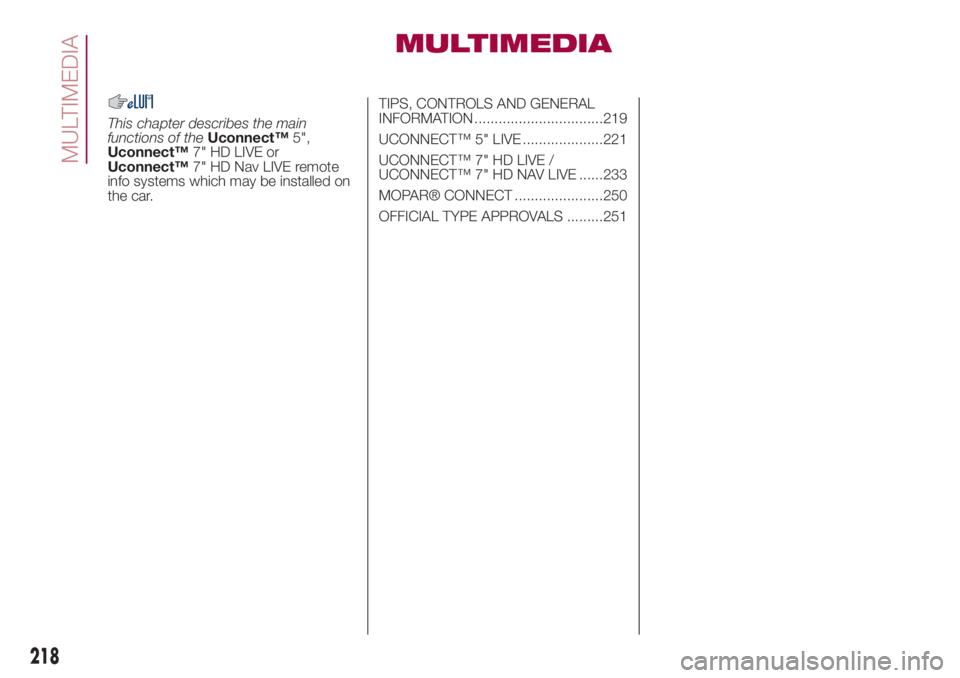

MULTIMEDIA
This chapter describes the main
functions of theUconnect™5",
Uconnect™7" HD LIVE or
Uconnect™7" HD Nav LIVE remote
info systems which may be installed on
the car.TIPS, CONTROLS AND GENERAL
INFORMATION ................................219
UCONNECT™ 5" LIVE ....................221
UCONNECT™ 7" HD LIVE /
UCONNECT™ 7" HD NAV LIVE ......233
MOPAR® CONNECT ......................250
OFFICIAL TYPE APPROVALS .........251
