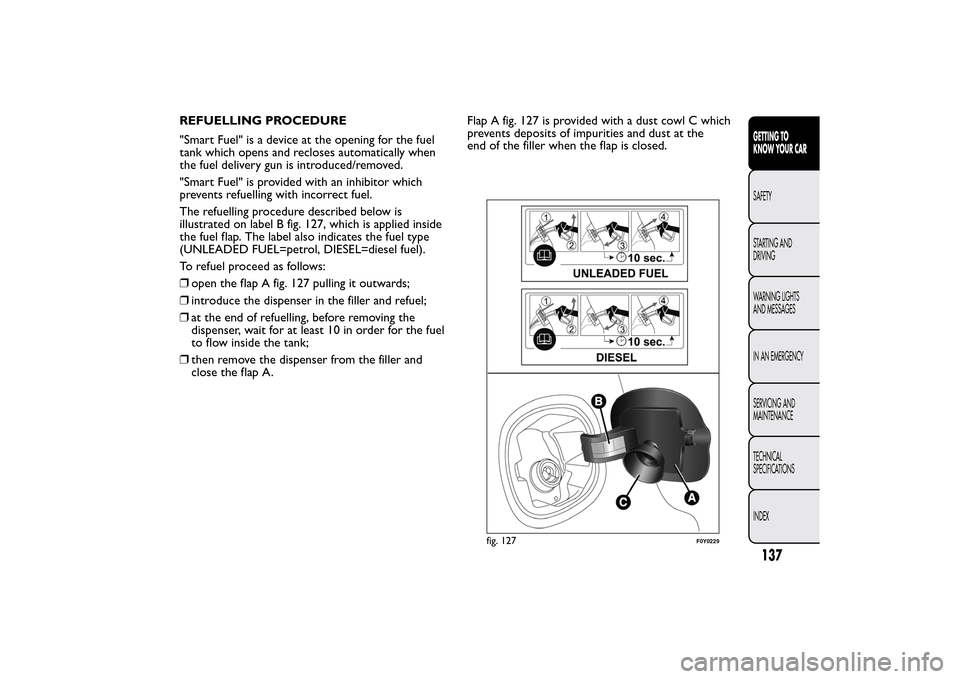

REFUELLING PROCEDURE
"Smart Fuel" is a device at the opening for the fuel
tank which opens and recloses automatically when
the fuel delivery gun is introduced/removed.
"Smart Fuel" is provided with an inhibitor which
prevents refuelling with incorrect fuel.
The refuelling procedure described below is
illustrated on label B fig. 127, which is applied inside
the fuel flap. The label also indicates the fuel type
(UNLEADED FUEL=petrol, DIESEL=diesel fuel).
To refuel proceed as follows:
❒open the flap A fig. 127 pulling it outwards;
❒introduce the dispenser in the filler and refuel;
❒at the end of refuelling, before removing the
dispenser, wait for at least 10 in order for the fuel
to flow inside the tank;
❒then remove the dispenser from the filler and
close the flap A.Flap A fig. 127 is provided with a dust cowl C which
prevents deposits of impurities and dust at the
end of the filler when the flap is closed.
fig. 127
F0Y0229
137GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

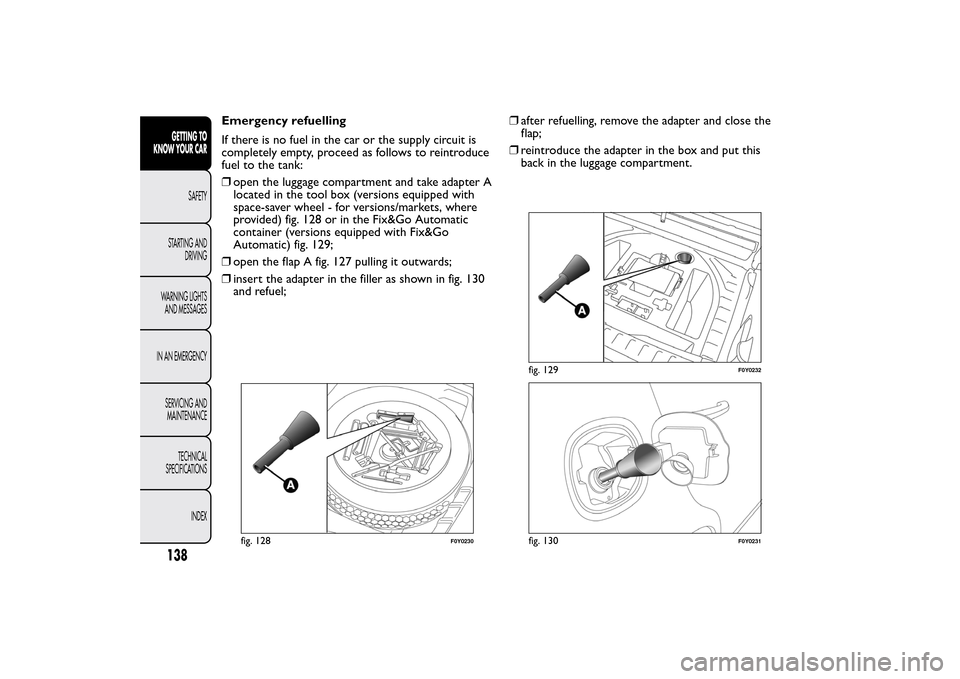

Emergency refuelling
If there is no fuel in the car or the supply circuit is
completely empty, proceed as follows to reintroduce
fuel to the tank:
❒open the luggage compartment and take adapter A
located in the tool box (versions equipped with
space-saver wheel - for versions/markets, where
provided) fig. 128 or in the Fix&Go Automatic
container (versions equipped with Fix&Go
Automatic) fig. 129;
❒open the flap A fig. 127 pulling it outwards;
❒insert the adapter in the filler as shown in fig. 130
and refuel;❒after refuelling, remove the adapter and close the
flap;
❒reintroduce the adapter in the box and put this
back in the luggage compartment.
fig. 128
F0Y0230
fig. 129
F0Y0232
fig. 130
F0Y0231
138GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

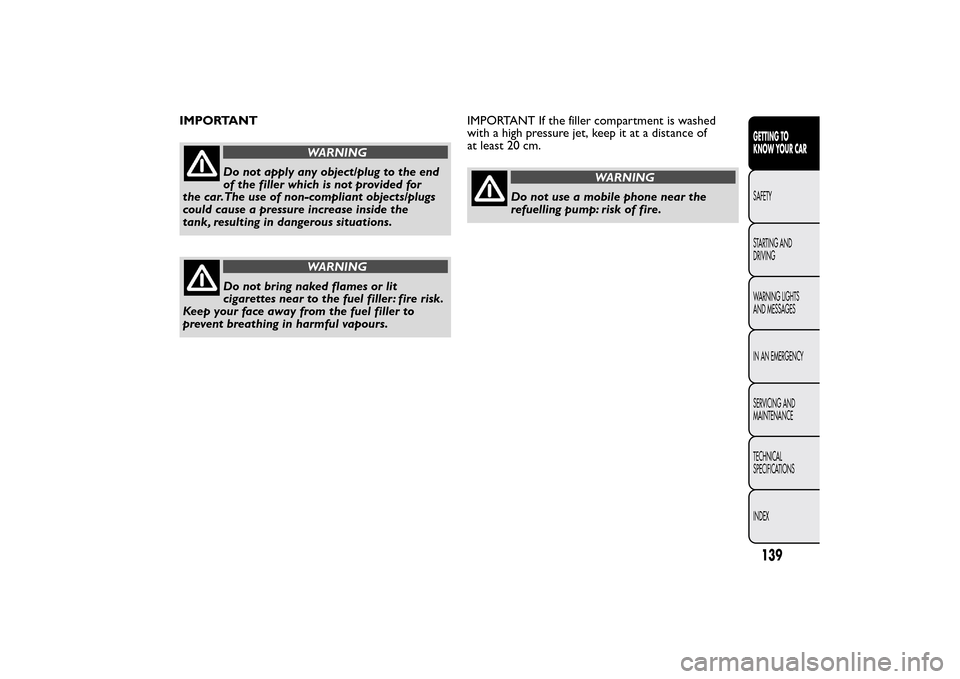

IMPORTANT
WARNING
Do not apply any object/plug to the end
of the filler which is not provided for
the car.The use of non-compliant objects/plugs
could cause a pressure increase inside the
tank, resulting in dangerous situations.
WARNING
Do not bring naked flames or lit
cigarettes near to the fuel filler: fire risk.
Keep your face away from the fuel filler to
prevent breathing in harmful vapours.IMPORTANT If the filler compartment is washed
with a high pressure jet, keep it at a distance of
at least 20 cm.
WARNING
Do not use a mobile phone near the
refuelling pump: risk of fire.
139GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

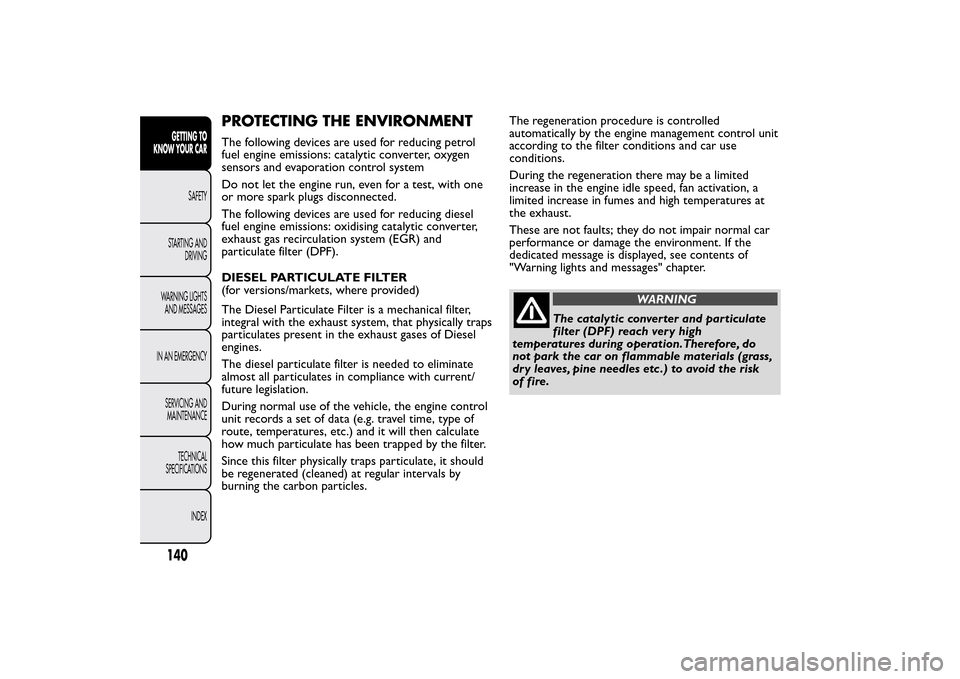

PROTECTING THE ENVIRONMENTThe following devices are used for reducing petrol
fuel engine emissions: catalytic converter, oxygen
sensors and evaporation control system
Do not let the engine run, even for a test, with one
or more spark plugs disconnected.
The following devices are used for reducing diesel
fuel engine emissions: oxidising catalytic converter,
exhaust gas recirculation system (EGR) and
particulate filter (DPF).
DIESEL PARTICULATE FILTER
(for versions/markets, where provided)
The Diesel Particulate Filter is a mechanical filter,
integral with the exhaust system, that physically traps
particulates present in the exhaust gases of Diesel
engines.
The diesel particulate filter is needed to eliminate
almost all particulates in compliance with current/
future legislation.
During normal use of the vehicle, the engine control
unit records a set of data (e.g. travel time, type of
route, temperatures, etc.) and it will then calculate
how much particulate has been trapped by the filter.
Since this filter physically traps particulate, it should
be regenerated (cleaned) at regular intervals by
burning the carbon particles.The regeneration procedure is controlled
automatically by the engine management control unit
according to the filter conditions and car use
conditions.
During the regeneration there may be a limited
increase in the engine idle speed, fan activation, a
limited increase in fumes and high temperatures at
the exhaust.
These are not faults; they do not impair normal car
performance or damage the environment. If the
dedicated message is displayed, see contents of
"Warning lights and messages" chapter.
WARNING
The catalytic converter and particulate
filter (DPF) reach very high
temperatures during operation.Therefore, do
not park the car on flammable materials (grass,
dry leaves, pine needles etc .) to avoid the risk
of fire.
140GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

SAFETY

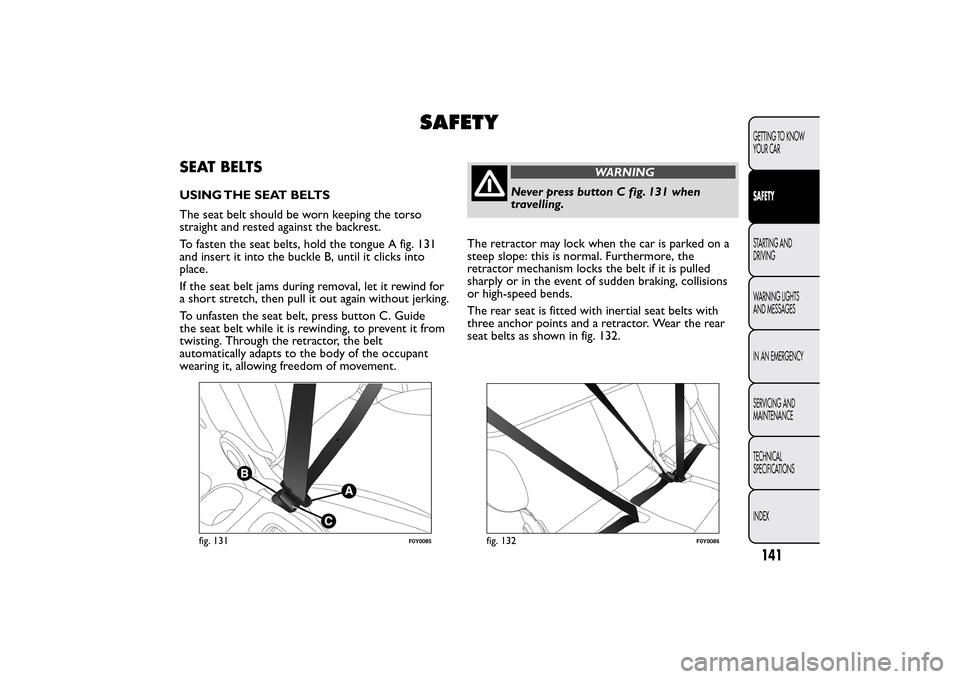

SEAT BELTSUSING THE SEAT BELTS
The seat belt should be worn keeping the torso
straight and rested against the backrest.
To fasten the seat belts, hold the tongue A fig. 131
and insert it into the buckle B, until it clicks into
place.
If the seat belt jams during removal, let it rewind for
a short stretch, then pull it out again without jerking.
To unfasten the seat belt, press button C. Guide
the seat belt while it is rewinding, to prevent it from
twisting. Through the retractor, the belt
automatically adapts to the body of the occupant
wearing it, allowing freedom of movement.
WARNING
Never press button C fig. 131 when
travelling.
The retractor may lock when the car is parked on a
steep slope: this is normal. Furthermore, the
retractor mechanism locks the belt if it is pulled
sharply or in the event of sudden braking, collisions
or high-speed bends.
The rear seat is fitted with inertial seat belts with
three anchor points and a retractor. Wear the rear
seat belts as shown in fig. 132.
fig. 131
F0Y0085
fig. 132
F0Y0086
141GETTING TO KNOW
YOUR CARSAFETYSTARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

WARNING
Remember that in the event of a violent
impact the rear seat passengers not
wearing seat belts are exposed to a very serious
risk and also represent a serious danger for
the front seat occupants.
IMPORTANT When putting the back seats back to
their normal position, make sure the seat belts
are positioned so they are ready to use.

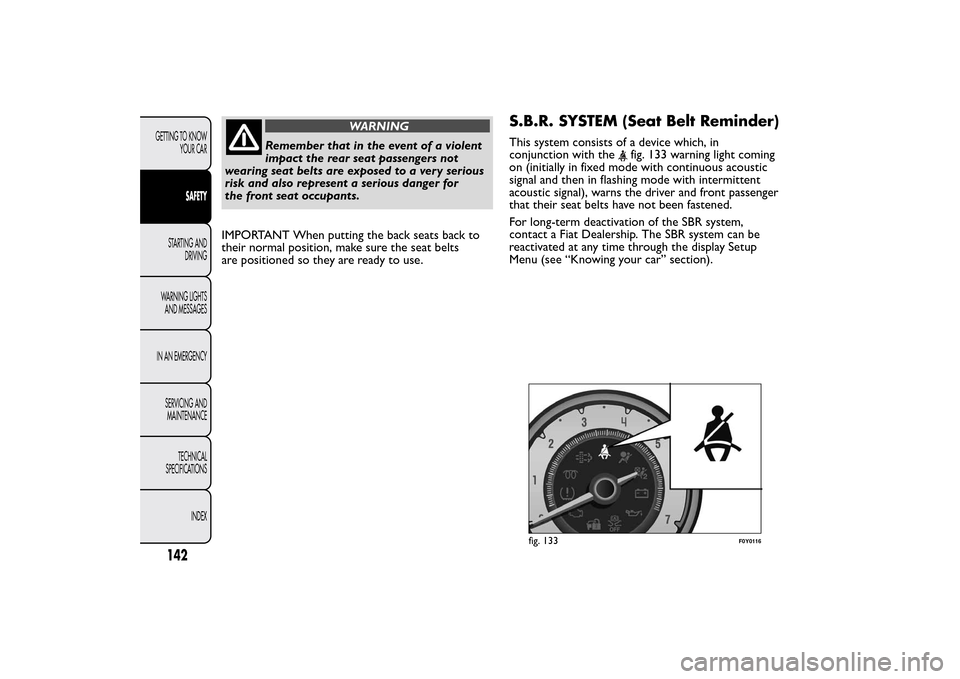

S.B.R. SYSTEM (Seat Belt Reminder)This system consists of a device which, in
conjunction with the
fig. 133 warning light coming
on (initially in fixed mode with continuous acoustic
signal and then in flashing mode with intermittent
acoustic signal), warns the driver and front passenger
that their seat belts have not been fastened.
For long-term deactivation of the SBR system,
contact a Fiat Dealership. The SBR system can be
reactivated at any time through the display Setup
Menu (see “Knowing your car” section).
fig. 133
F0Y0116
142GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

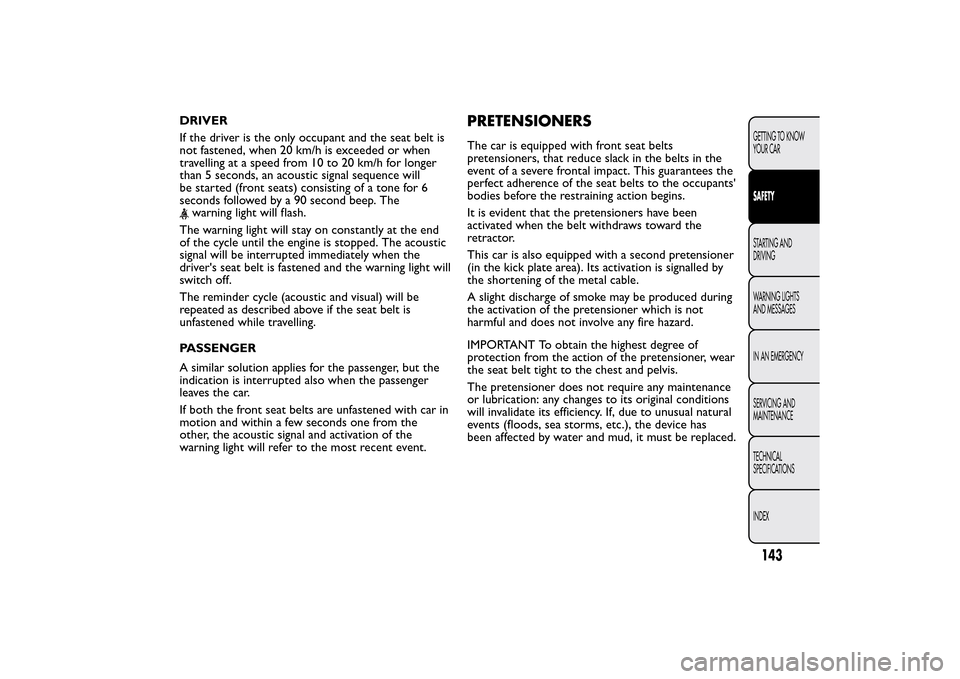

DRIVER
If the driver is the only occupant and the seat belt is
not fastened, when 20 km/h is exceeded or when
travelling at a speed from 10 to 20 km/h for longer
than 5 seconds, an acoustic signal sequence will
be started (front seats) consisting of a tone for 6
seconds followed by a 90 second beep. The
warning light will flash.
The warning light will stay on constantly at the end
of the cycle until the engine is stopped. The acoustic
signal will be interrupted immediately when the
driver's seat belt is fastened and the warning light will
switch off.
The reminder cycle (acoustic and visual) will be
repeated as described above if the seat belt is
unfastened while travelling.
PASSENGER
A similar solution applies for the passenger, but the
indication is interrupted also when the passenger
leaves the car.
If both the front seat belts are unfastened with car in
motion and within a few seconds one from the
other, the acoustic signal and activation of the
warning light will refer to the most recent event.
PRETENSIONERSThe car is equipped with front seat belts
pretensioners, that reduce slack in the belts in the
event of a severe frontal impact. This guarantees the
perfect adherence of the seat belts to the occupants'
bodies before the restraining action begins.
It is evident that the pretensioners have been
activated when the belt withdraws toward the
retractor.
This car is also equipped with a second pretensioner
(in the kick plate area). Its activation is signalled by
the shortening of the metal cable.
A slight discharge of smoke may be produced during
the activation of the pretensioner which is not
harmful and does not involve any fire hazard.
IMPORTANT To obtain the highest degree of
protection from the action of the pretensioner, wear
the seat belt tight to the chest and pelvis.
The pretensioner does not require any maintenance
or lubrication: any changes to its original conditions
will invalidate its efficiency. If, due to unusual natural
events (floods, sea storms, etc.), the device has
been affected by water and mud, it must be replaced.
143GETTING TO KNOW
YOUR CARSAFETYSTARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

LOAD LIMITERS
To increase occupant safety, the retractors contain a
load limiter to dose the force acting on the chest
and shoulders during the belt restraining action
in the case of frontal collisions.
GENERAL INSTRUCTIONS FOR USING
THE SEAT BELTS
The driver is responsible for respecting, and ensuring
that all the other occupants of the car also respect,
the local laws in force in relation to the use of the
seat belts. Always fasten the seat belts before setting
off.Seat belts must also be worn by pregnant women:
the risk of injury in the event of an accident is greatly
reduced for them and the unborn child if they are
wearing a seat belt.
Pregnant women must position the lower part of the
belt very low down so that it passes over the pelvis
and under the abdomen (see fig. 134). The best
way to protect the unborn child is to protect the
mother. When a safety belt is worn correctly, it
is more likely that the unborn child will not be
injured in an accident. For pregnant women, as for
anyone, it is important to wear the seat belts
correctly.
fig. 134
F0Y0283
144GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

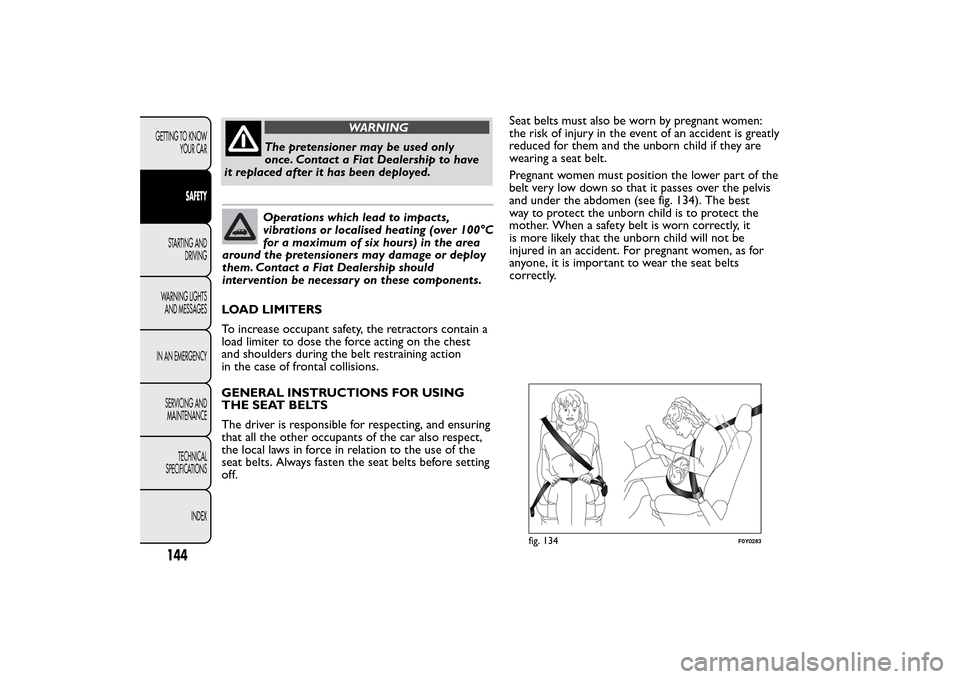

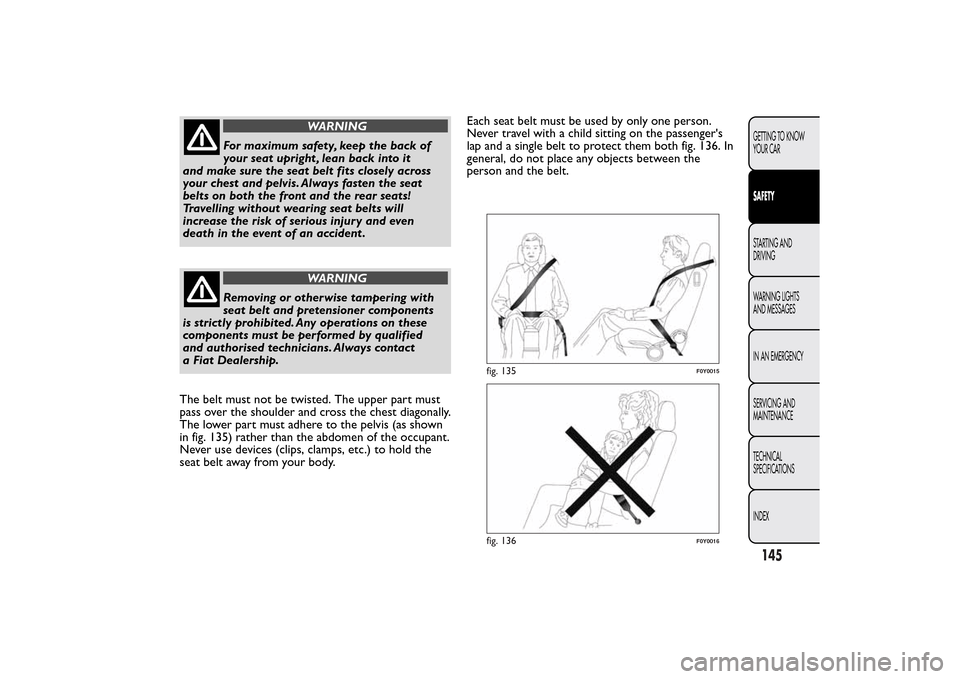

WARNING
The pretensioner may be used only
once. Contact a Fiat Dealership to have
it replaced after it has been deployed.Operations which lead to impacts,
vibrations or localised heating (over 100°C
for a maximum of six hours) in the area
around the pretensioners may damage or deploy
them. Contact a Fiat Dealership should
intervention be necessar y on these components.

WARNING
For maximum safety, keep the back of
your seat upright , lean back into it
and make sure the seat belt fits closely across
your chest and pelvis. Always fasten the seat
belts on both the front and the rear seats!
Travelling without wearing seat belts will
increase the risk of serious injury and even
death in the event of an accident .
WARNING
Removing or otherwise tampering with
seat belt and pretensioner components
is strictly prohibited. Any operations on these
components must be performed by qualified
and authorised technicians. Always contact
a Fiat Dealership.
The belt must not be twisted. The upper part must
pass over the shoulder and cross the chest diagonally.
The lower part must adhere to the pelvis (as shown
in fig. 135) rather than the abdomen of the occupant.
Never use devices (clips, clamps, etc.) to hold the
seat belt away from your body.Each seat belt must be used by only one person.
Never travel with a child sitting on the passenger's
lap and a single belt to protect them both fig. 136. In
general, do not place any objects between the
person and the belt.
fig. 135
F0Y0015
fig. 136
F0Y0016
145GETTING TO KNOW
YOUR CARSAFETYSTARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

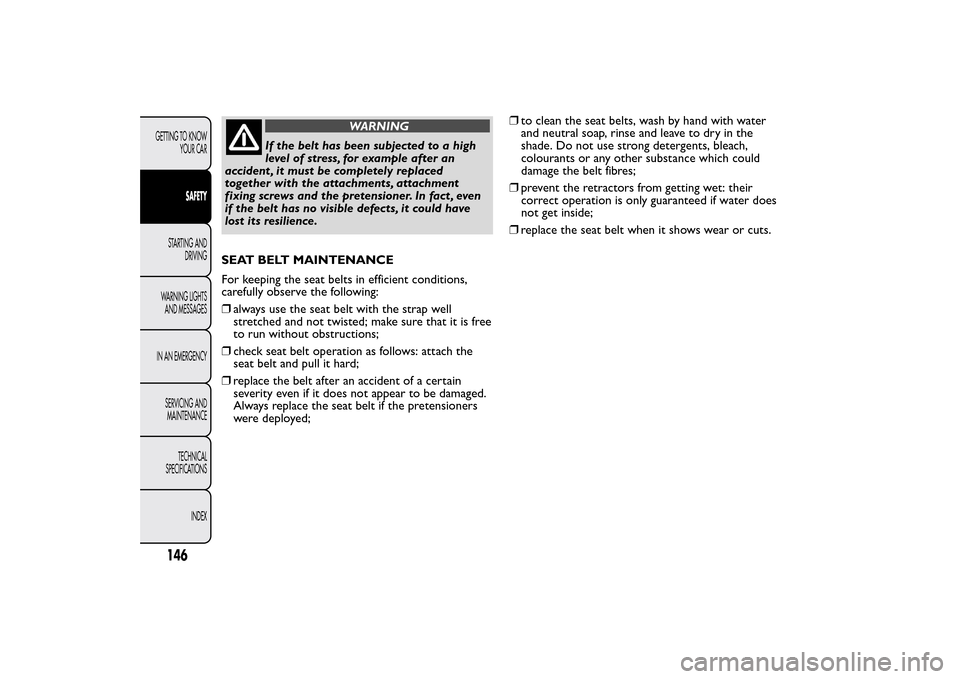

WARNING
If the belt has been subjected to a high
level of stress, for example after an
accident , it must be completely replaced
together with the attachments, attachment
fixing screws and the pretensioner. In fact , even
if the belt has no visible defects, it could have
lost its resilience.
SEAT BELT MAINTENANCE
For keeping the seat belts in efficient conditions,
carefully observe the following:
❒always use the seat belt with the strap well
stretched and not twisted; make sure that it is free
to run without obstructions;
❒check seat belt operation as follows: attach the
seat belt and pull it hard;
❒replace the belt after an accident of a certain
severity even if it does not appear to be damaged.
Always replace the seat belt if the pretensioners
were deployed;❒to clean the seat belts, wash by hand with water
and neutral soap, rinse and leave to dry in the
shade. Do not use strong detergents, bleach,
colourants or any other substance which could
damage the belt fibres;
❒prevent the retractors from getting wet: their
correct operation is only guaranteed if water does
not get inside;
❒replace the seat belt when it shows wear or cuts.
146GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
