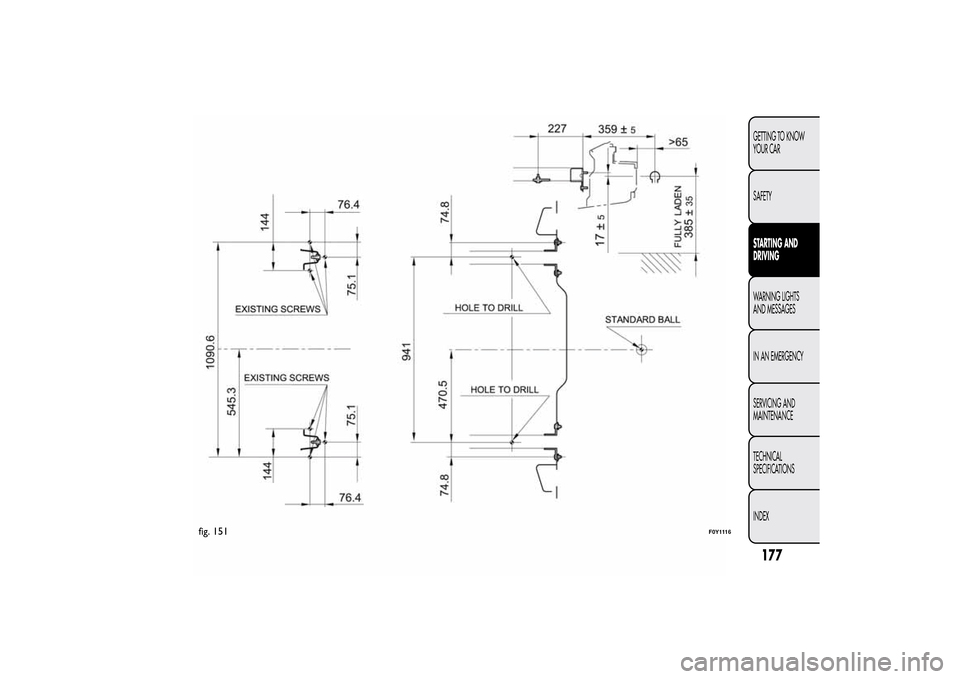

fig. 15
F0Y111
1
6

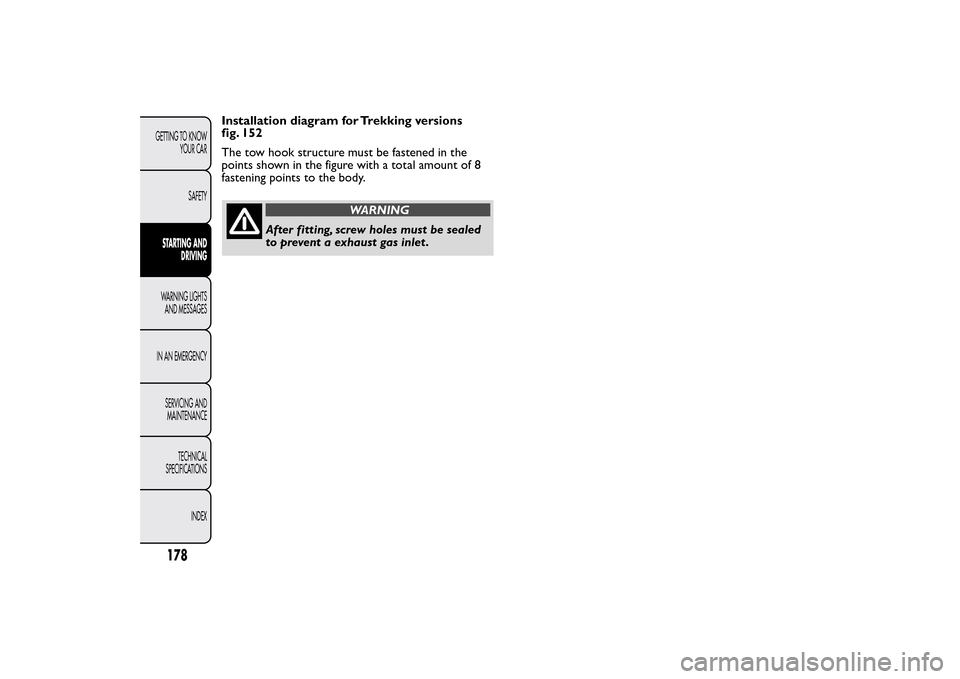

Installation diagram for Trekking versions
fig. 152
The tow hook structure must be fastened in the
points shown in the figure with a total amount of 8
fastening points to the body.
WARNING
After fitting, screw holes must be sealed
to prevent a exhaust gas inlet .
178GETTING TO KNOW
YOUR CAR
SAFETYSTARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

fig. 152
F0Y1115
179GETTING TO KNOW
YOUR CAR
SAFETYSTARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

SNOW TYRESUse snow tyres of the same size as the normal tyres
provided with the car.
A Fiat Dealership will be happy to provide advice
concerning the most suitable type of tyre for the
customer's requirements.
For the type of tyre to be used, inflation pressures
and the specifications of snow tyres, follow the
instructions given in paragraph "Wheels" in section
"Technical specifications".
The winter performance of these tyres is
considerably reduced when the tread thickness is less
than 4 mm. Replace them in this case.
Due to the specific characteristics of snow tyres, in
normal weather conditions or on long motorway
journeys, the performance of these tyres is lower
than that of standard tyres.
Their usage should therefore be restricted in
accordance with their type-approval; always comply
with specific local regulations relating to the use
of snow tyres.
All four tyres should be the same (brand and track)
to ensure greater safety when driving and braking
and better driveability. Remember that you should
not change the rotation direction of the tyres.
WARNING
The maximum speed for snow tyres
marked "Q" is 160 km/h, while it is 190
km/h for "T" tyres and 210 km/h for "H" tyres.
The highway code speed limits must however
always be complied with.
180GETTING TO KNOW
YOUR CAR
SAFETYSTARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

SNOW CHAINSThe use of snow chains should be in compliance with
local regulations.
Snow chains may be fitted to the tyres of the front
wheels (drive wheels) only.
Check the tension of the snow chains after the first
few metres have been driven.
17" tyres cannot be fitted with chains. For other
tyres (15" and 16") fit only reduced size snow chains
with a maximum projection of 9 mm beyond the
tyre profile.
IMPORTANT Snow chains cannot be fitted to the
space-saver wheel (for versions/markets, where
provided). If a front tyre is punctured, replace a rear
wheel with the space-saver wheel and move the
rear wheel to the front axle. In this way, with two
normal drive wheels at the front, snow chains can be
fitted.
Keep your speed down when snow chains
are fitted; do not exceed 50 km/h. Avoid
potholes, steps and pavements and avoid
driving for long distances on roads not covered
with snow to prevent damaging the car and
the roadbed.
STORING THE CARIf the car is to be left inactive for longer than a
month, the following precautions should be followed:
❒park the car in covered, dry and if possible
well-ventilated premises and slightly open
the windows;
❒engage a gear and check that the handbrake is not
engaged;
❒disconnect the negative battery terminal (for
versions with Start&Stop system refer to the
paragraph "Start&Stop system" in the chapter
"Knowing your car"); If the battery is not
disconnected the from the electrical system, check
its charge every thirty days;
❒clean and protect the painted parts using
protective wax;
❒clean and protect the shiny metal parts using
special compounds available commercially;
❒sprinkle talcum powder on the rubber windscreen
and rear window wiper blades and lift them off the
glass;
❒cover the car with a cloth or perforated plastic
sheet. Do not use sheets of non-perforated plastic
as they do not allow moisture on the car body
to evaporate;
❒inflate tyres to +0.5 bar above the standard
specified pressure and check it at intervals;
❒do not drain the engine cooling system.
181GETTING TO KNOW
YOUR CAR
SAFETYSTARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

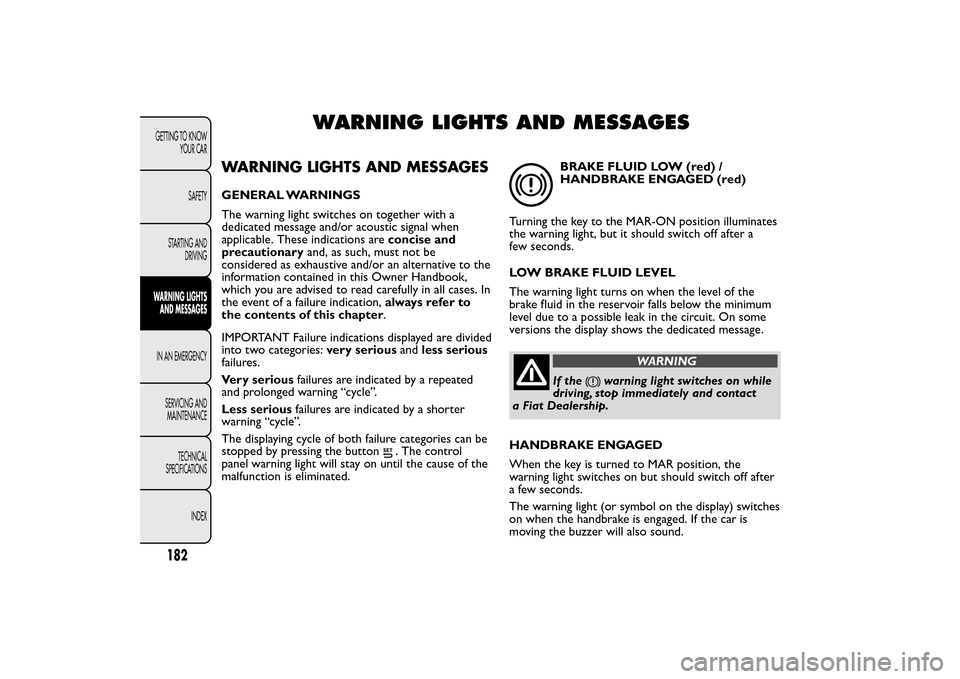

WARNING LIGHTS AND MESSAGES
WARNING LIGHTS AND MESSAGESGENERAL WARNINGS
The warning light switches on together with a
dedicated message and/or acoustic signal when
applicable. These indications areconcise and
precautionaryand, as such, must not be
considered as exhaustive and/or an alternative to the
information contained in this Owner Handbook,
which you are advised to read carefully in all cases. In
the event of a failure indication,always refer to
the contents of this chapter.
IMPORTANT Failure indications displayed are divided
into two categories:very seriousandless serious
failures.
Very seriousfailures are indicated by a repeated
and prolonged warning “cycle”.
Less seriousfailures are indicated by a shorter
warning “cycle”.
The displaying cycle of both failure categories can be
stopped by pressing the button
. The control
panel warning light will stay on until the cause of the
malfunction is eliminated.
BRAKE FLUID LOW (red) /
HANDBRAKE ENGAGED (red)
Turning the key to the MAR-ON position illuminates
the warning light, but it should switch off after a
few seconds.
LOW BRAKE FLUID LEVEL
The warning light turns on when the level of the
brake fluid in the reservoir falls below the minimum
level due to a possible leak in the circuit. On some
versions the display shows the dedicated message.
WARNING
If the
warning light switches on while
driving, stop immediately and contact
a Fiat Dealership.
HANDBRAKE ENGAGED
When the key is turned to MAR position, the
warning light switches on but should switch off after
a few seconds.
The warning light (or symbol on the display) switches
on when the handbrake is engaged. If the car is
moving the buzzer will also sound.
182GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGESIN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

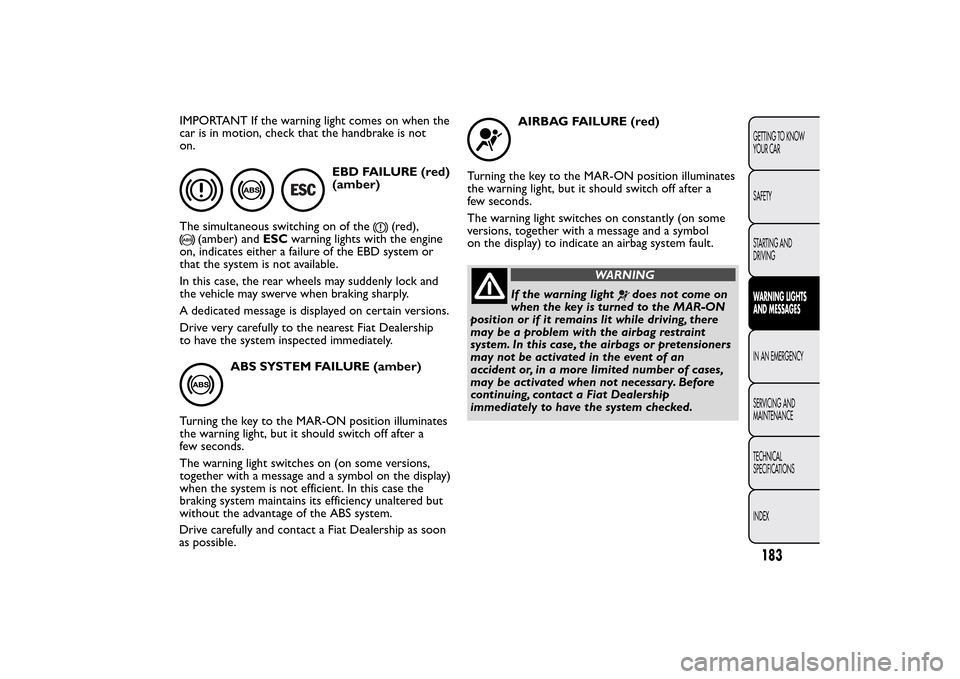

IMPORTANT If the warning light comes on when the
car is in motion, check that the handbrake is not
on.
EBD FAILURE (red)
(amber)
The simultaneous switching on of the
(red),
(amber) andESCwarning lights with the engine
on, indicates either a failure of the EBD system or
that the system is not available.
In this case, the rear wheels may suddenly lock and
the vehicle may swerve when braking sharply.
A dedicated message is displayed on certain versions.
Drive very carefully to the nearest Fiat Dealership
to have the system inspected immediately.
ABS SYSTEM FAILURE (amber)
Turning the key to the MAR-ON position illuminates
the warning light, but it should switch off after a
few seconds.
The warning light switches on (on some versions,
together with a message and a symbol on the display)
when the system is not efficient. In this case the
braking system maintains its efficiency unaltered but
without the advantage of the ABS system.
Drive carefully and contact a Fiat Dealership as soon
as possible.
AIRBAG FAILURE (red)
Turning the key to the MAR-ON position illuminates
the warning light, but it should switch off after a
few seconds.
The warning light switches on constantly (on some
versions, together with a message and a symbol
on the display) to indicate an airbag system fault.
WARNING
If the warning light
does not come on
when the key is turned to the MAR-ON
position or if it remains lit while driving, there
may be a problem with the airbag restraint
system. In this case, the airbags or pretensioners
may not be activated in the event of an
accident or, in a more limited number of cases,
may be activated when not necessary. Before
continuing, contact a Fiat Dealership
immediately to have the system checked.
183GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGESIN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

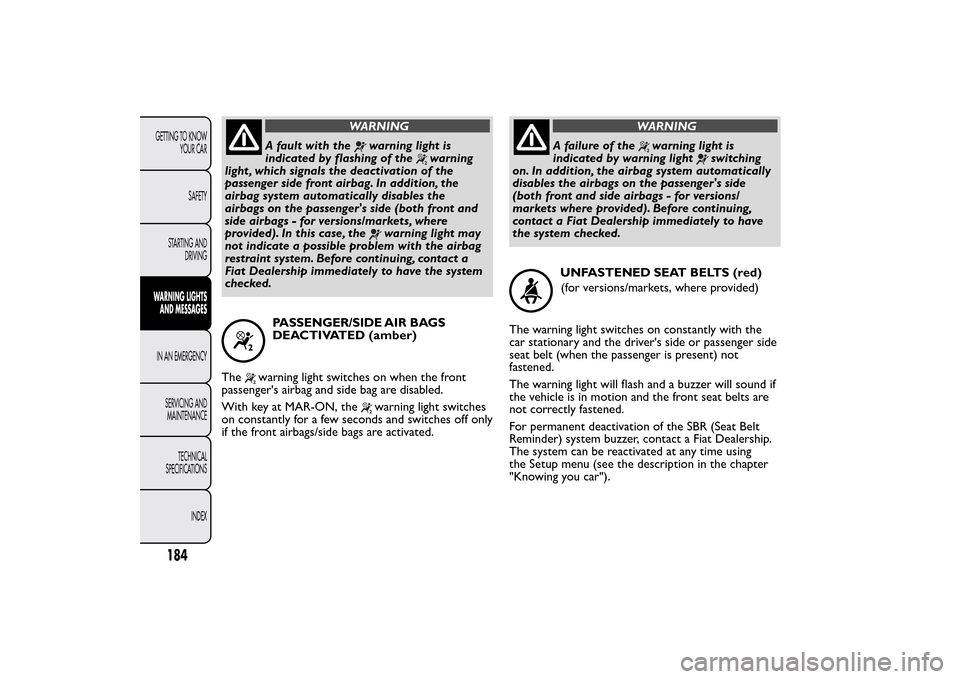

WARNING
Afaultwiththe
warning light is
indicated by flashing of the
warning
light , which signals the deactivation of the
passenger side front airbag. In addition, the
airbag system automatically disables the
airbags on the passenger's side (both front and
side airbags - for versions/markets, where
provided). In this case, the
warning light may
not indicate a possible problem with the airbag
restraint system. Before continuing, contact a
Fiat Dealership immediately to have the system
checked.
PASSENGER/SIDE AIR BAGS
DEACTIVATED (amber)
The
warning light switches on when the front
passenger's airbag and side bag are disabled.
With key at MAR-ON, the
warning light switches
on constantly for a few seconds and switches off only
if the front airbags/side bags are activated.
WARNING
A failure of the
warning light is
indicated by warning light
switching
on. In addition, the airbag system automatically
disables the airbags on the passenger's side
(both front and side airbags - for versions/
markets where provided). Before continuing,
contact a Fiat Dealership immediately to have
the system checked.
UNFASTENED SEAT BELTS (red)
(for versions/markets, where provided)
The warning light switches on constantly with the
car stationary and the driver's side or passenger side
seat belt (when the passenger is present) not
fastened.
The warning light will flash and a buzzer will sound if
the vehicle is in motion and the front seat belts are
not correctly fastened.
For permanent deactivation of the SBR (Seat Belt
Reminder) system buzzer, contact a Fiat Dealership.
The system can be reactivated at any time using
the Setup menu (see the description in the chapter
"Knowing you car").
184GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGESIN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

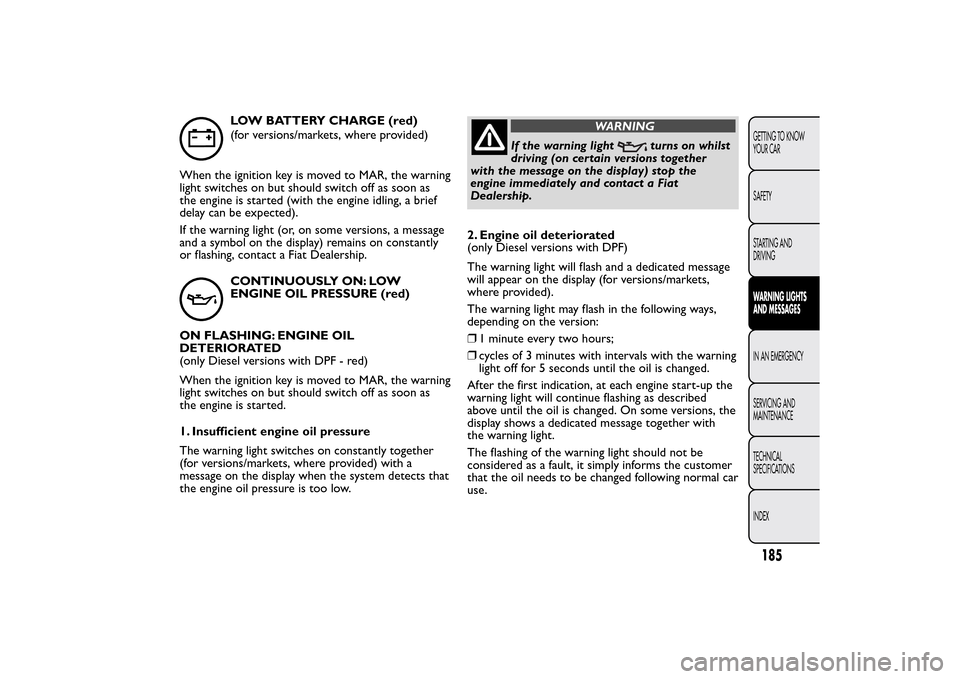

LOW BATTERY CHARGE (red)
(for versions/markets, where provided)
When the ignition key is moved to MAR, the warning
light switches on but should switch off as soon as
the engine is started (with the engine idling, a brief
delay can be expected).
If the warning light (or, on some versions, a message
and a symbol on the display) remains on constantly
or flashing, contact a Fiat Dealership.CONTINUOUSLY ON: LOW
ENGINE OIL PRESSURE (red)
ON FLASHING: ENGINE OIL
DETERIORATED
(only Diesel versions with DPF - red)
When the ignition key is moved to MAR, the warning
light switches on but should switch off as soon as
the engine is started.
1. Insufficient engine oil pressure
The warning light switches on constantly together
(for versions/markets, where provided) with a
message on the display when the system detects that
the engine oil pressure is too low.
WARNING
If the warning light
turns on whilst
driving (on cer tain versions together
with the message on the display) stop the
engine immediately and contact a Fiat
Dealership.
2. Engine oil deteriorated
(only Diesel versions with DPF)
The warning light will flash and a dedicated message
will appear on the display (for versions/markets,
where provided).
The warning light may flash in the following ways,
depending on the version:
❒1 minute every two hours;
❒cycles of 3 minutes with intervals with the warning
light off for 5 seconds until the oil is changed.
After the first indication, at each engine start-up the
warning light will continue flashing as described
above until the oil is changed. On some versions, the
display shows a dedicated message together with
the warning light.
The flashing of the warning light should not be
considered as a fault, it simply informs the customer
that the oil needs to be changed following normal car
use.
185GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGESIN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

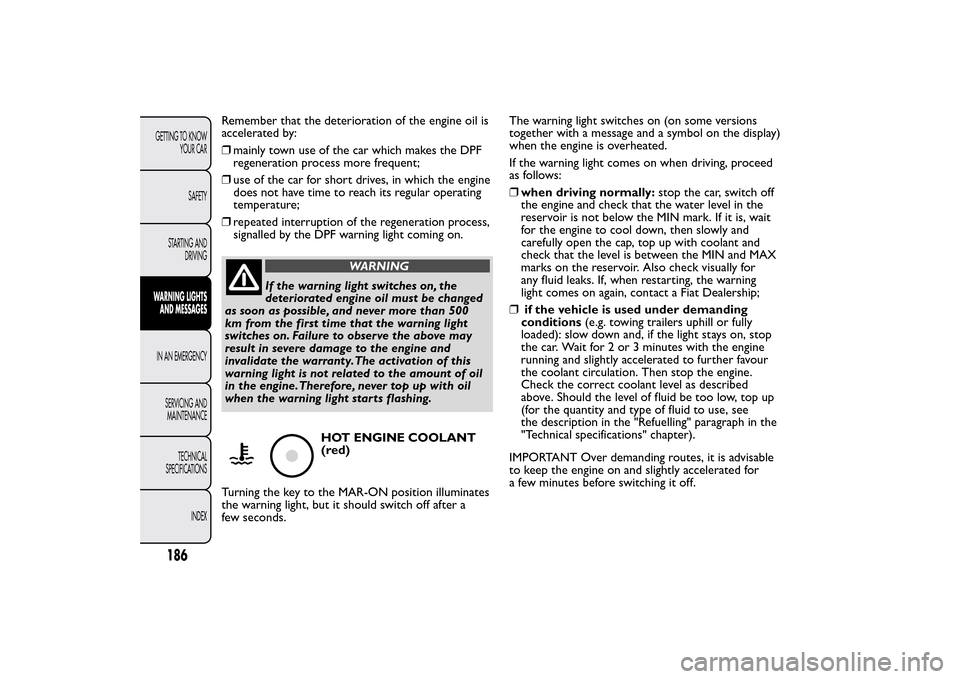

Remember that the deterioration of the engine oil is
accelerated by:
❒mainly town use of the car which makes the DPF
regeneration process more frequent;
❒use of the car for short drives, in which the engine
does not have time to reach its regular operating
temperature;
❒repeated interruption of the regeneration process,
signalled by the DPF warning light coming on.
WARNING
If the warning light switches on, the
deteriorated engine oil must be changed
as soon as possible, and never more than 500
km from the first time that the warning light
switches on. Failure to observe the above may
result in severe damage to the engine and
invalidate the warranty.The activation of this
warning light is not related to the amount of oil
in the engine.Therefore, never top up with oil
when the warning light starts flashing.
HOT ENGINE COOLANT
(red)
Turning the key to the MAR-ON position illuminates
the warning light, but it should switch off after a
few seconds.The warning light switches on (on some versions
together with a message and a symbol on the display)
when the engine is overheated.
If the warning light comes on when driving, proceed
as follows:
❒when driving normally:stop the car, switch off
the engine and check that the water level in the
reservoir is not below the MIN mark. If it is, wait
for the engine to cool down, then slowly and
carefully open the cap, top up with coolant and
check that the level is between the MIN and MAX
marks on the reservoir. Also check visually for
any fluid leaks. If, when restarting, the warning
light comes on again, contact a Fiat Dealership;
❒if the vehicle is used under demanding
conditions(e.g. towing trailers uphill or fully
loaded): slow down and, if the light stays on, stop
the car. Wait for 2 or 3 minutes with the engine
running and slightly accelerated to further favour
the coolant circulation. Then stop the engine.
Check the correct coolant level as described
above. Should the level of fluid be too low, top up
(for the quantity and type of fluid to use, see
the description in the "Refuelling" paragraph in the
"Technical specifications" chapter).
IMPORTANT Over demanding routes, it is advisable
to keep the engine on and slightly accelerated for
a few minutes before switching it off.
186GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGESIN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
