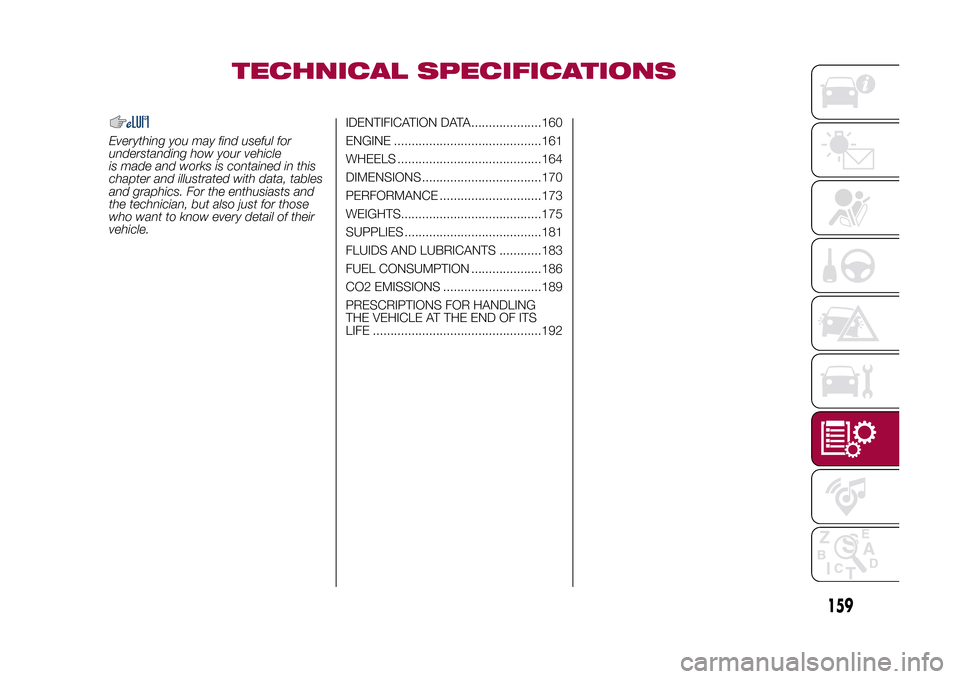

TECHNICAL SPECIFICATIONS
Everything you may find useful for
understanding how your vehicle
is made and works is contained in this
chapter and illustrated with data, tables
and graphics. For the enthusiasts and
the technician, but also just for those
who want to know every detail of their
vehicle.IDENTIFICATION DATA....................160
ENGINE ..........................................161
WHEELS .........................................164
DIMENSIONS ..................................170
PERFORMANCE .............................173
WEIGHTS........................................175
SUPPLIES .......................................181
FLUIDS AND LUBRICANTS ............183
FUEL CONSUMPTION ....................186
CO2 EMISSIONS ............................189
PRESCRIPTIONS FOR HANDLING
THE VEHICLE AT THE END OF ITS
LIFE ................................................192
159
9-1-2015 12:9 Pagina 159

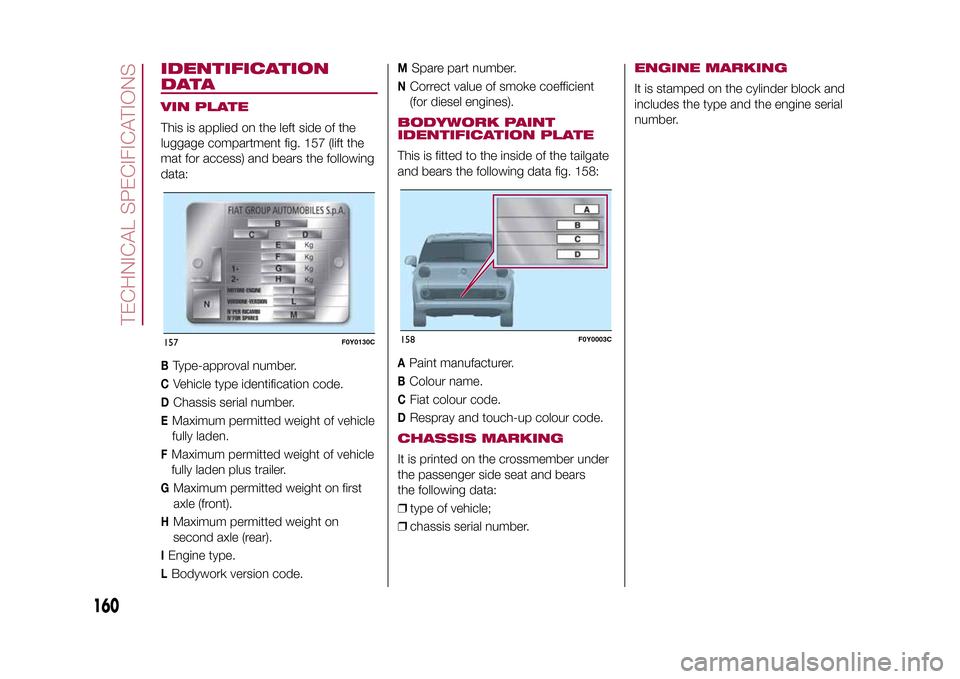

IDENTIFICATION
DATAVIN PLATEThis is applied on the left side of the
luggage compartment fig. 157 (lift the
mat for access) and bears the following
data:B
Type-approval number.
C
Vehicle type identification code.
D
Chassis serial number.
EMaximum permitted weight of vehicle
fully laden.FMaximum permitted weight of vehicle
fully laden plus trailer.G
Maximum permitted weight on first
axle (front).
H
Maximum permitted weight on
second axle (rear).
IEngine type.LBodywork version code.
M
Spare part number.
N
Correct value of smoke coefficient
(for diesel engines).
BODYWORK PAINT
IDENTIFICATION PLATEThis is fitted to the inside of the tailgate
and bears the following data fig. 158:A
Paint manufacturer.
B
Colour name.
C
Fiat colour code.
D
Respray and touch-up colour code.
CHASSIS MARKINGIt is printed on the crossmember under
the passenger side seat and bears
the following data:
❒type of vehicle;
❒chassis serial number.
ENGINE MARKINGIt is stamped on the cylinder block and
includes the type and the engine serial
number.
157
F0Y0130C
158
F0Y0003C
160
TECHNICAL SPECIFICATIONS
9-1-2015 12:9 Pagina 160

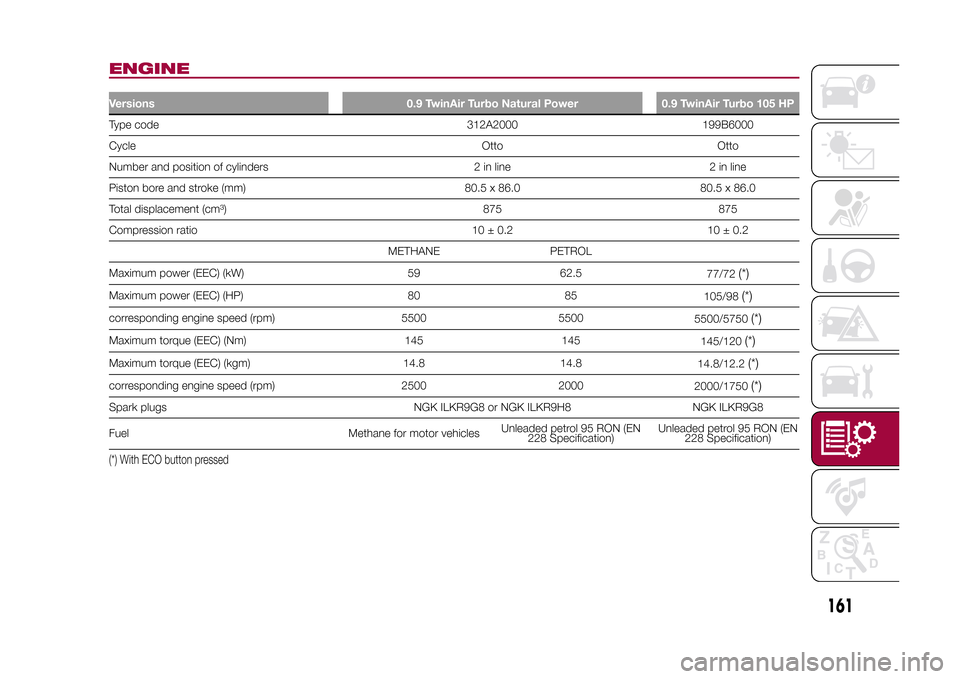

ENGINEVersions 0.9 TwinAir Turbo Natural Power 0.9 TwinAir Turbo 105 HPType code 312A2000 199B6000
Cycle Otto Otto
Number and position of cylinders 2 in line 2 in line
Piston bore and stroke (mm) 80.5 x 86.0 80.5 x 86.0
Total displacement (cm³) 875 875
Compression ratio 10 ± 0.2 10 ± 0.2
METHANE PETROL
Maximum power (EEC) (kW) 59 62.5
77/72
(*)
Maximum power (EEC) (HP) 80 85
105/98
(*)
corresponding engine speed (rpm) 5500 5500
5500/5750
(*)
Maximum torque (EEC) (Nm) 145 145
145/120
(*)
Maximum torque (EEC) (kgm) 14.8 14.8
14.8/12.2
(*)
corresponding engine speed (rpm) 2500 2000
2000/1750
(*)
Spark plugs NGK ILKR9G8 or NGK ILKR9H8 NGK ILKR9G8
Fuel Methane for motor vehiclesUnleaded petrol 95 RON (EN
228 Specification)Unleaded petrol 95 RON (EN
228 Specification)(*) With ECO button pressed
161
9-1-2015 12:9 Pagina 161

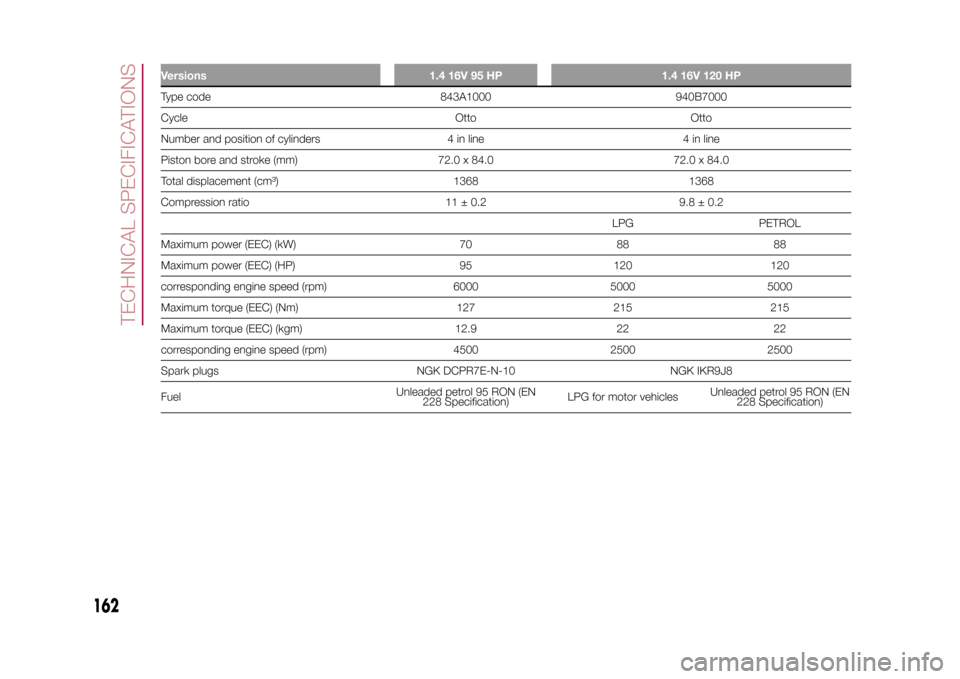

Versions 1.4 16V 95 HP 1.4 16V 120 HPType code 843A1000 940B7000
Cycle Otto Otto
Number and position of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 72.0 x 84.0 72.0 x 84.0
Total displacement (cm³) 1368 1368
Compression ratio 11 ± 0.2 9.8 ± 0.2
LPG PETROL
Maximum power (EEC) (kW) 70 88 88
Maximum power (EEC) (HP) 95 120 120
corresponding engine speed (rpm) 6000 5000 5000
Maximum torque (EEC) (Nm) 127 215 215
Maximum torque (EEC) (kgm) 12.9 22 22
corresponding engine speed (rpm) 4500 2500 2500
Spark plugs NGK DCPR7E-N-10 NGK IKR9J8
FuelUnleaded petrol 95 RON (EN
228 Specification)LPG for motor vehiclesUnleaded petrol 95 RON (EN
228 Specification)
162
TECHNICAL SPECIFICATIONS
9-1-2015 12:9 Pagina 162

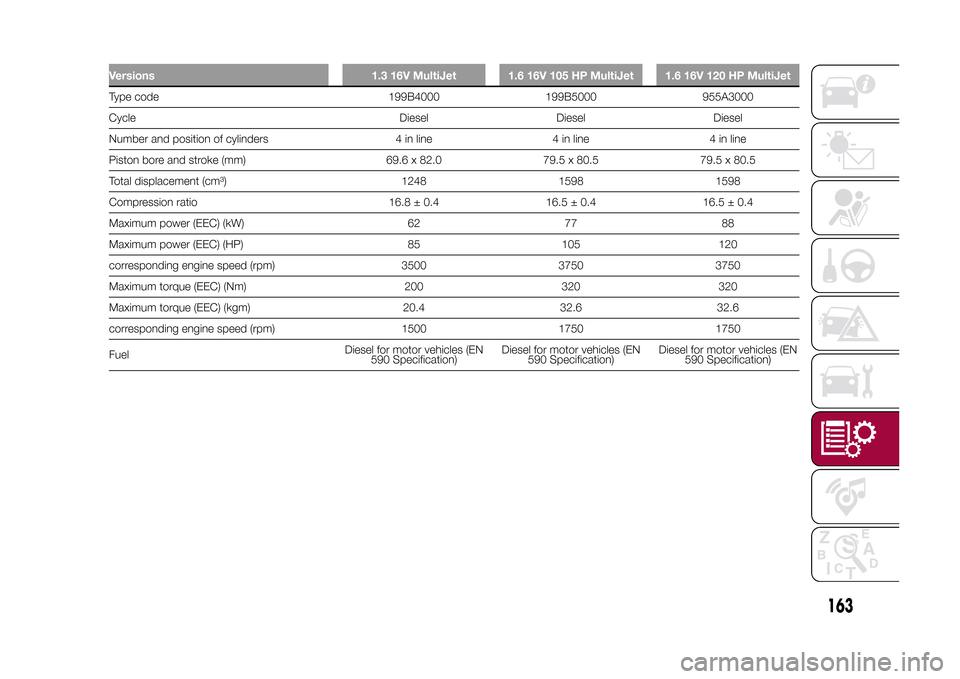

Versions 1.3 16V MultiJet 1.6 16V 105 HP MultiJet 1.6 16V 120 HP MultiJetType code 199B4000 199B5000 955A3000
Cycle Diesel Diesel Diesel
Number and position of cylinders 4 in line 4 in line 4 in line
Piston bore and stroke (mm) 69.6 x 82.0 79.5 x 80.5 79.5 x 80.5
Total displacement (cm³) 1248 1598 1598
Compression ratio 16.8 ± 0.4 16.5 ± 0.4 16.5 ± 0.4
Maximum power (EEC) (kW) 62 77 88
Maximum power (EEC) (HP) 85 105 120
corresponding engine speed (rpm) 3500 3750 3750
Maximum torque (EEC) (Nm) 200 320 320
Maximum torque (EEC) (kgm) 20.4 32.6 32.6
corresponding engine speed (rpm) 1500 1750 1750
FuelDiesel for motor vehicles (EN
590 Specification)Diesel for motor vehicles (EN
590 Specification)Diesel for motor vehicles (EN
590 Specification)
163
9-1-2015 12:9 Pagina 163

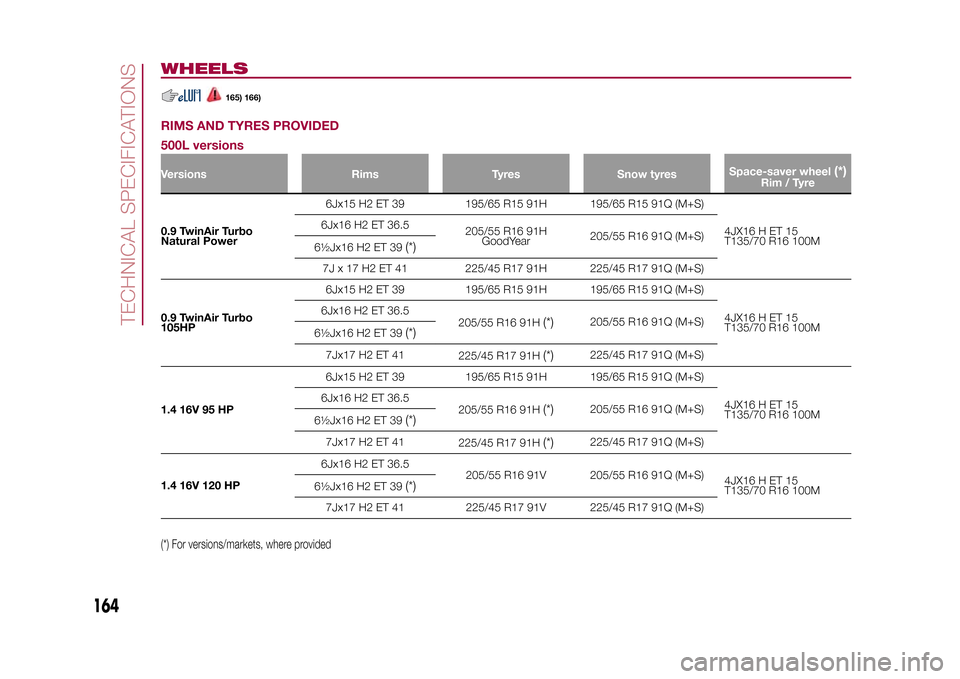

WHEELS
165) 166)
RIMS AND TYRES PROVIDED
500L versionsVersions Rims Tyres Snow tyresSpace-saver wheel
(*)
Rim / Tyre
0.9 TwinAir Turbo
Natural Power6Jx15 H2 ET 39 195/65 R15 91H 195/65 R15 91Q (M+S)
4JX16 H ET 15
T135/70 R16 100M 6Jx16 H2 ET 36.5
205/55 R16 91H
GoodYear205/55 R16 91Q (M+S)
6½Jx16 H2 ET 39
(*)
7J x 17 H2 ET 41 225/45 R17 91H 225/45 R17 91Q (M+S)
0.9 TwinAir Turbo
105HP6Jx15 H2 ET 39 195/65 R15 91H 195/65 R15 91Q (M+S)
4JX16 H ET 15
T135/70 R16 100M 6Jx16 H2 ET 36.5
205/55 R16 91H
(*)
205/55 R16 91Q (M+S)
6½Jx16 H2 ET 39
(*)
7Jx17 H2 ET 41
225/45 R17 91H
(*)
225/45 R17 91Q (M+S)
1.4 16V 95 HP6Jx15 H2 ET 39 195/65 R15 91H 195/65 R15 91Q (M+S)
4JX16 H ET 15
T135/70 R16 100M 6Jx16 H2 ET 36.5
205/55 R16 91H
(*)
205/55 R16 91Q (M+S)
6½Jx16 H2 ET 39
(*)
7Jx17 H2 ET 41
225/45 R17 91H
(*)
225/45 R17 91Q (M+S)
1.4 16V 120 HP6Jx16 H2 ET 36.5
205/55 R16 91V 205/55 R16 91Q (M+S)
4JX16 H ET 15
T135/70 R16 100M 6½Jx16 H2 ET 39
(*)
7Jx17 H2 ET 41 225/45 R17 91V 225/45 R17 91Q (M+S)
(*) For versions/markets, where provided
164
TECHNICAL SPECIFICATIONS
9-1-2015 12:9 Pagina 164

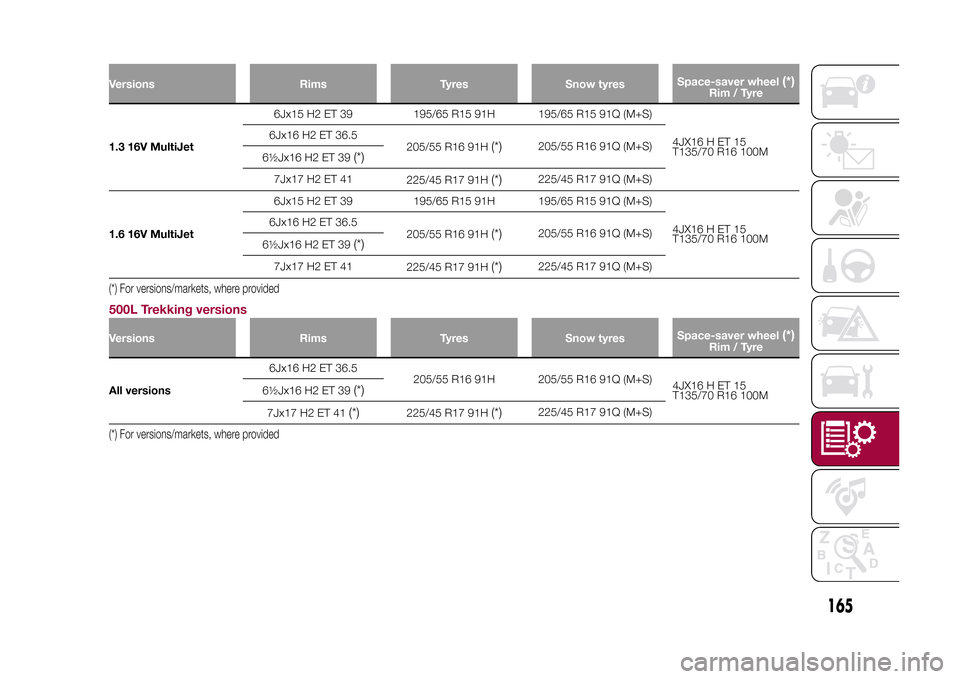

Versions Rims Tyres Snow tyresSpace-saver wheel
(*)
Rim / Tyre
1.3 16V MultiJet6Jx15 H2 ET 39 195/65 R15 91H 195/65 R15 91Q (M+S)
4JX16 H ET 15
T135/70 R16 100M 6Jx16 H2 ET 36.5
205/55 R16 91H
(*)
205/55 R16 91Q (M+S)
6½Jx16 H2 ET 39
(*)
7Jx17 H2 ET 41
225/45 R17 91H
(*)
225/45 R17 91Q (M+S)
1.6 16V MultiJet6Jx15 H2 ET 39 195/65 R15 91H 195/65 R15 91Q (M+S)
4JX16 H ET 15
T135/70 R16 100M 6Jx16 H2 ET 36.5
205/55 R16 91H
(*)
205/55 R16 91Q (M+S)
6½Jx16 H2 ET 39
(*)
7Jx17 H2 ET 41
225/45 R17 91H
(*)
225/45 R17 91Q (M+S)
(*) For versions/markets, where provided500L Trekking versionsVersions Rims Tyres Snow tyresSpace-saver wheel
(*)
Rim / Tyre
All versions6Jx16 H2 ET 36.5
205/55 R16 91H 205/55 R16 91Q (M+S)
4JX16 H ET 15
T135/70 R16 100M 6½Jx16 H2 ET 39
(*)
7Jx17 H2 ET 41
(*)
225/45 R17 91H
(*)
225/45 R17 91Q (M+S)
(*) For versions/markets, where provided
165
9-1-2015 12:9 Pagina 165

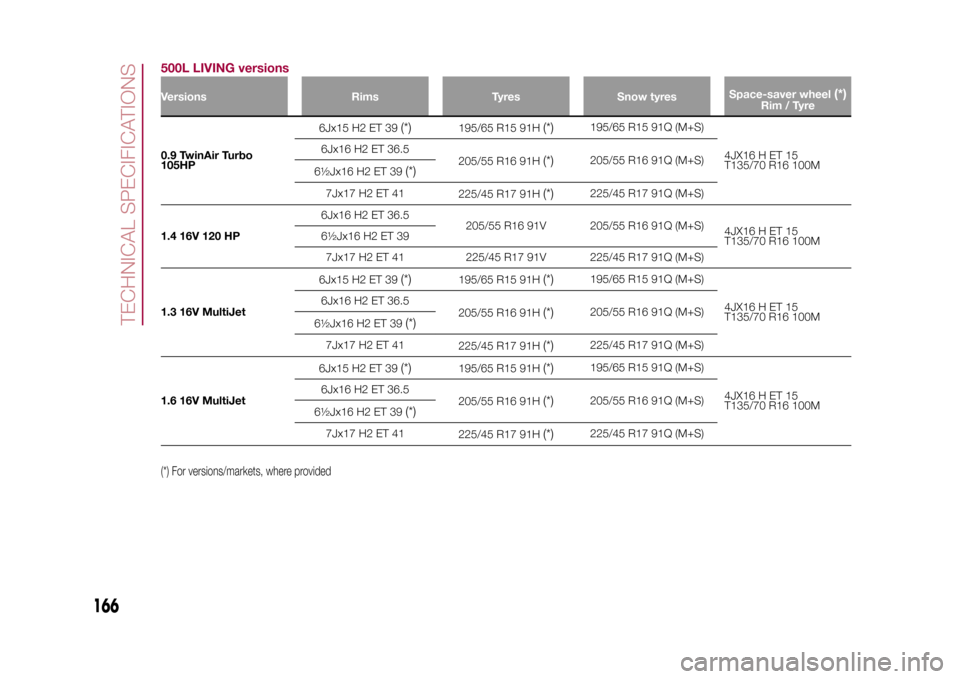

500L LIVING versionsVersions Rims Tyres Snow tyresSpace-saver wheel
(*)
Rim / Tyre
0.9 TwinAir Turbo
105HP6Jx15 H2 ET 39
(*)
195/65 R15 91H
(*)
195/65 R15 91Q (M+S)
4JX16 H ET 15
T135/70 R16 100M 6Jx16 H2 ET 36.5
205/55 R16 91H
(*)
205/55 R16 91Q (M+S)
6½Jx16 H2 ET 39
(*)
7Jx17 H2 ET 41
225/45 R17 91H
(*)
225/45 R17 91Q (M+S)
1.4 16V 120 HP6Jx16 H2 ET 36.5
205/55 R16 91V 205/55 R16 91Q (M+S)
4JX16 H ET 15
T135/70 R16 100M 6½Jx16 H2 ET 39
7Jx17 H2 ET 41 225/45 R17 91V 225/45 R17 91Q (M+S)
1.3 16V MultiJet6Jx15 H2 ET 39
(*)
195/65 R15 91H
(*)
195/65 R15 91Q (M+S)
4JX16 H ET 15
T135/70 R16 100M 6Jx16 H2 ET 36.5
205/55 R16 91H
(*)
205/55 R16 91Q (M+S)
6½Jx16 H2 ET 39
(*)
7Jx17 H2 ET 41
225/45 R17 91H
(*)
225/45 R17 91Q (M+S)
1.6 16V MultiJet6Jx15 H2 ET 39
(*)
195/65 R15 91H
(*)
195/65 R15 91Q (M+S)
4JX16 H ET 15
T135/70 R16 100M 6Jx16 H2 ET 36.5
205/55 R16 91H
(*)
205/55 R16 91Q (M+S)
6½Jx16 H2 ET 39
(*)
7Jx17 H2 ET 41
225/45 R17 91H
(*)
225/45 R17 91Q (M+S)
(*) For versions/markets, where provided
166
TECHNICAL SPECIFICATIONS
9-1-2015 12:9 Pagina 166

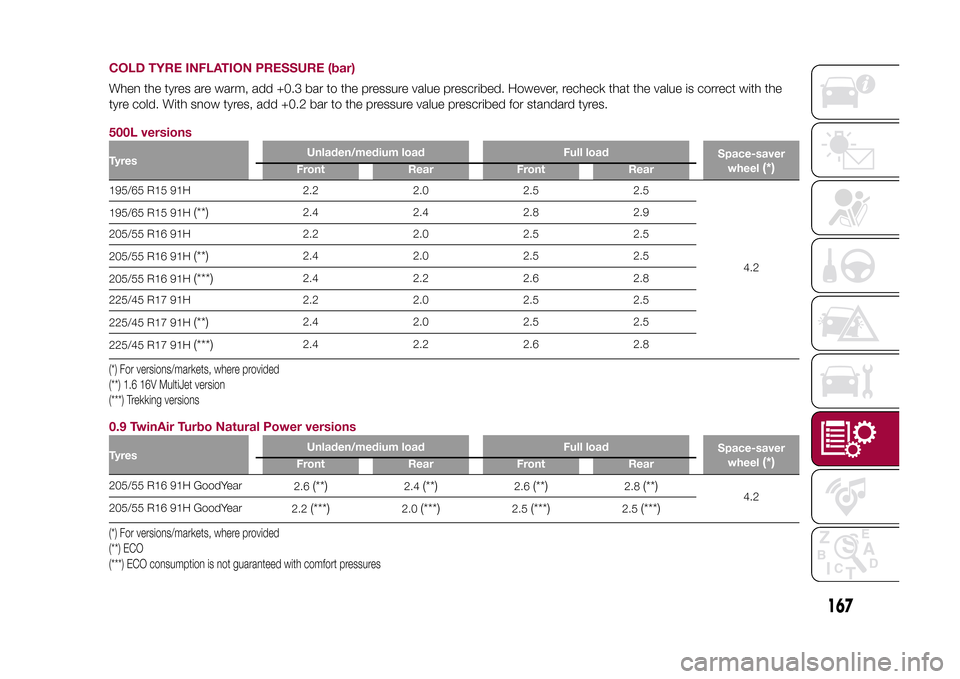

COLD TYRE INFLATION PRESSURE (bar)When the tyres are warm, add +0.3 bar to the pressure value prescribed. However, recheck that the value is correct with the
tyre cold. With snow tyres, add +0.2 bar to the pressure value prescribed for standard tyres.500L versionsTy r e sUnladen/medium load Full load
Space-saver
wheel
(*)
Front Rear Front Rear
195/65 R15 91H 2.2 2.0 2.5 2.5
4.2 195/65 R15 91H
(**)
2.4 2.4 2.8 2.9
205/55 R16 91H 2.2 2.0 2.5 2.5
205/55 R16 91H
(**)
2.4 2.0 2.5 2.5
205/55 R16 91H
(***)
2.4 2.2 2.6 2.8
225/45 R17 91H 2.2 2.0 2.5 2.5
225/45 R17 91H
(**)
2.4 2.0 2.5 2.5
225/45 R17 91H
(***)
2.4 2.2 2.6 2.8
(*) For versions/markets, where provided
(**) 1.6 16V MultiJet version
(***) Trekking versions0.9 TwinAir Turbo Natural Power versionsTy r e sUnladen/medium load Full load
Space-saver
wheel
(*)
Front Rear Front Rear
205/55 R16 91H GoodYear
2.6
(**)
2.4
(**)
2.6
(**)
2.8
(**)
4.2
205/55 R16 91H GoodYear
2.2
(***)
2.0
(***)
2.5
(***)
2.5
(***)
(*) For versions/markets, where provided
(**) ECO
(***) ECO consumption is not guaranteed with comfort pressures
167
9-1-2015 12:9 Pagina 167

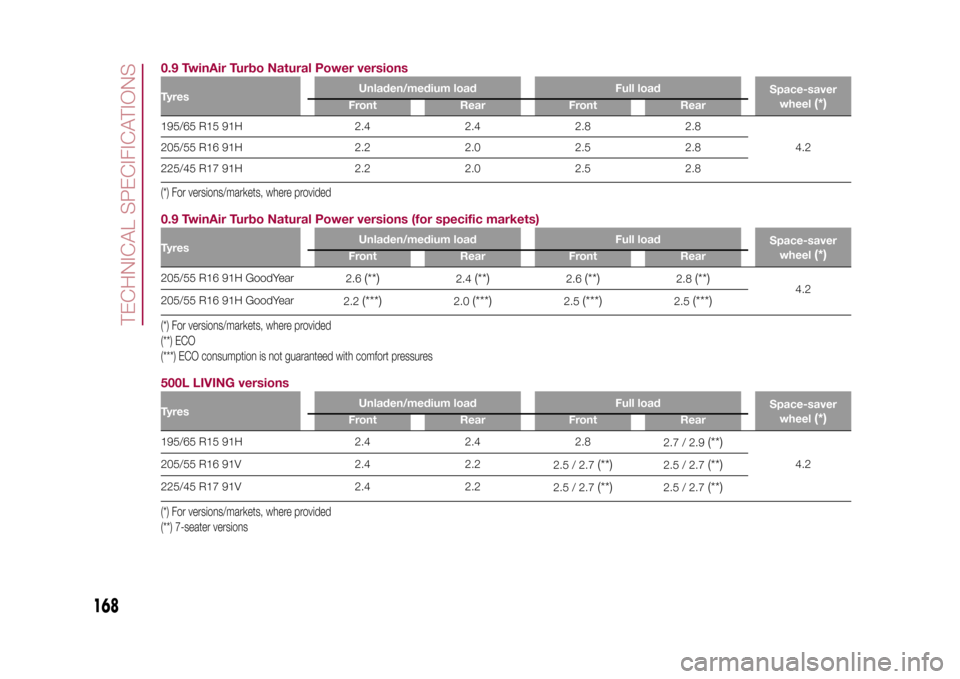

0.9 TwinAir Turbo Natural Power versionsTy r e sUnladen/medium load Full load
Space-saver
wheel
(*)
Front Rear Front Rear
195/65 R15 91H 2.4 2.4 2.8 2.8
4.2 205/55 R16 91H 2.2 2.0 2.5 2.8
225/45 R17 91H 2.2 2.0 2.5 2.8(*) For versions/markets, where provided0.9 TwinAir Turbo Natural Power versions (for specific markets)Ty r e sUnladen/medium load Full load
Space-saver
wheel
(*)
Front Rear Front Rear
205/55 R16 91H GoodYear
2.6
(**)
2.4
(**)
2.6
(**)
2.8
(**)
4.2
205/55 R16 91H GoodYear
2.2
(***)
2.0
(***)
2.5
(***)
2.5
(***)
(*) For versions/markets, where provided
(**) ECO
(***) ECO consumption is not guaranteed with comfort pressures500L LIVING versionsTy r e sUnladen/medium load Full load
Space-saver
wheel
(*)
Front Rear Front Rear
195/65 R15 91H 2.4 2.4 2.8
2.7 / 2.9
(**)
4.2 205/55 R16 91V 2.4 2.2
2.5 / 2.7
(**)
2.5 / 2.7
(**)
225/45 R17 91V 2.4 2.2
2.5 / 2.7
(**)
2.5 / 2.7
(**)
(*) For versions/markets, where provided
(**) 7-seater versions
168
TECHNICAL SPECIFICATIONS
9-1-2015 12:9 Pagina 168
