FIAT 500L LIVING 2015 2.G Owners Manual

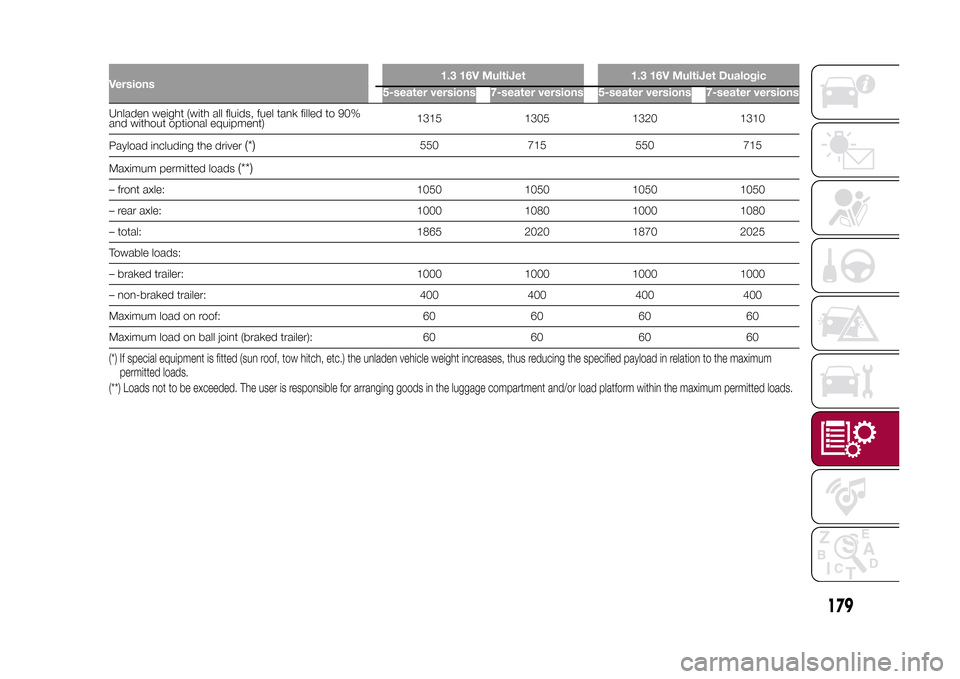

Versions1.3 16V MultiJet 1.3 16V MultiJet Dualogic
5-seater versions 7-seater versions 5-seater versions 7-seater versionsUnladen weight (with all fluids, fuel tank filled to 90%
and without optional equipment)1315 1305 1320 1310
Payload including the driver
(*)
550 715 550 715
Maximum permitted loads
(**)
– front axle: 1050 1050 1050 1050
– rear axle: 1000 1080 1000 1080
– total: 1865 2020 1870 2025
Towable loads:
– braked trailer: 1000 1000 1000 1000
– non-braked trailer: 400 400 400 400
Maximum load on roof: 60 60 60 60
Maximum load on ball joint (braked trailer): 60 60 60 60(*) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relation to the maximum
permitted loads.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
179
9-1-2015 12:9 Pagina 179

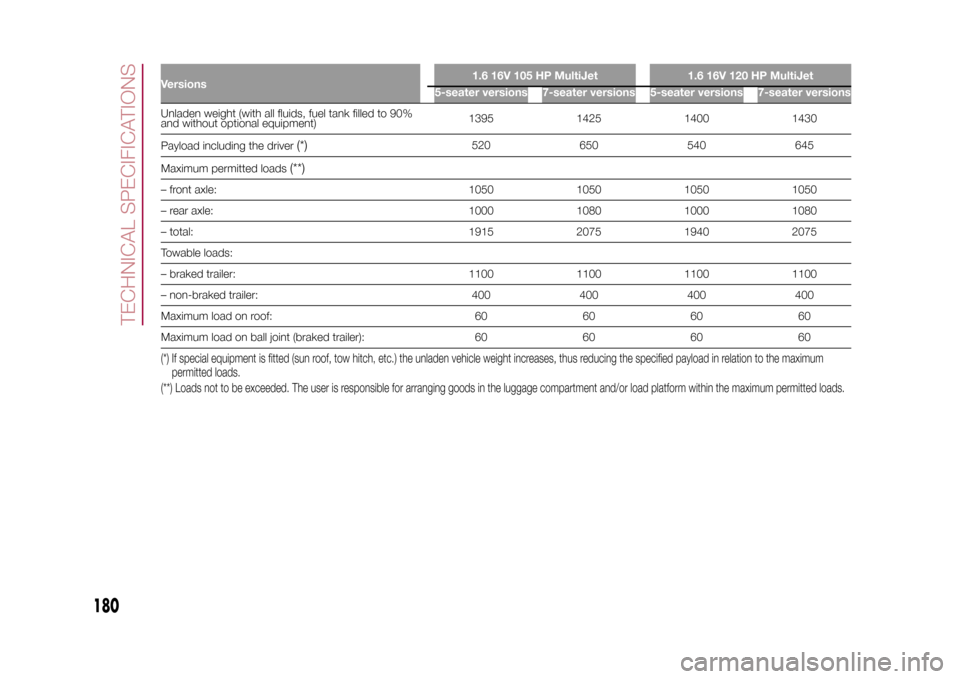

Versions1.6 16V 105 HP MultiJet 1.6 16V 120 HP MultiJet
5-seater versions 7-seater versions 5-seater versions 7-seater versionsUnladen weight (with all fluids, fuel tank filled to 90%
and without optional equipment)1395 1425 1400 1430
Payload including the driver
(*)
520 650 540 645
Maximum permitted loads
(**)
– front axle: 1050 1050 1050 1050
– rear axle: 1000 1080 1000 1080
– total: 1915 2075 1940 2075
Towable loads:
– braked trailer: 1100 1100 1100 1100
– non-braked trailer: 400 400 400 400
Maximum load on roof: 60 60 60 60
Maximum load on ball joint (braked trailer): 60 60 60 60(*) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relation to the maximum
permitted loads.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
180
TECHNICAL SPECIFICATIONS
9-1-2015 12:9 Pagina 180

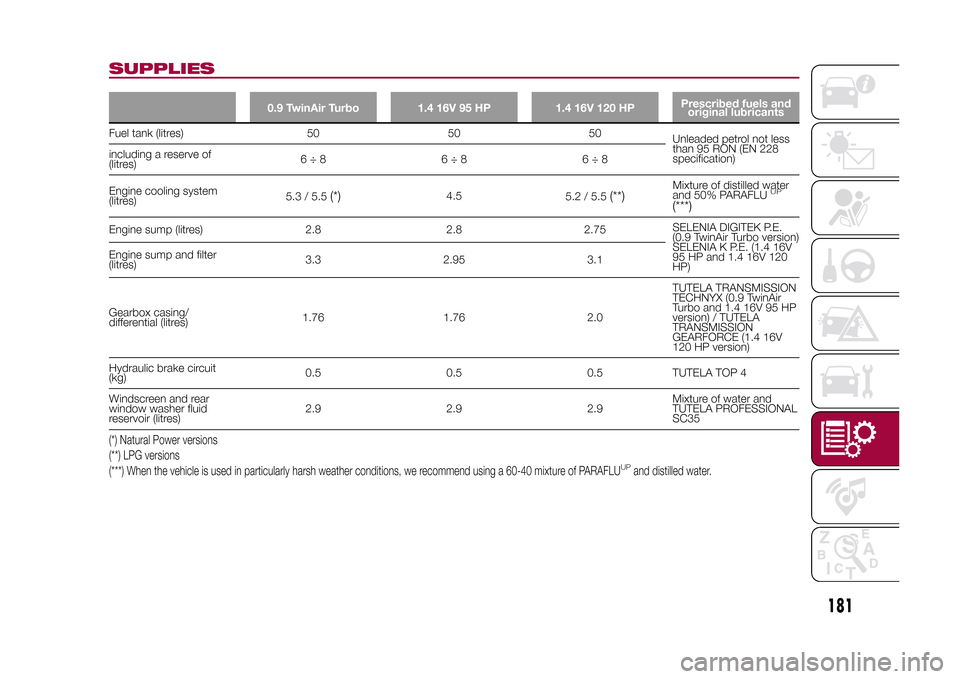

SUPPLIES
0.9 TwinAir Turbo 1.4 16V 95 HP 1.4 16V 120 HPPrescribed fuels and
original lubricants
Fuel tank (litres) 50 50 50
Unleaded petrol not less
than 95 RON (EN 228
specification) including a reserve of
(litres)6÷8 6÷8 6÷8
Engine cooling system
(litres)5.3 / 5.5
(*)
4.5
5.2 / 5.5
(**)
Mixture of distilled water
and 50% PARAFLU
UP
(***)
Engine sump (litres) 2.8 2.8 2.75SELENIA DIGITEK P.E.
(0.9 TwinAir Turbo version)
SELENIA K P.E. (1.4 16V
95 HP and 1.4 16V 120
HP) Engine sump and filter
(litres)3.3 2.95 3.1
Gearbox casing/
differential (litres)1.76 1.76 2.0TUTELA TRANSMISSION
TECHNYX (0.9 TwinAir
Turbo and 1.4 16V 95 HP
version) / TUTELA
TRANSMISSION
GEARFORCE (1.4 16V
120 HP version)
Hydraulic brake circuit
(kg)0.5 0.5 0.5 TUTELA TOP 4
Windscreen and rear
window washer fluid
reservoir (litres)2.9 2.9 2.9Mixture of water and
TUTELA PROFESSIONAL
SC35(*) Natural Power versions
(**) LPG versions
(***) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLU
UP
and distilled water.
181
9-1-2015 12:9 Pagina 181

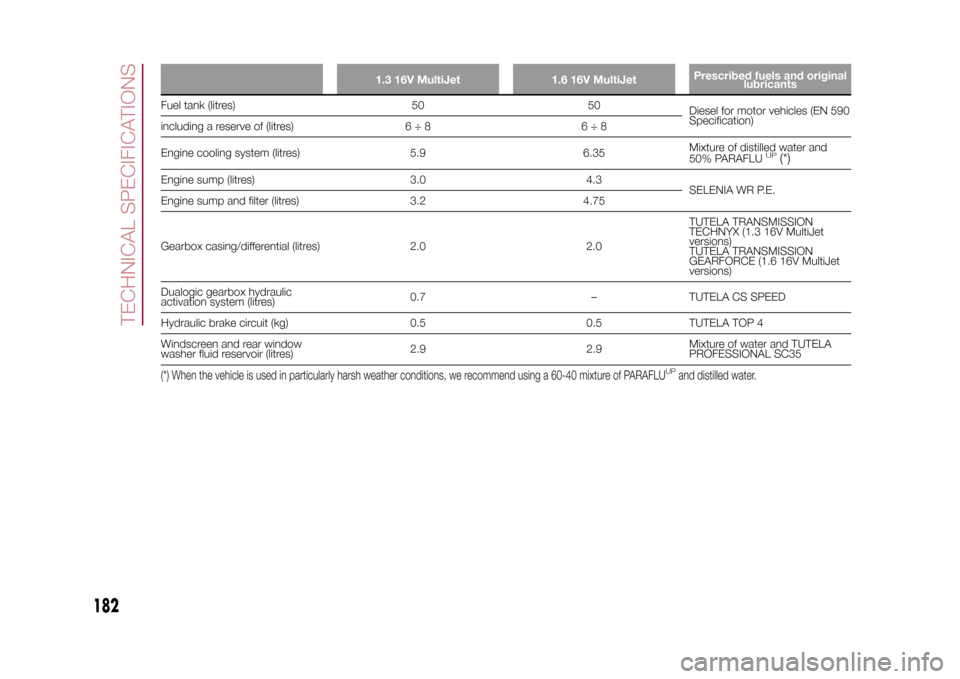

1.3 16V MultiJet 1.6 16V MultiJetPrescribed fuels and original
lubricants
Fuel tank (litres) 50 50
Diesel for motor vehicles (EN 590
Specification)
including a reserve of (litres) 6 ÷ 8 6 ÷ 8
Engine cooling system (litres) 5.9 6.35Mixture of distilled water and
50% PARAFLU
UP
(*)
Engine sump (litres) 3.0 4.3
SELENIA WR P.E.
Engine sump and filter (litres) 3.2 4.75
Gearbox casing/differential (litres) 2.0 2.0TUTELA TRANSMISSION
TECHNYX (1.3 16V MultiJet
versions)
TUTELA TRANSMISSION
GEARFORCE (1.6 16V MultiJet
versions)
Dualogic gearbox hydraulic
activation system (litres)0.7 – TUTELA CS SPEED
Hydraulic brake circuit (kg) 0.5 0.5 TUTELA TOP 4
Windscreen and rear window
washer fluid reservoir (litres)2.9 2.9Mixture of water and TUTELA
PROFESSIONAL SC35(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLU
UP
and distilled water.
182
TECHNICAL SPECIFICATIONS
9-1-2015 12:9 Pagina 182

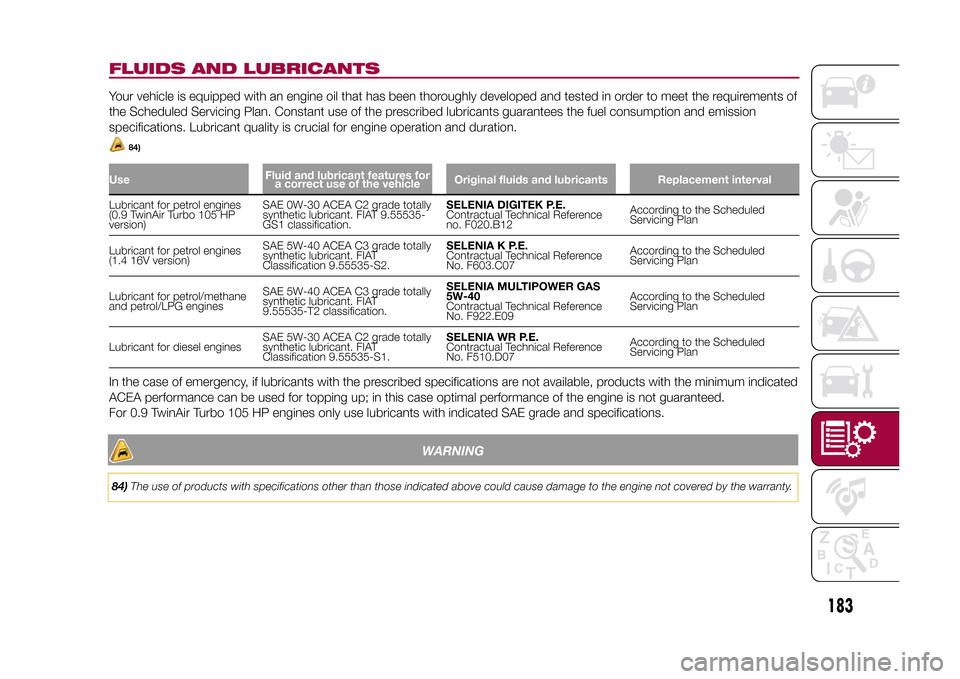

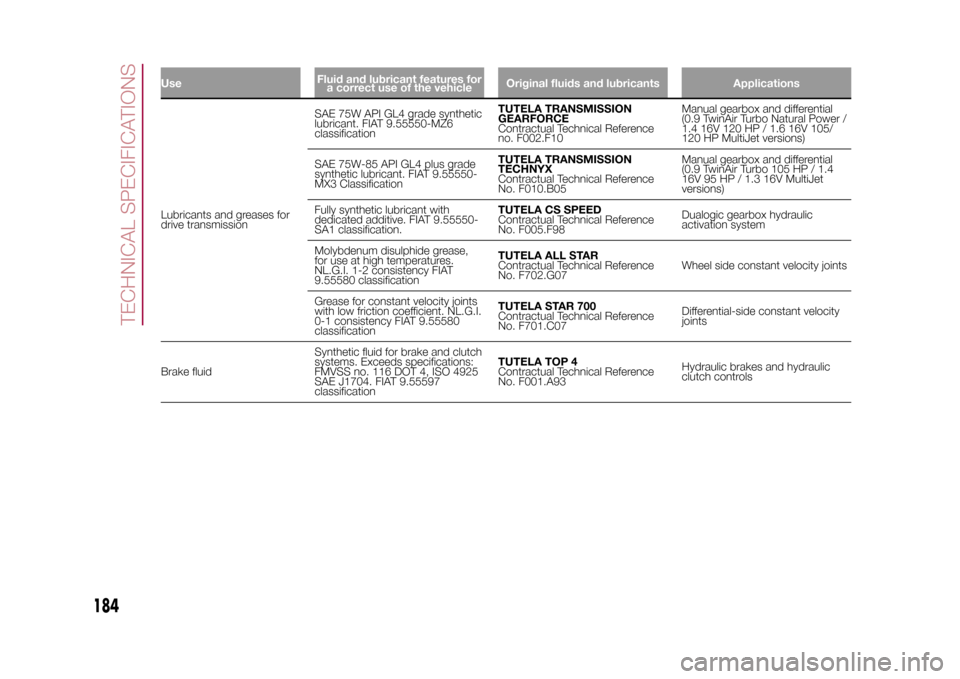

FLUIDS AND LUBRICANTSYour vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of
the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission
specifications. Lubricant quality is crucial for engine operation and duration.
84)
UseFluid and lubricant features for
a correct use of the vehicleOriginal fluids and lubricants Replacement intervalLubricant for petrol engines
(0.9 TwinAir Turbo 105 HP
version)SAE 0W-30 ACEA C2 grade totally
synthetic lubricant. FIAT 9.55535-
GS1 classification.SELENIA DIGITEK P.E.
Contractual Technical Reference
no. F020.B12According to the Scheduled
Servicing Plan
Lubricant for petrol engines
(1.4 16V version)SAE 5W-40 ACEA C3 grade totally
synthetic lubricant. FIAT
Classification 9.55535-S2.SELENIA K P.E.
Contractual Technical Reference
No. F603.C07According to the Scheduled
Servicing Plan
Lubricant for petrol/methane
and petrol/LPG enginesSAE 5W-40 ACEA C3 grade totally
synthetic lubricant. FIAT
9.55535-T2 classification.SELENIA MULTIPOWER GAS
5W-40
Contractual Technical Reference
No. F922.E09According to the Scheduled
Servicing Plan
Lubricant for diesel enginesSAE 5W-30 ACEA C2 grade totally
synthetic lubricant. FIAT
Classification 9.55535-S1.SELENIA WR P.E.
Contractual Technical Reference
No. F510.D07According to the Scheduled
Servicing PlanIn the case of emergency, if lubricants with the prescribed specifications are not available, products with the minimum indicated
ACEA performance can be used for topping up; in this case optimal performance of the engine is not guaranteed.
For 0.9 TwinAir Turbo 105 HP engines only use lubricants with indicated SAE grade and specifications.
183
9-1-2015 12:9 Pagina 183
WARNING
84)The use of products with specifications other than those indicated above could cause damage to the engine not covered by the warranty.

UseFluid and lubricant features for
a correct use of the vehicleOriginal fluids and lubricants ApplicationsLubricants and greases for
drive transmissionSAE 75W API GL4 grade synthetic
lubricant. FIAT 9.55550-MZ6
classificationTUTELA TRANSMISSION
GEARFORCE
Contractual Technical Reference
no. F002.F10Manual gearbox and differential
(0.9 TwinAir Turbo Natural Power /
1.4 16V 120 HP / 1.6 16V 105/
120 HP MultiJet versions)
SAE 75W-85 API GL4 plus grade
synthetic lubricant. FIAT 9.55550-
MX3 ClassificationTUTELA TRANSMISSION
TECHNYX
Contractual Technical Reference
No. F010.B05Manual gearbox and differential
(0.9 TwinAir Turbo 105 HP / 1.4
16V 95 HP / 1.3 16V MultiJet
versions)
Fully synthetic lubricant with
dedicated additive. FIAT 9.55550-
SA1 classification.TUTELA CS SPEED
Contractual Technical Reference
No. F005.F98Dualogic gearbox hydraulic
activation system
Molybdenum disulphide grease,
for use at high temperatures.
NL.G.I. 1-2 consistency FIAT
9.55580 classificationTUTELA ALL STAR
Contractual Technical Reference
No. F702.G07Wheel side constant velocity joints
Grease for constant velocity joints
with low friction coefficient. NL.G.I.
0-1 consistency FIAT 9.55580
classificationTUTELA STAR 700
Contractual Technical Reference
No. F701.C07Differential-side constant velocity
joints
Brake fluidSynthetic fluid for brake and clutch
systems. Exceeds specifications:
FMVSS no. 116 DOT 4, ISO 4925
SAE J1704. FIAT 9.55597
classificationTUTELA TOP 4
Contractual Technical Reference
No. F001.A93Hydraulic brakes and hydraulic
clutch controls
184
TECHNICAL SPECIFICATIONS
9-1-2015 12:9 Pagina 184

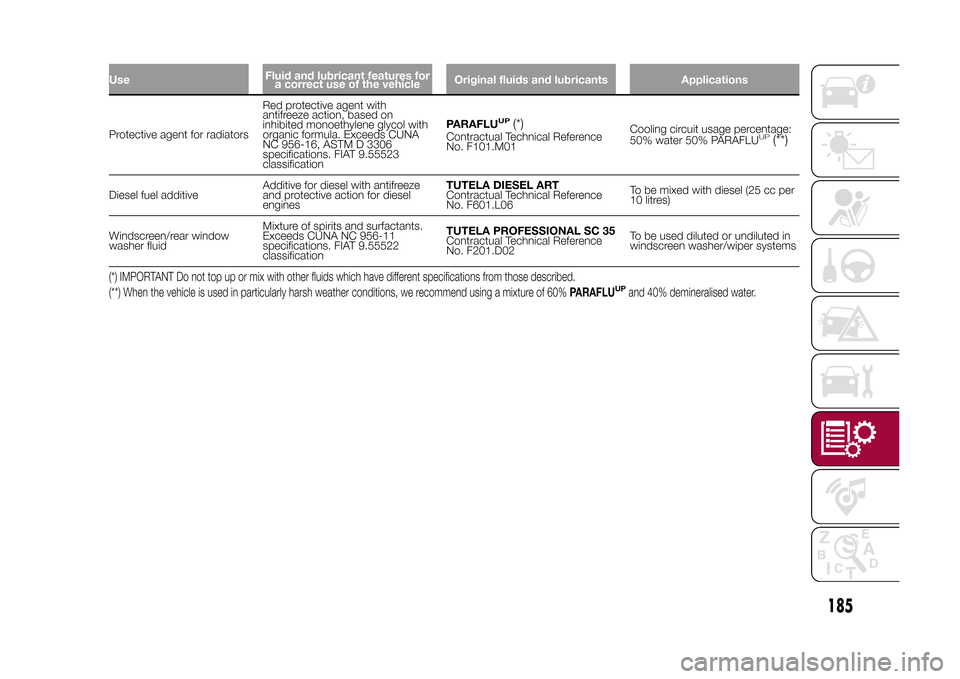

UseFluid and lubricant features for
a correct use of the vehicleOriginal fluids and lubricants ApplicationsProtective agent for radiatorsRed protective agent with
antifreeze action, based on
inhibited monoethylene glycol with
organic formula. Exceeds CUNA
NC 956-16, ASTM D 3306
specifications. FIAT 9.55523
classificationPARAFLU
UP
(*)
Contractual Technical Reference
No. F101.M01Cooling circuit usage percentage:
50% water 50% PARAFLU
UP
(**)
Diesel fuel additiveAdditive for diesel with antifreeze
and protective action for diesel
enginesTUTELA DIESEL ART
Contractual Technical Reference
No. F601.L06To be mixed with diesel (25 cc per
10 litres)
Windscreen/rear window
washer fluidMixture of spirits and surfactants.
Exceeds CUNA NC 956-11
specifications. FIAT 9.55522
classificationTUTELA PROFESSIONAL SC 35
Contractual Technical Reference
No. F201.D02To be used diluted or undiluted in
windscreen washer/wiper systems(*) IMPORTANT Do not top up or mix with other fluids which have different specifications from those described.
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%PARAFLU
UP
and 40% demineralised water.
185
9-1-2015 12:9 Pagina 185

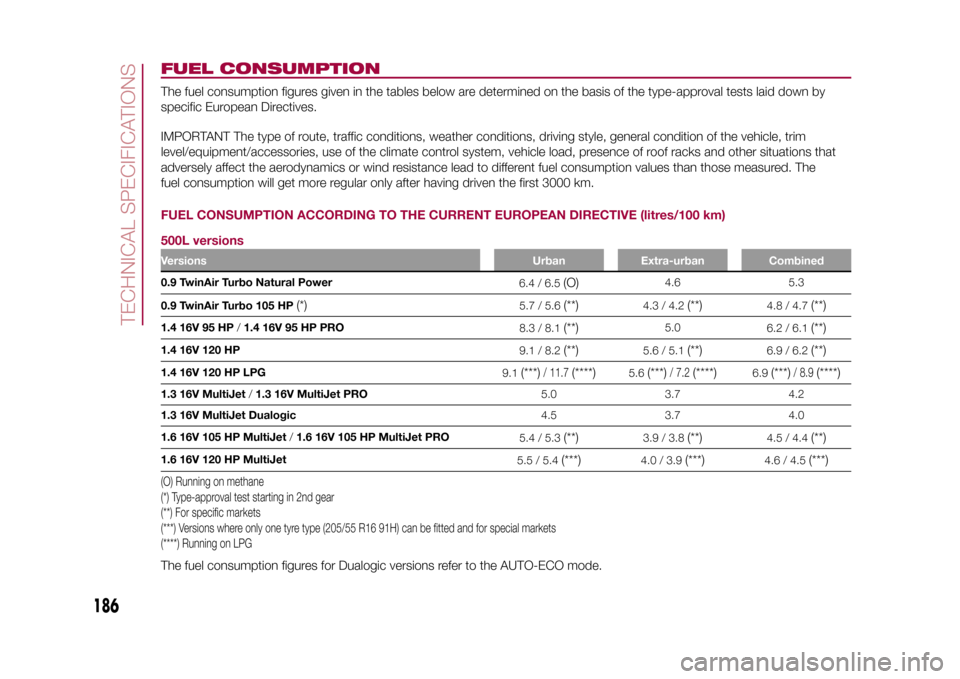

FUEL CONSUMPTIONThe fuel consumption figures given in the tables below are determined on the basis of the type-approval tests laid down by
specific European Directives.
IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition of the vehicle, trim
level/equipment/accessories, use of the climate control system, vehicle load, presence of roof racks and other situations that
adversely affect the aerodynamics or wind resistance lead to different fuel consumption values than those measured. The
fuel consumption will get more regular only after having driven the first 3000 km.FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE (litres/100 km)
500L versionsVersions Urban Extra-urban Combined0.9 TwinAir Turbo Natural Power
6.4 / 6.5
(O)
4.6 5.3
0.9 TwinAir Turbo 105 HP
(*)
5.7 / 5.6
(**)
4.3 / 4.2
(**)
4.8 / 4.7
(**)
1.4 16V 95 HP/1.4 16V 95 HP PRO
8.3 / 8.1
(**)
5.0
6.2 / 6.1
(**)
1.4 16V 120 HP
9.1 / 8.2
(**)
5.6 / 5.1
(**)
6.9 / 6.2
(**)
1.4 16V 120 HP LPG
9.1
(***)
/ 11.7
(****)
5.6
(***)
/ 7.2
(****)
6.9
(***)
/ 8.9
(****)
1.3 16V MultiJet/1.3 16V MultiJet PRO5.0 3.7 4.2
1.3 16V MultiJet Dualogic4.5 3.7 4.0
1.6 16V 105 HP MultiJet/1.6 16V 105 HP MultiJet PRO
5.4 / 5.3
(**)
3.9 / 3.8
(**)
4.5 / 4.4
(**)
1.6 16V 120 HP MultiJet
5.5 / 5.4
(***)
4.0 / 3.9
(***)
4.6 / 4.5
(***)
(O) Running on methane
(*) Type-approval test starting in 2nd gear
(**) For specific markets
(***) Versions where only one tyre type (205/55 R16 91H) can be fitted and for special markets
(****) Running on LPGThe fuel consumption figures for Dualogic versions refer to the AUTO-ECO mode.
186
TECHNICAL SPECIFICATIONS
9-1-2015 12:9 Pagina 186

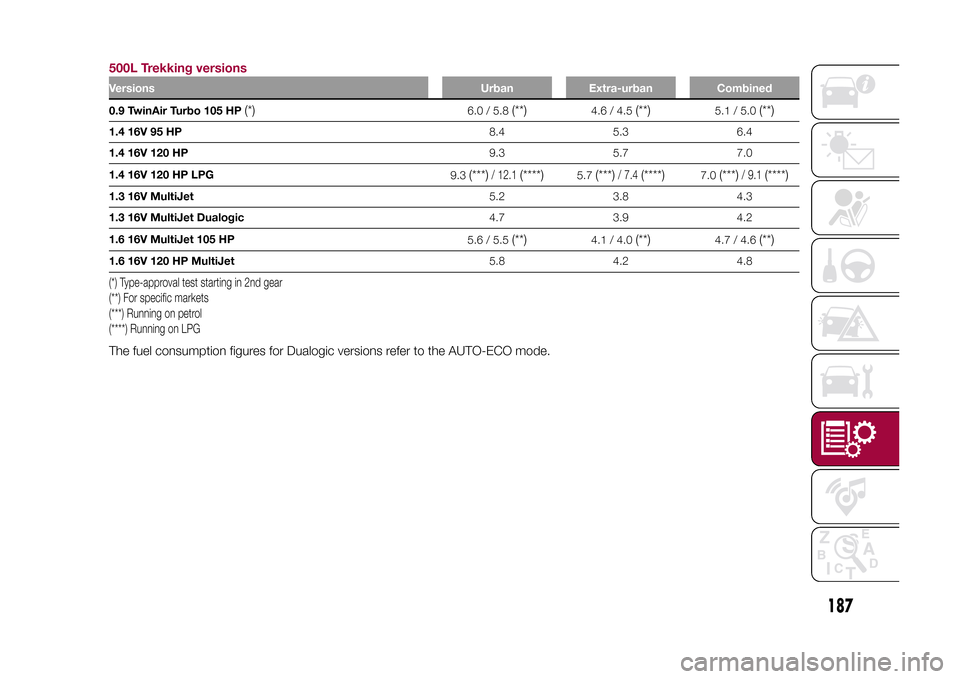

500L Trekking versionsVersions Urban Extra-urban Combined0.9 TwinAir Turbo 105 HP
(*)
6.0 / 5.8
(**)
4.6 / 4.5
(**)
5.1 / 5.0
(**)
1.4 16V 95 HP8.4 5.3 6.4
1.4 16V 120 HP9.3 5.7 7.0
1.4 16V 120 HP LPG
9.3
(***)
/ 12.1
(****)
5.7
(***)
/ 7.4
(****)
7.0
(***)
/ 9.1
(****)
1.3 16V MultiJet5.2 3.8 4.3
1.3 16V MultiJet Dualogic4.7 3.9 4.2
1.6 16V MultiJet 105 HP
5.6 / 5.5
(**)
4.1 / 4.0
(**)
4.7 / 4.6
(**)
1.6 16V 120 HP MultiJet5.8 4.2 4.8(*) Type-approval test starting in 2nd gear
(**) For specific markets
(***) Running on petrol
(****) Running on LPGThe fuel consumption figures for Dualogic versions refer to the AUTO-ECO mode.
187
9-1-2015 12:9 Pagina 187

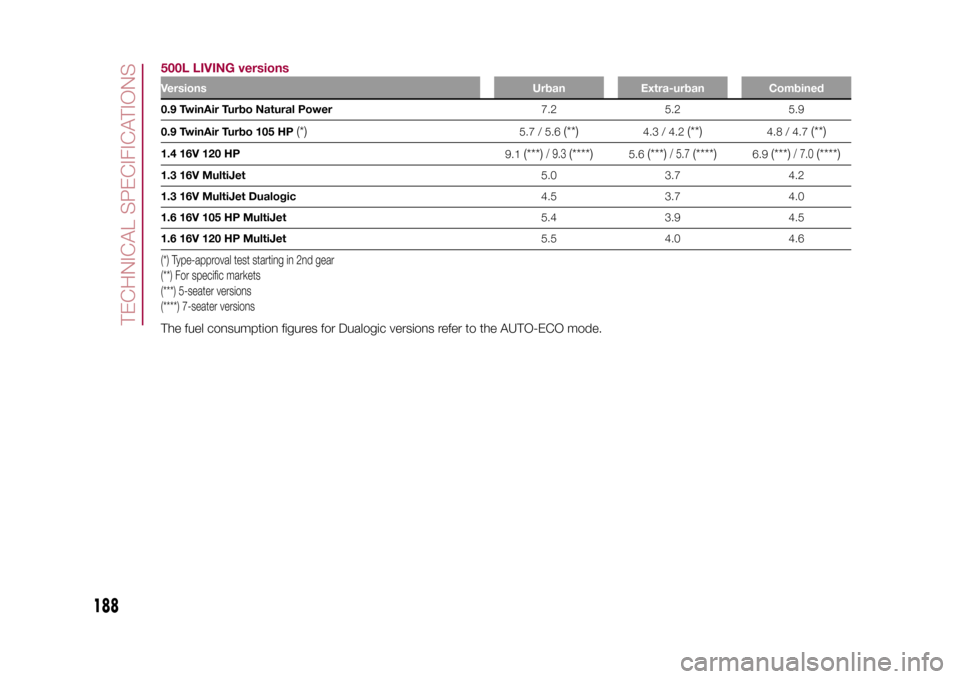

500L LIVING versionsVersions Urban Extra-urban Combined0.9 TwinAir Turbo Natural Power7.2 5.2 5.9
0.9 TwinAir Turbo 105 HP
(*)
5.7 / 5.6
(**)
4.3 / 4.2
(**)
4.8 / 4.7
(**)
1.4 16V 120 HP
9.1
(***)
/ 9.3
(****)
5.6
(***)
/ 5.7
(****)
6.9
(***)
/ 7.0
(****)
1.3 16V MultiJet5.0 3.7 4.2
1.3 16V MultiJet Dualogic4.5 3.7 4.0
1.6 16V 105 HP MultiJet5.4 3.9 4.5
1.6 16V 120 HP MultiJet5.5 4.0 4.6(*) Type-approval test starting in 2nd gear
(**) For specific markets
(***) 5-seater versions
(****) 7-seater versionsThe fuel consumption figures for Dualogic versions refer to the AUTO-ECO mode.
188
TECHNICAL SPECIFICATIONS
9-1-2015 12:9 Pagina 188
