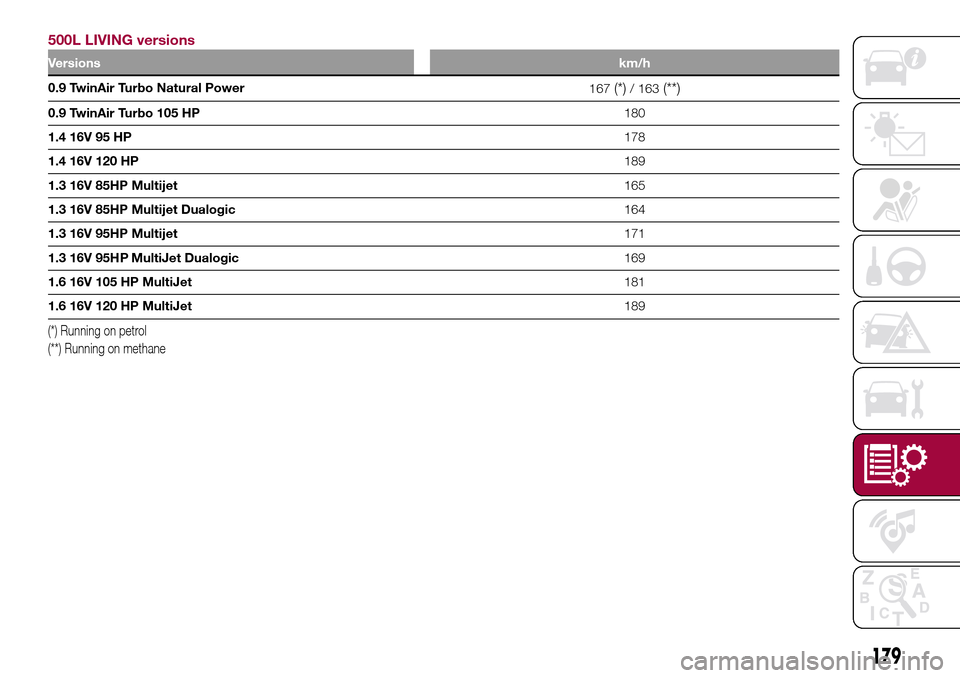

500L LIVING versions
Versionskm/h
0.9 TwinAir Turbo Natural Power
167(*)/ 163(**)
0.9 TwinAir Turbo 105 HP180
1.4 16V 95 HP178
1.4 16V 120 HP189
1.3 16V 85HP Multijet165
1.3 16V 85HP Multijet Dualogic164
1.3 16V 95HP Multijet171
1.3 16V 95HP MultiJet Dualogic169
1.6 16V 105 HP MultiJet181
1.6 16V 120 HP MultiJet189
(*) Running on petrol
(**) Running on methane
179

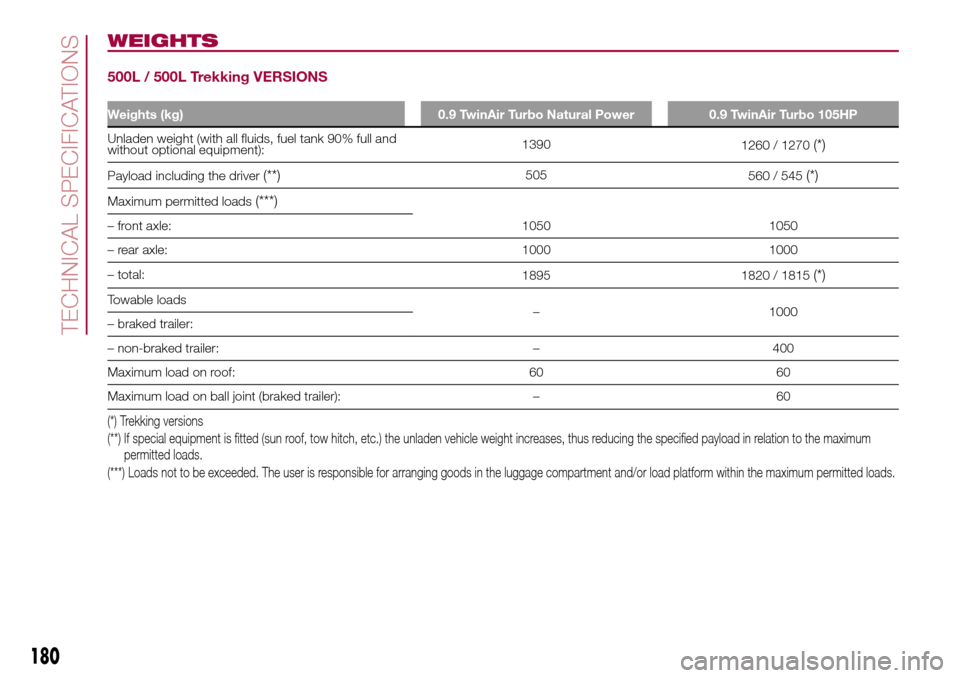

WEIGHTS
500L / 500L Trekking VERSIONS
Weights (kg) 0.9 TwinAir Turbo Natural Power 0.9 TwinAir Turbo 105HP
Unladen weight (with all fluids, fuel tank 90% full and
without optional equipment):1390
1260 / 1270(*)
Payload including the driver(**)505
560 / 545(*)
Maximum permitted loads(***)
1050 1050 – front axle:
– rear axle: 1000 1000
– total:
1895 1820 / 1815
(*)
Towable loads
– 1000
– braked trailer:
– non-braked trailer: – 400
Maximum load on roof: 60 60
Maximum load on ball joint (braked trailer): – 60
(*) Trekking versions
(**) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relationto the maximum
permitted loads.
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
180
TECHNICAL SPECIFICATIONS

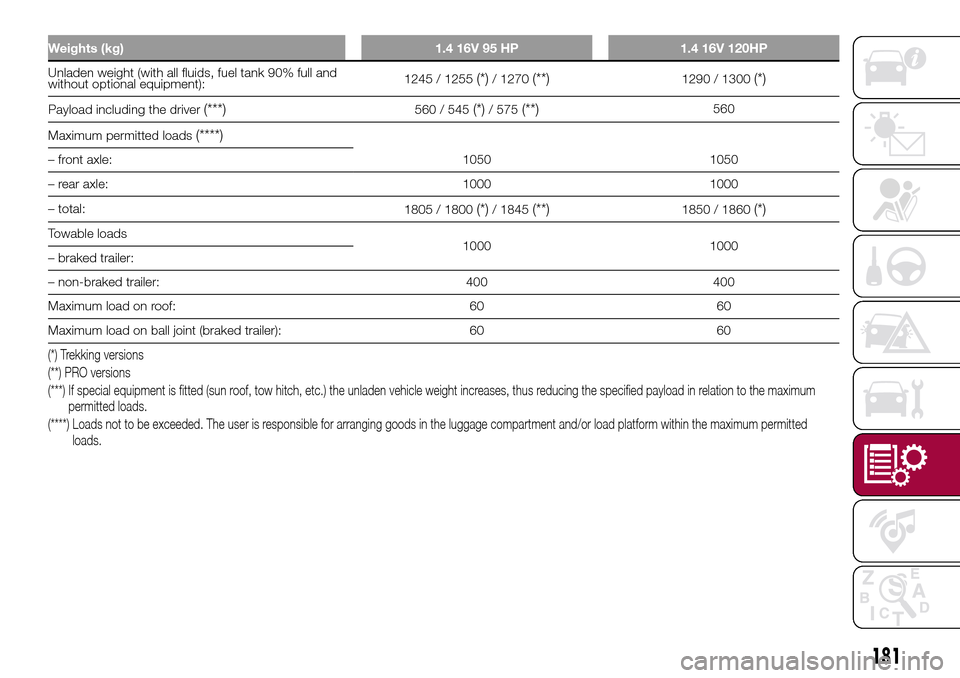

Weights (kg) 1.4 16V 95 HP 1.4 16V 120HP
Unladen weight (with all fluids, fuel tank 90% full and
without optional equipment):1245 / 1255(*)/ 1270(**)1290 / 1300(*)
Payload including the driver(***)560 / 545(*)/ 575(**)560
Maximum permitted loads
(****)
1050 1050 – front axle:
– rear axle: 1000 1000
– total:
1805 / 1800
(*)/ 1845(**)1850 / 1860(*)
Towable loads
1000 1000
– braked trailer:
– non-braked trailer: 400 400
Maximum load on roof: 60 60
Maximum load on ball joint (braked trailer): 60 60
(*) Trekking versions
(**) PRO versions
(***) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relation to the maximum
permitted loads.
(****) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted
loads.
181

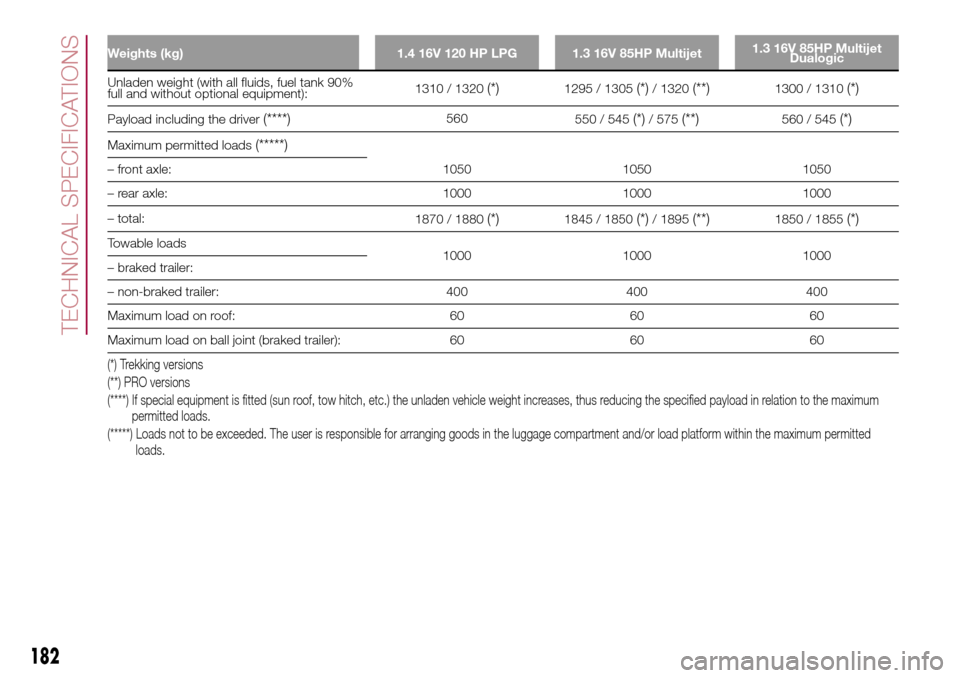

Weights (kg) 1.4 16V 120 HP LPG 1.3 16V 85HP Multijet1.3 16V 85HP Multijet
Dualogic
Unladen weight (with all fluids, fuel tank 90%
full and without optional equipment):1310 / 1320(*)1295 / 1305(*)/ 1320(**)1300 / 1310(*)
Payload including the driver(****)560
550 / 545(*)/ 575(**)560 / 545(*)
Maximum permitted loads(*****)
1050 1050 1050 – front axle:
– rear axle: 1000 1000 1000
– total:
1870 / 1880
(*)1845 / 1850(*)/ 1895(**)1850 / 1855(*)
Towable loads
1000 1000 1000
– braked trailer:
– non-braked trailer: 400 400 400
Maximum load on roof: 60 60 60
Maximum load on ball joint (braked trailer): 60 60 60
(*) Trekking versions
(**) PRO versions
(****) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relation to the maximum
permitted loads.
(*****) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted
loads.
182
TECHNICAL SPECIFICATIONS

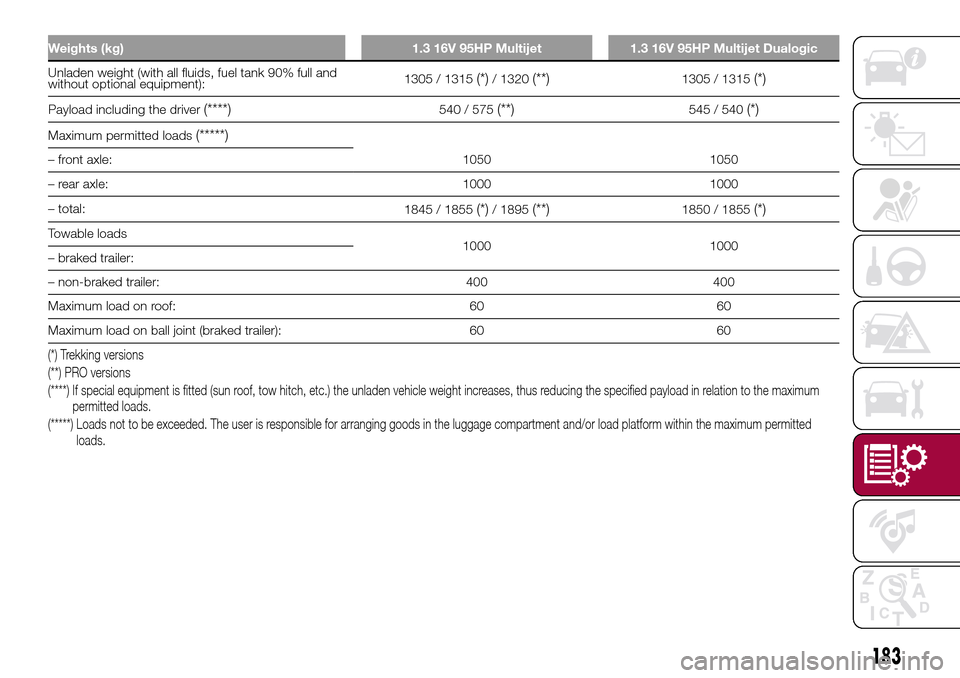

Weights (kg) 1.3 16V 95HP Multijet 1.3 16V 95HP Multijet Dualogic
Unladen weight (with all fluids, fuel tank 90% full and
without optional equipment):1305 / 1315(*)/ 1320(**)1305 / 1315(*)
Payload including the driver(****)540 / 575(**)545 / 540(*)
Maximum permitted loads(*****)
1050 1050 – front axle:
– rear axle: 1000 1000
– total:
1845 / 1855
(*)/ 1895(**)1850 / 1855(*)
Towable loads
1000 1000
– braked trailer:
– non-braked trailer: 400 400
Maximum load on roof: 60 60
Maximum load on ball joint (braked trailer): 60 60
(*) Trekking versions
(**) PRO versions
(****) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relation to the maximum
permitted loads.
(*****) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted
loads.
183

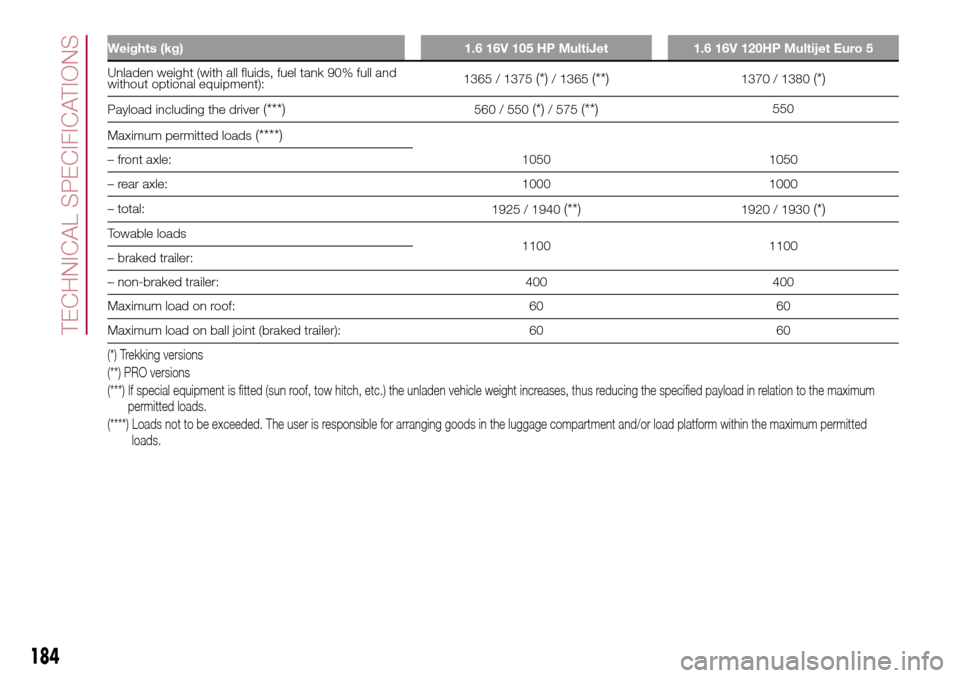

Weights (kg) 1.6 16V 105 HP MultiJet 1.6 16V 120HP Multijet Euro 5
Unladen weight (with all fluids, fuel tank 90% full and
without optional equipment):1365 / 1375(*)/ 1365(**)1370 / 1380(*)
Payload including the driver(***)560 / 550(*)/ 575(**)550
Maximum permitted loads
(****)
1050 1050 – front axle:
– rear axle: 1000 1000
– total:
1925 / 1940
(**)1920 / 1930(*)
Towable loads
1100 1100
– braked trailer:
– non-braked trailer: 400 400
Maximum load on roof: 60 60
Maximum load on ball joint (braked trailer): 60 60
(*) Trekking versions
(**) PRO versions
(***) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relation to the maximum
permitted loads.
(****) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted
loads.
184
TECHNICAL SPECIFICATIONS

Weights (kg) 1.6 16V 120 HP MultiJet
1.6 16V 120HP Multijet Trekking(*)
Unladen weight (with all fluids, fuel tank 90% full and
without optional equipment):1380 / 1390(**)1430
Payload including the driver
(****)540 / 560(***)505
Maximum permitted loads
(*****)
1050 1050 – front axle:
– rear axle: 1000 1000
– total:
1920 / 1930
(**)/ 1940(***)1935
Towable loads
1100 1100
– braked trailer:
– non-braked trailer: 400 400
Maximum load on roof: 60 60
Maximum load on ball joint (braked trailer): 60 60
(*) Version for specific markets
(**) Trekking versions
(****) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relation to the maximum
permitted loads.
(***) PRO versions
(*****) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted
loads.
185

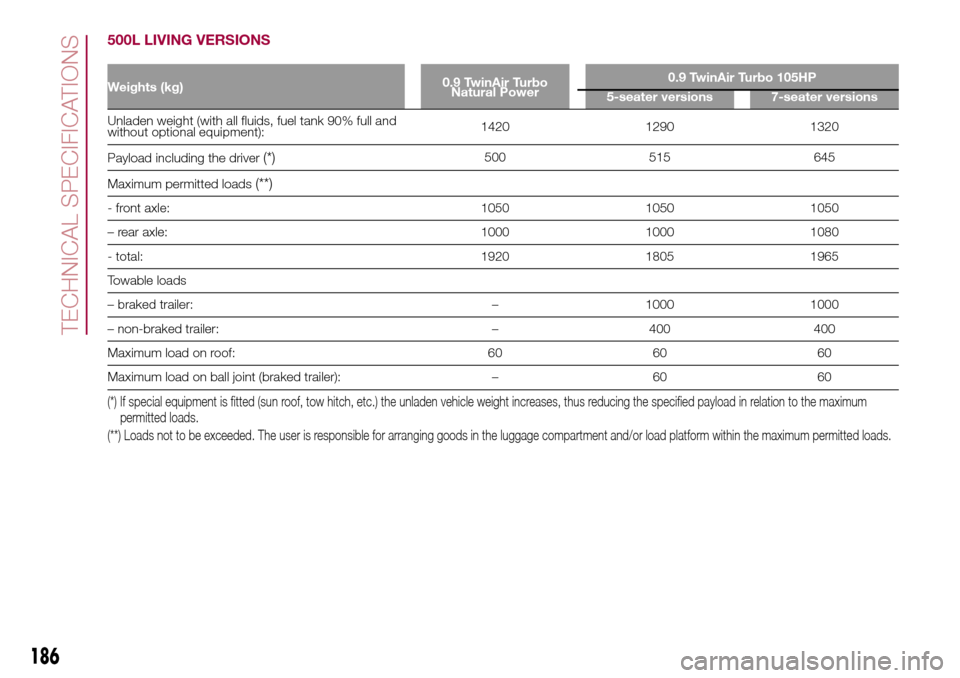

500L LIVING VERSIONS
Weights (kg)0.9 TwinAir Turbo
Natural Power0.9 TwinAir Turbo 105HP
5-seater versions 7-seater versions
Unladen weight (with all fluids, fuel tank 90% full and
without optional equipment):1420 1290 1320
Payload including the driver
(*)500 515 645
Maximum permitted loads
(**)
- front axle: 1050 1050 1050
– rear axle: 1000 1000 1080
- total: 1920 1805 1965
Towable loads
– braked trailer: – 1000 1000
– non-braked trailer: – 400 400
Maximum load on roof: 60 60 60
Maximum load on ball joint (braked trailer): – 60 60
(*) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relation to the maximum
permitted loads.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
186
TECHNICAL SPECIFICATIONS

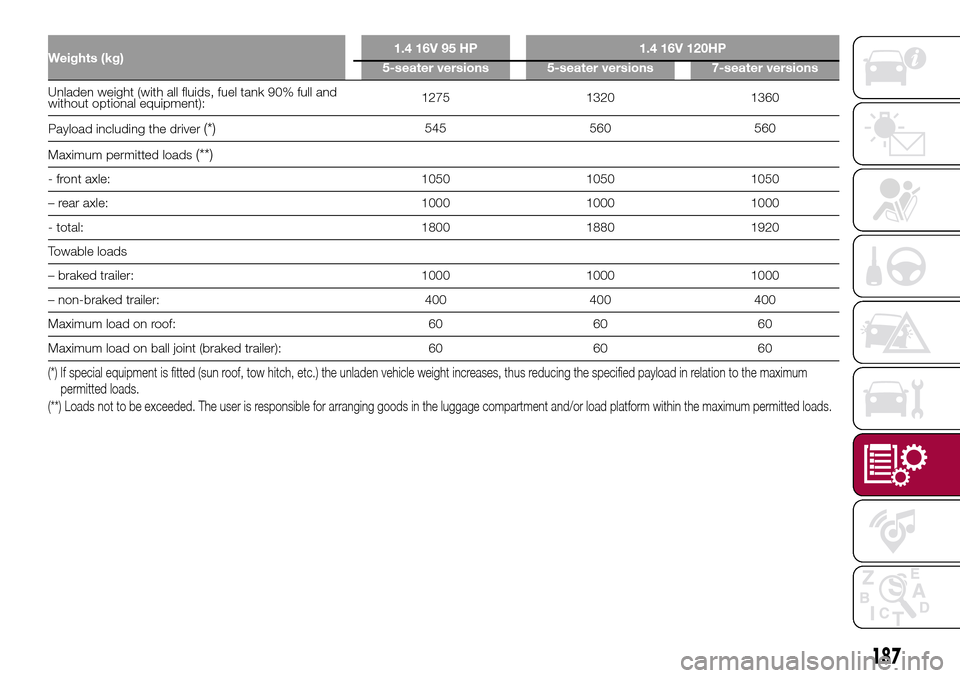

Weights (kg)1.4 16V 95 HP 1.4 16V 120HP
5-seater versions 5-seater versions 7-seater versions
Unladen weight (with all fluids, fuel tank 90% full and
without optional equipment):1275 1320 1360
Payload including the driver
(*)545 560 560
Maximum permitted loads
(**)
- front axle: 1050 1050 1050
– rear axle: 1000 1000 1000
- total: 1800 1880 1920
Towable loads
– braked trailer: 1000 1000 1000
– non-braked trailer: 400 400 400
Maximum load on roof: 60 60 60
Maximum load on ball joint (braked trailer): 60 60 60
(*) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relation to the maximum
permitted loads.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
187

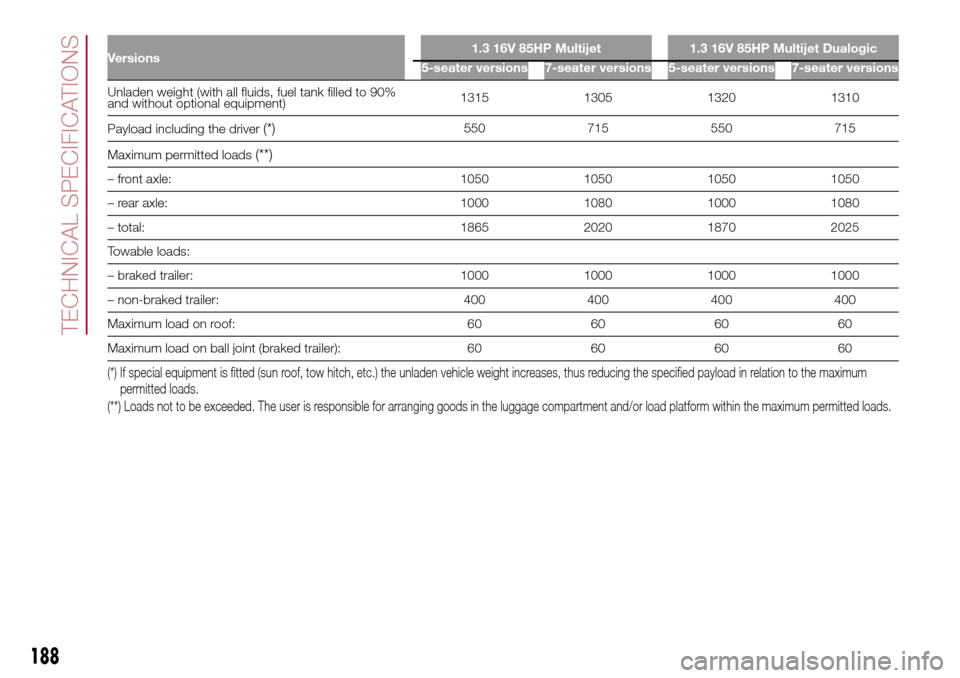

Versions1.3 16V 85HP Multijet 1.3 16V 85HP Multijet Dualogic
5-seater versions 7-seater versions 5-seater versions 7-seater versions
Unladen weight (with all fluids, fuel tank filled to 90%
and without optional equipment)1315 1305 1320 1310
Payload including the driver
(*)550 715 550 715
Maximum permitted loads
(**)
– front axle: 1050 1050 1050 1050
– rear axle: 1000 1080 1000 1080
– total: 1865 2020 1870 2025
Towable loads:
– braked trailer: 1000 1000 1000 1000
– non-braked trailer: 400 400 400 400
Maximum load on roof: 60 60 60 60
Maximum load on ball joint (braked trailer): 60 60 60 60
(*) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relation to the maximum
permitted loads.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
188
