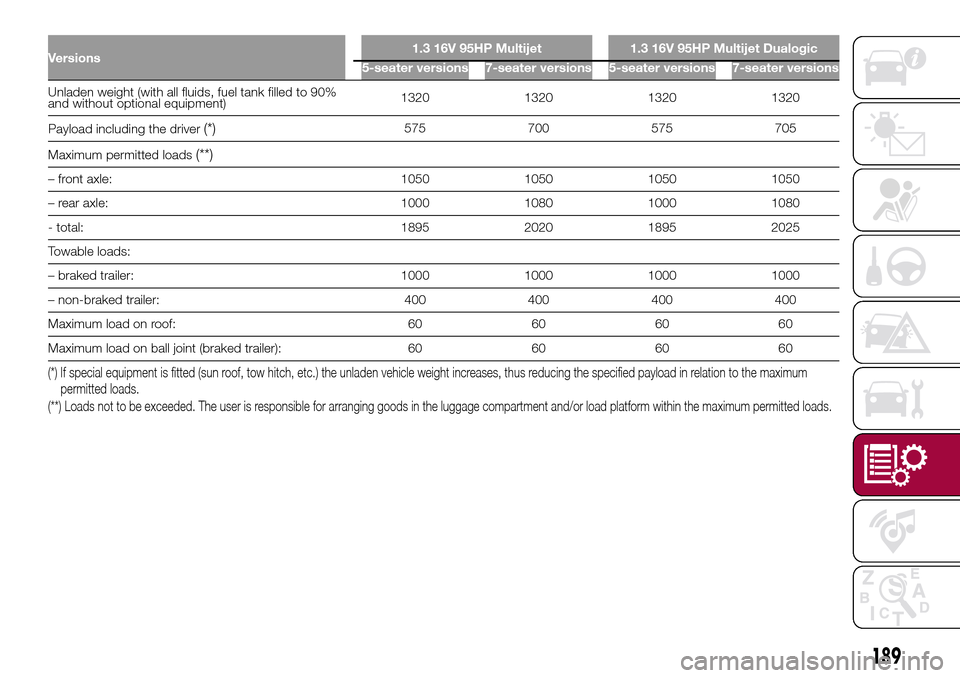

FIAT 500L LIVING 2017 2.G Owners Manual

Versions1.3 16V 95HP Multijet 1.3 16V 95HP Multijet Dualogic
5-seater versions 7-seater versions 5-seater versions 7-seater versions
Unladen weight (with all fluids, fuel tank filled to 90%
and without optional equipment)1320 1320 1320 1320
Payload including the driver
(*)575 700 575 705
Maximum permitted loads
(**)
– front axle: 1050 1050 1050 1050
– rear axle: 1000 1080 1000 1080
- total: 1895 2020 1895 2025
Towable loads:
– braked trailer: 1000 1000 1000 1000
– non-braked trailer: 400 400 400 400
Maximum load on roof: 60 60 60 60
Maximum load on ball joint (braked trailer): 60 60 60 60
(*) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relation to the maximum
permitted loads.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
189

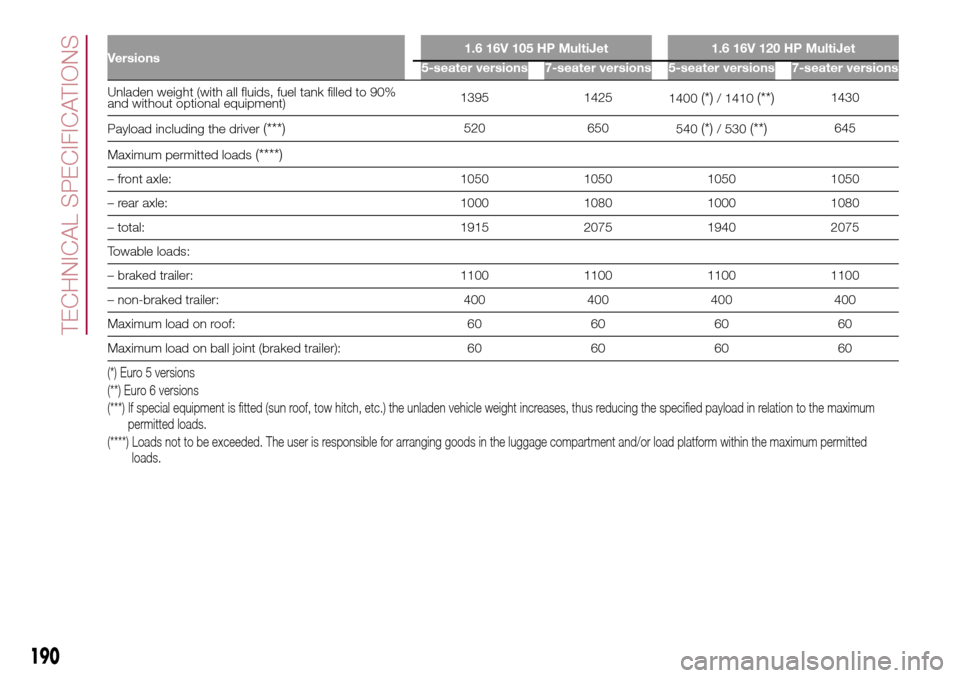

Versions1.6 16V 105 HP MultiJet 1.6 16V 120 HP MultiJet
5-seater versions 7-seater versions 5-seater versions 7-seater versions
Unladen weight (with all fluids, fuel tank filled to 90%
and without optional equipment)1395 1425
1400(*)/ 1410(**)1430
Payload including the driver
(***)520 650
540(*)/ 530(**)645
Maximum permitted loads
(****)
– front axle: 1050 1050 1050 1050
– rear axle: 1000 1080 1000 1080
– total: 1915 2075 1940 2075
Towable loads:
– braked trailer: 1100 1100 1100 1100
– non-braked trailer: 400 400 400 400
Maximum load on roof: 60 60 60 60
Maximum load on ball joint (braked trailer): 60 60 60 60
(*) Euro 5 versions
(**) Euro 6 versions
(***) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relation to the maximum
permitted loads.
(****) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted
loads.
190
TECHNICAL SPECIFICATIONS

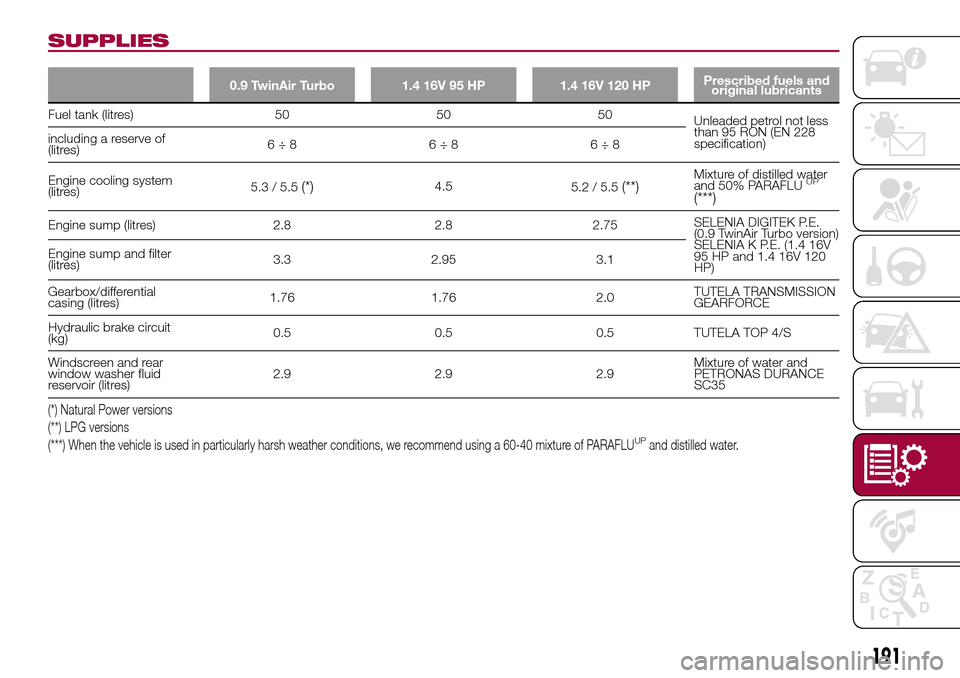

SUPPLIES
0.9 TwinAir Turbo 1.4 16V 95 HP 1.4 16V 120 HPPrescribed fuels and
original lubricants
Fuel tank (litres) 50 50 50
Unleaded petrol not less
than 95 RON (EN 228
specification) including a reserve of
(litres)6÷8 6÷8 6÷8
Engine cooling system
(litres)5.3 / 5.5
(*)4.5
5.2 / 5.5(**)Mixture of distilled water
and 50% PARAFLUUP
(***)
Engine sump (litres) 2.8 2.8 2.75SELENIA DIGITEK P.E.
(0.9 TwinAir Turbo version)
SELENIA K P.E. (1.4 16V
95 HP and 1.4 16V 120
HP) Engine sump and filter
(litres)3.3 2.95 3.1
Gearbox/differential
casing (litres)1.76 1.76 2.0TUTELA TRANSMISSION
GEARFORCE
Hydraulic brake circuit
(kg)0.5 0.5 0.5 TUTELA TOP 4/S
Windscreen and rear
window washer fluid
reservoir (litres)2.9 2.9 2.9Mixture of water and
PETRONAS DURANCE
SC35
(*) Natural Power versions
(**) LPG versions
(***) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLU
UPand distilled water.
191

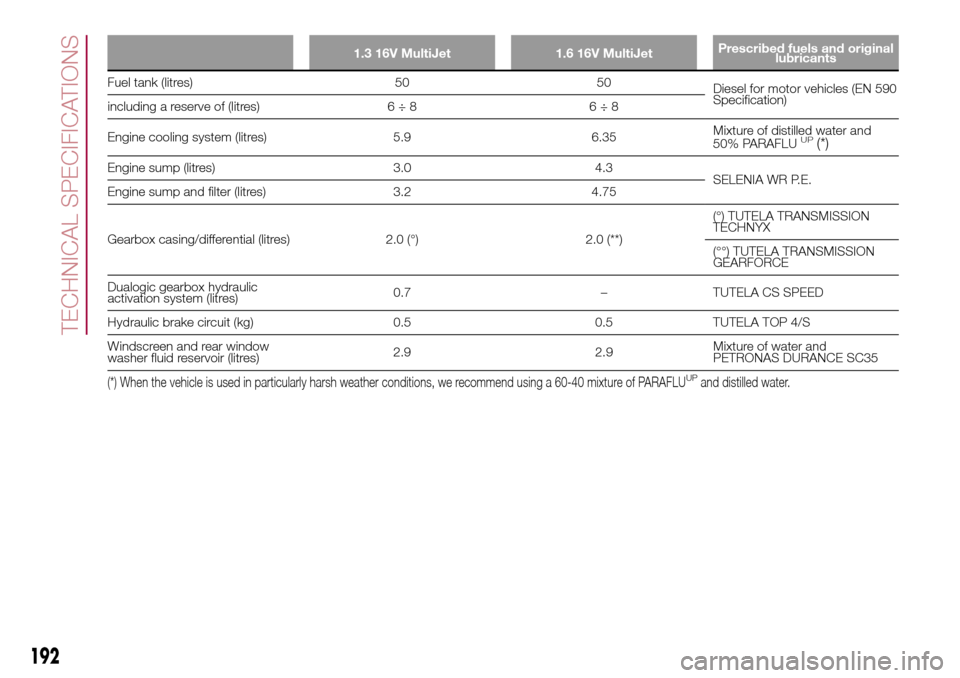

1.3 16V MultiJet 1.6 16V MultiJetPrescribed fuels and original
lubricants
Fuel tank (litres) 50 50
Diesel for motor vehicles (EN 590
Specification)
including a reserve of (litres) 6 ÷ 8 6 ÷ 8
Engine cooling system (litres) 5.9 6.35Mixture of distilled water and
50% PARAFLU
UP(*)
Engine sump (litres) 3.0 4.3
SELENIA WR P.E.
Engine sump and filter (litres) 3.2 4.75
Gearbox casing/differential (litres) 2.0 (°) 2.0 (**)(°) TUTELA TRANSMISSION
TECHNYX
(°°) TUTELA TRANSMISSION
GEARFORCE
Dualogic gearbox hydraulic
activation system (litres)0.7 – TUTELA CS SPEED
Hydraulic brake circuit (kg) 0.5 0.5 TUTELA TOP 4/S
Windscreen and rear window
washer fluid reservoir (litres)2.9 2.9Mixture of water and
PETRONAS DURANCE SC35
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLUUPand distilled water.
192
TECHNICAL SPECIFICATIONS

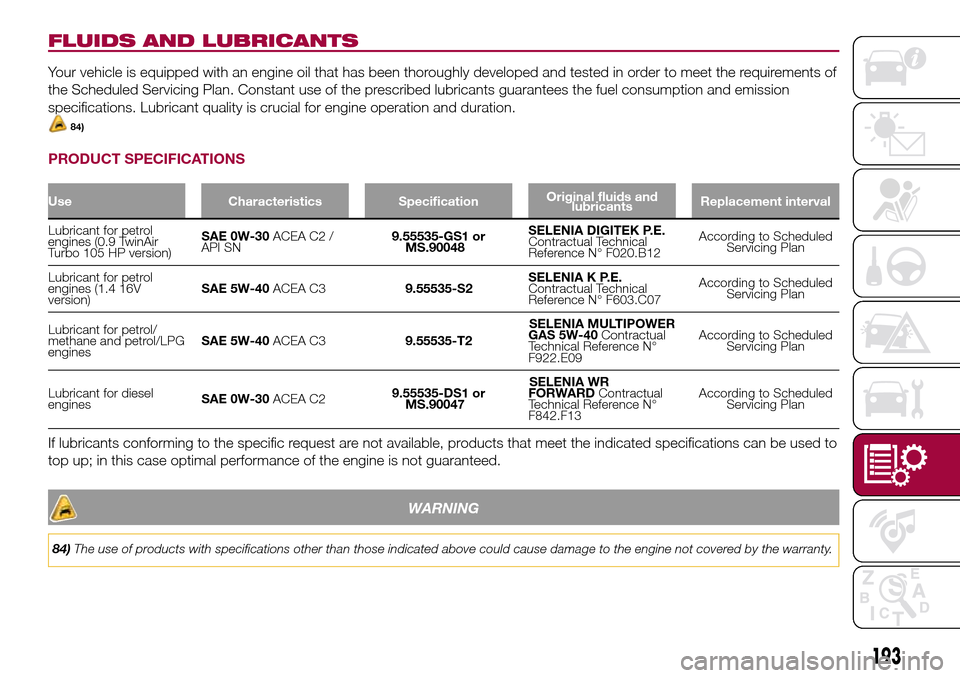

FLUIDS AND LUBRICANTS
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of
the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission
specifications. Lubricant quality is crucial for engine operation and duration.
84)
PRODUCT SPECIFICATIONS
Use Characteristics SpecificationOriginal fluids and
lubricantsReplacement interval
Lubricant for petrol
engines (0.9 TwinAir
Turbo 105 HP version)SAE 0W-30ACEA C2 /
API SN9.55535-GS1 or
MS.90048SELENIA DIGITEK P.E.
Contractual Technical
Reference N° F020.B12According to Scheduled
Servicing Plan
Lubricant for petrol
engines (1.4 16V
version)SAE 5W-40ACEA C39.55535-S2SELENIA K P.E.
Contractual Technical
Reference N° F603.C07According to Scheduled
Servicing Plan
Lubricant for petrol/
methane and petrol/LPG
enginesSAE 5W-40ACEA C39.55535-T2SELENIA MULTIPOWER
GAS 5W-40Contractual
Technical Reference N°
F922.E09According to Scheduled
Servicing Plan
Lubricant for diesel
enginesSAE 0W-30ACEA C29.55535-DS1 or
MS.90047SELENIA WR
FORWARDContractual
Technical Reference N°
F842.F13According to Scheduled
Servicing Plan
If lubricants conforming to the specific request are not available, products that meet the indicated specifications can be used to
top up; in this case optimal performance of the engine is not guaranteed.
WARNING
84)The use of products with specifications other than those indicated above could cause damage to the engine not covered by the warranty.
193

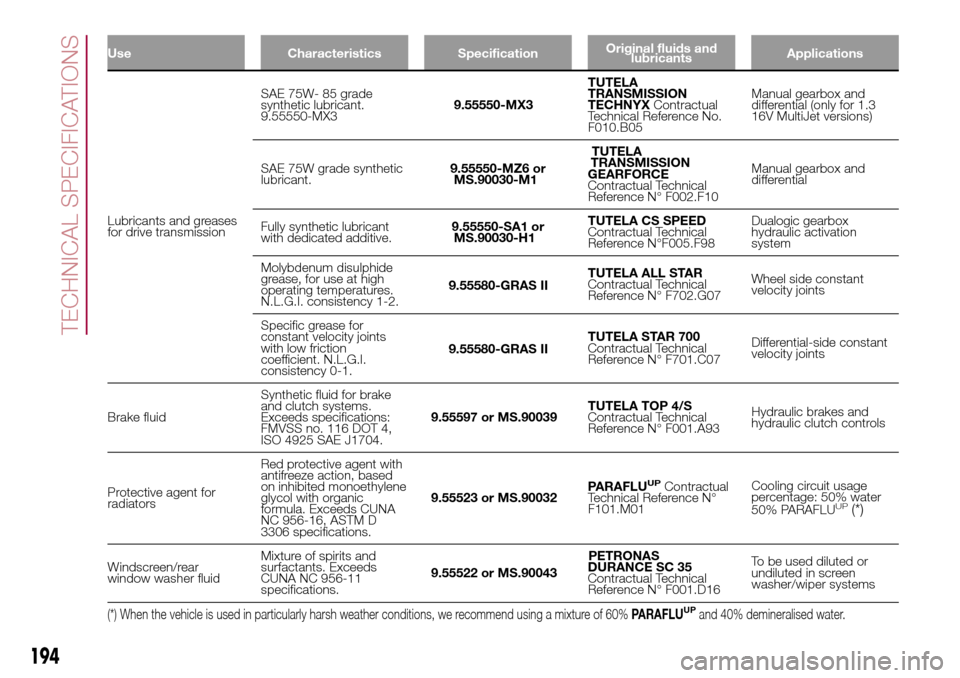

Use Characteristics SpecificationOriginal fluids and
lubricantsApplications
Lubricants and greases
for drive transmissionSAE 75W- 85 grade
synthetic lubricant.
9.55550-MX39.55550-MX3TUTELA
TRANSMISSION
TECHNYXContractual
Technical Reference No.
F010.B05Manual gearbox and
differential (only for 1.3
16V MultiJet versions)
SAE 75W grade synthetic
lubricant.9.55550-MZ6 or
MS.90030-M1TUTELA
TRANSMISSION
GEARFORCE
Contractual Technical
Reference N° F002.F10Manual gearbox and
differential
Fully synthetic lubricant
with dedicated additive.9.55550-SA1 or
MS.90030-H1TUTELA CS SPEED
Contractual Technical
Reference N°F005.F98Dualogic gearbox
hydraulic activation
system
Molybdenum disulphide
grease, for use at high
operating temperatures.
N.L.G.I. consistency 1-2.9.55580-GRAS IITUTELA ALL STAR
Contractual Technical
Reference N° F702.G07Wheel side constant
velocity joints
Specific grease for
constant velocity joints
with low friction
coefficient. N.L.G.I.
consistency 0-1.9.55580-GRAS IITUTELA STAR 700
Contractual Technical
Reference N° F701.C07Differential-side constant
velocity joints
Brake fluidSynthetic fluid for brake
and clutch systems.
Exceeds specifications:
FMVSS no. 116 DOT 4,
ISO 4925 SAE J1704.9.55597 or MS.90039TUTELA TOP 4/S
Contractual Technical
Reference N° F001.A93Hydraulic brakes and
hydraulic clutch controls
Protective agent for
radiatorsRed protective agent with
antifreeze action, based
on inhibited monoethylene
glycol with organic
formula. Exceeds CUNA
NC 956-16, ASTM D
3306 specifications.9.55523 or MS.90032PARAFLU
UPContractual
Technical Reference N°
F101.M01Cooling circuit usage
percentage: 50% water
50% PARAFLU
UP(*)
Windscreen/rear
window washer fluidMixture of spirits and
surfactants. Exceeds
CUNA NC 956-11
specifications.9.55522 or MS.90043PETRONAS
DURANCE SC 35
Contractual Technical
Reference N° F001.D16To be used diluted or
undiluted in screen
washer/wiper systems
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%PARAFLUUPand 40% demineralised water.
194
TECHNICAL SPECIFICATIONS

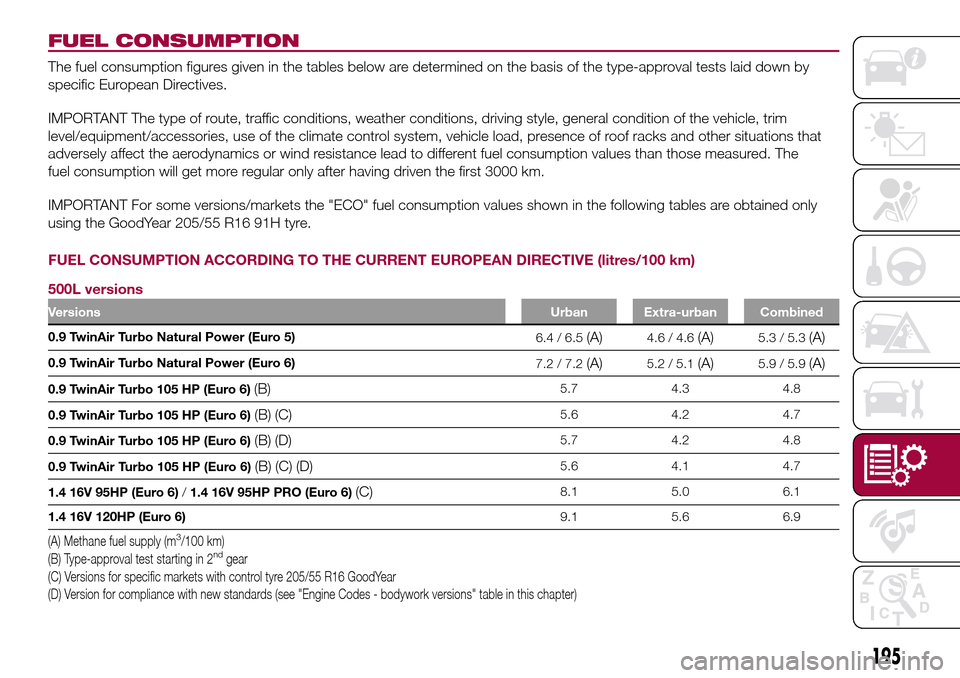

FUEL CONSUMPTION
The fuel consumption figures given in the tables below are determined on the basis of the type-approval tests laid down by
specific European Directives.
IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition of the vehicle, trim
level/equipment/accessories, use of the climate control system, vehicle load, presence of roof racks and other situations that
adversely affect the aerodynamics or wind resistance lead to different fuel consumption values than those measured. The
fuel consumption will get more regular only after having driven the first 3000 km.
IMPORTANT For some versions/markets the "ECO" fuel consumption values shown in the following tables are obtained only
using the GoodYear 205/55 R16 91H tyre.
FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE (litres/100 km)
500L versions
VersionsUrban Extra-urban Combined
0.9 TwinAir Turbo Natural Power (Euro 5)
6.4 / 6.5(A)4.6 / 4.6(A)5.3 / 5.3(A)
0.9 TwinAir Turbo Natural Power (Euro 6)
7.2 / 7.2(A)5.2 / 5.1(A)5.9 / 5.9(A)
0.9 TwinAir Turbo 105 HP (Euro 6)(B)5.7 4.3 4.8
0.9 TwinAir Turbo 105 HP (Euro 6)
(B) (C)5.6 4.2 4.7
0.9 TwinAir Turbo 105 HP (Euro 6)
(B) (D)5.7 4.2 4.8
0.9 TwinAir Turbo 105 HP (Euro 6)
(B) (C) (D)5.6 4.1 4.7
1.4 16V 95HP (Euro 6)/1.4 16V 95HP PRO (Euro 6)
(C)8.1 5.0 6.1
1.4 16V 120HP (Euro 6)9.1 5.6 6.9
(A) Methane fuel supply (m3/100 km)
(B) Type-approval test starting in 2ndgear
(C) Versions for specific markets with control tyre 205/55 R16 GoodYear
(D) Version for compliance with new standards (see "Engine Codes - bodywork versions" table in this chapter)
195

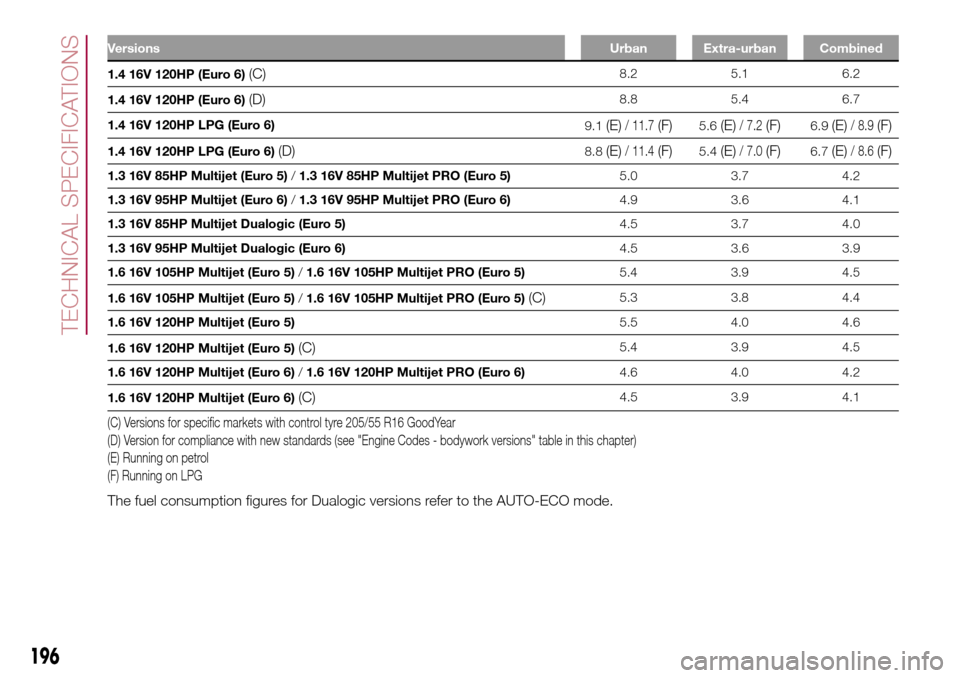

VersionsUrban Extra-urban Combined
1.4 16V 120HP (Euro 6)(C)8.2 5.1 6.2
1.4 16V 120HP (Euro 6)
(D)8.8 5.4 6.7
1.4 16V 120HP LPG (Euro 6)
9.1
(E)/ 11.7(F)5.6(E)/ 7.2(F)6.9(E)/ 8.9(F)
1.4 16V 120HP LPG (Euro 6)(D)8.8(E)/ 11.4(F)5.4(E)/ 7.0(F)6.7(E)/ 8.6(F)
1.3 16V 85HP Multijet (Euro 5)/1.3 16V 85HP Multijet PRO (Euro 5)5.0 3.7 4.2
1.3 16V 95HP Multijet (Euro 6)/1.3 16V 95HP Multijet PRO (Euro 6)4.9 3.6 4.1
1.3 16V 85HP Multijet Dualogic (Euro 5)4.5 3.7 4.0
1.3 16V 95HP Multijet Dualogic (Euro 6)4.5 3.6 3.9
1.6 16V 105HP Multijet (Euro 5)/1.6 16V 105HP Multijet PRO (Euro 5)5.4 3.9 4.5
1.6 16V 105HP Multijet (Euro 5)/1.6 16V 105HP Multijet PRO (Euro 5)
(C)5.3 3.8 4.4
1.6 16V 120HP Multijet (Euro 5)5.5 4.0 4.6
1.6 16V 120HP Multijet (Euro 5)
(C)5.4 3.9 4.5
1.6 16V 120HP Multijet (Euro 6)/1.6 16V 120HP Multijet PRO (Euro 6)4.6 4.0 4.2
1.6 16V 120HP Multijet (Euro 6)
(C)4.5 3.9 4.1
(C) Versions for specific markets with control tyre 205/55 R16 GoodYear
(D) Version for compliance with new standards (see "Engine Codes - bodywork versions" table in this chapter)
(E) Running on petrol
(F) Running on LPG
The fuel consumption figures for Dualogic versions refer to the AUTO-ECO mode.
196
TECHNICAL SPECIFICATIONS

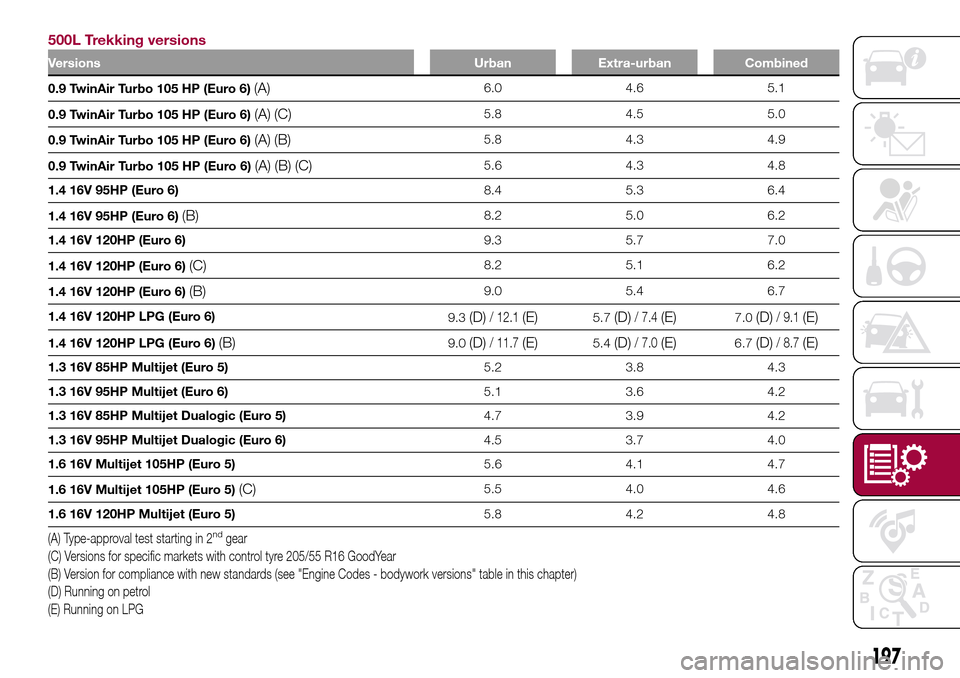

500L Trekking versions
Versions Urban Extra-urban Combined
0.9 TwinAir Turbo 105 HP (Euro 6)(A)6.0 4.6 5.1
0.9 TwinAir Turbo 105 HP (Euro 6)
(A) (C)5.8 4.5 5.0
0.9 TwinAir Turbo 105 HP (Euro 6)
(A) (B)5.8 4.3 4.9
0.9 TwinAir Turbo 105 HP (Euro 6)
(A) (B) (C)5.6 4.3 4.8
1.4 16V 95HP (Euro 6)8.4 5.3 6.4
1.4 16V 95HP (Euro 6)
(B)8.2 5.0 6.2
1.4 16V 120HP (Euro 6)9.3 5.7 7.0
1.4 16V 120HP (Euro 6)
(C)8.2 5.1 6.2
1.4 16V 120HP (Euro 6)
(B)9.0 5.4 6.7
1.4 16V 120HP LPG (Euro 6)
9.3
(D)/ 12.1(E)5.7(D)/ 7.4(E)7.0(D)/ 9.1(E)
1.4 16V 120HP LPG (Euro 6)(B)9.0(D)/ 11.7(E)5.4(D)/ 7.0(E)6.7(D)/ 8.7(E)
1.3 16V 85HP Multijet (Euro 5)5.2 3.8 4.3
1.3 16V 95HP Multijet (Euro 6)5.1 3.6 4.2
1.3 16V 85HP Multijet Dualogic (Euro 5)4.7 3.9 4.2
1.3 16V 95HP Multijet Dualogic (Euro 6)4.5 3.7 4.0
1.6 16V Multijet 105HP (Euro 5)5.6 4.1 4.7
1.6 16V Multijet 105HP (Euro 5)
(C)5.5 4.0 4.6
1.6 16V 120HP Multijet (Euro 5)5.8 4.2 4.8
(A) Type-approval test starting in 2ndgear
(C) Versions for specific markets with control tyre 205/55 R16 GoodYear
(B) Version for compliance with new standards (see "Engine Codes - bodywork versions" table in this chapter)
(D) Running on petrol
(E) Running on LPG
197

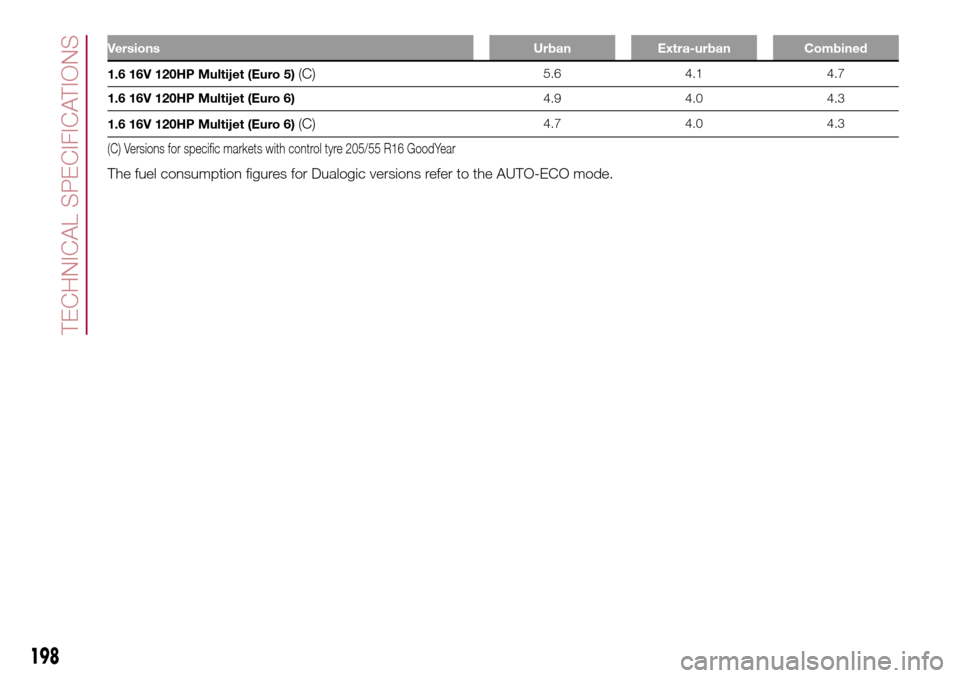

Versions Urban Extra-urban Combined
1.6 16V 120HP Multijet (Euro 5)(C)5.6 4.1 4.7
1.6 16V 120HP Multijet (Euro 6)4.9 4.0 4.3
1.6 16V 120HP Multijet (Euro 6)
(C)4.7 4.0 4.3
(C) Versions for specific markets with control tyre 205/55 R16 GoodYear
The fuel consumption figures for Dualogic versions refer to the AUTO-ECO mode.
198
