FIAT 500L LIVING 2017 2.G Owners Manual

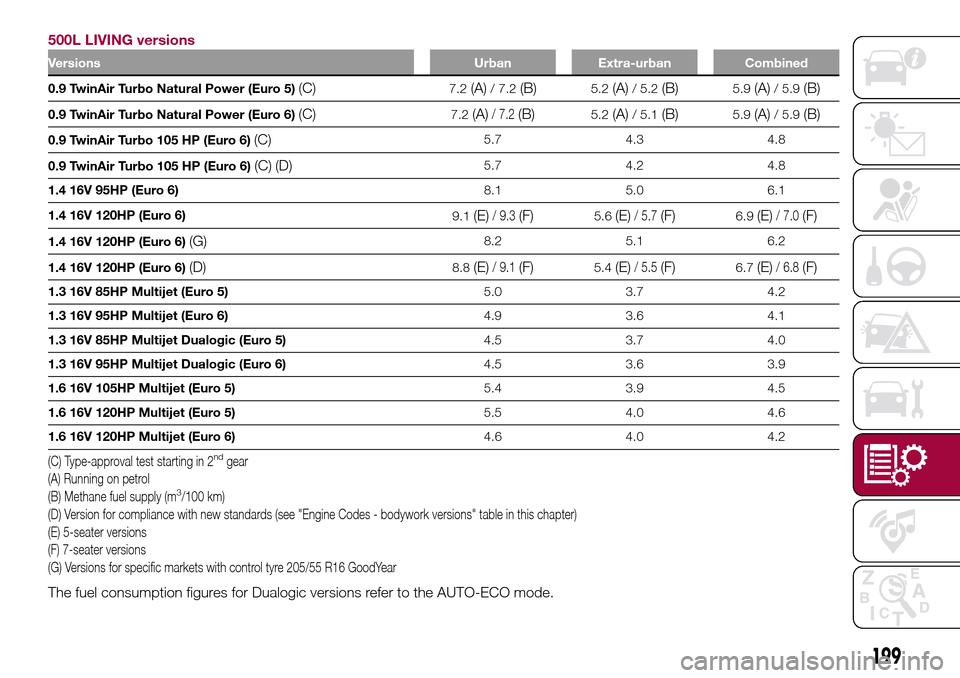

500L LIVING versions
Versions Urban Extra-urban Combined
0.9 TwinAir Turbo Natural Power (Euro 5)(C)7.2(A)/ 7.2(B)5.2(A)/ 5.2(B)5.9(A)/ 5.9(B)
0.9 TwinAir Turbo Natural Power (Euro 6)(C)7.2(A)/ 7.2(B)5.2(A)/ 5.1(B)5.9(A)/ 5.9(B)
0.9 TwinAir Turbo 105 HP (Euro 6)(C)5.7 4.3 4.8
0.9 TwinAir Turbo 105 HP (Euro 6)
(C) (D)5.7 4.2 4.8
1.4 16V 95HP (Euro 6)8.1 5.0 6.1
1.4 16V 120HP (Euro 6)
9.1
(E)/ 9.3(F)5.6(E)/ 5.7(F)6.9(E)/ 7.0(F)
1.4 16V 120HP (Euro 6)(G)8.2 5.1 6.2
1.4 16V 120HP (Euro 6)
(D)8.8(E)/ 9.1(F)5.4(E)/ 5.5(F)6.7(E)/ 6.8(F)
1.3 16V 85HP Multijet (Euro 5)5.0 3.7 4.2
1.3 16V 95HP Multijet (Euro 6)4.9 3.6 4.1
1.3 16V 85HP Multijet Dualogic (Euro 5)4.5 3.7 4.0
1.3 16V 95HP Multijet Dualogic (Euro 6)4.5 3.6 3.9
1.6 16V 105HP Multijet (Euro 5)5.4 3.9 4.5
1.6 16V 120HP Multijet (Euro 5)5.5 4.0 4.6
1.6 16V 120HP Multijet (Euro 6)4.6 4.0 4.2
(C) Type-approval test starting in 2ndgear
(A) Running on petrol
(B) Methane fuel supply (m
3/100 km)
(D) Version for compliance with new standards (see "Engine Codes - bodywork versions" table in this chapter)
(E) 5-seater versions
(F) 7-seater versions
(G) Versions for specific markets with control tyre 205/55 R16 GoodYear
The fuel consumption figures for Dualogic versions refer to the AUTO-ECO mode.
199

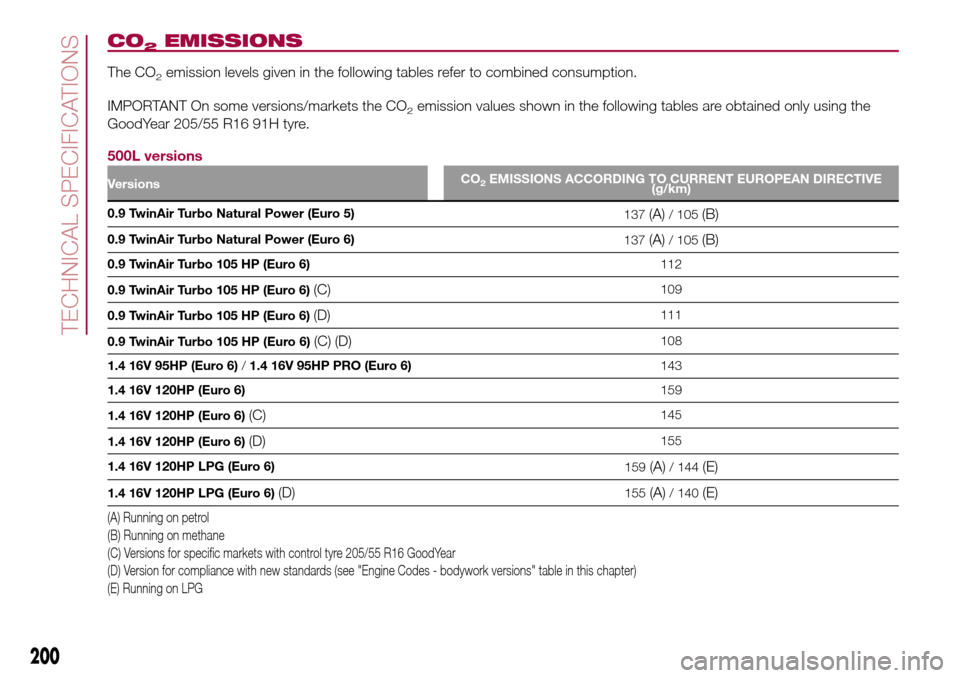

CO2EMISSIONS
The CO2emission levels given in the following tables refer to combined consumption.
IMPORTANT On some versions/markets the CO
2emission values shown in the following tables are obtained only using the
GoodYear 205/55 R16 91H tyre.
500L versions
VersionsCO2EMISSIONS ACCORDING TO CURRENT EUROPEAN DIRECTIVE
(g/km)
0.9 TwinAir Turbo Natural Power (Euro 5)
137(A)/ 105(B)
0.9 TwinAir Turbo Natural Power (Euro 6)
137(A)/ 105(B)
0.9 TwinAir Turbo 105 HP (Euro 6)112
0.9 TwinAir Turbo 105 HP (Euro 6)
(C)109
0.9 TwinAir Turbo 105 HP (Euro 6)
(D)111
0.9 TwinAir Turbo 105 HP (Euro 6)
(C) (D)108
1.4 16V 95HP (Euro 6)/1.4 16V 95HP PRO (Euro 6)143
1.4 16V 120HP (Euro 6)159
1.4 16V 120HP (Euro 6)
(C)145
1.4 16V 120HP (Euro 6)
(D)155
1.4 16V 120HP LPG (Euro 6)
159
(A)/ 144(E)
1.4 16V 120HP LPG (Euro 6)(D)155(A)/ 140(E)
(A) Running on petrol
(B) Running on methane
(C) Versions for specific markets with control tyre 205/55 R16 GoodYear
(D) Version for compliance with new standards (see "Engine Codes - bodywork versions" table in this chapter)
(E) Running on LPG
200
TECHNICAL SPECIFICATIONS

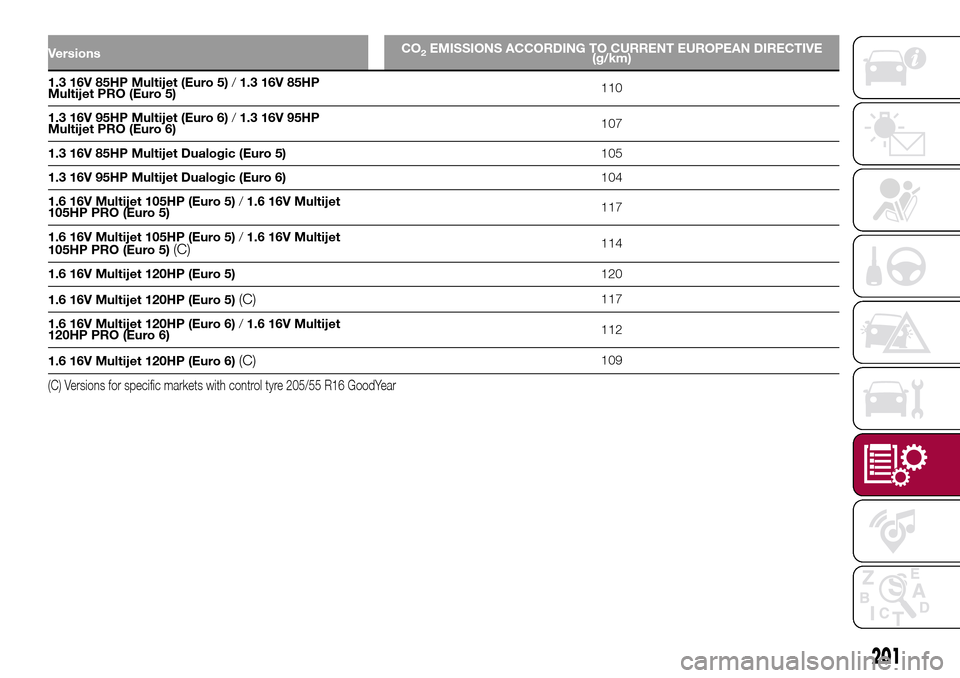

VersionsCO2EMISSIONS ACCORDING TO CURRENT EUROPEAN DIRECTIVE
(g/km)
1.3 16V 85HP Multijet (Euro 5)/1.3 16V 85HP
Multijet PRO (Euro 5)110
1.3 16V 95HP Multijet (Euro 6)/1.3 16V 95HP
Multijet PRO (Euro 6)107
1.3 16V 85HP Multijet Dualogic (Euro 5)105
1.3 16V 95HP Multijet Dualogic (Euro 6)104
1.6 16V Multijet 105HP (Euro 5)/1.6 16V Multijet
105HP PRO (Euro 5)117
1.6 16V Multijet 105HP (Euro 5)/1.6 16V Multijet
105HP PRO (Euro 5)
(C)114
1.6 16V Multijet 120HP (Euro 5)120
1.6 16V Multijet 120HP (Euro 5)
(C)117
1.6 16V Multijet 120HP (Euro 6)/1.6 16V Multijet
120HP PRO (Euro 6)112
1.6 16V Multijet 120HP (Euro 6)
(C)109
(C) Versions for specific markets with control tyre 205/55 R16 GoodYear
201

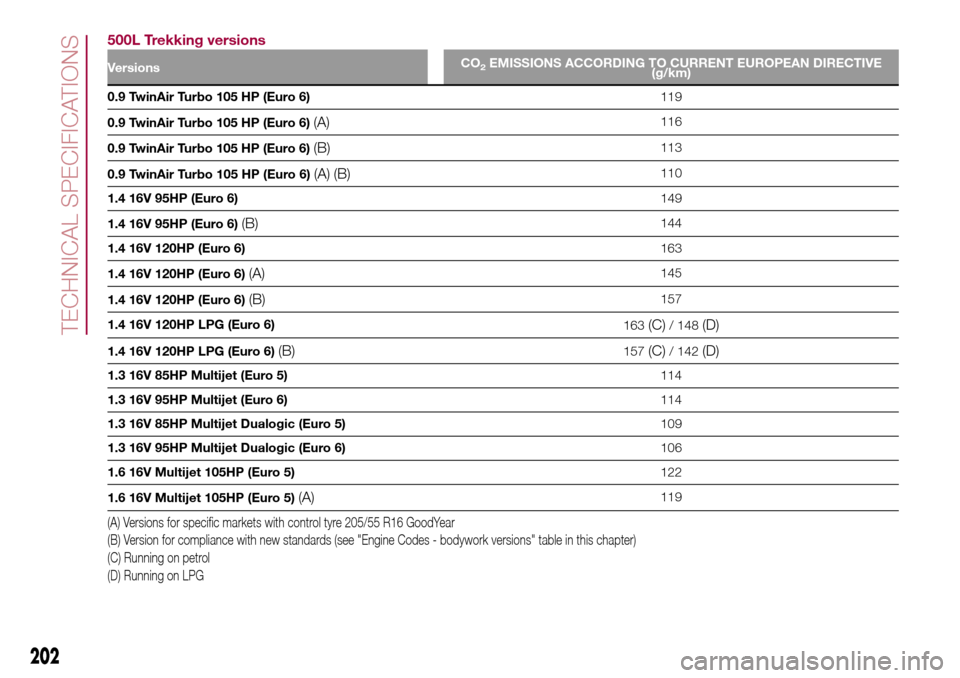

500L Trekking versions
VersionsCO2EMISSIONS ACCORDING TO CURRENT EUROPEAN DIRECTIVE
(g/km)
0.9 TwinAir Turbo 105 HP (Euro 6)119
0.9 TwinAir Turbo 105 HP (Euro 6)
(A)116
0.9 TwinAir Turbo 105 HP (Euro 6)
(B)113
0.9 TwinAir Turbo 105 HP (Euro 6)
(A) (B)110
1.4 16V 95HP (Euro 6)149
1.4 16V 95HP (Euro 6)
(B)144
1.4 16V 120HP (Euro 6)163
1.4 16V 120HP (Euro 6)
(A)145
1.4 16V 120HP (Euro 6)
(B)157
1.4 16V 120HP LPG (Euro 6)
163
(C)/ 148(D)
1.4 16V 120HP LPG (Euro 6)(B)157(C)/ 142(D)
1.3 16V 85HP Multijet (Euro 5)114
1.3 16V 95HP Multijet (Euro 6)114
1.3 16V 85HP Multijet Dualogic (Euro 5)109
1.3 16V 95HP Multijet Dualogic (Euro 6)106
1.6 16V Multijet 105HP (Euro 5)122
1.6 16V Multijet 105HP (Euro 5)
(A)119
(A) Versions for specific markets with control tyre 205/55 R16 GoodYear
(B) Version for compliance with new standards (see "Engine Codes - bodywork versions" table in this chapter)
(C) Running on petrol
(D) Running on LPG
202
TECHNICAL SPECIFICATIONS

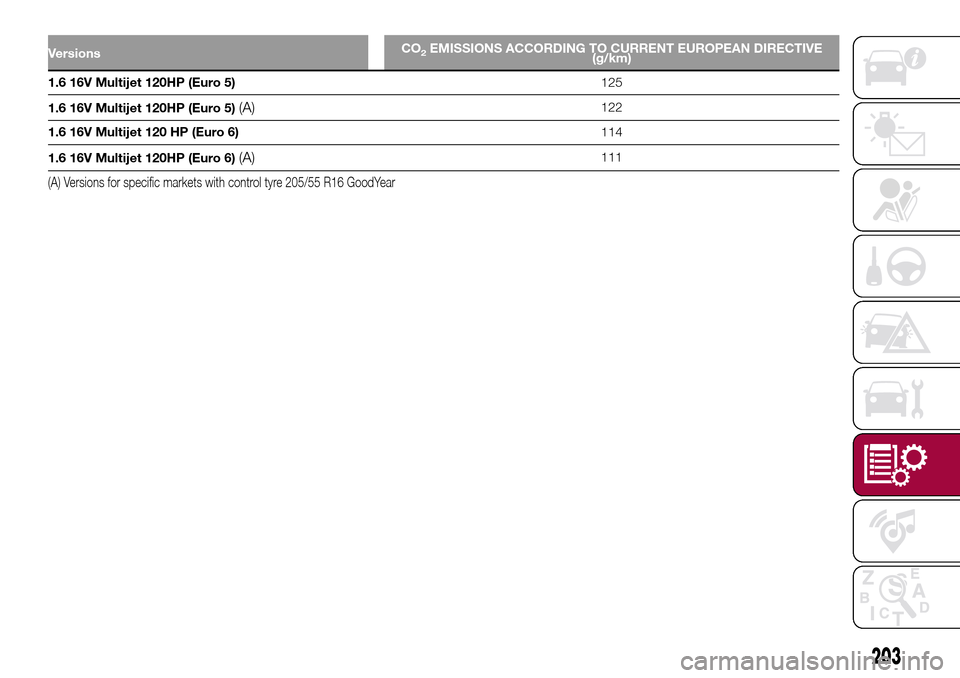

VersionsCO2EMISSIONS ACCORDING TO CURRENT EUROPEAN DIRECTIVE
(g/km)
1.6 16V Multijet 120HP (Euro 5)125
1.6 16V Multijet 120HP (Euro 5)
(A)122
1.6 16V Multijet 120 HP (Euro 6)114
1.6 16V Multijet 120HP (Euro 6)
(A)111
(A) Versions for specific markets with control tyre 205/55 R16 GoodYear
203

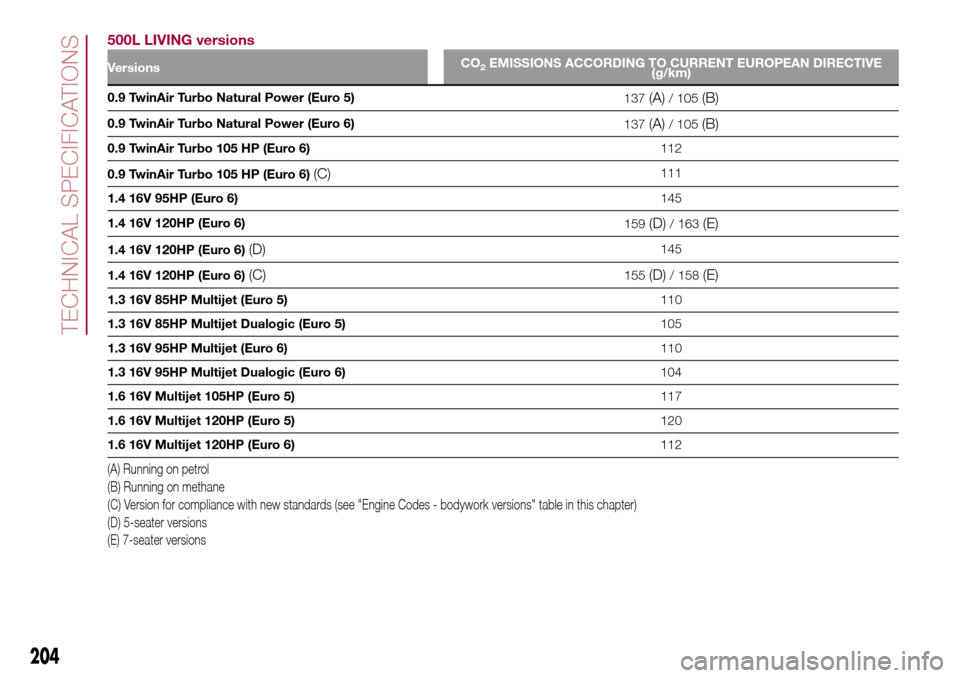

500L LIVING versions
VersionsCO2EMISSIONS ACCORDING TO CURRENT EUROPEAN DIRECTIVE
(g/km)
0.9 TwinAir Turbo Natural Power (Euro 5)
137(A)/ 105(B)
0.9 TwinAir Turbo Natural Power (Euro 6)
137(A)/ 105(B)
0.9 TwinAir Turbo 105 HP (Euro 6)112
0.9 TwinAir Turbo 105 HP (Euro 6)
(C)111
1.4 16V 95HP (Euro 6)145
1.4 16V 120HP (Euro 6)
159
(D)/ 163(E)
1.4 16V 120HP (Euro 6)(D)145
1.4 16V 120HP (Euro 6)
(C)155(D)/ 158(E)
1.3 16V 85HP Multijet (Euro 5)110
1.3 16V 85HP Multijet Dualogic (Euro 5)105
1.3 16V 95HP Multijet (Euro 6)110
1.3 16V 95HP Multijet Dualogic (Euro 6)104
1.6 16V Multijet 105HP (Euro 5)117
1.6 16V Multijet 120HP (Euro 5)120
1.6 16V Multijet 120HP (Euro 6)112
(A) Running on petrol
(B) Running on methane
(C) Version for compliance with new standards (see "Engine Codes - bodywork versions" table in this chapter)
(D) 5-seater versions
(E) 7-seater versions
204
TECHNICAL SPECIFICATIONS

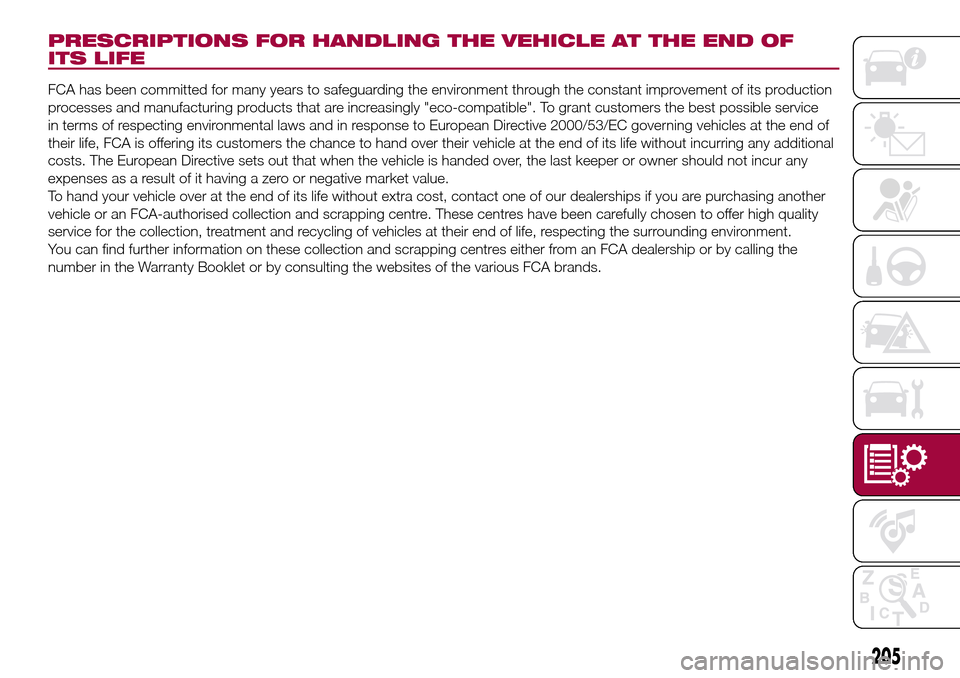

PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END OF
ITS LIFE
FCA has been committed for many years to safeguarding the environment through the constant improvement of its production
processes and manufacturing products that are increasingly "eco-compatible". To grant customers the best possible service
in terms of respecting environmental laws and in response to European Directive 2000/53/EC governing vehicles at the end of
their life, FCA is offering its customers the chance to hand over their vehicle at the end of its life without incurring any additional
costs. The European Directive sets out that when the vehicle is handed over, the last keeper or owner should not incur any
expenses as a result of it having a zero or negative market value.
To hand your vehicle over at the end of its life without extra cost, contact one of our dealerships if you are purchasing another
vehicle or an FCA-authorised collection and scrapping centre. These centres have been carefully chosen to offer high quality
service for the collection, treatment and recycling of vehicles at their end of life, respecting the surrounding environment.
You can find further information on these collection and scrapping centres either from an FCA dealership or by calling the
number in the Warranty Booklet or by consulting the websites of the various FCA brands.
205

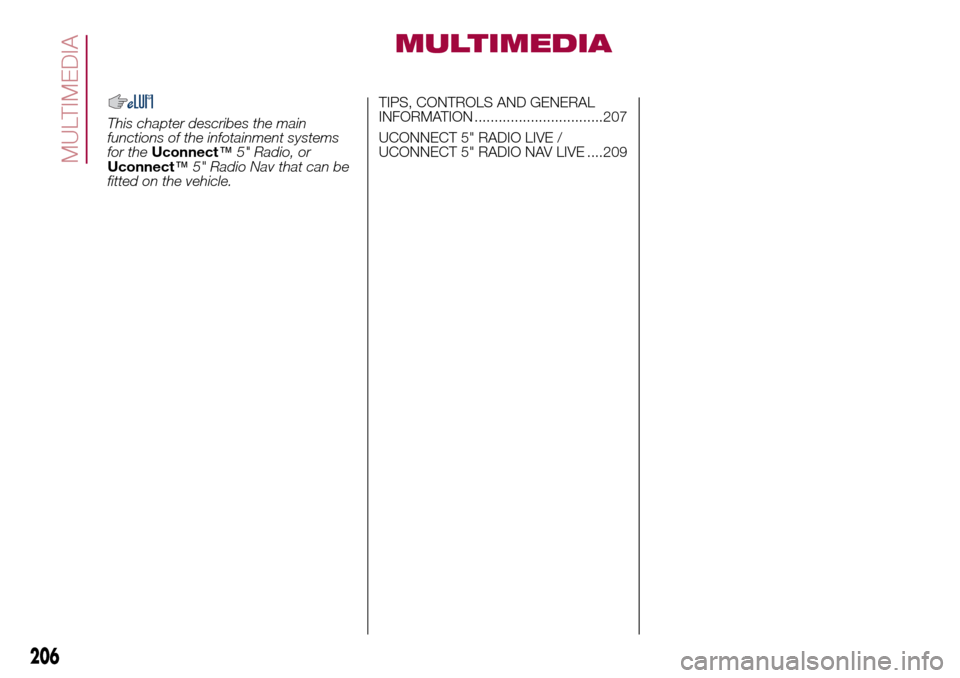

MULTIMEDIA
This chapter describes the main
functions of the infotainment systems
for theUconnect™5" Radio, or
Uconnect™5" Radio Nav that can be
fitted on the vehicle.TIPS, CONTROLS AND GENERAL
INFORMATION ................................207
UCONNECT 5" RADIO LIVE /
UCONNECT 5" RADIO NAV LIVE ....209
206
MULTIMEDIA

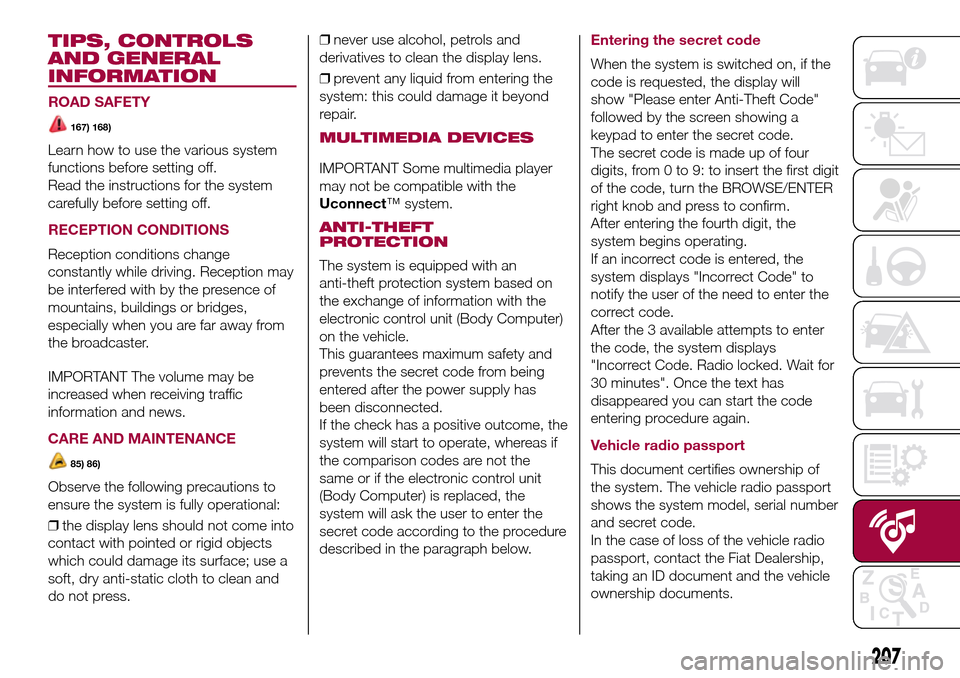

TIPS, CONTROLS
AND GENERAL
INFORMATION
ROAD SAFETY
167) 168)
Learn how to use the various system
functions before setting off.
Read the instructions for the system
carefully before setting off.
RECEPTION CONDITIONS
Reception conditions change
constantly while driving. Reception may
be interfered with by the presence of
mountains, buildings or bridges,
especially when you are far away from
the broadcaster.
IMPORTANT The volume may be
increased when receiving traffic
information and news.
CARE AND MAINTENANCE
85) 86)
Observe the following precautions to
ensure the system is fully operational:
❒the display lens should not come into
contact with pointed or rigid objects
which could damage its surface; use a
soft, dry anti-static cloth to clean and
do not press.❒never use alcohol, petrols and
derivatives to clean the display lens.
❒prevent any liquid from entering the
system: this could damage it beyond
repair.
MULTIMEDIA DEVICES
IMPORTANT Some multimedia player
may not be compatible with the
Uconnect™ system.
ANTI-THEFT
PROTECTION
The system is equipped with an
anti-theft protection system based on
the exchange of information with the
electronic control unit (Body Computer)
on the vehicle.
This guarantees maximum safety and
prevents the secret code from being
entered after the power supply has
been disconnected.
If the check has a positive outcome, the
system will start to operate, whereas if
the comparison codes are not the
same or if the electronic control unit
(Body Computer) is replaced, the
system will ask the user to enter the
secret code according to the procedure
described in the paragraph below.
Entering the secret code
When the system is switched on, if the
code is requested, the display will
show "Please enter Anti-Theft Code"
followed by the screen showing a
keypad to enter the secret code.
The secret code is made up of four
digits, from 0 to 9: to insert the first digit
of the code, turn the BROWSE/ENTER
right knob and press to confirm.
After entering the fourth digit, the
system begins operating.
If an incorrect code is entered, the
system displays "Incorrect Code" to
notify the user of the need to enter the
correct code.
After the 3 available attempts to enter
the code, the system displays
"Incorrect Code. Radio locked. Wait for
30 minutes". Once the text has
disappeared you can start the code
entering procedure again.
Vehicle radio passport
This document certifies ownership of
the system. The vehicle radio passport
shows the system model, serial number
and secret code.
In the case of loss of the vehicle radio
passport, contact the Fiat Dealership,
taking an ID document and the vehicle
ownership documents.
207

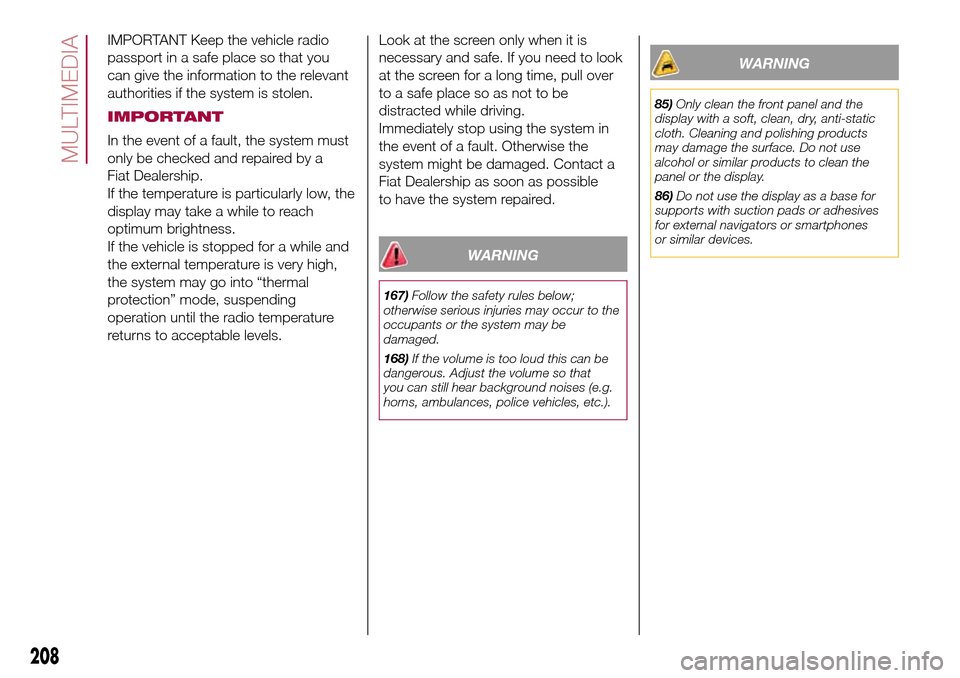

IMPORTANT Keep the vehicle radio
passport in a safe place so that you
can give the information to the relevant
authorities if the system is stolen.
IMPORTANT
In the event of a fault, the system must
only be checked and repaired by a
Fiat Dealership.
If the temperature is particularly low, the
display may take a while to reach
optimum brightness.
If the vehicle is stopped for a while and
the external temperature is very high,
the system may go into “thermal
protection” mode, suspending
operation until the radio temperature
returns to acceptable levels.Look at the screen only when it is
necessary and safe. If you need to look
at the screen for a long time, pull over
to a safe place so as not to be
distracted while driving.
Immediately stop using the system in
the event of a fault. Otherwise the
system might be damaged. Contact a
Fiat Dealership as soon as possible
to have the system repaired.
WARNING
167)Follow the safety rules below;
otherwise serious injuries may occur to the
occupants or the system may be
damaged.
168)If the volume is too loud this can be
dangerous. Adjust the volume so that
you can still hear background noises (e.g.
horns, ambulances, police vehicles, etc.).
WARNING
85)Only clean the front panel and the
display with a soft, clean, dry, anti-static
cloth. Cleaning and polishing products
may damage the surface. Do not use
alcohol or similar products to clean the
panel or the display.
86)Do not use the display as a base for
supports with suction pads or adhesives
for external navigators or smartphones
or similar devices.
208
