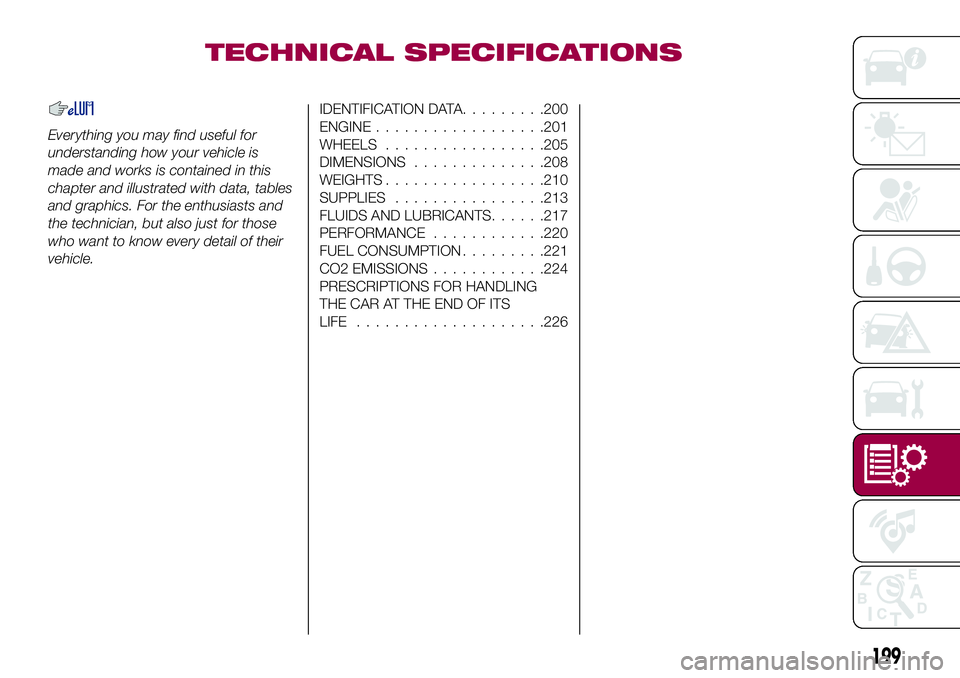

TECHNICAL SPECIFICATIONS
Everything you may find useful for
understanding how your vehicle is
made and works is contained in this
chapter and illustrated with data, tables
and graphics. For the enthusiasts and
the technician, but also just for those
who want to know every detail of their
vehicle.
IDENTIFICATION DATA.........200
ENGINE..................201
WHEELS.................205
DIMENSIONS..............208
WEIGHTS.................210
SUPPLIES................213
FLUIDS AND LUBRICANTS......217
PERFORMANCE............220
FUEL CONSUMPTION.........221
CO2 EMISSIONS............224
PRESCRIPTIONS FOR HANDLING
THE CAR AT THE END OF ITS
LIFE....................226
199

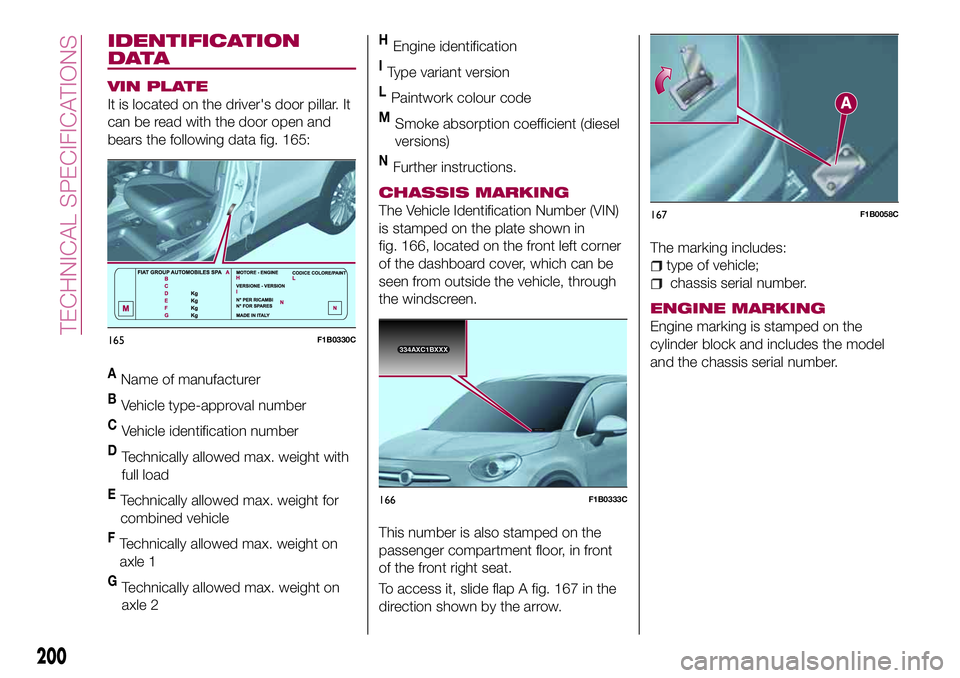

IDENTIFICATION
DATA
VIN PLATE
It is located on the driver's door pillar. It
can be read with the door open and
bears the following data fig. 165:
AName of manufacturer
BVehicle type-approval number
CVehicle identification number
DTechnically allowed max. weight with
full load
ETechnically allowed max. weight for
combined vehicle
FTechnically allowed max. weight on
axle 1
GTechnically allowed max. weight on
axle 2
HEngine identification
IType variant version
LPaintwork colour code
MSmoke absorption coefficient (diesel
versions)
NFurther instructions.
CHASSIS MARKING
The Vehicle Identification Number (VIN)
is stamped on the plate shown in
fig. 166, located on the front left corner
of the dashboard cover, which can be
seen from outside the vehicle, through
the windscreen.
This number is also stamped on the
passenger compartment floor, in front
of the front right seat.
To access it, slide flap A fig. 167 in the
direction shown by the arrow.The marking includes:
type of vehicle;
chassis serial number.
ENGINE MARKING
Engine marking is stamped on the
cylinder block and includes the model
and the chassis serial number.165F1B0330C
3
34AXC1
BXXX
334AXC1BXXX
166F1B0333C
167F1B0058C
200
TECHNICAL SPECIFICATIONS

ENGINE
192)
Versions 1.4 Turbo Multi Air 136/140 HP 1.4 Turbo Multi Air 163/170 HP
Engine code 55263624 55263623
Cycle Otto Otto
Number and position of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 72 × 84 72 × 84
Total displacement (cm³) 1368 1368
Compression ratio 10.0 ± 0.2 10.0 ± 0.2
Maximum power (EEC) (kW)100
(*)/ 103120(**)/ 125
Maximum power (EEC) (HP)136
(*)/ 140163(**)/ 170
corresponding engine speed (rpm) 5000 5500
Maximum torque (EEC) (Nm) 230 250
corresponding engine speed (rpm) 1750 2500
Spark plugs NGK IKR9J8 NGK IKR9J8
FuelUnleaded petrol 95 R.O.N. (EN
228 specifications)Unleaded petrol 95 R.O.N. (EN
228 specifications)
(*) 1.4 Turbo Multi Air 136 HP version
(**) 1.4 Turbo Multi Air 163 HP version
201

Versions 1.6 E.Torq 2.4 Tigershark(*)
Engine code 55263842
Cycle Otto Otto
Number and position of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 77 × 85.8 88 × 97
Total displacement (cm³) 1598 2360
Compression ratio 11 ± 0.15 10 ± 0.2
Maximum power (EEC) (kW) 81 129
Maximum power (EEC) (HP) 110 175
corresponding engine speed (rpm) 5500 6400
Maximum torque (EEC) (Nm) 152 230
corresponding engine speed (rpm) 4500 3900
Spark plugsNGK - SINGLE IR - ZKR7BI - 10 JAPAN
C128
FuelUnleaded petrol 95 R.O.N. (EN
228 specifications)Unleaded petrol 95 R.O.N. (EN
228 specifications)
(*) Version for specific markets
202
TECHNICAL SPECIFICATIONS

Versions 1.3 Multijet 1.6 Multijet 2.0 MultiJet(*)2.0 MultiJet(**)
Engine code 55266963 55260384 55263087 55263088
Cycle Diesel Diesel Diesel Diesel
Number and position of
cylinders4 in line 4 in line 4 in line 4 in line
Piston bore and stroke
(mm)69.6 X 82 79.5 × 80.5 83 × 90.4 83 × 90.4
Total displacement (cm³) 1248 1598 1956 1956
Compression ratio 16.8 ± 0.2 16.5 ± 0.4 16.5 ± 0.4 16.5 ± 0.4
Maximum power (EC)
(kW)70
88 / 84.4
(***)103 / 100(***)103 / 100(***)
Maximum power (EC)
(HP)95
120 / 115(***)140 / 136(***)140 / 136(***)
corresponding engine
speed (rpm)3750 3750 3750 4000
Maximum torque (EC)
(Nm)200 320 350 350
corresponding engine
speed (rpm)1750 1750 1750 1500
FuelDiesel for motor vehicles
(EN 590 Specification)Diesel for motor vehicles
(EN 590 Specification)Diesel for motor vehicles
(EN 590 Specification)Diesel for motor vehicles
(EN 590 Specification)
(*) Versions with mechanical gearbox
(**) Versions with AT9 automatic transmission
(***) Version for specific markets
203

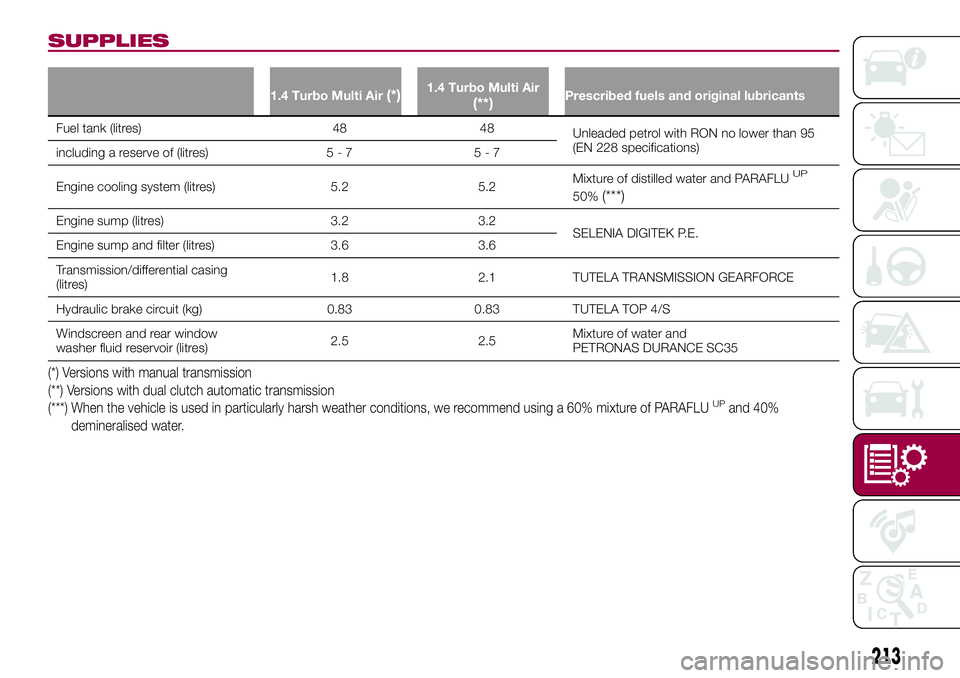

SUPPLIES
1.4 Turbo Multi Air(*)1.4 Turbo Multi Air(**)Prescribed fuels and original lubricants
Fuel tank (litres) 48 48
Unleaded petrol with RON no lower than 95
(EN 228 specifications)
including a reserve of (litres) 5 - 7 5 - 7
Engine cooling system (litres) 5.2 5.2Mixture of distilled water and PARAFLU
UP
50%(***)
Engine sump (litres) 3.2 3.2
SELENIA DIGITEK P.E.
Engine sump and filter (litres) 3.6 3.6
Transmission/differential casing
(litres)1.8 2.1 TUTELA TRANSMISSION GEARFORCE
Hydraulic brake circuit (kg) 0.83 0.83 TUTELA TOP 4/S
Windscreen and rear window
washer fluid reservoir (litres)2.5 2.5Mixture of water and
PETRONAS DURANCE SC35
(*) Versions with manual transmission
(**) Versions with dual clutch automatic transmission
(***) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60% mixture of PARAFLU
UPand 40%
demineralised water.
213

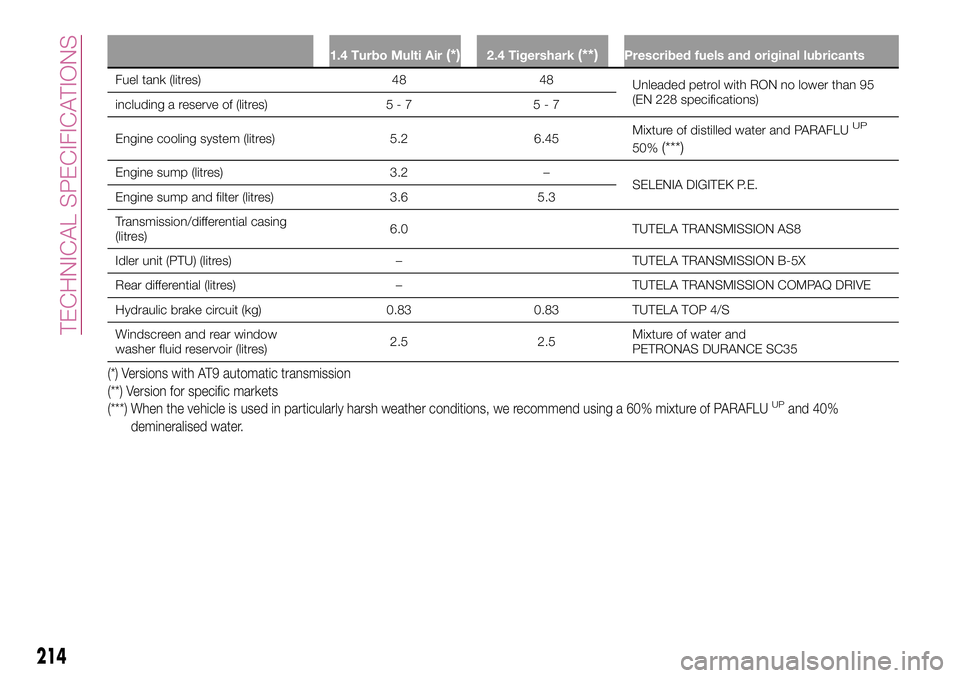

1.4 Turbo Multi Air(*)2.4 Tigershark(**)Prescribed fuels and original lubricants
Fuel tank (litres) 48 48
Unleaded petrol with RON no lower than 95
(EN 228 specifications)
including a reserve of (litres) 5 - 7 5 - 7
Engine cooling system (litres) 5.2 6.45Mixture of distilled water and PARAFLU
UP
50%(***)
Engine sump (litres) 3.2 –
SELENIA DIGITEK P.E.
Engine sump and filter (litres) 3.6 5.3
Transmission/differential casing
(litres)6.0 TUTELA TRANSMISSION AS8
Idler unit (PTU) (litres) – TUTELA TRANSMISSION B-5X
Rear differential (litres) – TUTELA TRANSMISSION COMPAQ DRIVE
Hydraulic brake circuit (kg) 0.83 0.83 TUTELA TOP 4/S
Windscreen and rear window
washer fluid reservoir (litres)2.5 2.5Mixture of water and
PETRONAS DURANCE SC35
(*) Versions with AT9 automatic transmission
(**) Version for specific markets
(***) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60% mixture of PARAFLU
UPand 40%
demineralised water.
214
TECHNICAL SPECIFICATIONS

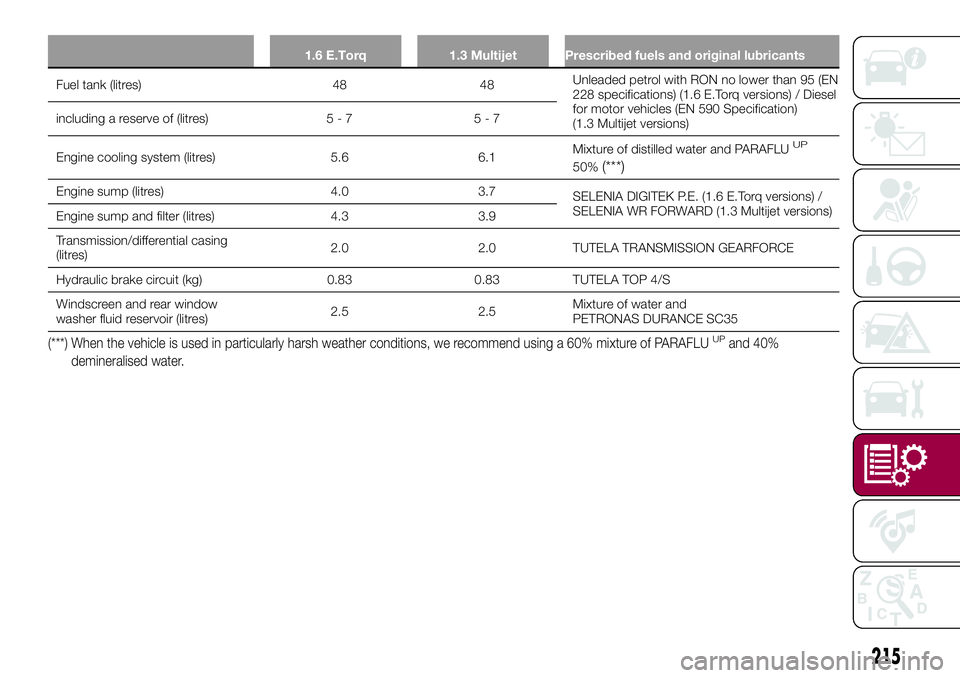

1.6 E.Torq 1.3 Multijet Prescribed fuels and original lubricants
Fuel tank (litres) 48 48Unleaded petrol with RON no lower than 95 (EN
228 specifications) (1.6 E.Torq versions) / Diesel
for motor vehicles (EN 590 Specification)
(1.3 Multijet versions) including a reserve of (litres) 5 - 7 5 - 7
Engine cooling system (litres) 5.6 6.1Mixture of distilled water and PARAFLU
UP
50%(***)
Engine sump (litres) 4.0 3.7
SELENIA DIGITEK P.E. (1.6 E.Torq versions) /
SELENIA WR FORWARD (1.3 Multijet versions)
Engine sump and filter (litres) 4.3 3.9
Transmission/differential casing
(litres)2.0 2.0 TUTELA TRANSMISSION GEARFORCE
Hydraulic brake circuit (kg) 0.83 0.83 TUTELA TOP 4/S
Windscreen and rear window
washer fluid reservoir (litres)2.5 2.5Mixture of water and
PETRONAS DURANCE SC35
(***) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60% mixture of PARAFLUUPand 40%
demineralised water.
215

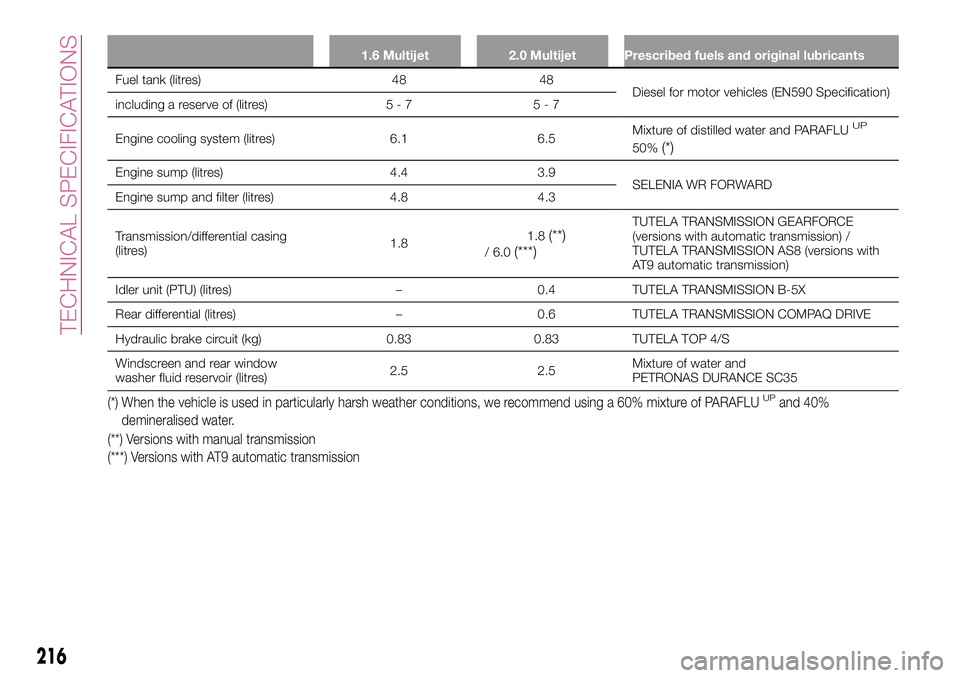

1.6 Multijet 2.0 Multijet Prescribed fuels and original lubricants
Fuel tank (litres) 48 48
Diesel for motor vehicles (EN590 Specification)
including a reserve of (litres) 5 - 7 5 - 7
Engine cooling system (litres) 6.1 6.5Mixture of distilled water and PARAFLU
UP
50%(*)
Engine sump (litres) 4.4 3.9
SELENIA WR FORWARD
Engine sump and filter (litres) 4.8 4.3
Transmission/differential casing
(litres)1.81.8
(**)/ 6.0(***)
TUTELA TRANSMISSION GEARFORCE
(versions with automatic transmission) /
TUTELA TRANSMISSION AS8 (versions with
AT9 automatic transmission)
Idler unit (PTU) (litres) – 0.4 TUTELA TRANSMISSION B-5X
Rear differential (litres) – 0.6 TUTELA TRANSMISSION COMPAQ DRIVE
Hydraulic brake circuit (kg) 0.83 0.83 TUTELA TOP 4/S
Windscreen and rear window
washer fluid reservoir (litres)2.5 2.5Mixture of water and
PETRONAS DURANCE SC35
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60% mixture of PARAFLUUPand 40%
demineralised water.
(**) Versions with manual transmission
(***) Versions with AT9 automatic transmission
216
TECHNICAL SPECIFICATIONS

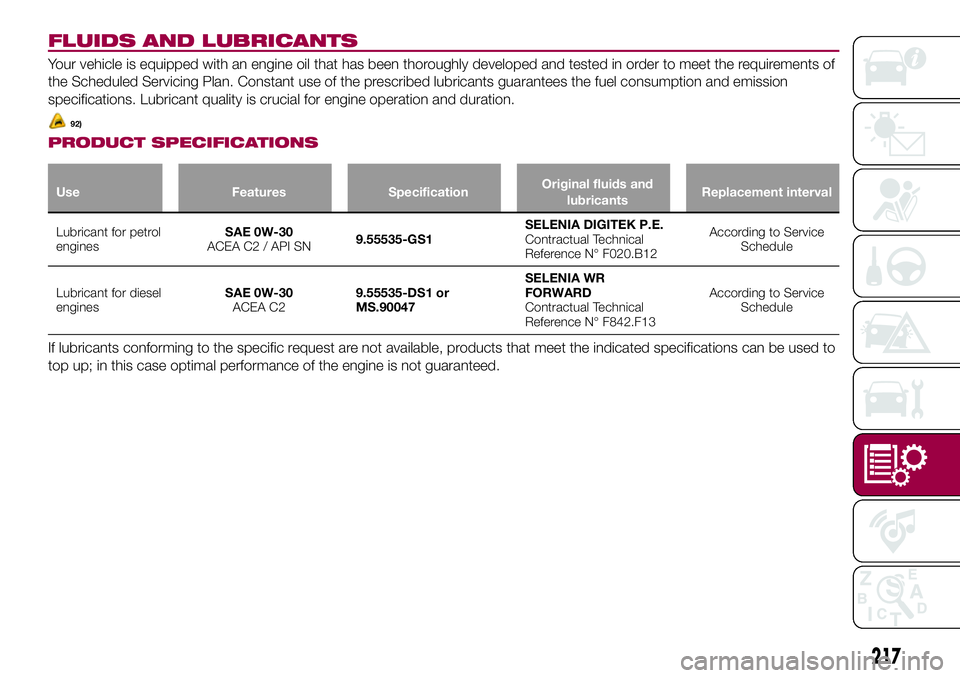

FLUIDS AND LUBRICANTS
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of
the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission
specifications. Lubricant quality is crucial for engine operation and duration.
PRODUCT SPECIFICATIONS
Use Features SpecificationOriginal fluids and
lubricantsReplacement interval
Lubricant for petrol
enginesSAE 0W-30
ACEA C2 / API SN9.55535-GS1SELENIA DIGITEK P.E.
Contractual Technical
Reference N° F020.B12According to Service
Schedule
Lubricant for diesel
enginesSAE 0W-30
ACEA C29.55535-DS1 or
MS.90047SELENIA WR
FORWARD
Contractual Technical
Reference N° F842.F13According to Service
Schedule
If lubricants conforming to the specific request are not available, products that meet the indicated specifications can be used to
top up; in this case optimal performance of the engine is not guaranteed.
217
