FIAT 500X 2017 Owner handbook (in English)

Use Features SpecificationOriginal fluids and
lubricantsApplications
Brake fluidSynthetic fluid for brake
and clutch systems.
Exceeds specifications:
FMVSS no. 116 DOT 4,
ISO 4925 SAE J1704.9.55597 or MS.90039TUTELA TOP 4/S
Contractual Technical
Reference No. F005.F15Hydraulic brakes and
hydraulic clutch controls
Protective agent for
radiatorsRed protective with
antifreeze action, based
on inhibited monoethyl
glycol with organic
formula. Exceeds CUNA
NC 956-16, ASTM D
3306 specifications.9.55523 or MS.90032PARAFLU
UP
Contractual Technical
Reference No.
F101.M01Cooling circuits
proportions of use:
50% water 50%
PARAFLU
UP(**)
Windscreen/rear
window washer fluidMixture of spirits and
surfactants. Exceeds
CUNA NC
956-11 specifications.9.55522 or MS.90043PETRONAS DURANCE
SC 35
Contractual Technical
Reference N° F001.D16To be used diluted or
undiluted in screen
washer/wiper systems
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%PARAFLUUP
IMPORTANT
92)The use of products with different
specifications than those indicated above
could cause damage to the engine that is
not covered by the warranty.
219
and 40%
demineralised water.

PERFORMANCE
Top speed reachable after the initial period of usage of the vehicle.
Versions km/h
1.4 Turbo Multi Air 140 HP190
1.4 Turbo Multi Air 140 HP
(*)190
1.4 Turbo Multi Air 136 HP
(*)187
1.4 Turbo Multi Air 170 HP 4x4
(**)200
1.4 Turbo Multi Air 163 HP 4x4
(**) (***)197
1.6 E.Torq180
2.4 Tigershark
(***)
1.3 MultiJet 95 HP172
1.6 MultiJet 120 HP186
1.6 MultiJet 120 HP
(*)186
1.6 Multijet 115 HP
(***)183
1.6 Multijet 115 HP
(*)183
2.0 Multijet 140 HP 4x4190
2.0 Multijet 140 HP 4x4
(*)190
2.0 Multijet 136 HP 4x4
(***)187
2.0 Multijet 136 HP 4x4
(*) (***)187
(*) Versions with dual clutch automatic transmission
(**) Versions with AT9 automatic transmission
(***) Versions for specific markets
220
TECHNICAL SPECIFICATIONS

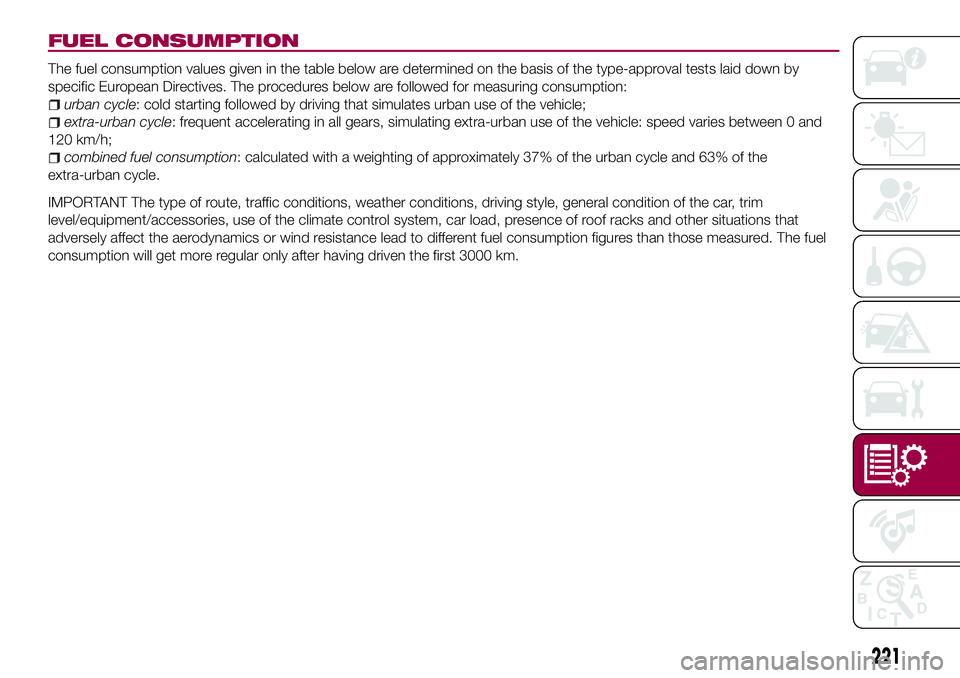

FUEL CONSUMPTION
The fuel consumption values given in the table below are determined on the basis of the type-approval tests laid down by
specific European Directives. The procedures below are followed for measuring consumption:
urban cycle: cold starting followed by driving that simulates urban use of the vehicle;
extra-urban cycle: frequent accelerating in all gears, simulating extra-urban use of the vehicle: speed varies between 0 and
120 km/h;
combined fuel consumption: calculated with a weighting of approximately 37% of the urban cycle and 63% of the
extra-urban cycle.
IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition of the car, trim
level/equipment/accessories, use of the climate control system, car load, presence of roof racks and other situations that
adversely affect the aerodynamics or wind resistance lead to different fuel consumption figures than those measured. The fuel
consumption will get more regular only after having driven the first 3000 km.
221

FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE
(litres/100 km)
Versions Urban Extra-urban Combined
1.4 Turbo Multi Air 136/140 HP7.8 5.0 6.0
1.4 Turbo Multi Air 136/140 HP
(*)7.6 4.9 5.9
1.4 Turbo Multi Air 136/140 HP
(**)7.2 4.9 5.7
1.4 Turbo Multi Air 136/140 HP
(*) (**)7.0 4.8 5.6
1.4 Turbo Multi Air 163/170 HP 4x4
(***)8.5 5.7 6.7
1.6 E.Torq 110CV8.7 5.0 6.4
1.6 E.Torq 110 HP Start&Stop7.8 5.0 6.0
2.4 Tigershark
(****)
1.3 MultiJet 95 HP4.7 3.8 4.1
1.3 MultiJet 95 HP
(*****)4.5 3.7 4.0
1.6 Multijet 115/120 HP4.7 3.8 4.1
1.6 Multijet 115/120 HP
(**)4.8 4.0 4.3
1.6 Multijet 115/120 HP
(*)4.4 3.8 4.0
1.6 Multijet 115/120 HP
(*****)4.4 3.8 4.0
1.6 Multijet 115/120 HP
(*) (**)4.7 4.0 4.3
1.6 Multijet 115/120 HP
(**) (******)4.7 4.0 4.2
(*) Low environmental impact versions for specific markets (low emissions)
(**) Versions with dual clutch automatic transmission
(***) Versions with AT9 automatic transmission
(****) Version for specific markets
(*****) ECO PACK versions
(******) Ultra low environmental impact versions for specific markets (low emissions)
222
TECHNICAL SPECIFICATIONS

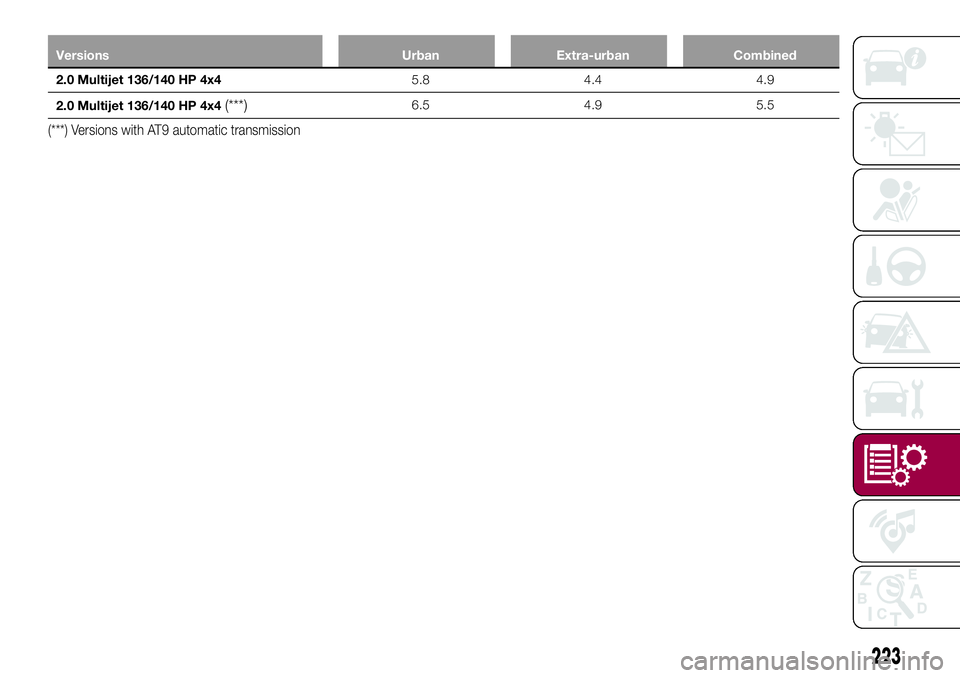

Versions Urban Extra-urban Combined
2.0 Multijet 136/140 HP 4x45.8 4.4 4.9
2.0 Multijet 136/140 HP 4x4
(***)6.5 4.9 5.5
(***) Versions with AT9 automatic transmission
223

CO2 EMISSIONS
The CO2emission levels given in the following table refer to combined consumption.
VersionsCO EMISSIONS2ACCORDING TO THE EUROPEAN DIRECTIVE IN FORCE
(g/km)
1.4 Turbo Multi Air 136/140 HP139
1.4 Turbo Multi Air 136/140 HP
(*)137
1.4 Turbo Multi Air 136/140 HP
(**)133
1.4 Turbo Multi Air 136/140 HP
(*) (**)131
1.4 Turbo Multi Air 163/170 HP 4x4
(***)157
1.6 E.Torq 110CV147
1.6 E.Torq 110 HP Start&Stop139
2.4 Tigershark
(****)
1.3 MultiJet 95 HP107
1.3 MultiJet 95 HP
(*****)105
1.6 Multijet 115/120 HP109
1.6 Multijet 115/120 HP
(*)107
1.6 Multijet 115/120 HP
(*****)106
1.6 Multijet 115/120 HP
(*) (**)111
(*) Low environmental impact versions for specific markets (low emissions)
(**) Versions with dual clutch automatic transmission
(***) Versions with AT9 automatic transmission
(****) Version for specific markets
(*****) ECO PACK versions
224
TECHNICAL SPECIFICATIONS

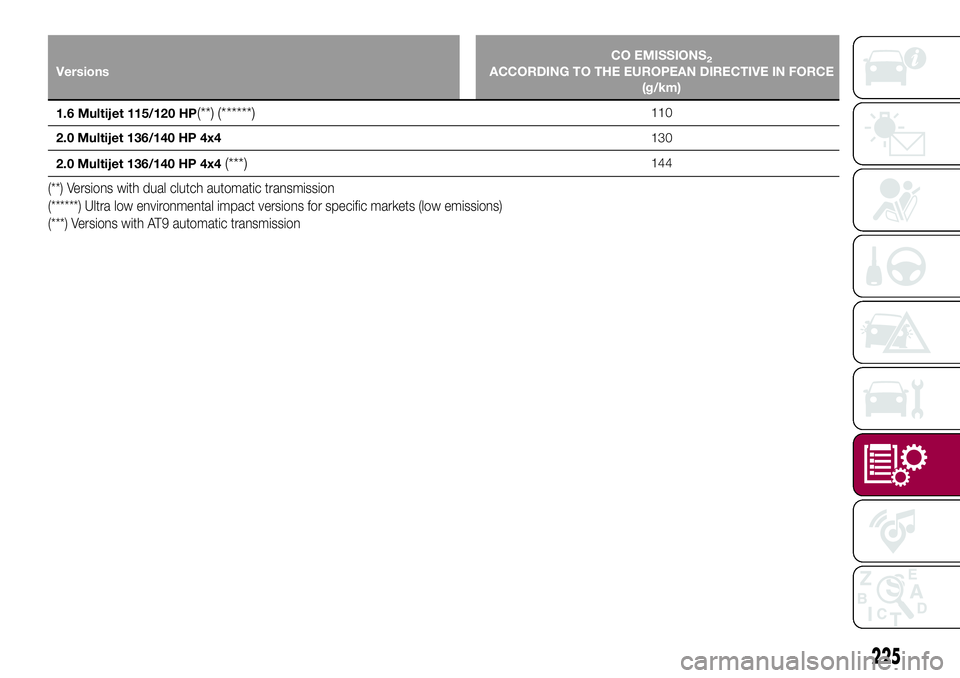

VersionsCO EMISSIONS2ACCORDING TO THE EUROPEAN DIRECTIVE IN FORCE
(g/km)
1.6 Multijet 115/120 HP(**) (******)110
2.0 Multijet 136/140 HP 4x4130
2.0 Multijet 136/140 HP 4x4
(***)144
(**) Versions with dual clutch automatic transmission
(******) Ultra low environmental impact versions for specific markets (low emissions)
(***) Versions with AT9 automatic transmission
225

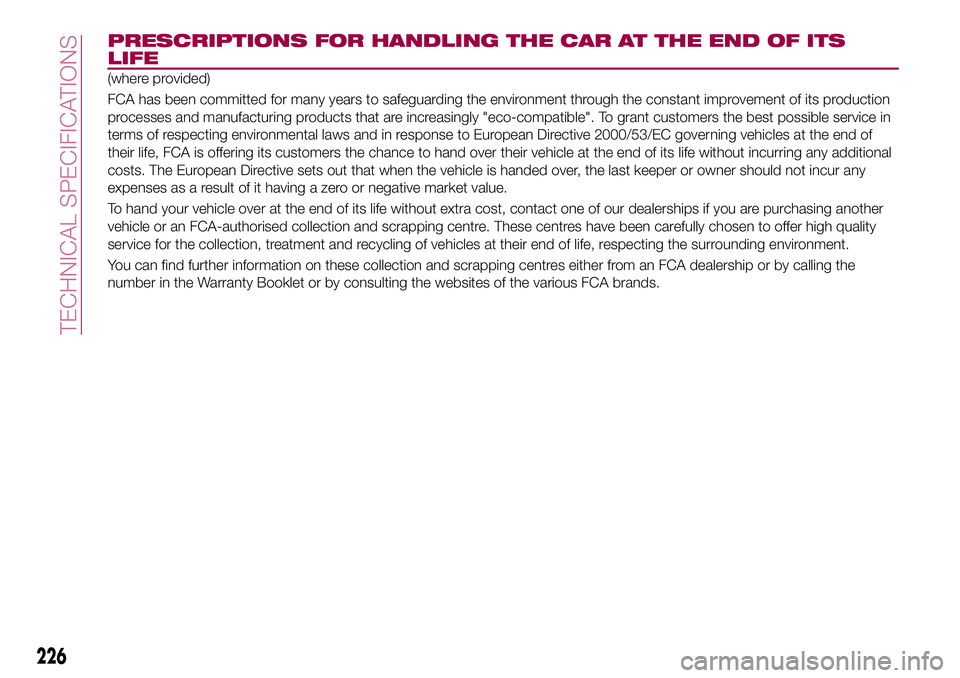

PRESCRIPTIONS FOR HANDLING THE CAR AT THE END OF ITS
LIFE
(where provided)
FCA has been committed for many years to safeguarding the environment through the constant improvement of its production
processes and manufacturing products that are increasingly "eco-compatible". To grant customers the best possible service in
terms of respecting environmental laws and in response to European Directive 2000/53/EC governing vehicles at the end of
their life, FCA is offering its customers the chance to hand over their vehicle at the end of its life without incurring any additional
costs. The European Directive sets out that when the vehicle is handed over, the last keeper or owner should not incur any
expenses as a result of it having a zero or negative market value.
To hand your vehicle over at the end of its life without extra cost, contact one of our dealerships if you are purchasing another
vehicle or an FCA-authorised collection and scrapping centre. These centres have been carefully chosen to offer high quality
service for the collection, treatment and recycling of vehicles at their end of life, respecting the surrounding environment.
You can find further information on these collection and scrapping centres either from an FCA dealership or by calling the
number in the Warranty Booklet or by consulting the websites of the various FCA brands.
226
TECHNICAL SPECIFICATIONS

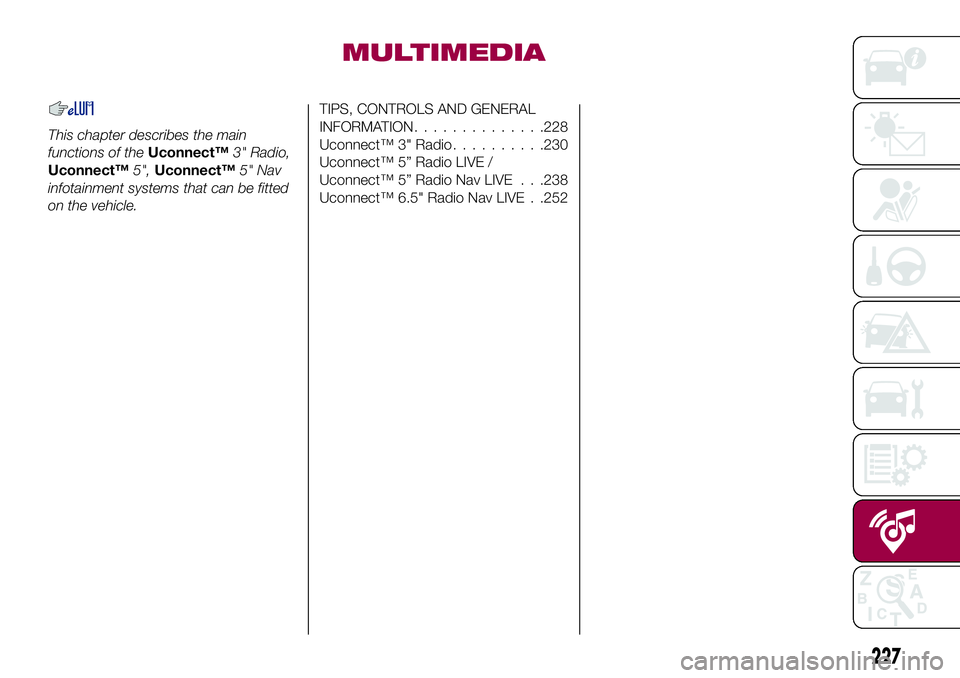

MULTIMEDIA
This chapter describes the main
functions of theUconnect™3" Radio,
Uconnect™5",Uconnect™5" Nav
infotainment systems that can be fitted
on the vehicle.
TIPS, CONTROLS AND GENERAL
INFORMATION..............228
Uconnect™ 3" Radio..........230
Uconnect™ 5” Radio LIVE /
Uconnect™ 5” Radio Nav LIVE . . .238
Uconnect™ 6.5" Radio Nav LIVE . .252
227

TIPS, CONTROLS
AND GENERAL
INFORMATION
ROAD SAFETY
Learn how to use the various system
functions before setting off.
Read the instructions for the system
carefully before setting off.
195) 196)
RECEPTION CONDITIONS
Reception conditions change
constantly while driving. Reception may
be interfered with by the presence of
mountains, buildings or bridges,
especially when you are far away from
the broadcaster.
IMPORTANT The volume may be
increased when receiving traffic alerts
and news.
CARE AND
MAINTENANCE
Observe the following precautions to
ensure the system is fully operational:
the display lens should not come into
contact with pointed or rigid objects
which could damage its surface; use a
soft, dry anti-static cloth to clean and
do not press.
never use alcohol, petrols and
derivatives to clean the display lens.
prevent any liquid from entering the
system: this could damage it beyond
repair.
93) 94)
MULTIMEDIA DEVICES
IMPORTANT Some multimedia players
may not be compatible with the
Uconnect system.
ANTI-THEFT
PROTECTION
The system is equipped with an
anti-theft protection system based on
the exchange of information with the
electronic control unit (Body Computer)
on the vehicle.
This guarantees maximum safety and
prevents the secret code from being
entered after the power supply has
been disconnected.
If the check has a positive outcome, the
system will start to operate, whereas if
the comparison codes are not the same
or if the electronic control unit (Body
Computer) is replaced, the system will
ask the user to enter the secret code
according to the procedure described
in the paragraph below.
Entering the secret code
(Uconnect™Radio Nav 6.5" excluded)
When the system is switched on, if the
code is requested, the display will show"Please enter Anti-Theft Code" followed
by the video page showing a keypad to
enter the secret code.
The secret code is made up of four
digits, from 0 to 9: to insert the first digit
of the code, turn the "BROWSE
ENTER" right knob and press to
confirm.
After inserting the fourth digit, move the
cursor to "OK" and press the
"BROWSE ENTER" right knob: the
system will start to operate.
If an incorrect code is entered, the
system displays "Incorrect Code" to
notify the user of the need to enter the
correct code.
After the 3 available attempts to enter
the code, the system displays
"Incorrect Code. Radio locked. Wait for
30 minutes". Once the text has
disappeared you can start the code
entering procedure again.
Vehicle radio passport
(Uconnect™Radio Nav 6.5" excluded)
This document certifies ownership of
the system. The vehicle radio passport
shows the system model, serial number
and secret code.
In the case of loss of the vehicle radio
passport, contact the Fiat Dealership,
taking an ID document and the vehicle
ownership documents.
228
