FIAT 500X 2017 Owner handbook (in English)

TECHNICAL SPECIFICATIONS
Everything you may find useful for
understanding how your vehicle is
made and works is contained in this
chapter and illustrated with data, tables
and graphics. For the enthusiasts and
the technician, but also just for those
who want to know every detail of their
vehicle.
IDENTIFICATION DATA.........200
ENGINE..................201
WHEELS.................205
DIMENSIONS..............208
WEIGHTS.................210
SUPPLIES................213
FLUIDS AND LUBRICANTS......217
PERFORMANCE............220
FUEL CONSUMPTION.........221
CO2 EMISSIONS............224
PRESCRIPTIONS FOR HANDLING
THE CAR AT THE END OF ITS
LIFE....................226
199

IDENTIFICATION
DATA
VIN PLATE
It is located on the driver's door pillar. It
can be read with the door open and
bears the following data fig. 165:
AName of manufacturer
BVehicle type-approval number
CVehicle identification number
DTechnically allowed max. weight with
full load
ETechnically allowed max. weight for
combined vehicle
FTechnically allowed max. weight on
axle 1
GTechnically allowed max. weight on
axle 2
HEngine identification
IType variant version
LPaintwork colour code
MSmoke absorption coefficient (diesel
versions)
NFurther instructions.
CHASSIS MARKING
The Vehicle Identification Number (VIN)
is stamped on the plate shown in
fig. 166, located on the front left corner
of the dashboard cover, which can be
seen from outside the vehicle, through
the windscreen.
This number is also stamped on the
passenger compartment floor, in front
of the front right seat.
To access it, slide flap A fig. 167 in the
direction shown by the arrow.The marking includes:
type of vehicle;
chassis serial number.
ENGINE MARKING
Engine marking is stamped on the
cylinder block and includes the model
and the chassis serial number.165F1B0330C
3
34AXC1
BXXX
334AXC1BXXX
166F1B0333C
167F1B0058C
200
TECHNICAL SPECIFICATIONS

ENGINE
192)
Versions 1.4 Turbo Multi Air 136/140 HP 1.4 Turbo Multi Air 163/170 HP
Engine code 55263624 55263623
Cycle Otto Otto
Number and position of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 72 × 84 72 × 84
Total displacement (cm³) 1368 1368
Compression ratio 10.0 ± 0.2 10.0 ± 0.2
Maximum power (EEC) (kW)100
(*)/ 103120(**)/ 125
Maximum power (EEC) (HP)136
(*)/ 140163(**)/ 170
corresponding engine speed (rpm) 5000 5500
Maximum torque (EEC) (Nm) 230 250
corresponding engine speed (rpm) 1750 2500
Spark plugs NGK IKR9J8 NGK IKR9J8
FuelUnleaded petrol 95 R.O.N. (EN
228 specifications)Unleaded petrol 95 R.O.N. (EN
228 specifications)
(*) 1.4 Turbo Multi Air 136 HP version
(**) 1.4 Turbo Multi Air 163 HP version
201

Versions 1.6 E.Torq 2.4 Tigershark(*)
Engine code 55263842
Cycle Otto Otto
Number and position of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 77 × 85.8 88 × 97
Total displacement (cm³) 1598 2360
Compression ratio 11 ± 0.15 10 ± 0.2
Maximum power (EEC) (kW) 81 129
Maximum power (EEC) (HP) 110 175
corresponding engine speed (rpm) 5500 6400
Maximum torque (EEC) (Nm) 152 230
corresponding engine speed (rpm) 4500 3900
Spark plugsNGK - SINGLE IR - ZKR7BI - 10 JAPAN
C128
FuelUnleaded petrol 95 R.O.N. (EN
228 specifications)Unleaded petrol 95 R.O.N. (EN
228 specifications)
(*) Version for specific markets
202
TECHNICAL SPECIFICATIONS

Versions 1.3 Multijet 1.6 Multijet 2.0 MultiJet(*)2.0 MultiJet(**)
Engine code 55266963 55260384 55263087 55263088
Cycle Diesel Diesel Diesel Diesel
Number and position of
cylinders4 in line 4 in line 4 in line 4 in line
Piston bore and stroke
(mm)69.6 X 82 79.5 × 80.5 83 × 90.4 83 × 90.4
Total displacement (cm³) 1248 1598 1956 1956
Compression ratio 16.8 ± 0.2 16.5 ± 0.4 16.5 ± 0.4 16.5 ± 0.4
Maximum power (EC)
(kW)70
88 / 84.4
(***)103 / 100(***)103 / 100(***)
Maximum power (EC)
(HP)95
120 / 115(***)140 / 136(***)140 / 136(***)
corresponding engine
speed (rpm)3750 3750 3750 4000
Maximum torque (EC)
(Nm)200 320 350 350
corresponding engine
speed (rpm)1750 1750 1750 1500
FuelDiesel for motor vehicles
(EN 590 Specification)Diesel for motor vehicles
(EN 590 Specification)Diesel for motor vehicles
(EN 590 Specification)Diesel for motor vehicles
(EN 590 Specification)
(*) Versions with mechanical gearbox
(**) Versions with AT9 automatic transmission
(***) Version for specific markets
203

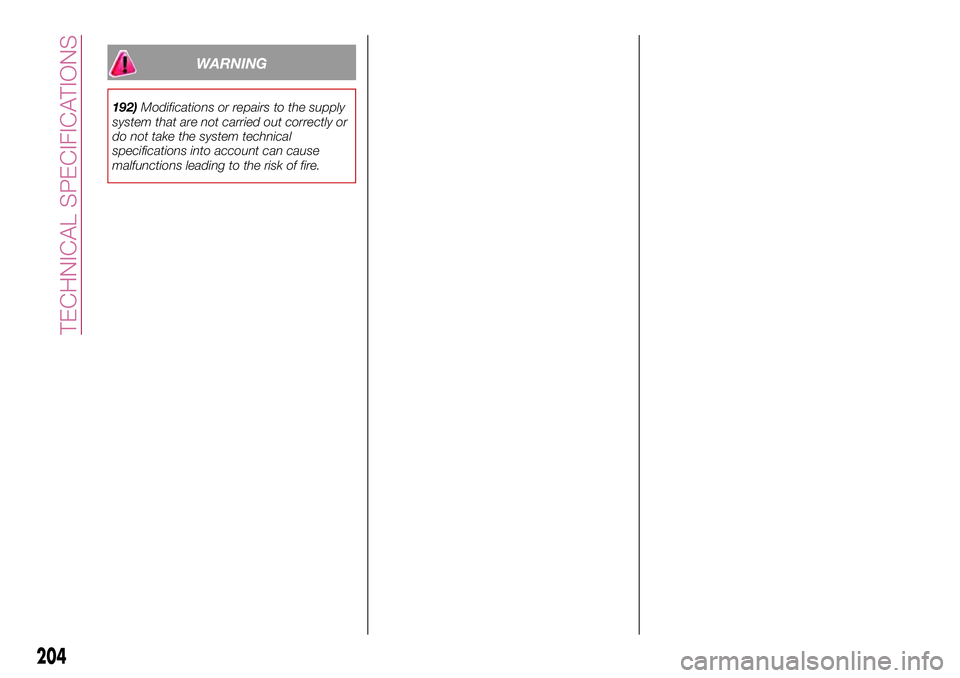

WARNING
192)Modifications or repairs to the supply
system that are not carried out correctly or
do not take the system technical
specifications into account can cause
malfunctions leading to the risk of fire.
204
TECHNICAL SPECIFICATIONS

WHEELS
RIMS AND TYRES PROVIDED
193) 194)
Alloy or pressed steel rims. Tubeless radial carcass tyres. All approved tyres are listed in the Registration Document.
IMPORTANT If there are any discrepancies between the Owner Handbook and the Registration Document, take the information
from the latter. For safe driving, the car must be fitted with tyres of the same make and type on all wheels.
IMPORTANT Do not use inner tubes with Tubeless tyres.
Wheels Tyres fitted Winter tyres
6 1/2J x 16 H2 ET40 215 / 60 R16 95H 215 / 60 R16 95Q (M+S)
7J x 17 H2 ET40215 / 55 R17 94V
(*)215 / 55 R17 94Q (M+S)
215 / 55 R17 98V (M+S)
7J x 18 H2 ET40225 / 45 R18 91V
225 / 45 R18 91Q (M+S)
225 / 45 R18 91Y
(*) Mandatory tyre for some specific versions/markets.
On versions with 215/60 R16 and 215/55 R17 tyres, use smaller snow chains with a maximum projection of 7 mm beyond the
tyre profile.
ECO PACK versions (1.3 Multijet 95 HP / 1.6 Multijet 115/120 HP)
Wheels Tyres fitted Winter tyres
7J x 17 H2 ET40 215 / 55 R17 94V Goodyear 215 / 55 R17 94Q (M+S)
Space-saver wheel(where provided)
Rim:4.0x16/Tyre:T145/90 R16 106M
205

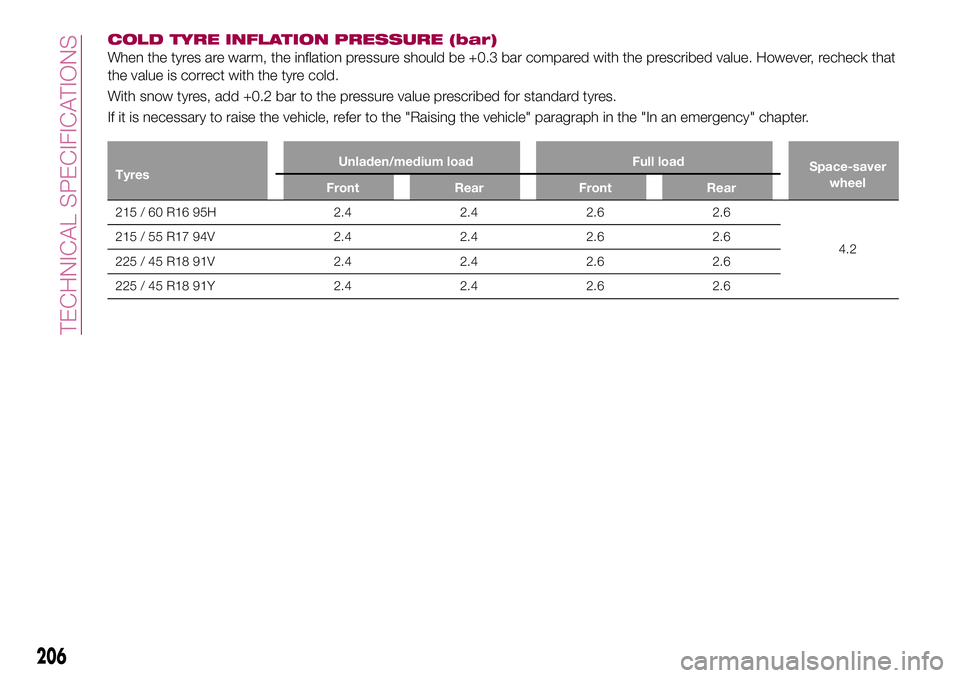

COLD TYRE INFLATION PRESSURE (bar)
When the tyres are warm, the inflation pressure should be +0.3 bar compared with the prescribed value. However, recheck that
the value is correct with the tyre cold.
With snow tyres, add +0.2 bar to the pressure value prescribed for standard tyres.
If it is necessary to raise the vehicle, refer to the "Raising the vehicle" paragraph in the "In an emergency" chapter.
TyresUnladen/medium load Full load
Space-saver
wheel
Front Rear Front Rear
215 / 60 R16 95H 2.4 2.4 2.6 2.6
4.2 215 / 55 R17 94V 2.4 2.4 2.6 2.6
225 / 45 R18 91V 2.4 2.4 2.6 2.6
225 / 45 R18 91Y 2.4 2.4 2.6 2.6
206
TECHNICAL SPECIFICATIONS

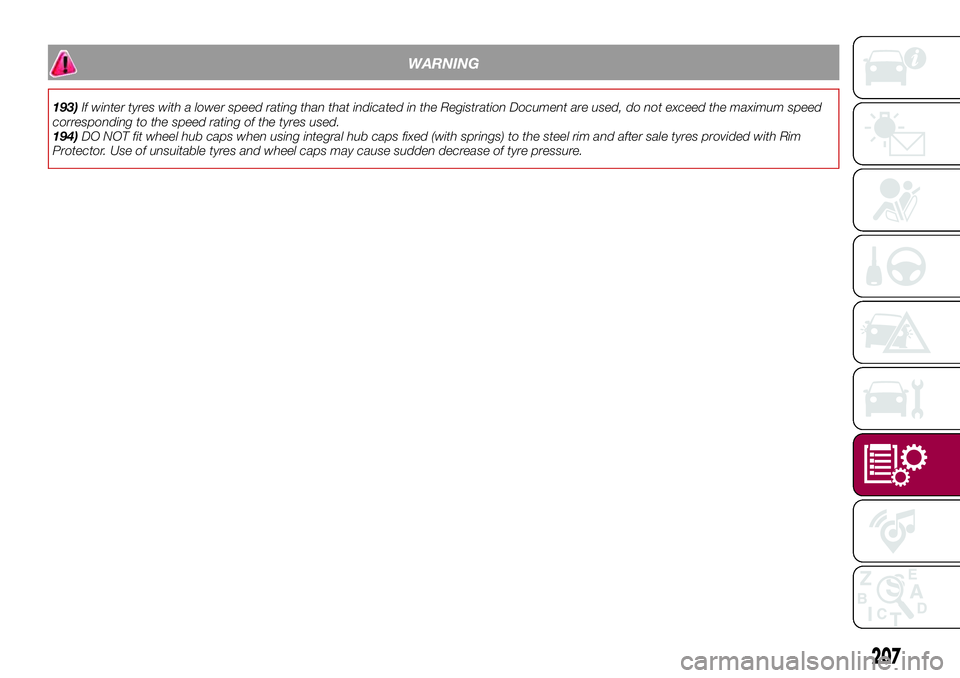

WARNING
193)If winter tyres with a lower speed rating than that indicated in the Registration Document are used, do not exceed the maximum speed
corresponding to the speed rating of the tyres used.
194)DO NOT fit wheel hub caps when using integral hub caps fixed (with springs) to the steel rim and after sale tyres provided with Rim
Protector. Use of unsuitable tyres and wheel caps may cause sudden decrease of tyre pressure.
207

DIMENSIONS
Dimensions are expressed in mm and refer to the vehicle equipped with its standard-supplied tyres. Height is measured with
vehicle unladen. Small variations with respect to the reported values are possible depending on the dimensions of the rims.
AB C D E FGH I
877 2570 801 4248
1600 / 1608(*)1545 1545 2025 1796
(*) With roof rack bars
168F1B0169C
208
