FIAT 500X 2017 Owner handbook (in English)

Dimensions are expressed in mm and refer to the vehicle equipped with its standard-supplied tyres. Height is measured with
vehicle unladen. Small variations with respect to the reported values are possible depending on the dimensions of the rims.
AB C D E FGH I
902 2570 801 4273
1608 / 1620(*)1545 1545 2025 1796
(*) 4x4 versions
169F1B0170C
209

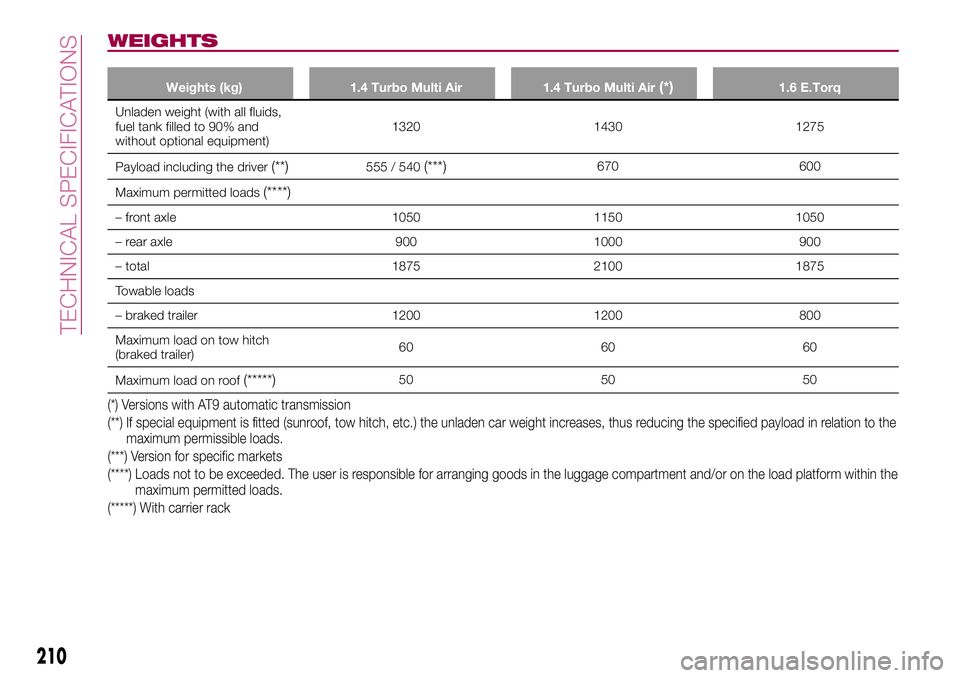

WEIGHTS
Weights (kg) 1.4 Turbo Multi Air 1.4 Turbo Multi Air(*)1.6 E.Torq
Unladen weight (with all fluids,
fuel tank filled to 90% and
without optional equipment)1320 1430 1275
Payload including the driver
(**)555 / 540(***)670 600
Maximum permitted loads
(****)
– front axle 1050 1150 1050
– rear axle 900 1000 900
– total 1875 2100 1875
Towable loads
– braked trailer 1200 1200 800
Maximum load on tow hitch
(braked trailer)60 60 60
Maximum load on roof
(*****)50 50 50
(*) Versions with AT9 automatic transmission
(**) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in relation to the
maximum permissible loads.
(***) Version for specific markets
(****) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or on the load platform within the
maximum permitted loads.
(*****) With carrier rack
210
TECHNICAL SPECIFICATIONS

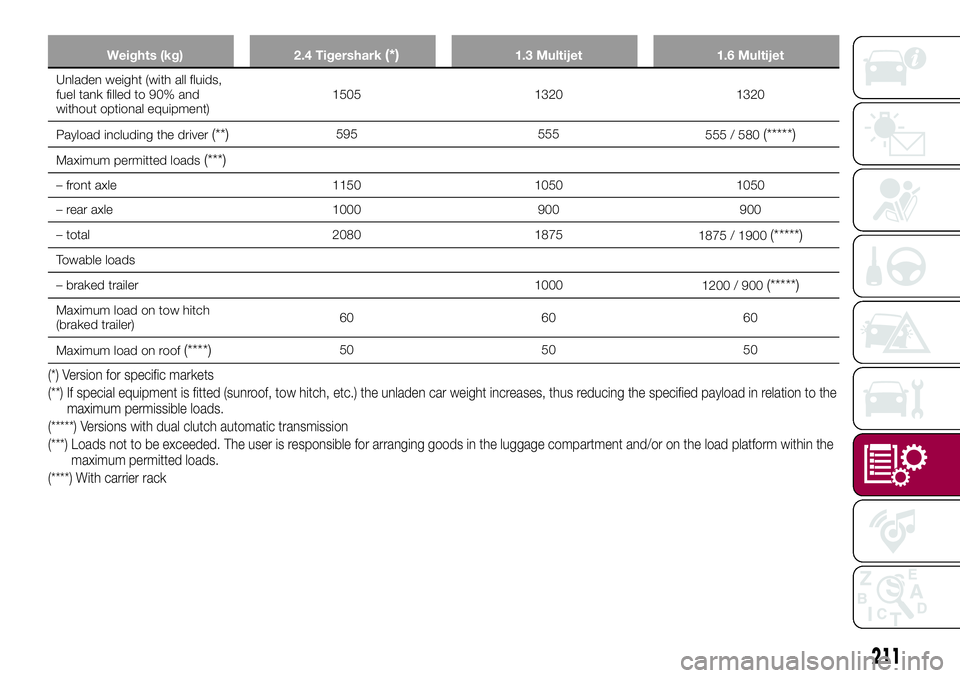

Weights (kg) 2.4 Tigershark(*)1.3 Multijet 1.6 Multijet
Unladen weight (with all fluids,
fuel tank filled to 90% and
without optional equipment)1505 1320 1320
Payload including the driver
(**)595 555
555 / 580(*****)
Maximum permitted loads(***)
– front axle 1150 1050 1050
– rear axle 1000 900 900
– total 2080 1875
1875 / 1900
(*****)
Towable loads
– braked trailer 1000
1200 / 900
(*****)
Maximum load on tow hitch
(braked trailer)60 60 60
Maximum load on roof
(****)50 50 50
(*) Version for specific markets
(**) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in relation to the
maximum permissible loads.
(*****) Versions with dual clutch automatic transmission
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or on the load platform within the
maximum permitted loads.
(****) With carrier rack
211

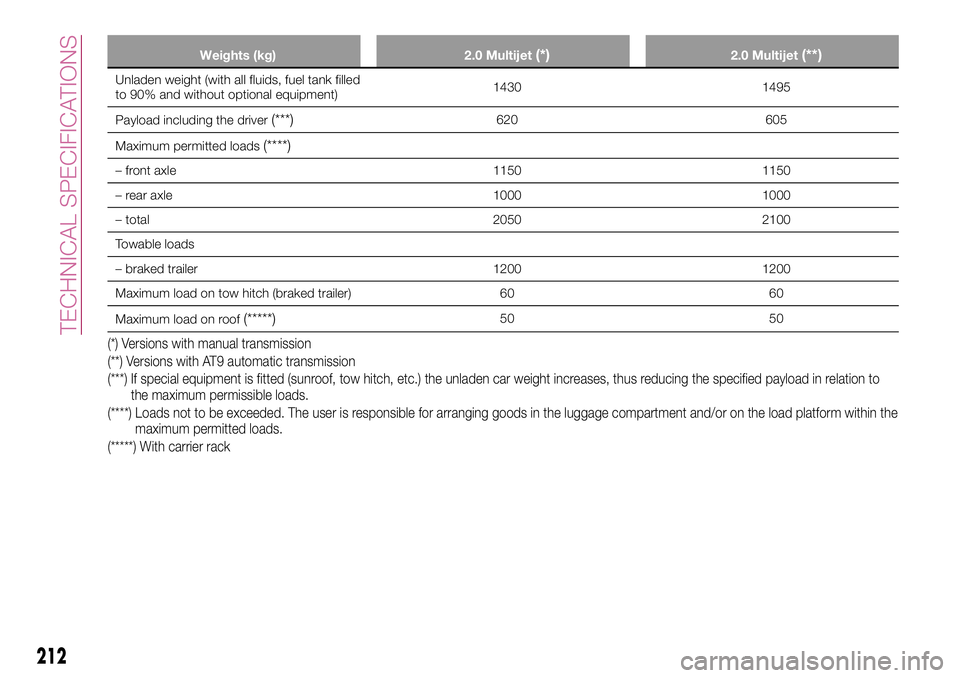

Weights (kg) 2.0 Multijet(*)2.0 Multijet(**)
Unladen weight (with all fluids, fuel tank filled
to 90% and without optional equipment)1430 1495
Payload including the driver
(***)620 605
Maximum permitted loads
(****)
– front axle 1150 1150
– rear axle 1000 1000
– total 2050 2100
Towable loads
– braked trailer 1200 1200
Maximum load on tow hitch (braked trailer) 60 60
Maximum load on roof
(*****)50 50
(*) Versions with manual transmission
(**) Versions with AT9 automatic transmission
(***) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in relation to
the maximum permissible loads.
(****) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or on the load platform within the
maximum permitted loads.
(*****) With carrier rack
212
TECHNICAL SPECIFICATIONS

SUPPLIES
1.4 Turbo Multi Air(*)1.4 Turbo Multi Air(**)Prescribed fuels and original lubricants
Fuel tank (litres) 48 48
Unleaded petrol with RON no lower than 95
(EN 228 specifications)
including a reserve of (litres) 5 - 7 5 - 7
Engine cooling system (litres) 5.2 5.2Mixture of distilled water and PARAFLU
UP
50%(***)
Engine sump (litres) 3.2 3.2
SELENIA DIGITEK P.E.
Engine sump and filter (litres) 3.6 3.6
Transmission/differential casing
(litres)1.8 2.1 TUTELA TRANSMISSION GEARFORCE
Hydraulic brake circuit (kg) 0.83 0.83 TUTELA TOP 4/S
Windscreen and rear window
washer fluid reservoir (litres)2.5 2.5Mixture of water and
PETRONAS DURANCE SC35
(*) Versions with manual transmission
(**) Versions with dual clutch automatic transmission
(***) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60% mixture of PARAFLU
UPand 40%
demineralised water.
213

1.4 Turbo Multi Air(*)2.4 Tigershark(**)Prescribed fuels and original lubricants
Fuel tank (litres) 48 48
Unleaded petrol with RON no lower than 95
(EN 228 specifications)
including a reserve of (litres) 5 - 7 5 - 7
Engine cooling system (litres) 5.2 6.45Mixture of distilled water and PARAFLU
UP
50%(***)
Engine sump (litres) 3.2 –
SELENIA DIGITEK P.E.
Engine sump and filter (litres) 3.6 5.3
Transmission/differential casing
(litres)6.0 TUTELA TRANSMISSION AS8
Idler unit (PTU) (litres) – TUTELA TRANSMISSION B-5X
Rear differential (litres) – TUTELA TRANSMISSION COMPAQ DRIVE
Hydraulic brake circuit (kg) 0.83 0.83 TUTELA TOP 4/S
Windscreen and rear window
washer fluid reservoir (litres)2.5 2.5Mixture of water and
PETRONAS DURANCE SC35
(*) Versions with AT9 automatic transmission
(**) Version for specific markets
(***) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60% mixture of PARAFLU
UPand 40%
demineralised water.
214
TECHNICAL SPECIFICATIONS

1.6 E.Torq 1.3 Multijet Prescribed fuels and original lubricants
Fuel tank (litres) 48 48Unleaded petrol with RON no lower than 95 (EN
228 specifications) (1.6 E.Torq versions) / Diesel
for motor vehicles (EN 590 Specification)
(1.3 Multijet versions) including a reserve of (litres) 5 - 7 5 - 7
Engine cooling system (litres) 5.6 6.1Mixture of distilled water and PARAFLU
UP
50%(***)
Engine sump (litres) 4.0 3.7
SELENIA DIGITEK P.E. (1.6 E.Torq versions) /
SELENIA WR FORWARD (1.3 Multijet versions)
Engine sump and filter (litres) 4.3 3.9
Transmission/differential casing
(litres)2.0 2.0 TUTELA TRANSMISSION GEARFORCE
Hydraulic brake circuit (kg) 0.83 0.83 TUTELA TOP 4/S
Windscreen and rear window
washer fluid reservoir (litres)2.5 2.5Mixture of water and
PETRONAS DURANCE SC35
(***) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60% mixture of PARAFLUUPand 40%
demineralised water.
215

1.6 Multijet 2.0 Multijet Prescribed fuels and original lubricants
Fuel tank (litres) 48 48
Diesel for motor vehicles (EN590 Specification)
including a reserve of (litres) 5 - 7 5 - 7
Engine cooling system (litres) 6.1 6.5Mixture of distilled water and PARAFLU
UP
50%(*)
Engine sump (litres) 4.4 3.9
SELENIA WR FORWARD
Engine sump and filter (litres) 4.8 4.3
Transmission/differential casing
(litres)1.81.8
(**)/ 6.0(***)
TUTELA TRANSMISSION GEARFORCE
(versions with automatic transmission) /
TUTELA TRANSMISSION AS8 (versions with
AT9 automatic transmission)
Idler unit (PTU) (litres) – 0.4 TUTELA TRANSMISSION B-5X
Rear differential (litres) – 0.6 TUTELA TRANSMISSION COMPAQ DRIVE
Hydraulic brake circuit (kg) 0.83 0.83 TUTELA TOP 4/S
Windscreen and rear window
washer fluid reservoir (litres)2.5 2.5Mixture of water and
PETRONAS DURANCE SC35
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60% mixture of PARAFLUUPand 40%
demineralised water.
(**) Versions with manual transmission
(***) Versions with AT9 automatic transmission
216
TECHNICAL SPECIFICATIONS

FLUIDS AND LUBRICANTS
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of
the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission
specifications. Lubricant quality is crucial for engine operation and duration.
PRODUCT SPECIFICATIONS
Use Features SpecificationOriginal fluids and
lubricantsReplacement interval
Lubricant for petrol
enginesSAE 0W-30
ACEA C2 / API SN9.55535-GS1SELENIA DIGITEK P.E.
Contractual Technical
Reference N° F020.B12According to Service
Schedule
Lubricant for diesel
enginesSAE 0W-30
ACEA C29.55535-DS1 or
MS.90047SELENIA WR
FORWARD
Contractual Technical
Reference N° F842.F13According to Service
Schedule
If lubricants conforming to the specific request are not available, products that meet the indicated specifications can be used to
top up; in this case optimal performance of the engine is not guaranteed.
217
92)

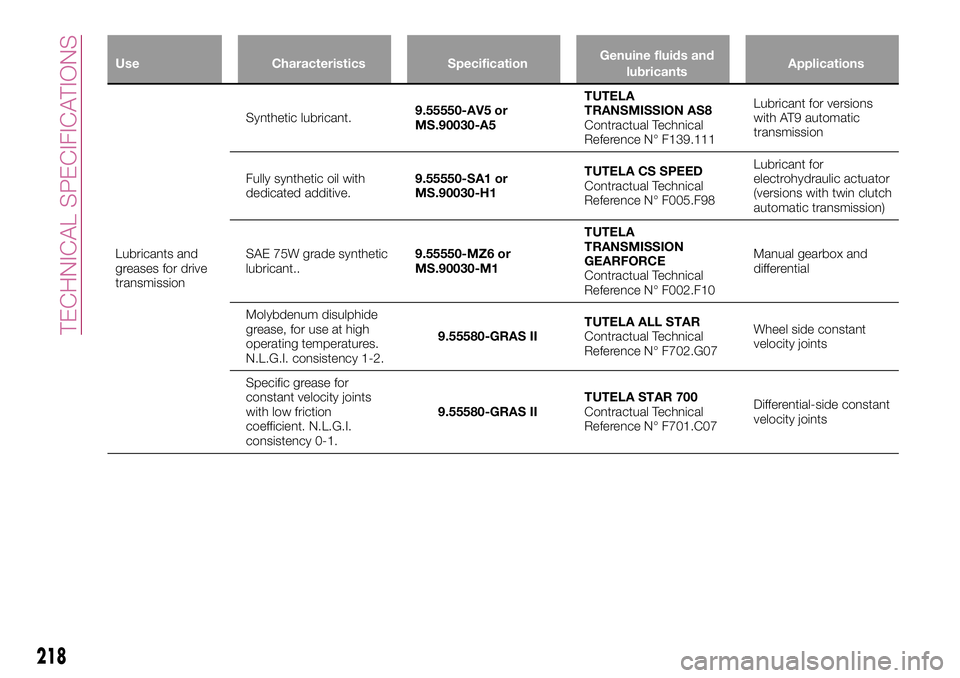

Use Characteristics SpecificationGenuine fluids and
lubricantsApplications
Lubricants and
greases for drive
transmissionSynthetic lubricant.9.55550-AV5 or
MS.90030-A5TUTELA
TRANSMISSION AS8
Contractual Technical
Reference N° F139.111Lubricant for versions
with AT9 automatic
transmission
Fully synthetic oil with
dedicated additive.9.55550-SA1 or
MS.90030-H1TUTELA CS SPEED
Contractual Technical
Reference N° F005.F98Lubricant for
electrohydraulic actuator
(versions with twin clutch
automatic transmission)
SAE 75W grade synthetic
lubricant..9.55550-MZ6 or
MS.90030-M1TUTELA
TRANSMISSION
GEARFORCE
Contractual Technical
Reference N° F002.F10Manual gearbox and
differential
Molybdenum disulphide
grease, for use at high
operating temperatures.
N.L.G.I. consistency 1-2.9.55580-GRAS IITUTELA ALL STAR
Contractual Technical
Reference N° F702.G07Wheel side constant
velocity joints
Specific grease for
constant velocity joints
with low friction
coefficient. N.L.G.I.
consistency 0-1.9.55580-GRAS IITUTELA STAR 700
Contractual Technical
Reference N° F701.C07Differential-side constant
velocity joints
218
