OF THE CAR
MAINTENANCEENGINE OIL fig. 5-6-7-8
Checking engine oil
Check the oil level a few minutes (about
5) after the engine has stopped, with the
car parked on level ground.
Remove the dipstick Aand clean it, put
it back in completely, remove it and check
that the level is within the MINand MAX
marks on the dipstick. The interval be-
tween the MINand MAXmarks corre-
sponds to about one litre of oil.

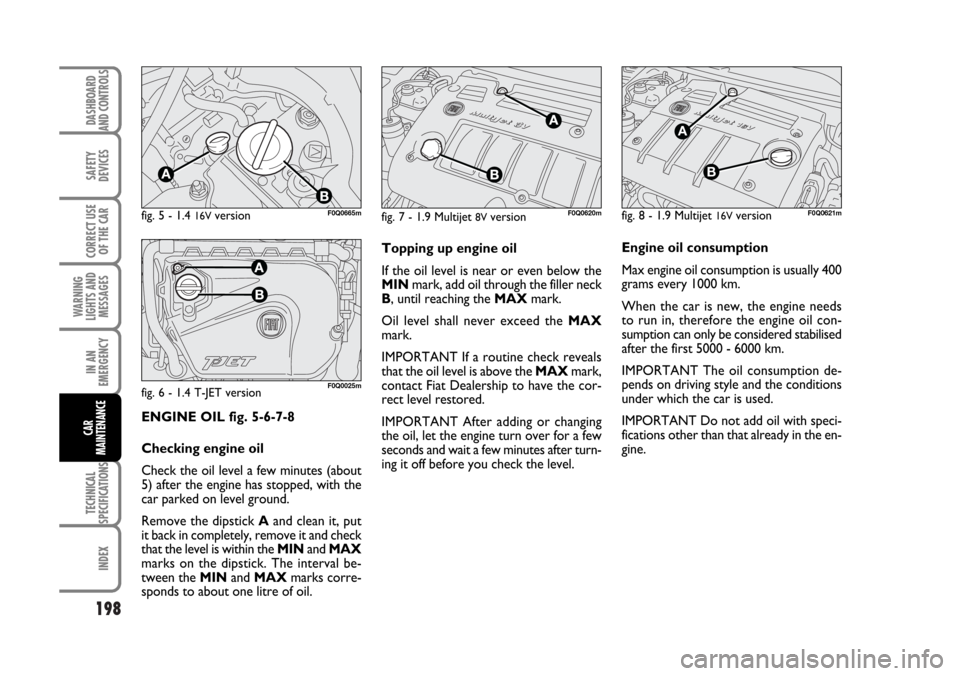

fig. 5 - 1.4 16V version F0Q0665m
Topping up engine oil
If the oil level is near or even below the
MINmark, add oil through the filler neck
B, until reaching the MAXmark.
Oil level shall never exceed the MAX
IMPORTANT If a routine check reveals
that the oil level is above the MAXmark,
contact Fiat Dealership to have the cor-
rect level restored.
IMPORTANT After adding or changing
the oil, let the engine turn over for a few
seconds and wait a few minutes after turn-
ing it off before you check the level.
fig. 7 - 1.9 Multijet 8V version F0Q0620mfig. 8 - 1.9 Multijet 16V version
Engine oil consumption
Max engine oil consumption is usually 400
grams every 1000 km.
When the car is new, the engine needs
to run in, therefore the engine oil con-
sumption can only be considered stabilised
after the first 5000 - 6000 km.
IMPORTANT The oil consumption de-
pends on driving style and the conditions
under which the car is used.
IMPORTANT Do not add oil with speci-
fications other than that already in the en-
F0Q0025mfig. 6 - 1.4 T-JET version
