FIAT BRAVO 2008 2.G Owners Manual

Windscreen/
rear window/
headlight
washer fluid Protective
agent
for radiatorsSynthetic-based oil, grade SAE 75W-85
that passes API GL-4 PLUS specifications.
Qualification FIAT 9.55550-MX3.
Synthetic-based oil, grade SAE 75W-85
that passes API GL-4 specifications.
Qualification FIAT 9.55550-MZ1
Specifc grease to be used for constant-velocity joints with
low friction coefficient. N.L.G.I. 0-1 consistency.
Qualification FIAT 9.55580.
Grease containing Molybdenum bisulphide for high
temperature appliances. N.L.G.I. 1-2 consistency.
Qualification FIAT 9.55580.
Synthetic fluid for brake and clutch system. Exceeds specifications:
FMVSS no. 116 DOT 4, ISO 4925, SAE J 1704.
Qualification FIAT 9.55597.
Protective with antifreeze action, red colour
based on inhibited monoethylen glycol and organic formula,
that passes CUNA NC 956-16, ASTM D 3306 specifications.
Qualification FIAT 9.55523.
Additive for diesel fuels with protective action for Diesel engines.
Mixture of alcohol and surfactants.
That passes CUNA NC 956-11.
Qualification FIAT 9.55522. Brake
fluid
230
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
TECHNICAL
SPECIFICATIONS
DASHBOARD
AND CONTROLSMechanic gearboxes
and differentials
Mechanical gearbox
and differential
(1.4 T-JET versions)
CV joints
on differential side
CV joints on wheel side
Hydraulic brakes and clutch
hydraulic controls
Radiator antifreeze
proportion:
50% water and
50% PARAFLU
UP(❑)
To be used diluted
or undiluted
To be mixed with diesel fuel
(25 cc per 10 litres)
TUTELA CAR
TECHNYX
Contractual Technical
Reference N° F010.B05
TUTELA CAR
MATRYX
Contractual Technical
Reference N°F108.F02
TUTELA
STAR 700
Contractual Technical
Reference N°F701.C07
TUTELA ALL STAR
Contractual Technical
Reference N°F702.G07
TUTELA TOP 4
Contractual Technical
Reference N°F001.A93
PARAFLU
UP(●)
Contractual Technical
Reference N°F101.M01
TUTELA
DIESEL ART
Contractual Technical
Reference N°F601.L06
TUTELA
PROFESSIONALSC 35
Contractual Technical
Reference N° F201.D02 Fuel additivel Lubricants
and greases for
transmissions
Use Fluid and lubricant specifications Genuine fluids Applicationsfor correct car operation and lubricants
(●) IMPORTANT Do not add or mix fluids having different specifications from that already existing.
(❑) For particularly hard climate conditions, we recommend use of a 60% PARAFLUUPand 40% demineralized water mixture.
213-237 BRAVO GB 30-10-2008 9:22 Pagina 230

231
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
TECHNICAL
SPECIFICATIONS
FUEL CONSUMPTION
The fuel consumption figures given in the
table below are determined on the basis
of the homologation tests set down by
specific European Directives.
The procedures below are followed for
measuring consumption:
❒ urban cycle: cold starting followed by
driving that simulates urban use of the
car;IMPORTANT The type of route, traffic
situations, weather conditions, driving
style, general conditions of the car, trim
level/equipment/accessories, load, climate
control system, roof rack, other situations
that affect air drag may lead to different
fuel consumption levels than those mea-
sured.
❒ extra-urban cycle: frequent acceler-
ating in all gears, simulating extraurban
use of the car; the speed varies be-
tween 0 and 120 km/h;
❒combined consumption: is calculat-
ed weighing about 37% of urban cycle
consumption and about 63% of ex-
traurban consumption.
FUEL CONSUMPTION ACCORDING TO 2004/3/EC DIRECTIVE (litres x 100 km)
1.4 16V 1.4 T JET 1.4 T-JET 1.6 Multijet 1.6 Multijet 1.6 Multijet 1.9 Multijet1.9 Multijet 8V 90 HP(●
)1.9 Multijet 2.0 Multijet
120 HP 150 HP 90 HP (●) 105 HP 120 HP 8V1.9 Multijet 8V 115 HP(●
)16V
Urban8.6 8.6 9.2 5.6 6.3 (*) 5.8 (**) 6.3 6.9 6.8 7.6 6.9
Extra-urban5.5 5.5 5.7 3.7 4.1 (*) 3.8 (**) 4.1 4.3 4.2 4.5 4.3
Combined6.7 6.7 7.0 4.4 4.9 (*) 4.5 (**) 4.9 5.3 5.2 5.6 5.3
(●) Versions for specific markets
(*) Euro 4 with/without DPF versions
(**) Euro 4 with DPF (ECO) versions
213-237 BRAVO GB 30-10-2008 9:22 Pagina 231

232
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
INDEX
TECHNICAL
SPECIFICATIONS
DASHBOARD
AND CONTROLS
CO2EMISSIONS
The CO2emission levels at the exhaust given in the following table refer to combined consumption.
CO
2EMISSIONS ACCORDING TO 2004/3/EC DIRECTIVE (g/km)
1.4 16V 1.4 T-JET 1.4 T-JET 1.6 Multijet 1.6 Multijet120 HP 150 HP 90 HP (●) 105 HP
156 156 165 115 129 (*)/119 (**)
(●) Versions for specific markets
(*) Euro 4 with/without DPF versions
(**) Euro 4 with DPF (ECO) versions
1.6 Multijet1.9 Multijet 8V1.9 Multijet 8V 90 HP (●
) 1.9 Multijet 16V2.0 Multijet120 HP1.9 Multijet 8V 115 HP (●
)
129 139 137 149 139
(●) Versions for specific markets
213-237 BRAVO GB 30-10-2008 9:22 Pagina 232

233
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
RADIO FREQUENCY REMOTE CONTROL: Ministerial homologation
213-237 BRAVO GB 30-10-2008 9:22 Pagina 233

234
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
213-237 BRAVO GB 30-10-2008 9:22 Pagina 234

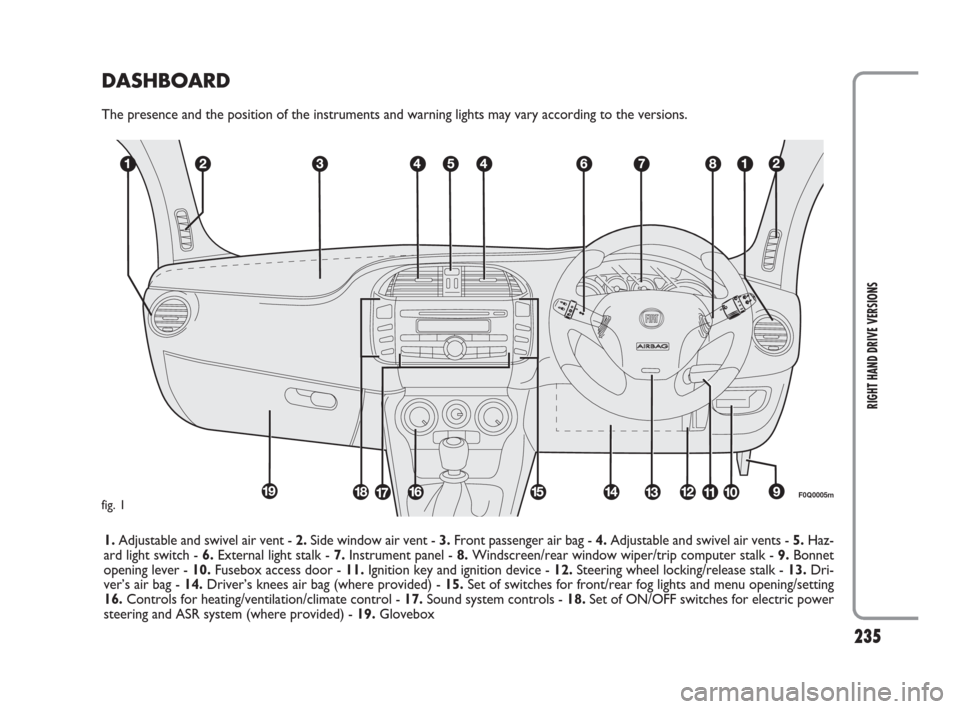

DASHBOARD
The presence and the position of the instruments and warning lights may vary according to the versions.
1.Adjustable and swivel air vent - 2.Side window air vent - 3.Front passenger air bag - 4.Adjustable and swivel air vents - 5.Haz-
ard light switch - 6.External light stalk - 7.Instrument panel - 8.Windscreen/rear window wiper/trip computer stalk - 9.Bonnet
opening lever - 10.Fusebox access door - 11.Ignition key and ignition device - 12.Steering wheel locking/release stalk - 13.Dri-
ver’s air bag - 14.Driver’s knees air bag (where provided) - 15.Set of switches for front/rear fog lights and menu opening/setting
16.Controls for heating/ventilation/climate control - 17.Sound system controls - 18.Set of ON/OFF switches for electric power
steering and ASR system (where provided) - 19.Glovebox
F0Q0005mfig. 1
235
RIGHT HAND DRIVE VERSIONS
213-237 BRAVO GB 30-10-2008 9:22 Pagina 235

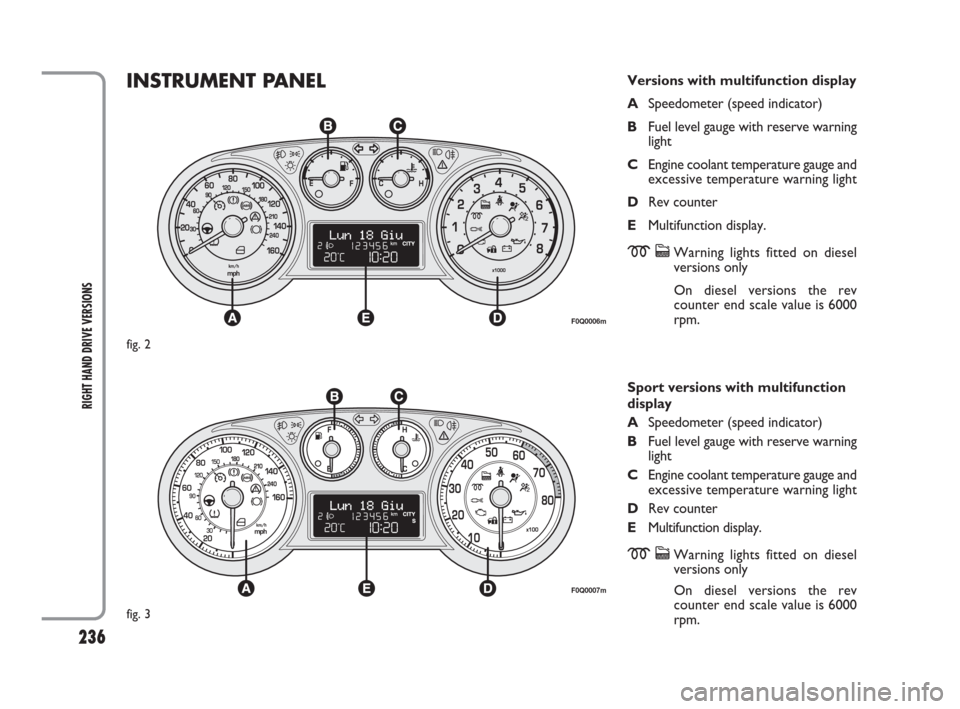

INSTRUMENT PANELVersions with multifunction display
ASpeedometer (speed indicator)
BFuel level gauge with reserve warning
light
CEngine coolant temperature gauge and
excessive temperature warning light
DRev counter
EMultifunction display.
m
cWarning lights fitted on diesel
versions only
On diesel versions the rev
counter end scale value is 6000
rpm.
Sport versions with multifunction
display
ASpeedometer (speed indicator)
BFuel level gauge with reserve warning
light
CEngine coolant temperature gauge and
excessive temperature warning light
DRev counter
EMultifunction display.
m
cWarning lights fitted on diesel
versions only
On diesel versions the rev
counter end scale value is 6000
rpm.
F0Q0006m
403020 608010 0
60 9012 015 0
F0Q0007m
fig. 3 fig. 2
236
RIGHT HAND DRIVE VERSIONS
213-237 BRAVO GB 30-10-2008 9:22 Pagina 236

237

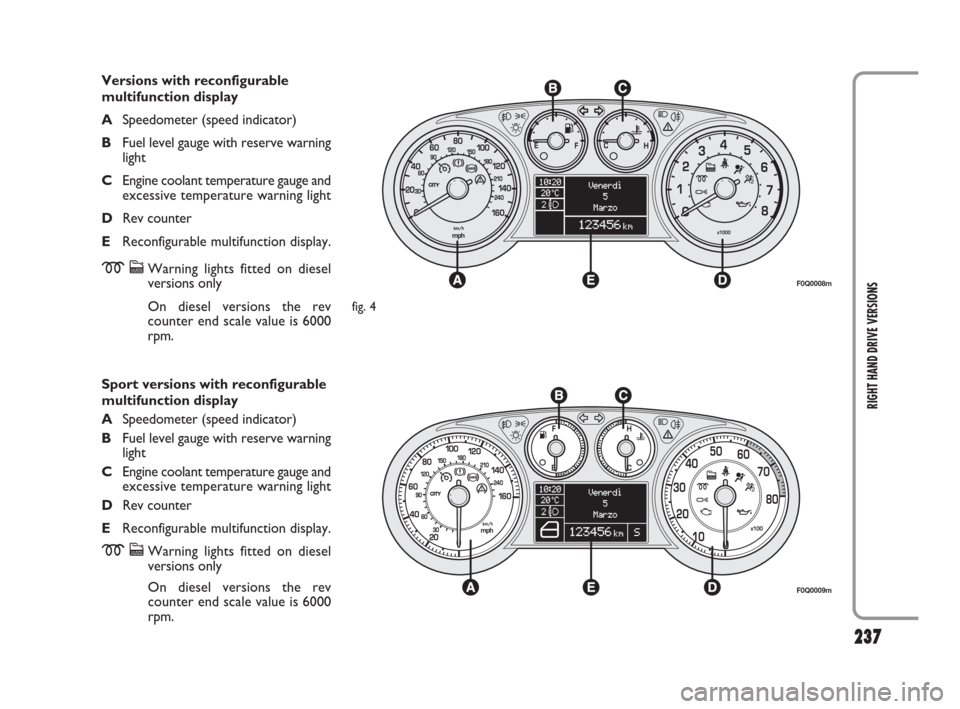

Versions with reconfigurable
multifunction display
ASpeedometer (speed indicator)
BFuel level gauge with reserve warning
light
CEngine coolant temperature gauge and
excessive temperature warning light
DRev counter
EReconfigurable multifunction display.
m
cWarning lights fitted on diesel
versions only
On diesel versions the rev
counter end scale value is 6000
rpm.F0Q0008m
fig. 4
F0Q0009m
Sport versions with reconfigurable
multifunction display
ASpeedometer (speed indicator)
BFuel level gauge with reserve warning
light
CEngine coolant temperature gauge and
excessive temperature warning light
DRev counter
EReconfigurable multifunction display.
m
cWarning lights fitted on diesel
versions only
On diesel versions the rev
counter end scale value is 6000
rpm.
237
RIGHT HAND DRIVE VERSIONS
213-237 BRAVO GB 30-10-2008 9:22 Pagina 237

238
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

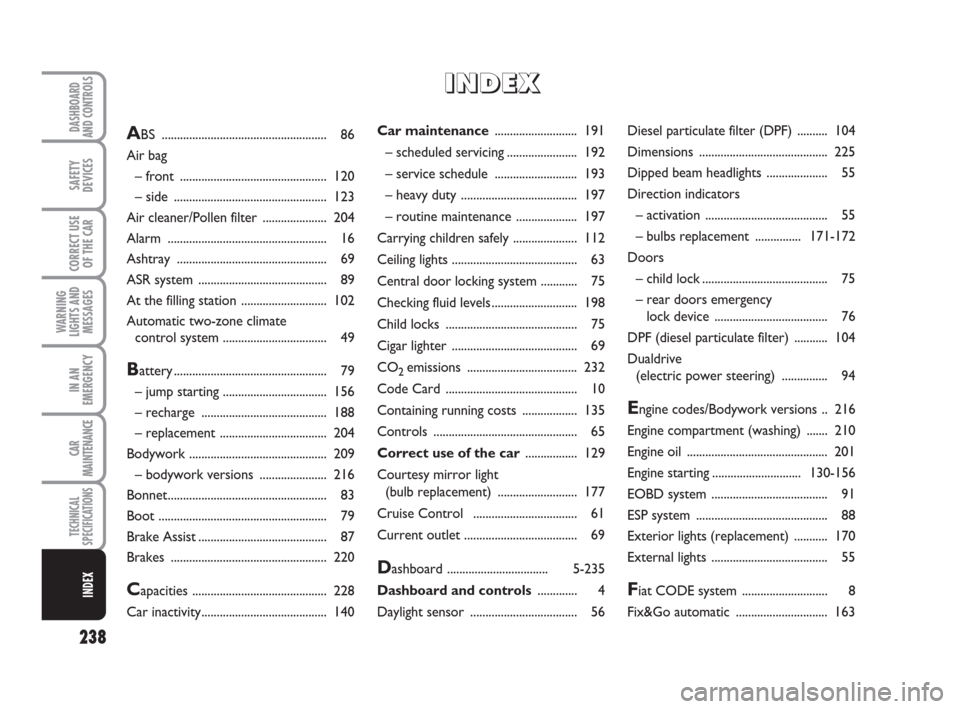

Car maintenance ........................... 191
– scheduled servicing....................... 192
– service schedule ........................... 193
– heavy duty ...................................... 197
– routine maintenance .................... 197
Carrying children safely ..................... 112
Ceiling lights ......................................... 63
Central door locking system ............ 75
Checking fluid levels............................ 198
Child locks ........................................... 75
Cigar lighter ......................................... 69
CO
2 emissions .................................... 232
Code Card ........................................... 10
Containing running costs .................. 135
Controls ............................................... 65
Correct use of the car................. 129
Courtesy mirror light
(bulb replacement) .......................... 177
Cruise Control .................................. 61
Current outlet ..................................... 69
Dashboard .................................5-235
Dashboard and controls ............. 4
Daylight sensor ................................... 56Diesel particulate filter (DPF) .......... 104
Dimensions .......................................... 225
Dipped beam headlights .................... 55
Direction indicators
– activation ........................................ 55
– bulbs replacement ...............171-172
Doors
– child lock......................................... 75
– rear doors emergency
lock device ..................................... 76
DPF (diesel particulate filter) ........... 104
Dualdrive
(electric power steering) ............... 94
Engine codes/Bodywork versions .. 216
Engine compartment (washing) ....... 210
Engine oil .............................................. 201
Engine starting.............................130-156
EOBD system ...................................... 91
ESP system ........................................... 88
Exterior lights (replacement) ........... 170
External lights ...................................... 55
Fiat CODE system ............................ 8
Fix&Go automatic .............................. 163
ABS ...................................................... 86
Air bag
– front ................................................ 120
– side .................................................. 123
Air cleaner/Pollen filter ..................... 204
Alarm .................................................... 16
Ashtray ................................................. 69
ASR system .......................................... 89
At the filling station ............................ 102
Automatic two-zone climate
control system .................................. 49
Battery.................................................. 79
– jump starting .................................. 156
– recharge ......................................... 188
– replacement ................................... 204
Bodywork ............................................. 209
– bodywork versions ...................... 216
Bonnet.................................................... 83
Boot ....................................................... 79
Brake Assist.......................................... 87
Brakes ................................................... 220
Capacities ............................................ 228
Car inactivity......................................... 140
II I
N N
D D
E E
X X
238-244 BRAVO GB 29-10-2008 12:37 Pagina 238

239
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
If a tyre is punctured ......................... 157
If an exterior light burns out ............ 170
If the battery is flat ............................. 188
Ignition switch ..................................... 19
In an emergency ............................ 155
Installation of electric/electronic
devices ................................................ 93
Instrument panel .......................6-236
Instruments........................................... 20
Interior fittings .................................... 67
Interior lights ....................................... 175
Interiors ................................................ 211
Jacking the car .................................... 189
Jump starting ........................................ 156
Keys .................................................... 10
Load limiters ...................................... 109
Main beam headlights ....................... 55
Manual climate control system ........ 46
MSR system ......................................... 90
Multifunction display .......................... 22
Number plate lights
(bulb replacement) .......................... 174
Oddment compartments ................. 68
Paint ..................................................... 209
Parking .................................................. 133
Parking lights ........................................ 55
Parking sensors ................................... 99
Performance ........................................ 226
Power windows .................................. 77
Pretensioners ...................................... 109
Protecting the environment ............. 103
Quick tyre repair
Kit Fix & Go automatic ..........163
Radio transmitters
and cellular telephones ................... 93
Rain sensor .......................................... 58
Rear fog lights ...................................... 65
Rear view mirrors .............................. 40
Rear window washer
– activation ........................................ 60
– blades .............................................. 207
– nozzles ............................................ 208
Rear window wiper
– activation ....................................... 57
– blades .............................................. 207
– nozzles ............................................ 208 Fluids and lubricants ........................... 229
Follow me home device .................... 56
Front/rear armrest .......................67-68
Fuel consumption ............................... 231
Fuel cut-off switch............................... 66
Fuel feed/Ignition ................................ 219
Fuel filler cap ....................................... 103
Fuse replacement ............................... 178
Glass holder/
oddment compartment.................... 70
Glove box light
(bulb replacement) .......................... 177
Handbrake .......................................... 133
Hazard lights ........................................ 65
Head restraints ................................... 39
Headlight washer ................................ 60
Headlights ............................................. 85
Heating and ventilation....................... 44
Heating and ventilation ...................... 44
Heating/climate control system ....... 42
Hill Holder system ............................. 88
Identification codes ........................... 216
Identification data ............................... 214
If a fuse blows ...................................... 178
238-244 BRAVO GB 29-10-2008 12:37 Pagina 239
