FIAT BRAVO 2013 2.G Owners Manual

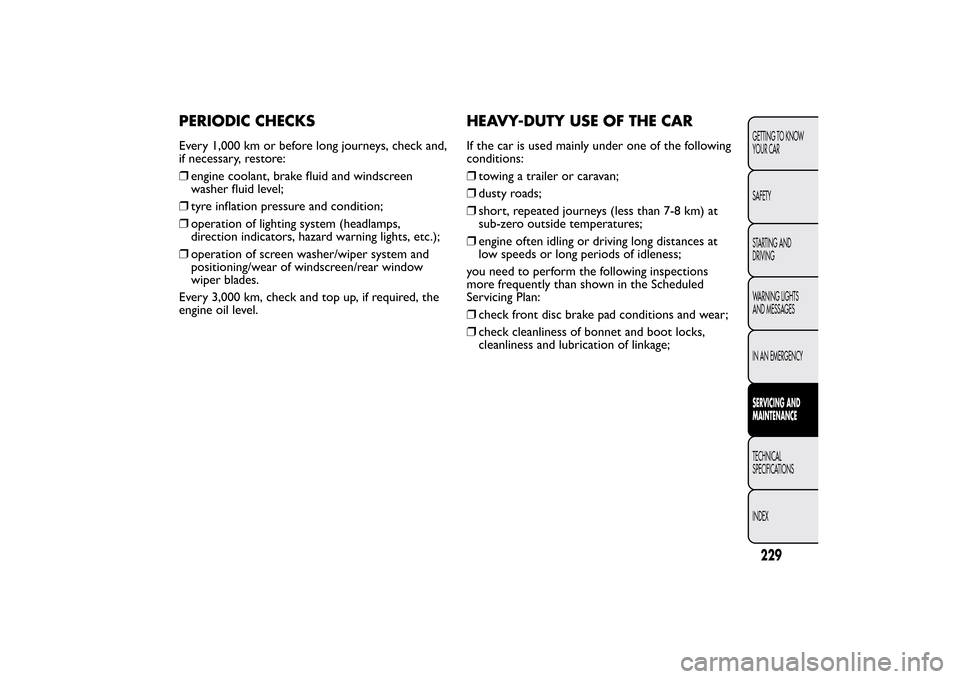

PERIODIC CHECKSEvery 1,000 km or before long journeys, check and,
if necessary, restore:
❒engine coolant, brake fluid and windscreen
washer fluid level;
❒tyre inflation pressure and condition;
❒operation of lighting system (headlamps,
direction indicators, hazard warning lights, etc.);
❒operation of screen washer/wiper system and
positioning/wear of windscreen/rear window
wiper blades.
Every 3,000 km, check and top up, if required, the
engine oil level.
HEAVY-DUTY USE OF THE CARIf the car is used mainly under one of the following
conditions:
❒towing a trailer or caravan;
❒dusty roads;
❒short, repeated journeys (less than 7-8 km) at
sub-zero outside temperatures;
❒engine often idling or driving long distances at
low speeds or long periods of idleness;
you need to perform the following inspections
more frequently than shown in the Scheduled
Servicing Plan:
❒check front disc brake pad conditions and wear;
❒check cleanliness of bonnet and boot locks,
cleanliness and lubrication of linkage;
229GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCYSERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONS
INDEX

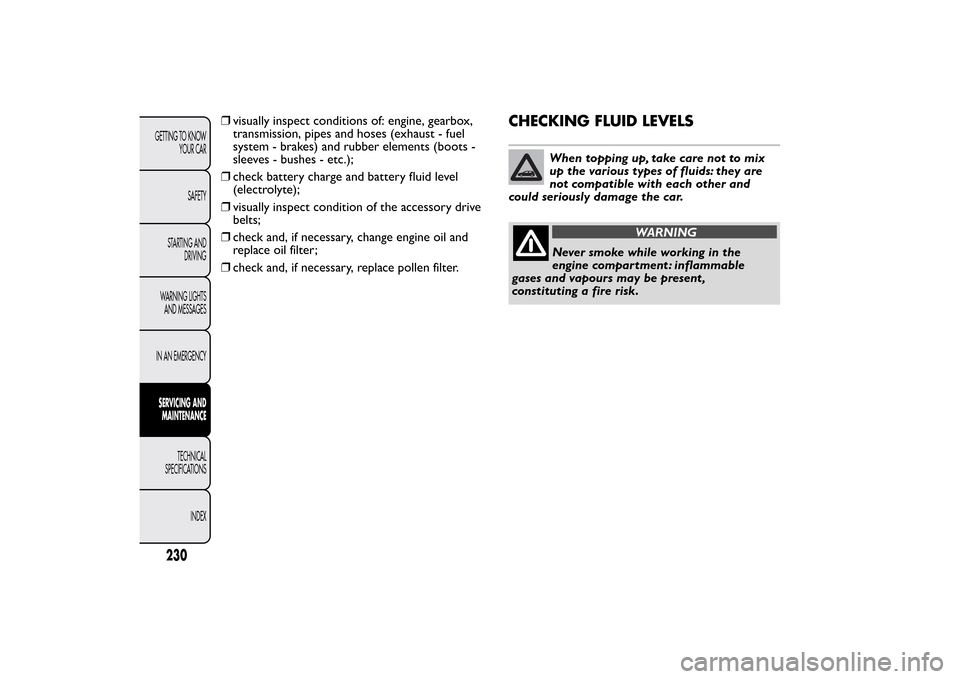

❒visually inspect conditions of: engine, gearbox,
transmission, pipes and hoses (exhaust - fuel
system - brakes) and rubber elements (boots -
sleeves - bushes - etc.);
❒check battery charge and battery fluid level
(electrolyte);
❒visually inspect condition of the accessory drive
belts;
❒check and, if necessary, change engine oil and
replace oil filter;
❒check and, if necessary, replace pollen filter.
CHECKING FLUID LEVELS
When topping up, take care not to mix
up the various types of fluids: they are
not compatible with each other and
could seriously damage the car.
WARNING
Never smoke while working in the
engine compartment : inflammable
gases and vapours may be present ,
constituting a fire risk.
230GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

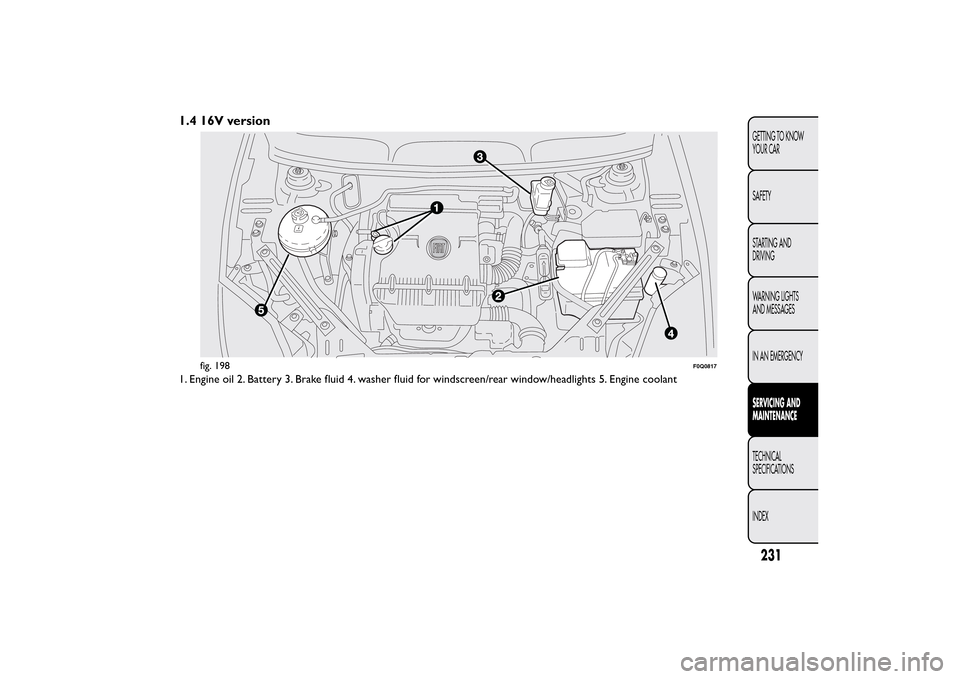

1.4 16V version1. Engine oil 2. Battery 3. Brake fluid 4. washer fluid for windscreen/rear window/headlights 5. Engine coolant
fig. 198
F0Q0817
231GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCYSERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONS
INDEX

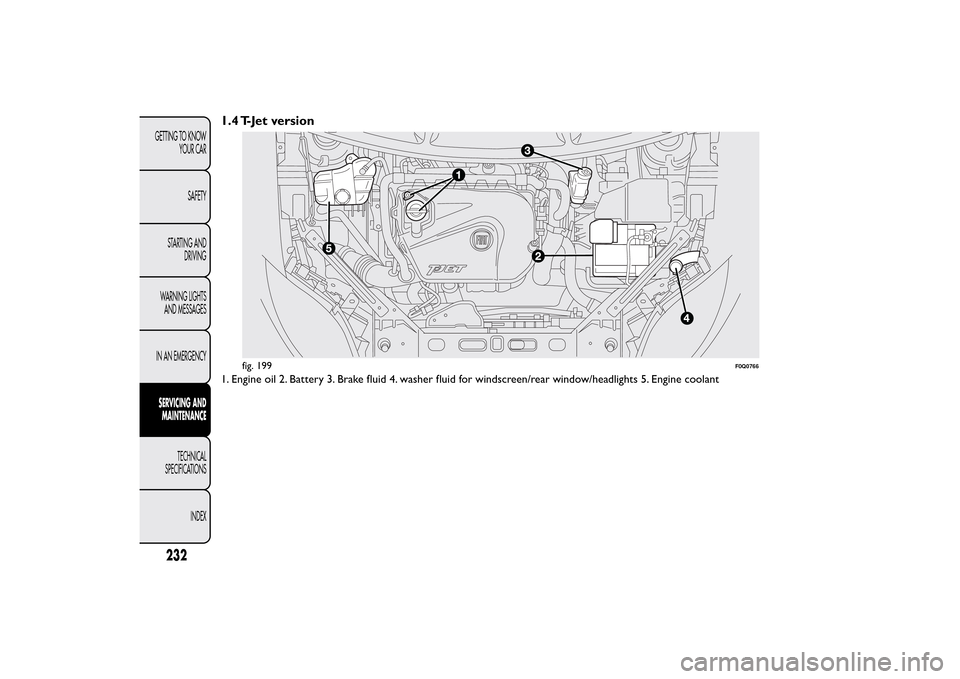

1.4 T-Jet version1. Engine oil 2. Battery 3. Brake fluid 4. washer fluid for windscreen/rear window/headlights 5. Engine coolant
fig. 199
F0Q0766
232GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

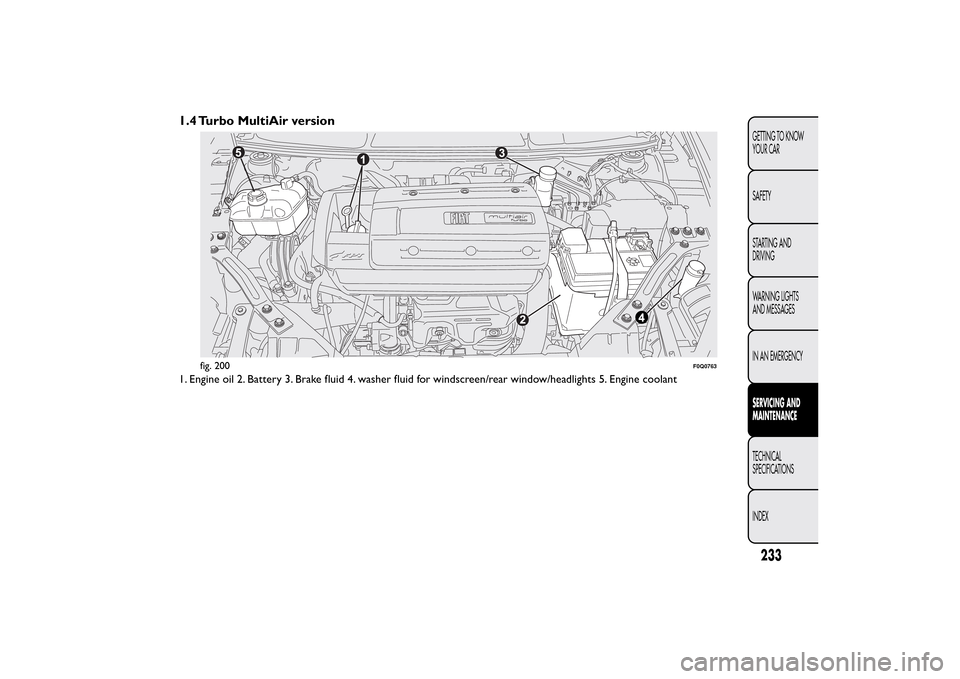

1.4 Turbo MultiAir version1. Engine oil 2. Battery 3. Brake fluid 4. washer fluid for windscreen/rear window/headlights 5. Engine coolant
fig. 200
F0Q0763
233GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCYSERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONS
INDEX

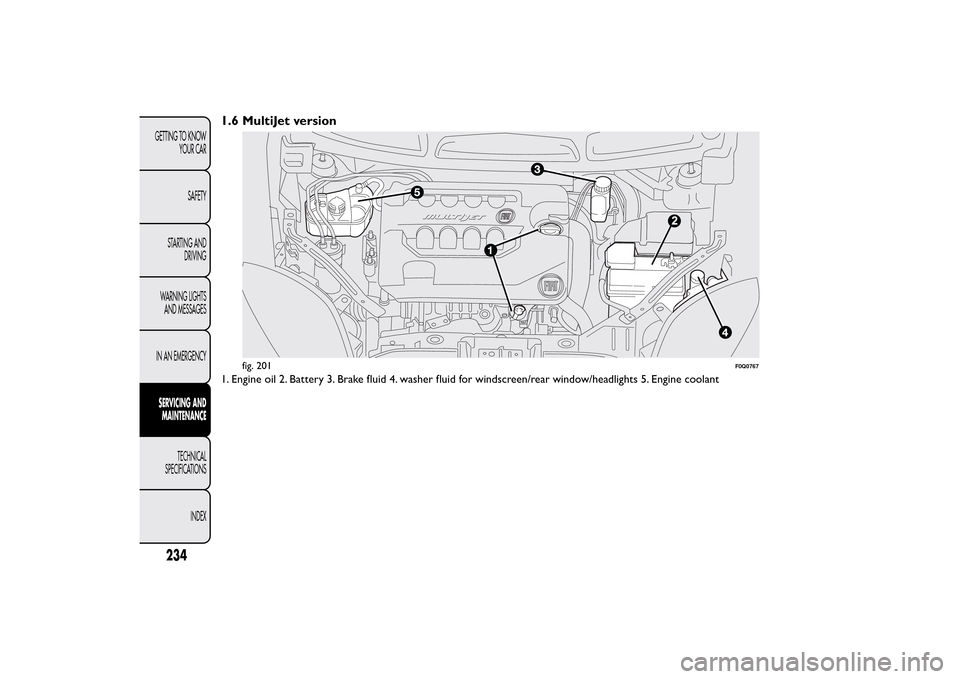

1.6 MultiJet version1. Engine oil 2. Battery 3. Brake fluid 4. washer fluid for windscreen/rear window/headlights 5. Engine coolant
fig. 201
F0Q0767
234GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

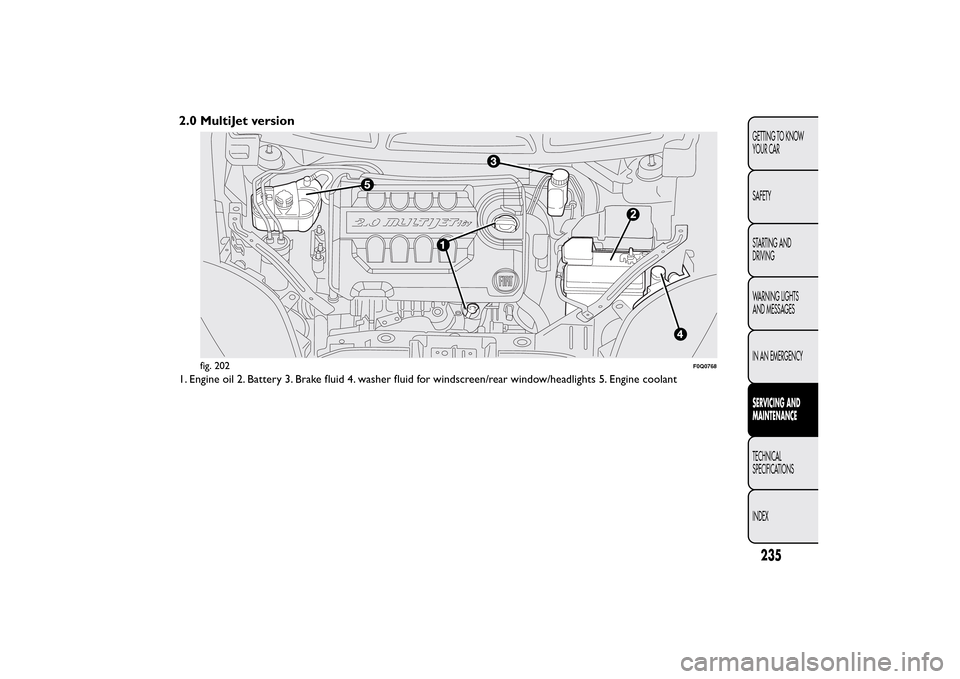

2.0 MultiJet version1. Engine oil 2. Battery 3. Brake fluid 4. washer fluid for windscreen/rear window/headlights 5. Engine coolant
fig. 202
F0Q0768
235GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCYSERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONS
INDEX

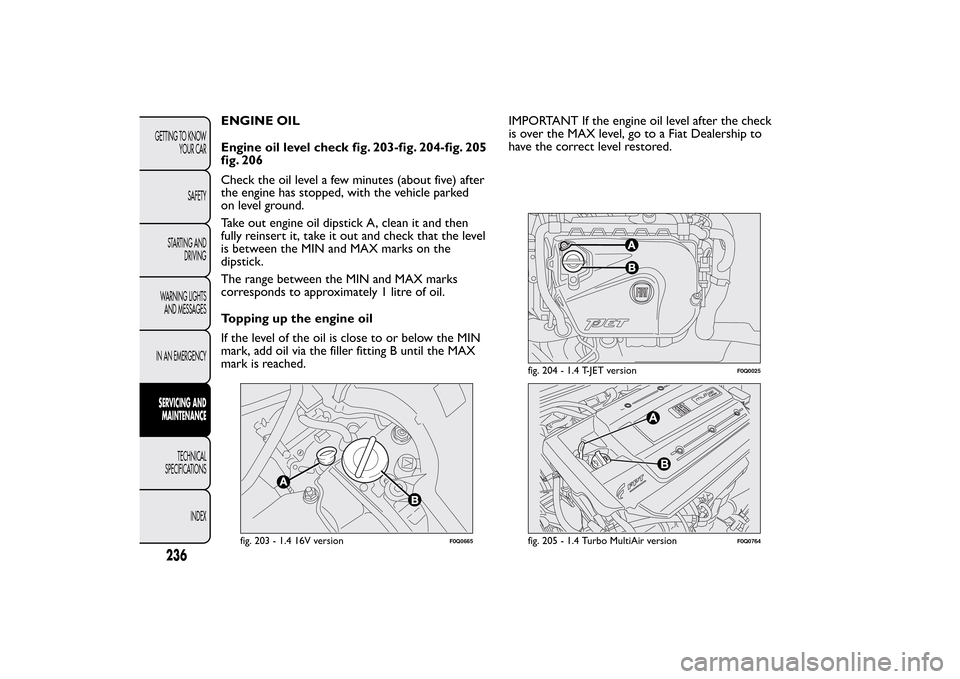

ENGINE OIL
Engine oil level check fig. 203-fig. 204-fig. 205
fig. 206
Check the oil level a few minutes (about five) after
the engine has stopped, with the vehicle parked
on level ground.
Take out engine oil dipstick A, clean it and then
fully reinsert it, take it out and check that the level
is between the MIN and MAX marks on the
dipstick.
The range between the MIN and MAX marks
corresponds to approximately 1 litre of oil.
Topping up the engine oil
If the level of the oil is close to or below the MIN
mark, add oil via the filler fitting B until the MAX
mark is reached.IMPORTANT If the engine oil level after the check
is over the MAX level, go to a Fiat Dealership to
have the correct level restored.
fig. 203 - 1.4 16V version
F0Q0665
fig. 204 - 1.4 T-JET version
F0Q0025
fig. 205 - 1.4 Turbo MultiAir version
F0Q0764
