INSTANT NAV
Measures (temperature/distance/
consumption)
Select the item “Measures” by turning
the OK button/knob and then press the
actual knob to confirm.
The display will show the following
screen (fig. 35).
Select the desired unit of measurement.
Turn the OK button/knob, select OK and
then press the actual knob to confirm.
NOTE The selection of the unit of mea-
surement for the temperature is only
available if the outside temperature sen-
sor is present.SOUNDS
This makes it possible to adjust the vol-
ume of the voice messages, the instrument
panel buzzer and the buttons buzzer in the
car (fig. 36).
“Voice message volume”
(Voice message volume
adjustment)
Select the item and adjust the volume by
turning the OK button/knob and then
press the actual knob to confirm.
There are 40 levels for the volume ad-
justment.“Warnings volume”
(Adjustment of instrument panel
buzzer volume)
Adjustment of the volume for signals for
any warnings supplied by the instrument
panel.
This adjustment can only be made with
the ignition key in the MAR position.
There are 7 levels for the volume ad-
justment.
“Buttons volume”
(Adjustment of buttons buzzer
volume)
This adjustment can only be made with
the ignition key in the MAR position.
There are 7 levels for the volume ad-
justment.
fig. 35F0L5005gfig. 36F0L5016g
603_97_471 CROMA_INSTANT NAV_GB_1ed 23-10-2009 15:29 Pagina 51

52
INSTANT NAV

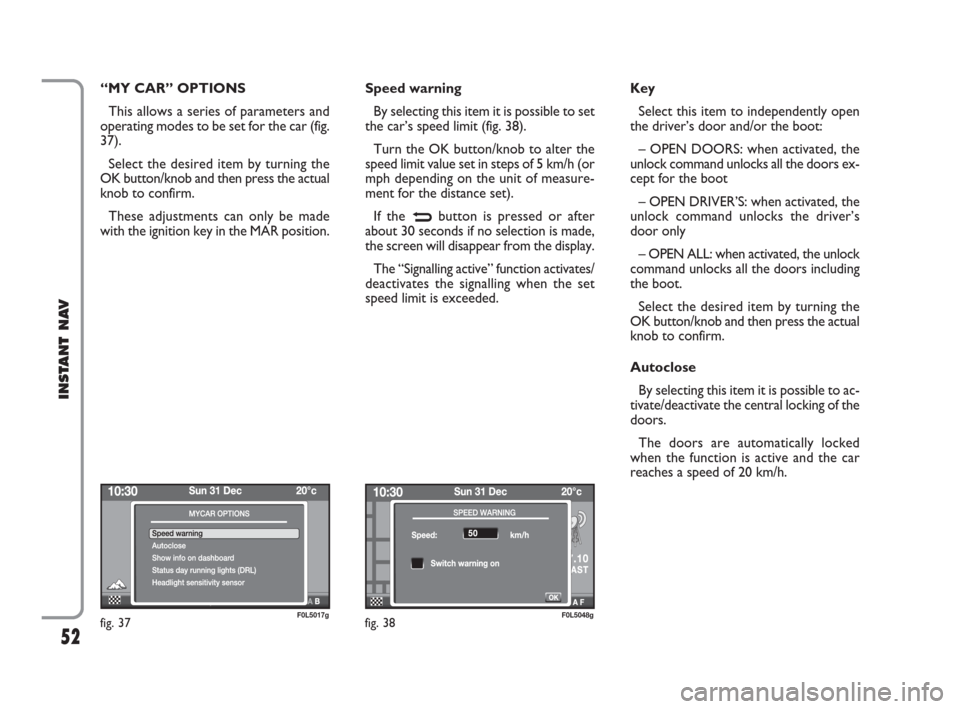

“MY CAR” OPTIONS
This allows a series of parameters and
operating modes to be set for the car (fig.
37).
Select the desired item by turning the
OK button/knob and then press the actual
knob to confirm.
These adjustments can only be made
with the ignition key in the MAR position.Speed warning
By selecting this item it is possible to set
the car’s speed limit (fig. 38).
Turn the OK button/knob to alter the
speed limit value set in steps of 5 km/h (or
mph depending on the unit of measure-
ment for the distance set).
If the
Nbutton is pressed or after
about 30 seconds if no selection is made,
the screen will disappear from the display.
The “Signalling active” function activates/
deactivates the signalling when the set
speed limit is exceeded.Key
Select this item to independently open
the driver’s door and/or the boot:
– OPEN DOORS: when activated, the
unlock command unlocks all the doors ex-
cept for the boot
– OPEN DRIVER’S: when activated, the
unlock command unlocks the driver’s
door only
– OPEN ALL: when activated, the unlock
command unlocks all the doors including
the boot.
Select the desired item by turning the
OK button/knob and then press the actual
knob to confirm.
Autoclose
By selecting this item it is possible to ac-
tivate/deactivate the central locking of the
doors.
The doors are automatically locked
when the function is active and the car
reaches a speed of 20 km/h.
fig. 37F0L5017gfig. 38F0L5048g
603_97_471 CROMA_INSTANT NAV_GB_1ed 23-10-2009 15:29 Pagina 52

53
INSTANT NAV
Show info on dashboard
By selecting this item it is possible to set
the repetition of the information relating
to the audio (radio) and Trip B in the in-
strument panel display.
By selecting the “Radio” item the fol-
lowing information will appear on the dis-
play:
– Audio source activated;
– Frequency (only in Radio mode);
– Radio station search (only in Radio
mode);
– Track number (only Audio CD, MP3
or Media Player);
– Disc number (only Audio CD, MP3 or
Media Player);
By selecting the item “Trip B” on the dis-
play or pressing the TRIP button on the
right steering column switch the Trip B in-
formation will appear.Select the "Navigation" item: the follow-
ing information will appear on the display:
– Distance remaining to the next ma-
noeuvre;
– Pictogram of the next manoeuvre (on-
ly if the car is on the navigation map and
a destination has been entered) or direc-
tion indication (if the car is not on the nav-
igation map and a destination has been en-
tered).
NOTE The "Navigation" item is only
present if the car is equipped with a re-
configurable multifunction display.Status day running lights (DRL)
(for versions/markets, where provided)
By selecting this item it is possible to ac-
tivate/deactivate the DRL (daytime run-
ning lights) function.
This adjustment is only possible if the
“Status day running lights” function has
been activated in the car Setup Menu (see
description in Owner Handbook).
Courtesy lights
(for versions/markets, where provided)
By selecting this item it is possible to ac-
tivate/deactivate the “Courtesy lights”
function.
Headlight sensitivity sensor
(for versions/markets, where provided)
By selecting this item it is possible to ad-
just the dusk sensor setting.
This adjustment is only possible if the car
is equipped with a dusk sensor.
603_97_471 CROMA_INSTANT NAV_GB_1ed 23-10-2009 15:29 Pagina 53

54
INSTANT NAV

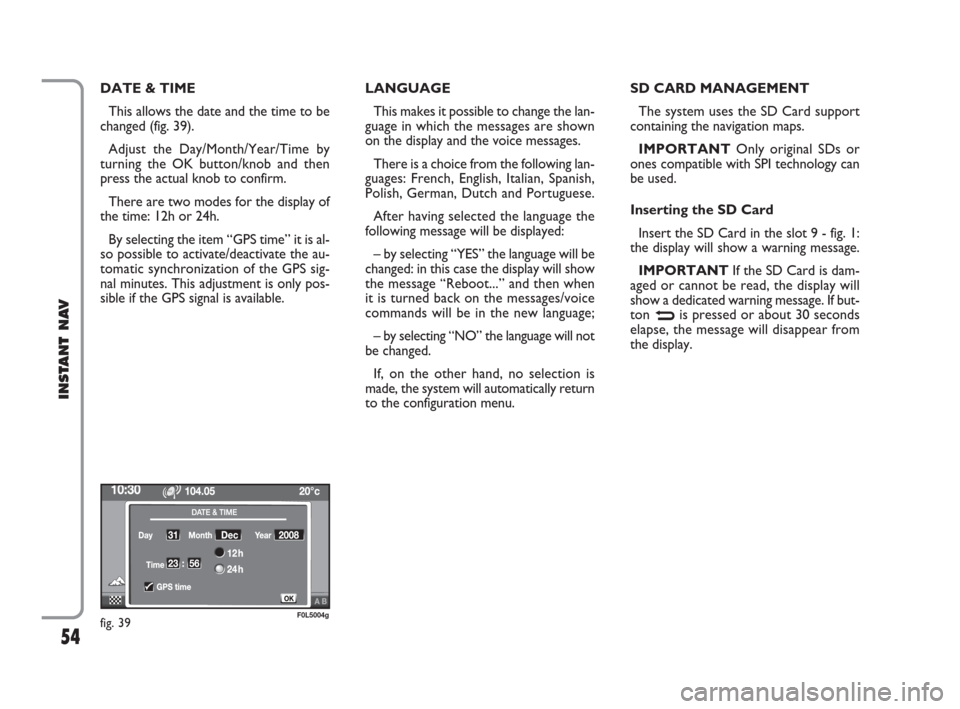

DATE & TIME
This allows the date and the time to be
changed (fig. 39).
Adjust the Day/Month/Year/Time by
turning the OK button/knob and then
press the actual knob to confirm.
There are two modes for the display of
the time: 12h or 24h.
By selecting the item “GPS time” it is al-
so possible to activate/deactivate the au-
tomatic synchronization of the GPS sig-
nal minutes. This adjustment is only pos-
sible if the GPS signal is available.LANGUAGE
This makes it possible to change the lan-
guage in which the messages are shown
on the display and the voice messages.
There is a choice from the following lan-
guages: French, English, Italian, Spanish,
Polish, German, Dutch and Portuguese.
After having selected the language the
following message will be displayed:
– by selecting “YES” the language will be
changed: in this case the display will show
the message “Reboot...” and then when
it is turned back on the messages/voice
commands will be in the new language;
– by selecting “NO” the language will not
be changed.
If, on the other hand, no selection is
made, the system will automatically return
to the configuration menu.SD CARD MANAGEMENT
The system uses the SD Card support
containing the navigation maps.
IMPORTANTOnly original SDs or
ones compatible with SPI technology can
be used.
Inserting the SD Card
Insert the SD Card in the slot 9 - fig. 1:
the display will show a warning message.
IMPORTANTIf the SD Card is dam-
aged or cannot be read, the display will
show a dedicated warning message. If but-
ton
Nis pressed or about 30 seconds
elapse, the message will disappear from
the display.
fig. 39F0L5004g
603_97_471 CROMA_INSTANT NAV_GB_1ed 23-10-2009 15:29 Pagina 54

55
INSTANT NAV

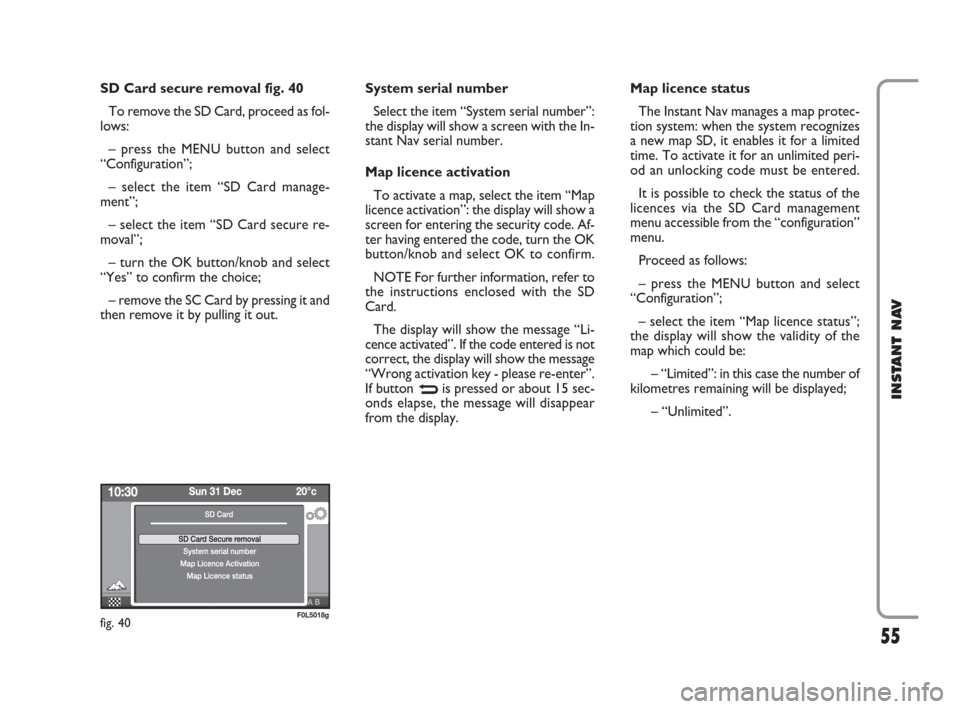

SD Card secure removal fig. 40
To remove the SD Card, proceed as fol-
lows:
– press the MENU button and select
“Configuration”;
– select the item “SD Card manage-
ment”;
– select the item “SD Card secure re-
moval”;
– turn the OK button/knob and select
“Yes” to confirm the choice;
– remove the SC Card by pressing it and
then remove it by pulling it out.System serial number
Select the item “System serial number”:
the display will show a screen with the In-
stant Nav serial number.
Map licence activation
To activate a map, select the item “Map
licence activation”: the display will show a
screen for entering the security code. Af-
ter having entered the code, turn the OK
button/knob and select OK to confirm.
NOTE For further information, refer to
the instructions enclosed with the SD
Card.
The display will show the message “Li-
cence activated”. If the code entered is not
correct, the display will show the message
“Wrong activation key - please re-enter”.
If button
Nis pressed or about 15 sec-
onds elapse, the message will disappear
from the display.Map licence status
The Instant Nav manages a map protec-
tion system: when the system recognizes
a new map SD, it enables it for a limited
time. To activate it for an unlimited peri-
od an unlocking code must be entered.
It is possible to check the status of the
licences via the SD Card management
menu accessible from the “configuration”
menu.
Proceed as follows:
– press the MENU button and select
“Configuration”;
– select the item “Map licence status”;
the display will show the validity of the
map which could be:
– “Limited”: in this case the number of
kilometres remaining will be displayed;
– “Unlimited”.
fig. 40F0L5018g
603_97_471 CROMA_INSTANT NAV_GB_1ed 23-10-2009 15:29 Pagina 55

56
INSTANT NAV
The Instant Nav is capable of detecting
and solving both operating faults within the
system and overheating problems.OPERATING FAULTS
If an internal fault is detected, the system
“freezes” the last screen available and
launches a diagnostic search.
The system checks the module con-
cerned for a few moments to detect the
type of fault; if the preset time is exceed-
ed and the fault persists, the best solu-
tion is adopted (for example, resetting the
hardware for the module involved).
If the Instant Nav no longer responds to
the commands, it is possible to restart it
manually by pressing the
Nbutton for
more than 8 seconds.PROBLEMS DUE TO
OVERHEATING
If the temperature of a Instant Nav hard-
ware module (audio, CD player, etc.) ex-
ceeds the maximum set limit, the module
signals that the temperature is too high;
the display will show a dedicated message.
The module involved is automatically
limited or disabled. In extreme cases the
system is automatically turned off until
normal operating temperature is resumed;
the display shows a dedicated message.
The system will only return to normal
operation when the temperature operat-
ing conditions are normal once again.
