FIAT CROMA 2009 2.G Owners Manual

INSTALLING THE TOW HOOK
The towing device should be fastened to
the body by specialised personnel accord-
ing to any additional and/or integrative in-
formation supplied by the Manufacturer of
the device.
The towing device must meet current reg-
ulations with reference to 94/20/EC Di-
rective and subsequent amendments.
For any version the towing device used
must match the towable weight of the car
on which it is to be installed.
For the electric connection a unified con-
nector should be used which is generally
placed on a special bracket normally fas-
tened to the towing device, and a special
ECU for external trailer light control shall
be installed on the car.
For the electrical connection, 7 or 13 pin
12VDC connection is to be used (CU-
NA/UNI and ISO/DIN Standards). Follow
the instructions provided by the car man-
ufacturer and/or the tow hitch manufac-
turer.An electric brake should be supplied di-
rectly by the battery through a cable with
a cross section of no less than
2.5 mm
2.
IMPORTANT Electric brake or other de-
vice shall be used with running engine.
In addition to the electrical branches, the
car’s electric system can only be con-
nected to the supply cable for an electric
brake and to the cable for an internal light,
though not above 15W.
For connections use the preset control
unit with battery cable no less than 2.5
mm
2. Do not exceed the speed limits of the
country you are driving in. In any case do
not exceed 100 km/h.
It is recommended to use a proper tow-
ing stabiliser on the trailer drawbar.
140
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
The ABS system with which
the car may be fitted does
not control the trailer braking system.
Drive with extreme care on slippery
roadbeds.
WARNING
Under no circumstances
should the car brake system
be altered to control the trailer brake.
The trailer braking system must be
fully independent of the car hydraulic
system.
WARNING
127-144 Croma TRW GB 28-05-2008 16:33 Pagina 140

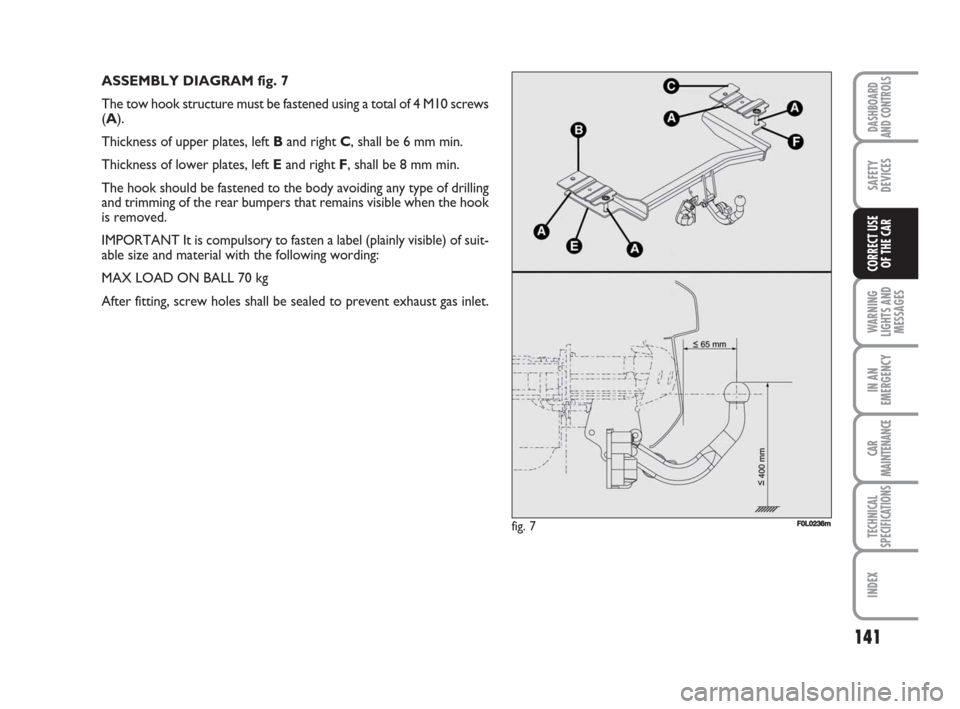

ASSEMBLY DIAGRAM fig. 7
The tow hook structure must be fastened using a total of 4 M10 screws
(A).
Thickness of upper plates, left Band right C, shall be 6 mm min.
Thickness of lower plates, left Eand right F, shall be 8 mm min.
The hook should be fastened to the body avoiding any type of drilling
and trimming of the rear bumpers that remains visible when the hook
is removed.
IMPORTANT It is compulsory to fasten a label (plainly visible) of suit-
able size and material with the following wording:
MAX LOAD ON BALL 70 kg
After fitting, screw holes shall be sealed to prevent exhaust gas inlet.
141
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
fig. 7FF0L0236m
127-144 Croma TRW GB 28-05-2008 16:33 Pagina 141

IMPORTANT When snow tyres are used
with a max speed index below the one
that can be reached by the car (increased
by 5%), place a notice in the passenger’s
compartment, plainly in the driver’s view
which states the max permissible speed of
the snow tyres (as per EC Directive).
All four tyres should be the same (brand
and track) to ensure greater safety when
driving and braking and better driveabili-
ty.
Remember that it is inappropriate to

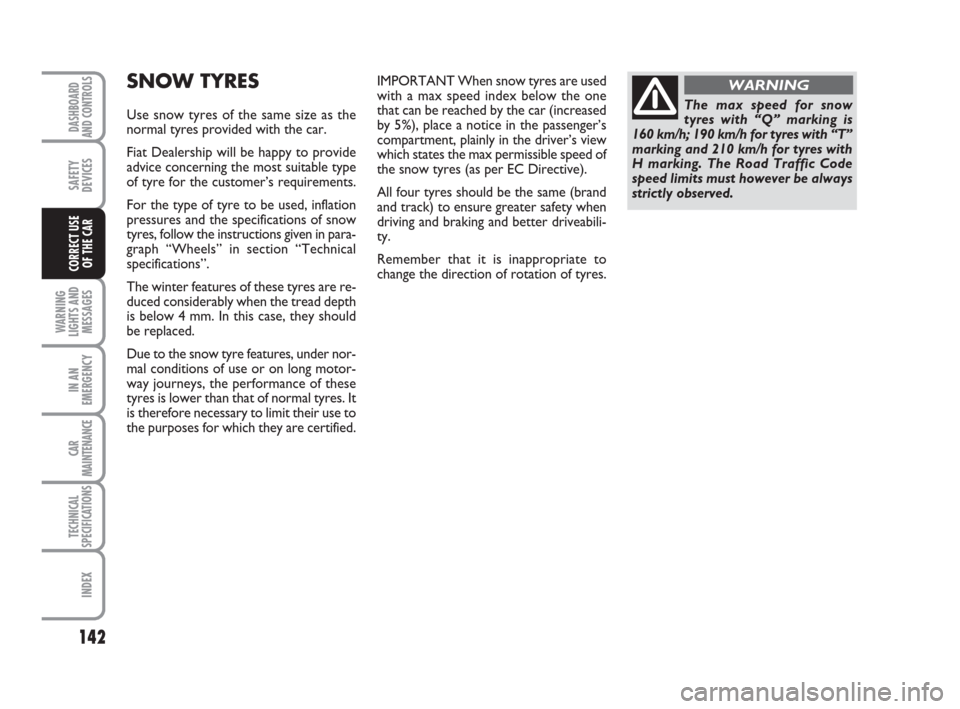

change the direction of rotation of tyres.SNOW TYRES
Use snow tyres of the same size as the
normal tyres provided with the car.
Fiat Dealership will be happy to provide
advice concerning the most suitable type
of tyre for the customer’s requirements.
For the type of tyre to be used, inflation
pressures and the specifications of snow
tyres, follow the instructions given in para-
graph “Wheels” in section “Technical
specifications”.
The winter features of these tyres are re-
duced considerably when the tread depth
is below 4 mm. In this case, they should
be replaced.
Due to the snow tyre features, under nor-
mal conditions of use or on long motor-
way journeys, the performance of these
tyres is lower than that of normal tyres. It
is therefore necessary to limit their use to
the purposes for which they are certified.
142
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
The max speed for snow
tyres with “Q” marking is
160 km/h; 190 km/h for tyres with “T”
marking and 210 km/h for tyres with
H marking. The Road Traffic Code
speed limits must however be always
strictly observed.
WARNING
127-144 Croma TRW GB 28-05-2008 16:33 Pagina 142

SNOW CHAINS
Use of snow chains should be in compli-
ance with local regulations.
Snow chains should only be applied to the
driving wheels (front wheels). We rec-
ommend using Lineaccessori Fiat snow
chains.
Check the tension of the chains after the
first few metres have been driven.
IMPORTANT Snow chains cannot be fit-
ted to the space-saver spare wheel. So, if
a front (drive) wheel is punctured and
chains are needed, a rear wheel should be
fitted to the front of the car and the spare
wheel should be fitted to the rear. This
way with two normal drive wheels, snow
chains can be fitted to them to solve an
emergency.
IMPORTANT Snow chains shall only be
a temporary solution. Use snow tyres if
you have to travel for long on roadbeds
covered with snow or ice.
IMPORTANT With snow chains fitted,
use the accelerator with extreme care to
prevent or to reduce to a minimum dri-
ving wheel skidding in order to avoid snow
chain breaking that could cause damages
to the body or the mechanical parts of the
car.
143
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
Versions Tyres on which chains Type of snow chains
can be fitted to be used
1.8 - 2.2205/55 R16 91V
1.9 Multijet
215/55 R16 93W
2.4 Multijet
215/50 R17 91WSnow chains with reduced size with
max protrusion beyond the tyre
profile of 9 mm
Refer to the above mentioned table for information on the wheels where
snow chains can be fitted. Follow the prescriptions.
Keep your speed down when snow chains are fitted. Do not ex-
ceed 40 km/h. Avoid potholes, steps and pavements and avoid
also to drive for long distances on roads not covered with snow
to prevent damaging the car and the roadbed.
127-144 Croma TRW GB 28-05-2008 16:33 Pagina 143

❒clean and protect the painted parts us-
ing protective wax;
❒clean and protect the shiny metal parts
using special compounds readily avail-
able;
❒sprinkle talcum powder on the rubber
windscreen and rear window wiper
blades and lift them off the glass;
❒slightly open the windows;
❒cover the car with a cloth or perfo-
rated plastic sheet. Do not use sheets
of non-perforated plastic as they do
not allow moisture on the car body to
evaporate;
❒inflate tyres to +0,5 bar above the
normal specified pressure and check it
at intervals;
❒when the battery is not disconnected
from the electric system, if the vehicle
is equipped with a battery with an op-
tical indicator, control its charge sta-
tus every 30 days and if the optical in-
dicator shows a dark colour without
the central green zone, recharge it;
❒do not drain the engine cooling sys-
tem.
IMPORTANT Where relevant, switch off
the car alarm with the remote control.
CAR INACTIVITY
If the car is to be left inactive for longer
than a month, the following precautions
should be noted:
❒park the car in covered, dry and if pos-
sible well-ventilated premises;
❒engage a gear (position P with auto-
matic transmission);
❒check that the handbrake is not en-
gaged;
❒disconnect battery terminals (first dis-
connect the negative terminal);
❒if the vehicle is equipped with a bat-
tery with an optical indicator, control
its charge status. This check is to be
repeated every three months when
the car is left inactive. Recharge if the
optical indicator shows a dark colour
without the central green area;
144
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
127-144 Croma TRW GB 28-05-2008 16:33 Pagina 144

145
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
GENERAL WARNINGS ...................................................... 146
INSUFFICIENT BRAKE LIQUID ....................................... 146
HAND BRAKE ENGAGED ............................................... 146
AIR BAG FAILURE................................................................ 146
PASSENGER SIDE FRONT AND SIDE CHEST
PROTECTION AIR BAGS (SIDE BAGS) OFF ............... 147
SEAT BELTS NOT FASTENED ......................................... 147
EXCESSIVE ENGINE COOLANT TEMPERATURE ..... 148
INSUFFICIENT BATTERY RECHARGING .................... 148
ABS SYSTEM FAILURE ........................................................ 148
EBD FAILURE......................................................................... 148
INSUFFICIENT ENGINE OIL PRESSURE........................ 149
DEGRADED OIL................................................................... 149
POWER STEERING FAILURE ........................................... 149
INCOMPLETE DOOR CLOSURE .................................... 149
INJECTION SYSTEM FAILURE ......................................... 149
ENGINE CONTROL SYSTEM FAILURE (EOBD) ........ 149
FUEL RESERVE ..................................................................... 150
SPARK PLUG PREHEATING ............................................. 150
SPARK PLUG PREHEATING FAILURE ........................... 150
WATER IN DIESEL FILTER ................................................ 151
FIAT CODE - VEHICLE PROTECTION
SYSTEM FAILURE ................................................................ 151
ALARM FAILURE .................................................................. 151
BREAK-IN ATTEMPT .......................................................... 151
ELECTRONIC KEY NOT RECOGNISED ..................... 151
EXTERIOR LIGHT FAILURE .............................................. 152
REAR FOG LIGHTS ............................................................. 152GENERIC SIGNALLING ..................................................... 152
ESP SYSTEM FAILURE ......................................................... 154
HILL HOLDER FAILURE .................................................... 154
POSITION LIGHTS AND LOW BEAMS ........................ 154
FOLLOW ME HOME ........................................................... 154
FOG LIGHTS ......................................................................... 154
LEFT TURN SIGNAL ........................................................... 154
RIGHT TURN SIGNAL ....................................................... 154
HIGH BEAMS ......................................................................... 155
POSSIBILITY OF ICE ON ROADS ................................... 155
LIMITED RANGE .................................................................. 155
ASR SYSTEM .......................................................................... 155
AUTOMATIC TRANSMISSION FAILURE ..................... 155
MAXIMUM AUTOMATIC TRANSMISSION OIL
TEMPERATURE .................................................................... 155
SET SPEED LIMIT EXCEEDANCE .................................... 156
CONSTANT SPEED REGULATOR
(CRUISE CONTROL) .......................................................... 156
BRAKE PAD WEAR ............................................................. 156
MINIMUM ENGINE OIL LEVEL ....................................... 156
REAR SIDE CHEST PROTECTION AIR BAGS
(REAR SIDE BAGS) OFF ..................................................... 156
TURNING OFF A MOVING VEHICLE ........................... 156
STARTING PROCEDURE DISPLAY INFORMATION
MESSAGES (AUTOMATIC TRANSMISSION)............... 156
STARTING PROCEDURE DISPLAY INFORMATION
MESSAGES (MANUAL TRANSMISSION) ...................... 156
WW W
A A
R R
N N
I I
N N
G G
L L
I I
G G
H H
T T
S S
A A
N N
D D
M M
E E
S S
S S
A A
G G
E E E
S S
145-156 Croma TRW GB 28-05-2008 15:18 Pagina 145

146
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
WARNING LIGHTS
AND MESSAGES
GENERAL WARNINGS
Turning on of warning light is accompa-
nied by specific message and/or by buzzer
sound where provided by instrument pan-
el. These indications are concise and
cautionaryand shall not be considered
as exhaustive and/or as an alternative to
the specifications contained in this Own-
er Handbook which shall always be read
through carefully and thoroughly. In case
of failure indication always refer to the
specifications contained in this sec-
tion.
IMPORTANT Failure indications displayed
are divided into two categories: very se-
riousand less seriousfailures.
Very seriousfailures are indicated by a
warning “cycle” repeated until failure is
eliminated.
Less seriousfailures are indicated by a lim-
ited warning “cycle”.
The warning cycle of both failure classes
can be stopped by pressing button
MODE. The instrument panel warning
light will stay on until eliminating the fault.
As concerns messages relevant to the ver-
sions equipped with Dualogic gearbox, see
the attached Supplement.LOW BRAKE FLUID
LEVEL (red)
HANDBRAKE ON (red)
Turning the ignition key to ONthe warn-
ing light turns on, but it should go off af-
ter few seconds.
Low brake fluid level
The warning light turns on when the lev-
el of the brake fluid in the reservoir falls
below the minimum level, due to possi-
ble leak in the circuit.
The display will show the dedicated mes-
sage.
x
If the warning light xturns
on when travelling (on cer-
tain versions together with the mes-
sage on the display) stop the car im-
mediately and contact Fiat Dealer-
ship.
WARNING
Handbrake on
The warning light turns on when the hand-
brake is on.
On certain versions, if the car is moving
the buzzer will also sound.
IMPORTANT If the warning light turns on
when travelling, check that the handbrake
is not engaged.
AIR BAG FAILURE
(red)
Turning the ignition key to ON
the warning light turns on, but it should go
off after few seconds.
The warning light stays on glowing steadi-
ly if there is a failure in the air bag system.
The display will show the dedicated mes-
sage.
¬
145-156 Croma TRW GB 28-05-2008 15:18 Pagina 146

147
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
If when turning the ignition
key to ON, the warning light
¬does not turn on or stays on when
travelling there could be a failure in
safety systems; in this event air bags
or pretensioners could not trigger in
case of impact or, in a minor num-
ber of cases, they could trigger acci-
dentally. Contact Fiat Dealership im-
mediately to have the system
checked.
WARNING
The failure of the ¬warning
light is also indicated by the
flashing for more than the normal 4
seconds of the passenger’s front air
bag deactivated warning light
F.
In addition the air bag system will de-
activate automatically the passen-
ger’s air bags (front and side where
provided). In this event, warning light
¬could not indicate safety systems
failures. Contact Fiat Dealership im-
mediately to have the system
checked.
WARNING
PASSENGER SIDE
FRONT AND SIDE
CHEST PROTECTION
AIR BAGS (side bags)
OFF (amber yellow)
Warning light
Fwill come on when de-
activating the passenger front air bag and
side bag (where provided). With passen-
ger front air bag active, turning the igni-
tion key to ON, warning light
Fwill
turn on with fixed light for about 4 sec-
onds and then it will flash for other 4 sec-
onds. It shall then go off.
F
The failure of the warning
light Fis indicated by the
turning on of warning light ¬. In ad-
dition the air bag system will deacti-
vate automatically the passenger’s air
bags (front and side where provided).
Contact Fiat Dealership immediately
to have the system checked.
WARNING
SEAT BELTS
NOT FASTENED
The warning light on the dial
turns on glowing steadily with car
stationary and driver’s seat belt not fas-
tened correctly. The warning light will turn
on flashing together with the buzzer when,
with car moving, front seat belts are not
fastened correctly. The S.B.R. (Seat Belt Re-
minder) buzzer can only be excluded by Fi-
at Dealership. The system can be reacti-
vated through the set-up menu (see dia-
gram aside). The display will show the ded-
icated message.
<
145-156 Croma TRW GB 28-05-2008 15:18 Pagina 147

148
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
❒Car heavy duty(e.g.: towing trailer
uphill of fully laden car): decrease
speed, if the warning light stays on,
stop the car. Wait for 2 or 3 minutes
leaving the engine on and slightly ac-
celerated to further activate the cir-
culation of the coolant fluid, then
switch the engine off. Check proper
coolant level as described previously.
IMPORTANT Under severe use of the
car, keep the engine on and slightly accel-
erated for few minutes before switching it
off.
The display will show the dedicated mes-
sage.
LOW BATTERY
CHARGE (red)
(where provided)
Turning the key to ONthe warning
light turns on, but it should go out as
soon as the engine is started (with the
engine running at idle speed a brief
delay in going out is allowed).
If the warning light stays on contact im-
mediately Fiat Dealership.
w
INEFFICIENT ABS
SYSTEM (amber)
Turning the key to ONthe
warning light turns on, but it should go off
after few seconds.
The warning light turns on when the sys-
tem is inefficient or unavailable. In this case
the braking system keeps its effectiveness
unchanged, but without the potential of-
fered by the ABS system. Caution is ad-
visable and it is necessary to contact Fiat
Dealership.
The display will show the dedicated mes-
sage.
>
INEFFICIENT
EBD
ELECTRONIC
BRAKING
DISTRIBUTOR (red) (amber)
The turning on at the same time of warn-
ing lights
xand >with the engine run-
ning indicates an EBD system failure or
that the system is unavailable; in this case
heavy braking may cause the rear wheels
to lock before time, with the possibility of
skidding. Drive with the utmost care to
the nearest Fiat Dealership to have the
system checked.
The display will show the dedicated mes-
sage.
x>
HIGH TEMPERATURE
ENGINE COOLANT
FLUID (red)
Turning the ignition key to ONthe warn-
ing light turns on, but it should go off af-
ter few seconds.
The warning light turns on when the en-
gine is overheated.
If the warning light comes on when dri-
ving, proceed as follows:
❒normal driving conditions: stop
the car, switch off the engine and
check whether the water level in the
reservoir is not below the MIN mark.
Otherwise wait for few seconds to al-
low the engine cooling, then open
slowly and carefully the cap, top up
coolant and check whether its level is
falling between MIN and MAX marks
in the reservoir. Check visually any
leak. If, when restarting, the warning
light comes on again, contact a Fiat
Dealership.
ç
145-156 Croma TRW GB 28-05-2008 15:18 Pagina 148

EXHAUST OIL
(Multijet versions)
The warning light with turn on
flashing together with the mes-
sage on the display when the system de-
tects that the engine oil is exhaust.
After the first indication, at each engine
starting the warning light
vwill go on
flashing for 60 seconds and then for 2
hours until oil is changed.If warning light
vflashes,
contact Fiat Dealership im-
mediately to have oil changed
and instrument panel warning light
turned off.
149
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
LOW ENGINE OIL
PRESSURE (red)
Turning the ignition key to ON
the warning light turns on, but it
should go off after few seconds.
The display will show the dedicated mes-
sage.
v
v
If the warning light vturns on when travelling to-
gether with the message on the dis-
play, stop the engine immediately
and contact a Fiat Dealership.
WARNING
INJECTION SYSTEM
FAILURE
(Multijet versions - red)
EOBD ENGINE
CONTROL SYSTEM FAILURE
(petrol versions - amber)
Injection system failure
Turning the ignition key to ONthe warn-
ing light turns on, but it should go off af-
ter few seconds.
If the warning light stays on or turns on
when travelling, means a fault in the sup-
ply/ignition system which could cause high
emissions at the exhaust, possible lack of
performance, poor handling and high con-
sumption levels.
On certain versions the dedicated message
is displayed.
In these conditions it is possible to con-
tinue driving without however requiring
heavy effort or high speed from the en-
gine. In any case, contact Fiat Dealership
as soon as possible.
EOBD ENGINE CONTROL
SYSTEM FAILURE
Under normal conditions, turning the ig-
nition key to ON, the warning light turns
on, but it should go off when the engine has
started. In this case, turning on indicates
proper working of the warning light. If the
U
INCOMPLETE DOOR
LOCKING (red)
(where provided)
The warning light turns on when
one or more doors, the boot or the bon-
net are not properly shut. The dedicated
message will be displayed.
When travelling with door/doors, boot or
bonnet open also a buzzer will sound.
´
POWER STEERING
FAILURE (red)
(where provided)
Turning the ignition key to ONthe warn-
ing light turns on, but it should go off af-
ter few seconds. If the warning light stays
on, you will not have steering assistance
and the effort on the steering wheel will
be increased, steering is however possi-
ble. Contact Fiat Dealership. The dedicat-
ed message will be displayed.
g
145-156 Croma TRW GB 28-05-2008 15:18 Pagina 149
