Page 181 of 258
180
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

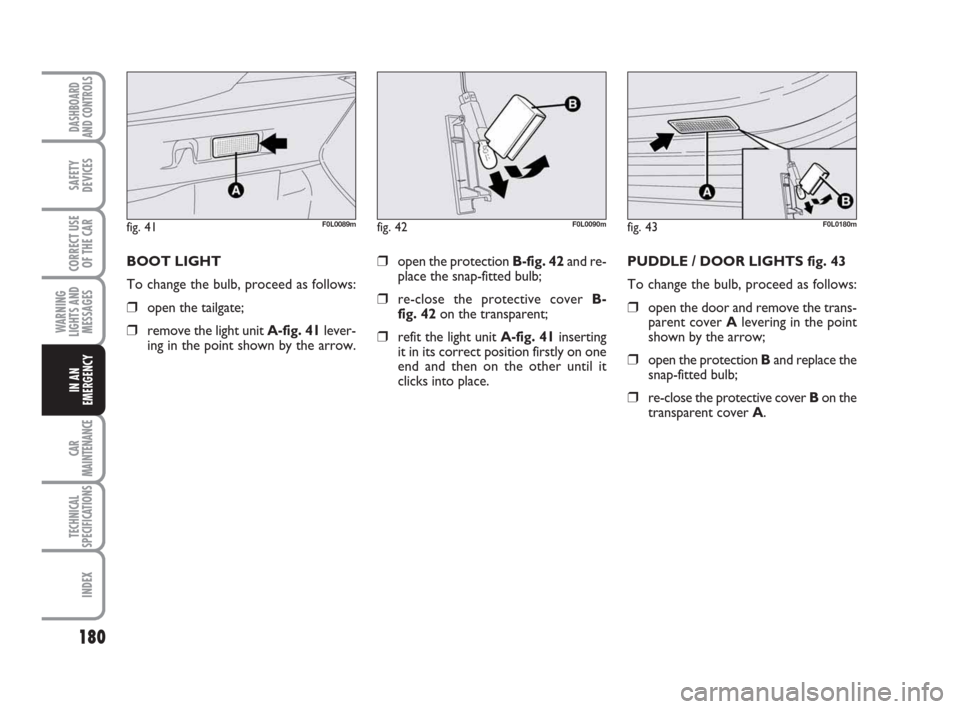

❒open the protection B-fig. 42and re-
place the snap-fitted bulb;
❒re-close the protective cover B-
fig. 42on the transparent;
❒refit the light unit A-fig. 41inserting
it in its correct position firstly on one
end and then on the other until it
clicks into place.PUDDLE / DOOR LIGHTS fig. 43
To change the bulb, proceed as follows:
❒open the door and remove the trans-
parent cover Alevering in the point
shown by the arrow;
❒open the protection Band replace the
snap-fitted bulb;
❒re-close the protective cover Bon the
transparent cover A. BOOT LIGHT
To change the bulb, proceed as follows:
❒open the tailgate;
❒remove the light unit A-fig. 41lever-
ing in the point shown by the arrow.
fig. 41F0L0089mfig. 42F0L0090mfig. 43F0L0180m
157-192 Croma TRW GB 19-02-2009 14:58 Pagina 180
Page 182 of 258
181
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
SIDE REAR CEILING LIGHTS
fig. 44
To change the bulb, proceed as follows:
❒remove the light unit Alevering in the
point shown by the arrow;
❒replace the bulb Breleasing it from
the side contacts making sure that the
new bulb is correctly clamped be-
tween the contacts.
fig. 45F0L0092m
If a fuse switches off again,
contact the Fiat Service Net-
work .
WARNING
fig. 44F0L0091m
IF A FUSE BLOWS
GENERAL fig. 45
The fuse is a protective device for the
electric system: it comes into action (i.e.
it cuts off) mainly due to a fault or im-
proper action on the system.
When a device does not work, check the
efficiency of its fuse: the conductor ele-
ment Amust be intact. If not, replace the
fuse with one of the same amp rating
(same colour).
Bundamaged fuse
Cfuse with damaged filament.
To replace a fuse, use the pliers Dhooked
to the fusebox on the dashboard.
157-192 Croma TRW GB 19-02-2009 14:58 Pagina 181
Page 183 of 258
FUSE LOCATION
The vehicle’s fuses are grouped in three
central units that are located on the in-
strument dashboard, in the engine com-
partment and inside the boot (left side).
On the battery’s positive pole there is a
fourth control unit that contains large ca-
pacity fuses (MEGA-FUSE, MIDI-FUSE,
MAXI-FUSE).
To replace these fuses, con-
tact the Fiat Service Net-
work.
WARNING
182
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
Before replacing a fuse, make
sure the ignition key has been
removed and that all the oth-
er services are switched off
and/or disengaged.
If a general fuse (MEGA-
FUSE, MIDI-FUSE, MAXI-
FUSE) cuts in, do not attempt any re-
pair and contact a Fiat Dealership.
WARNINGNever replace a fuse with met-
al wires or anything else.
Never change a fuse with
another with a higher amp
rating, DANGER OF FIRE.
WARNING
157-192 Croma TRW GB 19-02-2009 14:58 Pagina 182
Page 184 of 258
fig. 47F0L0093m

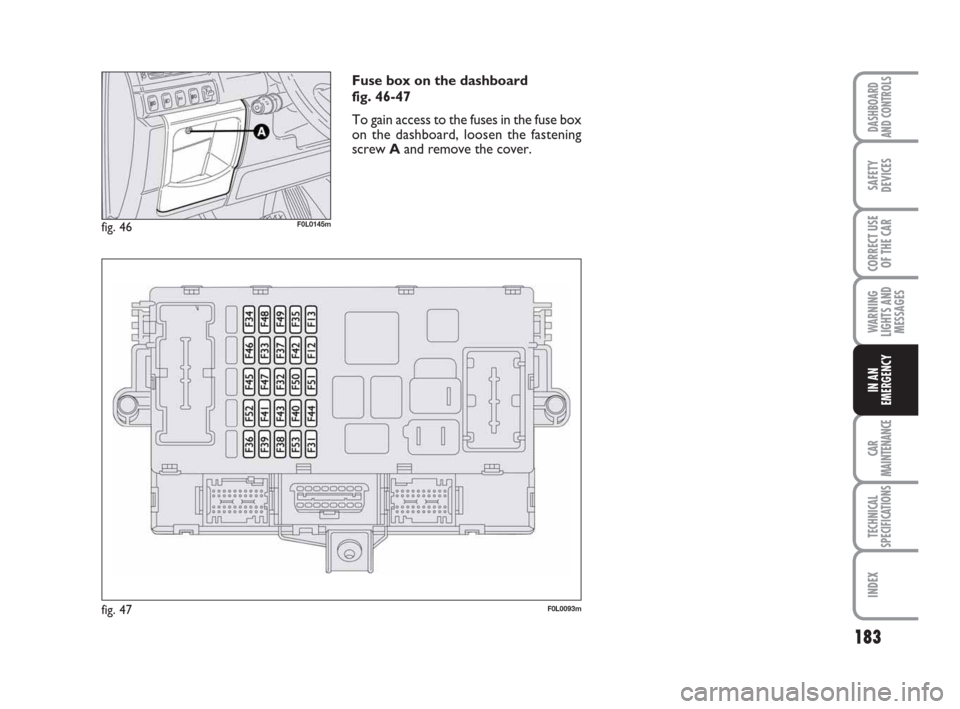

Fuse box on the dashboard
fig. 46-47
To gain access to the fuses in the fuse box
on the dashboard, loosen the fastening
screw Aand remove the cover.
fig. 46F0L0145m
183
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
157-192 Croma TRW GB 19-02-2009 14:58 Pagina 183
Page 185 of 258
184
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
Fuse box in engine compartment
fig. 48-49
To gain access to the fuses in the fuse box
next to the battery, remove the protec-
tion cover.
fig. 48
fig. 49F0L0094m
F0L0095m
157-192 Croma TRW GB 19-02-2009 14:58 Pagina 184
Page 186 of 258
185
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
Fuse box in the boot fig. 50-51
To gain access to the fuse box located on
the left side of boot open the relevant
door (as shown in the figure).
fig. 50
fig. 51F0L0217m
F0L0213m
157-192 Croma TRW GB 19-02-2009 14:58 Pagina 185
Page 187 of 258
186
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
F 12
F 13
F 31
F 32
F 33
F 34
F 35
F 36
F 37
F 38
F 39
F 40
F 41
F 42
F 43
F 4415
15
7.5
15
20
20
7.5
20
10
15
10
30
7.5
7.5/15 (*)
30
20 FUSE SUMMARY TABLE
Fuse box on dashboard
USERSFUSE AMPERE
RH low beam
LH low beam - Light stability corrector
+15 excluded during ignition for dashboard control unit relay coils / engine
compartment and Body computer
+30 nodes front driver and passenger doors (door lock), TEG reader
Boot compartment node power supply (rear left power window)
Boot compartment node power supply (rear right power window)
+15 backing lights, supplementary heater control unit, flow gauge, water in diesel fuel
sensor, NC switch on brake pedal
+30 boot compartment node (rear door locks)
+15 instrument panel, control unit on gas discharge headlamps, NA switch on brake
pedal, supplementary stop light
Boot opening actuator
+30 EOBD diagnostic socket , central front ceiling light, rear side ceiling lights, siren
and volumetric sensor control unit for the antitheft system, tyre pressure control unit,
air conditioning control unit, Blue-tooth control unit
Heated rear window
Windscreen / rear window washer nozzle demisters
+15 ABS / ESP control unit, electrohydraulic driving node, yaw sensor , steering
angle sensor
+15 excluded during ignition for electronic column switch module (windscreen wipers,
windscreen / rear window washer pump)
+15 excluded during ignition for cigar lighter, current outlet on tunnel
(*) Depending on the version
157-192 Croma TRW GB 19-02-2009 14:58 Pagina 186
Page 188 of 258
187
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
F 45
F 46
F 47
F 48
F 49
F 50
F 51
F 52
F 5320
20
20
20
7.5
7.5
7.5
15
10
USERSFUSE AMPERE
Sun roof engine control unit power supply
Sun roof visor engine control unit power supply
Front driver door node power supply (front driver power window)
Front passenger door node power supply (front passenger power window)
+15 volumetric sensor control unit for antitheft device, emergency control display
plaque lights / Blue-tooth and roof visor on roof panel / driver and passenger front
seat console, driver side control dashboard lights / tunnel, DVD player presetting,
electrochromic mirror, air conditioning
+15 airbag control unit
+15 Connect, Blue-tooth control unit, after market radio presetting, pneumatic
pressure control unit, cruise control, rain / twilight sensor control unit, parking
sensor control unit, AQS sensor
+15 excluded during ignition for electronic column switch module (rear window
wiper), relay coil on boot compartment control unit
+30 instrument panel
157-192 Croma TRW GB 19-02-2009 14:58 Pagina 187
Page 189 of 258
188
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
F 9
F 10
F 11
F 14
F 15
F 16
F 17
F 18
F 19
F 20
F 21
F 22
F 23
F 24
F 307.5
15
15
7.5
7.5
7.5
10
7.5
7.5
20
15
20
20
15
7.5 Fuse box in engine compartment
USERSFUSE AMPERE
Left fog light / cornering light
Buzzers
Engine control system power supply
RH high beam
LH high beam
+15 engine control unit
Engine control system power supply
+30 engine control unit
Conditioner compressor
Headlamp washer pump
Fuel pump
Engine control system power supply
+30 radio / Connect, supplementary heater control unit
+15 automatic transmission control unit, automatic transmission switch
Right fog light / cornering light
157-192 Croma TRW GB 19-02-2009 14:58 Pagina 188
Page 190 of 258
F 54
F 55
F 56
F 57
F 58
F 59
F 60
F 61
F 62
F 63
F 64
F 65
F 66
F 67
F 68
F 69
F 77
F 78
F 79
F 8025
–
25
7.5
–
–
25
–
–
–
–
–
–
7.5
–
–
–
–
–
–
189
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
Fuse box in the boot
USERSFUSE AMPERE
+30 Hi-Fi audio amplifier
Free
+30 front driver seat regulation control unit
+15 excluded during ignition for front driver seat heating
Free
Free
+30 front passenger seat regulation control unit
Free
Free
Free
Free
Free
Free
+15 excluded during ignition for front driver seat heating
Free
Free
Free
Free
Free
Free
