seat adjustment FIAT CROMA 2009 2.G Owners Manual

SEATS
MANUALLY ADJUSTABLE
FRONT SEATS fig. 32
Moving the seat backwards
or forwards
Lift the lever Aand push the seat forwards
or backwards: in the driving position the
arms should rest on the rim of the steer-
ing wheel.
Height adjustment
Move repeatedly lever Bupwards or
downwards to achieve the required
height.
IMPORTANT Adjustment must be car-
ried out only seated in the driver’s seat.
Back rest angle adjustment
Turn the knob C.
39
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
fig. 32F0L0376m
For maximum safety, keep
the back of your seat up-
right, lean back into it and make sure
the seat belt fits closely across your
chest and hips.
WARNING
Only make adjustments
when the car is stationary.
WARNING
Once you have released the
lever, check that the seat is
firmly locked in the runners by trying
to move it back and forth. Failure to
lock the seat in place could result in
the seat moving suddenly and the dri-
ver losing control of the car.
WARNING
Lumbar adjustment
(where provided)
To adjust, turn the knob D. Fabric upholstery of your car
is purpose-made to withstand
common wear resulting from
normal use of the car. It is
however absolutely necessary to pre-
vent hard and/or prolonged scratch-
ing/scraping caused by clothing acces-
sories like metallic buckles, studs, “Vel-
cro” fixings, etc. that stressing locally
the fabric could break yarns and dam-
age the upholstery as a consequence.
039-069 Croma TRW GB 10-11-2008 13:15 Pagina 39

Seat warming fig. 34
With ignition key at ON, press button F
to switch the seat warming on/off. The led
on the button will light up when the func-
tion is on.
40
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Tilting the back rest
(where provided) fig. 33
Move repeatedly lever Eupwards or
downwards to achieve the required po-
sition.
IMPORTANT Adjustment must be car-
ried out only seated in the driver’s seat.
fig. 33F0L0136mfig. 34F0L0199mfig. 35F0L0104m
Front passenger’s seat “table”
tilting (where provided) fig. 35
To tilt the seat, lift lever Aand fold the
back rest at the same time.
To reset it to normal position, operate
lever Aand at the same time raise the
back rest until hearing the coupling/lock-
ing click.
039-069 Croma TRW GB 10-11-2008 13:15 Pagina 40

ELECTRICALLY ADJUSTABLE
FRONT SEATS
(where provided) fig. 36
Adjustment is possible when the ignition
key is at ONor within 1 minute with ig-
nition key at OFF or removed, or for
three minutes after opening the doors.
Moving the seat backwards or
forwards and seat height
adjustment
Use control A.
Back rest angle adjustment
Use control B.
Height adjustment
Use control Ato adjust the height of the
front or rear part of the seat.
fig. 36F0L0173m
41
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Storing the driver’s seat positions
The system allows to store and recall
(only with ignition key at ON) three dif-
ferent driver’s seat and door mirror po-
sitions.
Proceed as follows:
❒adjust the driver’s seat and door mir-
ror positions;
❒press for about 3 seconds one of the
buttons D(“1” , “2” or “3”), corre-
sponding to each of the stored posi-
tions until hearing the confirmation
beep.
Storing a new position (seat and mirror)
will automatically clear the one stored
previously using the same button.
IMPORTANT The lumbar adjustment and
the seat warming function are not con-
trolled by the seat position storing system.Recalling stored positions
Proceed as follows:
❒turn the ignition key to ON;
❒press (by pulse) button D(“1” , “2” or
“3”).
The seat will move automatically, only if
the position to be reached is different
from the current one and the car speed is
lower than 10 km/h.
Seat moving is possible within 1 minute af-
ter removing the key from the ignition
switch or within three minutes after open-
ing the doors.
Should engine be started during the re-
calling phase, seat moving will be tem-
porarily stopped.
IMPORTANT Pressing any of the Dbut-
tons during the recalling stage, causes im-
mediate stop of the function being per-
formed (“antipanic” mode).
Seat warming (where provided)
Use control Cto switch seat warming
on/off. Seat warming can be adjusted ac-
cording to four different levels: 0 (off), 1
(min. warming), 2 (average warming), 3
(max. warming).
039-069 Croma TRW GB 10-11-2008 13:15 Pagina 41

42
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

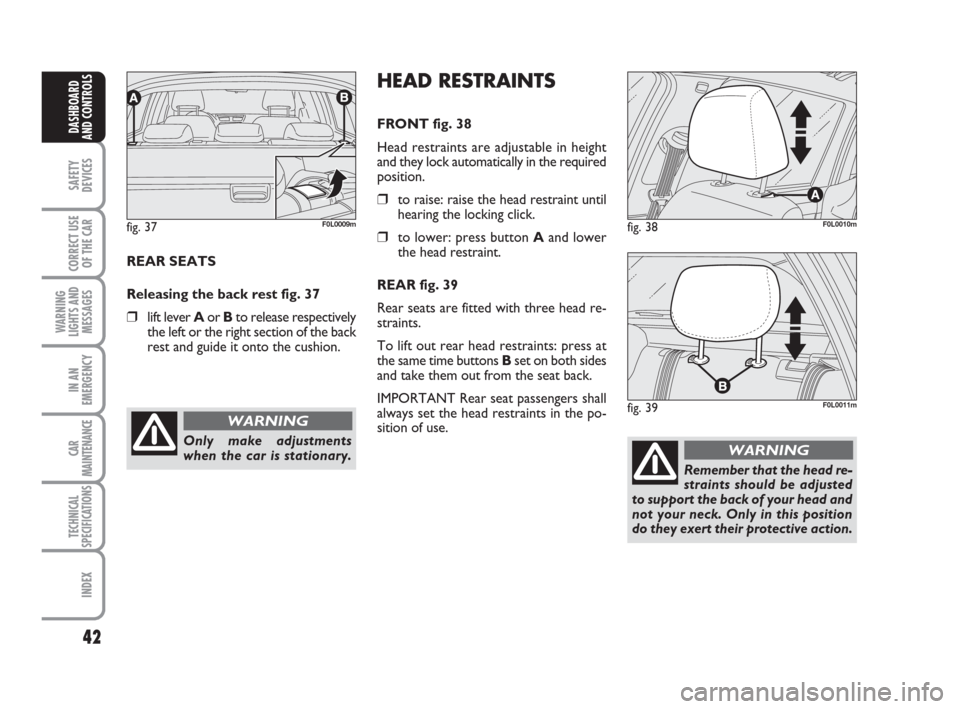

REAR SEATS
Releasing the back rest fig. 37
❒lift lever Aor Bto release respectively
the left or the right section of the back
rest and guide it onto the cushion.
fig. 37F0L0009m
Only make adjustments
when the car is stationary.
WARNING
HEAD RESTRAINTS
FRONT fig. 38
Head restraints are adjustable in height
and they lock automatically in the required
position.
❒to raise: raise the head restraint until
hearing the locking click.
❒to lower: press button Aand lower
the head restraint.
REAR fig. 39
Rear seats are fitted with three head re-
straints.
To lift out rear head restraints: press at
the same time buttonsB set on both sides
and take them out from the seat back.
IMPORTANT Rear seat passengers shall
always set the head restraints in the po-
sition of use.fig. 38F0L0010m
fig. 39F0L0011m
Remember that the head re-
straints should be adjusted
to support the back of your head and
not your neck. Only in this position
do they exert their protective action.
WARNING
039-069 Croma TRW GB 10-11-2008 13:15 Pagina 42

43
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
To optimise head restraint
protective action, adjust the
seat back upright and keep your head
as close as possible to the head re-
straint.
WARNINGSTEERING WHEEL
The driver can adjust the steering wheel
position both axially and in height.
Proceed as follows fig. 40
❒release the lever pushing it forwards
(position 1);
❒adjust the steering wheel as required;
❒lock the lever pulling it towards the
steering wheel (position 2).
Any adjustment of the steer-
ing wheel position must be
carried out only with the car station-
ary and the engine turned off.
WARNING
It is absolutely forbidden to
carry out whatever after-
market operation involving steering
system or steering column modifica-
tions (e.g.: installation of anti-theft
device) that could badly affect per-
formance and safety, cause the lapse
of warranty and also result in non-
compliance of the car with homolo-
gation requirements.
WARNING
fig. 40F0L0392m
039-069 Croma TRW GB 10-11-2008 13:15 Pagina 43

93
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
HEADLIGHTS
ADJUSTING THE HEADLIGHT
BEAM
Proper adjustment of the headlight beams
is of vital importance for your safety and
comfort and also for the other road users.
To ensure you and other drivers have the
best visibility conditions when travelling
with the headlights on, the headlights must
be set properly. Contact Fiat Dealership
to have the headlights properly adjusted.
IMPORTANT When turning on (Xenon)
gas discharge headlight lamps (where pro-
vided), it is normal that there should be a
vertical movement of reflectors, and con-
sequently the same will also happen to the
light beam, for the time required to
achieve the correct headlight trim stabili-
sation, equal to approx. 2 seconds.
Headlight aiming device
It works with ignition key at ONand
dipped beams on. When the car is loaded,
it slopes backwards. This means that the
headlight beam rises. In this case, it is nec-
essary to return it to the correct position.To adjust the headlight slant
fig. 122
Press button Aset on the control panel;
if the car is fitted with (Xenon) gas dis-
charge headlights, slant adjustment is elec-
tronic and therefore button Ais not pre-
sent.
The display located on the instrument pan-
el, provides the visual indication of the po-
sitions during the adjustment operation
(fig. 123: multifunctional display - fig. 124:
reconfigurable multifunctional display).
Position 0 - one or two people occupy-
ing the front seats.
Position 1 - five people.
Position 2 - five people + load in the boot.
Position 3 - driver + maximum permissi-
ble load stowed in the boot.IMPORTANT Check beam aiming every
time the load carried changes.
fig. 122F0L0050mfig. 123F0L0051m
fig. 124F0L0519m
070-106 Croma TRW GB 19-02-2009 15:03 Pagina 93

245
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
Identification data................................ 218
Ignition device....................................... 19
In an emergency................................... 157
Injection system
– EOBD engine control system
failure warning light....................... 149
– injection system failure warning
light................................................... 149
Instrument dashboard......................... 5
Instrument panel.................................. 6
Interior equipment.............................. 74
Interiors
– maintenance.................................... 215
Isofix Universal (car seat) .................. 117
“Isofix Universale” car seat ............... 117
– installation presetting.................... 117
– suitability of use ............................. 118
Keys ....................................................... 10
– emergency key.................................. 13
– key with remote control................ 11
Lamps (replacement)
– exterior lamp replacement.......... 173
– general information....................... 169
– interior lamp replacement........... 178
– lamp types....................................... 170
Level checks.......................................... 198
Levels
– level checks..................................... 198
License plate lights
– lamp replacement.......................... 178
3rd stop lights....................................... 177
Liquids and lubricants......................... 236Load (anchoring).................................. 89
Long vehicle inactivity......................... 144
Low beams
– control............................................. 62
– Follow Me Home........................... 154
– lamp replacement.......................... 173
– low beam light warning light ....... 154
Lubricants.............................................. 236
Maintenance and care
– Demanding vehicle use................. 197
– periodical checks........................... 197
– planned maintenance.................... 194
– Scheduled Maintenance Plan ....... 195
Manual air conditioner........................ 49
Maximum speed................................... 231
Money holder....................................... 76
Multifunctional display ....................... 22
– control buttons.............................. 22
– display functions............................. 28
– setup menu .................................... 23
– standard screen.............................. 22
On board instruments....................... 20
Paint (maintenance)........................... 214
Parking brake........................................ 131
– parking brake engaged warning
light-.................................................. 146
Parking lights......................................... 72
Parking sensors.................................... 102
Parking.................................................... 131
– parking brake.................................. 131
Passenger compartment air
diffusers............................................... 48 Fuel level indicator.............................. 21
Fuel reserve
– fuel reserve warning light ........... 150
Fuel tank plug........................................ 104
Fuses
– fuse replacement........................... 181
– fuse table......................................... 186
Generic warning light........................ 152
Glasses holder...................................... 76
Glove compartment light................... 179
Glove compartment............................ 75
– ceiling light lamp replacement..... 179
Head rests
– front................................................. 42
– rear .................................................. 42
Headlamps............................................. 93
– headlamp adjustment overseas... 94
– headlamp stability corrector ....... 93
– light beam orientation.................. 93
Headlight washer-wiper
– control............................................. 67
– liquid level....................................... 205
Heated rear window
– heated rear window warning
light................................................... 151
Heating and air conditioning............. 47
Heating/air conditioning system....... 47
High-beam headlights
– control............................................. 62
– flashing............................................. 63
– high beam light warning light....... 155
– lamp replacement.......................... 174
243-256 Croma TRW GB 28-07-2009 12:15 Pagina 245

Rear fog light......................................... 72
– rear fog light warning light........... 152
Rear optical units
– fixed side optical unit.................... 176
– lamp replacement.......................... 175
– optical unit on boot hatch ........... 175
Rear sunshade curtains....................... 78
Rear view mirrors
– electrochromic interior .............. 44
– exterior .......................................... 44
– interior ........................................... 44
Rear window washer-wiper
– control............................................. 67
– liquid level....................................... 205
Rear window wiper
– brush................................................ 212
– control............................................. 67
– sprayers........................................... 213
Reconfigurable multifunctional
display ................................................. 25
– control buttons.............................. 25
– display functions............................. 28
– setup menu .................................... 25
– standard screen.............................. 26
Refuelling............................................... 234
Regulations for vehicle handling at
the end of its life cycle..................... 247
Roof rack/ski rack................................ 92
Rubber piping (warnings)................... 211
S.B.R. (system).................................... 109
Safety...................................................... 107
Saving fuel.............................................. 138Seat belts
– general warnings............................ 111
– load limiters.................................... 110
– maintenance.................................... 112
– seat belts not fastened warning
light................................................... 147
– use.................................................... 108
Seats
– adjustment “at the table”............. 40
– cleaning............................................ 215
– electrically adjusted front ........... 41
– manually adjusted front ............... 39
– rear .................................................. 42
Side air bags.......................................... 122
– front and rear side chest
protection air bags (Side bags) .. 122
– head protection side air bags
(Window Bags).............................. 122
– general warnings............................ 124
– turning off the front and rear side
chest protection air bags
(Side bags) ...................................... 123
– rear side chest protection air bag
warning lights (Rear Side Bags)
off .....................................................156
Smokers kit........................................... 76
Snow chains.......................................... 143
Spark plugs
– spark plug preheating failure
warning light................................... 150
– spark plug preheating warning
light................................................... 150
Spark plugs (type)................................ 221
Speedometer........................................ 21
Starting and driving.............................. 127 Performance......................................... 231
Plates
– body paint....................................... 219
– identification data.......................... 218
Pollen filter (replacement)................. 207
Position lights
– control............................................. 62
– front lamp replacement................ 174
– position light warning light .......... 154
– rear lamp replacement................. 177
Power steering
– failure warning light ....................... 149
– liquid................................................. 205
Power steering liquid
– level check....................................... 205
Power steering liquid level................. 205
Power supply
– Technical data................................ 223
Presetting for “Isofix Universale”
car seat installation .......................... 117
Pretensioners........................................ 110
– load limiters.................................... 110
– warnings........................................... 111
Provided tools...................................... 162
Radio frequency remote control:
Ministerial Certification................... 241
Radio transmitters and cell phones . 101
Rain sensor............................................ 66
Rear armrest......................................... 75
Rear ceiling lights
– control............................................. 70
– lamp replacement.......................... 181
246
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
243-256 Croma TRW GB 28-07-2009 12:15 Pagina 246

Transmission
– Technical data................................ 223
Transporting children safely.............. 112
Trip computer...................................... 36
Turn signals
– control............................................. 63
– cornering lights.............................. 63
– front lamp replacement................ 174
– lane change function..................... 63
– left turn signal warning light ........ 154
– rear lamp replacement................. 176
– right turn signal warning light ..... 154
– side lamp replacement.................. 175
Tyre pressure....................................... 228
Tyres
– correct tyre reading...................... 225
– provided ......................................... 227
– snow................................................. 142
– wheel replacement........................ 159
User purchased accessories............ 101
Vehicle inactivity................................. 144
Vehicle lifting......................................... 190
Vehicle refuelling.................................. 103
Vehicle towing...................................... 191
Volumetric protection........................ 15
Warning lights and messages .......... 145
– general warnings............................ 146
Weight................................................... 232
Wheel
– Fix & go automatic rapid tyre
repair kit ......................................... 165– replacement.................................... 159
– spare (characteristics).................. 227
Wheel alignment.................................. 225
Wheel rims
– correct rim reading....................... 226
Wheels and tyres................................. 210
– cold inflating pressure................... 228
– correct rim reading....................... 226
– correct tyre reading...................... 225
– rims and tyres................................ 225
– rims and tyres................................ 227
– spare wheel..................................... 225
– wheel alignment............................. 225
Window cleaning................................. 65
Windows (cleaning)............................ 215
Windscreen washer
– control............................................. 65
– liquid level....................................... 205
Windscreen washer/rear window
washer-wiper/headlight
washer-wiper liquid
– level check....................................... 205
Windscreen washer/rear window
washer-wiper/headlight
washer-wiper liquid level................. 205
Windscreen wiper
– brushes............................................ 212
– control............................................. 65
– rain sensor...................................... 66
– sprayers........................................... 213
Windscreen wiper and rear window
wiper brushes.................................... 212 Starting the engine............................... 128
– coasting startup.............................. 159
– heating the just started engine.... 130
– ignition device................................ 17
– procedure for gasoline versions ... 128
– procedure for Multijet versions ... 129
– startup with an auxiliary battery... 158
– turning off the engine................... 130
Steering (characteristics).................... 224
Steering lock......................................... 19
Steering wheel (adjustment).............. 43
Storage box........................................... 76
Sun roof................................................. 78
Sun visor................................................ 77
Suspensions (characteristics)............. 224
Symbols.................................................. 8
T.P.M.S. system
(tyre pressure control).................... 99
Table (seat)........................................... 40
Tachometer.......................................... 20
Technical data....................................... 217
Trailer towing....................................... 139
– assembly diagram........................... 141
– tow hook installation.................... 140
– warnings........................................... 139
Transmission
– automatic transmission failure
warning light................................... 155
– maximum automatic transmission
oil temperature warning light ..... 155
– using the automatic electronic
transmission.................................... 133
– using the manual transmission .... 132
247
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
243-256 Croma TRW GB 28-07-2009 12:15 Pagina 247
