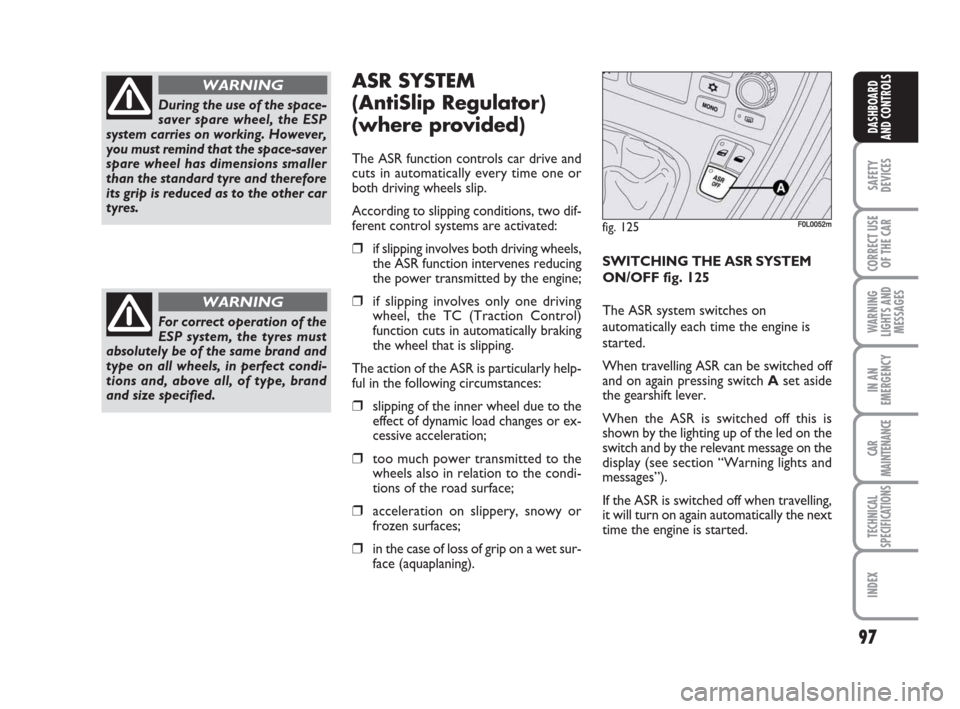

ASR SYSTEM
(AntiSlip Regulator)
(where provided)
The ASR function controls car drive and
cuts in automatically every time one or
both driving wheels slip.
According to slipping conditions, two dif-
ferent control systems are activated:
❒if slipping involves both driving wheels,
the ASR function intervenes reducing
the power transmitted by the engine;
❒if slipping involves only one driving
wheel, the TC (Traction Control)
function cuts in automatically braking
the wheel that is slipping.
The action of the ASR is particularly help-
ful in the following circumstances:
❒slipping of the inner wheel due to the
effect of dynamic load changes or ex-
cessive acceleration;
❒too much power transmitted to the
wheels also in relation to the condi-
tions of the road surface;
❒acceleration on slippery, snowy or
frozen surfaces;
❒in the case of loss of grip on a wet sur-
face (aquaplaning).
SWITCHING THE ASR SYSTEM
ON/OFF fig. 125
The ASR system switches on
automatically each time the engine is
started.
When travelling ASR can be switched off
and on again pressing switchAset aside
the gearshift lever.
When the ASR is switched off this is
shown by the lighting up of the led on the
switch and by the relevant message on the
display (see section “Warning lights and
messages”).
If the ASR is switched off when travelling,
it will turn on again automatically the next
time the engine is started.
During the use of the space-
saver spare wheel, the ESP
system carries on working. However,
you must remind that the space-saver
spare wheel has dimensions smaller
than the standard tyre and therefore
its grip is reduced as to the other car
tyres.
WARNING
For correct operation of the
ESP system, the tyres must
absolutely be of the same brand and
type on all wheels, in perfect condi-
tions and, above all, of type, brand
and size specified.
WARNING
fig. 125F0L0052m
070-106 Croma TRW GB 19-02-2009 15:03 Pagina 97
Page 100 of 258
99
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
NOTE The car is provided with a diag-
nostic connector that can be interfaced
with appropriate tools, which makes it
possible to read the error codes stored in
the control units, together with a series of
specific parameters for engine operation
and diagnosis. This test can also be per-
formed by traffic controller agents.
IMPORTANT: After a servicing operation
at Fiat Dealership aimed to eliminate mal-
functioning connected to the EOBD sys-
tem, in order to check the system thor-
oughly it could be required to run a bench
test and, if necessary, road tests which
may also call for a long journey.TYRE PRESSURE
MONITORING SYSTEM
- T.P.M.S. (where
provided)
The car can be equipped with the T.P.M.S.
(Tyre Pressure Monitoring System). This
system consists of a radio-frequency sen-
sor, installed on each wheel (on the rim
inside the tyre) that sends pressure infor-
mation to the control unit.
IMPORTANT System control unit moni-
tors the pressure of the four car tyres but
not the space-saver spare wheel. It is
therefore recommended to always check
also the space-saver spare wheel pressure.
IMPORTANT Pay the utmost attention
when checking or inflating tyres. Excessive
pressure impairs road holding, increases
suspension and wheel stress and causes
abnormal tyre wear.IMPORTANT Tyre pressure should be
checked with tyres rested and cold.
Should it become necessary for whatev-
er reason to check pressure with hot
tyres, do not reduce pressure although it
is higher than the prescribed value but re-
peat the check when tyres are cold.
The T.P.M.S. system does not
exempt the driver to check
tyre and space-saver spare wheel pres-
sure at regular intervals.
WARNING
070-106 Croma TRW GB 19-02-2009 15:03 Pagina 99
Page 144 of 258

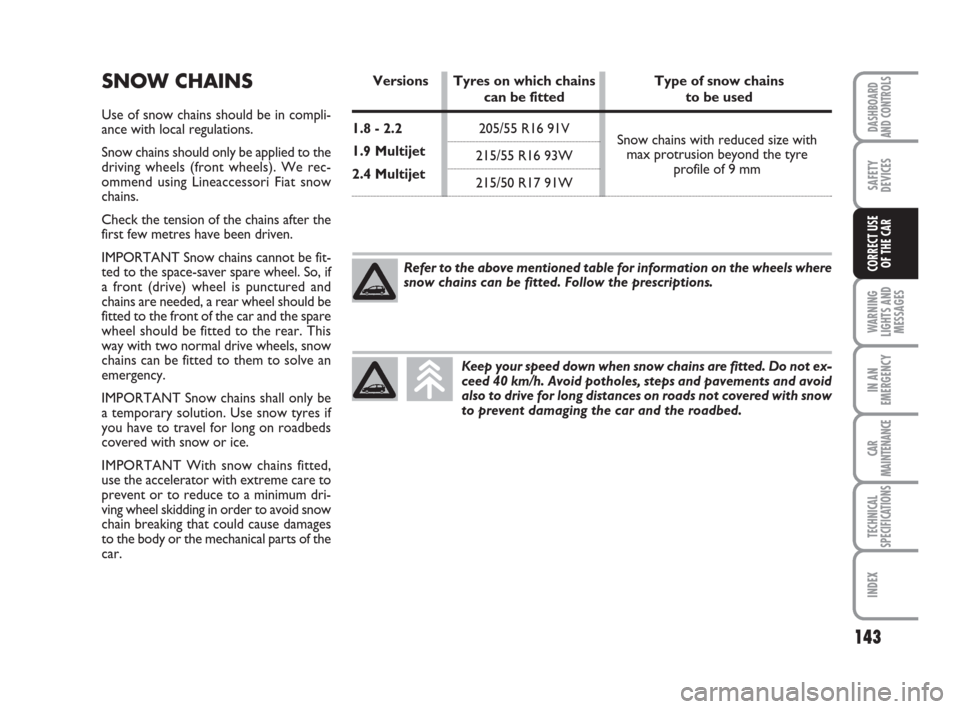

SNOW CHAINS
Use of snow chains should be in compli-
ance with local regulations.
Snow chains should only be applied to the
driving wheels (front wheels). We rec-
ommend using Lineaccessori Fiat snow
chains.
Check the tension of the chains after the
first few metres have been driven.
IMPORTANT Snow chains cannot be fit-
ted to the space-saver spare wheel. So, if
a front (drive) wheel is punctured and
chains are needed, a rear wheel should be
fitted to the front of the car and the spare
wheel should be fitted to the rear. This
way with two normal drive wheels, snow
chains can be fitted to them to solve an
emergency.
IMPORTANT Snow chains shall only be
a temporary solution. Use snow tyres if
you have to travel for long on roadbeds
covered with snow or ice.
IMPORTANT With snow chains fitted,
use the accelerator with extreme care to
prevent or to reduce to a minimum dri-
ving wheel skidding in order to avoid snow
chain breaking that could cause damages
to the body or the mechanical parts of the
car.
143
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
Versions Tyres on which chains Type of snow chains
can be fitted to be used
1.8 - 2.2205/55 R16 91V
1.9 Multijet
215/55 R16 93W
2.4 Multijet
215/50 R17 91WSnow chains with reduced size with
max protrusion beyond the tyre
profile of 9 mm
Refer to the above mentioned table for information on the wheels where
snow chains can be fitted. Follow the prescriptions.
Keep your speed down when snow chains are fitted. Do not ex-
ceed 40 km/h. Avoid potholes, steps and pavements and avoid
also to drive for long distances on roads not covered with snow
to prevent damaging the car and the roadbed.
127-144 Croma TRW GB 28-05-2008 16:33 Pagina 143
Page 154 of 258
153
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
Parking sensor failure
(where provided)
The warning light on the dial turns on to-
gether with the message on the display
when failure is detected in parking sensors.
Contact Fiat Dealership.
Antipinch system failure
(where provided)
The warning light on the dial turns on to-
gether with the message on the display
when failure is detected in the antipinch
system.
Contact Fiat Dealership.
Twilight sensor failure
(where provided)
The warning light on the dial turns on (to-
gether with the message on the display)
when failure is detected in twilight sen-
sor (adjusting headlight sensitivity).Check tyre pressure
(where provided)
Warning light in the panel comes on (to-
gether with the message in the display)
when the tyre inflation pressure is too
low.
In this case, inflate tyres to the specified
pressure values (see paragraph “Inflating
pressures” in section “Technical Specifi-
cations”).
Flat tyres (where provided)
The warning light on the dial turns on (to-
gether with message on the display and
the buzzer), when there is a pressure drop
in one or more tyres. In this way the
T.P.M.S. system warns the driver that one
or more tyre/s is/are flat (i.e. punctured).
IMPORTANT Stop travelling with one or
more flat tyre/s since road holding could
be jeopardised. Stop the car without brak-
ing or steering sharply. Change immedi-
ately punctured wheel with space-saver
spare wheel (where provided - see sec-
tion “In an emergency”) and contact Fiat
Dealership as soon as possible.Tyre pressure monitoring system
failure (where provided)
The warning light on the dial turns on (to-
gether with the message on the display)
when a failure is detected in the T.P.M.S.
system (where provided).
Contact Fiat Dealership as soon as possi-
ble.
Should one or more wheels without sen-
sor be fitted, the instrument panel warn-
ing light will come on (together with the
message on the display) and stay on until
fitting again the four wheels with sensors.
145-156 Croma TRW GB 28-05-2008 15:18 Pagina 153
Page 160 of 258
159
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
IF A TYRE IS
PUNCTURED
GENERAL INSTRUCTIONS
Wheel changing and correct use of the
jack and space-saver spare wheel call for
some precautions as listed below.
BUMP STARTING
Never bump start the engine (by pushing,
towing, or coasting downhill) as this could
cause fuel to flow into the catalytic ex-
haust system and damage it beyond repair.
Remember that the brake booster and the
power steering system are not operating
until the engine is started, a greater effort
will therefore be required to press the
brake pedal or to turn the steering wheel.
Alert other drivers that the
car is stationary in compli-
ance with local regulations: hazard
warning lights, warning triangle etc.
Any passengers on board should leave
the car, especially if it is heavily laden.
Passengers should stay away from on-
coming traffic while the wheel is be-
ing changed on. If the wheel is being
changed on a steep or badly surfaced
road, place the wedges or other suit-
able material under the wheel to stop
the car.
WARNING
The space-saver spare wheel
is specific to your car, do not
use it on other models, or use the
spare wheel of other models on your
car. The space-saver spare wheel
shall only be used in an emergency.
It shall only be used for the distance
necessary to reach a service point and
the car speed shall not exceed 80
Km/h. The spare wheel has an orange
sticker that summarises the main cau-
tions for use and limitations. The
sticker should never be removed or
covered.
Never fit a wheel cap on a space-
saver spare wheel. The sticker gives
the following information in four lan-
guages: caution! For temporary use
only! 80 km/h max! Replace by nor-
mal wheel as soon as possible. Do not
cover this label.
WARNING
157-192 Croma TRW GB 19-02-2009 14:58 Pagina 159
Page 161 of 258
160
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

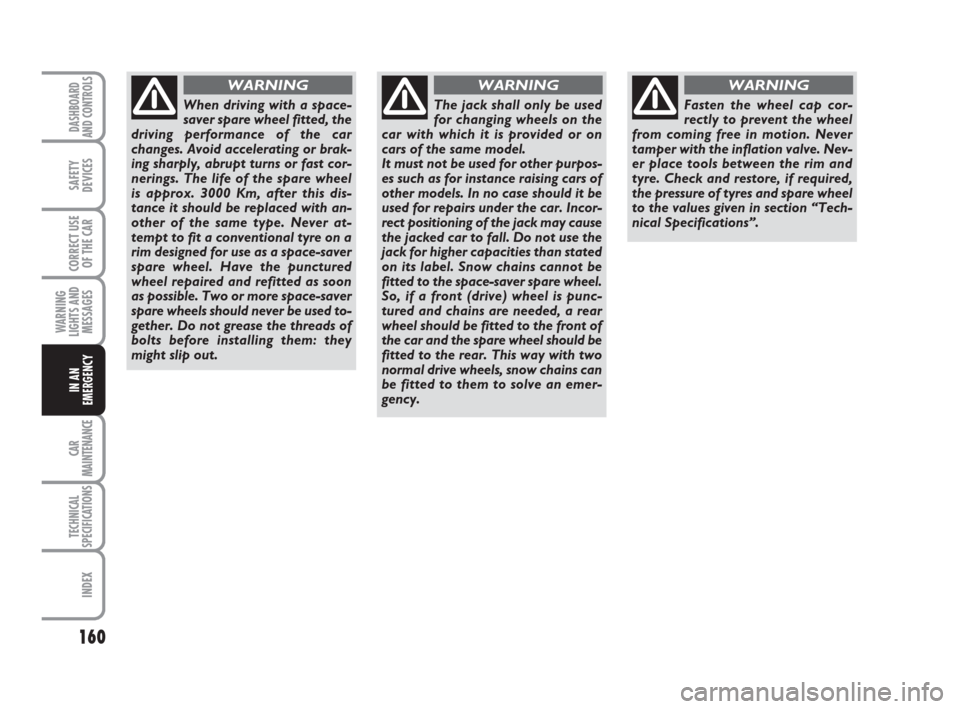

When driving with a space-
saver spare wheel fitted, the
driving performance of the car
changes. Avoid accelerating or brak-
ing sharply, abrupt turns or fast cor-
nerings. The life of the spare wheel
is approx. 3000 Km, after this dis-
tance it should be replaced with an-
other of the same type. Never at-
tempt to fit a conventional tyre on a
rim designed for use as a space-saver
spare wheel. Have the punctured
wheel repaired and refitted as soon
as possible. Two or more space-saver
spare wheels should never be used to-
gether. Do not grease the threads of
bolts before installing them: they
might slip out.
WARNING
The jack shall only be used
for changing wheels on the
car with which it is provided or on
cars of the same model.
It must not be used for other purpos-
es such as for instance raising cars of
other models. In no case should it be
used for repairs under the car. Incor-
rect positioning of the jack may cause
the jacked car to fall. Do not use the
jack for higher capacities than stated
on its label. Snow chains cannot be
fitted to the space-saver spare wheel.
So, if a front (drive) wheel is punc-
tured and chains are needed, a rear
wheel should be fitted to the front of
the car and the spare wheel should be
fitted to the rear. This way with two
normal drive wheels, snow chains can
be fitted to them to solve an emer-
gency.
WARNING
Fasten the wheel cap cor-
rectly to prevent the wheel
from coming free in motion. Never
tamper with the inflation valve. Nev-
er place tools between the rim and
tyre. Check and restore, if required,
the pressure of tyres and spare wheel
to the values given in section “Tech-
nical Specifications”.
WARNING
157-192 Croma TRW GB 19-02-2009 14:58 Pagina 160
Page 163 of 258
162
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
Note Before replacing the drilled wheel
(if in alloy) in the specific housing, remo-
ve the snap-in logo holder pressing on it
from the its internal side.

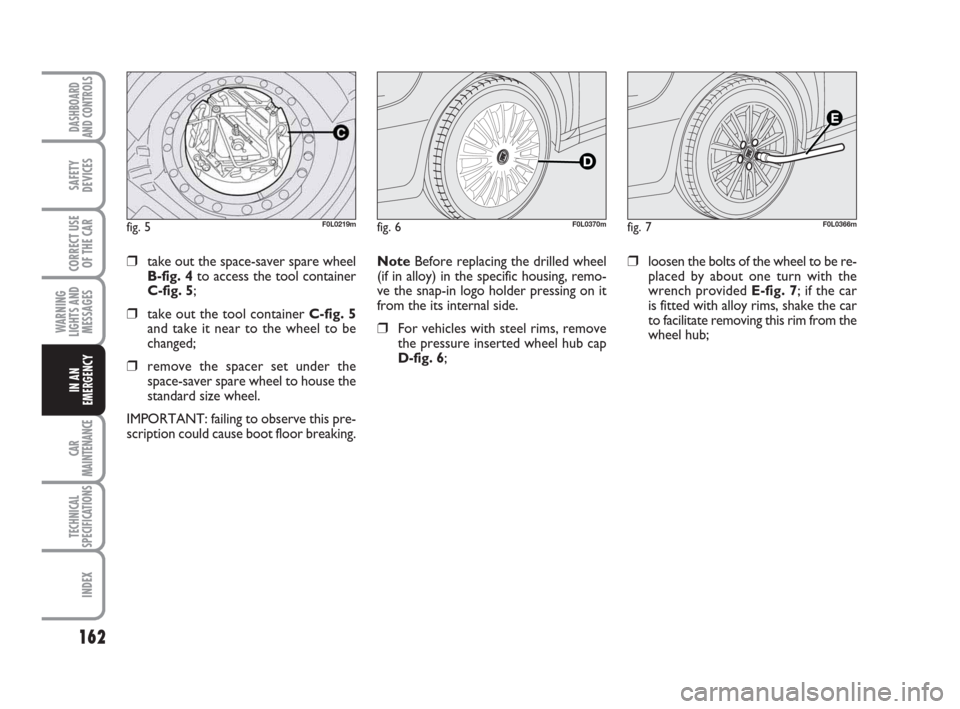

❒For vehicles with steel rims, remove
the pressure inserted wheel hub cap
D-fig. 6;
❒loosen the bolts of the wheel to be re-
placed by about one turn with the
wrench provided E-fig. 7; if the car
is fitted with alloy rims, shake the car
to facilitate removing this rim from the
wheel hub;❒take out the space-saver spare wheel
B-fig. 4to access the tool container
C-fig. 5;
❒take out the tool container C-fig. 5
and take it near to the wheel to be
changed;
❒remove the spacer set under the
space-saver spare wheel to house the
standard size wheel.
IMPORTANT: failing to observe this pre-
scription could cause boot floor breaking.
fig. 5F0L0219mfig. 7F0L0366mfig. 6
D
F0L0370m
157-192 Croma TRW GB 19-02-2009 14:58 Pagina 162
Page 164 of 258
163
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

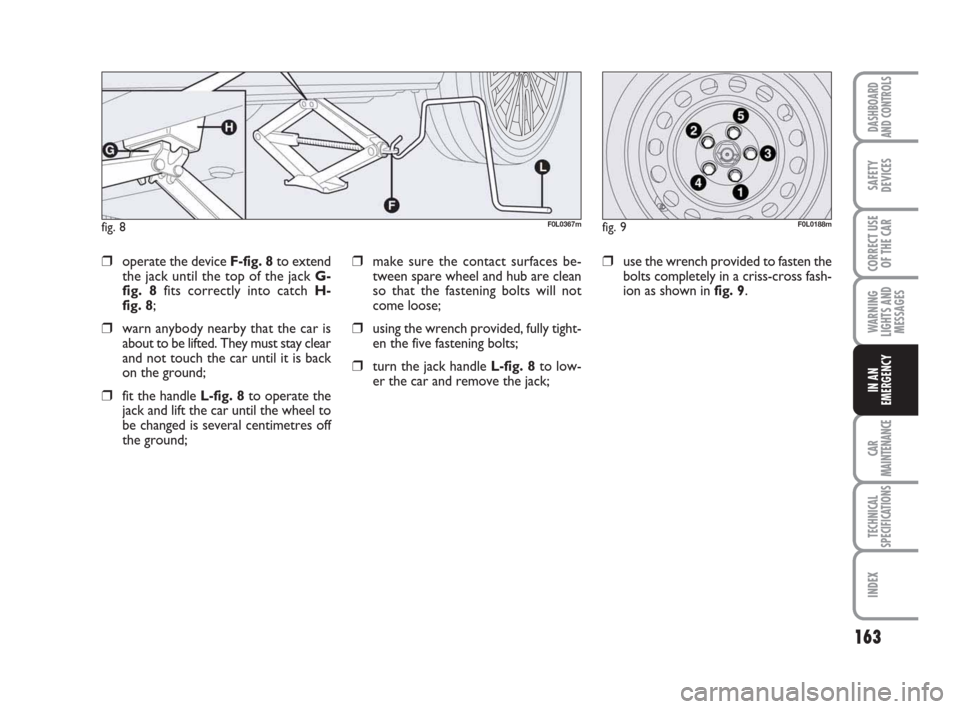

❒make sure the contact surfaces be-
tween spare wheel and hub are clean
so that the fastening bolts will not
come loose;
❒using the wrench provided, fully tight-
en the five fastening bolts;
❒turn the jack handle L-fig. 8to low-
er the car and remove the jack;
❒use the wrench provided to fasten the
bolts completely in a criss-cross fash-
ion as shown in fig. 9.❒operate the device F-fig. 8to extend
the jack until the top of the jack G-
fig. 8fits correctly into catch H-
fig. 8;
❒warn anybody nearby that the car is
about to be lifted. They must stay clear
and not touch the car until it is back
on the ground;
❒fit the handle L-fig. 8to operate the
jack and lift the car until the wheel to
be changed is several centimetres off
the ground;
fig. 8F0L0367mfig. 9F0L0188m
157-192 Croma TRW GB 19-02-2009 14:58 Pagina 163
Page 165 of 258
164
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
For versions with alloy rims
❒Insert the wheel on the hub and, using
the wrench provided, tighten the
bolts.
❒Lower the car and remove the jack.
❒Using the wrench provided, fully tigh-
ten the bolts in the sequence shown
in fig. 10;
❒insert the logo holder by pressing on
the exterior side.When you have finished
❒Place the spacer.
❒Fit the jack partially open in its con-
tainer C-fig. 11forcing it lightly to
prevent it from vibrating when travel-
ling.
❒Put the tools back into their places in

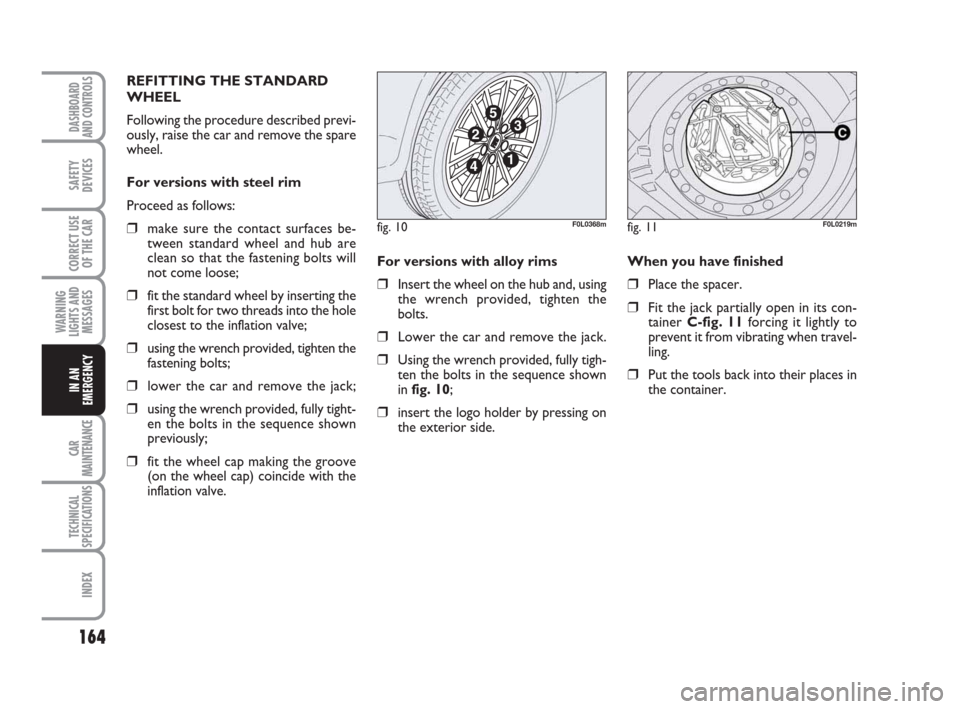

the container. REFITTING THE STANDARD
WHEEL
Following the procedure described previ-
ously, raise the car and remove the spare
wheel.
For versions with steel rim
Proceed as follows:
❒make sure the contact surfaces be-
tween standard wheel and hub are
clean so that the fastening bolts will
not come loose;
❒fit the standard wheel by inserting the
first bolt for two threads into the hole
closest to the inflation valve;
❒using the wrench provided, tighten the
fastening bolts;
❒lower the car and remove the jack;
❒using the wrench provided, fully tight-
en the bolts in the sequence shown
previously;
❒fit the wheel cap making the groove
(on the wheel cap) coincide with the
inflation valve.
fig. 11F0L0219mfig. 10
25
3
1
4
F0L0368m
157-192 Croma TRW GB 19-02-2009 14:58 Pagina 164
Page 166 of 258
165
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

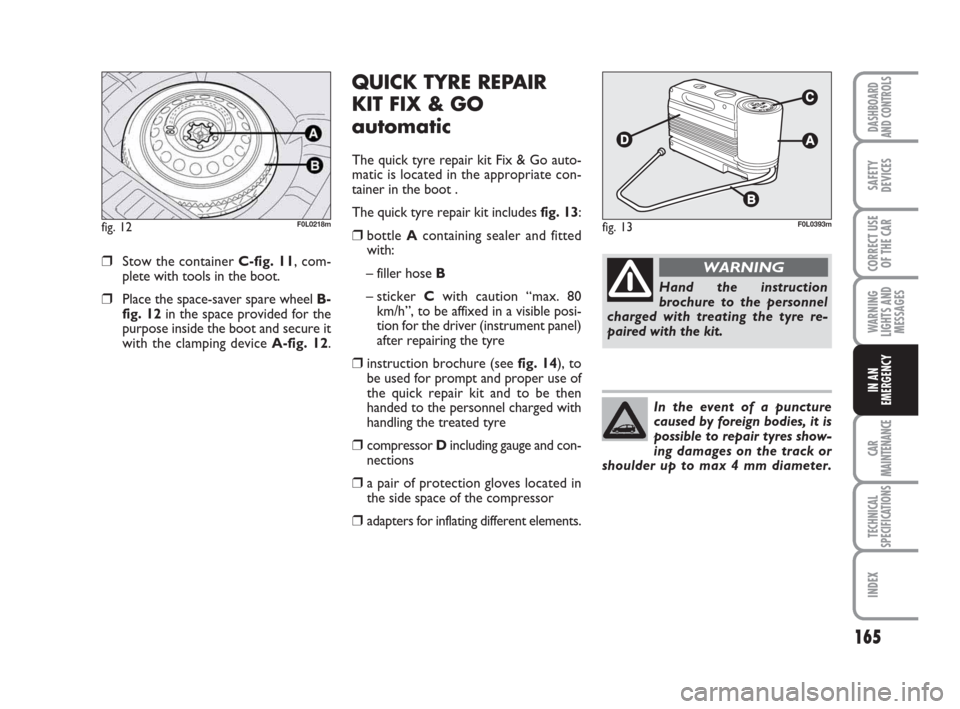

❒Stow the container C-fig. 11, com-
plete with tools in the boot.
❒Place the space-saver spare wheel B-
fig. 12in the space provided for the
purpose inside the boot and secure it
with the clamping device A-fig. 12.
fig. 12F0L0218m
QUICK TYRE REPAIR
KIT FIX & GO
automatic
The quick tyre repair kit Fix & Go auto-
matic is located in the appropriate con-
tainer in the boot .
The quick tyre repair kit includes fig. 13:
❒bottle A containing sealer and fitted
with:
– filler hose B
– sticker Cwith caution “max. 80
km/h”, to be affixed in a visible posi-
tion for the driver (instrument panel)
after repairing the tyre
❒instruction brochure (see fig. 14), to
be used for prompt and proper use of
the quick repair kit and to be then
handed to the personnel charged with
handling the treated tyre
❒compressor Dincluding gauge and con-
nections
❒a pair of protection gloves located in
the side space of the compressor
❒adapters for inflating different elements.
Hand the instruction
brochure to the personnel
charged with treating the tyre re-
paired with the kit.
WARNING
In the event of a puncture
caused by foreign bodies, it is
possible to repair tyres show-
ing damages on the track or
shoulder up to max 4 mm diameter.
fig. 13F0L0393m
157-192 Croma TRW GB 19-02-2009 14:58 Pagina 165
