35GETTING TO KNOW YOUR VEHICLE
vice schedule, see section “Vehicle
maintenance”. Service indications will
be displayed km or mi according to
previous unit setting. When a pro-
grammed maintenance interval
(coupon) is near to come, turning the
ignition key to MAR, the display will
show the message “Service” followed
by the number of km/mi to go before
vehicle servicing. “Scheduled servicing”
message is displayed in km/mi or days
according to the approaching service
interval. Contact Fiat Dealershipto
carry out any service operation pro-
vided by the “Service schedule” or
“Annual inspection schedule”, and to
reset the display. Scheduled Servicing (Service)
Through this function it is possible to
display information connected to
proper vehicle servicing.
Proceed as follows:
– briefly press button MODE: ser-
vice in km or mi, according to previ-
ous setting, will be displayed (see para-
graph “Distance unit”);
– press button +or –to select dis-
playing in days;
– briefly press button MODEto go
back to the menu screen or press the
button for long to go back to the stan-
dard screen.
NoteThe “Service schedule” in-
cludes vehicle maintenance every
20,000 km (or 12,000 mi) or every
year; this is shown automatically, with
the ignition key at MAR, starting from
2,000 km (or 1,240 mi) or 30 days
from this deadline and it is shown again
every 200 km (or 124 mi) or 3 days.
Below 200 km servicing indications are
displayed more frequently. As con-
cerns 1.3 Multijet versions, change air
cleaner, engine oil and engine oil fil-
ter at the intervals specified in the Ser-Exit Menu
This is the last function that closes
the circular setting cycle listed in the
initial menu screen.
Briefly press button MODEto go
back to the standard screen.
Press button – to return to the first
menu option (Speed Beep).

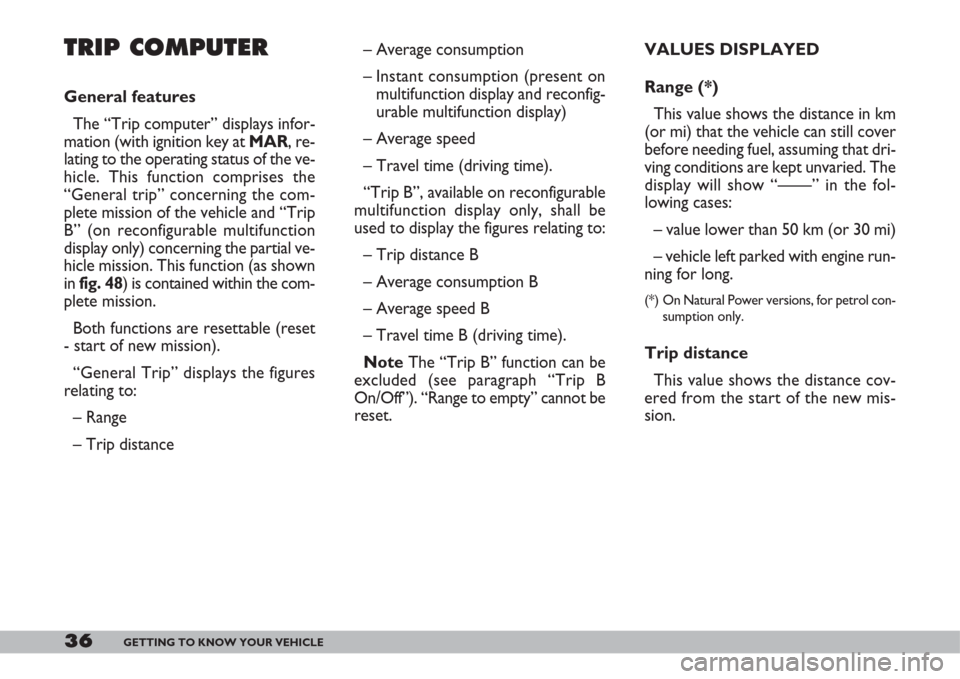

36GETTING TO KNOW YOUR VEHICLE
– Average consumption
– Instant consumption (present on
multifunction display and reconfig-
urable multifunction display)
– Average speed
– Travel time (driving time).
“Trip B”, available on reconfigurable
multifunction display only, shall be
used to display the figures relating to:
– Trip distance B
– Average consumption B
– Average speed B
– Travel time B (driving time).
NoteThe “Trip B” function can be
excluded (see paragraph “Trip B
On/Off”). “Range to empty” cannot be
reset.TRIP COMPUTER
General features
The “Trip computer” displays infor-
mation (with ignition key at MAR, re-
lating to the operating status of the ve-
hicle. This function comprises the
“General trip” concerning the com-
plete mission of the vehicle and “Trip
B” (on reconfigurable multifunction
display only) concerning the partial ve-
hicle mission. This function (as shown
in fig. 48) is contained within the com-
plete mission.
Both functions are resettable (reset
- start of new mission).
“General Trip” displays the figures
relating to:
– Range
– Trip distanceVALUES DISPLAYED
Range (*)
This value shows the distance in km
(or mi) that the vehicle can still cover
before needing fuel, assuming that dri-
ving conditions are kept unvaried. The
display will show “——” in the fol-
lowing cases:
– value lower than 50 km (or 30 mi)
– vehicle left parked with engine run-
ning for long.
(*) On Natural Power versions, for petrol con-
sumption only.
Trip distance
This value shows the distance cov-
ered from the start of the new mis-
sion.

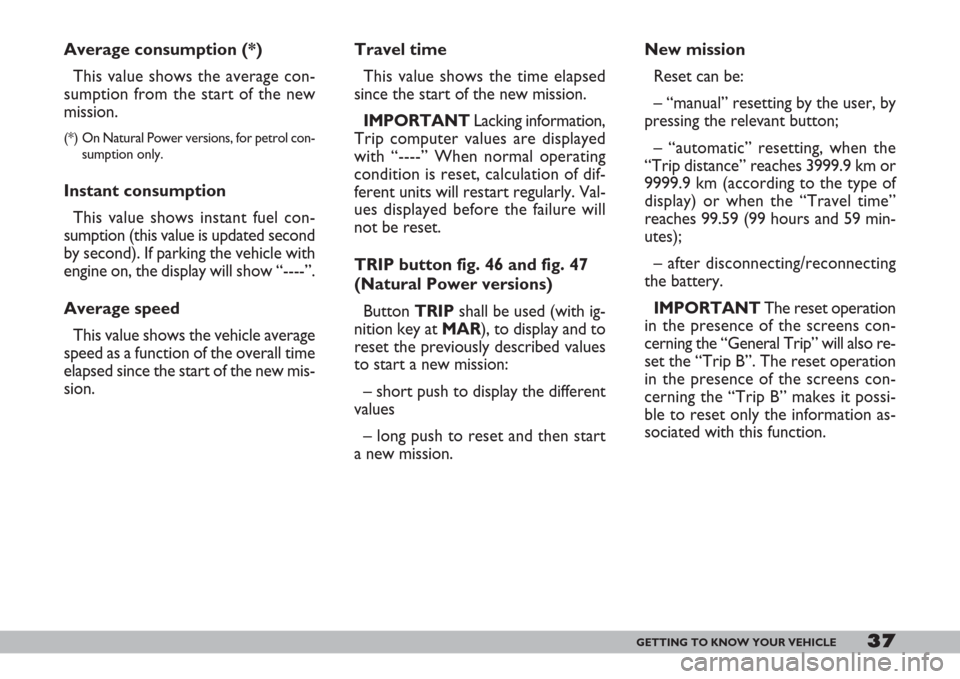

37GETTING TO KNOW YOUR VEHICLE
Travel time
This value shows the time elapsed
since the start of the new mission.
IMPORTANTLacking information,
Trip computer values are displayed
with “----” When normal operating
condition is reset, calculation of dif-
ferent units will restart regularly. Val-
ues displayed before the failure will
not be reset.
TRIP button fig. 46 and fig. 47
(Natural Power versions)
Button TRIPshall be used (with ig-
nition key at MAR), to display and to
reset the previously described values
to start a new mission:
– short push to display the different
values
– long push to reset and then start
a new mission. Average consumption (*)
This value shows the average con-
sumption from the start of the new
mission.
(*) On Natural Power versions, for petrol con-
sumption only.
Instant consumption
This value shows instant fuel con-
sumption (this value is updated second
by second). If parking the vehicle with
engine on, the display will show “----”.
Average speed
This value shows the vehicle average
speed as a function of the overall time
elapsed since the start of the new mis-
sion.New mission
Reset can be:
– “manual” resetting by the user, by
pressing the relevant button;
– “automatic” resetting, when the
“Trip distance” reaches 3999.9 km or
9999.9 km (according to the type of
display) or when the “Travel time”
reaches 99.59 (99 hours and 59 min-
utes);
– after disconnecting/reconnecting
the battery.
IMPORTANTThe reset operation
in the presence of the screens con-
cerning the “General Trip” will also re-
set the “Trip B”. The reset operation
in the presence of the screens con-
cerning the “Trip B” makes it possi-
ble to reset only the information as-
sociated with this function.

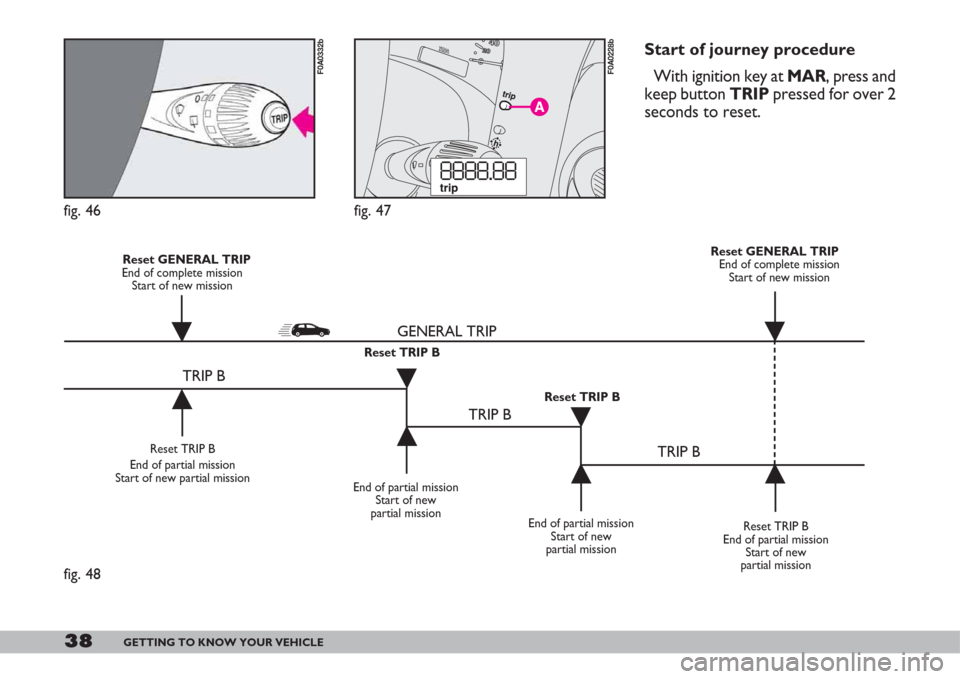

38GETTING TO KNOW YOUR VEHICLE
Start of journey procedure
With ignition key at MAR, press and
keep button TRIPpressed for over 2
seconds to reset.
fig. 46
fig. 48
F0A0332b
fig. 47
F0A0228b
Reset TRIP B
End of partial mission
Start of new partial mission
End of partial mission
Start of new
partial mission
Reset TRIP B
End of partial mission
Start of new
partial mission Reset GENERAL TRIP
End of complete mission
Start of new missionReset GENERAL TRIP
End of complete mission
Start of new mission
End of partial mission
Start of new
partial mission Reset TRIP B
Reset TRIP B
TRIP B
TRIP B
TRIP B GENERAL TRIP˙
˙
˙
˙
˙
˙
˙ ˙

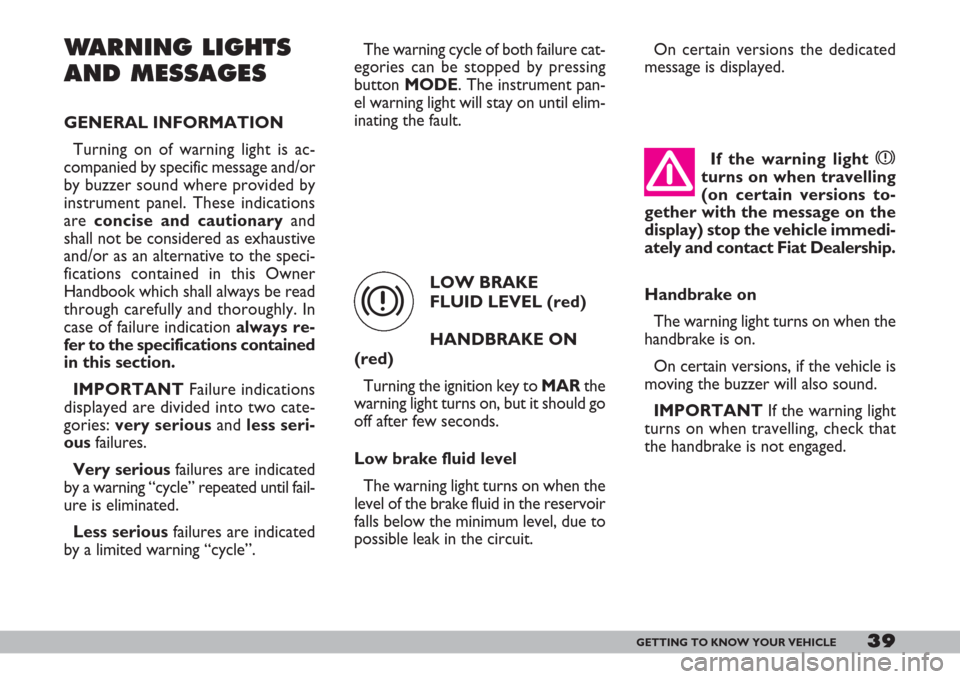

39GETTING TO KNOW YOUR VEHICLE
WARNING LIGHTS
AND MESSAGES
GENERAL INFORMATION
Turning on of warning light is ac-
companied by specific message and/or
by buzzer sound where provided by
instrument panel. These indications
are concise and cautionaryand
shall not be considered as exhaustive
and/or as an alternative to the speci-
fications contained in this Owner
Handbook which shall always be read
through carefully and thoroughly. In
case of failure indication always re-
fer to the specifications contained
in this section.
IMPORTANTFailure indications
displayed are divided into two cate-
gories: very serious and less seri-
ousfailures.
Very seriousfailures are indicated
by a warning “cycle” repeated until fail-
ure is eliminated.
Less seriousfailures are indicated
by a limited warning “cycle”.The warning cycle of both failure cat-
egories can be stopped by pressing
button MODE. The instrument pan-
el warning light will stay on until elim-
inating the fault.
LOW BRAKE
FLUID LEVEL (red)
HANDBRAKE ON
(red)
Turning the ignition key to MARthe
warning light turns on, but it should go
off after few seconds.
Low brake fluid level
The warning light turns on when the
level of the brake fluid in the reservoir
falls below the minimum level, due to
possible leak in the circuit.
x
On certain versions the dedicated
message is displayed.
If the warning light
x
turns on when travelling
(on certain versions to-
gether with the message on the
display) stop the vehicle immedi-
ately and contact Fiat Dealership.
Handbrake on
The warning light turns on when the
handbrake is on.
On certain versions, if the vehicle is
moving the buzzer will also sound.
IMPORTANTIf the warning light
turns on when travelling, check that
the handbrake is not engaged.

Otherwise wait for few seconds to al-
low the engine cooling, then open
slowly and carefully the cap, top up
coolant and check whether its level is
falling between MINand MAXmarks
in the reservoir. Check visually any
leak. If, when restarting, the warning
light comes on again, contact Fiat
Dealership.
–vehicle heavy duty(e.g.: towing
trailer uphill of fully laden vehicle): de-
crease speed, if the warning light stays
on, stop the vehicle. Wait for 2 or 3
minutes leaving the engine on and
slightly accelerated to further activate
the circulation of the coolant fluid,
then switch the engine off. Check
proper coolant level as described pre-
viously.
40GETTING TO KNOW YOUR VEHICLE
AIR BAG FAILURE
(red) (where provided)
Turning the ignition key to
MARthe warning light turns
on, but it should go off after
few seconds.
The warning light stays on glowing
steadily if there is a failure in the air
bag system.
On certain versions the dedicated
message is displayed.
¬
The failure of the warn-
ing light
¬(warning light
off) is also indicated by
the flashing for more than the
normal 4 seconds of the passen-
ger’s front air bag deactivated
warning light
F.
If when turning the igni-
tion key to MAR, the
warning light
¬does not
turn on or stays on when travel-
ling there could be a failure in
safety systems; in this event air
bags or pretensioners could not
trigger in case of impact or, in a
minor number of cases, they
could trigger accidentally. Con-
tact Fiat Dealership immediate-
ly to have the system checked.
HIGH TEMPERATURE
ENGINE COOLANT
FLUID (red)
Turning the ignition key to MARthe
warning light turns on, but it should go
off after few seconds.
The warning light turns on when the
engine is overheated.
If the warning light comes on, pro-
ceed as follows:
– normal driving conditions: stop
the vehicle, switch off the engine and
check whether the water level in the
reservoir is not below theMINmark.
ç

EBD
FAILURE
(red) (amber)
The turning on at the same time of
warning lights
xand >with the en-
gine running indicates an EBD system
failure or that the system is unavail-
able; in this case heavy braking may
cause the rear wheels to lock before
time, with the possibility of skidding.
41GETTING TO KNOW YOUR VEHICLE
LOW BATTERY
CHARGE (red)
Turning the ignition key
to MARthe warning light turns on,
but it should go out as soon as the en-
gine is started (with the engine running
at idle speed a brief delay in going out
is allowed).
If the warning light stays on, contact
immediately Fiat Dealership. IMPORTANTUnder severe use of
the vehicle, keep the engine on and
slightly accelerated for few minutes
before switching it off. On certain ver-
sions the dedicated message is dis-
played.
w
Drive with the utmost care to the
nearest Fiat Dealershipto have the
system checked.
On certain versions the dedicated
message is displayed.
x>
LOW ENGINE
OIL PRESSURE
(red)
EXHAUST OIL
(Multijet versions) (red)
Low engine oil pressure
Turning the ignition key to MARthe
warning light turns on, but it should go
out as soon as the engine is started.
On certain versions the dedicated
message is displayed.
If the warning light
v
turns on when the vehicle
is travelling (on certain
versions together with the mes-
sage on the display) stop the en-
gine immediately and contact a
Fiat Dealership.
v
SEAT BELTS NOT
FASTENED (red)
The warning light on the di-
al turns on glowing steadily with
vehicle stationary and driver’s or pas-
senger’s seat belt not fastened cor-
rectly. The warning light will turn on
flashing when, with vehicle moving, dri-
ver’s or passenger’s seat belt are not
fastened correctly.
<
Exhaust oil (Multijet versions)
The warning light with turn on flash-
ing together with the message on the
display when the system detects that
the engine oil is exhaust.
After the first indication, at each en-
gine starting the warning light
v
will go on flashing for 60 seconds and
then for 2 hours until oil is changed.
If warning light
v
flashes, contact Fiat Deal-
ership immediately to
have oil changed and instrument
panel warning light turned off.

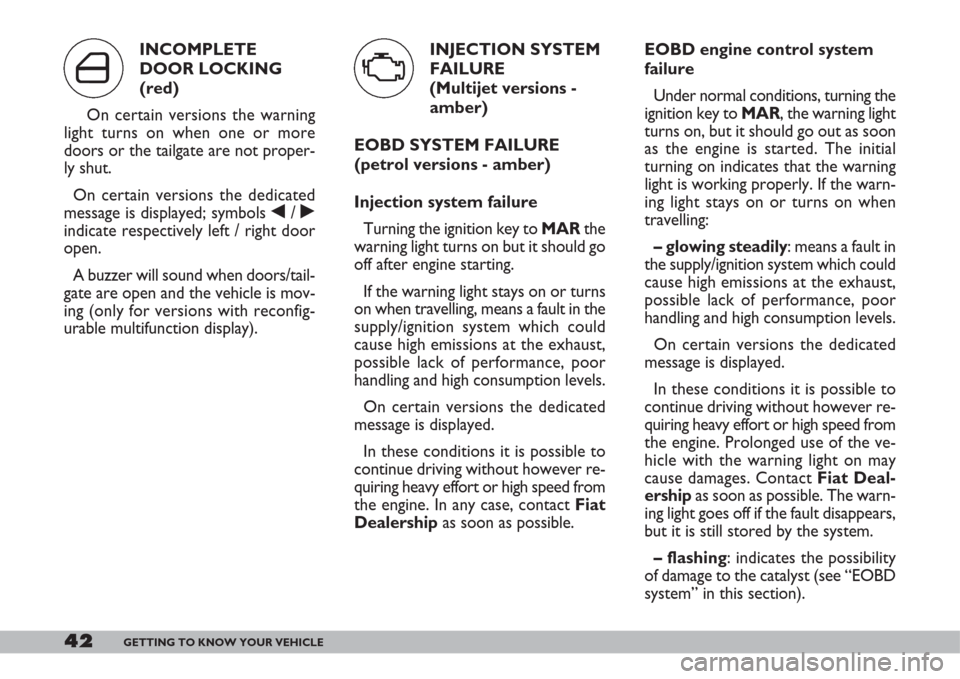

42GETTING TO KNOW YOUR VEHICLE
EOBD engine control system
failure
Under normal conditions, turning the
ignition key to MAR, the warning light
turns on, but it should go out as soon
as the engine is started. The initial
turning on indicates that the warning
light is working properly. If the warn-
ing light stays on or turns on when
travelling:
– glowing steadily: means a fault in
the supply/ignition system which could
cause high emissions at the exhaust,
possible lack of performance, poor
handling and high consumption levels.
On certain versions the dedicated
message is displayed.
In these conditions it is possible to
continue driving without however re-
quiring heavy effort or high speed from
the engine. Prolonged use of the ve-
hicle with the warning light on may
cause damages. Contact Fiat Deal-
ershipas soon as possible. The warn-
ing light goes off if the fault disappears,
but it is still stored by the system.
– flashing: indicates the possibility
of damage to the catalyst (see “EOBD
system” in this section). INJECTION SYSTEM
FAILURE
(Multijet versions -
amber)
EOBD SYSTEM FAILURE
(petrol versions - amber)
Injection system failure
Turning the ignition key to MAR the
warning light turns on but it should go
off after engine starting.
If the warning light stays on or turns
on when travelling, means a fault in the
supply/ignition system which could
cause high emissions at the exhaust,
possible lack of performance, poor
handling and high consumption levels.
On certain versions the dedicated
message is displayed.
In these conditions it is possible to
continue driving without however re-
quiring heavy effort or high speed from
the engine. In any case, contact Fiat
Dealershipas soon as possible. INCOMPLETE
DOOR LOCKING
(red)
On certain versions the warning
light turns on when one or more
doors or the tailgate are not proper-
ly shut.
On certain versions the dedicated
message is displayed; symbols
¯/ ˙
indicate respectively left / right door
open.
A buzzer will sound when doors/tail-
gate are open and the vehicle is mov-
ing (only for versions with reconfig-
urable multifunction display).
´U

INEFFICIENT ABS
SYSTEM (amber)
Turning the ignition key
to MARthe warning light turns on,
but it should go off after few seconds.
The warning light turns on when the
system is inefficient or unavailable. In
this case the braking system keeps its
effectiveness unchanged, but without
the potential offered by the ABS sys-
tem. Caution is advisable and it is nec-
essary to contact Fiat Dealership.
On certain versions the dedicated
message is displayed.
43GETTING TO KNOW YOUR VEHICLE
FUEL RESERVE
(amber)
Turning the ignition key to
MARthe warning light turns on, but
it should go off after few seconds.
The warning light turns on when
about 5-7 litres fuel are left in the tank.
IMPORTANT The warning light
flashes to indicate a failure, contact
Fiat Dealershipas soon as possible
to have the system checked.
On certain versions the dedicated
message is displayed. If the light flashes, it is necessary to
release the accelerator pedal to low-
er the speed of the engine until the
warning light stops flashing; continue
the journey at moderate speed, trying
to avoid driving conditions that may
cause further flashing and contact Fi-
at Dealership as soon as possible.
If, turning the ignition
key to MAR, the warning
light Udoes not turn on
or if it turns on glowing steadily
or flashing when travelling (on
certain versions together with
the message on the display), con-
tact Fiat Dealership as soon as
possible. Warning light Uoper-
ation can be checked by traffic
agents by proper equipment.
Comply with laws and regula-
tions of the country where you
are driving.
ç>

WATER IN DIESEL
FUEL FILTER
(Multijet versions -
amber)
Turning the ignition key toMARthe
warning light turns on, but it should go
off after few seconds. The warning
light
cturns on when there is water
in the diesel fuel filter. On certain ver-
sions the warning light
èturns on
and the display shows a dedicated
message.
44GETTING TO KNOW YOUR VEHICLE
GLOW PLUG
WARMING
(Multijet versions - am-
ber)
GLOW PLUG WARMING FAIL-
URE (Multijet versions - amber)
Spark plug pre-heating
Turning the ignition key to MAR, the
warning light turns on and it will turn
off when glow plugs reach the preset
temperature. Start the engine imme-
diately after warning light switching off.
IMPORTANTWith hot ambient
temperature, warning light stays on for
very short time.
Glow plug warming failure
The warning light turns on when
there is a failure in the glow plug
warming system. Contact Fiat Deal-
ershipas soon as possible.
On certain versions the dedicated
message is displayed. FRONT
PASSENGER’S AIR
BAG DEACTIVATED
(amber)
Warning light
Fcomes on when
front passenger’s air bag is deactivat-
ed.
With front passenger’s air bag on,
turning the ignition key to MAR,
warning light
Fcomes on steadily
for about 4 seconds, it flashes for oth-
er 4 seconds and then it shall go off.
Warning light
Findi-
cates also warning light ¬
failures. This is indicated
by intermittent flashing, over 4
seconds, of warning light F. In
this event warning light ¬indi-
cates that there could be a failure
in safety systems. Contact Fiat
Dealership immediately to have
the system checked.
mcF
