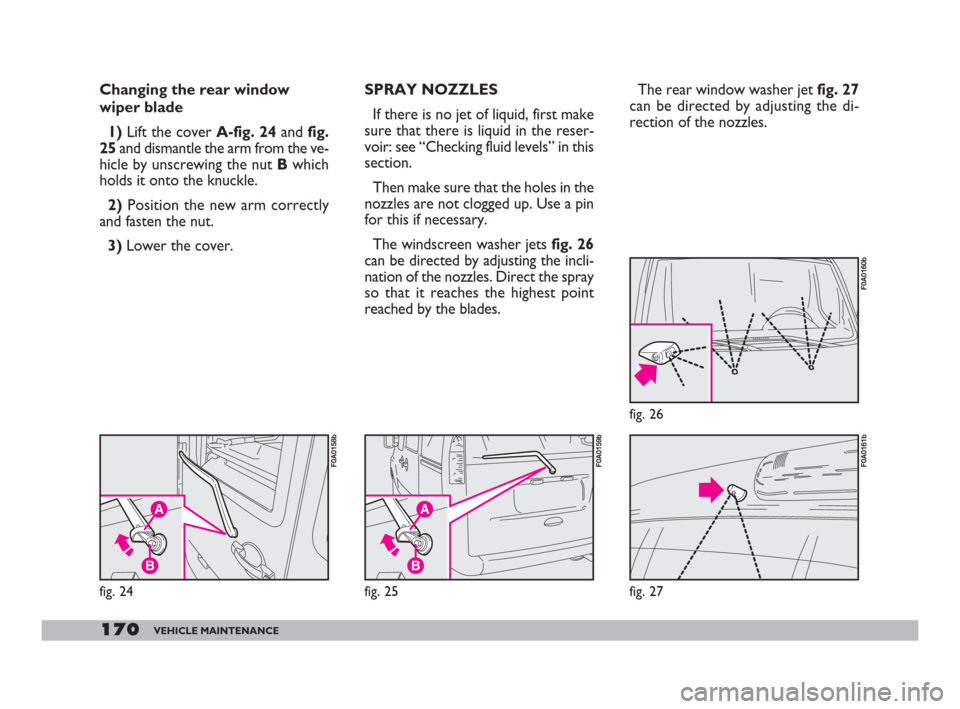

170VEHICLE MAINTENANCE
Changing the rear window
wiper blade
1)Lift the cover A-fig. 24and fig.
25and dismantle the arm from the ve-
hicle by unscrewing the nut Bwhich
holds it onto the knuckle.
2) Position the new arm correctly
and fasten the nut.
3) Lower the cover.SPRAY NOZZLES
If there is no jet of liquid, first make
sure that there is liquid in the reser-
voir: see “Checking fluid levels” in this
section.
Then make sure that the holes in the
nozzles are not clogged up. Use a pin
for this if necessary.
The windscreen washer jets fig. 26
can be directed by adjusting the incli-
nation of the nozzles. Direct the spray
so that it reaches the highest point
reached by the blades.
A
B
fig. 24
F0A0158b
A
B
fig. 25
F0A0159b
The rear window washer jet fig. 27
can be directed by adjusting the di-
rection of the nozzles.
fig. 26
F0A0160b
fig. 27
F0A0161b
149-173 Doblo GB 9-05-2008 12:10 Pagina 170
Page 172 of 222

171VEHICLE MAINTENANCE
ADVICE FOR PRESERVING
THE BODYWORK
Paint
Paintwork does not only serve an
aesthetic purpose, but also protects
the underlying sheet metal.
In the case of deep scrapes or scores,
you are advised to have the necessary
touching up carried out immediately
to avoid the formation of rust.
Only use genuine products when
touching up the paintwork (see “Body-
work paint identification plate” in sec-
tion “Technical specifications”).
Ordinary maintenance of the paint-
work means washing it. The frequen-
cy you should do this depends on the
conditions and the environment the
vehicle is driven in. For example, in ar-
eas with a high level of air pollution or
on roads sprinkled with road salt,
wash the vehicle more frequently. – The spraying of the underbody, en-
gine compartment, inside the wheel-
houses and other parts with wax-
based products with a high protective
capacity.
– Spraying plastic-coating materials
to protect the most exposed points:
under the door, inside the wings, the
edges etc.
– The use of “open” box sections to
prevent condensation and water from
building up and rusting the inside of
the parts.
BODY AND UNDERBODY
WARRANTY
Your Fiat Doblò is covered by war-
ranty against any original structural or
body part being perforated by rust.
Refer to the Warranty Booklet for the
general terms.BODYWORK
PROTECTION FROM
ATMOSPHERIC AGENTS
The main causes of rust are:
– atmospheric pollution
– salt and humidity in the atmosphere
(coastal or very hot and humid areas)
– environmental conditions that are
specific to the season.
Not to be underestimated is also the
abrasive action of wind-borne atmos-
pheric dust and sand and mud and
gravel raised by other vehicles.
For your Fiat Doblò, Fiat has used
leading-edge technological solutions to
effectively protect the body from rust.
These include:
– Painting systems and products that
make the vehicle particularly resistant
to rust and scratching.
– The use of zinc-plated sheet steel
which is highly resistant to rust.
149-173 Doblo GB 9-05-2008 12:10 Pagina 171
Page 173 of 222

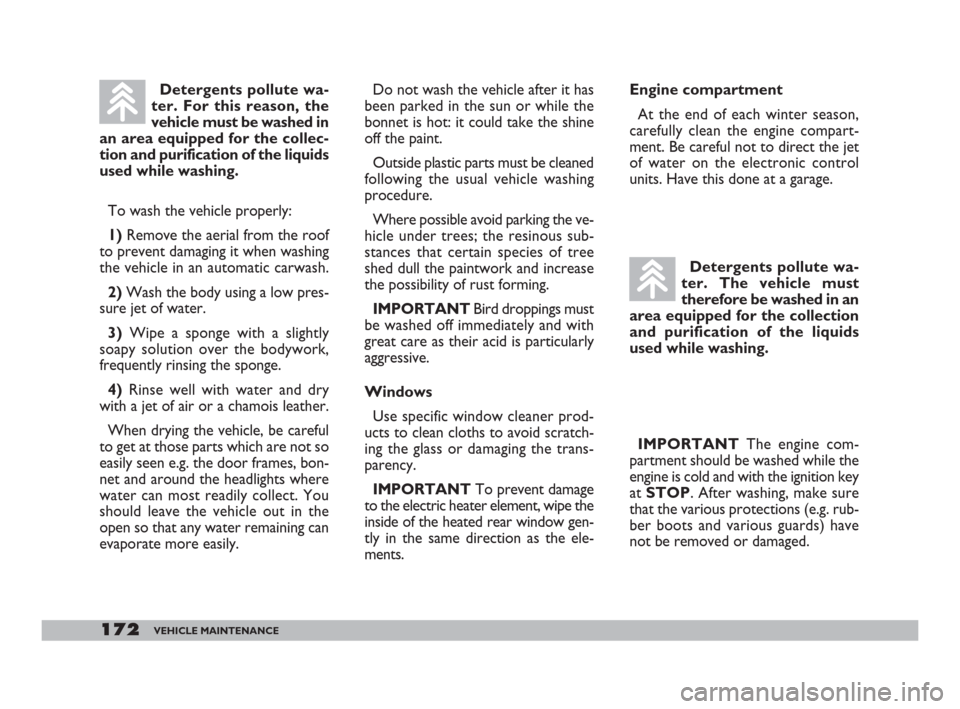

172VEHICLE MAINTENANCE
Detergents pollute wa-
ter. The vehicle must
therefore be washed in an
area equipped for the collection
and purification of the liquids
used while washing.
IMPORTANT The engine com-
partment should be washed while the
engine is cold and with the ignition key
at STOP. After washing, make sure
that the various protections (e.g. rub-
ber boots and various guards) have
not be removed or damaged. To wash the vehicle properly:
1) Remove the aerial from the roof
to prevent damaging it when washing
the vehicle in an automatic carwash.
2) Wash the body using a low pres-
sure jet of water.
3)Wipe a sponge with a slightly
soapy solution over the bodywork,
frequently rinsing the sponge.
4)Rinse well with water and dry
with a jet of air or a chamois leather.
When drying the vehicle, be careful
to get at those parts which are not so
easily seen e.g. the door frames, bon-
net and around the headlights where
water can most readily collect. You
should leave the vehicle out in the
open so that any water remaining can
evaporate more easily.Detergents pollute wa-
ter. For this reason, the
vehicle must be washed in
an area equipped for the collec-
tion and purification of the liquids
used while washing.
Engine compartment
At the end of each winter season,
carefully clean the engine compart-
ment. Be careful not to direct the jet
of water on the electronic control
units. Have this done at a garage. Do not wash the vehicle after it has
been parked in the sun or while the
bonnet is hot: it could take the shine
off the paint.
Outside plastic parts must be cleaned
following the usual vehicle washing
procedure.
Where possible avoid parking the ve-
hicle under trees; the resinous sub-
stances that certain species of tree
shed dull the paintwork and increase
the possibility of rust forming.
IMPORTANTBird droppings must
be washed off immediately and with
great care as their acid is particularly
aggressive.
Windows
Use specific window cleaner prod-
ucts to clean cloths to avoid scratch-
ing the glass or damaging the trans-
parency.
IMPORTANTTo prevent damage
to the electric heater element, wipe the
inside of the heated rear window gen-
tly in the same direction as the ele-
ments.
149-173 Doblo GB 9-05-2008 12:10 Pagina 172
Page 174 of 222

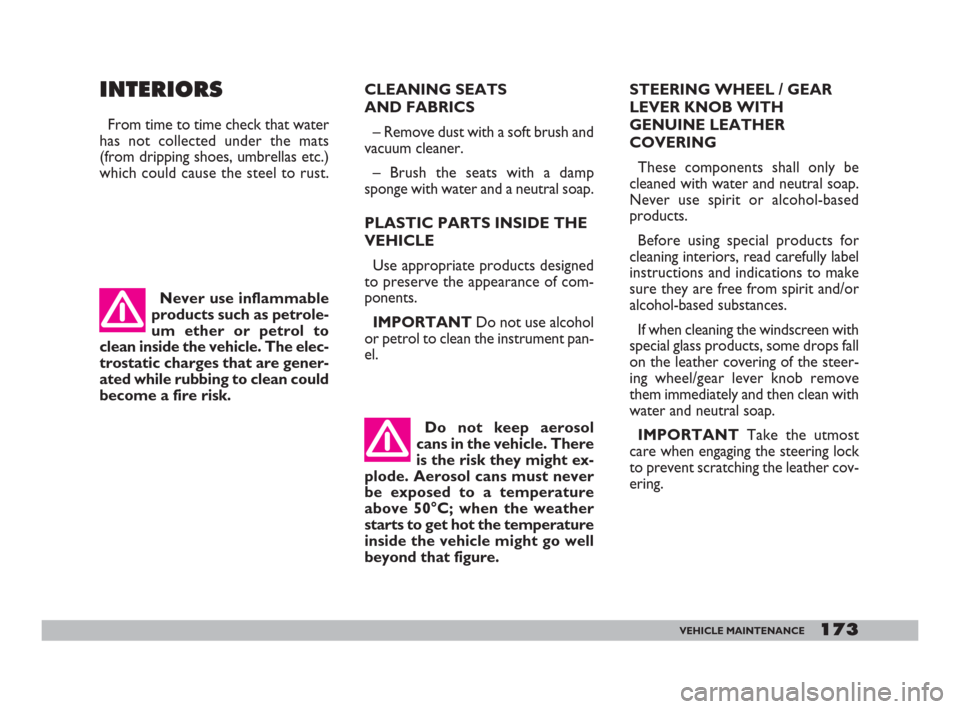

173VEHICLE MAINTENANCE
CLEANING SEATS
AND FABRICS
– Remove dust with a soft brush and
vacuum cleaner.
– Brush the seats with a damp
sponge with water and a neutral soap.
PLASTIC PARTS INSIDE THE
VEHICLE
Use appropriate products designed
to preserve the appearance of com-
ponents.
IMPORTANTDo not use alcohol
or petrol to clean the instrument pan-
el.
Do not keep aerosol
cans in the vehicle. There
is the risk they might ex-
plode. Aerosol cans must never
be exposed to a temperature
above 50°C; when the weather
starts to get hot the temperature
inside the vehicle might go well
beyond that figure. INTERIORS
From time to time check that water
has not collected under the mats
(from dripping shoes, umbrellas etc.)
which could cause the steel to rust.
Never use inflammable
products such as petrole-
um ether or petrol to
clean inside the vehicle. The elec-
trostatic charges that are gener-
ated while rubbing to clean could
become a fire risk.
STEERING WHEEL / GEAR
LEVER KNOB WITH
GENUINE LEATHER
COVERING
These components shall only be
cleaned with water and neutral soap.
Never use spirit or alcohol-based
products.
Before using special products for
cleaning interiors, read carefully label
instructions and indications to make
sure they are free from spirit and/or
alcohol-based substances.
If when cleaning the windscreen with
special glass products, some drops fall
on the leather covering of the steer-
ing wheel/gear lever knob remove
them immediately and then clean with
water and neutral soap.
IMPORTANTTake the utmost
care when engaging the steering lock
to prevent scratching the leather cov-
ering.
149-173 Doblo GB 9-05-2008 12:10 Pagina 173
Page 175 of 222

174TECHNICAL SPECIFICATIONS
VEHICLE IDENTIFICATION
DATA CHASSIS MARKING
fig. 1
It is printed on the passenger com-
partment floor, near the right-hand
front seat.
It can be reached by lifting the spe-
cial flap in the carpeting and includes
the following data:
– vehicle model ZFA 223000;
– chassis number.MODEL PLATE
The plate A-fig. 2-3, is applied to the
front engine crossmember.
T T
E E
C C
H H
N N
I I
C C
A A
L L
S S
P P
E E
C C
I I
F F
I I
C C
A A
T T
I I
O O
N N
S S
fig. 1
F0A0163b
fig. 2 - 1.4 8Vversions
F0A0537b
fig. 3 - Multijet versions
F0A0538b
ENGINE MARKING
The marking is stamped on the cylin-
der block and includes the model and
the serial number.
174-211 Doblo GB 16-12-2008 14:26 Pagina 174
Page 176 of 222

The plate fig. 4bears the following
identification data:
B - Homologation number
C - Vehicle type code
D - Chassis number
E - Maximum vehicle weight fully
loaded
F- Maximum vehicle weight fully
loaded with trailer.G- Maximum vehicle weight on
front axle.
H - Maximum vehicle weight on rear
axle
I - Engine type
L - Body version code
M - Spare part code
M - Smoke opacity index (for diesel
engines).BODYWORK PAINT
IDENTIFICATION PLATE
The plate fig. 5is applied inside the
bonnet.
It bears the following data:
A - Paint manufacturer
B - Colour name
C - Fiat colour code
D- Respray and touch up code.
fig. 4
F0A0722bA
B
C
D
fig. 5
F0A0169b
175TECHNICAL SPECIFICATIONS
174-211 Doblo GB 16-12-2008 14:26 Pagina 175
Page 177 of 222

176TECHNICAL SPECIFICATIONS
ENGINE CODES - BODYWORK VERSIONS
EUROPEAN HOMOLOGATION
Engine Engine code
1.4 8V 350A1000
Versions Bodywork
version code
Cargo 223ZXP1AAX
Cargo high roof 223ZXP1ABX
Cargo extra capacity 223WXP1AAX
Cargo high roof - extra capacity 223WXP1ABX
Cargo small capacity 223ZXP1AAY
Cargo high roof - small capacity 223ZXP1ABY
Cargo Maxi (long wheelbase) 223WXP1AAXL
Cargo Maxi (long wheelbase) - small capacity 223WXP1AAYL
5 seater combi N1 223WXP1AAZ
Panorama 223AXP1A10
Panorama high roof 223AXP1A10B
7 seater family 223AXP1A10C
HOMOLOGATION FOR SPECIFIC MARKETS
Engine Engine code
1.4 8V 350A1000
Versioni Bodywork
version code
Cargo 223ZXP1AXX
Cargo high roof 223ZXP1AXY
Cargo extra capacity 223WXP1AXX
Cargo high roof - extra capacity 223WXP1AXY
Cargo Maxi (long wheelbase) 223WXP1AXXL
5 seater combi N1 223WXP1AXZ
Panorama 223AXP1AXX
Panorama high roof 223AXP1AXXB
7 seater family 223AXP1AXXC
174-211 Doblo GB 16-12-2008 14:26 Pagina 176
Page 178 of 222

177TECHNICAL SPECIFICATIONS
EUROPEAN HOMOLOGATION
Engine Enginecode
1.3 Multijet 199 A 2000
Versions Bodywork
version code
Cargo 223ZXN1AAX
Cargo high roof 223ZXN1ABX
Cargo extra capacity 223WXN1AAX
Cargo high roof - extra capacity 223WXN1ABX
Cargo small capacity 223ZXN1AAY
Cargo high roof - small capacity 223ZXN1ABY
Cargo Maxi (long wheelbase) 223WXN1AAXL
Cargo Maxi (long wheelbase) - small capacity 223WXN1AAYL
5 seater combi N1 223WXN1AAZ
Engine Engine
code
1.3 Multijet 85 HP 223 A 9000
Versions Bodywork
version code
Cargo 223ZXM1AAX
Cargo high roof 223ZXM1ABX
5 seater combi N1 223ZXM1AAZ
Panorama 223AXM1A08D
Panorama high roof 223AXM1A08B
7 seater family 223AXM1A08E
HOMOLOGATION FOR SPECIFIC MARKETS
Engine Enginecode
1.3 Multijet 199 A 2000
Versions Bodywork
version code
Cargo 223ZXN1AXX
Cargo high roof 223ZXN1AXY
Cargo extra capacity 223WXN1AXX
Cargo high roof - extra capacity 223WXN1AXY
Cargo Maxi (long wheelbase) 223WXN1AXXL
5 seater combi N1 223WXN1AXZ
174-211 Doblo GB 16-12-2008 14:26 Pagina 177
Page 179 of 222

178TECHNICAL SPECIFICATIONS
EUROPEAN HOMOLOGATION
Engine Engine code
1.9 Multijet 105 HP 223 B 1000
Versions Bodywork
version code
Cargo 223ZXL1AAX
Cargo high roof 223ZXL1ABX
Cargo extra capacity 223WXL1AAX
Cargo high roof - extra capacity 223WXL1ABX
Cargo small capacity 223ZXL1AAY
Cargo high roof - small capacity 223ZXL1ABY
Cargo Maxi (long wheelbase) 223WXL1AAXL
Cargo Maxi (long wheelbase) - small capacity 223WXL1AAYL
5 seater combi N1 223WXL1AAZ
Panorama 223AXL1AA07
Engine Engine
code
1.9 Multijet 100 HP 223 B 2000
Versions Bodywork
version code
Cargo 223ZXR1AAX
Cargo high roof 223ZXR1ABX
Cargo extra capacity 223WXR1AAX
Cargo high roof - extra capacity 223WXR1ABX
Cargo Maxi (long wheelbase) 223WXR1AAXL
HOMOLOGATION FOR SPECIFIC MARKETS
Engine Engine code
1.9 Multijet 105 HP 223 B 1000
Versions Bodywork
version code
Cargo 223ZXL1AXX
Cargo high roof 223ZXL1AXY
Cargo extra capacity 223WXL1AXX
Cargo high roof - extra capacity 223WXL1AXY
Cargo Maxi (long wheelbase) 223WXL1AXXL
5 seater combi N1 223WXL1AXZ
Panorama 223AXL1AXX
174-211 Doblo GB 16-12-2008 14:26 Pagina 178
Page 180 of 222

179TECHNICAL SPECIFICATIONS
EUROPEAN HOMOLOGATION
Engine Engine code
1.9 Multijet 120 HP 186 A 9000
VersionsBodywork version code
Cargo 223ZXH1AAX
Cargo high roof223ZXH1ABX
Cargo Maxi (long wheelbase)223ZXH1AAXL
5 seater combi N1223ZXH1AAZ
Panorama 223AXH1A06
Panorama high roof223AXH1A06B
7 seater family223AXH1A06C
ENGINE
GENERAL FEATURES1.4 8v
Type code 350A1000
Cycle Otto
Number and layout of cylinders 4 in line
Piston bore and stroke mm 72,0 x 84
Total displacement cm31368
Compression ratio 11,1 : 1
Max power (CEE):
kW 57
HP 77
corresponding ratio rpm 6000
Max torque (CEE):
Nm 115
kgm 11,7
corresponding ratio giri/min 3000
Spark plugs NGK ZKR7A - 10
Fuel Unleaded
petrol
95 RON
174-211 Doblo GB 16-12-2008 14:26 Pagina 179
