150VEHICLE MAINTENANCE
thousands of kilometres
Check tyre conditions / wear and adjust pressure, if required
Check lighting system operation (headlights, direction indicators,
hazard lights, boot light, passenger's compartment lights,
glove compartment light, instrument panel warning lights, etc.)
Check windscreen wiper/washer operation, adjust nozzles
Check windscreen/rear window wiper blade position/wear
Check front disk brake pad conditions and wear
Check rear drum brake lining conditions and wear
Inspect conditions of: underbody protection, piping (exhaust -
fuel feed and brakes), rubber parts (boots, sleeves, bushings, etc.),
fuel feed and braking system hosing
Check cleanness of locks, bonnet and boot and lever
cleanness and lubrication
Sight inspect accessory drive belt conditions
Replace accessory drive belts
Check/adjust tappet clearance (1.4 8V and 1.9 Multijet versions)
Check and adjust handbrake lever stroke
Check exhaust gas/smokiness (diesel versions)
Check anti-evaporation system
Replace fuel filter (Multijet versions)
SERVICE SCHEDULE
The scheduled service must be carried out every 20,000 km.
20 40 60 80 100 120 140 160 180
●●●●●●●●●
●●●●●●●●●
●●●●●●●●●
●●●●●●●●●
●●●●●●●●●
●●●
●●●●●●●●●
●●●●●●●●●
●●
●
●●●
●●●●
●●●●
●●
●●●
149-173 Doblo GB 9-05-2008 12:10 Pagina 150
Page 152 of 222

151VEHICLE MAINTENANCE
20 40 60 80 100 120 140 160 180
●●●●
●●●
●●●●●●●●●
●●
●
●●●●
●●●●
●●
●●●●●●●●●
(●)(●)(●)(●)(●)(●)(●)(●)(●)
●●●
●●●●●●●●●thousands of kilometres
Replace air cleaner cartridge (petrol versions)
Replace air cleaner cartridge (Multijet versions)
Top up fluids (engine coolant, brakes, windscreen washer, battery, etc.)
Check timing belt conditions (excluding 1.3 Multijet versions)
Replace timing belt (excluding 1.3 Multijet versions) (*)
Replace spark plugs (petrol versions)
Check engine control systems (via diagnostic socket)
Check mechanical transmission oil level
Change engine oil and oil filter (versions without DPF) (O)
Change engine oil and oil filter (Multijet versions with DPF)
(or every 2 years) (**)
Change brake fluid (or every 2 years)
Change pollen filter (or every 2 years)
(*) Or every 4 years for very demanding use (cold climate, idling in city traffic, dusty areas).
Or every 5 years, regardless from the distance travelled.
(
O) Every 30.000 km or 2 years for Multijet versions
(**)Engine oil and oil filter shall be changed according to their actual exhaust conditions, indicated by warning light/message (where provided) on the
instrument panel (see section “Warning lights and messages”).
149-173 Doblo GB 9-05-2008 12:10 Pagina 151
Page 153 of 222

152VEHICLE MAINTENANCE
ANNUAL
INSPECTION
SCHEDULE
For vehicles with an annual
mileage of below 20.000 km (for
example about 10.000 km) the
following yearly inspection pro-
gramme is advised:
– check tyre conditions/wear and ad-
just pressure if required (including the
spare wheel).
– check light system operation (head-
lights, direction indicators, hazard
lights, boot lights, passenger compart-
ment lights, glovebox light, warning
lights, etc.).
– check windscreen wiper/washer
operation, adjust nozzles.
– check windscreen/rear window
blade position/wear
– check front disk brake pad condi-
tions and wear.– check cleanness of bonnet and
boot locks and lever cleanness and lu-
brication
– sight inspect the conditions of: en-
gine, gearbox, transmission, pipes and
hoses (exhaust - fuel - brakes), rubber
parts (boots, sleeves, bushes, etc)
brake and fuel hoses.
– check battery charge.
– visual check on various drive belt
conditions.
– check and top up, if required, fluid
levels (engine coolant, brake fluid,
windscreen washer fluid, battery fluid,
etc.).
– change engine oil.
– change engine oil filter.
– replace pollen filter (where pro-
vided).
ADDITIONAL
CHECKS
Every 1,000 kmor before long
trips, check and top up as necessary:
engine coolant level, brake fluid level,
windscreen washer liquid level, tyre
pressure and conditions.
Every 3,000 km check and top up
as necessary: engine oil level.
You are recommended to use FL
Selenia,products designed and pro-
duced specifically for Fiat vehicles (see
“Capacities” in section “Technical
specifications”).
149-173 Doblo GB 9-05-2008 12:10 Pagina 152
Page 154 of 222

153VEHICLE MAINTENANCE
IMPORTANT - Engine oil
Should prevailing use of the vehicle
be under one of the following special-
ly heavy conditions:
– towing a trailer
– on dirty roads
– for short, repeated trips (less than
7-8 km) with outside temperature be-
low zero
– frequently idling engines or long
distance low speed driving (e.g. taxis
or door-to-door deliveries) or in case
of a long term inactivity; replace en-
gine oil more frequently than required
on Service schedule
IMPORTANT - Air cleaner
If the vehicle is used on dusty roads
change the air cleaner more frequently
than the indications in the Service
schedule. If in doubt as to how often
the engine oil and air cleaner should
be changed according to how you use
the vehicle, contact a Fiat Dealer-
ship.IMPORTANT - Pollen filter
If the vehicle is used frequently in
dusty or heavily polluted environ-
ments it is advisable to replace the fil-
tering element more frequently; in
particular it should be replaced if a re-
duction of the amount of air admitted
to the passenger compartment is not-
ed.
IMPORTANT - Battery
The charge in your battery should be
checked, where possible at the start
of the winter, to limit the risk of the
battery electrolyte freezing. This check
should be carried out more frequent-
ly if the vehicle is mainly used for short
trips or if it is fitted with accessories
that permanently take in electricity
even when the ignition key is re-
moved, especially in the case of after
market accessories.You should check the battery fluid
(electrolyte) level more frequently
than shown in the service schedule in
this chapter if the vehicle is used in hot
climates or particularly demanding
conditions.
Maintenance of your ve-
hicle should be entrusted
to a Fiat Dealership. For
ordinary routine maintenance
operations which you are able to
carry out yourself, ensure that
you have the necessary tools and
original Fiat spare parts and flu-
ids available. Do not carry out
servicing operations if you have
no experience.
149-173 Doblo GB 9-05-2008 12:10 Pagina 153
Page 155 of 222

154VEHICLE MAINTENANCE

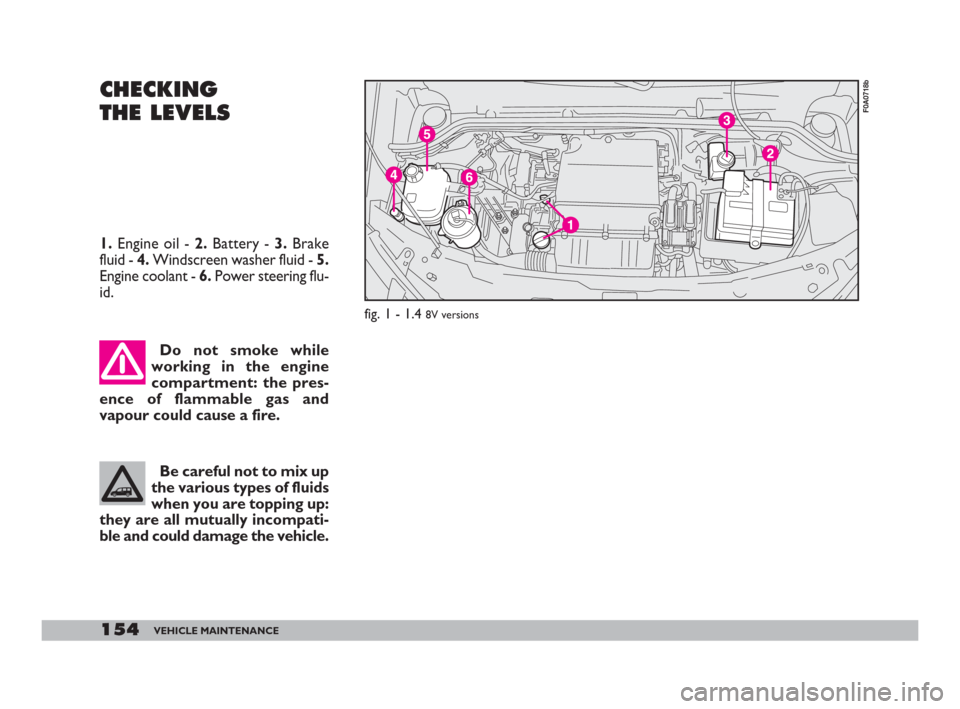

CHECKING
THE LEVELS
Do not smoke while
working in the engine
compartment: the pres-
ence of flammable gas and
vapour could cause a fire.
Be careful not to mix up
the various types of fluids
when you are topping up:
they are all mutually incompati-
ble and could damage the vehicle.
1.Engine oil - 2.Battery - 3.Brake
fluid - 4.Windscreen washer fluid - 5.
Engine coolant - 6.Power steering flu-
id.
F0A0718b
fig. 1 - 1.4 8V versions
149-173 Doblo GB 9-05-2008 12:10 Pagina 154
Page 156 of 222

Be careful not to mix up
the various types of fluids
when you are topping up:
they are all mutually incompati-
ble and could damage the vehicle.Do not smoke while
working in the engine
compartment: the pres-
ence of flammable gas and
vapour could cause a fire.
155VEHICLE MAINTENANCE

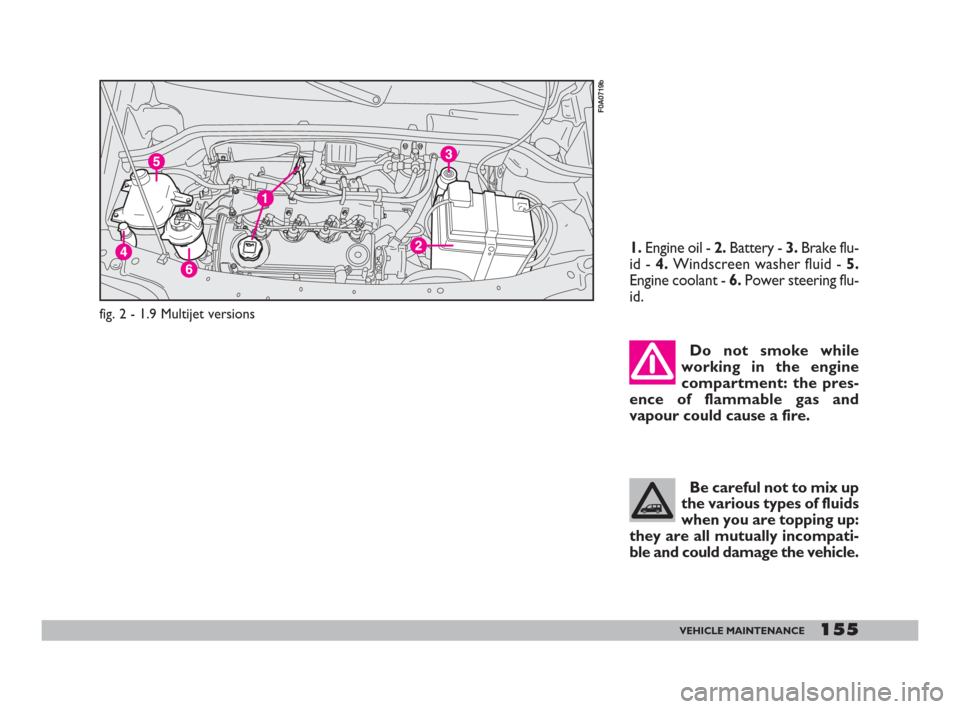

F0A0719b
fig. 2 - 1.9 Multijet versions
1.Engine oil - 2.Battery - 3.Brake flu-
id - 4.Windscreen washer fluid - 5.
Engine coolant - 6.Power steering flu-
id.
149-173 Doblo GB 9-05-2008 12:10 Pagina 155
Page 157 of 222

156VEHICLE MAINTENANCE

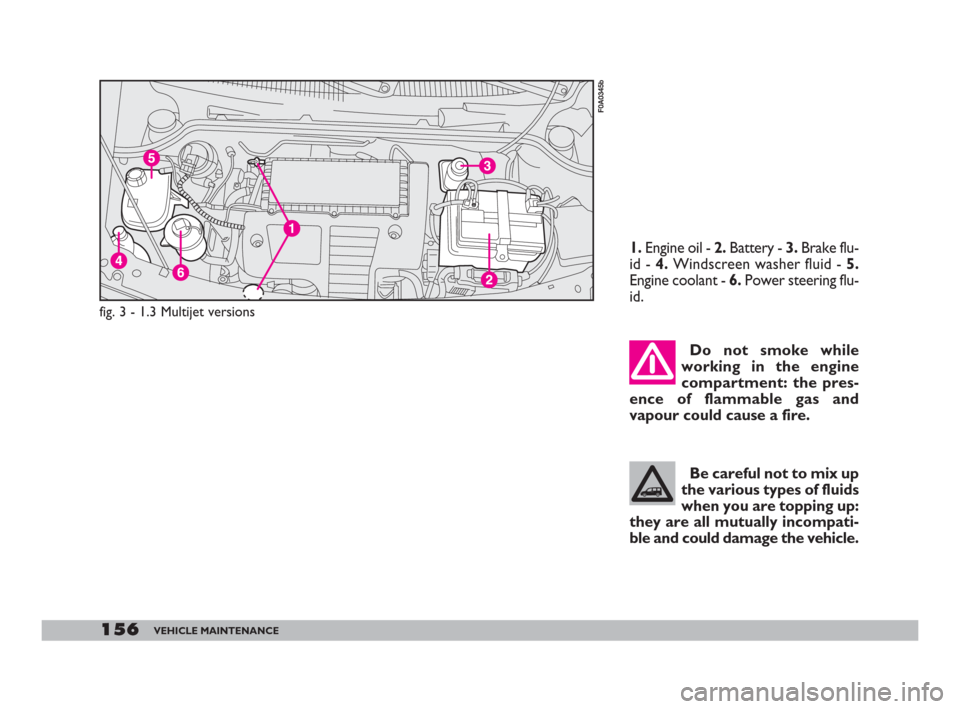

1.Engine oil - 2.Battery - 3.Brake flu-
id - 4.Windscreen washer fluid - 5.
Engine coolant - 6.Power steering flu-
id.
F0A0345b
fig. 3 - 1.3 Multijet versions
Do not smoke while
working in the engine
compartment: the pres-
ence of flammable gas and
vapour could cause a fire.
Be careful not to mix up
the various types of fluids
when you are topping up:
they are all mutually incompati-
ble and could damage the vehicle.
149-173 Doblo GB 9-05-2008 12:10 Pagina 156
Page 158 of 222

157VEHICLE MAINTENANCE

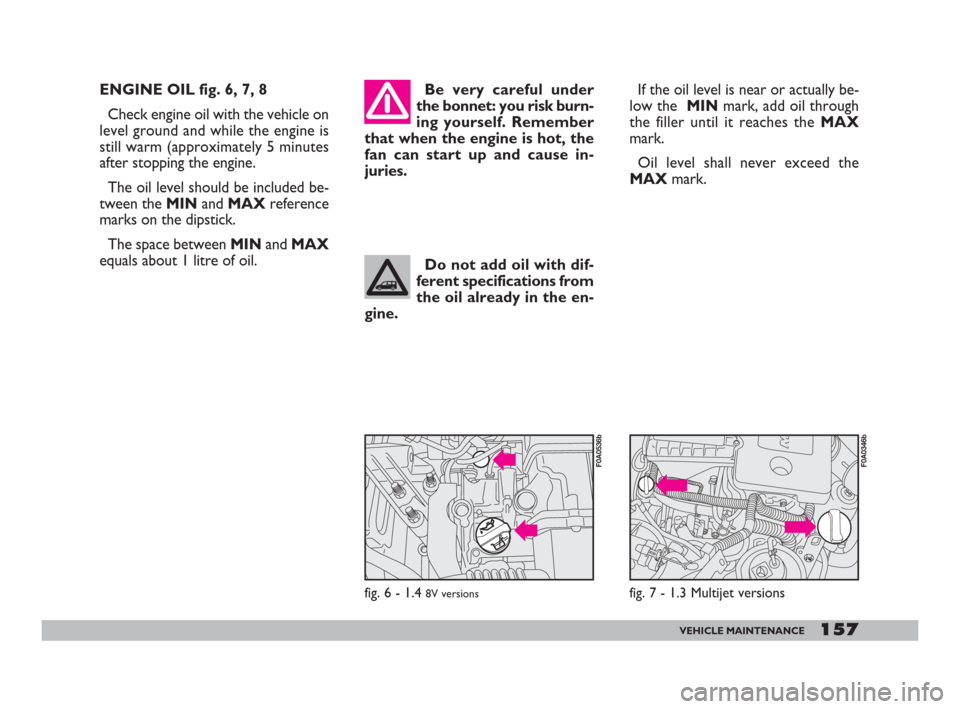

ENGINE OIL fig. 6, 7, 8
Check engine oil with the vehicle on
level ground and while the engine is
still warm (approximately 5 minutes
after stopping the engine.
The oil level should be included be-
tween the MINand MAXreference
marks on the dipstick.
The space between MINand MAX
equals about 1 litre of oil.If the oil level is near or actually be-
low the MINmark, add oil through
the filler until it reaches the MAX
mark.
Oil level shall never exceed the
MAXmark. Be very careful under
the bonnet: you risk burn-
ing yourself. Remember
that when the engine is hot, the
fan can start up and cause in-
juries.
Do not add oil with dif-
ferent specifications from
the oil already in the en-
gine.
fig. 6 - 1.4 8V versions
F0A0536bF0A0346b
fig. 7 - 1.3 Multijet versions
149-173 Doblo GB 9-05-2008 12:10 Pagina 157
Page 159 of 222

158VEHICLE MAINTENANCE

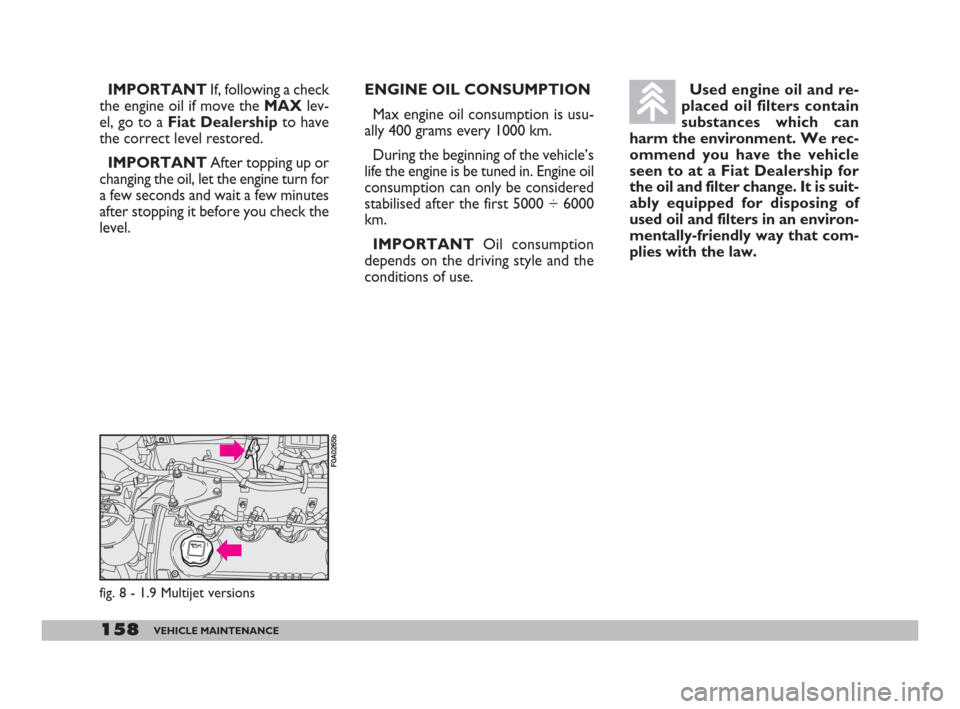

Used engine oil and re-
placed oil filters contain
substances which can
harm the environment. We rec-
ommend you have the vehicle
seen to at a Fiat Dealership for
the oil and filter change. It is suit-
ably equipped for disposing of
used oil and filters in an environ-
mentally-friendly way that com-
plies with the law.ENGINE OIL CONSUMPTION
Max engine oil consumption is usu-
ally 400 grams every 1000 km.
During the beginning of the vehicle’s
life the engine is be tuned in. Engine oil
consumption can only be considered
stabilised after the first 5000 ÷ 6000
km.
IMPORTANTOil consumption
depends on the driving style and the
conditions of use. IMPORTANTIf, following a check
the engine oil if move the MAXlev-
el, go to a Fiat Dealershipto have
the correct level restored.
IMPORTANT After topping up or
changing the oil, let the engine turn for
a few seconds and wait a few minutes
after stopping it before you check the
level.
fig. 8 - 1.9 Multijet versions
F0A0265b
149-173 Doblo GB 9-05-2008 12:10 Pagina 158
Page 160 of 222

159VEHICLE MAINTENANCE
ENGINE COOLANT fig. 11
The cooling system is
pressurised. If necessary,
replace the cap only with
another genuine one, otherwise
system efficiency could be com-
promised. Do not remove the
reservoir cap when the engine is
hot: you risk scalding yourself.
The coolant level shall be checked
with cold engine and shall be within
the MINand MAXmarks on the
tank.
If the level is low, pour slowly a mix-
ture of 50% distilled water and 50%
PARAFLU UPof the FL Selenia
Group through the filler neck until the
level reaches MAX.
A 50-50 mixture of PARAFLU UP
and distilled water gives freeze pro-
tection to –35°C.
For particularly hard climate condi-
tions, we recommend use of a 60%
PARAFLU UP and 40% deminer-
alized water mixture.
fig. 11
F0A0262b
WINDSCREEN/REAR
WINDOW WASHER FLUID
To top up, remove the capA-fig. 12
and lift the telescopic filler B, until it
clicks.
Pour a mixture of water and
TUTELA PROFESSIONAL SC
35, in the following concentrations:
30% of TUTELA PROFESSION-
AL SC 35and 70% of water in sum-
mer; 50% of TUTELA PROFES-
SIONAL SC 35and 50 of water in
winter. If the temperature falls below
–20°C, use TUTELA PROFES-
SIONAL SC 35undiluted.
fig. 12
F0A01263b
The engine cooling sys-
tem uses protective an-
tifreeze fluid PARAFLU
UP. Use the same fluid type as
that already in the cooling system
when topping up. PARAFLU UP
fluid cannot be mixed with any
other type of fluid. Should it hap-
pen, under no circumstances
start the engine; contact a Fiat
Dealership.
149-173 Doblo GB 9-05-2008 12:10 Pagina 159
