Every rear seat (where provided) is
fitted with inertial seat belts with three
anchor points and reel.
IMPORTANTBefore fastening the
seat belts make sure the seat is prop-
erly anchored.
7-seat versions
In the 7-seat versions, every rear seat
(second and third row) is fitted with
seat belts with three anchor points
and reel fig. 7.Remember that in the
case of a violent collision,
back seat passengers not
wearing seat belts also represent
a serious danger to the passen-
gers in the front seats.

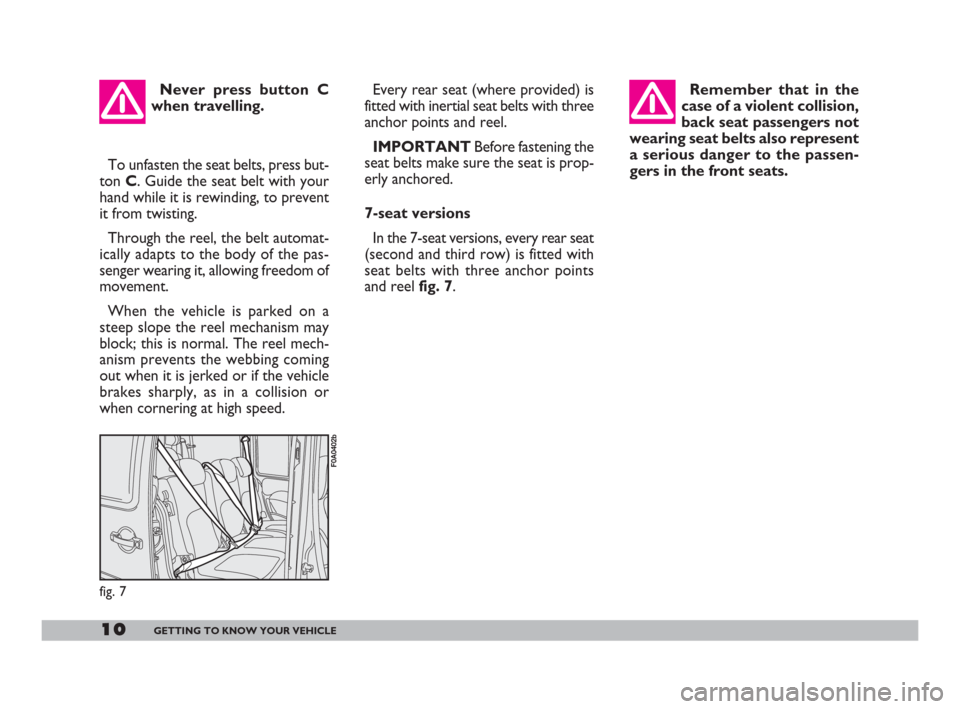

10GETTING TO KNOW YOUR VEHICLE
To unfasten the seat belts, press but-
ton C. Guide the seat belt with your
hand while it is rewinding, to prevent
it from twisting.
Through the reel, the belt automat-
ically adapts to the body of the pas-
senger wearing it, allowing freedom of
movement.
When the vehicle is parked on a
steep slope the reel mechanism may
block; this is normal. The reel mech-
anism prevents the webbing coming
out when it is jerked or if the vehicle
brakes sharply, as in a collision or
when cornering at high speed.
fig. 7
F0A0402b
Never press button C
when travelling.
001-105 Doblo GB 16-12-2008 14:22 Pagina 10

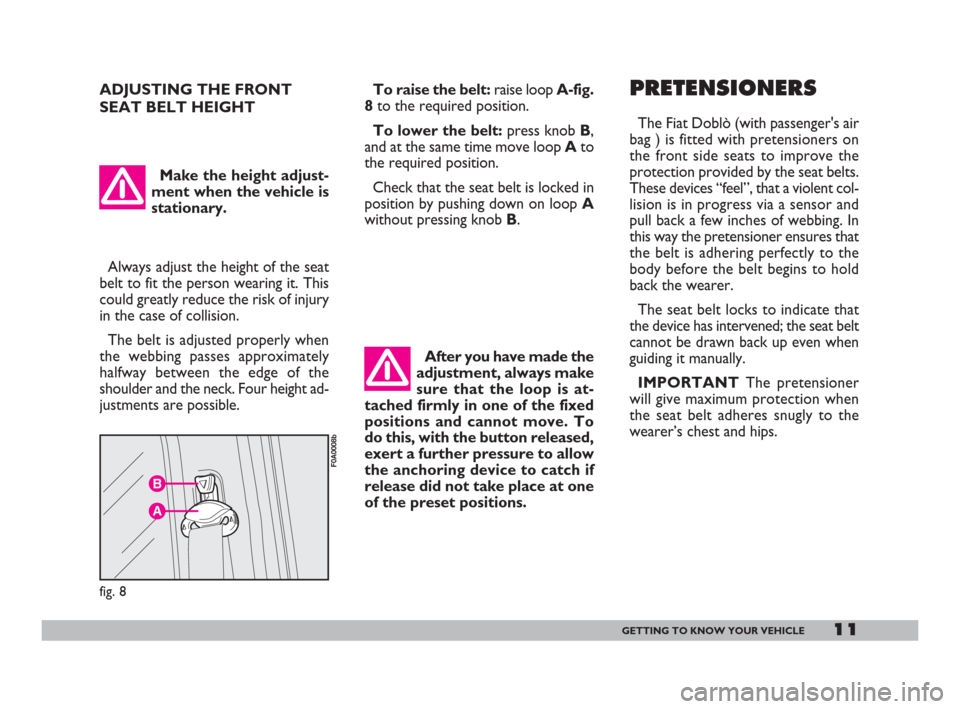

11GETTING TO KNOW YOUR VEHICLE
ADJUSTING THE FRONT
SEAT BELT HEIGHT
B
A
fig. 8
F0A0008b
Always adjust the height of the seat
belt to fit the person wearing it. This
could greatly reduce the risk of injury
in the case of collision.
The belt is adjusted properly when
the webbing passes approximately
halfway between the edge of the
shoulder and the neck. Four height ad-
justments are possible.After you have made the
adjustment, always make
sure that the loop is at-
tached firmly in one of the fixed
positions and cannot move. To
do this, with the button released,
exert a further pressure to allow
the anchoring device to catch if
release did not take place at one
of the preset positions.
Make the height adjust-
ment when the vehicle is
stationary.
PRETENSIONERS
The Fiat Doblò (with passenger's air
bag ) is fitted with pretensioners on
the front side seats to improve the
protection provided by the seat belts.
These devices “feel”, that a violent col-
lision is in progress via a sensor and
pull back a few inches of webbing. In
this way the pretensioner ensures that
the belt is adhering perfectly to the
body before the belt begins to hold
back the wearer.
The seat belt locks to indicate that
the device has intervened; the seat belt
cannot be drawn back up even when
guiding it manually.
IMPORTANTThe pretensioner
will give maximum protection when
the seat belt adheres snugly to the
wearer’s chest and hips. To raise the belt:raise loop A-fig.
8to the required position.
To lower the belt: press knob B,
and at the same time move loop Ato
the required position.
Check that the seat belt is locked in
position by pushing down on loop A
without pressing knob B.
001-105 Doblo GB 16-12-2008 14:22 Pagina 11

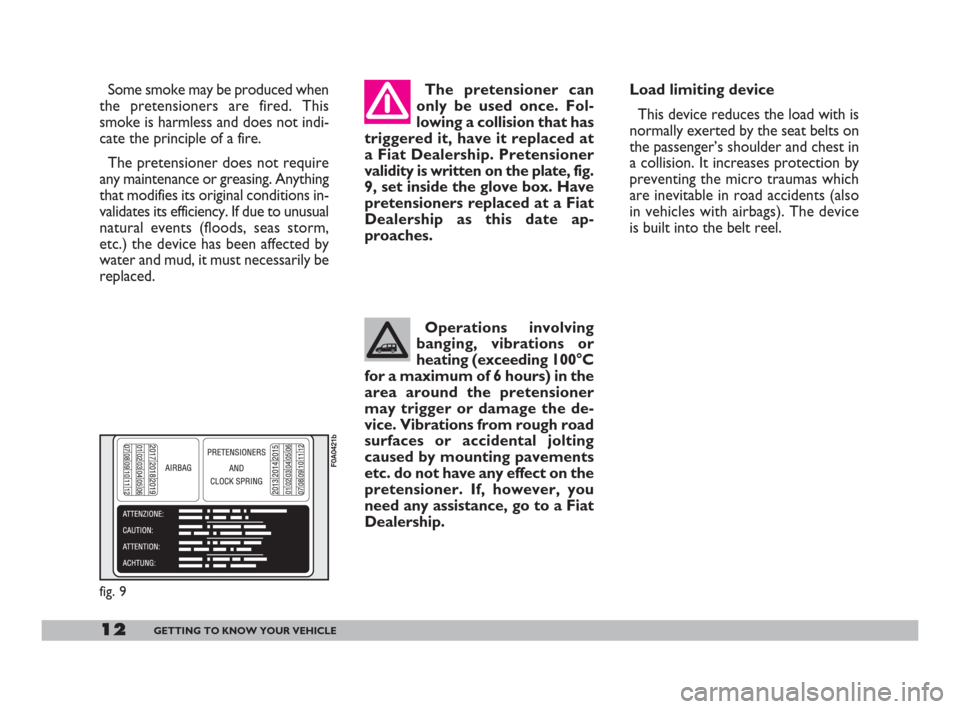

12GETTING TO KNOW YOUR VEHICLE
Some smoke may be produced when
the pretensioners are fired. This
smoke is harmless and does not indi-
cate the principle of a fire.
The pretensioner does not require
any maintenance or greasing. Anything
that modifies its original conditions in-
validates its efficiency. If due to unusual
natural events (floods, seas storm,
etc.) the device has been affected by
water and mud, it must necessarily be
replaced.
Operations involving
banging, vibrations or
heating (exceeding 100°C
for a maximum of 6 hours) in the
area around the pretensioner
may trigger or damage the de-
vice. Vibrations from rough road
surfaces or accidental jolting
caused by mounting pavements
etc. do not have any effect on the
pretensioner. If, however, you
need any assistance, go to a Fiat
Dealership.Load limiting device
This device reduces the load with is
normally exerted by the seat belts on
the passenger’s shoulder and chest in
a collision. It increases protection by
preventing the micro traumas which
are inevitable in road accidents (also
in vehicles with airbags). The device
is built into the belt reel. The pretensioner can
only be used once. Fol-
lowing a collision that has
triggered it, have it replaced at
a Fiat Dealership. Pretensioner
validity is written on the plate, fig.
9, set inside the glove box. Have
pretensioners replaced at a Fiat
Dealership as this date ap-
proaches.
fig. 9
F0A0421b
001-105 Doblo GB 16-12-2008 14:22 Pagina 12

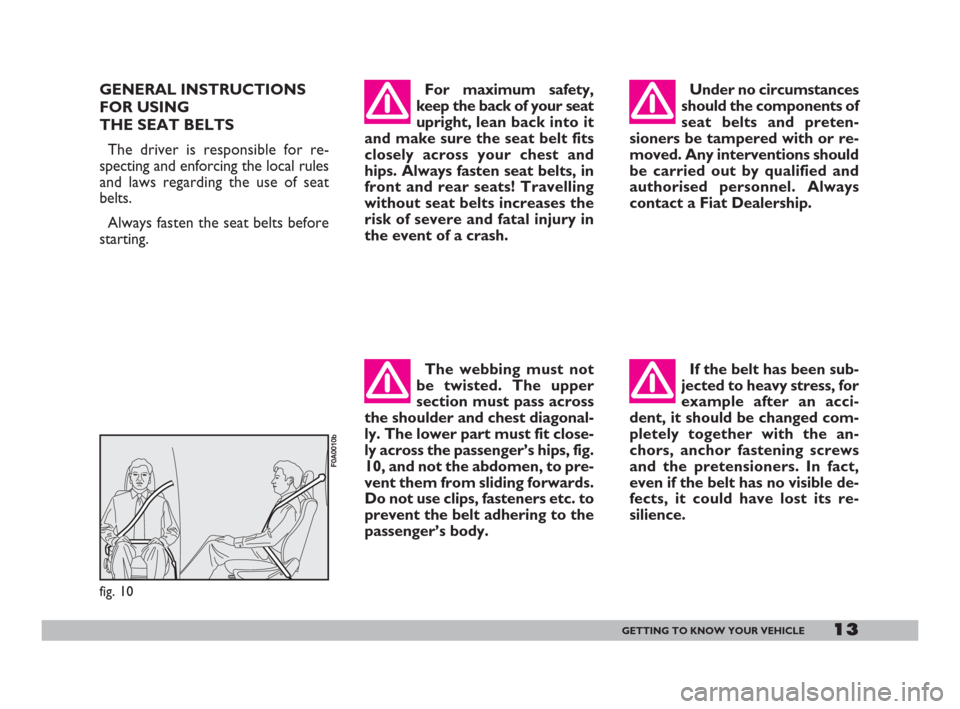

13GETTING TO KNOW YOUR VEHICLE
For maximum safety,
keep the back of your seat
upright,lean back into it
and make sure the seat belt fits
closely across your chest and
hips. Always fasten seat belts, in
front and rear seats! Travelling
without seat belts increases the
risk of severe and fatal injury in
the event of a crash.
fig. 10
F0A0010b
GENERAL INSTRUCTIONS
FOR USING
THE SEAT BELTS
The driver is responsible for re-
specting and enforcing the local rules
and laws regarding the use of seat
belts.
Always fasten the seat belts before
starting.
The webbing must not
be twisted. The upper
section must pass across
the shoulder and chest diagonal-
ly. The lower part must fit close-
ly across the passenger’s hips, fig.
10, and not the abdomen, to pre-
vent them from sliding forwards.
Do not use clips, fasteners etc. to
prevent the belt adhering to the
passenger’s body.Under no circumstances
should the components of
seat belts and preten-
sioners be tampered with or re-
moved. Any interventions should
be carried out by qualified and
authorised personnel. Always
contact a Fiat Dealership.
If the belt has been sub-
jected to heavy stress, for
example after an acci-
dent, it should be changed com-
pletely together with the an-
chors, anchor fastening screws
and the pretensioners. In fact,
even if the belt has no visible de-
fects, it could have lost its re-
silience.
001-105 Doblo GB 16-12-2008 14:22 Pagina 13

14GETTING TO KNOW YOUR VEHICLE
fig. 12
F0A0012b
fig. 11
F0A0011b
Seat belts must also be worn by ex-
pectant mothers: the risk of injury in
the case of accident is much greater
for them and their unborn child too
if they do not have a seat belt on. Of
course they must position the lower
part of the belt very low down so that
it passes under the abdomen fig. 12.HOW TO KEEP THE SEAT
BELTS IN PROPER WORKING
ORDER AT ALL TIMES
1)When wearing the seat belts, al-
ways ensure they are not twisted and
are free to wind in and out.
2)Following a serious accident, re-
place the belt being worn at that time,
even if it does not seem damaged. Al-
ways replace the seat belts if preten-
sioners have been activated.
3)When cleaning the belts, wash
them by hand with water and neutral
soap, rinse them and let them dry in
the shade. Do not use strong deter-
gents, bleach, colouring or any other
chemical substance that could weaken
the belt fibres.
4) Do not allow the reel mechanisms
to get wet: they are only guaranteed
to work properly if they remain dry.
5)Replace the seat belt when show-
ing significant wear or cut signs. Never travel with a child
sitting on the passenger’s
lap with a single belt to
protect them both, fig. 11. Do not
fasten other objects to the body.
001-105 Doblo GB 16-12-2008 14:22 Pagina 14

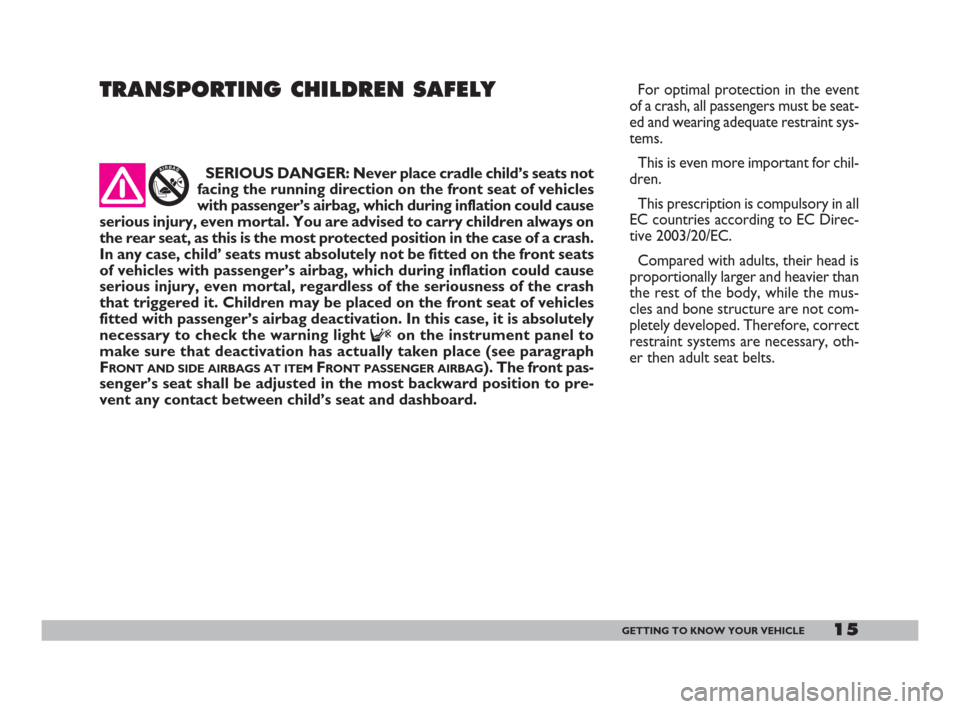

15GETTING TO KNOW YOUR VEHICLE
TRANSPORTING CHILDREN SAFELYFor optimal protection in the event
of a crash, all passengers must be seat-
ed and wearing adequate restraint sys-
tems.
This is even more important for chil-
dren.
This prescription is compulsory in all
EC countries according to EC Direc-
tive 2003/20/EC.
Compared with adults, their head is
proportionally larger and heavier than
the rest of the body, while the mus-
cles and bone structure are not com-
pletely developed. Therefore, correct
restraint systems are necessary, oth-
er then adult seat belts. SERIOUS DANGER: Never place cradle child’s seats not
facing the running direction on the front seat of vehicles
with passenger’s airbag, which during inflation could cause
serious injury, even mortal. You are advised to carry children always on
the rear seat, as this is the most protected position in the case of a crash.
In any case, child’ seats must absolutely not be fitted on the front seats
of vehicles with passenger’s airbag, which during inflation could cause
serious injury, even mortal, regardless of the seriousness of the crash
that triggered it. Children may be placed on the front seat of vehicles
fitted with passenger’s airbag deactivation. In this case, it is absolutely
necessary to check the warning light
Fon the instrument panel to
make sure that deactivation has actually taken place (see paragraph
F
RONT AND SIDE AIRBAGS AT ITEMFRONT PASSENGER AIRBAG). The front pas-
senger’s seat shall be adjusted in the most backward position to pre-
vent any contact between child’s seat and dashboard.
001-105 Doblo GB 16-12-2008 14:22 Pagina 15

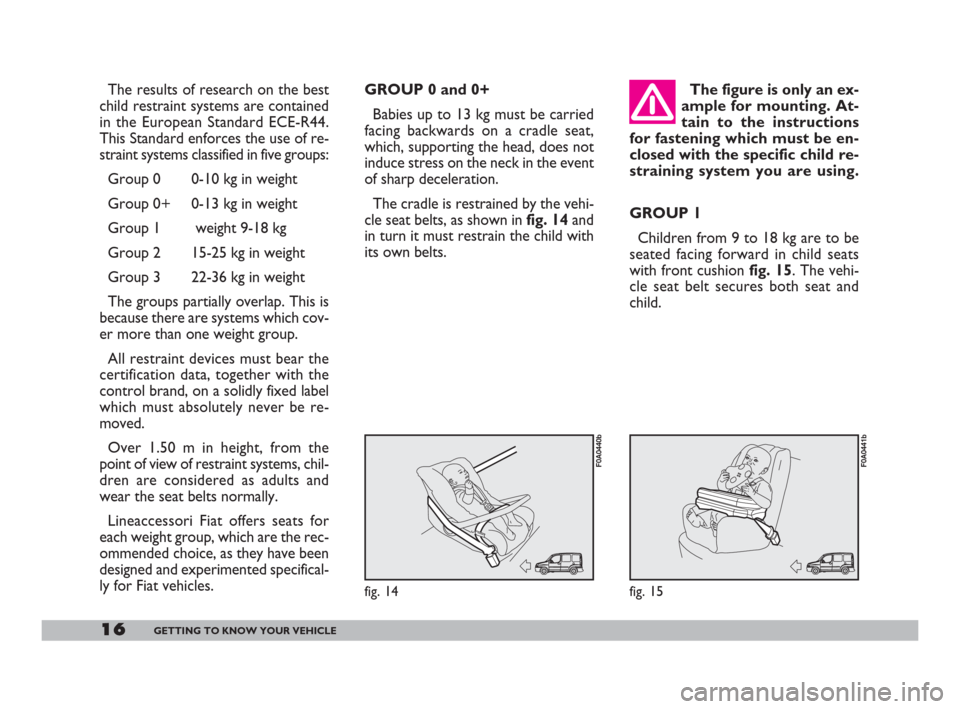

16GETTING TO KNOW YOUR VEHICLE
The results of research on the best
child restraint systems are contained
in the European Standard ECE-R44.
This Standard enforces the use of re-
straint systems classified in five groups:
Group 0 0-10 kg in weight
Group 0+ 0-13 kg in weight
Group 1 weight 9-18 kg
Group 2 15-25 kg in weight
Group 3 22-36 kg in weight
The groups partially overlap. This is
because there are systems which cov-
er more than one weight group.
All restraint devices must bear the
certification data, together with the
control brand, on a solidly fixed label
which must absolutely never be re-
moved.
Over 1.50 m in height, from the
point of view of restraint systems, chil-
dren are considered as adults and
wear the seat belts normally.
Lineaccessori Fiat offers seats for
each weight group, which are the rec-
ommended choice, as they have been
designed and experimented specifical-
ly for Fiat vehicles.GROUP 0 and 0+
Babies up to 13 kg must be carried
facing backwards on a cradle seat,
which, supporting the head, does not
induce stress on the neck in the event
of sharp deceleration.
The cradle is restrained by the vehi-
cle seat belts, as shown infig. 14and
in turn it must restrain the child with
its own belts.The figure is only an ex-
ample for mounting. At-
tain to the instructions
for fastening which must be en-
closed with the specific child re-
straining system you are using.
GROUP 1
Children from 9 to 18 kg are to be
seated facing forward in child seats
with front cushionfig. 15. The vehi-
cle seat belt secures both seat and
child.
fig. 14
F0A0440b
fig. 15
F0A0441b
001-105 Doblo GB 16-12-2008 14:22 Pagina 16

17GETTING TO KNOW YOUR VEHICLE
Seats exist which are
suitable for covering
weight groups 0 and 1
with a rear connection to the ve-
hicle belts and their own belts to
restrain the child. Due to their
size, they can be dangerous if in-
stalled incorrectly fastened to the
vehicle belts with a cushion.
Carefully follow the instructions
for installation provided with the
seat.GROUP 2
Children from 15 to 25 kg can be se-
cured directly with the vehicle seat
belts. The seat has the purpose of po-
sitioning the child correctly with re-
spect to the seat belt so that the di-
agonal section crosses the child’s chest
(never the child’s throat) and the hor-
izontal section fits snugly on the child’s
hips (and not the child’s abdomen) fig.
16.GROUP 3
For children from 22 kg up to 36 kg
the size of the child’s chest no longer
requires a support to space the child’s
back from the seat back.
Fig. 17shows proper child seat po-
sitioning on the rear seat.
Children taller than 1.50 m can wear
seat belts like adults.
The figure is only an ex-
ample. Attain to the in-
structions for fastening
which must be enclosed with the
specific child restraint system you
are using.
The figure is only an ex-
ample. Attain to the in-
structions for fastening
which must be enclosed with the
specific child restraint system you
are using.
fig. 17
F0A0443b
fig. 16
F0A0442b
001-105 Doblo GB 16-12-2008 14:22 Pagina 17

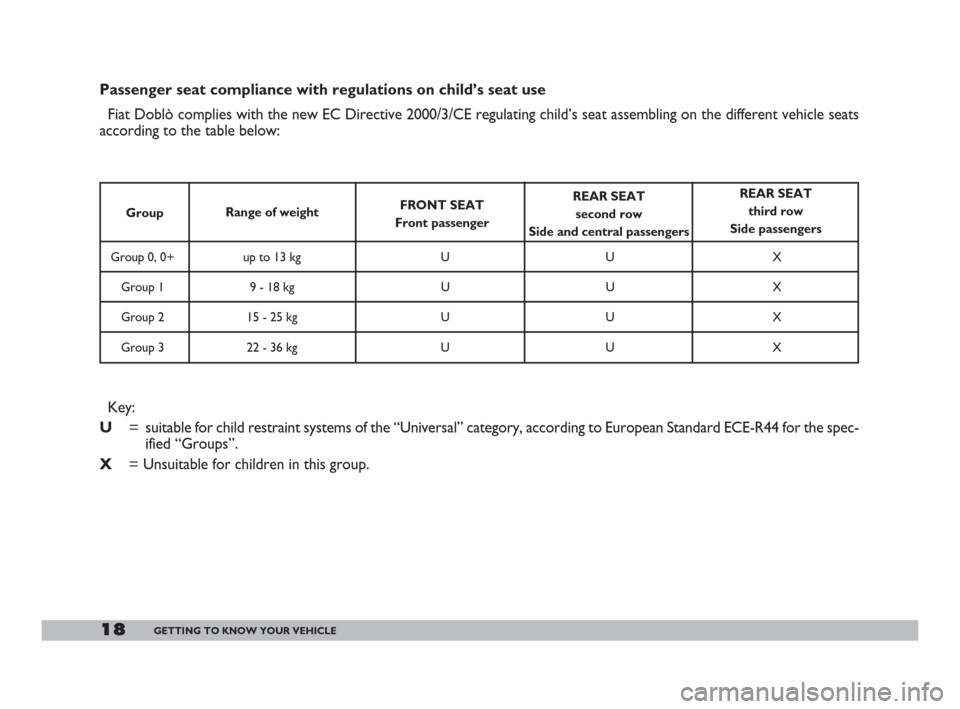

18GETTING TO KNOW YOUR VEHICLE
Passenger seat compliance with regulations on child’s seat use
Fiat Doblò complies with the new EC Directive 2000/3/CE regulating child’s seat assembling on the different vehicle seats
according to the table below:
GroupRange of weightFRONT SEAT
Front passengerREAR SEAT
second row
Side and central passengersREAR SEAT
third row
Side passengers
Key:
U= suitable for child restraint systems of the “Universal” category, according to European Standard ECE-R44 for the spec-
ified “Groups”.
X= Unsuitable for children in this group.
Group 0, 0+ up to 13 kg U U X
Group 1 9 - 18 kg U U X
Group 2 15 - 25 kg U U X
Group 3 22 - 36 kg U U X
001-105 Doblo GB 16-12-2008 14:22 Pagina 18

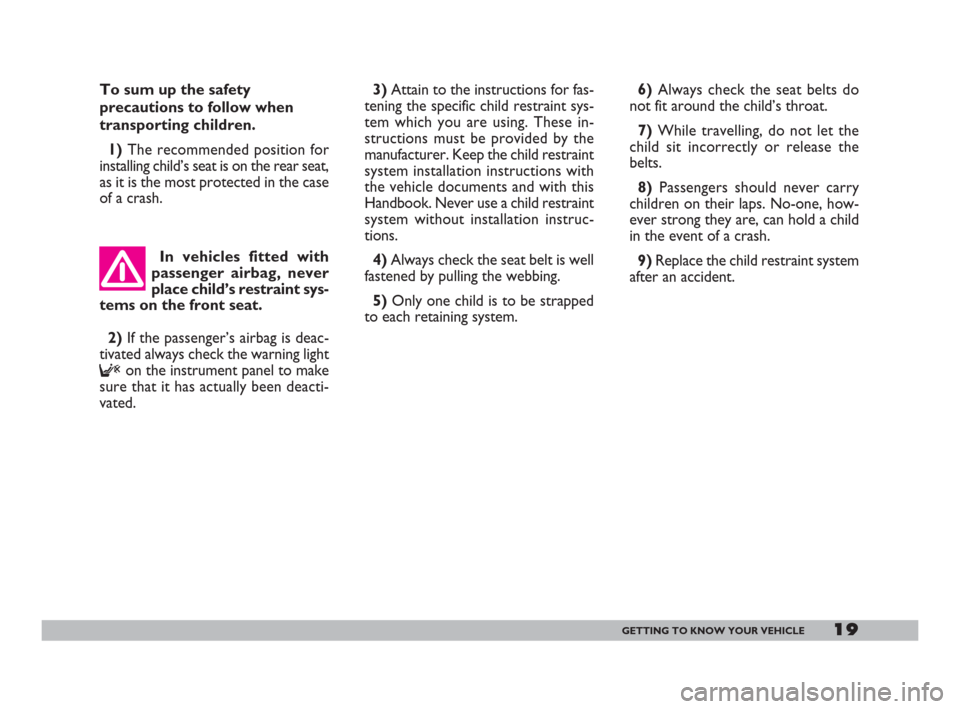

19GETTING TO KNOW YOUR VEHICLE
6) Always check the seat belts do
not fit around the child’s throat.
7) While travelling, do not let the
child sit incorrectly or release the
belts.
8)Passengers should never carry
children on their laps. No-one, how-
ever strong they are, can hold a child
in the event of a crash.
9)Replace the child restraint system
after an accident. To sum up the safety
precautions to follow when
transporting children.
1) The recommended position for
installing child’s seat is on the rear seat,
as it is the most protected in the case
of a crash.3) Attain to the instructions for fas-
tening the specific child restraint sys-
tem which you are using. These in-
structions must be provided by the
manufacturer. Keep the child restraint
system installation instructions with
the vehicle documents and with this
Handbook. Never use a child restraint
system without installation instruc-
tions.
4) Always check the seat belt is well
fastened by pulling the webbing.
5)Only one child is to be strapped
to each retaining system. In vehicles fitted with
passenger airbag, never
place child’s restraint sys-
tems on the front seat.
2) If the passenger’s airbag is deac-
tivated always check the warning light
Fon the instrument panel to make
sure that it has actually been deacti-
vated.
001-105 Doblo GB 16-12-2008 14:22 Pagina 19
