20GETTING TO KNOW YOUR VEHICLE
Never remove the igni-
tion key while the vehicle
is moving. The steering
wheel would automatically lock
as soon as you try to turn it. This
also applies when the vehicle is
being towed.
It is absolutely forbidden
to carry out whatever af-
ter-market operation in-
volving steering system or steer-
ing column modifications (e.g.: in-
stallation of anti-theft device)
that could badly affect perfor-
mance and safety, cause the lapse
of warranty and also result in
non-compliance of the vehicle
with homologation require-
ments.
IGNITION DEVICE
The key can be turned to 4 different
positions fig. 26:
– STOP:engine off, key can be re-
moved, steering column locked. Some
electrical devices can be worked (e.g.
sound system, electric window
winders).
– MAR: drive position. All electrical
devices can be used.
– AVV: engine ignition.
– PARK:engine off, parking lights
on, steering column locked. Press but-
ton Aand turn the key to PARK.
A
fig. 26
F0A0018b
If the ignition device is
tampered with (e.g.: at-
tempted theft), have it
checked over by a Fiat Dealership
as soon as possible.
When you get out of the
vehicle, always remove
the ignition key. This will
prevent anyone from accidental-
ly working the controls. Remem-
ber to apply the handbrake and,
if the vehicle is faced down on a
steep slope engage the first gear.
If it is facing up, engage the re-
verse gear. Never leave unsuper-
vised children in the vehicle.
STEERING COLUMN LOCK
To engage the lock: remove the
ignition key at STOPor PARKand
turn the steering wheel until it locks.
To release the lock: rock the
steering wheel slightly as you turn the
ignition key to MAR.
001-105 Doblo GB 16-12-2008 14:22 Pagina 20

21GETTING TO KNOW YOUR VEHICLE
DASHBOARD
The presence and the position of the instruments and warning lights may vary according to the versions.
1.Fixed side vent - 2.Adjustable side vent - 3.Horn - 4.Instrument panel - 5.Adjustable central vent - 6.Glove compart-
ment - 7.Adjustable central vent - 8.Central controls - 9.Glove compartment - 10.Adjustable side vent - 11.Fixed side
vent - 12.Front right-hand speaker housing -13.Glove compartment - 14.Heater/ventilation/climate control system con-
trols - 15.Recirculation slider - 16.Additional power socket - 17.Glove compartment - 18.Ashtray - 19.Cigar lighter -
20.Ignition switch - 21.Steering wheel adjustment lever - 22.Bonnet opening lever - 23.Front left-hand speaker housing.
143567891011
121314161517191820212223
2
fig. 27
F0A0701b
001-105 Doblo GB 16-12-2008 14:22 Pagina 21

22GETTING TO KNOW YOUR VEHICLE
INSTRUMENT PANEL1.48V- 1.3 Multijet -
1.9 Multijet versions
A- Speedometer (speed indicator)
B- Fuel level gauge with reserve
warning light
C- Engine coolant temperature gauge
and max. temperature warning light
D- Rev counter
E- Multifunction display
Warning lights
mand care only
provided on Diesel versions.
Natural Power versions
A- Rev counter.
B- Engine coolant temperature
gauge and excessive temperature
warning light.
C- Fuel level gauge with reserve
warning light.
D- Speedometer.
E- Digital display.
Warning lights
mand care only
provided on Diesel versions.
fig. 28F0A0444b
fig. 29F0A0445b
001-105 Doblo GB 16-12-2008 14:22 Pagina 22

23GETTING TO KNOW YOUR VEHICLE
fig. 30 - With outside temperature sensor and/or Diesel
Particulate Filter for Multijet versions.F0A0500b
1.48V- 1.3 Multijet -
1.9 Multijet versions
A- Speedometer
B- Fuel level gauge with reserve
warning light.
C- Engine coolant temperature
gauge and excessive temperature
warning light.
D- Rev counter.
E- Digital display.
Warning lights
mand care only
provided on Diesel versions.
001-105 Doblo GB 16-12-2008 14:22 Pagina 23

24GETTING TO KNOW YOUR VEHICLE
INSTRUMENTS
SPEEDOMETER
The speedometer A-fig. 31 - 32
shows the vehicle speed.REV COUNTER
Rev. counter B-fig. 33 - 34shows
engine rpm.
fig. 31
F0A0501b
fig. 32
F0A0446b
fig. 33
F0A0447b
fig. 34
F0A0227b
IMPORTANTThe electronic sys-
tem progressively blocks fuel flow to
prevent engine from overrevving. This
will lead to a progressive loss of en-
gine power. When the engine is idling,
the rev counter may indicate a grad-
ual or sudden highering of the speed.
This is normal as it takes place during
normal operation, for example when
activating the climate control system
or the fan. In particular a slow change
in the speed preserves the battery
charge.
001-105 Doblo GB 16-12-2008 14:22 Pagina 24

25GETTING TO KNOW YOUR VEHICLE
If the needle reaches the
red area, stop the engine
immediately and contact
a Fiat Dealership.
fig. 35
F0A0343b
fig. 37
F0A0226b
FUEL LEVEL GAUGE
The needle shows the fuel present in
the tank. When the fuel reserve warn-
ing light A-fig. 35 - 36 comes on (on
certain versions with the dedicated
message on the reconfigurable multi-
function display) it means that there
are approximately 5-7 litres of fuel left
in the tank.
E- tank empty.
F - tank full.
Never travel with the tank almost
empty: lack of fuel could damage the
catalyser.IMPORTANTThe needle will
point to Eand the reserve warning
light Awill flash to indicate a fault in
the system. Contact a Fiat Dealer-
shipto have the system checked.
ENGINE COOLANT
TEMPERATURE GAUGE
This gauge shows the temperature of
the engine coolant fluid and begins
working when the fluid temperature
exceeds approx. 50 °C.
Under normal conditions, the needle
should move to different positions of
the scale according to the working
conditions and engine cooling condi-
tions.
fig. 36
F0A0225b
C- Low engine coolant temperature
H- High engine coolant temperature
Warning light B-fig. 35 - 37 comes
on (on certain versions with the ded-
icated message on the reconfigurable
multifunction display) to indicate that
engine coolant temperature is too
high; in this event stop the engine and
contact Fiat Dealership.
001-105 Doblo GB 16-12-2008 14:22 Pagina 25

26GETTING TO KNOW YOUR VEHICLE
WARNING LIGHT TEST
fig. 40
The following warning lights are test-
ed:
– handbrake on/low brake fluid lev-
el;
– ABS and EBD system (where pro-
vided);
This tests are carried out automati-
cally when turning the ignition key to
MARand during normal operation
when a fault is found. At the end of the
initial check, the display will show fail-
ures, if any (through one or more
warning lights) by the wording “LEd

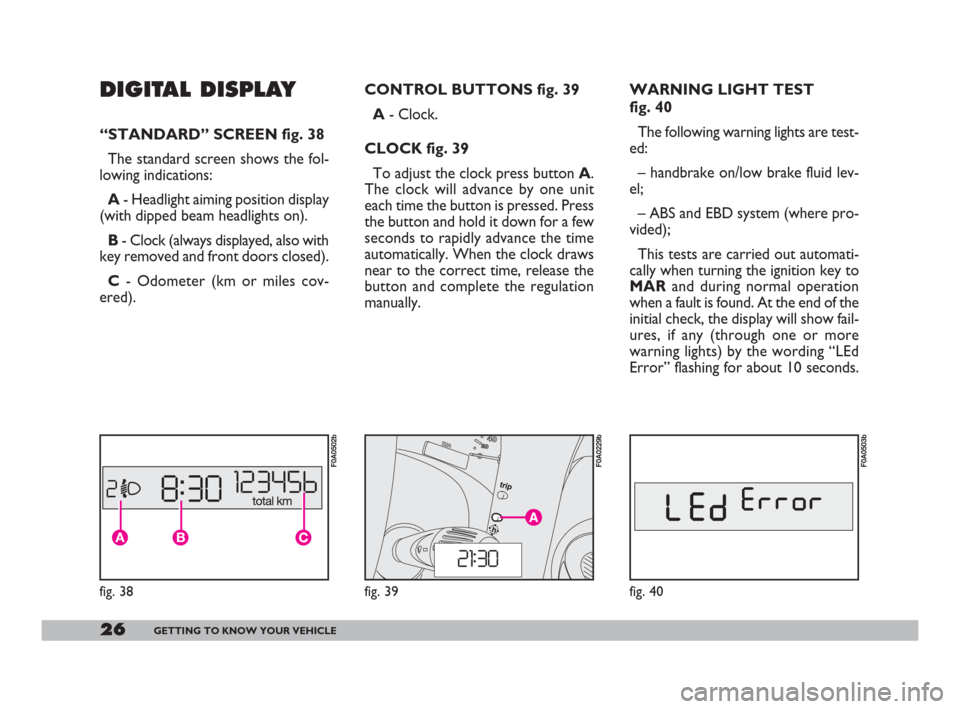

Error” flashing for about 10 seconds.DIGITAL DISPLAY
“STANDARD” SCREEN fig. 38
The standard screen shows the fol-
lowing indications:
A- Headlight aiming position display
(with dipped beam headlights on).
B- Clock (always displayed, also with
key removed and front doors closed).
C- Odometer (km or miles cov-
ered).CONTROL BUTTONS fig. 39
A- Clock.
CLOCK fig. 39
To adjust the clock press button A.
The clock will advance by one unit
each time the button is pressed. Press
the button and hold it down for a few
seconds to rapidly advance the time
automatically. When the clock draws
near to the correct time, release the
button and complete the regulation
manually.
fig. 39
F0A0229b
fig. 40
F0A0503b
fig. 38
F0A0502b
001-105 Doblo GB 16-12-2008 14:22 Pagina 26

27GETTING TO KNOW YOUR VEHICLE

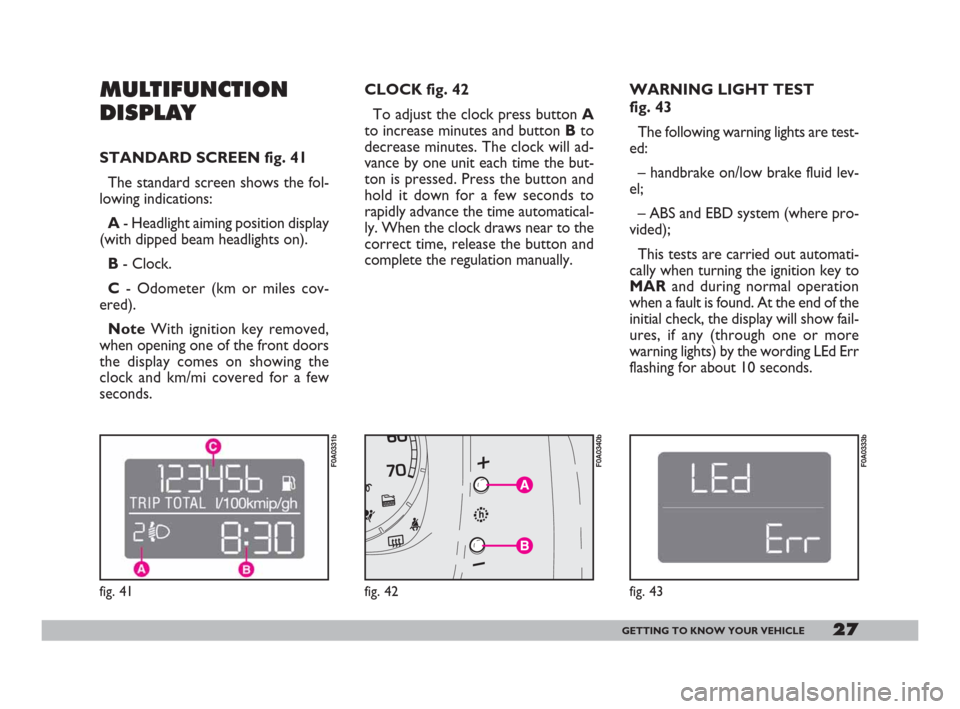

MULTIFUNCTION
DISPLAY
STANDARD SCREEN fig. 41
The standard screen shows the fol-
lowing indications:
A- Headlight aiming position display
(with dipped beam headlights on).
B- Clock.
C- Odometer (km or miles cov-
ered).
Note With ignition key removed,
when opening one of the front doors
the display comes on showing the
clock and km/mi covered for a few
seconds.CLOCK fig. 42
To adjust the clock press button A
to increase minutes and button Bto
decrease minutes. The clock will ad-
vance by one unit each time the but-
ton is pressed. Press the button and
hold it down for a few seconds to
rapidly advance the time automatical-
ly. When the clock draws near to the
correct time, release the button and
complete the regulation manually.WARNING LIGHT TEST
fig. 43
The following warning lights are test-
ed:
– handbrake on/low brake fluid lev-
el;
– ABS and EBD system (where pro-
vided);
This tests are carried out automati-
cally when turning the ignition key to
MARand during normal operation
when a fault is found. At the end of the
initial check, the display will show fail-
ures, if any (through one or more
warning lights) by the wording LEd Err
flashing for about 10 seconds.
fig. 41
F0A0331b
fig. 42
F0A0340b
fig. 43
F0A0333b
001-105 Doblo GB 16-12-2008 14:22 Pagina 27

28GETTING TO KNOW YOUR VEHICLE
RECONFIGURABLE MULTIFUNCTION
DISPLAY (where provided)
E- Headlight aiming position (only
with dipped beam headlights on).
NoteWith key removed, when
opening one of the front doors, the
display will turn on and show for a few
seconds the clock and the km or mi
covered.
CONTROL BUTTONS fig. 45
+ To scroll the displayed menu and
the related options upwards or to in-
crease the value displayed .MODE Brief press to open the
menu and/or to move to
next screen or to confirm
the the option required.
Long press to go back to
the standard screen.
– To scroll the displayed menu and
the related options downwards or to
decrease the value displayed.
NoteButtons +and –activate dif-
ferent functions according to the fol-
lowing situations:
To adjust light inside the
passenger compartment
– when standard screen is active, to
adjust brightness inside the passenger
compartment.
Setup menu
– to scroll the menu options up-
wards and downwards;
– to increase or decrease values dur-
ing settings.
fig. 44
F0A0504b
fig. 45
F0A0512b
The vehicle can be provided with the
reconfigurable multifunction display
that shows useful information, ac-
cording to the previous settings made,
necessary when driving.
“STANDARD” SCREEN fig. 44
The standard screen shows the fol-
lowing indications:
A- Date
B- Odometer (km or miles covered)
C- Clock
D- External temperature (where
provided)
001-105 Doblo GB 16-12-2008 14:22 Pagina 28

29GETTING TO KNOW YOUR VEHICLE
Selecting “Set Date”
and “Set time”:
– briefly press button MODEto se-
lect the first value to change (e.g.
hours /minutes or year / month / day);
– press buttons +or –(by single
presses) to select the new setting;
– briefly press button MODEto
store the new setting and to go to the
next setup menu option, if this is the
last one you will go back to the pre-
viously selected option of the main

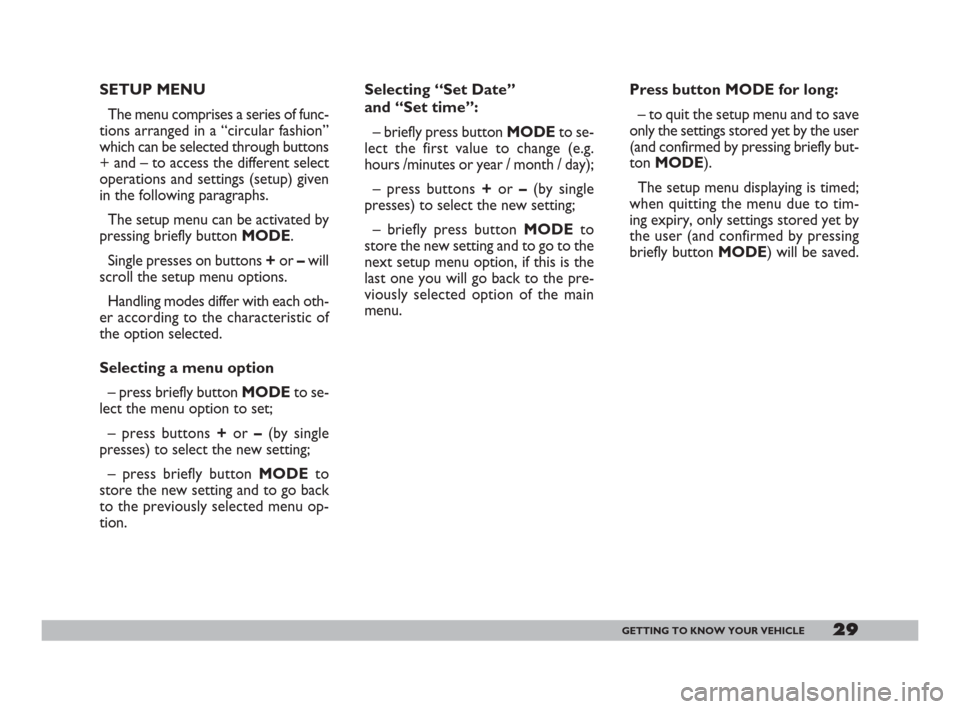

menu. SETUP MENU
The menu comprises a series of func-
tions arranged in a “circular fashion”
which can be selected through buttons
+ and – to access the different select
operations and settings (setup) given
in the following paragraphs.
The setup menu can be activated by
pressing briefly button MODE.
Single presses on buttons +or –will
scroll the setup menu options.
Handling modes differ with each oth-
er according to the characteristic of
the option selected.
Selecting a menu option
– press briefly button MODEto se-
lect the menu option to set;
– press buttons +or –(by single
presses) to select the new setting;
– press briefly button MODEto
store the new setting and to go back
to the previously selected menu op-
tion.Press button MODE for long:
– to quit the setup menu and to save
only the settings stored yet by the user
(and confirmed by pressing briefly but-
ton MODE).
The setup menu displaying is timed;
when quitting the menu due to tim-
ing expiry, only settings stored yet by
the user (and confirmed by pressing
briefly button MODE) will be saved.
001-105 Doblo GB 16-12-2008 14:22 Pagina 29
