INDEXRear window (rear window washer)
The rear window washer jets are fixed. The nozzle hold-
er is located above the rear window. NOZZLES
If the jet is not coming out, firstly check that there is flu-
id in the windscreen/rear window reservoir (for ver-
sions/markets where provided) (see “Checking levels” in
this section).
Then check that the nozzle holes are not clogged; use a
needle to unblock them if necessary.
Front windscreen
The window washer jets are fixed. The nozzle holders
are located under the bonnet (see fig. 188).
F0V0091mfig. 188

214
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEXVEHICLE BODY
AND UNDERBODY WARRANTY
Your vehicle is covered by warranty against perforation
due to rust of any original element of the structure or
body.
For the general terms of this warranty, refer to your War-
ranty Booklet.
ADVICE FOR PRESERVING THE BODYWORK
Paint
Paintwork does not only serve an aesthetic purpose, but
also protects the underlying sheet metal.
Touch up abrasions and scratches immediately to pre-
vent the formation of rust. Use only original paint prod-
ucts for touch-ups (see “Bodywork paint identification
plate” in the “Technical specifications” section).
Standard upkeep of the paintwork consists of washing the
vehicle: the frequency depends on the conditions and en-
vironment where the vehicle is used.
For example, it is advisable to wash the vehicle more of-
ten in areas with high atmospheric pollution or if you are
travelling on roads sprinkled with salt.BODYWORK
PROTECTION FROM ATMOSPHERIC
AGENTS
The main causes of corrosion are the following:
❒atmospheric pollution;
❒salty air and humidity (coastal areas or hot and humid
climates);
❒seasonal environmental conditions.
The abrasive action of wind-borne atmospheric dust and
sand, as well as mud and gravel raised by other cars, is al-
so not to be underestimated.
Fiat used the best manufacturing technologies on your
vehicle to effectively protect the bodywork against cor-
rosion.
These are the most important:
❒painting products and systems which give the vehicle
particular resistance to corrosion and abrasion;
❒use of galvanised (or pre-treated) steel sheets with high
resistance to corrosion;
❒spraying the underbody, engine compartment, wheel-
house internal parts and other elements with highly pro-
tective wax-based products;
❒spraying protective plastic materials in the most ex-
posed areas: underdoor, inner mudguard parts, edges,
etc.;
❒using “open” boxed sections to prevent condensation
and pockets of moisture from triggering rust inside.

215
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEXTo wash the vehicle properly, proceed as follows:
❒wash the body using a low-pressure jet of water;
❒use a sponge to wipe a slightly soapy solution over the
bodywork, frequently rinsing the sponge;
❒rinse with plenty of water and dry with a jet of air or
a chamois leather.
Observe the following recommendations for washing the
vehicle in an automatic carwash:
– remove the aerial from the roof so it does not get dam-
aged;
– the car wash should use water added to a soapy solu-
tion;
– rinse thoroughly to avoid soap marks staying on the
bodywork or less visible parts.
Some car washes with old-style blades
and/or in a poor state of repair can dam-
age the paintwork, facilitating the forma-
tion of lines that give the paint a dull/misty ap-
pearance, especially on dark colours. If this hap-
pens, lightly polish the paintwork with appropri-
ate products.
Dry the less visible parts particularly carefully, such as the
door frames, bonnet and the headlight frames, where wa-
ter may stagnate more easily. It is a good idea to leave
the vehicle outdoors for a while after washing it to give
water time to evaporate.
Do not wash the vehicle after it has been left in the sun
or with the bonnet hot: this may alter the shine of the
paintwork.
Exterior plastic parts should be cleaned in the same way
as the rest of the vehicle. Where possible, do not park
the vehicle under trees; the resinous substances released
by many species give the paint a dull appearance and in-
crease the possibility of rust.
IMPORTANT Bird droppings should be washed off im-
mediately and thoroughly as the acid they contain is par-
ticularly aggressive.
Detergents cause water pollution. The ve-
hicle should be washed in areas equipped
for collecting and purifying the liquid used
in the washing process.

216
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEXINTERIORS
Check regularly that water is not trapped under the mats
(from dripping off shoes, umbrellas, etc.) which could cause
the metal to rust. Windows
Use specific detergents to clean the windows. Also use
clean cloths to avoid scratching the glass or altering the
transparency.
IMPORTANT Wipe the rear window gently with a cloth
in the direction of the filaments to avoid damaging the
heating device.
Engine compartment
At the end of each winter, thoroughly wash the engine
compartment, taking care to avoid spraying the water jet
directly onto the electronic control units and the relay/fuse
control unit on the left side of the engine compartment
(as you look from behind the wheel). Have this operation
performed at a specialist garage.
IMPORTANT The washing should take place with the en-
gine cold and the ignition key in the STOP position. After
the wash, make sure that the various protective devices
(e.g. rubber caps and guards) have not been removed or
damaged.
Front headlights
IMPORTANT Never use aromatic substances (e.g. petrol)
or ketenes (e.g. acetone) for cleaning the plastic lenses of
the front headlights.
Never use flammable products, such as pe-
troleum ether or modified petrol, to clean
the inside of the vehicle. The electrostatic charges
which are generated by rubbing during cleaning
may cause a fire.
WARNING
Do not keep aerosol cans in the vehicle:
these could explode. Aerosol cans must
not be exposed to temperatures of more than
50 °C. When the vehicle is exposed to sunlight,
the temperature inside can greatly exceed this
value.
WARNING

217
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEXLEATHER UPHOLSTERED STEERING
WHEEL/GEAR KNOB/HANDBRAKE LEVER
(for versions/market, where provided)
These components must be cleaned with mild soap and
water only. Never use spirits or alcohol-based products.
Read the product label carefully before using specific prod-
ucts for cleaning the interiors: make sure the product does
not contain spirits or alcohol-based substances.
If, when cleaning the windscreen with special products,
window cleaner accidentally drips onto the leather of the
steering wheel/gear lever knob/hand brake, wipe away im-
mediately and then wash the affected area with mild soap
and water.
IMPORTANT Be careful when installing a steering wheel
locking device not to damage the leather upholstery. SEATS AND FABRIC PARTS
Remove dust with a soft brush or a vacuum cleaner. It is
advisable to use a damp brush on velvet upholstery.
Rub the seats with a sponge and a solution of water and
mild soap.
PLASTIC PARTS
It is advisable to clean interior plastic parts with a damp
cloth and a solution of water and non-abrasive mild soap.
To remove grease and tough stains, use products designed
specifically for cleaning plastics. These have no solvents
and have been designed so that they do not alter the ap-
pearance and colour of the components.
IMPORTANT Never use spirits or petroleum to clean
the instrument panel glass.

219
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0115mfig. 189
H Maximum authorised weight on rear
axle.
I Engine type.
L Bodywork version code.
M Number for spare parts.
N Correct smoke opacity index.
TECHNICAL SPECIFICATIONS
IDENTIFICATION DATA
We recommend taking note of the identification codes.
The following identification codes are printed and shown
on the plates:
❒Vehicle identification number (VIN) plate.
❒Chassis marking.
❒Bodywork paint identification plate.
❒Engine marking.
VEHICLE IDENTIFICATION NUMBER (VIN)
PLATE fig. 189
This plate is fitted to the engine compartment air intake
chamber and contains the following information:
B Type-approval number
C Vehicle type identification code.
D Chassis number.
E Maximum authorised weight of vehicle fully laden.
F Maximum authorised weight of vehicle fully laden plus
trailer.
G Maximum authorised weight on front axle.

220
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0118mfig. 190F0V0117mfig. 192
F0V0116mfig. 191
ENGINE MARKING
This is printed onto the cylinder block and shows the type
and production serial number. BODYWORK PAINT IDENTIFICATION

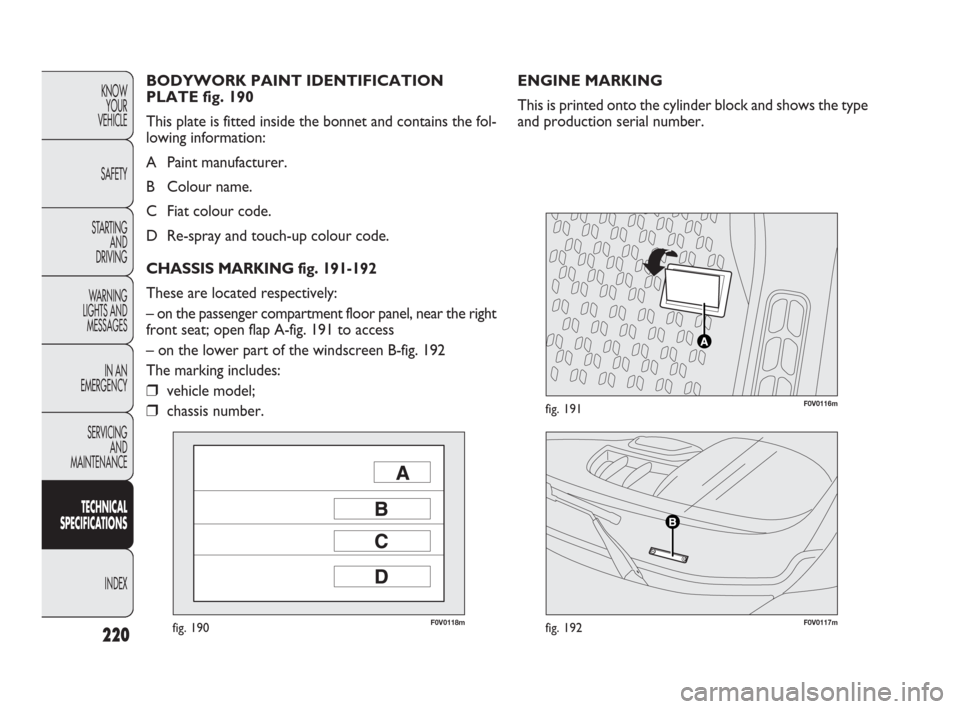

PLATE fig. 190
This plate is fitted inside the bonnet and contains the fol-
lowing information:
A Paint manufacturer.
B Colour name.
C Fiat colour code.
D Re-spray and touch-up colour code.
CHASSIS MARKING fig. 191-192
These are located respectively:
– on the passenger compartment floor panel, near the right
front seat; open flap A-fig. 191 to access
– on the lower part of the windscreen B-fig. 192
The marking includes:
❒vehicle model;
❒chassis number.

221
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

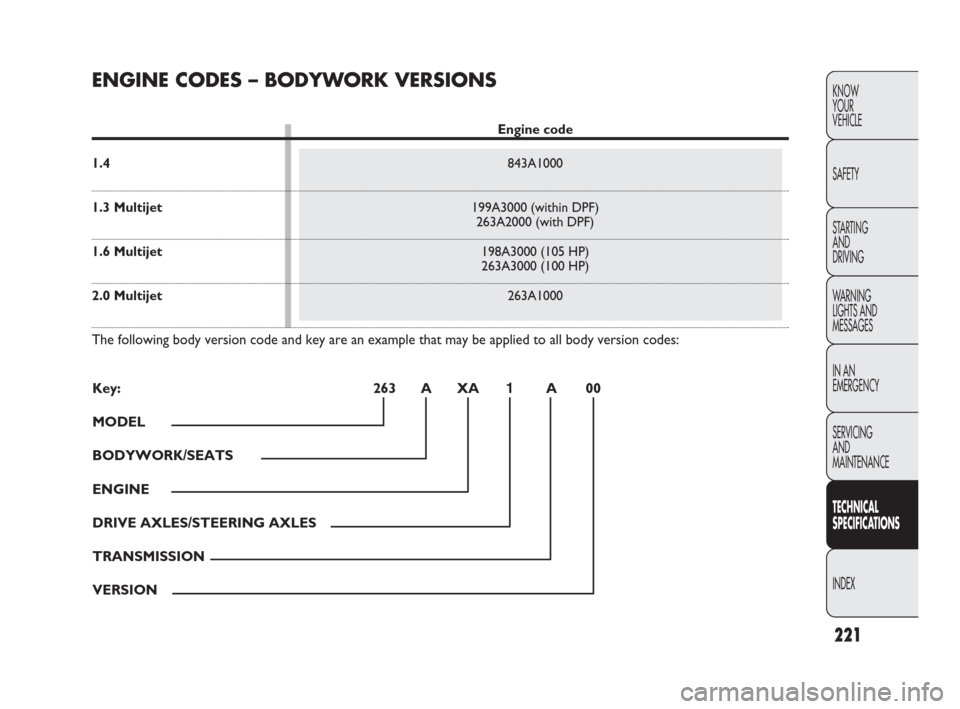

ENGINE CODES – BODYWORK VERSIONS
Engine code
1.4843A1000
1.3 Multijet199A3000 (within DPF)263A2000 (with DPF)
1.6 Multijet198A3000 (105 HP)
263A3000 (100 HP)
2.0 Multijet263A1000
The following body version code and key are an example that may be applied to all body version codes:
Key: 263 A XA1A00
MODEL
BODYWORK/SEATS
ENGINE
DRIVE AXLES/STEERING AXLES
TRANSMISSION
VERSION

222
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

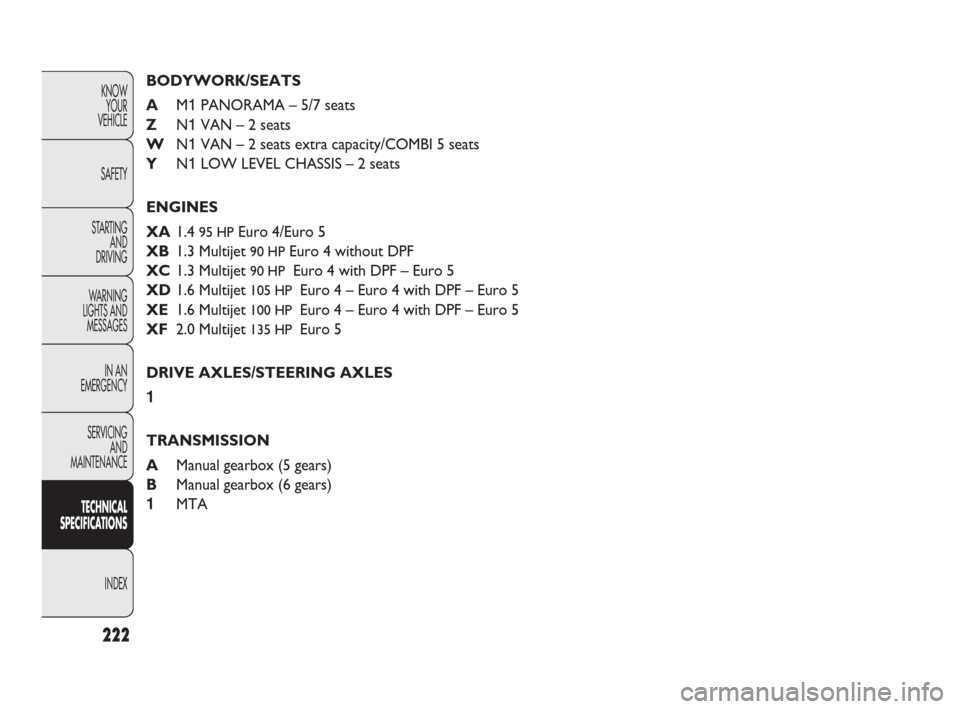

BODYWORK/SEATS
AM1PANORAMA – 5/7 seats
ZN1VAN – 2 seats
WN1VAN – 2 seats extra capacity/COMBI 5 seats
YN1LOW LEVEL CHASSIS – 2 seats
ENGINES
XA1.4
95 HPEuro 4/Euro 5
XB1.3 Multijet
90 HPEuro 4 without DPF
XC1.3 Multijet
90 HP Euro 4 with DPF – Euro 5
XD1.6 Multijet
105 HP Euro 4 – Euro 4 with DPF – Euro 5
XE1.6 Multijet
100 HP Euro 4 – Euro 4 with DPF – Euro 5
XF2.0 Multijet
135 HP Euro 5
DRIVE AXLES/STEERING AXLES
1
TRANSMISSION
AManual gearbox (5 gears)
BManual gearbox (6 gears)
1MTA

223
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
1.3 Multijet
without DPF
199A3000
Diesel
4 in line
69.6x82
1248
17.6:1
66
90
4000
200
20.4
1750
–
Diesel for
motor vehicles
(EN 590
specification)
1.4
843A1000
Otto
4 in line
72x84
1368
11:1
70
95
6000
127
12.95
4500
NGK DCPR7E-N
Petrol 95 RON

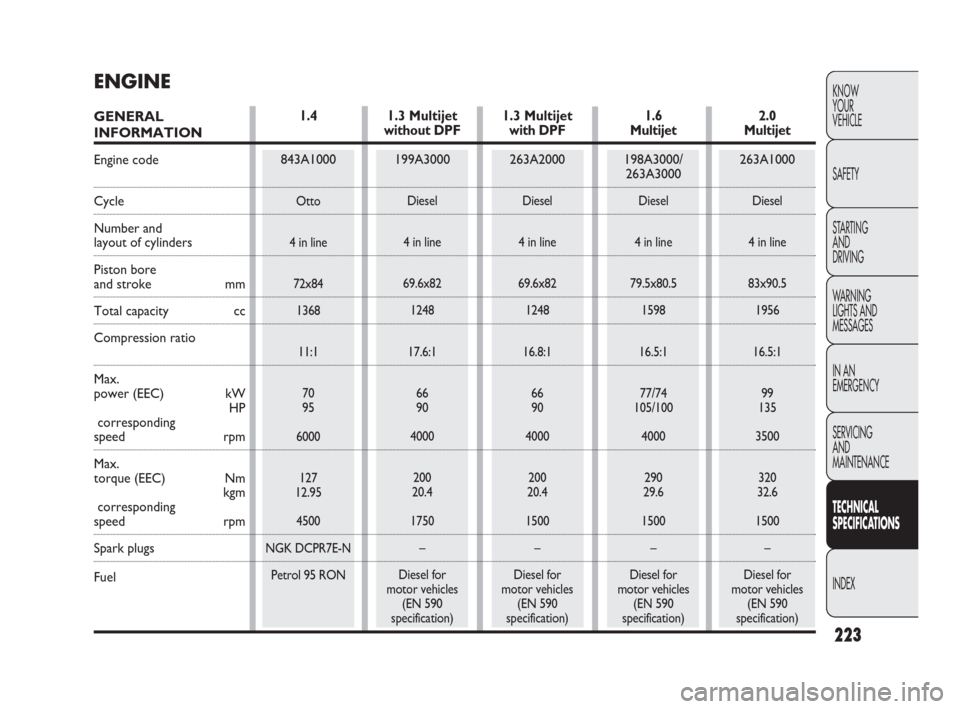

ENGINE
GENERAL
INFORMATION
Engine code
Cycle
Number and
layout of cylinders
Piston bore
and stroke mm
Total capacity cc
Compression ratio
Max.
power (EEC) kW
HP
corresponding
speed rpm
Max.
torque (EEC) Nm
kgm
corresponding
speed rpm
Spark plugs
Fuel
1.6
Multijet
198A3000/
263A3000
Diesel
4 in line
79.5x80.5
1598
16.5:1
77/74
105/100
4000
290
29.6
1500
–
Diesel for
motor vehicles
(EN 590
specification)
2.0
Multijet
263A1000
Diesel
4 in line
83x90.5
1956
16.5:1
99
135
3500
320
32.6
1500
–
Diesel for
motor vehicles
(EN 590
specification)
1.3 Multijet
with DPF
263A2000
Diesel
4 in line
69.6x82
1248
16.8:1
66
90
4000
200
20.4
1500
–
Diesel for
motor vehicles
(EN 590
specification)
