INDEXKNOW YOUR VEHICLE

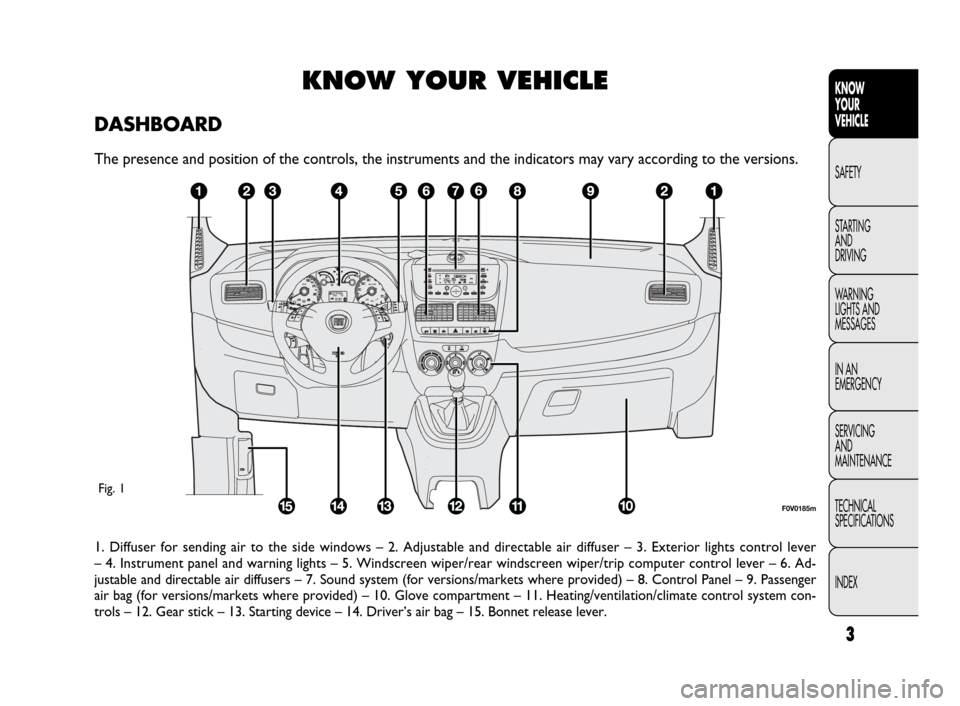

DASHBOARD
The presence and position of the controls, the instruments and the indicators may vary according to the versions.
1. Diffuser for sending air to the side windows – 2. Adjustable and directable air diffuser – 3. Exterior lights control lever
– 4. Instrument panel and warning lights – 5. Windscreen wiper/rear windscreen wiper/trip computer control lever – 6. Ad-
justable and directable air diffusers – 7. Sound system (for versions/markets where provided) – 8. Control Panel – 9. Passenger
air bag (for versions/markets where provided) – 10. Glove compartment – 11. Heating/ventilation/climate control system con-
trols – 12. Gear stick – 13. Starting device – 14. Driver’s air bag – 15. Bonnet release lever.
F0V0185m
Fig. 1

4
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEXTHE FIAT CODE SYSTEM
This is an electrical engine immobiliser system which in-
creases protection against attempted theft of the vehicle.
It is automatically activated when the ignition key is ex-
tracted.
Each key contains an electronic device which modulates
the signal emitted during starting by an antenna built into
the starting device. This signal is the ‘password’ which
changes at each starting and which the control unit uses
to recognise the key and enable starting.
OPERATION
Each time the vehicle is started by turning the ignition key
to MAR, the Fiat CODE system control unit sends a recog-
nition code to the engine management control unit to de-
activate the immobiliser.
The code is only sent if the Fiat CODE system control
unit has recognised the code transmitted by the key.
Each time the ignition key is turned to STOP, the Fiat
CODE system deactivates the functions of the engine man-
agement control unit.
If, during starting, the code is not correctly recognised,
warning light
Ylights up in the instrument panel.
In this case, turn the key to STOP and then to MAR; if it
is still locked, try again with the other keys that come with
the vehicle. Contact a Fiat Service Network if you still
cannot start the engine.
SYMBOLS
Special coloured labels have been attached near or on
some of the components of your vehicle. These labels bear
symbols that draw your attention to the precautions re-
quired when handling the component in question.
A plate summarising these symbols can be found under
the engine bonnet.

5
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEXTHE KEYS
CODE CARD fig. 2
(for versions/markets where provided)
The vehicle is delivered with duplicate ignition keys and
with the CODE card, which bears the following:
A the electronic code;
B the mechanical key code to be given to the Fiat Ser-
vice Network when ordering duplicate keys.
WARNING In order to ensure complete efficiency of the
electronic devices inside the keys, they should never be
exposed to direct sunlight. Warning light
Ycomes on when driving
❒If the warning light Ycomes on, this means that the
system is running a self-diagnosis (owing to a voltage
drop, for example).
❒If the warning light Ystays on, contact the Fiat Ser-
vice Network.
The electronic components inside the key
may be damaged if the key is subjected to
sharp knocks.
F0V0104mfig. 2
All the keys and the CODE card must be
handed over to the new owner when sell-
ing the vehicle.

F0V0003mfig. 3F0V0004mfig. 4
To re-house it, proceed as follows:
❒hold down button B and move the metal insert A;
❒release button B and turn the metal insert A until you
hear the proper locking click. MECHANICAL KEY fig. 3
The metal insert A operates:❒the starting device;
❒the door locks;
❒opening and closing the fuel plug.
KEY WITH REMOTE CONTROL fig. 4
(for versions/markets where provided)
The metal insert A operates:
❒the starting device;
❒the door locks;
❒opening and closing the fuel tank plug.
To extract the metal insert, press button B.
6
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Only press button B with the key away
from your body, specifically from your
eyes and from objects which could get damaged
(e.g. your clothes). Do not leave the key unat-
tended to avoid the button being accidentally
pressed while it is being handled, e.g. by a child.
WARNING

7
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0022mfig. 5F0V0005mfig. 6

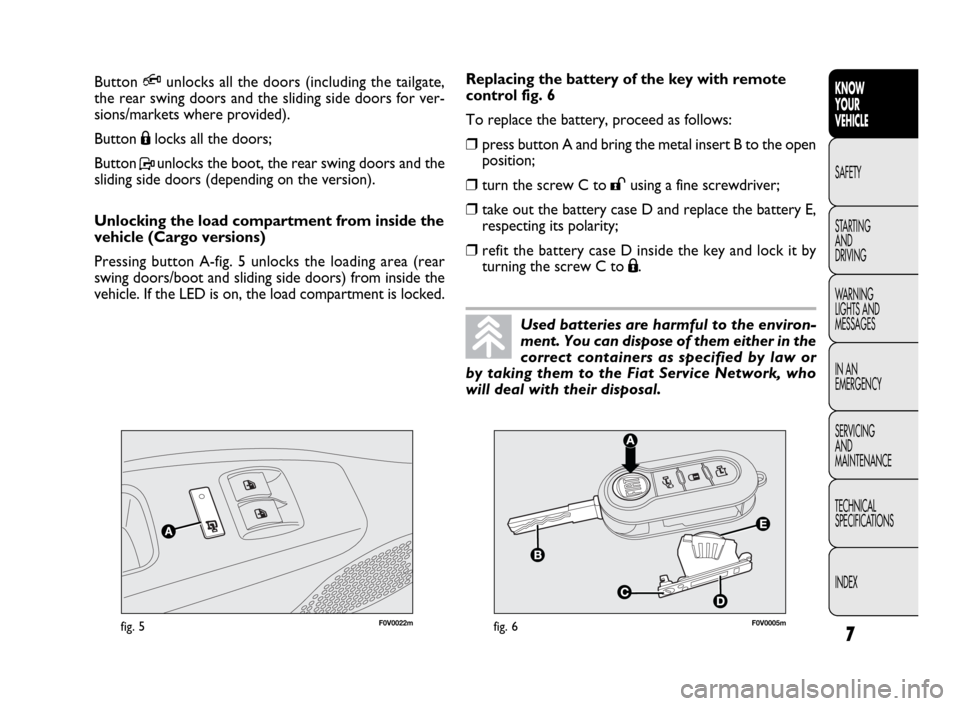

Replacing the battery of the key with remote
control fig. 6
To replace the battery, proceed as follows:
❒press button A and bring the metal insert B to the open
position;
❒turn the screw C to :using a fine screwdriver;
❒take out the battery case D and replace the battery E,
respecting its polarity;
❒refit the battery case D inside the key and lock it by
turning the screw C to
Á. Button
Qunlocks all the doors (including the tailgate,
the rear swing doors and the sliding side doors for ver-
sions/markets where provided).
Button Álocks all the doors;
Button Punlocks the boot, the rear swing doors and the
sliding side doors (depending on the version).
Unlocking the load compartment from inside the
vehicle (Cargo versions)
Pressing button A-fig. 5 unlocks the loading area (rear
swing doors/boot and sliding side doors) from inside the
vehicle. If the LED is on, the load compartment is locked.
Used batteries are harmful to the environ-
ment. You can dispose of them either in the
correct containers as specified by law or
by taking them to the Fiat Service Network, who
will deal with their disposal.

Switching the device on
The system is automatically enabled on all the doors by
pressing button
Átwice on the key with remote control.
The direction indicators flash twice to let you know that
the device is active.
If one or more of the doors is not perfectly shut, the dead
lock device will not be activated, thus preventing a per-
son getting into the vehicle through the open door and,
on shutting, it, remaining stuck inside the passenger com-
partment.
Switching the device off
The system is disabled automatically on every door when:
❒unlocking the doors;
❒turning the ignition key to MAR. Requesting additional remote controls
The system acknowledges up to 8 remote controls. Should
a new remote control be necessary, contact the Fiat Ser-
vice Network and be ready to present the CODE card, a
personal identity document and the vehicle ownership
documents.
DEAD LOCK
(for versions/markets where provided)
This safety device prevents the opening of the doors from
inside the passenger compartment if there has been a break
in attempt (e.g. a window has been broken).
The dead lock device therefore offers the best possible
protection against break in attempts. We recommend en-
gaging it whenever the vehicle is parked and left unat-
tended.
8
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Once the dead lock system is engaged it
is impossible to open the doors from in-
side the vehicle. Before engaging the system please
therefore check that there is no one left on board.
WARNING
If the remote control battery is flat, the
system can only be turned on by inserting
the metal key in the door lock: in this case, the
device remains active for the rear doors only.
WARNING

9
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEXSTARTING DEVICE
The key can be turned to three different positions fig. 7:
❒STOP: engine off, key can be extracted, steering locked.
Some electrical devices (e.g. radio, central door lock-
ing system, etc.) can operate.
❒MAR: driving position. All electrical devices can oper-
ate.
❒AVV: engine starting (temporary position).
The starting device is fitted with an electronic safety sys-
tem that, should the engine fail to start, forces you to turn
the ignition key back to STOP before repeating the start-
ing operation.
F0V0006mfig. 7
STEERING LOCK
Engagement
When at STOP, remove the key and turn the steering
wheel until it locks.
Disengagement
Move the steering wheel slightly as you turn the ignition
key to MAR.
If the starting device has been tampered
with (e.g. an attempted theft), have it
checked over by the Fiat Service Network as soon
as possible.
WARNING

10
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEXNever extract the key while the vehicle is
moving. The steering wheel should lock au-
tomatically as soon as it is turned. This is always
the case, even when the vehicle is being towed.
WARNING
It is absolutely forbidden to carry out any
aftersales operation involving steering sys-
tem or steering column modifications (e.g. installing
an anti-theft device) that could badly affect per-
formance and safety, invalidate the warranty and
also result in the vehicle failing to comply with reg-
ulations.
WARNING
When getting out of the vehicle, always
remove the key to prevent someone from
accidentally activating the controls. Remember
to engage the handbrake. Engage first gear if the
vehicle is parked uphill or reverse gear if the ve-
hicle is parked downhill. Never leave children un-
attended in the vehicle.
WARNING

11
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEXINSTRUMENT PANEL
Versions with digital display
A Speedometer
B Fuel level gauge with reserve warn-
ing light
C Engine coolant temperature gauge
with overheating warning light
D Rev counter
E Digital display
Versions with multifunction
display
A Speedometer
B Fuel level gauge with reserve warn-
ing light
C Engine coolant temperature gauge
with overheating warning light
D Rev counter
E Multifunction display
F0V0001mfig. 9
F0V0002mfig. 10

12
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0007mfig. 11F0V0008mfig. 12
REV COUNTER fig. 12
The rev counter shows the number of engine rpm.
WARNING The electronic injection control system grad-
ually shuts off the flow of fuel when the engine is over-
revving, resulting in a gradual loss of engine power.
When the engine is idling, the rev counter may indicate
a gradual or sudden increase in the rate.
This is normal and does not indicate a fault. It may be
caused, for example, by the operation of the climate con-
trol system or fan. In such cases, a slight increase in en-
gine idle speed helps to sustain the battery charge.INSTRUMENTS
Instrument background colour and type may vary ac-
cording to the version.
SPEEDOMETER fig. 11
This shows the speed at which the vehicle is travelling.
