FIAT DOBLO COMBI 2010 Owner handbook (in English)

220
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0118mfig. 190F0V0117mfig. 192
F0V0116mfig. 191

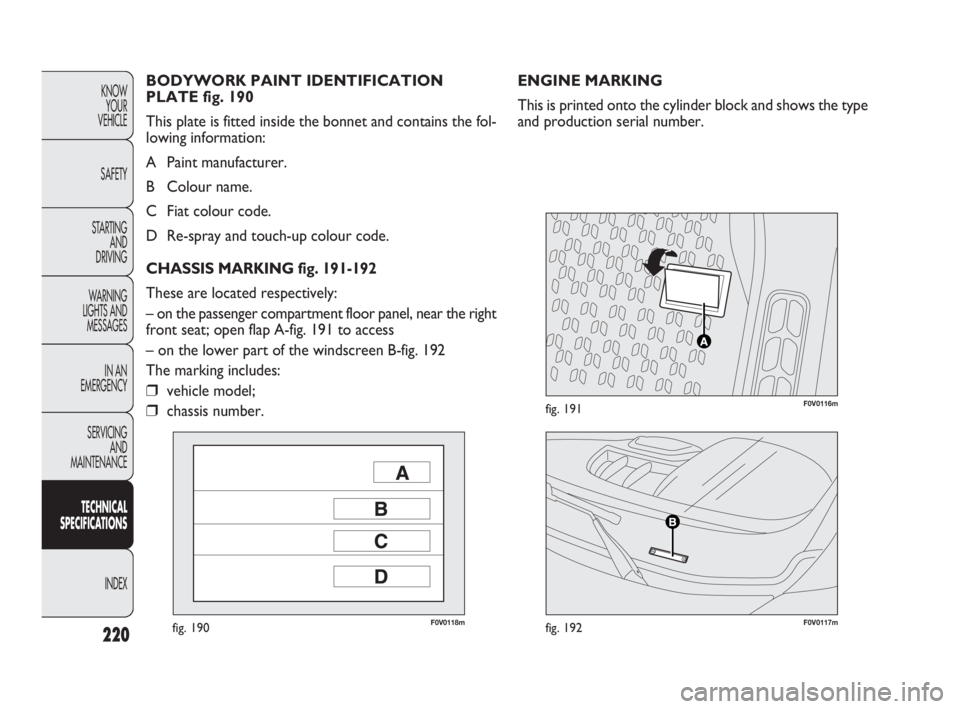

ENGINE MARKING
This is printed onto the cylinder block and shows the type
and production serial number. BODYWORK PAINT IDENTIFICATION
PLATE fig. 190
This plate is fitted inside the bonnet and contains the fol-
lowing information:
A Paint manufacturer.
B Colour name.
C Fiat colour code.
D Re-spray and touch-up colour code.
CHASSIS MARKING fig. 191-192
These are located respectively:
– on the passenger compartment floor panel, near the right
front seat; open flap A-fig. 191 to access
– on the lower part of the windscreen B-fig. 192
The marking includes:
❒vehicle model;
❒chassis number.
219-260 DOBLO LUM EN 2e 7.0 27-05-2010 15:09 Pagina 220

221
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
ENGINE CODES – BODYWORK VERSIONS
Engine code
1.4843A1000
1.3 Multijet199A3000 (within DPF)263A2000 (with DPF)
1.6 Multijet198A3000 (105 HP)
263A3000 (100 HP)
2.0 Multijet263A1000
The following body version code and key are an example that may be applied to all body version codes:
Key: 263 A XA1A00
MODEL
BODYWORK/SEATS
ENGINE
DRIVE AXLES/STEERING AXLES
TRANSMISSION
VERSION
219-260 DOBLO LUM EN 2e 7.0 27-05-2010 15:09 Pagina 221

222
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

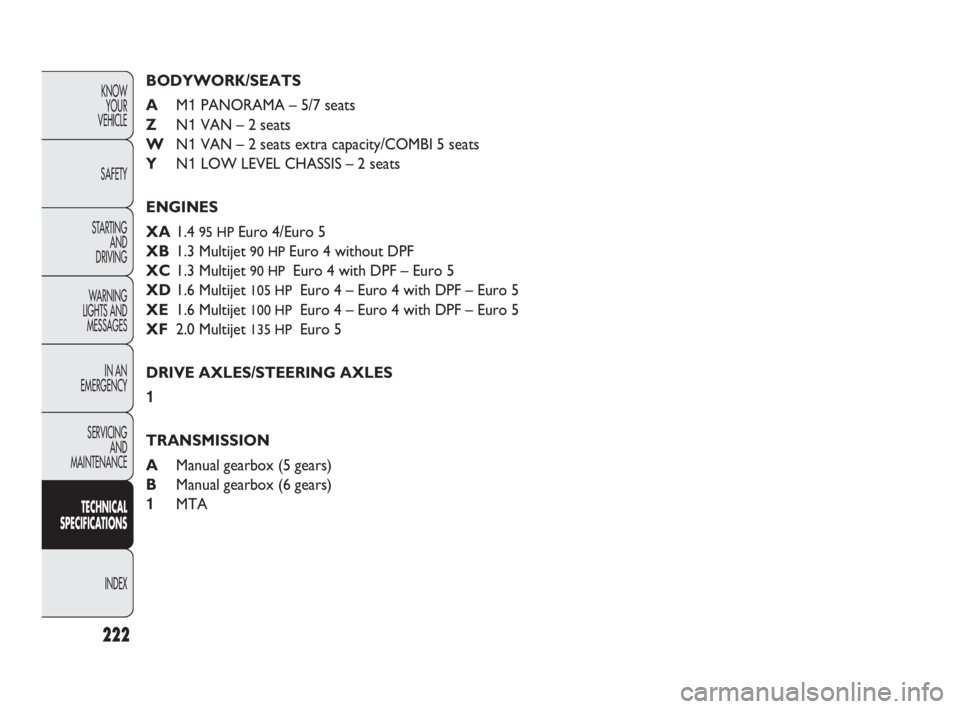

BODYWORK/SEATS
AM1PANORAMA – 5/7 seats
ZN1VAN – 2 seats
WN1VAN – 2 seats extra capacity/COMBI 5 seats
YN1LOW LEVEL CHASSIS – 2 seats
ENGINES
XA1.4
95 HPEuro 4/Euro 5
XB1.3 Multijet
90 HPEuro 4 without DPF
XC1.3 Multijet
90 HP Euro 4 with DPF – Euro 5
XD1.6 Multijet
105 HP Euro 4 – Euro 4 with DPF – Euro 5
XE1.6 Multijet
100 HP Euro 4 – Euro 4 with DPF – Euro 5
XF2.0 Multijet
135 HP Euro 5
DRIVE AXLES/STEERING AXLES
1
TRANSMISSION
AManual gearbox (5 gears)
BManual gearbox (6 gears)
1MTA
219-260 DOBLO LUM EN 2e 7.0 27-05-2010 15:09 Pagina 222

223
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
1.3 Multijet
without DPF
199A3000
Diesel
4 in line
69.6x82
1248
17.6:1
66
90
4000
200
20.4
1750
–
Diesel for
motor vehicles
(EN 590
specification)
1.4
843A1000
Otto
4 in line
72x84
1368
11:1
70
95
6000
127
12.95
4500
NGK DCPR7E-N
Petrol 95 RON
ENGINE
GENERAL
INFORMATION
Engine code
Cycle
Number and
layout of cylinders
Piston bore
and stroke mm
Total capacity cc
Compression ratio
Max.
power (EEC) kW
HP
corresponding
speed rpm
Max.
torque (EEC) Nm
kgm
corresponding
speed rpm
Spark plugs
Fuel
1.6
Multijet
198A3000/
263A3000
Diesel
4 in line
79.5x80.5
1598
16.5:1
77/74
105/100
4000
290
29.6
1500
–
Diesel for
motor vehicles
(EN 590
specification)
2.0
Multijet
263A1000
Diesel
4 in line
83x90.5
1956
16.5:1
99
135
3500
320
32.6
1500
–
Diesel for
motor vehicles
(EN 590
specification)
1.3 Multijet
with DPF
263A2000
Diesel
4 in line
69.6x82
1248
16.8:1
66
90
4000
200
20.4
1500
–
Diesel for
motor vehicles
(EN 590
specification)
219-260 DOBLO LUM EN 2e 7.0 27-05-2010 15:10 Pagina 223

224
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

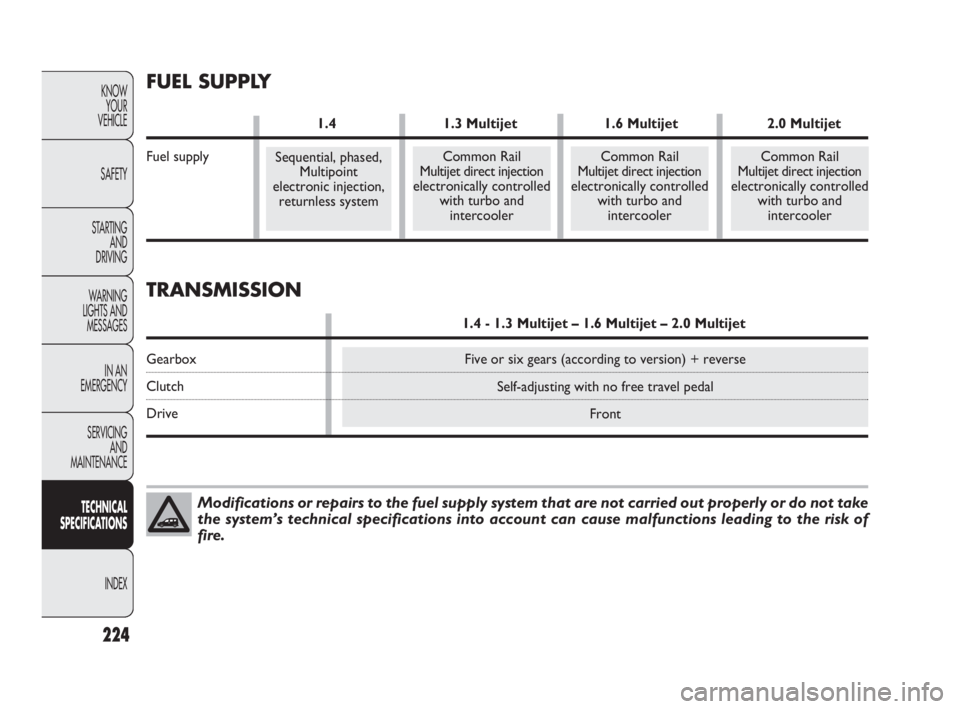

Modifications or repairs to the fuel supply system that are not carried out properly or do not take
the system’s technical specifications into account can cause malfunctions leading to the risk of
fire.
Sequential, phased,
Multipoint
electronic injection,
returnless systemCommon Rail
Multijet direct injection
electronically controlled
with turbo and
intercoolerCommon Rail
Multijet direct injection
electronically controlled
with turbo and
intercoolerCommon Rail
Multijet direct injection
electronically controlled
with turbo and
intercooler
Five or six gears (according to version) + reverse
Self-adjusting with no free travel pedal
Front
FUEL SUPPLY
1.4 1.3 Multijet 1.6 Multijet 2.0 Multijet
Fuel supply
TRANSMISSION
1.4 - 1.3 Multijet – 1.6 Multijet – 2.0 Multijet
Gearbox
Clutch
Drive
219-260 DOBLO LUM EN 2e 7.0 27-05-2010 15:10 Pagina 224

225
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Rack and pinion with hydraulic power steering
11.2 (*)/12.5 (
❑)
self-ventilated discs
drum
controlled by hand lever, acting on rear brakes
Independent McPherson type
Multi-link independent, coil springs, telescopic shock absorbers
and anti-roll bar (according to version)
BRAKES
1.4 – 1.3 Multijet – 1.6 Multijet – 2.0 Multijet
Service brakes: front
rear
Parking brake
IMPORTANT Water, ice and salt on the roads may deposit on the brake discs, reducing braking efficiency the first time the
brakes are applied.
SUSPENSION
1.4 – 1.3 Multijet – 1.6 Multijet – 2.0 Multijet
Front
Rear
STEERING
1.4 – 1.3 Multijet – 1.6 Multijet – 2.0 Multijet
Type
Turning circle
(kerb to kerb)
(*) Short wheelbase (
❑) Long wheelbase
219-260 DOBLO LUM EN 2e 7.0 27-05-2010 15:10 Pagina 225

226
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

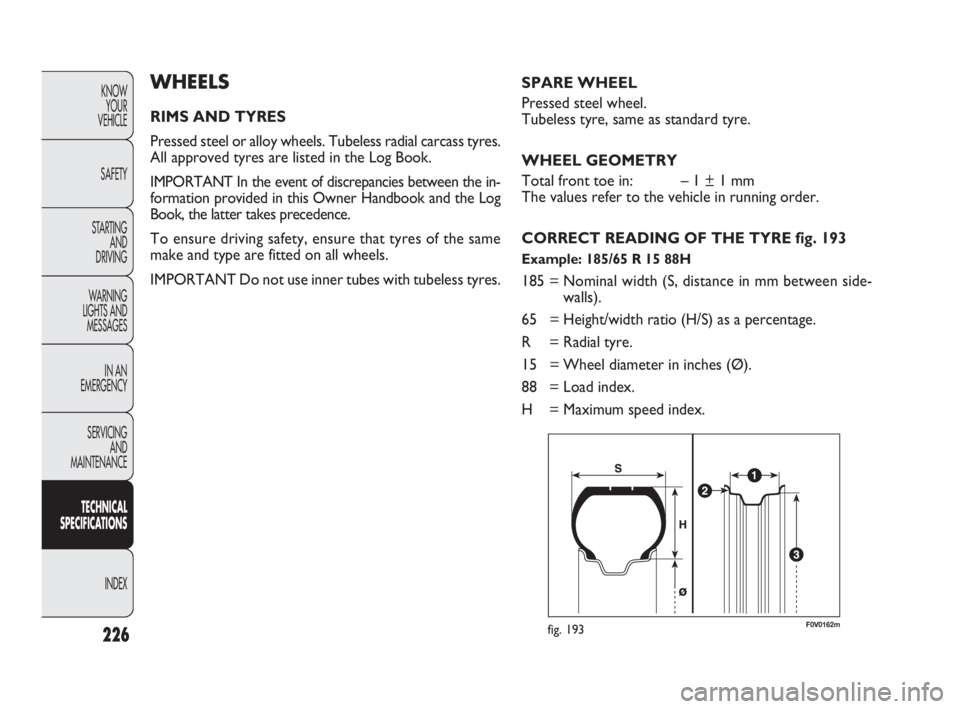

WHEELS
RIMS AND TYRES
Pressed steel or alloy wheels. Tubeless radial carcass tyres.
All approved tyres are listed in the Log Book.
IMPORTANT In the event of discrepancies between the in-
formation provided in this Owner Handbook and the Log
Book, the latter takes precedence.
To ensure driving safety, ensure that tyres of the same
make and type are fitted on all wheels.
IMPORTANT Do not use inner tubes with tubeless tyres.
F0V0162mfig. 193
SPARE WHEEL
Pressed steel wheel.
Tubeless tyre, same as standard tyre.
WHEEL GEOMETRY
Total front toe in: – 1 ± 1 mm
The values refer to the vehicle in running order.
CORRECT READING OF THE TYRE fig. 193
Example: 185/65 R 15 88H
185 = Nominal width (S, distance in mm between side-
walls).
65 = Height/width ratio (H/S) as a percentage.
R = Radial tyre.
15 = Wheel diameter in inches (Ø).
88 = Load index.
H = Maximum speed index.
219-260 DOBLO LUM EN 2e 7.0 27-05-2010 15:10 Pagina 226

227
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

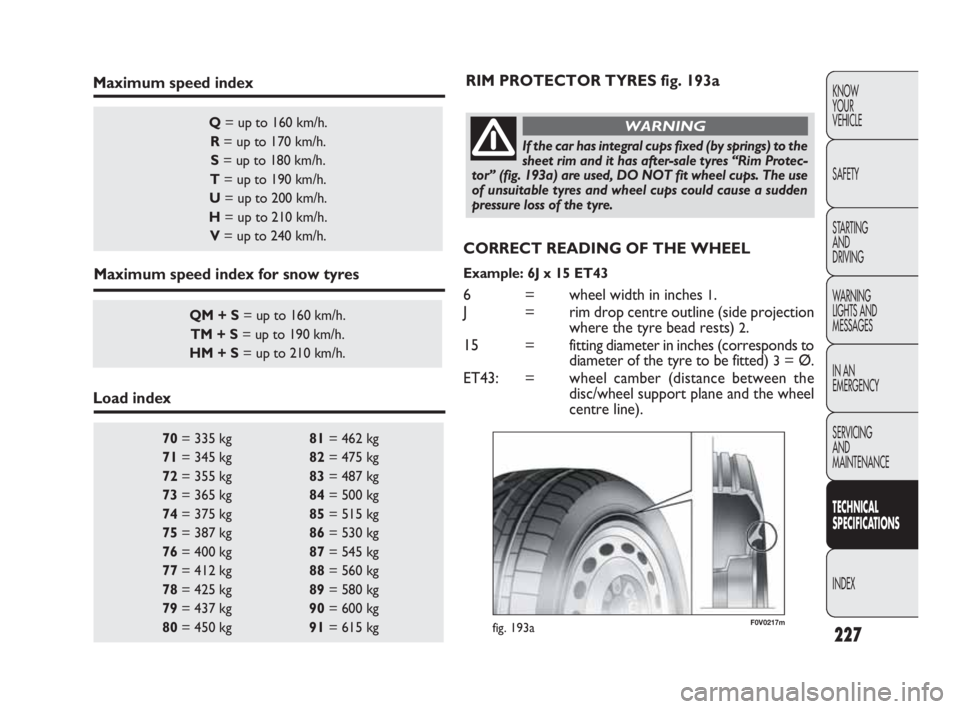

70= 335 kg 81= 462 kg
71= 345 kg 82= 475 kg
72= 355 kg 83= 487 kg
73= 365 kg 84= 500 kg
74= 375 kg 85= 515 kg
75= 387 kg 86= 530 kg
76= 400 kg 87= 545 kg
77= 412 kg 88= 560 kg
78= 425 kg 89= 580 kg
79= 437 kg 90= 600 kg
80= 450 kg 91= 615 kg
Q= up to 160 km/h.
R= up to 170 km/h.
S= up to 180 km/h.
T= up to 190 km/h.
U= up to 200 km/h.
H= up to 210 km/h.
V= up to 240 km/h.
QM + S= up to 160 km/h.
TM + S= up to 190 km/h.
HM + S= up to 210 km/h.
Maximum speed index
Maximum speed index for snow tyres
Load indexRIM PROTECTOR TYRES fig. 193a
If the car has integral cups fixed (by springs) to the
sheet rim and it has after-sale tyres “Rim Protec-
tor” (fig. 193a) are used, DO NOT fit wheel cups. The use
of unsuitable tyres and wheel cups could cause a sudden
pressure loss of the tyre.
WARNING
F0V0217mfig. 193a
CORRECT READING OF THE WHEEL
Example: 6J x 15 ET43
6 = wheel width in inches 1.
J = rim drop centre outline (side projection
where the tyre bead rests)
2.
15 = fitting diameter in inches (corresponds to
diameter of the tyre to be fitted)
3= Ø.
ET43: = wheel camber (distance between the
disc/wheel support plane and the wheel
centre line).
219-260 DOBLO LUM EN 2e 7.0 27-05-2010 15:10 Pagina 227

228
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

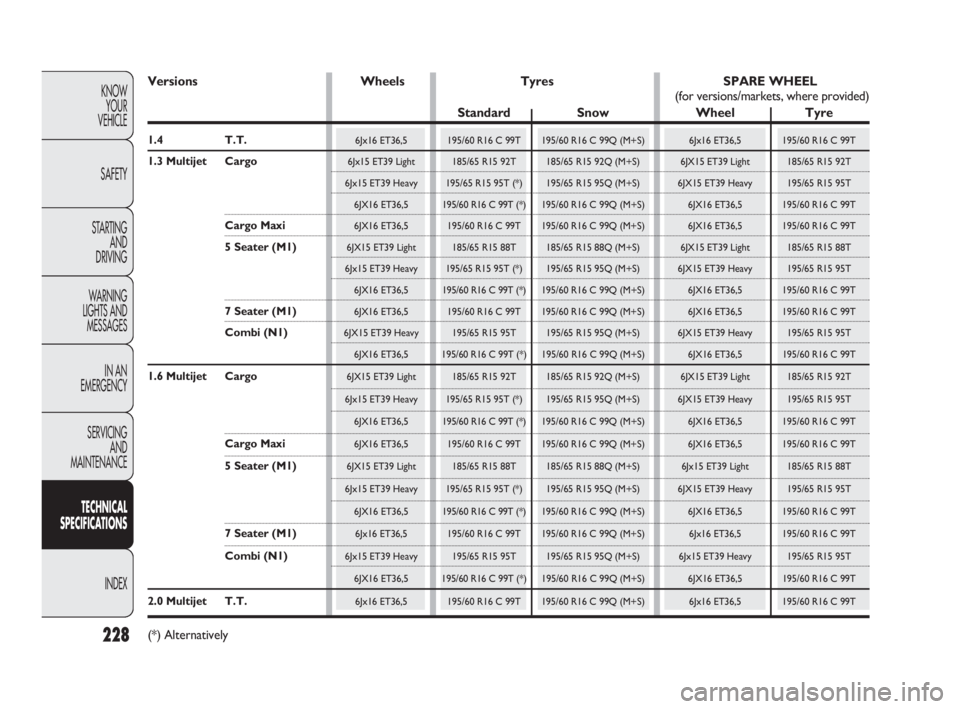

Versions Wheels Tyres SPARE WHEEL
(for versions/markets, where provided)
Standard Snow Wheel Tyre
1.4 T.T.6Jx16 ET36,5 195/60 R16 C 99T 195/60 R16 C 99Q (M+S) 6Jx16 ET36,5 195/60 R16 C 99T
1.3 Multijet Cargo6Jx15 ET39 Light 185/65 R15 92T 185/65 R15 92Q (M+S) 6JX15 ET39 Light 185/65 R15 92T
6Jx15 ET39 Heavy 195/65 R15 95T (*) 195/65 R15 95Q (M+S) 6JX15 ET39 Heavy 195/65 R15 95T
6JX16 ET36,5195/60 R16 C 99T (*)195/60 R16 C 99Q (M+S) 6JX16 ET36,5 195/60 R16 C 99T
Cargo Maxi6JX16 ET36,5 195/60 R16 C 99T 195/60 R16 C 99Q (M+S) 6JX16 ET36,5 195/60 R16 C 99T
5 Seater (M1)6JX15 ET39 Light 185/65 R15 88T 185/65 R15 88Q (M+S) 6JX15 ET39 Light 185/65 R15 88T
6Jx15 ET39 Heavy 195/65 R15 95T (*) 195/65 R15 95Q (M+S) 6JX15 ET39 Heavy 195/65 R15 95T
6JX16 ET36,5195/60 R16 C 99T (*)195/60 R16 C 99Q (M+S) 6JX16 ET36,5 195/60 R16 C 99T
7 Seater (M1)6JX16 ET36,5 195/60 R16 C 99T 195/60 R16 C 99Q (M+S) 6JX16 ET36,5 195/60 R16 C 99T
Combi (N1)6JX15 ET39 Heavy 195/65 R15 95T 195/65 R15 95Q (M+S) 6JX15 ET39 Heavy 195/65 R15 95T
6JX16 ET36,5195/60 R16 C 99T (*) 195/60 R16 C 99Q (M+S) 6JX16 ET36,5 195/60 R16 C 99T
1.6 Multijet Cargo6JX15 ET39 Light 185/65 R15 92T 185/65 R15 92Q (M+S) 6JX15 ET39 Light 185/65 R15 92T
6Jx15 ET39 Heavy 195/65 R15 95T (*) 195/65 R15 95Q (M+S) 6JX15 ET39 Heavy 195/65 R15 95T
6JX16 ET36,5195/60 R16 C 99T (*)195/60 R16 C 99Q (M+S) 6JX16 ET36,5 195/60 R16 C 99T
Cargo Maxi6JX16 ET36,5 195/60 R16 C 99T 195/60 R16 C 99Q (M+S) 6JX16 ET36,5 195/60 R16 C 99T
5 Seater (M1)6JX15 ET39 Light 185/65 R15 88T 185/65 R15 88Q (M+S) 6Jx15 ET39 Light 185/65 R15 88T
6Jx15 ET39 Heavy 195/65 R15 95T (*) 195/65 R15 95Q (M+S) 6JX15 ET39 Heavy 195/65 R15 95T
6JX16 ET36,5195/60 R16 C 99T (*)195/60 R16 C 99Q (M+S) 6JX16 ET36,5 195/60 R16 C 99T
7 Seater (M1)6Jx16 ET36,5 195/60 R16 C 99T 195/60 R16 C 99Q (M+S) 6Jx16 ET36,5 195/60 R16 C 99T
Combi (N1)6Jx15 ET39 Heavy 195/65 R15 95T 195/65 R15 95Q (M+S) 6Jx15 ET39 Heavy 195/65 R15 95T
6JX16 ET36,5195/60 R16 C 99T (*) 195/60 R16 C 99Q (M+S) 6JX16 ET36,5 195/60 R16 C 99T
2.0 Multijet T.T.6Jx16 ET36,5 195/60 R16 C 99T 195/60 R16 C 99Q (M+S) 6Jx16 ET36,5 195/60 R16 C 99T
(*) Alternatively
219-260 DOBLO LUM EN 2e 7.0 27-05-2010 15:10 Pagina 228

229
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

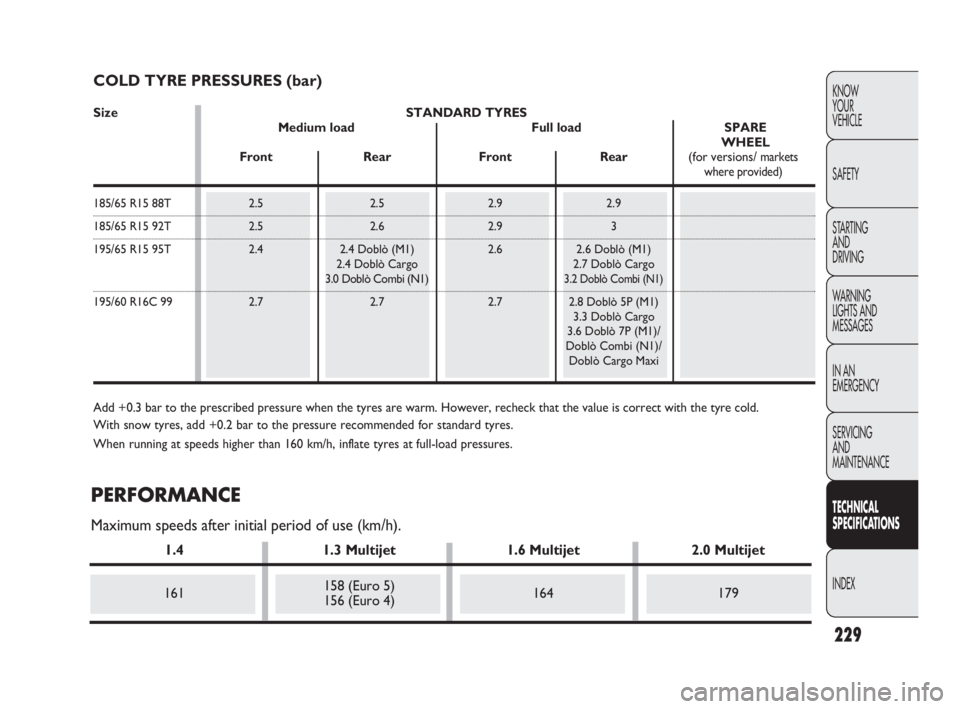

COLD TYRE PRESSURES (bar)
Add +0.3 bar to the prescribed pressure when the tyres are warm. However, recheck that the value is correct with the tyre cold.
With snow tyres, add +0.2 bar to the pressure recommended for standard tyres.
When running at speeds higher than 160 km/h, inflate tyres at full-load pressures.
Size STANDARD TYRES
Medium load Full load SPARE
WHEEL
Front Rear Front Rear(for versions/
marketswhere provided)
185/65 R15 88T 2.5 2.5 2.9 2.9
185/65 R15 92T 2.5 2.6 2.9 3
195/65 R15 95T 2.4 2.4 Doblò (M1) 2.6 2.6 Doblò (M1)
2.4 Doblò Cargo 2.7 Doblò Cargo
3.0 Doblò Combi (N1)3.2 Doblò Combi (N1)
195/60 R16C 99 2.7 2.7 2.7 2.8 Doblò 5P (M1)
3.3 Doblò Cargo
3.6 Doblò 7P (M1)/
Doblò Combi (N1)/
Doblò Cargo Maxi
PERFORMANCE
Maximum speeds after initial period of use (km/h).
1.4 1.3 Multijet 1.6 Multijet 2.0 Multijet
161158 (Euro 5)
164 179
156 (Euro 4)
219-260 DOBLO LUM EN 2e 7.0 27-05-2010 15:10 Pagina 229
