boot FIAT DOBLO COMBI 2011 Owner handbook (in English)

189
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
TOWING THE VEHICLE
The tow ring supplied with the vehicle is located in the
tool box located either behind the left seat backrest (Car-
go versions) or in the boot (Doblò / Doblò Combi ver-
sions).
FASTENING THE TOW RING
fig. 178-179
Proceed as follows:
❒release the cap A;
❒remove the tow ring B from the tool box;
❒screw the ring tightly onto the rear or front threaded pin.
F0V0050mfig. 178
RAISING THE VEHICLE
If the vehicle needs to be lifted, go to a Fiat Dealership
which is equipped with the arm hoist or workshop lift.

192
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX
●●●●●●
●●●●●●
●●●●●●
●●●●●●
●●●●●●
●●●
●●●●●●
●●●●●●
●●
●●
●●●●●●
●●●●●●
SCHEDULED SERVICING PLAN
PETROL VERSIONS
Thousands of kilometres 30 60 90 120 150 180
Check tyre conditions/wear and adjust pressure if required
Check operation of lighting system (headlamps, direction indicators,
hazard warning lights, luggage compartment, passenger compartment,
glove compartment, instrument panel warning lights, etc.)
Check operation of windscreen washer/wipers,
adjust nozzles
Check position/wear of the windscreen wiper blades.
Check condition and wear of front disc brake pads
and brake pad wear indicator
Check condition and wear of rear drum brake linings
Visually inspect the conditions of: bodywork,
underbody protection, pipes and tubes
(exhaust – fuel – brakes), rubber parts
(boots, sleeves, bushes, etc.)
Check cleanliness of bonnet and boot locks, as well as cleanliness
and lubrication of linkages
Visually inspect the condition of accessory drive belt(s).
Check tension of accessory drive belt(s)
(versions without automatic tensioner)
Check the handbrake lever stroke and adjust it, if necessary.
Check exhaust gas emissions

194
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX
●●●●●●
●●●●●●
●●●●●●
●●●●●●
●●●●●●
●●●
●●●●●●
●●●●●●
●●●●●●
●●
●●●●●●
●●
●●●●●●
DIESEL VERSIONS WITHOUT DPF (1.3 Multijet – 1.6 Multijet)
Thousands of kilometres 30 60 90 120 150 180
Check tyre conditions/wear and adjust pressure if required
Check operation of lighting system (headlamps, direction indicators,
hazard warning lights, luggage compartment, passenger compartment,
glove compartment, instrument panel warning lights, etc.)
Check operation of windscreen wiper/washer system
and adjust nozzles if necessary.
Check position/wear of the windscreen wiper blades.
Check condition and wear of front disc brake pads and brake
pad wear indicator
Check condition and wear of rear drum brake linings
Visually inspect the conditions of: bodywork,
underbody protection, pipes and tubes
(exhaust – fuel – brakes), rubber parts
(boots, sleeves, bushes, etc.)
Check cleanliness of bonnet and boot locks, as well as cleanliness
and lubrication of linkages
Check and, if necessary, top up fluid levels (brakes/hydraulic clutch,
windscreen washer, battery, engine coolant, etc.)
Check tension of accessory drive belt
(versions without automatic tensioner)
Check the handbrake lever stroke and adjust it, if necessary.
Visually inspect the condition of accessory drive belt(s).
Check exhaust gas emissions/smokiness.

196
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX
● ●●●●
● ●●●●
● ●●●●
● ●●●●
● ●●●●
●●
● ●●●●
● ●●●●
● ●●●●
●●
● ●●●●
●●
● ●●●●
DIESEL VERSIONS WITH DPF (1.3 Multijet – 1.6 Multijet – 2.0 Multijet)
Thousands of kilometres 35 70 105 140 175
Check tyre conditions/wear and adjust pressure if required
Check lighting system operation
(headlights, direction indicators, hazard lights, boot, passenger compartment,
glove box, instrument panel warning lights, etc.)
Check operation of windscreen wiper/washer system
and adjust nozzles if necessary
Check position/wear of the windscreen wiper blades.
Check condition and wear of front disc brake pads and brake pad wear indicator
Check condition and wear of rear drum brake linings
Visually inspect the conditions of: bodywork,
underbody protection, pipes and tubes
(exhaust – fuel – brakes), rubber parts
(boots, sleeves, bushes, etc.)
Check cleanliness of bonnet and boot locks, as well as cleanliness and
lubrication of linkages
Check and, if necessary, top up fluid levels (brakes/hydraulic clutch,
windscreen washer, battery, engine coolant, etc.)
Check tension of accessory drive belt
(versions without automatic tensioner)
Check the handbrake lever stroke and adjust it, if necessary.
Visually inspect the condition of accessory drive belt(s).
Check exhaust gas emissions/smokiness.

198
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX
HEAVY USAGE OF THE VEHICLE
If the vehicle is primarily used in one of the following
particularly onerous conditions:
❒ towing trailers;
❒ dusty roads;
❒ short, repeated journeys (less than 7-8 km) at sub-ze-
ro temperatures;
❒ frequently idling engine or long-distance, low-speed dri-
ving (e.g. door-to-door deliveries) or lengthy inactivi-
ty;
❒ driving in towns and cities;
you should perform the following inspections more fre-
quently than shown on the Scheduled Servicing Plan:
❒ check front disc brake pad conditions and wear;
❒ check cleanliness of bonnet and boot locks, and clean-
liness and lubrication of linkages;
❒ visually inspect the conditions of: engine, gearbox,
transmission, pipes and tubes (exhaust – fuel – brakes),
rubber parts (boots, sleeves, bushes, etc.);
❒ check battery charge and fluid level (electrolite) (check
to be carried out only by specialists or at a Fiat Deal-
ership – see the “Battery” paragraph in this section);
❒ visually inspect the condition of the accessory drive
belts;
❒ check pollen filter and replace, if required;
❒ check and, if necessary, replace air filter.
REGULAR CHECKS
Every 1,000 km or before long journeys, check and, if nec-
essary, top up:
❒ engine coolant fluid level;
❒ brake fluid level;
❒ windscreen washer level;
❒ tyre pressure and conditions.
❒ operation of lighting system (headlights, direction in-
dicators, hazard lights, etc.);
❒ operation of windscreen washer/wipers system and po-
sitioning/wear of windscreen/rear window wiper blades
(for versions/markets where provided);
Check and top up, if required, the engine oil level every
3,000 km.
You are recommended to use
PETRONAS LUBRICANTS
products, which have been designed and produced specif-
ically for Fiat vehicles (see “Capacities” table in the “Tech-
nical specifications” section).

If, after buying the vehicle, you want to install electrical ac-
cessories requiring permanent electric supply (alarm, etc.)
or having high power level consumption, contact
a Fiat Dealership, whose qualified personnel, in addition to
suggesting the most suitable devices from the Lineacessori
Fiat range, will assess the overall electrical consumption
to determine whether the vehicle’s electrical system is ca-
pable of withstanding the load required, or whether it
should be integrated with a more powerful battery.
Since these devices continue to use electricity even when
the engine is off, they gradually run down the battery.
208
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

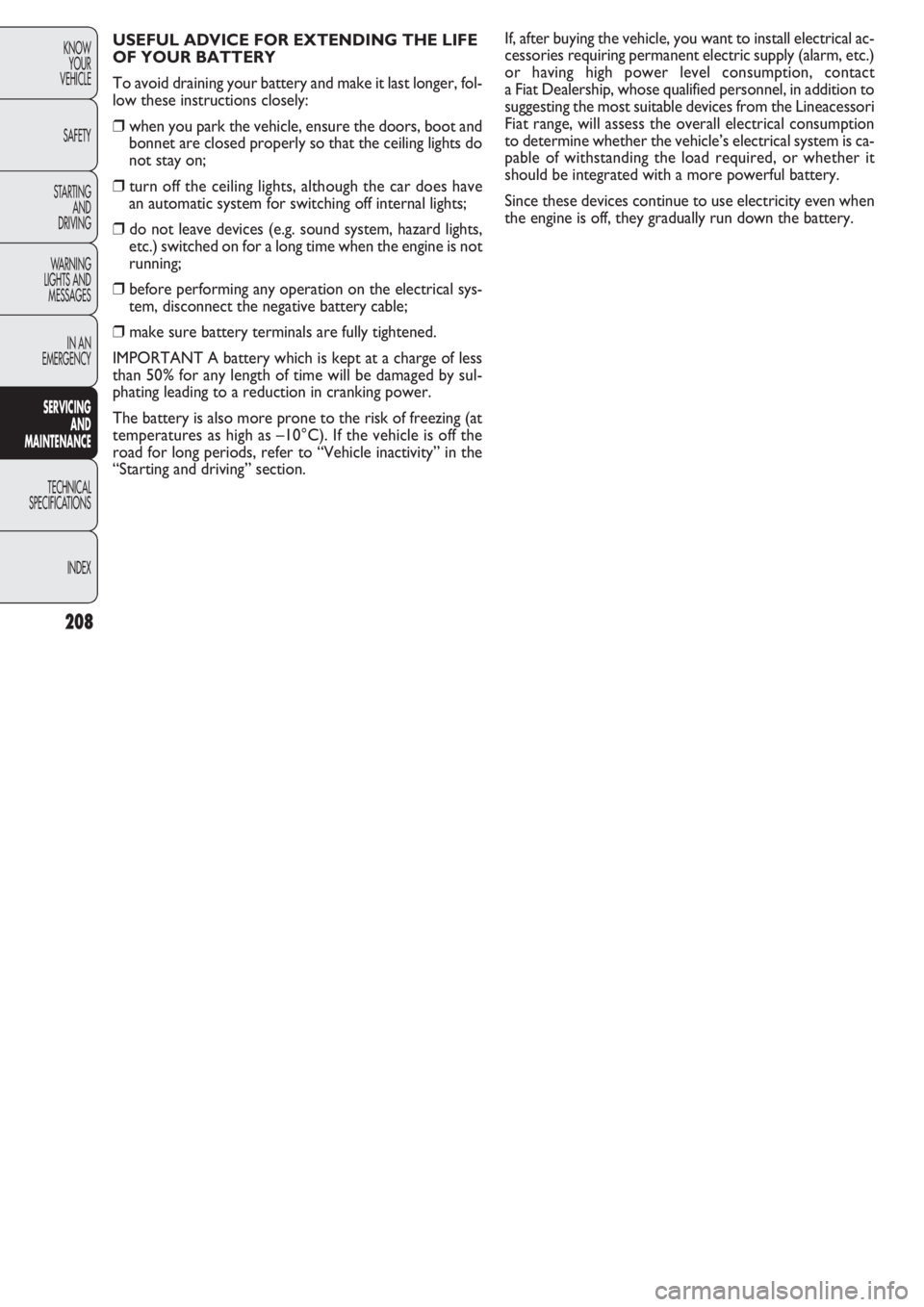

USEFUL ADVICE FOR EXTENDING THE LIFE
OF YOUR BATTERY
To avoid draining your battery and make it last longer, fol-
low these instructions closely:
❒when you park the vehicle, ensure the doors, boot and
bonnet are closed properly so that the ceiling lights do
not stay on;
❒turn off the ceiling lights, although the car does have
an automatic system for switching off internal lights;
❒do not leave devices (e.g. sound system, hazard lights,
etc.) switched on for a long time when the engine is not
running;
❒before performing any operation on the electrical sys-
tem, disconnect the negative battery cable;
❒make sure battery terminals are fully tightened.
IMPORTANT A battery which is kept at a charge of less
than 50% for any length of time will be damaged by sul-
phating leading to a reduction in cranking power.
The battery is also more prone to the risk of freezing (at
temperatures as high as –10°C). If the vehicle is off the
road for long periods, refer to “Vehicle inactivity” in the
“Starting and driving” section.

261
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Battery recharging................. 188
Battery...................................... 206
– jump starting .................... 155
– maintenance ..................... 208
– recharge............................. 188
– replacement....................... 207
– tips for extending
battery life ........................ 208
Body (marking) ...................... 220
Body codes.............................. 221
Body marking ......................... 220
Body paintwork
identification plate .............. 220
Body versions ......................... 221
Body
– body version codes ........ 221
– cleaning, care
and maintenance ............. 214Bonnet
– opening/closing ...... 91-92-93
Bookrest.................................... 76
Boot ........................................... 85
– expanding the boot ........... 89
– parcel shelf (removal) ....... 88
– removing the parcel shelf 88
– securing your load ............ 91
Boot courtesy light ................. 67
Boot
– emergency opening from the
inside...............................85-86
– expanding the boot ........... 89
– opening with remote
control ................................... 6
– securing your load ............ 91
Brake Assist system ................ 98 ABS system .............................. 96
Additional brake light
– bulb replacement.............. 176
Adjusting the vehicle interior
lighting ..................................... 20
Air bag deactivation ............. 130
Air filter .................................. 206
Air recirculation ..........46-49-56
Air vents ................................... 43
Antifreeze
– checking levels
and topping up .................. 202
– specifications .................... 248
Ashtray....................................... 75
ASR function .......................... 100
ASR system ............................ 100
Automatic climate control
system ..................................... 51
INDEX

265
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Environment
protection ....................113-114
– diesel particulate filter
(DPF) ................................. 114
Environment
– devices for reducing
emissions ..................113-114
EOBD (system) ..................... 102
ESP (system) ............................. 98
Expanding the boot ................ 89
Exterior lights
(switching on)................... 59-60
Fiat CODE ................................. 4
Fix&Go automatic
(quick tyre repair kit) ........ 163
Flashing (main beam
headlights) .............................. 60
Fluids and lubricants
(specifications) ............242-243Fog lights
– bulb replacement.............. 174
– switching on ....................... 70
Follow me home
(headlight device) .................. 60
Front air bags ......................... 128
– deactivation ...................... 130
– driver ................................. 129
– passenger .......................... 129
Front armrest .......................... 71
Front courtesy light ................ 65
– bulb replacement.............. 178
Front light clusters
– bulb arrangement ............. 172
Front seats ................................ 31
– adjustments .................. 30-31
– armrest ................................ 71
– cleaning .............................. 216
– headrest .............................. 38
– heating ................................. 32Fuel consumption ................. 249
Fuel cut-off (system) ............... 70
Fuel economy ........................ 137
Fuel flap ................................... 112
Fuel gaug
e ................................. 13
– fuel type .....................111-112
Fuel reserve ........................... 246
Fuel reserve warning light ... 150
Fuel tank (capacity) .............. 246
Fuel tank cap .......................... 112
Fuel
– at the filling station ...111-112
– consumption .................... 249
– fuel cut-off (system) .......... 70
– fuel level gauge and reserve
warning light ........................... 13
– fuel tank cap ..................... 112
– opening the flap ............... 112
– refuelling ...................111-112
– specifications ............111-112
