MSR system
(engine drive regulator)
This is an integral part of the ASR system that, in the event
of a sudden gear down shift, cuts in and provides torque
to the engine thus preventing excessive drive wheel dri-
ve which, especially in poor grip conditions, can lead to
a loss of stability.
Engagement/disengagement of the ASR system
The ASR system switches on automatically each time the
engine is started.
When travelling, the ASR can be switched off and on again
by pressing switch fig. 101, which can be found between
the front seats to the side of the handbrake lever.
When the ASR is switched off, this is shown by the LED
on the switch coming on and by the relevant message ap-
pearing on the multifunction display, where provided. ASR SYSTEM (Anti-slip Regulator)
This is a traction control system that cuts in automatical-
ly every time one or both drive wheels slip.
Depending on the slipping conditions, two different con-
trol systems are activated:
❒if both drive wheels are slipping, the ASR function in-
tervenes by reducing the power transmitted by the en-
gine;
❒if the slipping only involves only one drive wheel, the
ASR system cuts in by automatically braking the wheel
that is slipping.
The action of the ASR system is especially useful in the fol-
lowing conditions:
❒slipping of the inner wheel when cornering due to the
effect of dynamic load changes or excessive accelera-
tion;
❒too much power transmitted to the wheels also in re-
lation to the conditions of the road surface;
❒acceleration on slippery, snowy or icy surfaces;
❒in the case of loss of grip on a wet surface (aquaplan-
ing).
For the correct operation of the ESP and
ASR systems, the tyres must absolutely be
the same make and type on all wheels, in perfect
condition and, above all, of the type, make and
size specified.
WARNING

103
KNOW
YOUR
VEHICLE
SAFETY
STAR
TING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0077mfig. 102
❒becomes continuous when the distance between the
vehicle and the obstacle is less than about 30 cm, and
stops immediately if the distance increases;
❒remains constant if the distance between the vehicle
and the obstacle remains unchanged.
FAILURE INDICATIONS
Parking sensor failures are indicated, when engaging re-
verse gear, by a three second beep.
PARKING SENSORS
These are located in the rear bumper fig. 102 and their
function is to inform the driver, through an intermittent
buzzer, about the presence of obstacles behind the
vehicle.
ACTIVATION
The sensors are automatically activated when reverse gear
is engaged.
As the obstacle behind the vehicle gets closer to the
bumper, the buzzer becomes more frequent.
BUZZER
The frequency of the buzzer:
❒increases as the vehicle gets closer to the obstacle;
OPERATION WITH TRAILER
Parking sensor operation is automatically disabled when
the electric cable plug of the trailer is fitted into the vehi-
cle tow hook socket.
The sensors are automatically enabled again when the trail-
er cable plug is removed.
The sensors must be clean of mud, dirt,
snow and ice in order for the system to
work. Be careful not to scratch or damage the sen-
sors while cleaning them. Avoid using dry, rough
or hard cloths. The sensors should be washed us-
ing clean water with the addition of car sham-
poo if necessary. When using special washing
equipment such as high pressure jets or steam
cleaning, clean the sensors very quickly keeping
the jet more than 10 cm away.
WARNING

110
KNOW
YOUR
VEHICLE
SAFETY
STAR
TING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0068mfig. 108
INSTALLING ELECTRICAL/
ELECTRONIC DEVICES
Electrical and electronic devices installed after buying the
vehicle by aftersales must carry the following label:
FGA S.p.A. authorises the installation of transceiving de-
vices provided that they are installed by a specialised cen-
tre according to rules of good engineering practice and
in compliance with the manufacturer’s instructions.
WARNING Traffic authorities may not allow the vehicle
on the road if devices are fitted that modify vehicle spec-
ifications. This may also invalidate the warranty in rela-
tion to faults caused by the change or either directly or in-
directly related to it.
FGA S.p.A. shall not be liable for damage caused by the in-
stallation of accessories either not supplied or recom-
mended by FGA S.p.A. and/or not installed in compliance
with the provided instructions.
RADIO TRANSMITTERS
AND MOBILE PHONES
Radiotransmitting apparatus (e.g. car mobile phones, CB
radios etc.) should not be used inside the vehicle unless
a separate aerial is mounted on the roof.
❒two rear speakers (located next to the parcel shelf)
(for versions/markets where provided);
❒radio compartment;
❒aerial lead;
❒aerial.
RADIO INSTALLATION
The sound system must be installed in the space occu-
pied by the centre glove compartment where you will find
the wiring. Press tabs A-fig. 108 to remove the compart-
ment.
To connect to the existing wiring in the ve-
hicle, contact the Fiat Service Network to
prevent any problems that could impair vehicle
safety.
WARNING

120
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

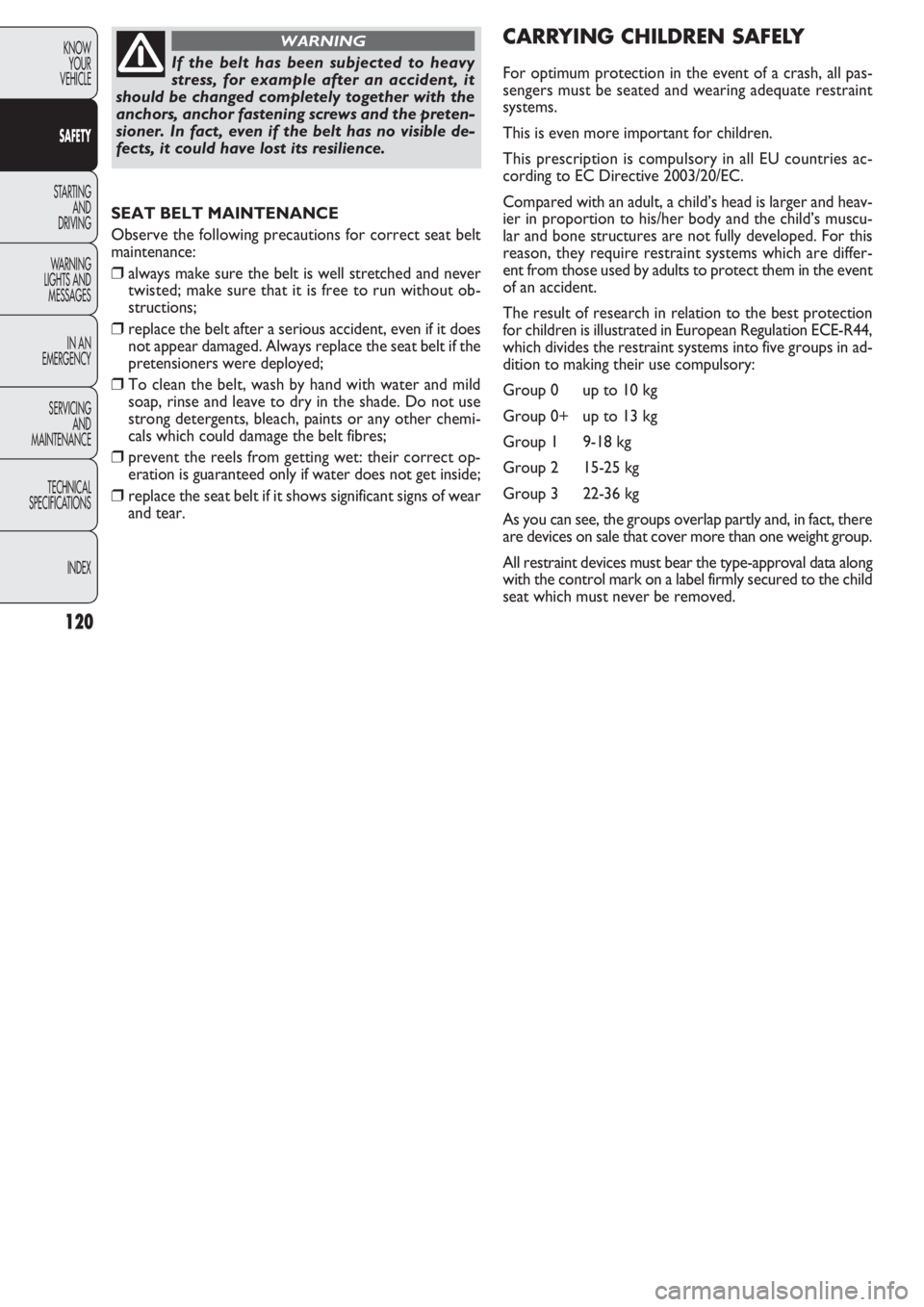

SEAT BELT MAINTENANCE
Observe the following precautions for correct seat belt
maintenance:
❒always make sure the belt is well stretched and never
twisted; make sure that it is free to run without ob-
structions;
❒replace the belt after a serious accident, even if it does
not appear damaged. Always replace the seat belt if the
pretensioners were deployed;
❒To clean the belt, wash by hand with water and mild
soap, rinse and leave to dry in the shade. Do not use
strong detergents, bleach, paints or any other chemi-
cals which could damage the belt fibres;
❒prevent the reels from getting wet: their correct op-
eration is guaranteed only if water does not get inside;
❒replace the seat belt if it shows significant signs of wear
and tear.
If the belt has been subjected to heavy
stress, for example after an accident, it
should be changed completely together with the
anchors, anchor fastening screws and the preten-
sioner. In fact, even if the belt has no visible de-
fects, it could have lost its resilience.
WARNINGCARRYING CHILDREN SAFELY
For optimum protection in the event of a crash, all pas-
sengers must be seated and wearing adequate restraint
systems.
This is even more important for children.
This prescription is compulsory in all EU countries ac-
cording to EC Directive 2003/20/EC.
Compared with an adult, a child’s head is larger and heav-
ier in proportion to his/her body and the child’s muscu-
lar and bone structures are not fully developed. For this
reason, they require restraint systems which are differ-
ent from those used by adults to protect them in the event
of an accident.
The result of research in relation to the best protection
for children is illustrated in European Regulation ECE-R44,
which divides the restraint systems into five groups in ad-
dition to making their use compulsory:
Group 0 up to 10 kg
Group 0+ up to 13 kg
Group 1 9-18 kg
Group 2 15-25 kg
Group 3 22-36 kg
As you can see, the groups overlap partly and, in fact, there
are devices on sale that cover more than one weight group.
All restraint devices must bear the type-approval data along
with the control mark on a label firmly secured to the child
seat which must never be removed.

132
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX
If you are having the vehicle scrapped, have the airbag sys-
tem deactivated at a Fiat Dealership first. If the vehicle
changes ownership, the new owner must be informed of
the method of use of the airbags and the above warnings
and also be given this “Owner’s Handbook”.
Pretensioners, front airbags and front side bags are de-
ployed differently according to the type of collision. Non-
deployment of one or more of these devices does not
therefore indicate a system fault.
If the warning light ¬does not turn on
when the key is turned to MAR, or if it
stays on when travelling (together with the mes-
sage on the display on some versions), there could
be a failure in the restraint systems. If this is the
case, the airbags or pretensioners may not trigger
in the event of an accident or, less likely, they may
trigger accidentally. Before continuing your jour-
ney, contact a Fiat Dealership to have the system
checked immediately.
WARNING
The expiry dates of the pyrotechnic
charge and spiral contact are shown on
the label in the glove box. When these dates ap-
proach, go to a Fiat Dealership to have the parts
replaced.
WARNING
Never travel with objects on your lap, in
front of your chest or with a pipe, pencil,
etc. between your lips; serious injury may result
if the airbag is triggered.
WARNING

137
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Depress the clutch pedal fully to change
gear correctly. Therefore, the floor area
under the pedals should be clear: ensure that any
rubber mats are flat and do not interfere with the
pedals.
WARNING
Do not drive with your hand resting on the
gear lever, because this pressure, even if
light, can wear out the inner components
of the gearbox over time. The clutch pedal should
be used only for gear changes. Do not drive with
your foot resting on the clutch pedal, however
slightly. For versions/markets where provided, the
electronic clutch control could cut in by interpret-
ing the incorrect driving style as a fault.
SAVING FUEL
Here are some useful tips to save fuel and minimise harm-
ful emissions of CO
2and other pollutants (nitric oxides,
unburnt hydrocarbons, fine dusts etc…).
PRACTICAL ADVICE FOR REDUCING FUEL
CONSUMPTION AND HARMFUL EMISSIONS
Vehicle conditions
1. Have checks and adjustments carried out in
accordance with the “Scheduled Servicing Plan”.
2. Check tyre pressures regularly, at least once every
four weeks. Excessively low pressures will increase
consumption because rolling resistance will be high-
er. In addition, this wears the tyre more quickly and
impairs performance.
3. Only use snow tyreswhen the weather conditions
make them absolutely necessary. They increase con-
sumption and noise.
4. Do not travel with a heavy load: the weight of the
vehicle (especially when driving in town) and its trim
greatly affect fuel consumption and stability.

140
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
SNOW TYRES
A Fiat Dealership will be happy to provide advice con-
cerning the most suitable type of tyre for the customer’s
requirements.
For the type, pressures and specifications of the snow tyre
to be used, follow carefully the instructions given in the
“Wheels” paragraph of the “Technical specifications” sec-
tion.
The winter performance of these tyres is considerably re-
duced when the tread thickness is less than 4 mm. If this
is the case, replace them.
Due to their specific features, the performance of snow
tyres is much lower than that of standard tyres in normal
conditions or on long motorway stretches. You should
therefore use them only in the conditions for which they
were designed.
IMPORTANT When using snow tyres with a maximum
speed index below the one that can be reached by the
vehicle (increased by 5%), place a notice in the passenger
compartment, plainly in view, which states the maximum
speed allowed by the snow tyres (as per EC Directive).
All four tyres should be the same (brand and profile) to
ensure greater safety when driving and braking as well as
making the car more responsive.
Remember that you should not change the rotation di-
rection of the tyres.The ABS with which the vehicle may be
equipped will not control the braking sys-
tem of the trailer. Particular caution is therefore
required on slippery roads.
WARNING
Never modify the braking system of the ve-
hicle to control the trailer brake. The trail-
er braking system must be fully independent from
the hydraulic system of the vehicle.
WARNING

CONTINUOUSLY ON:
ENGINE OIL PRESSURE
LOW (red)
FLASHING:
ENGINE OIL DEGRADED
(only Multijet versions with DPF – red)
When the ignition key is turned to MAR, the warning light
switches on, but it should go out as soon as the engine is
started.
1. Engine oil pressure low
The warning light turns on and stays on constantly along
with a message on the display (in versions/markets where
provided) when the system detects that engine oil pres-
sure is low.
147
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX
v
If the warning light vturns on when the
car is travelling (on certain versions to-
gether with the message on the display), stop the
car immediately and contact a Fiat Dealership.
WARNING
2. Engine oil degraded
(only Multijet versions with DPF)
The warning light will flash and a specific message will ap-
pear on the display (for versions/markets where provid-
ed). The warning light may flash in the following ways, de-
pending on the version:
– for one minute every two hours;
– for three minute cycles with the warning light off for
intervals of five seconds until oil is changed.
After the initial warning, each time the engine is started
up, the warning light will continue to flash in the same ways
as described above, until the oil is changed. A specific mes-
sage will appear on the display (for versions/markets where
provided) in addition to the warning light.
If the warning light flashes, this does not mean that the ve-
hicle is defective, but simply informs the driver that it is
now necessary to change the oil as a result of regular ve-
hicle use.
Note that engine oil degrades faster under the following
circumstances:
– mainly town use of the vehicle which makes the DPF re-
generation process more frequent
– use of the vehicle for short journies, preventing the en-
gine from reaching operating temperature
– repeated interruption of the regeneration process, sig-
nalled by the DPF warning light coming on.

148
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX
Degraded engine oil should be replaced as
soon as possible after the warning light
comes on, and never more than 500 km after it
first comes on. Failure to change the oil within the
first 500 km may result in severe damage to the
engine and invalidate the warranty. Remember
that when the warning light comes on, it does not
mean that the level of engine oil is low, so if the
light flashes you do not need to top up the engine
oil.
WARNING
SEAT BELT NOT FASTENED (red)
The warning light on the panel comes on steadi-
ly when the vehicle is stationary and the driver’s
seat belt is not correctly fastened. It will flash, and
be accompanied by an audible warning, if the front seat belts
are not correctly fastened when the vehicle is moving.
The SBR (Seat Belt Reminder) system’s audible warning
can be disabled only by a Fiat Dealership.
On some versions, the system can be reactivated from the
setup menu.
<
DOOR OPEN (red)
On certain versions, the warning light turns on
when one or more doors, the boot or the bon-
net are not properly closed.
A specific message is displayed on certain versions.
You will hear a warning sound if a door is open and the
vehicle is moving.
ENGINE OIL LOW
(red)
When turning the ignition key to MAR, the warn-
ing light turns on but it should go off after a few
seconds.
This warning light appears on the panel when the engine
oil level falls below the minimum recommended value. Re-
store the correct engine oil level (see “Checking fluid lev-
els” in the “Servicing and maintenance” section).
A specific message is displayed on certain versions.
´
k

153
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX
BRAKE PADS WORN
(amber)
The warning light comes on if the front brake
pads are worn; in this case, have them changed as
soon as possible.
A specific message is displayed on certain versions.
d
PARKING SENSOR FAULT
(amber)
(for versions/markets where provided)
The warning light turns on when a failure is de-
tected in the parking sensors.
On certain versions, warning light
èturns on as an al-
ternative. In this case, contact a Fiat Dealership.
A specific message is displayed on certain versions.
t
START&STOP SYSTEM FAILURE
(amber)
(for versions/markets where provided)
The warning light comes on when a failure is de-
tected in the Start&Stop system. On certain versions,
warning light èturns on as an alternative.
In this case, contact a Fiat Dealership.
A specific message is displayed on certain versions.
j
SIDE LIGHTS AND TAILLIGHTS
(green)
FOLLOW ME HOME (green)
Side lights/taillights
The warning light comes on when the side/taillights are
turned on.
Follow Me Home
The warning light will turn on when this device is active
(see “Follow Me Home” in the “Dashboard and controls”
section).
A specific message appears on the display.
3
FRONT FOG LIGHTS (green)
The warning light comes on when the front fog
lights are turned on.
5
REAR FOG LIGHTS (amber)
The warning light comes on when the rear fog
lights are turned on.
4
CRUISE CONTROL (green) (for
versions/markets where provided)
The warning light turns on, together with a mes-
sage on the display, when the cruise control twist
switch is turned to ON.
Ü
