Versions with lift-up door fig. 187b
Proceed as follows:
❒press the retainer reversely operating as shown, then

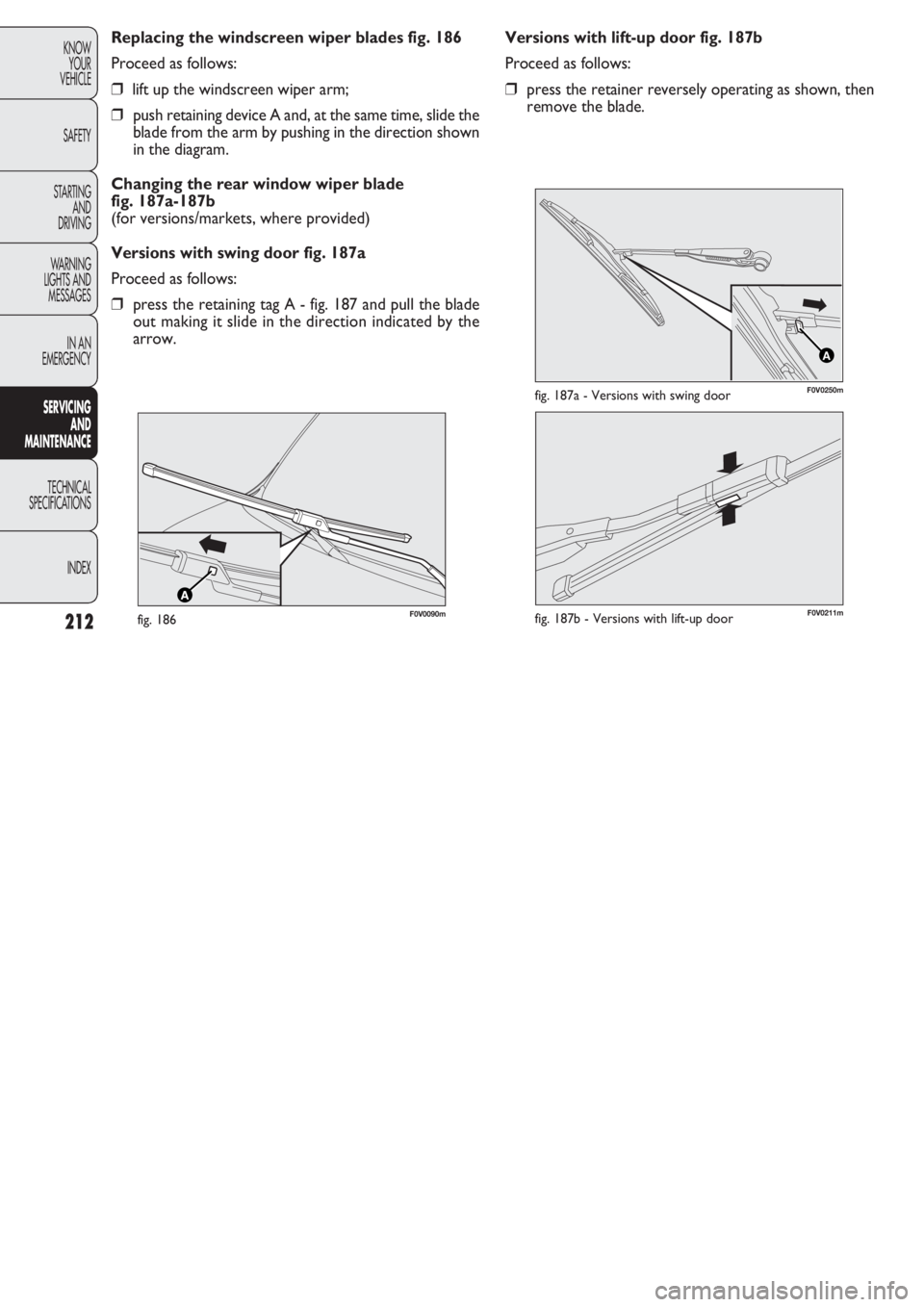

remove the blade. Replacing the windscreen wiper blades fig. 186
Proceed as follows:
❒lift up the windscreen wiper arm;
❒push retaining device A and, at the same time, slide the
blade from the arm by pushing in the direction shown
in the diagram.
Changing the rear window wiper blade
fig. 187a-187b
(for versions/markets, where provided)
Versions with swing door fig. 187a
Proceed as follows:
❒press the retaining tag A - fig. 187 and pull the blade
out making it slide in the direction indicated by the
arrow.
F0V0090mfig. 186F0V0211mfig. 187b - Versions with lift-up door
A
F0V0250mfig. 187a - Versions with swing door
