For diesel engines, in the event of an emergency in which the original p\
roducts are not available, lubricants with at least ACEA C2
performance are acceptable; however, in this case optimum engine perform\
ance is not guaranteed and the lubricants should be
replaced with recommended products as soon as possible at a Fiat Dealers\
hip.
The use of products with lower specifications than ACEA C2 could cause d\
amage to the engine not covered by the warranty.
When the vehicle is used under particularly harsh climate conditions req\
uest from Fiat Dealership the appropriate product of the PETRONAS
LUBRICANTS. Lubricants for
diesel engines
As per the
Scheduled
Servicing Plan
As per
Scheduled
Servicing Plan
Lubricants for
petrol engines
FLUIDS AND LUBRICANTS

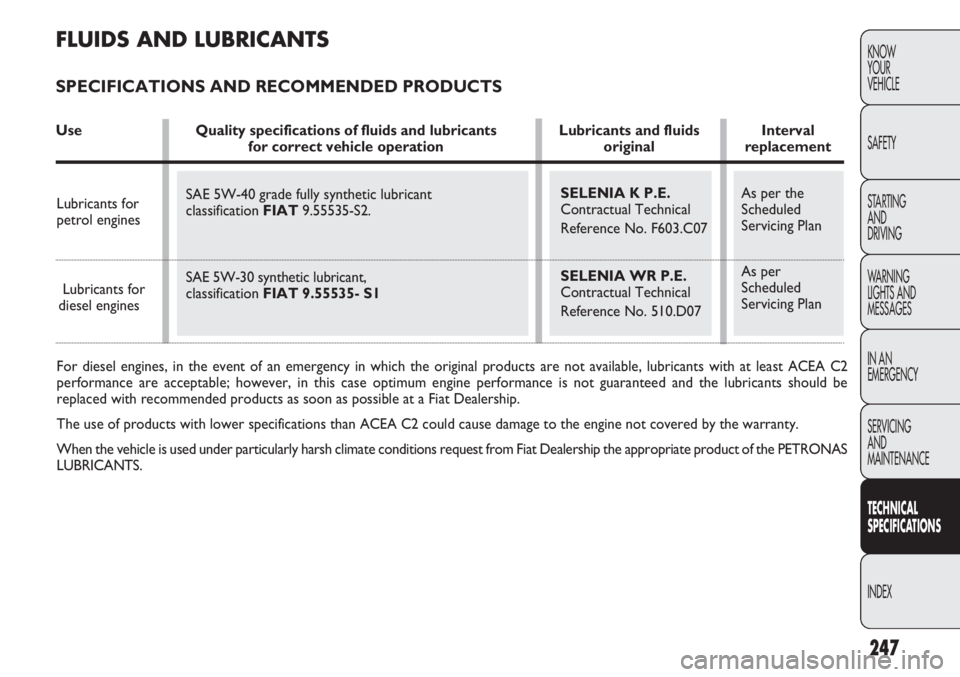

SPECIFICATIONS AND RECOMMENDED PRODUCTS
Use
Quality specifications of fluids and lubricants Lubricants and fluids Intervalfor correct vehicle operation originalreplacement
SELENIA K P.E.
Contractual Technical
Reference No. F603.C07
SELENIA WR P.E.
Contractual Technical
Reference No. 510.D07
SAE 5W-40 grade fully synthetic lubricant
classification FIAT
9.55535-S2.
SAE 5W-30 synthetic lubricant,
classification FIAT 9.55535- S1

Manual gearboxes
and mechanical
differentials
Wheel side constant
velocity joints
Differential side
constant-velocity joints
Hydraulic power
steering
Hydraulic power
steering
(cold countries)
Hydraulic brakes
and hydraulic clutch
controls
Mixture:
50% water and
50% PARAFLU
UP(❑ )
To be mixed with diesel
(25 cc per 10 litres)
To be used diluted or
undiluted in windscreen/
rear window washer/
wiper systems
TUTELA TRANSMISSION
GEARFORCE
Contractual Technical
Reference F002.F10
TUTELA ALL STAR
Contractual Technical
Reference F702.G07
TUTELA STAR 700
Contractual Technical
Reference F701.C07
TUTELA GI/E
Contractual Technical
Reference F001.C94
TUTELA GI/R Contractual Technical
Reference F428.H04
TUTELA TOP 4
Contractual Technical
Reference F001.A93
PARAFLU
UP(●)
Contractual Technical
Reference F101.M01
TUTELA DIESEL ART
Contractual Technical
Reference F601.L06
TUTELA PROFESSIONAL
SC 35 Contractual Technical
Reference F201.D02

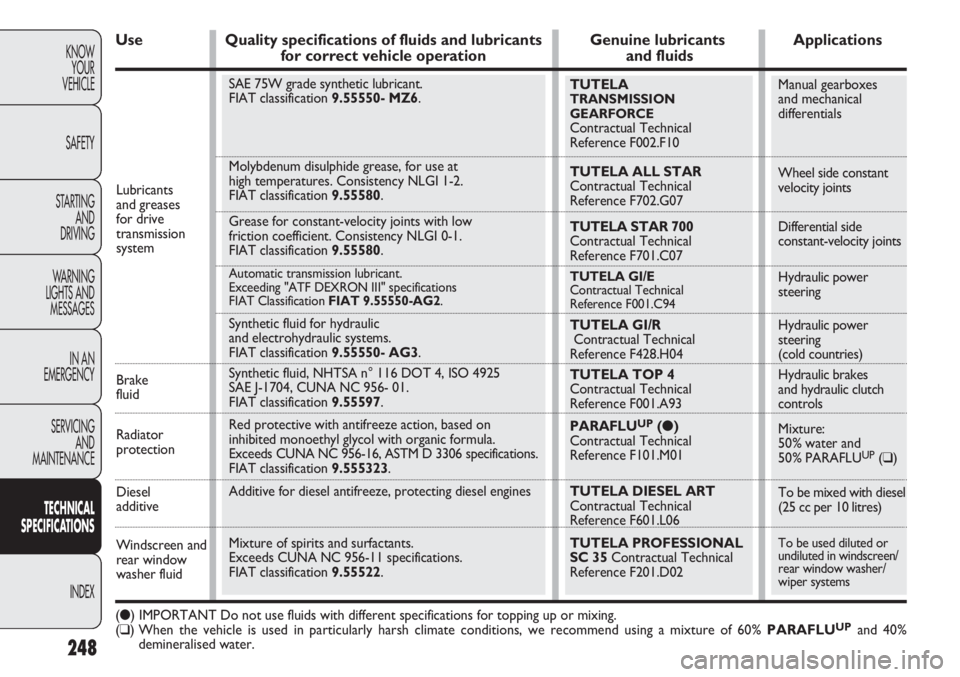

SAE 75W grade synthetic lubricant.
FIAT classification 9.55550- MZ6.
Molybdenum disulphide grease, for use at
high temperatures. Consistency NLGI 1-2.
FIAT classification 9.55580.
Grease for constant-velocity joints with low
friction coefficient. Consistency NLGI 0-1.
FIAT classification 9.55580.
Automatic transmission lubricant.
Exceeding "ATF DEXRON III" specifications
FIAT Classification FIAT 9.55550-AG2.
Synthetic fluid for hydraulic
and electrohydraulic systems.
FIAT classification 9.55550- AG3.
Synthetic fluid, NHTSA n° 116 DOT 4, ISO 4925
SAE J-1704, CUNA NC 956- 01.
FIAT classification 9.55597.
Red protective with antifreeze action, based on
inhibited monoethyl glycol with organic formula.
Exceeds CUNA NC 956-16, ASTM D 3306 specifications.
FIAT classification 9.555323.
Additive for diesel antifreeze, protecting diesel engines
Mixture of spirits and surfactants.
Exceeds CUNA NC 956-11 specifications.
FIAT classification 9.55522.
248
KNOW
YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICAT IO

NS
INDEX
Lubricants
and greases
for drive
transmission
system
Brake
fluid
Radiator
protection
Diesel
additive
Windscreen and
rear window
washer fluid
Use Quality specifications of fluids and lubricants Genuine lubricants Applications for correct vehicle operation and fluids
(●) IMPORTANT Do not use fluids with different specifications for topping\
up or mixing.
(❑) When the vehicle is used in particularly harsh climate conditions, we re\
commend using a mixture of 60% PARAFLUUPand 40%
demineralised water.

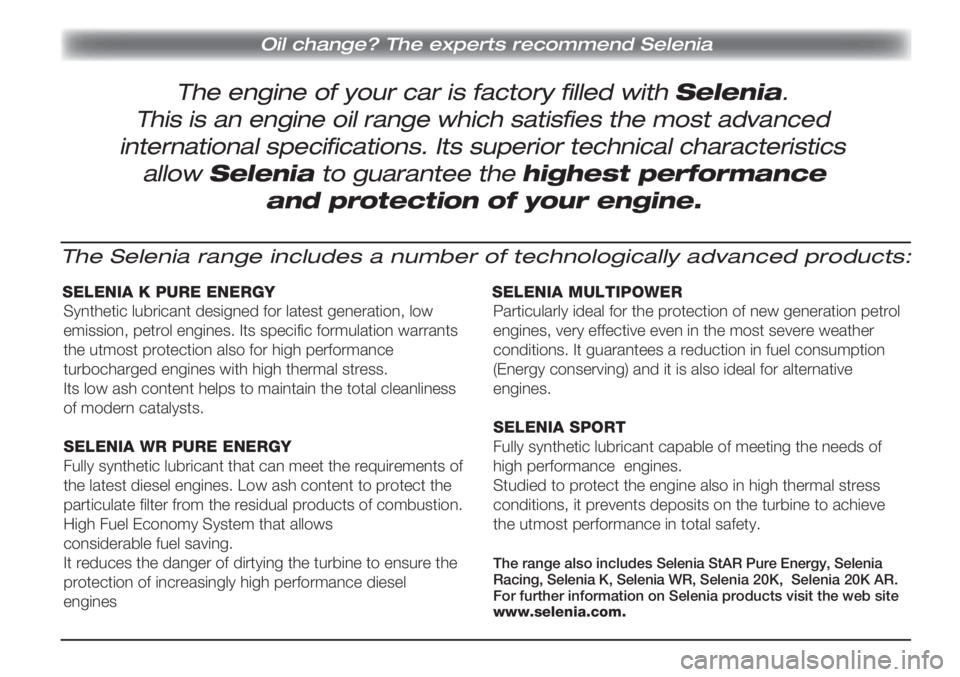

The engine of your car is factory filled with Selenia.
Oil change? The experts recommend Selenia
This is an engine oil range which satisfies the most advanced
international specifications. Its superior technical characteristics
allowSelenia to guarantee the highest performance
and protection of your engine.
The Selenia range includes a number of technologically advanced products\
:
SELENIA K PURE ENERGY
Synthetic lubricant designed for latest generation, low
emission, petrol engines. Its specific formulation warrants
the utmost protection also for high performance
turbocharged engines with high thermal stress.
Its low ash content helps to maintain the total cleanliness
of modern catalysts.
SELENIA WR PURE ENERGY
Fully synthetic lubricant that can meet the requirements of
the latest diesel engines. Low ash content to protect the
particulate filter from the residual products of combustion.
High Fuel Economy System that allows
considerable fuel saving.
It reduces the danger of dirtying the turbine to ensure the
protection of increasingly high performance diesel
engines SELENIA MULTIPOWER
Particularly ideal for the protection of new generation petrol
engines, very effective even in the most severe weather
conditions. It guarantees a reduction in fuel consumption
(Energy conserving) and it is also ideal for alternative
engines.
SELENIA SPORT
Fully synthetic lubricant capable of meeting the needs of
high performance engines.
Studied to protect the engine also in high thermal stress
conditions, it prevents deposits on the turbine to achieve
the utmost performance in total safety.
The range also includes Selenia StAR Pure Energy, Selenia
Racing, Selenia K, Selenia WR, Selenia 20K, Selenia 20K AR.
For further information on Selenia products visit the web site
www.selenia.com.
