Page 31 of 298

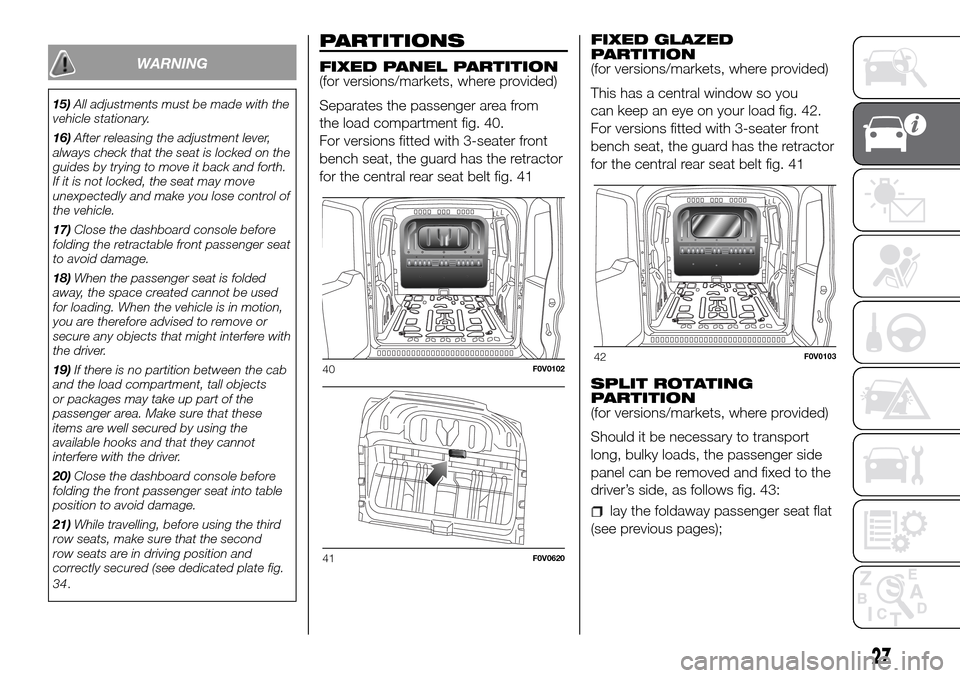

WARNING
15)All adjustments must be made with the
vehicle stationary.
16)After releasing the adjustment lever,
always check that the seat is locked on the
guides by trying to move it back and forth.
If it is not locked, the seat may move
unexpectedly and make you lose control of
the vehicle.
17)Close the dashboard console before
folding the retractable front passenger seat
to avoid damage.
18)When the passenger seat is folded
away, the space created cannot be used
for loading. When the vehicle is in motion,
you are therefore advised to remove or
secure any objects that might interfere with
the driver.
19)If there is no partition between the cab
and the load compartment, tall objects
or packages may take up part of the
passenger area. Make sure that these
items are well secured by using the
available hooks and that they cannot
interfere with the driver.
20)Close the dashboard console before
folding the front passenger seat into table
position to avoid damage.
21)While travelling, before using the third
row seats, make sure that the second
row seats are in driving position and
correctly secured (see dedicated plate fig.
34.
PARTITIONS
FIXED PANEL PARTITION
(for versions/markets, where provided)
Separates the passenger area from
the load compartment fig. 40.
For versions fitted with 3-seater front
bench seat, the guard has the retractor
for the central rear seat belt fig. 41FIXED GLAZED
PARTITION
(for versions/markets, where provided)
This has a central window so you
can keep an eye on your load fig. 42.
For versions fitted with 3-seater front
bench seat, the guard has the retractor
for the central rear seat belt fig. 41
SPLIT ROTATING
PARTITION
(for versions/markets, where provided)
Should it be necessary to transport
long, bulky loads, the passenger side
panel can be removed and fixed to the
driver’s side, as follows fig. 43:
lay the foldaway passenger seat flat
(see previous pages);
40F0V0102
41F0V0620
42F0V0103
27

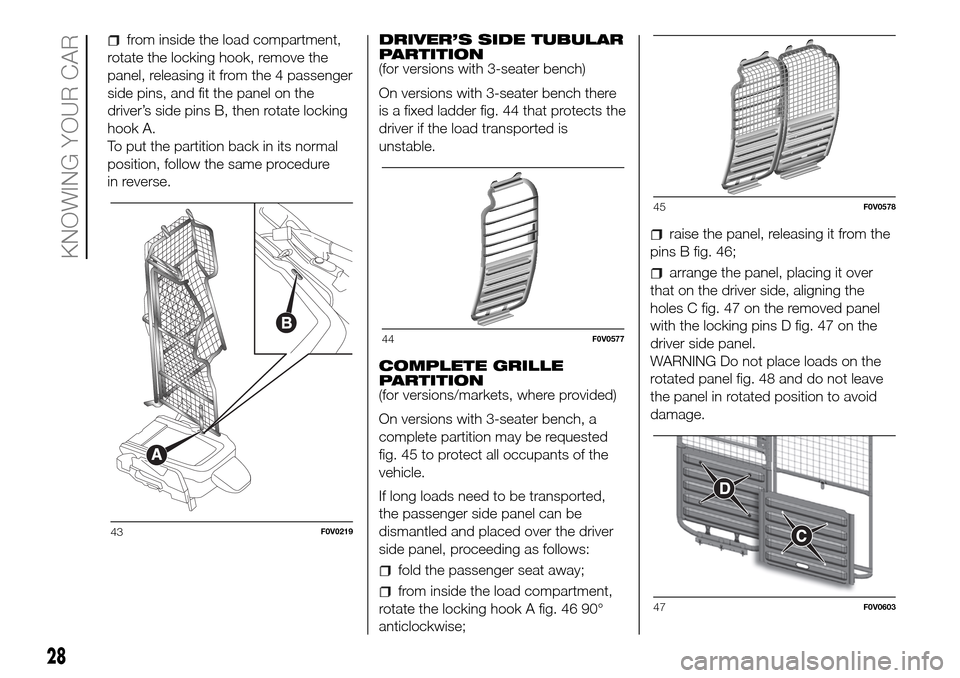

Page 32 of 298

from inside the load compartment,
rotate the locking hook, remove the
panel, releasing it from the 4 passenger
side pins, and fit the panel on the
driver’s side pins B, then rotate locking
hook A.
To put the partition back in its normal
position, follow the same procedure
in reverse.DRIVER’S SIDE TUBULAR
PARTITION
(for versions with 3-seater bench)
On versions with 3-seater bench there
is a fixed ladder fig. 44 that protects the
driver if the load transported is
unstable.
COMPLETE GRILLE
PARTITION
(for versions/markets, where provided)
On versions with 3-seater bench, a
complete partition may be requested
fig. 45 to protect all occupants of the
vehicle.
If long loads need to be transported,
the passenger side panel can be
dismantled and placed over the driver
side panel, proceeding as follows:
fold the passenger seat away;
from inside the load compartment,
rotate the locking hook A fig. 46 90°
anticlockwise;
raise the panel, releasing it from the
pins B fig. 46;
arrange the panel, placing it over
that on the driver side, aligning the
holes C fig. 47 on the removed panel
with the locking pins D fig. 47 on the
driver side panel.
WARNING Do not place loads on the
rotated panel fig. 48 and do not leave
the panel in rotated position to avoid
damage.
43F0V0219
44F0V0577
45F0V0578
47F0V0603
28
KNOWING YOUR CAR
Page 33 of 298

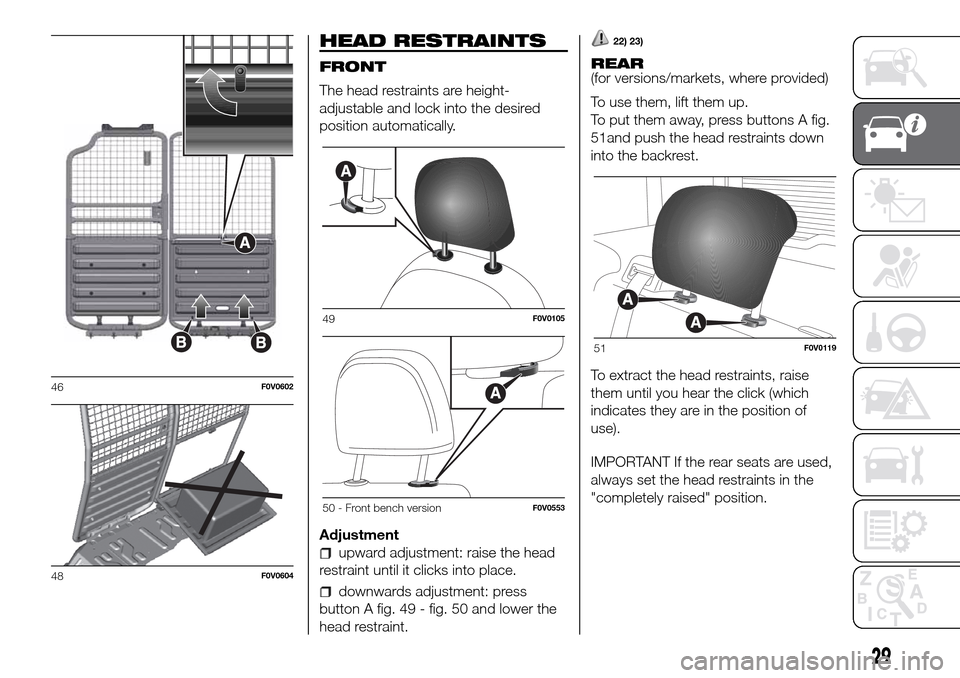

HEAD RESTRAINTS
FRONT
The head restraints are height-
adjustable and lock into the desired
position automatically.
Adjustment
upward adjustment: raise the head
restraint until it clicks into place.
downwards adjustment: press
button A fig. 49 - fig. 50 and lower the
head restraint.
22) 23)
REAR
(for versions/markets, where provided)
To use them, lift them up.
To put them away, press buttons A fig.
51and push the head restraints down
into the backrest.
To extract the head restraints, raise
them until you hear the click (which
indicates they are in the position of
use).
IMPORTANT If the rear seats are used,
always set the head restraints in the
"completely raised" position.
46F0V0602
48F0V0604
49F0V0105
50 - Front bench versionF0V0553
51F0V0119
29
Page 34 of 298

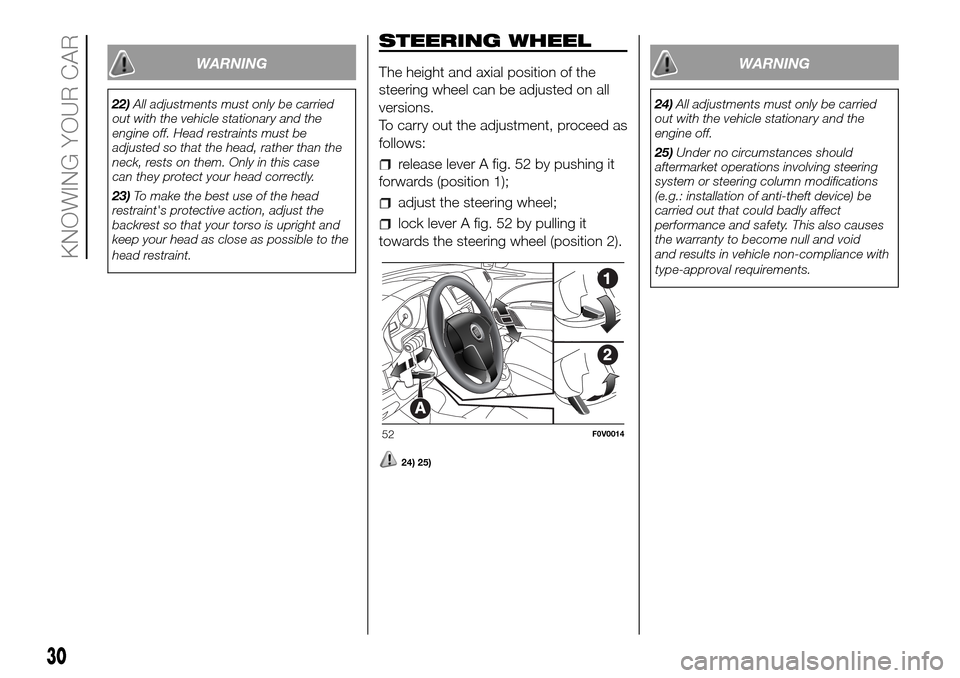

WARNING
22)All adjustments must only be carried
out with the vehicle stationary and the
engine off. Head restraints must be
adjusted so that the head, rather than the
neck, rests on them. Only in this case
can they protect your head correctly.
23)To make the best use of the head
restraint's protective action, adjust the
backrest so that your torso is upright and
keep your head as close as possible to the
head restraint.
STEERING WHEEL
The height and axial position of the
steering wheel can be adjusted on all
versions.
To carry out the adjustment, proceed as
follows:
release lever A fig. 52 by pushing it
forwards (position 1);
adjust the steering wheel;
lock lever A fig. 52 by pulling it
towards the steering wheel (position 2).
24) 25)
WARNING
24)All adjustments must only be carried
out with the vehicle stationary and the
engine off.
25)Under no circumstances should
aftermarket operations involving steering
system or steering column modifications
(e.g.: installation of anti-theft device) be
carried out that could badly affect
performance and safety. This also causes
the warranty to become null and void
and results in vehicle non-compliance with
type-approval requirements.
52F0V0014
30
KNOWING YOUR CAR
Page 35 of 298

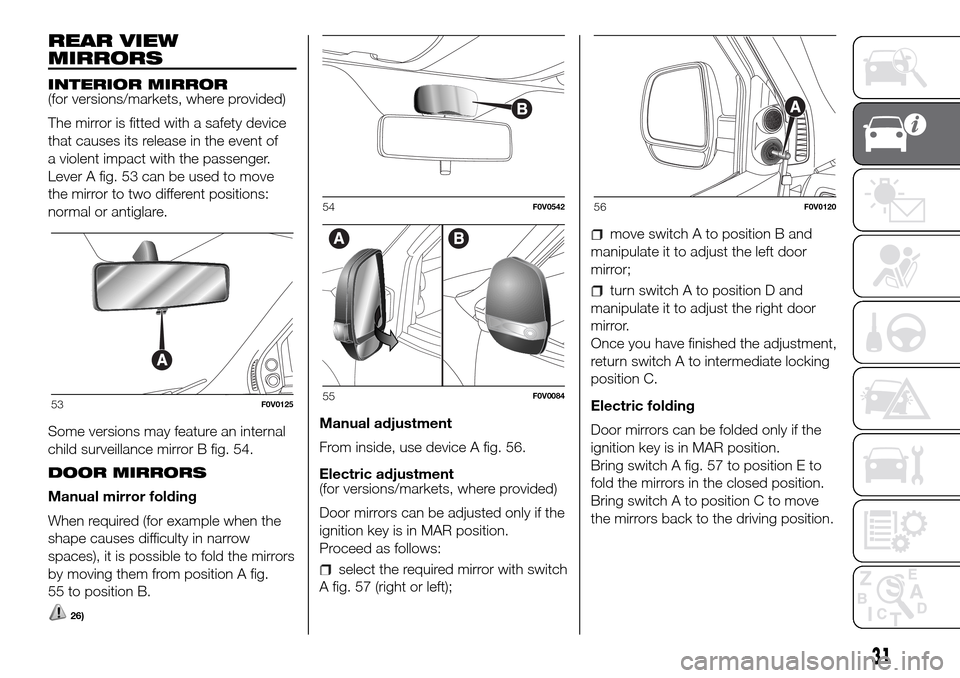

REAR VIEW
MIRRORS
INTERIOR MIRROR
(for versions/markets, where provided)
The mirror is fitted with a safety device
that causes its release in the event of
a violent impact with the passenger.
Lever A fig. 53 can be used to move
the mirror to two different positions:
normal or antiglare.
Some versions may feature an internal
child surveillance mirror B fig. 54.
DOOR MIRRORS
Manual mirror folding
When required (for example when the
shape causes difficulty in narrow
spaces), it is possible to fold the mirrors
by moving them from position A fig.
55 to position B.
26)
Manual adjustment
From inside, use device A fig. 56.
Electric adjustment
(for versions/markets, where provided)
Door mirrors can be adjusted only if the
ignition key is in MAR position.
Proceed as follows:
select the required mirror with switch
A fig. 57 (right or left);
move switch A to position B and
manipulate it to adjust the left door
mirror;
turn switch A to position D and
manipulate it to adjust the right door
mirror.
Once you have finished the adjustment,
return switch A to intermediate locking
position C.
Electric folding
Door mirrors can be folded only if the
ignition key is in MAR position.
Bring switch A fig. 57 to position E to
fold the mirrors in the closed position.
Bring switch A to position C to move
the mirrors back to the driving position.
53F0V0125
54F0V0542
55F0V0084
56F0V0120
31

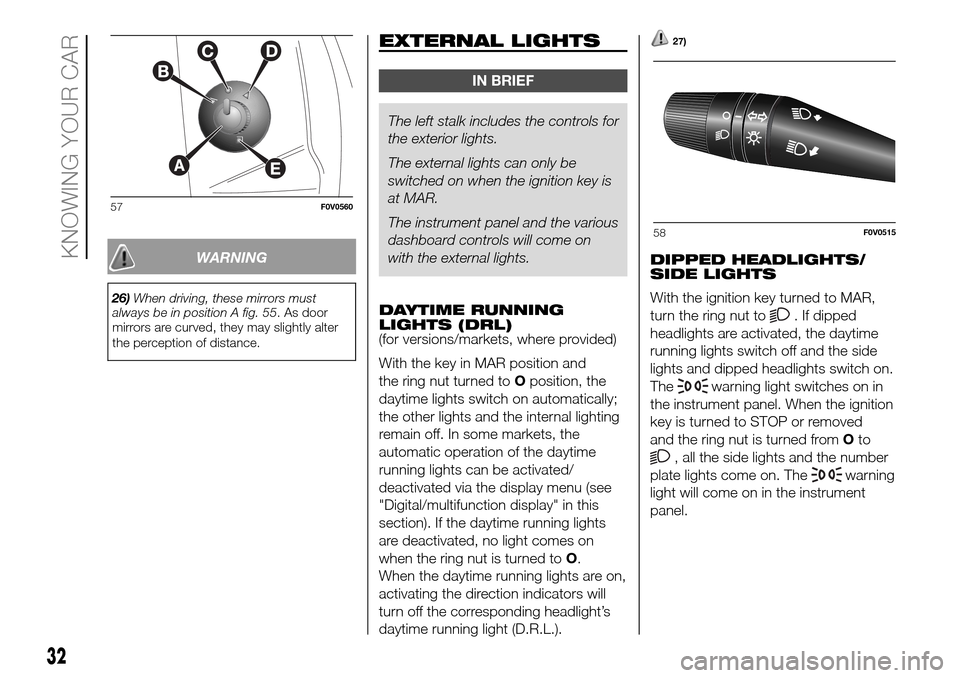

Page 36 of 298

WARNING
26)When driving, these mirrors must
always be in position A fig. 55. As door
mirrors are curved, they may slightly alter
the perception of distance.
EXTERNAL LIGHTS
IN BRIEF
The left stalk includes the controls for
the exterior lights.
The external lights can only be
switched on when the ignition key is
at MAR.
The instrument panel and the various
dashboard controls will come on
with the external lights.
DAYTIME RUNNING
LIGHTS (DRL)
(for versions/markets, where provided)
With the key in MAR position and
the ring nut turned toOposition, the
daytime lights switch on automatically;
the other lights and the internal lighting
remain off. In some markets, the
automatic operation of the daytime
running lights can be activated/
deactivated via the display menu (see
"Digital/multifunction display" in this
section). If the daytime running lights
are deactivated, no light comes on
when the ring nut is turned toO.
When the daytime running lights are on,
activating the direction indicators will
turn off the corresponding headlight’s
daytime running light (D.R.L.).
27)
DIPPED HEADLIGHTS/
SIDE LIGHTS
With the ignition key turned to MAR,
turn the ring nut to
. If dipped
headlights are activated, the daytime
running lights switch off and the side
lights and dipped headlights switch on.
The
warning light switches on in
the instrument panel. When the ignition
key is turned to STOP or removed
and the ring nut is turned fromOto
, all the side lights and the number
plate lights come on. The
warning
light will come on in the instrument
panel.
57F0V0560
58F0V0515
32
KNOWING YOUR CAR
Page 37 of 298

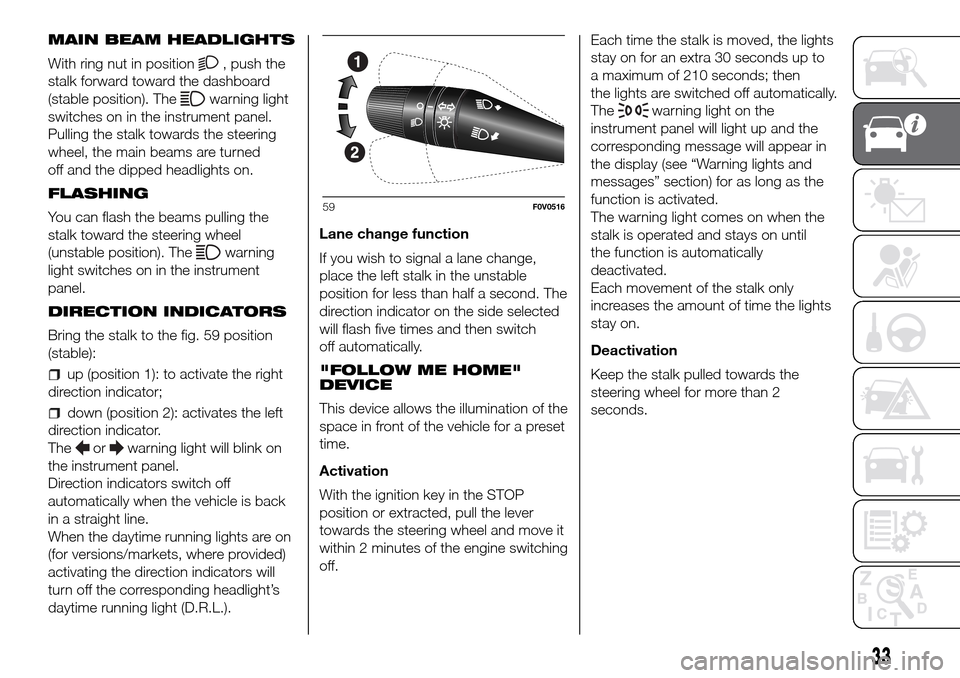

MAIN BEAM HEADLIGHTS
With ring nut in position
, push the
stalk forward toward the dashboard
(stable position). The
warning light
switches on in the instrument panel.
Pulling the stalk towards the steering
wheel, the main beams are turned
off and the dipped headlights on.
FLASHING
You can flash the beams pulling the
stalk toward the steering wheel
(unstable position). The
warning
light switches on in the instrument
panel.
DIRECTION INDICATORS
Bring the stalk to the fig. 59 position
(stable):
up (position 1): to activate the right
direction indicator;
down (position 2): activates the left
direction indicator.
The
orwarning light will blink on
the instrument panel.
Direction indicators switch off
automatically when the vehicle is back
in a straight line.
When the daytime running lights are on
(for versions/markets, where provided)
activating the direction indicators will
turn off the corresponding headlight’s
daytime running light (D.R.L.).Lane change function
If you wish to signal a lane change,
place the left stalk in the unstable
position for less than half a second. The
direction indicator on the side selected
will flash five times and then switch
off automatically.
"FOLLOW ME HOME"
DEVICE
This device allows the illumination of the
space in front of the vehicle for a preset
time.
Activation
With the ignition key in the STOP
position or extracted, pull the lever
towards the steering wheel and move it
within 2 minutes of the engine switching
off.Each time the stalk is moved, the lights
stay on for an extra 30 seconds up to
a maximum of 210 seconds; then
the lights are switched off automatically.
The
warning light on the
instrument panel will light up and the
corresponding message will appear in
the display (see “Warning lights and
messages” section) for as long as the
function is activated.
The warning light comes on when the
stalk is operated and stays on until
the function is automatically
deactivated.
Each movement of the stalk only
increases the amount of time the lights
stay on.
Deactivation
Keep the stalk pulled towards the
steering wheel for more than 2
seconds.
59F0V0516
33
Page 38 of 298

WARNING

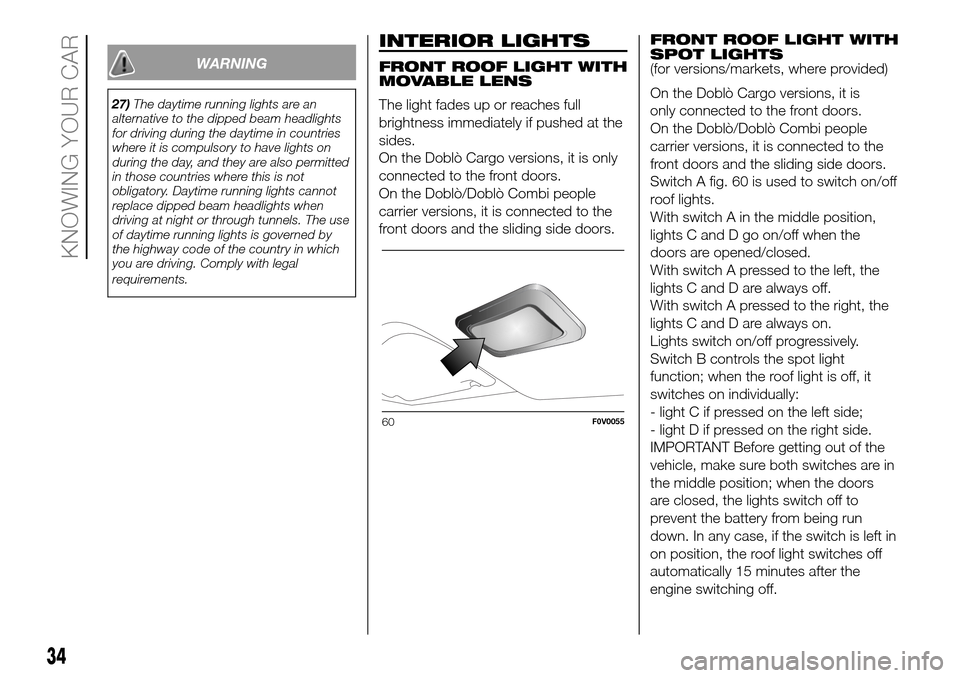

27)The daytime running lights are an
alternative to the dipped beam headlights
for driving during the daytime in countries
where it is compulsory to have lights on
during the day, and they are also permitted
in those countries where this is not
obligatory. Daytime running lights cannot
replace dipped beam headlights when
driving at night or through tunnels. The use
of daytime running lights is governed by
the highway code of the country in which
you are driving. Comply with legal
requirements.
INTERIOR LIGHTS
FRONT ROOF LIGHT WITH
MOVABLE LENS
The light fades up or reaches full
brightness immediately if pushed at the
sides.
On the Doblò Cargo versions, it is only
connected to the front doors.
On the Doblò/Doblò Combi people
carrier versions, it is connected to the
front doors and the sliding side doors.FRONT ROOF LIGHT WITH
SPOT LIGHTS
(for versions/markets, where provided)
On the Doblò Cargo versions, it is
only connected to the front doors.
On the Doblò/Doblò Combi people
carrier versions, it is connected to the
front doors and the sliding side doors.
Switch A fig. 60 is used to switch on/off
roof lights.
With switch A in the middle position,
lights C and D go on/off when the
doors are opened/closed.
With switch A pressed to the left, the
lights C and D are always off.
With switch A pressed to the right, the
lights C and D are always on.
Lights switch on/off progressively.
Switch B controls the spot light
function; when the roof light is off, it
switches on individually:
- light C if pressed on the left side;
- light D if pressed on the right side.
IMPORTANT Before getting out of the
vehicle, make sure both switches are in
the middle position; when the doors
are closed, the lights switch off to
prevent the battery from being run
down. In any case, if the switch is left in
on position, the roof light switches off
automatically 15 minutes after the
engine switching off.
60F0V0055
34
KNOWING YOUR CAR
Page 39 of 298

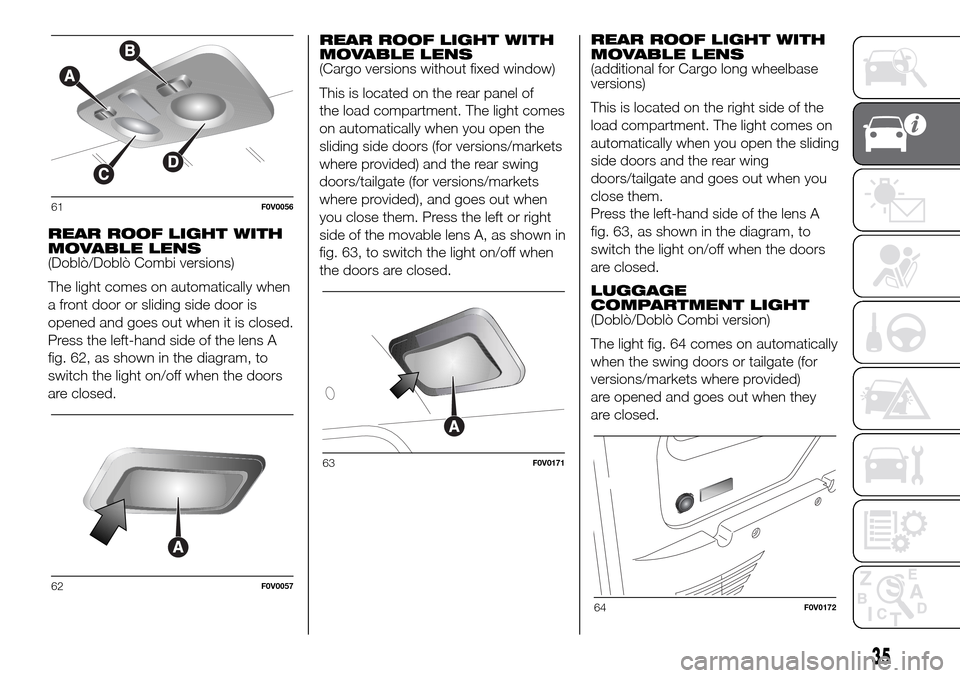

REAR ROOF LIGHT WITH
MOVABLE LENS
(Doblò/Doblò Combi versions)
The light comes on automatically when
a front door or sliding side door is
opened and goes out when it is closed.
Press the left-hand side of the lens A
fig. 62, as shown in the diagram, to
switch the light on/off when the doors
are closed.REAR ROOF LIGHT WITH
MOVABLE LENS
(Cargo versions without fixed window)
This is located on the rear panel of
the load compartment. The light comes
on automatically when you open the
sliding side doors (for versions/markets
where provided) and the rear swing
doors/tailgate (for versions/markets
where provided), and goes out when
you close them. Press the left or right
side of the movable lens A, as shown in
fig. 63, to switch the light on/off when
the doors are closed.REAR ROOF LIGHT WITH
MOVABLE LENS
(additional for Cargo long wheelbase
versions)
This is located on the right side of the
load compartment. The light comes on
automatically when you open the sliding
side doors and the rear wing
doors/tailgate and goes out when you
close them.
Press the left-hand side of the lens A
fig. 63, as shown in the diagram, to
switch the light on/off when the doors
are closed.
LUGGAGE
COMPARTMENT LIGHT
(Doblò/Doblò Combi version)
The light fig. 64 comes on automatically
when the swing doors or tailgate (for
versions/markets where provided)
are opened and goes out when they
are closed.
61F0V0056
62F0V0057
63F0V0171
64F0V0172
35
Page 40 of 298

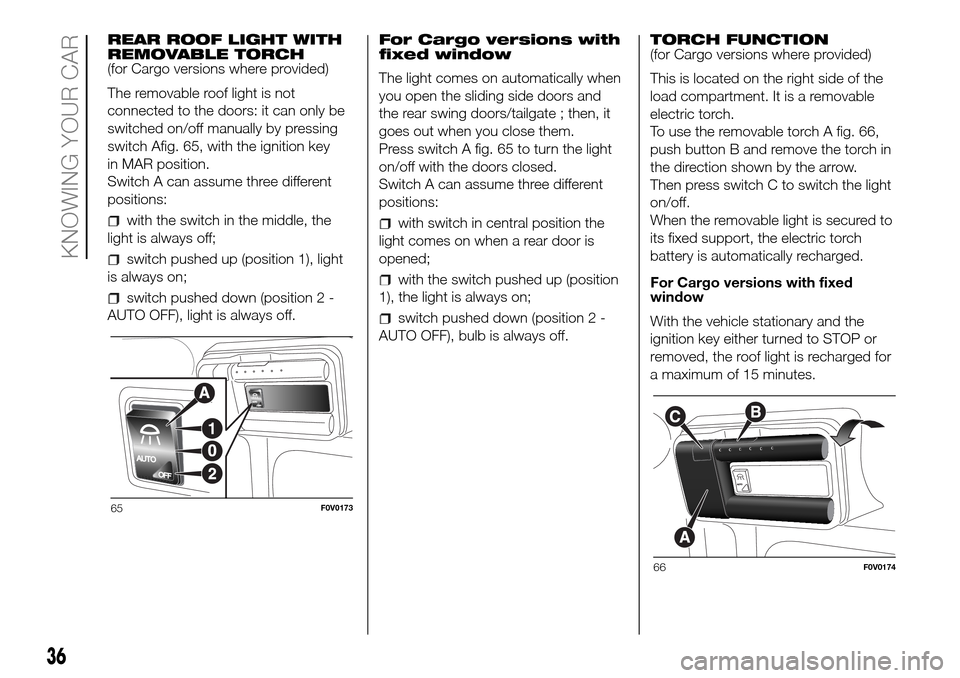

REAR ROOF LIGHT WITH
REMOVABLE TORCH
(for Cargo versions where provided)
The removable roof light is not
connected to the doors: it can only be
switched on/off manually by pressing
switch Afig. 65, with the ignition key
in MAR position.
Switch A can assume three different
positions:
with the switch in the middle, the
light is always off;
switch pushed up (position 1), light
is always on;
switch pushed down (position 2 -
AUTO OFF), light is always off.For Cargo versions with
fixed window
The light comes on automatically when
you open the sliding side doors and
the rear swing doors/tailgate ; then, it
goes out when you close them.
Press switch A fig. 65 to turn the light
on/off with the doors closed.
Switch A can assume three different
positions:
with switch in central position the
light comes on when a rear door is
opened;
with the switch pushed up (position
1), the light is always on;
switch pushed down (position 2 -
AUTO OFF), bulb is always off.TORCH FUNCTION
(for Cargo versions where provided)
This is located on the right side of the
load compartment. It is a removable
electric torch.
To use the removable torch A fig. 66,
push button B and remove the torch in
the direction shown by the arrow.
Then press switch C to switch the light
on/off.
When the removable light is secured to
its fixed support, the electric torch
battery is automatically recharged.
For Cargo versions with fixed
window
With the vehicle stationary and the
ignition key either turned to STOP or
removed, the roof light is recharged for
a maximum of 15 minutes.
65F0V0173
66F0V0174
36
KNOWING YOUR CAR
