FIAT DOBLO COMBI 2016 2.G User Guide

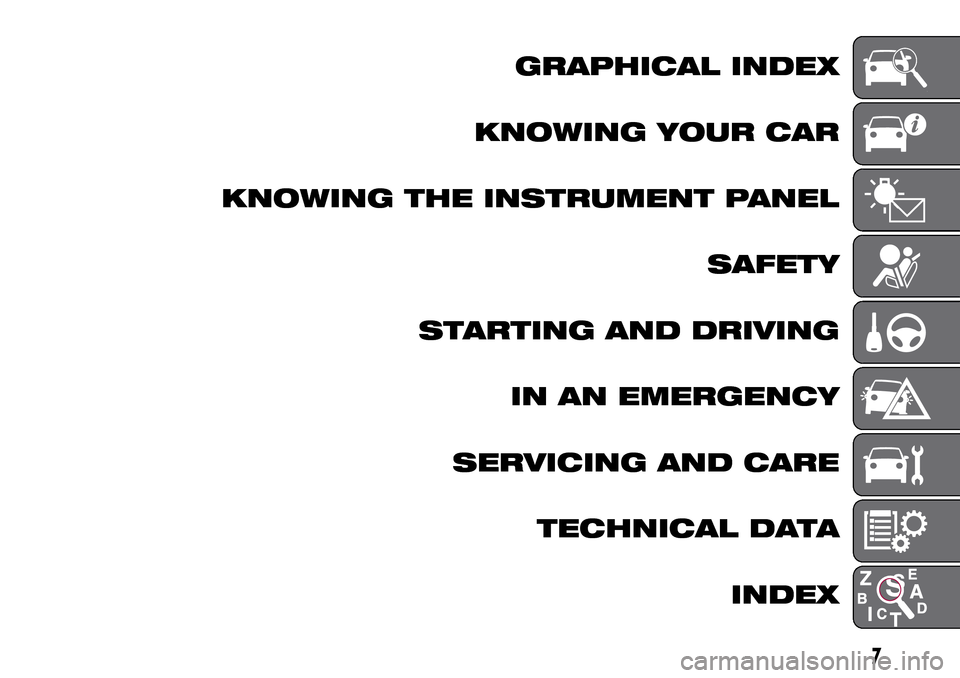

GRAPHICAL INDEX
KNOWING YOUR CAR
KNOWING THE INSTRUMENT PANEL
SAFETY
STARTING AND DRIVING
IN AN EMERGENCY
SERVICING AND CARE
TECHNICAL DATA
INDEX
7

8

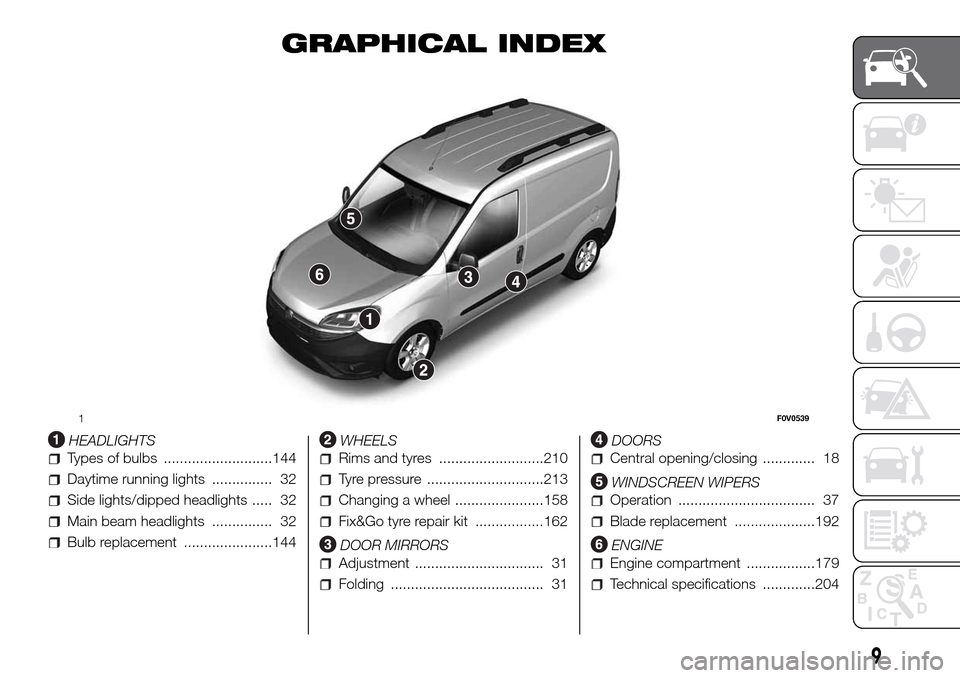

GRAPHICAL INDEX
.
HEADLIGHTS
Types of bulbs ...........................144
Daytime running lights ............... 32
Side lights/dipped headlights ..... 32
Main beam headlights ............... 32
Bulb replacement ......................144
WHEELS
Rims and tyres ..........................210
Tyre pressure .............................213
Changing a wheel ......................158
Fix&Go tyre repair kit .................162
DOOR MIRRORS
Adjustment ................................ 31
Folding ...................................... 31
DOORS
Central opening/closing ............. 18
WINDSCREEN WIPERS
Operation .................................. 37
Blade replacement ....................192
ENGINE
Engine compartment .................179
Technical specifications .............204
1F0V0539
9

.

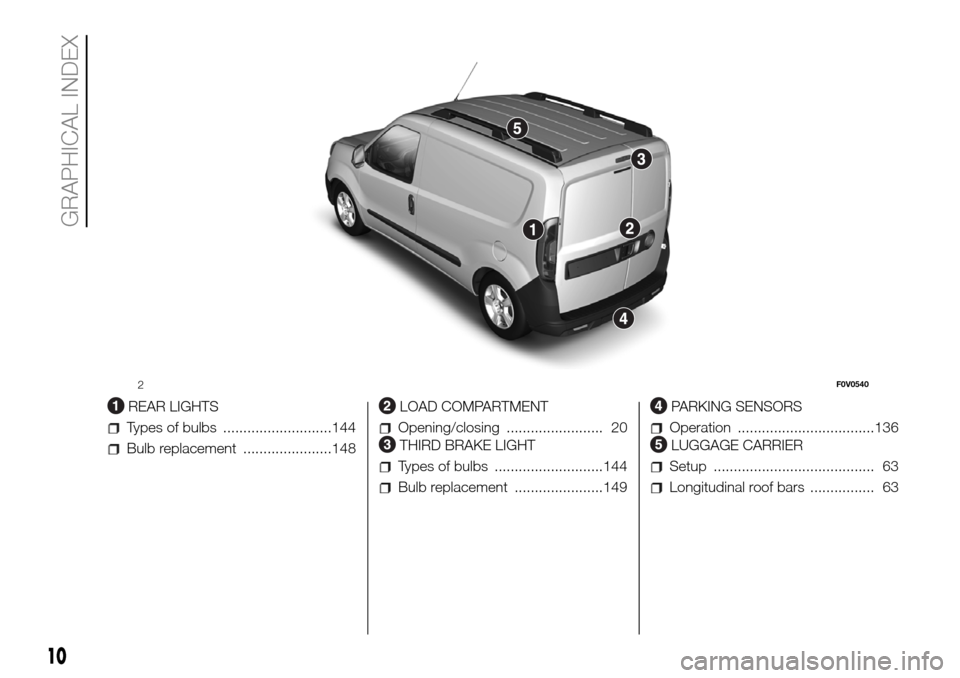

REAR LIGHTS
Types of bulbs ...........................144
Bulb replacement ......................148
LOAD COMPARTMENT
Opening/closing ........................ 20
THIRD BRAKE LIGHT
Types of bulbs ...........................144
Bulb replacement ......................149
PARKING SENSORS
Operation ..................................136
LUGGAGE CARRIER
Setup ........................................ 63
Longitudinal roof bars ................ 63
2F0V0540
10
GRAPHICAL INDEX

.

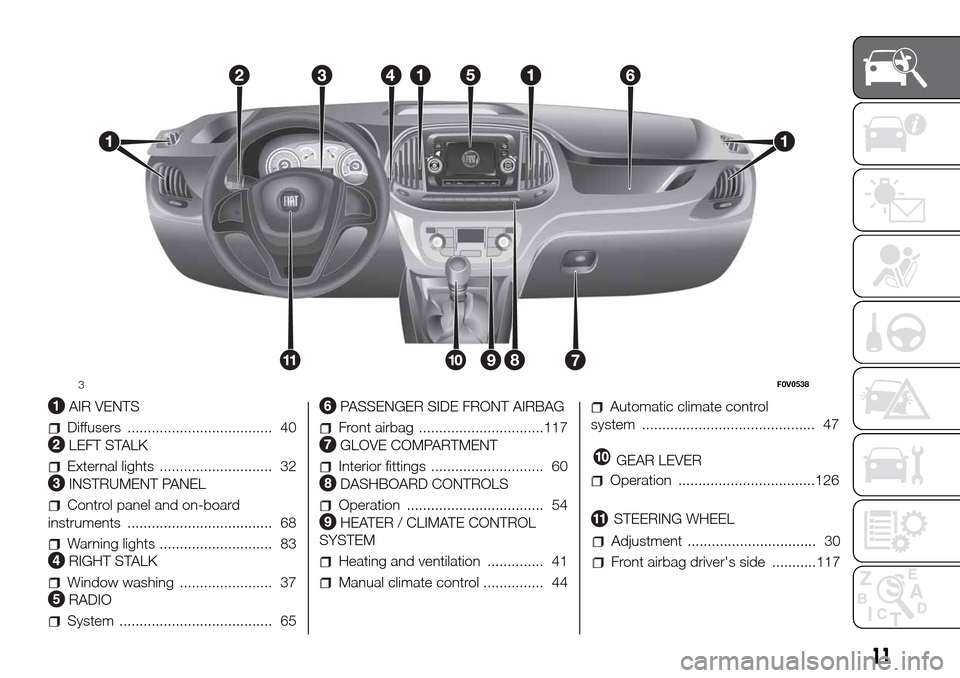

AIR VENTS
Diffusers .................................... 40
LEFT STALK
External lights ............................ 32
INSTRUMENT PANEL
Control panel and on-board
instruments .................................... 68
Warning lights ............................ 83
RIGHT STALK
Window washing ....................... 37
RADIO
System ...................................... 65
PASSENGER SIDE FRONT AIRBAG
Front airbag ...............................117
GLOVE COMPARTMENT
Interior fittings ............................ 60
DASHBOARD CONTROLS
Operation .................................. 54
HEATER / CLIMATE CONTROL
SYSTEM
Heating and ventilation .............. 41
Manual climate control ............... 44
Automatic climate control
system ........................................... 47
GEAR LEVER
Operation ..................................126
STEERING WHEEL
Adjustment ................................ 30
Front airbag driver's side ...........117
3F0V0538
11

.
BONNET OPENING LEVER
Opening/closing ........................ 55
STEERING WHEEL ADJUSTMENT
UNLOCKING LEVER
Operation .................................. 30
DOORS
Lock/Unlock .............................. 18
SEATS
Adjustments .............................. 22
Driver seat adjustments ............. 22
Passenger seat adjustments ...... 23
Rear seat access ....................... 24
Seat that folds to form a table ... 24
Third row seats .......................... 25
4F0V0541
12
GRAPHICAL INDEX

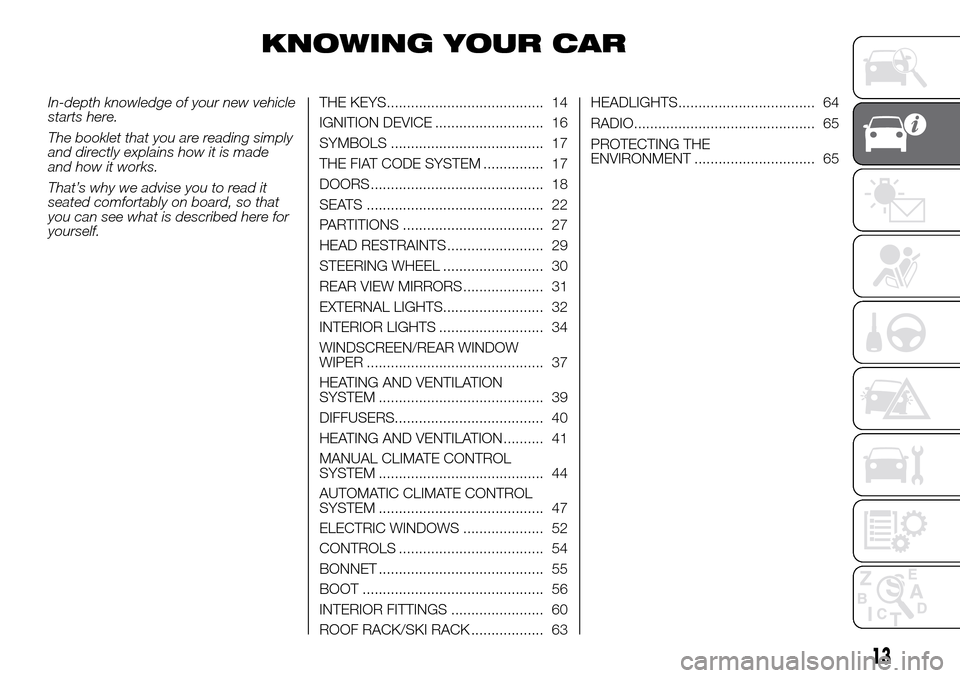

KNOWING YOUR CAR
In-depth knowledge of your new vehicle
starts here.
The booklet that you are reading simply
and directly explains how it is made
and how it works.
That’s why we advise you to read it
seated comfortably on board, so that
you can see what is described here for
yourself.THE KEYS....................................... 14
IGNITION DEVICE ........................... 16
SYMBOLS ...................................... 17
THE FIAT CODE SYSTEM ............... 17
DOORS ........................................... 18
SEATS ............................................ 22
PARTITIONS ................................... 27
HEAD RESTRAINTS ........................ 29
STEERING WHEEL ......................... 30
REAR VIEW MIRRORS .................... 31
EXTERNAL LIGHTS......................... 32
INTERIOR LIGHTS .......................... 34
WINDSCREEN/REAR WINDOW
WIPER ............................................ 37
HEATING AND VENTILATION
SYSTEM ......................................... 39
DIFFUSERS..................................... 40
HEATING AND VENTILATION.......... 41
MANUAL CLIMATE CONTROL
SYSTEM ......................................... 44
AUTOMATIC CLIMATE CONTROL
SYSTEM ......................................... 47
ELECTRIC WINDOWS .................... 52
CONTROLS .................................... 54
BONNET ......................................... 55
BOOT ............................................. 56
INTERIOR FITTINGS ....................... 60
ROOF RACK/SKI RACK .................. 63HEADLIGHTS.................................. 64
RADIO............................................. 65
PROTECTING THE
ENVIRONMENT .............................. 65
13

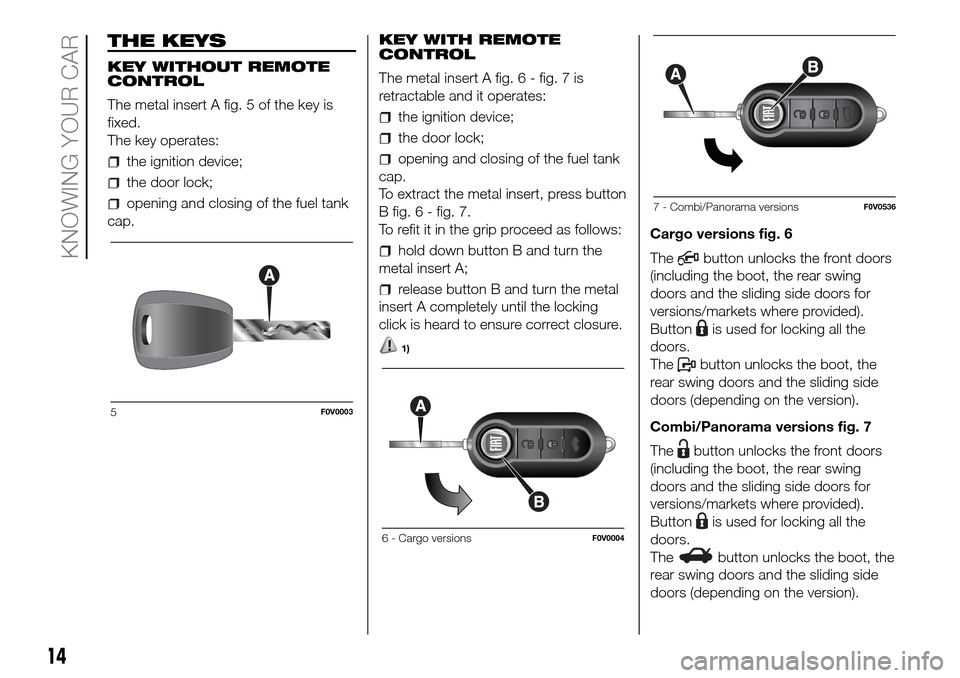

THE KEYS
KEY WITHOUT REMOTE
CONTROL
The metal insert A fig. 5 of the key is
fixed.
The key operates:
the ignition device;
the door lock;
opening and closing of the fuel tank
cap.KEY WITH REMOTE
CONTROL
The metal insert A fig.6-fig.7is
retractable and it operates:
the ignition device;
the door lock;
opening and closing of the fuel tank
cap.
To extract the metal insert, press button
B fig. 6 - fig. 7.
To refit it in the grip proceed as follows:
hold down button B and turn the
metal insert A;
release button B and turn the metal
insert A completely until the locking
click is heard to ensure correct closure.
1)
Cargo versions fig. 6
The
button unlocks the front doors
(including the boot, the rear swing
doors and the sliding side doors for
versions/markets where provided).
Button
is used for locking all the
doors.
The
button unlocks the boot, the
rear swing doors and the sliding side
doors (depending on the version).
Combi/Panorama versions fig. 7
The
button unlocks the front doors
(including the boot, the rear swing
doors and the sliding side doors for
versions/markets where provided).
Button
is used for locking all the
doors.
The
button unlocks the boot, the
rear swing doors and the sliding side
doors (depending on the version).
5F0V0003
6 - Cargo versionsF0V0004
7 - Combi/Panorama versionsF0V0536
14
KNOWING YOUR CAR

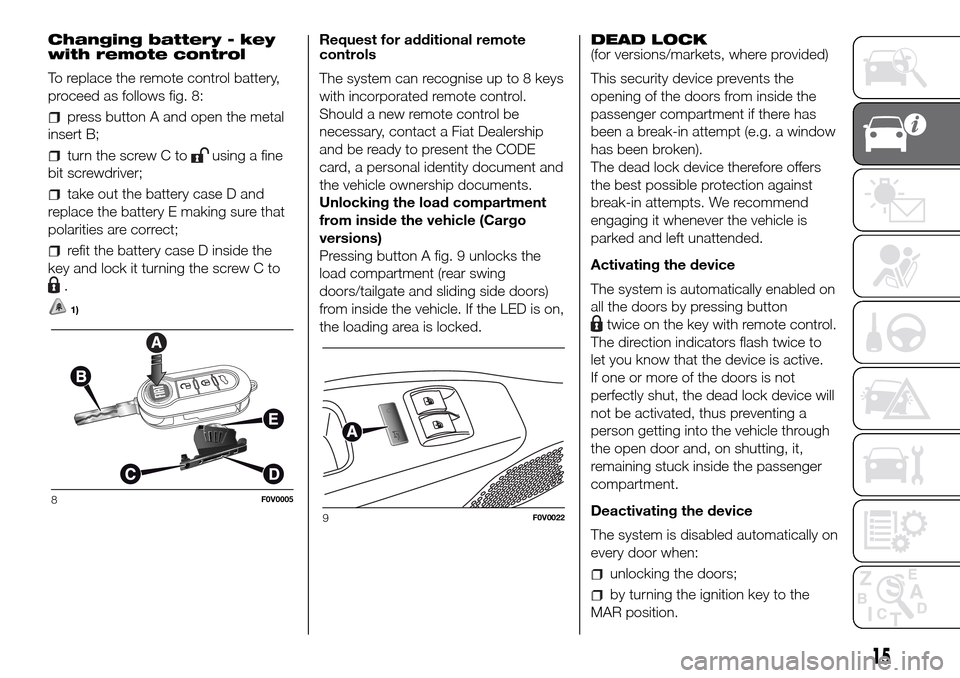

Changing battery - key
with remote control
To replace the remote control battery,
proceed as follows fig. 8:
press button A and open the metal
insert B;
turn the screw C tousing a fine
bit screwdriver;
take out the battery case D and
replace the battery E making sure that
polarities are correct;
refit the battery case D inside the
key and lock it turning the screw C to
.
1)
Request for additional remote
controls
The system can recognise up to 8 keys
with incorporated remote control.
Should a new remote control be
necessary, contact a Fiat Dealership
and be ready to present the CODE
card, a personal identity document and
the vehicle ownership documents.
Unlocking the load compartment
from inside the vehicle (Cargo
versions)
Pressing button A fig. 9 unlocks the
load compartment (rear swing
doors/tailgate and sliding side doors)
from inside the vehicle. If the LED is on,
the loading area is locked.DEAD LOCK
(for versions/markets, where provided)
This security device prevents the
opening of the doors from inside the
passenger compartment if there has
been a break-in attempt (e.g. a window
has been broken).
The dead lock device therefore offers
the best possible protection against
break-in attempts. We recommend
engaging it whenever the vehicle is
parked and left unattended.
Activating the device
The system is automatically enabled on
all the doors by pressing button
twice on the key with remote control.
The direction indicators flash twice to
let you know that the device is active.
If one or more of the doors is not
perfectly shut, the dead lock device will
not be activated, thus preventing a
person getting into the vehicle through
the open door and, on shutting, it,
remaining stuck inside the passenger
compartment.
Deactivating the device
The system is disabled automatically on
every door when:
unlocking the doors;
by turning the ignition key to the
MAR position.
8F0V0005
9F0V0022
15

2) 3)
WARNING
1)Press button B only with the key away
from your body, specifically from your eyes
and from objects which could get
damaged (e.g. your clothes). Do not leave
the key unattended to prevent people,
especially children, from inadvertently
pressing the button.
2)Once the dead lock system is engaged it
is impossible to open the doors from
inside the vehicle. Therefore, before
engaging the system check that there is no
one left inside.
3)If the remote control battery is flat, the
system can only be turned on by inserting
the metal key in the door lock: in this case,
the device remains active for the rear
doors only.
WARNING
1)Used batteries are harmful to the
environment. You can dispose of them
either in the correct containers as specified
by law or by taking them to a Fiat
Dealership, which will deal with their
disposal.

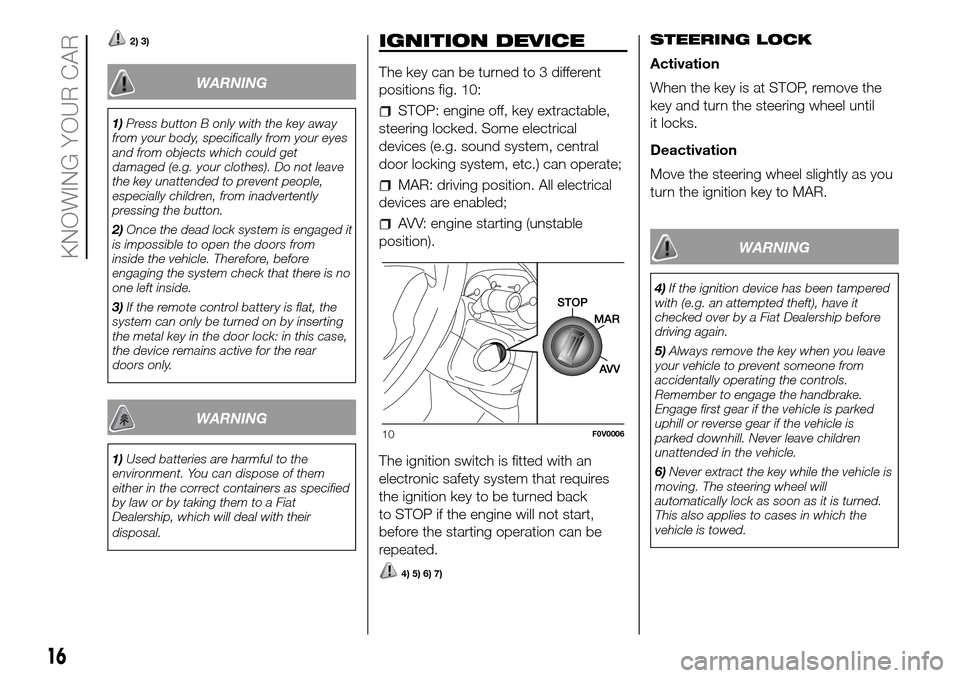

IGNITION DEVICE
The key can be turned to 3 different
positions fig. 10:
STOP: engine off, key extractable,
steering locked. Some electrical
devices (e.g. sound system, central
door locking system, etc.) can operate;
MAR: driving position. All electrical
devices are enabled;
AVV: engine starting (unstable
position).
The ignition switch is fitted with an
electronic safety system that requires
the ignition key to be turned back
to STOP if the engine will not start,
before the starting operation can be
repeated.
4) 5) 6) 7)
STEERING LOCK
Activation
When the key is at STOP, remove the
key and turn the steering wheel until
it locks.
Deactivation
Move the steering wheel slightly as you
turn the ignition key to MAR.
WARNING
4)If the ignition device has been tampered
with (e.g. an attempted theft), have it
checked over by a Fiat Dealership before
driving again.
5)Always remove the key when you leave
your vehicle to prevent someone from
accidentally operating the controls.
Remember to engage the handbrake.
Engage first gear if the vehicle is parked
uphill or reverse gear if the vehicle is
parked downhill. Never leave children
unattended in the vehicle.
6)Never extract the key while the vehicle is
moving. The steering wheel will
automatically lock as soon as it is turned.
This also applies to cases in which the
vehicle is towed.
10F0V0006
16
KNOWING YOUR CAR
