FIAT DOBLO PANORAMA 2016 2.G Owners Manual

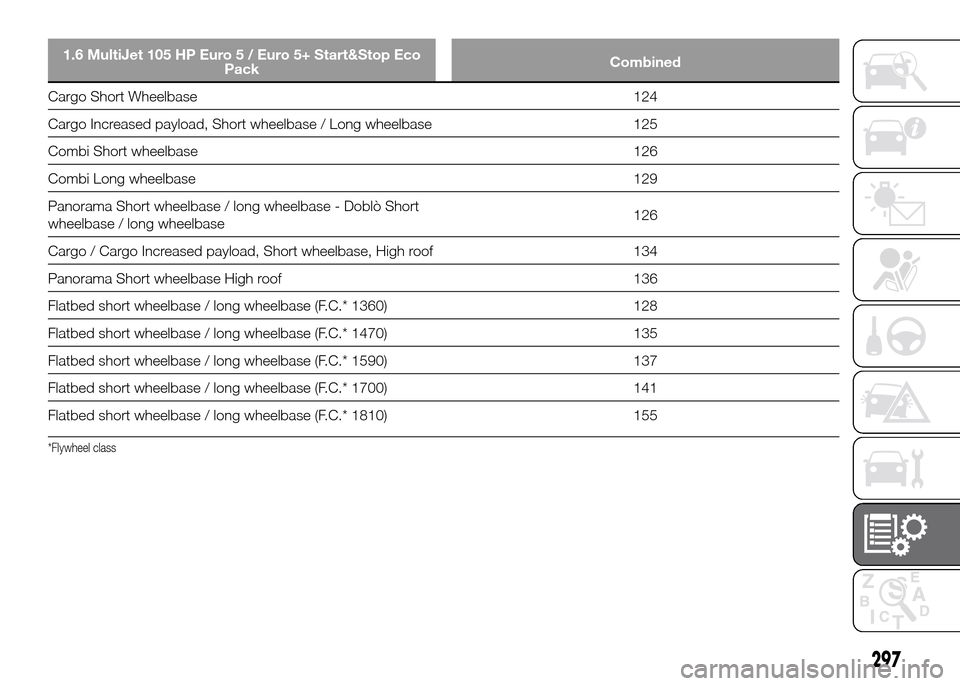

1.6 MultiJet 105 HP Euro 5 / Euro 5+ Start&Stop Eco
PackCombined
Cargo Short Wheelbase 124
Cargo Increased payload, Short wheelbase / Long wheelbase 125
Combi Short wheelbase 126
Combi Long wheelbase 129
Panorama Short wheelbase / long wheelbase - Doblò Short
wheelbase / long wheelbase126
Cargo / Cargo Increased payload, Short wheelbase, High roof 134
Panorama Short wheelbase High roof 136
Flatbed short wheelbase / long wheelbase (F.C.* 1360) 128
Flatbed short wheelbase / long wheelbase (F.C.* 1470) 135
Flatbed short wheelbase / long wheelbase (F.C.* 1590) 137
Flatbed short wheelbase / long wheelbase (F.C.* 1700) 141
Flatbed short wheelbase / long wheelbase (F.C.* 1810) 155
*Flywheel class
297

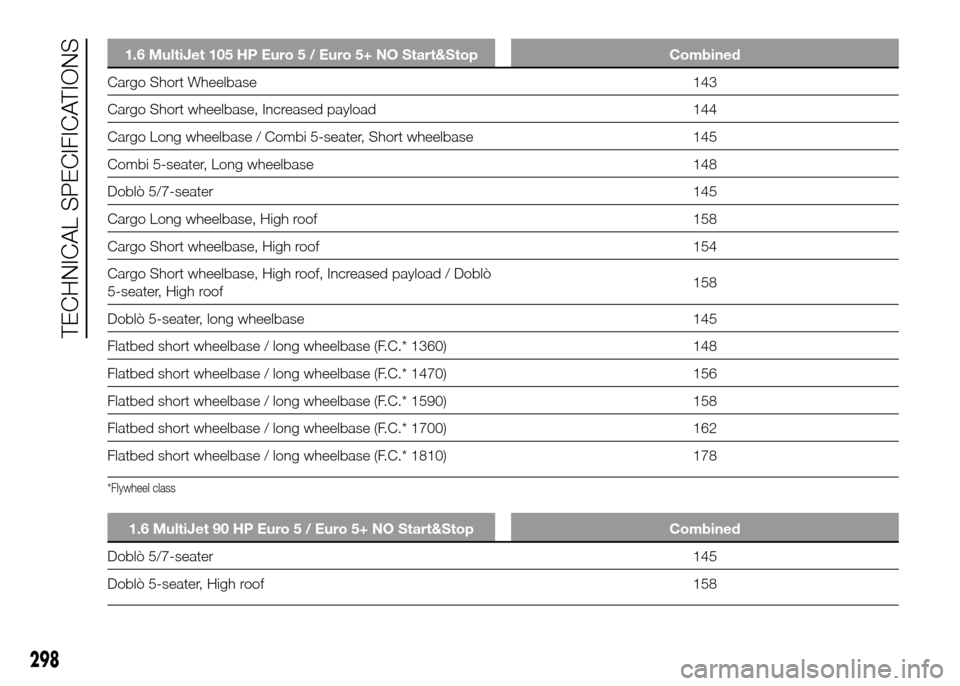

1.6 MultiJet 105 HP Euro 5 / Euro 5+ NO Start&Stop Combined
Cargo Short Wheelbase 143
Cargo Short wheelbase, Increased payload 144
Cargo Long wheelbase / Combi 5-seater, Short wheelbase 145
Combi 5-seater, Long wheelbase 148
Doblò 5/7-seater145
Cargo Long wheelbase, High roof 158
Cargo Short wheelbase, High roof 154
Cargo Short wheelbase, High roof, Increased payload / Doblò
5-seater, High roof158
Doblò 5-seater, long wheelbase 145
Flatbed short wheelbase / long wheelbase (F.C.* 1360) 148
Flatbed short wheelbase / long wheelbase (F.C.* 1470) 156
Flatbed short wheelbase / long wheelbase (F.C.* 1590) 158
Flatbed short wheelbase / long wheelbase (F.C.* 1700) 162
Flatbed short wheelbase / long wheelbase (F.C.* 1810) 178
*Flywheel class
1.6 MultiJet 90 HP Euro 5 / Euro 5+ NO Start&Stop Combined
Doblò 5/7-seater145
Doblò 5-seater, High roof 158
298
TECHNICAL SPECIFICATIONS

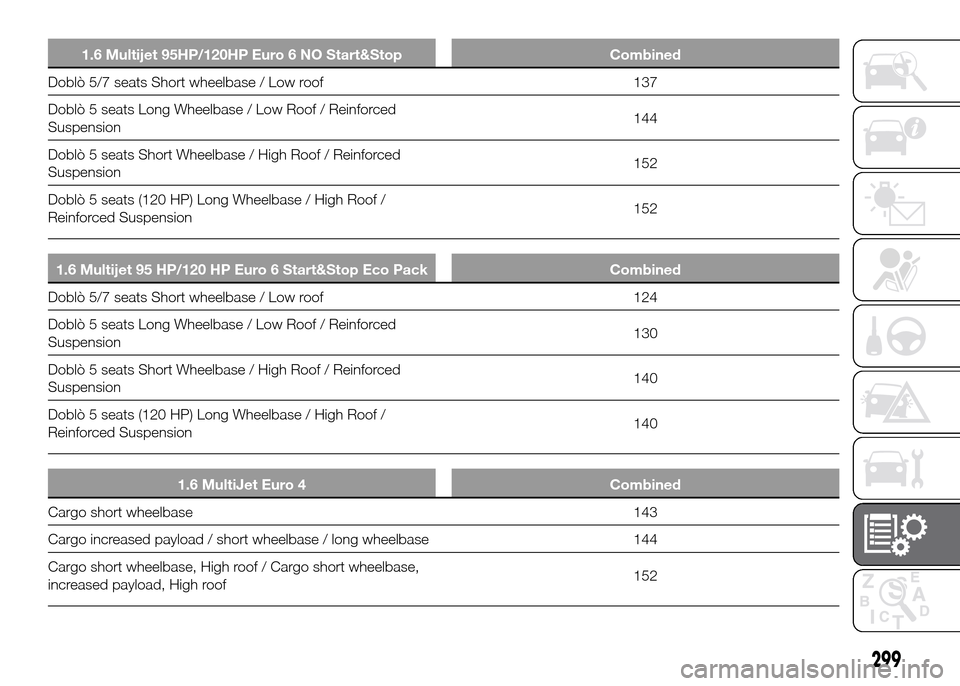

1.6 Multijet 95HP/120HP Euro 6 NO Start&Stop Combined
Doblò 5/7 seats Short wheelbase / Low roof 137
Doblò 5 seats Long Wheelbase / Low Roof / Reinforced
Suspension144
Doblò 5 seats Short Wheelbase / High Roof / Reinforced
Suspension152
Doblò 5 seats (120 HP) Long Wheelbase / High Roof /
Reinforced Suspension152
1.6 Multijet 95 HP/120 HP Euro 6 Start&Stop Eco Pack Combined
Doblò 5/7 seats Short wheelbase / Low roof 124
Doblò 5 seats Long Wheelbase / Low Roof / Reinforced
Suspension130
Doblò 5 seats Short Wheelbase / High Roof / Reinforced
Suspension140
Doblò 5 seats (120 HP) Long Wheelbase / High Roof /
Reinforced Suspension140
1.6 MultiJet Euro 4 Combined
Cargo short wheelbase 143
Cargo increased payload / short wheelbase / long wheelbase 144
Cargo short wheelbase, High roof / Cargo short wheelbase,
increased payload, High roof152
299

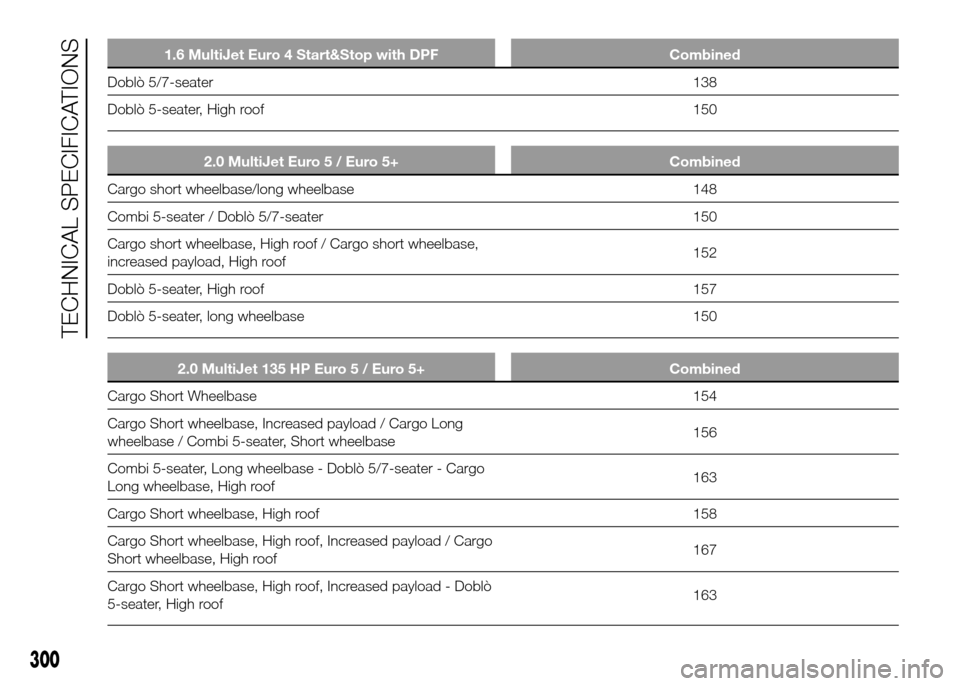

1.6 MultiJet Euro 4 Start&Stop with DPF Combined
Doblò 5/7-seater138
Doblò 5-seater, High roof 150
2.0 MultiJet Euro 5 / Euro 5+ Combined
Cargo short wheelbase/long wheelbase 148
Combi 5-seater / Doblò 5/7-seater 150
Cargo short wheelbase, High roof / Cargo short wheelbase,
increased payload, High roof152
Doblò 5-seater, High roof 157
Doblò 5-seater, long wheelbase 150
2.0 MultiJet 135 HP Euro 5 / Euro 5+ Combined
Cargo Short Wheelbase 154
Cargo Short wheelbase, Increased payload / Cargo Long
wheelbase / Combi 5-seater, Short wheelbase156
Combi 5-seater, Long wheelbase - Doblò 5/7-seater - Cargo
Long wheelbase, High roof163
Cargo Short wheelbase, High roof 158
Cargo Short wheelbase, High roof, Increased payload / Cargo
Short wheelbase, High roof167
Cargo Short wheelbase, High roof, Increased payload - Doblò
5-seater, High roof163
300
TECHNICAL SPECIFICATIONS

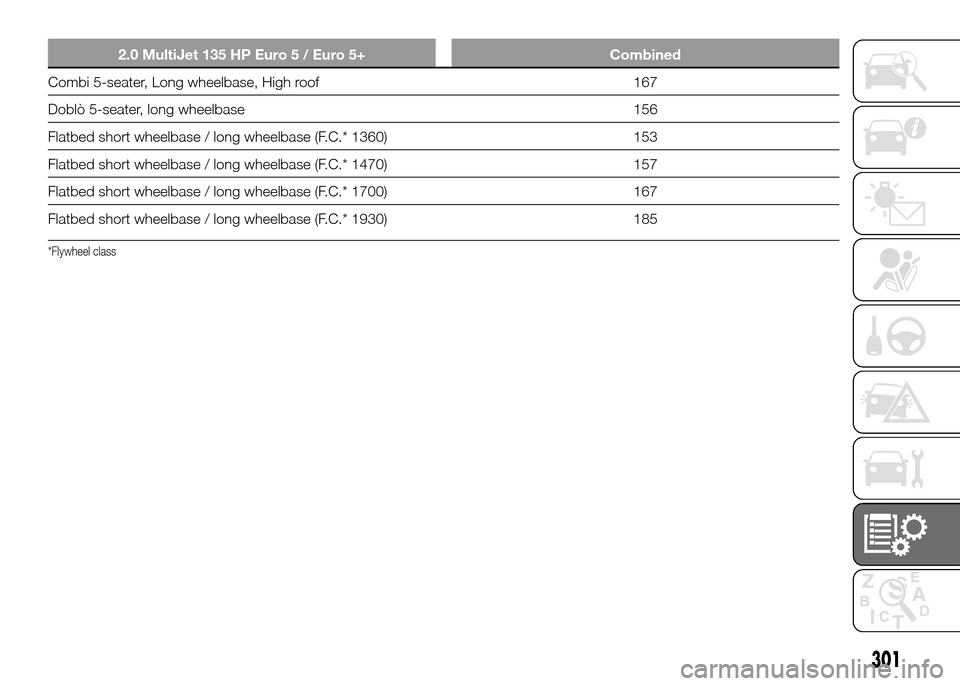

2.0 MultiJet 135 HP Euro 5 / Euro 5+ Combined
Combi 5-seater, Long wheelbase, High roof 167
Doblò 5-seater, long wheelbase 156
Flatbed short wheelbase / long wheelbase (F.C.* 1360) 153
Flatbed short wheelbase / long wheelbase (F.C.* 1470) 157
Flatbed short wheelbase / long wheelbase (F.C.* 1700) 167
Flatbed short wheelbase / long wheelbase (F.C.* 1930) 185
*Flywheel class
301

OFFICIAL TYPE APPROVALS
302
TECHNICAL SPECIFICATIONS

303

304
TECHNICAL SPECIFICATIONS

PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END OF
ITS LIFE
Fiat has been committed for many years to safeguarding the environment through the constant improvement of its production
processes and manufacturing products that are increasingly "eco-compatible". To assure customers of the best possible
service in terms of respecting environmental laws and in response to European Directive 2000/53/EC governing vehicles at the
end of their life, Fiat is offering their customers the opportunity of handing over their vehicle (*) at the end of its life without
incurring any additional costs.
The European Directive sets out that when the vehicle is handed over, the last keeper or owner should not incur any expenses
as a result of it having a zero or negative market value. In particular, in almost all European Union countries, until 1st January
2007, vehicles registered after 1st July 2002 will be collected free of charge, whilst from 2007 collection will be free of charge
irrespective of the year of registration as long as the vehicle contains its basic components (in particular the engine and
bodywork) and has no additional waste.
To hand your vehicle over at the end of its life without extra cost, contact a Fiat Dealership or authorised collection and
scrapping centres. These centres have been carefully chosen to offer high quality service for the collection, treatment and
recycling of vehicles at their end of life, respecting the surrounding environment.
You can find further information on these collection and scrapping centres either from a Fiat or Fiat Commercial Vehicle
Dealership or by calling the freephone number 00800 3428 0000 or by going on the Fiat website.
(*) Vehicle for transporting passengers with a maximum of nine seats and a total permitted weight of 3.5 t
