FIAT DOBLO PANORAMA 2016 2.G Owners Manual

.

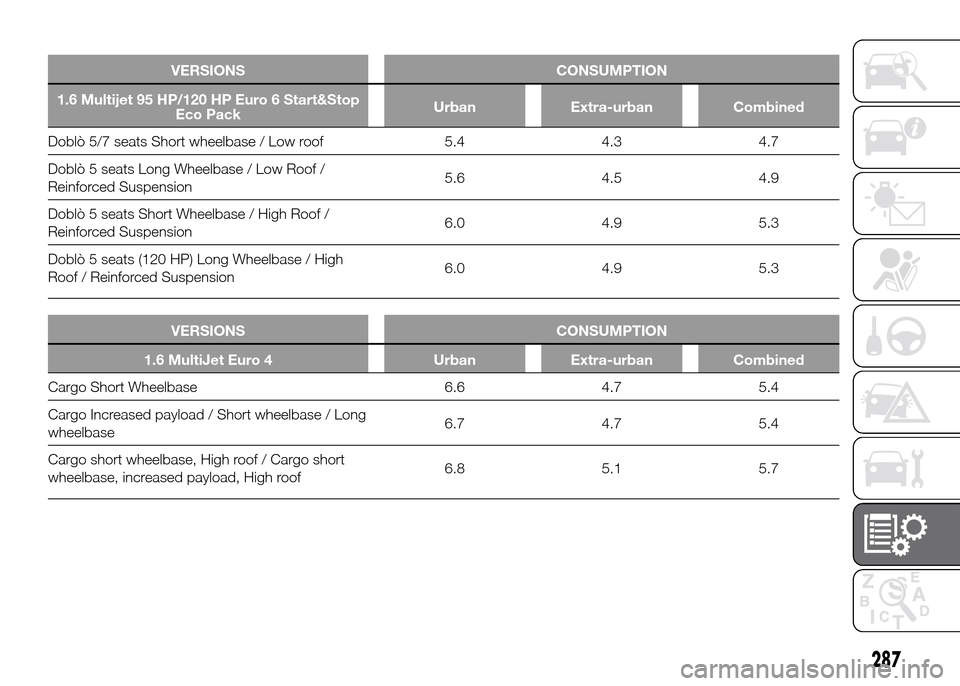

VERSIONS CONSUMPTION
1.6 Multijet 95 HP/120 HP Euro 6 Start&Stop
Eco PackUrban Extra-urban Combined
Doblò 5/7 seats Short wheelbase / Low roof 5.4 4.3 4.7
Doblò 5 seats Long Wheelbase / Low Roof /
Reinforced Suspension5.6 4.5 4.9
Doblò 5 seats Short Wheelbase / High Roof /
Reinforced Suspension6.0 4.9 5.3
Doblò 5 seats (120 HP) Long Wheelbase / High
Roof / Reinforced Suspension6.0 4.9 5.3
.
VERSIONS CONSUMPTION
1.6 MultiJet Euro 4 Urban Extra-urban Combined
Cargo Short Wheelbase 6.6 4.7 5.4
Cargo Increased payload / Short wheelbase / Long
wheelbase6.7 4.7 5.4
Cargo short wheelbase, High roof / Cargo short
wheelbase, increased payload, High roof6.8 5.1 5.7
287

.

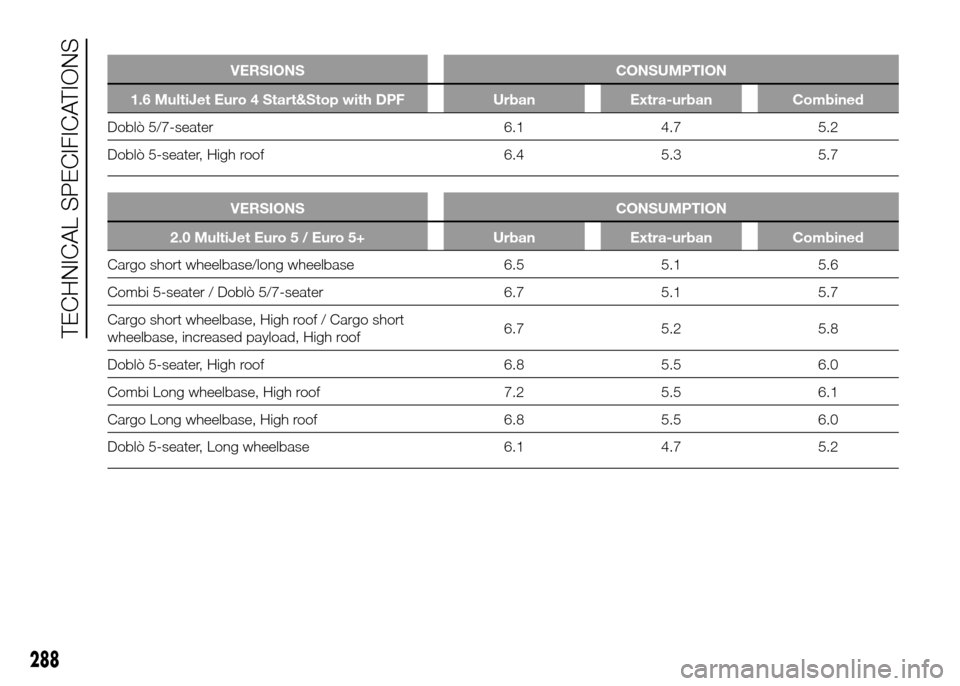

VERSIONS CONSUMPTION
1.6 MultiJet Euro 4 Start&Stop with DPF Urban Extra-urban Combined
Doblò 5/7-seater 6.1 4.7 5.2
Doblò 5-seater, High roof 6.4 5.3 5.7
.
VERSIONS CONSUMPTION
2.0 MultiJet Euro 5 / Euro 5+ Urban Extra-urban Combined
Cargo short wheelbase/long wheelbase 6.5 5.1 5.6
Combi 5-seater / Doblò 5/7-seater 6.7 5.1 5.7
Cargo short wheelbase, High roof / Cargo short
wheelbase, increased payload, High roof6.7 5.2 5.8
Doblò 5-seater, High roof 6.8 5.5 6.0
Combi Long wheelbase, High roof 7.2 5.5 6.1
Cargo Long wheelbase, High roof 6.8 5.5 6.0
Doblò 5-seater, Long wheelbase 6.1 4.7 5.2
288
TECHNICAL SPECIFICATIONS

.

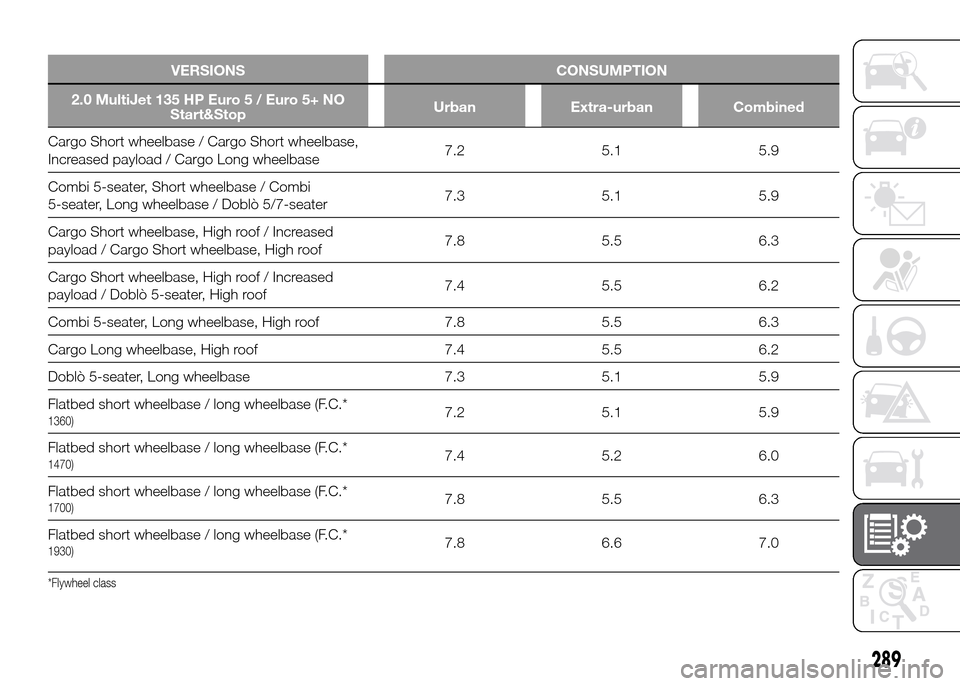

VERSIONS CONSUMPTION
2.0 MultiJet 135 HP Euro5/Euro5+NO
Start&StopUrban Extra-urban Combined
Cargo Short wheelbase / Cargo Short wheelbase,
Increased payload / Cargo Long wheelbase7.2 5.1 5.9
Combi 5-seater, Short wheelbase / Combi
5-seater, Long wheelbase / Doblò 5/7-seater7.3 5.1 5.9
Cargo Short wheelbase, High roof / Increased
payload / Cargo Short wheelbase, High roof7.8 5.5 6.3
Cargo Short wheelbase, High roof / Increased
payload / Doblò 5-seater, High roof7.4 5.5 6.2
Combi 5-seater, Long wheelbase, High roof 7.8 5.5 6.3
Cargo Long wheelbase, High roof 7.4 5.5 6.2
Doblò 5-seater, Long wheelbase 7.3 5.1 5.9
Flatbed short wheelbase / long wheelbase (F.C.*
1360)7.2 5.1 5.9
Flatbed short wheelbase / long wheelbase (F.C.*
1470)7.4 5.2 6.0
Flatbed short wheelbase / long wheelbase (F.C.*
1700)7.8 5.5 6.3
Flatbed short wheelbase / long wheelbase (F.C.*
1930)7.8 6.6 7.0
*Flywheel class
289

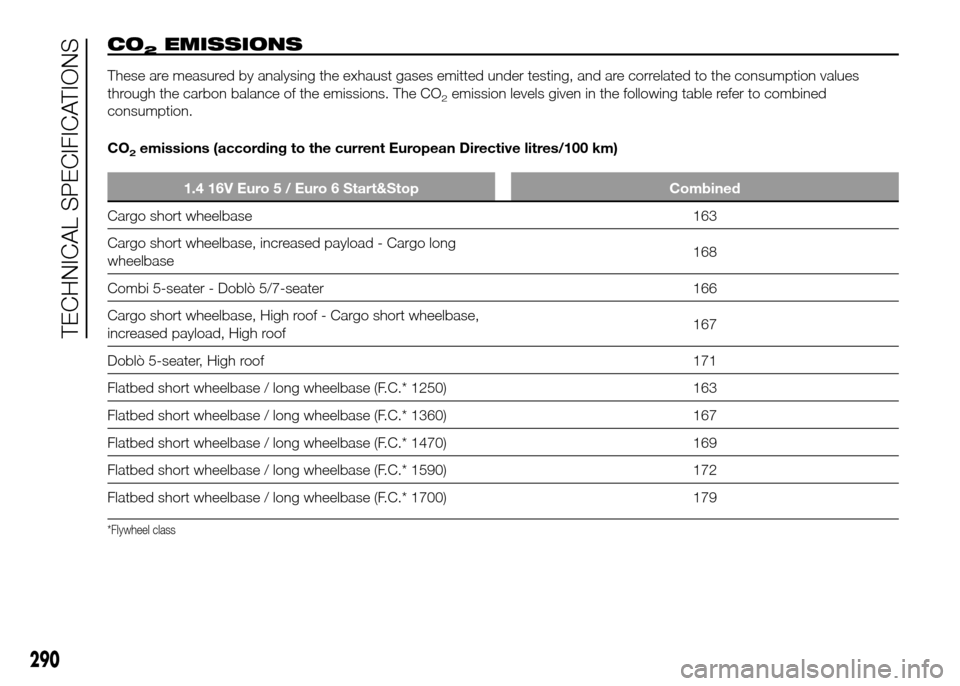

CO2EMISSIONS
These are measured by analysing the exhaust gases emitted under testing, and are correlated to the consumption values
through the carbon balance of the emissions. The CO
2emission levels given in the following table refer to combined
consumption.
CO
2emissions (according to the current European Directive litres/100 km)
1.4 16V Euro 5 / Euro 6 Start&Stop Combined
Cargo short wheelbase 163
Cargo short wheelbase, increased payload - Cargo long
wheelbase168
Combi 5-seater - Doblò 5/7-seater 166
Cargo short wheelbase, High roof - Cargo short wheelbase,
increased payload, High roof167
Doblò 5-seater, High roof 171
Flatbed short wheelbase / long wheelbase (F.C.* 1250) 163
Flatbed short wheelbase / long wheelbase (F.C.* 1360) 167
Flatbed short wheelbase / long wheelbase (F.C.* 1470) 169
Flatbed short wheelbase / long wheelbase (F.C.* 1590) 172
Flatbed short wheelbase / long wheelbase (F.C.* 1700) 179
*Flywheel class
290
TECHNICAL SPECIFICATIONS

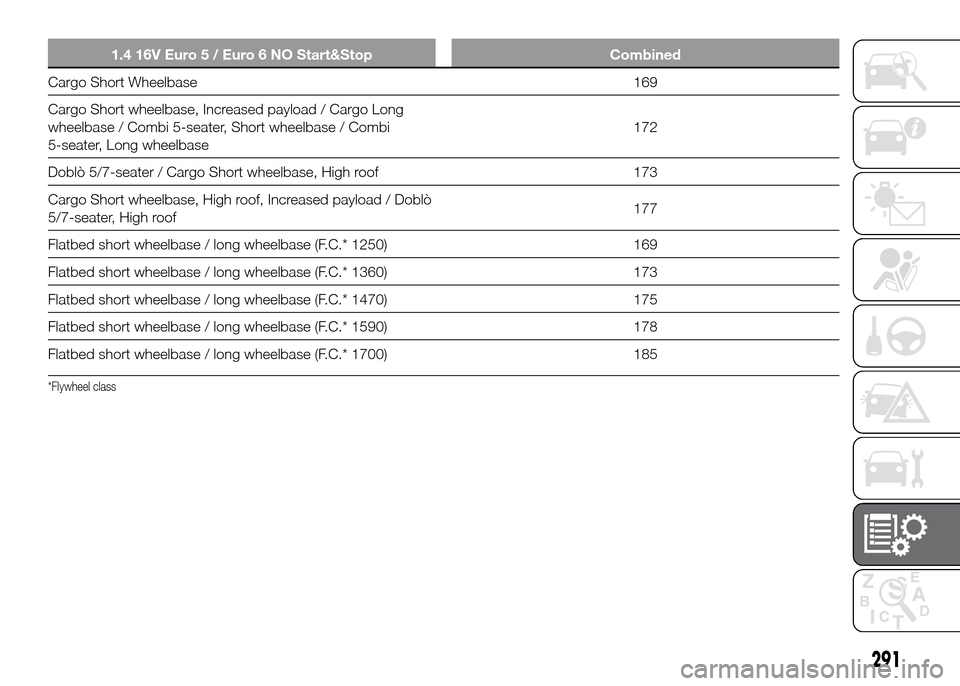

1.4 16V Euro 5 / Euro 6 NO Start&Stop Combined
Cargo Short Wheelbase 169
Cargo Short wheelbase, Increased payload / Cargo Long
wheelbase / Combi 5-seater, Short wheelbase / Combi
5-seater, Long wheelbase172
Doblò 5/7-seater / Cargo Short wheelbase, High roof 173
Cargo Short wheelbase, High roof, Increased payload / Doblò
5/7-seater, High roof177
Flatbed short wheelbase / long wheelbase (F.C.* 1250) 169
Flatbed short wheelbase / long wheelbase (F.C.* 1360) 173
Flatbed short wheelbase / long wheelbase (F.C.* 1470) 175
Flatbed short wheelbase / long wheelbase (F.C.* 1590) 178
Flatbed short wheelbase / long wheelbase (F.C.* 1700) 185
*Flywheel class
291

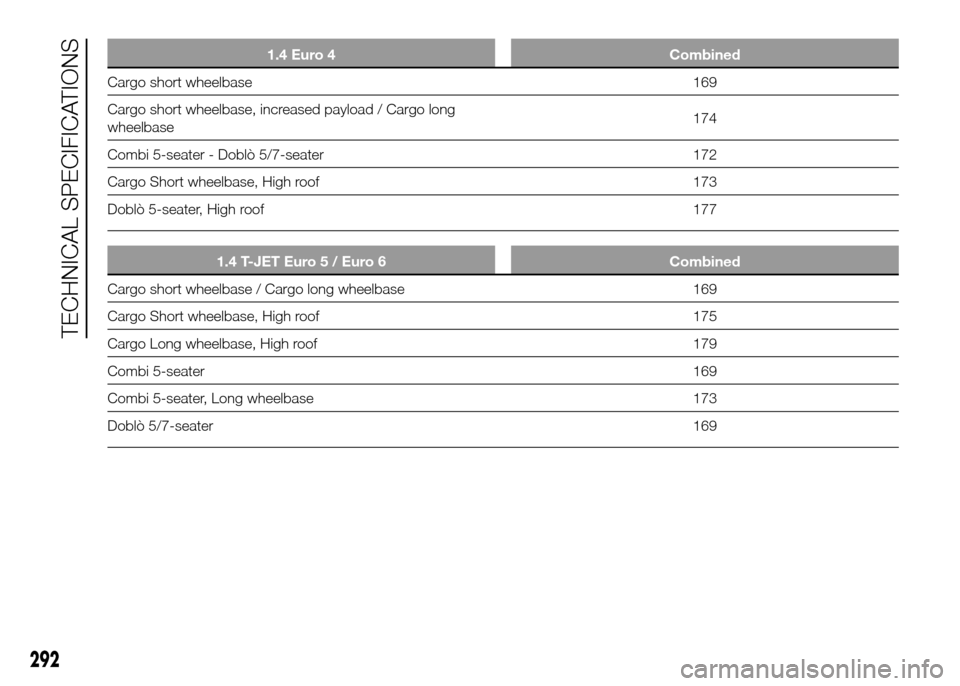

1.4 Euro 4 Combined
Cargo short wheelbase 169
Cargo short wheelbase, increased payload / Cargo long
wheelbase174
Combi 5-seater - Doblò 5/7-seater 172
Cargo Short wheelbase, High roof 173
Doblò 5-seater, High roof 177
1.4 T-JET Euro 5 / Euro 6 Combined
Cargo short wheelbase / Cargo long wheelbase 169
Cargo Short wheelbase, High roof 175
Cargo Long wheelbase, High roof 179
Combi 5-seater169
Combi 5-seater, Long wheelbase 173
Doblò 5/7-seater169
292
TECHNICAL SPECIFICATIONS

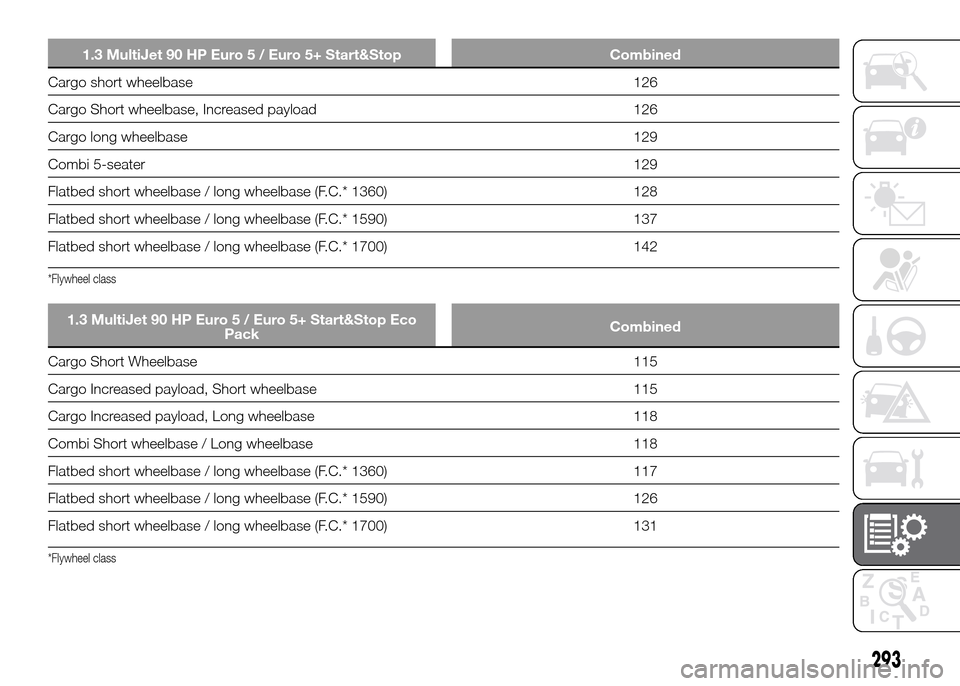

1.3 MultiJet 90 HP Euro 5 / Euro 5+ Start&Stop Combined
Cargo short wheelbase 126
Cargo Short wheelbase, Increased payload 126
Cargo long wheelbase 129
Combi 5-seater129
Flatbed short wheelbase / long wheelbase (F.C.* 1360) 128
Flatbed short wheelbase / long wheelbase (F.C.* 1590) 137
Flatbed short wheelbase / long wheelbase (F.C.* 1700) 142
*Flywheel class
1.3 MultiJet 90 HP Euro 5 / Euro 5+ Start&Stop Eco
PackCombined
Cargo Short Wheelbase 115
Cargo Increased payload, Short wheelbase 115
Cargo Increased payload, Long wheelbase 118
Combi Short wheelbase / Long wheelbase 118
Flatbed short wheelbase / long wheelbase (F.C.* 1360) 117
Flatbed short wheelbase / long wheelbase (F.C.* 1590) 126
Flatbed short wheelbase / long wheelbase (F.C.* 1700) 131
*Flywheel class
293

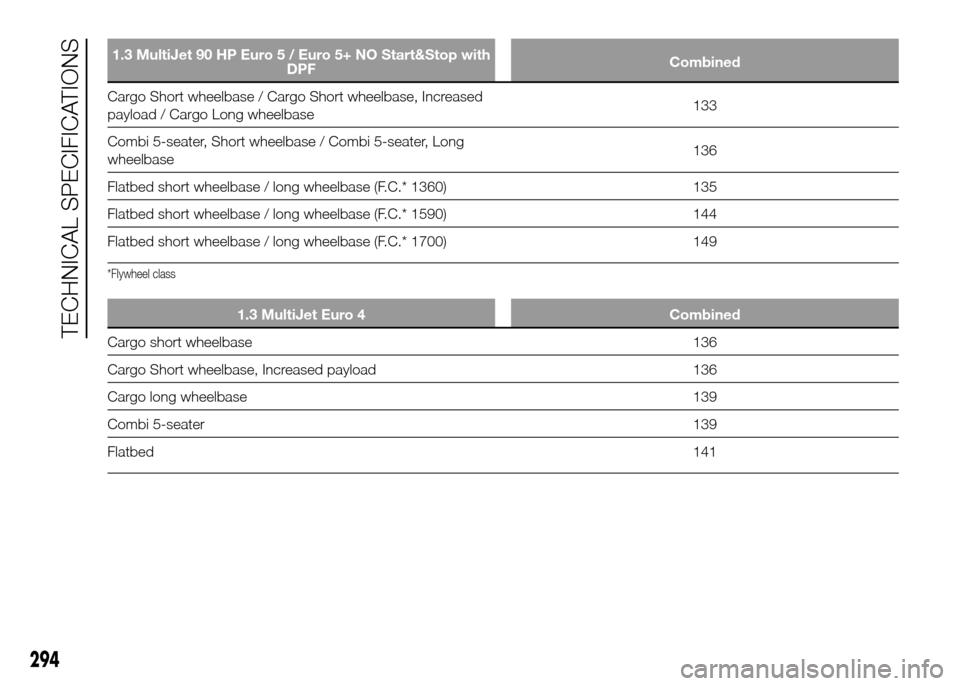

1.3 MultiJet 90 HP Euro 5 / Euro 5+ NO Start&Stop with
DPFCombined
Cargo Short wheelbase / Cargo Short wheelbase, Increased
payload / Cargo Long wheelbase133
Combi 5-seater, Short wheelbase / Combi 5-seater, Long
wheelbase136
Flatbed short wheelbase / long wheelbase (F.C.* 1360) 135
Flatbed short wheelbase / long wheelbase (F.C.* 1590) 144
Flatbed short wheelbase / long wheelbase (F.C.* 1700) 149
*Flywheel class
1.3 MultiJet Euro 4 Combined
Cargo short wheelbase 136
Cargo Short wheelbase, Increased payload 136
Cargo long wheelbase 139
Combi 5-seater139
Flatbed141
294
TECHNICAL SPECIFICATIONS

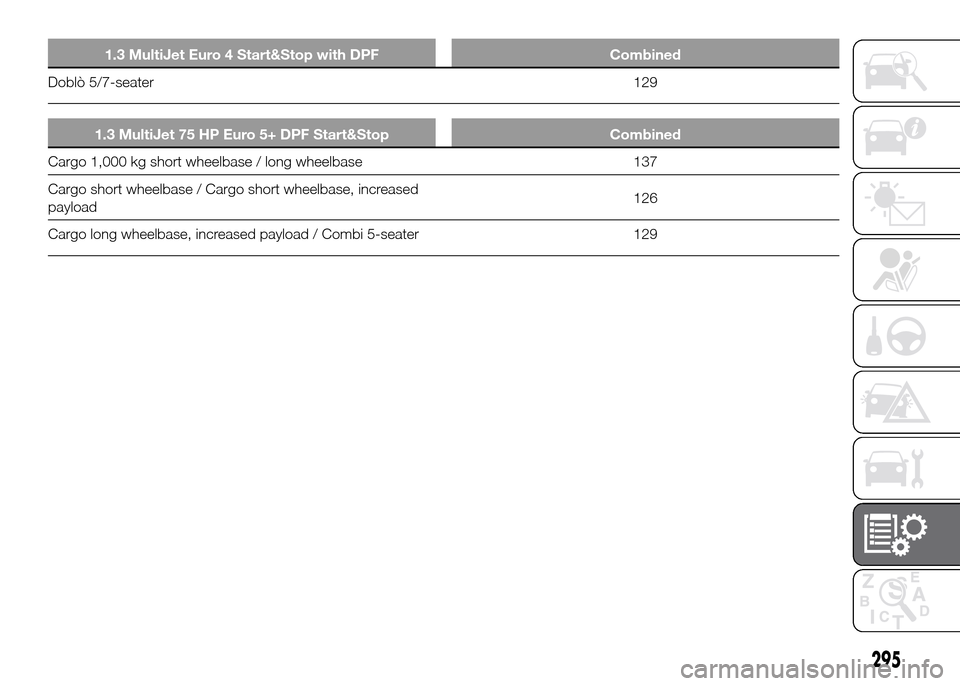

1.3 MultiJet Euro 4 Start&Stop with DPF Combined
Doblò 5/7-seater129
1.3 MultiJet 75 HP Euro 5+ DPF Start&Stop Combined
Cargo 1,000 kg short wheelbase / long wheelbase 137
Cargo short wheelbase / Cargo short wheelbase, increased
payload126
Cargo long wheelbase, increased payload / Combi 5-seater 129
295

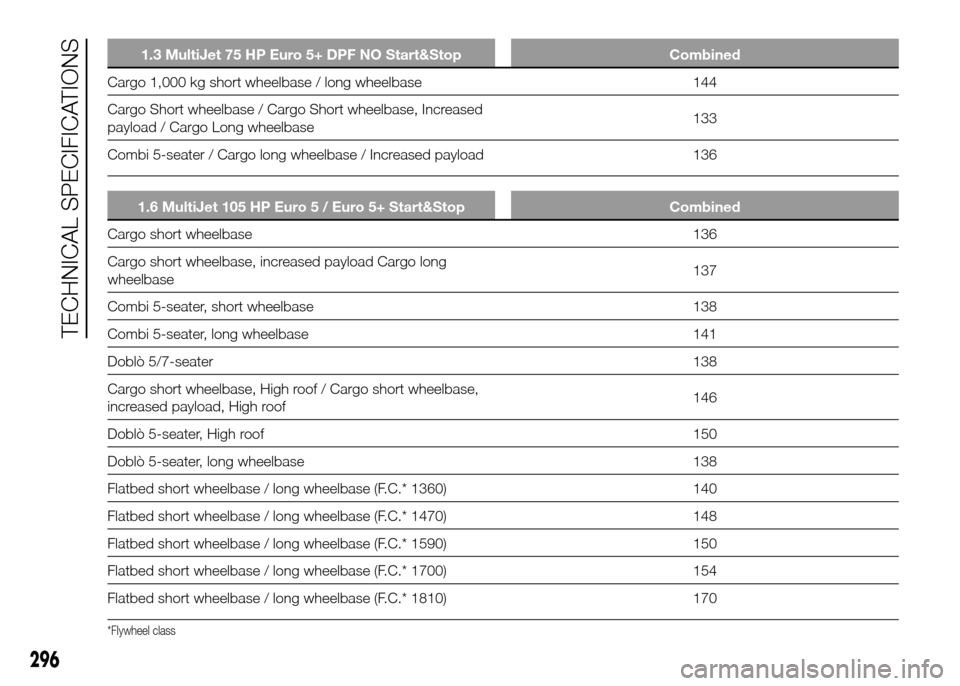

1.3 MultiJet 75 HP Euro 5+ DPF NO Start&Stop Combined
Cargo 1,000 kg short wheelbase / long wheelbase 144
Cargo Short wheelbase / Cargo Short wheelbase, Increased
payload / Cargo Long wheelbase133
Combi 5-seater / Cargo long wheelbase / Increased payload 136
1.6 MultiJet 105 HP Euro 5 / Euro 5+ Start&Stop Combined
Cargo short wheelbase 136
Cargo short wheelbase, increased payload Cargo long
wheelbase137
Combi 5-seater, short wheelbase 138
Combi 5-seater, long wheelbase 141
Doblò 5/7-seater138
Cargo short wheelbase, High roof / Cargo short wheelbase,
increased payload, High roof146
Doblò 5-seater, High roof 150
Doblò 5-seater, long wheelbase 138
Flatbed short wheelbase / long wheelbase (F.C.* 1360) 140
Flatbed short wheelbase / long wheelbase (F.C.* 1470) 148
Flatbed short wheelbase / long wheelbase (F.C.* 1590) 150
Flatbed short wheelbase / long wheelbase (F.C.* 1700) 154
Flatbed short wheelbase / long wheelbase (F.C.* 1810) 170
*Flywheel class
296
