Steering column lock .......................... 15
Steering wheel adjustment ................ 44
Storing the vehicle .............................. 144
Sun visors .............................................. 88
Supplementary heater ......................... 55
Suspensions ........................................... 218
Symbols .................................................. 7
Technical specifications ..................... 211
Third brake light .................................. 175
Tips on loading ...................................... 137
Top speeds ............................................ 229
Towing a trailer
– tow hitch installation .................... 140
Towing the vehicle .............................. 186
Transmission ........................................ 217
Tyre pressure ....................................... 222
Tyres
– changing ........................................... 159
– snow tyres ...................................... 143
– standard ........................................... 221
– understanding tyre marking......... 219
Under-seat basket .............................. 41
Using the manual gearbox ................. 137
Vehicle inactivity.................................. 144
Vehicle maintenance ............................ 189
– heavy-duty ........................................ 195
– routine maintenance...................... 195
– scheduled service .......................... 190
– Service Schedule .................... 191-193
Ventilation ............................................. 47
Warning lights and messages........... 145
Weights ................................................. 230
Wheel geometry................................... 219
Wheel replacement ............................ 159
Wheels
– changing ........................................... 159
Window washing .................................. 77
Windows (cleaning) ............................. 209
Windscreen washer
– control ............................................. 77
– fluid level ......................................... 200
Windscreen wipers
– blades ............................................... 207
– control ............................................. 77
– nozzles ............................................. 207
Windscreen/rear window/
headlight washer fluid level ............. 200
Writing/reading desk ........................... 88 – pretensioners .......................... 100-116
– use ............................................... 98-114
Seats
– adjustment ....................................... 37
– cleaning ............................................ 210
S.B.R. system.......................................... 115
Self-standing supplementary heater.... 66
Side sliding door ................................... 95
Side/taillights
– control ............................................. 74
– front bulb replacement ................. 170
– rear bulb replacement .................. 173
– changing side bulb .......................... 175
Sliding side window .............................. 95
Smart washing ...................................... 77
Snow chains .......................................... 143
Sound system ....................................... 108
Starting the engine ............................... 134
– bump starting ................................. 159
– diesel engines ................................. 134
– emergency start-up ...................... 158
– ignition switch ................................ 15
– jump starting .................................. 158
– stopping the engine ...................... 135
– warming up the engine ................ 135
Page 275 of 282

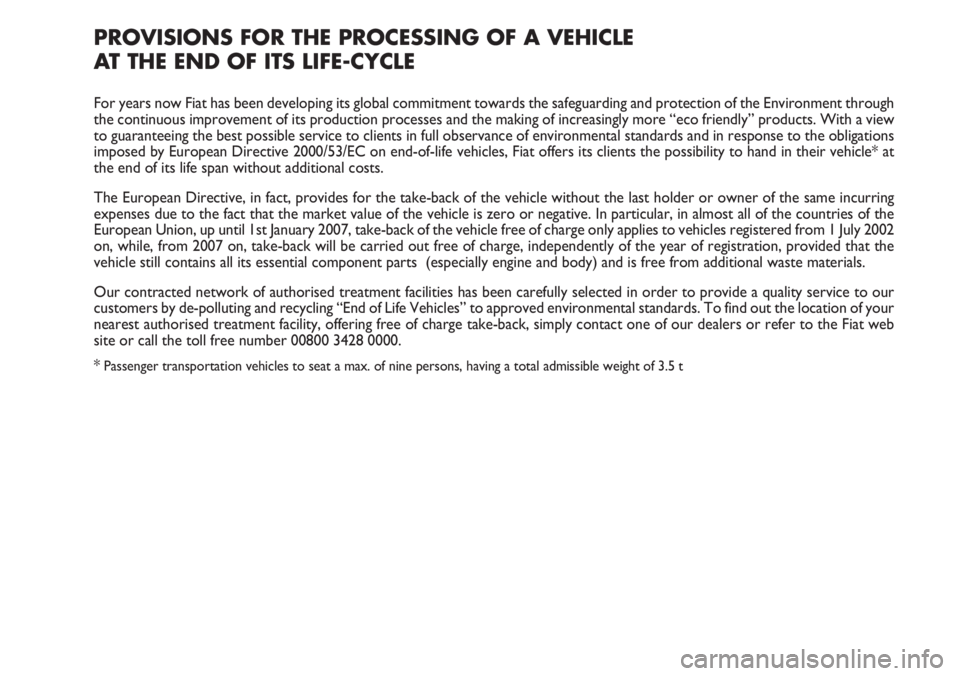

PROVISIONS FOR THE PROCESSING OF A VEHICLE
AT THE END OF ITS LIFE-CYCLE
For years now Fiat has been developing its global commitment towards the safeguarding and protection of the Environment through
the continuous improvement of its production processes and the making of increasingly more “eco friendly” products. With a view
to guaranteeing the best possible service to clients in full observance of environmental standards and in response to the obligations
imposed by European Directive 2000/53/EC on end-of-life vehicles, Fiat offers its clients the possibility to hand in their vehicle* at
the end of its life span without additional costs.
The European Directive, in fact, provides for the take-back of the vehicle without the last holder or owner of the same incurring
expenses due to the fact that the market value of the vehicle is zero or negative. In particular, in almost all of the countries of the
European Union, up until 1st January 2007, take-back of the vehicle free of charge only applies to vehicles registered from 1 July 2002
on, while, from 2007 on, take-back will be carried out free of charge, independently of the year of registration, provided that the
vehicle still contains all its essential component parts (especially engine and body) and is free from additional waste materials.
Our contracted network of authorised treatment facilities has been carefully selected in order to provide a quality service to our
customers by de-polluting and recycling “End of Life Vehicles” to approved environmental standards. To find out the location of your
nearest authorised treatment facility, offering free of charge take-back, simply contact one of our dealers or refer to the Fiat web
site or call the toll free number 00800 3428 0000.
*
Passenger transportation vehicles to seat a max. of nine persons, having a total admissible weight of 3.5 t
Page 281 of 282
Fiat Group Automobiles S.p.A. - Quality - Assistenza Tecnica - Ingegneria Assistenziale - Largo Senatore G. Agnelli, 5 - 10040 Volvera - Torino (Italia)
Print n. 603.81.138 - I/2007 - 3rdedition
ENGINE OIL CHANGE
100 Multijet - 120 Multijet - 130 Multijet - 160 Multijet
Tank capacity90 (*)
Reserve10 / 12
Refuel diesel engines with diesel fuel for motor vehicles only (EN 590 Specifications)
(*) For all versions it is possible to request 120 litre tank.
On “Free time” versions it is possible to request 60 litre tank
FUEL CAPACITIES (litres) COLD TYRE PRESSURE (bar)
100 Multijet 120 Multijet 130 Multijet 160 Multijet
litres litres litres litres
Engine sump and filter 6.38 6.5 6.5 7.0
Tyres Use Front Rear
215/70 R15
215/70 R15
225/70 R15
225/70 R15
215/70 R15 CP
215/75 R16
225/75 R16
225/75 R16 CP
(*) Total weight on ground
Add +0.3 bar to the prescribed inflation pressure when the tyres are warm. Recheck pressure value with cold tyres.
With snow tyres, add +0.2 bar to the inflation pressure value prescribed for standard tyres..3000 PTT(*) Light with standard tyres, PANORAMA excluded
3300 PTT(*) Light / 3500 PTT(*) Light with standard tyres
PANORAMA with standard tyres
3000 PTT(*) Light with oversize tyres, PANORAMA excluded
3300 PTT(*) Light / 3500 PTT(*) Light with oversize tyres
PANORAMA with oversize tyres
Light range with Camping tyres
Heavy range with standard tyres
Heavy range with oversize tyres
Heavy range with Camping tyres 4,0 ± 0,05 4,0 ± 0,05
4,1 ± 0,05 4,5 ± 0,05
4,1 ± 0,05 4,5 ± 0,05
4,0 ± 0,05 4,0 ± 0,05
4,1 ± 0,05 4,5 ± 0,05
4,1 ± 0,05 4,5 ± 0,05
5,0 ± 0,05 5,5 ± 0,05
4,5 ± 0,05 5,0 ± 0,05
4,5 ± 0,05 5,0 ± 0,05
5,5 ± 0,05 5,5 ± 0,05
