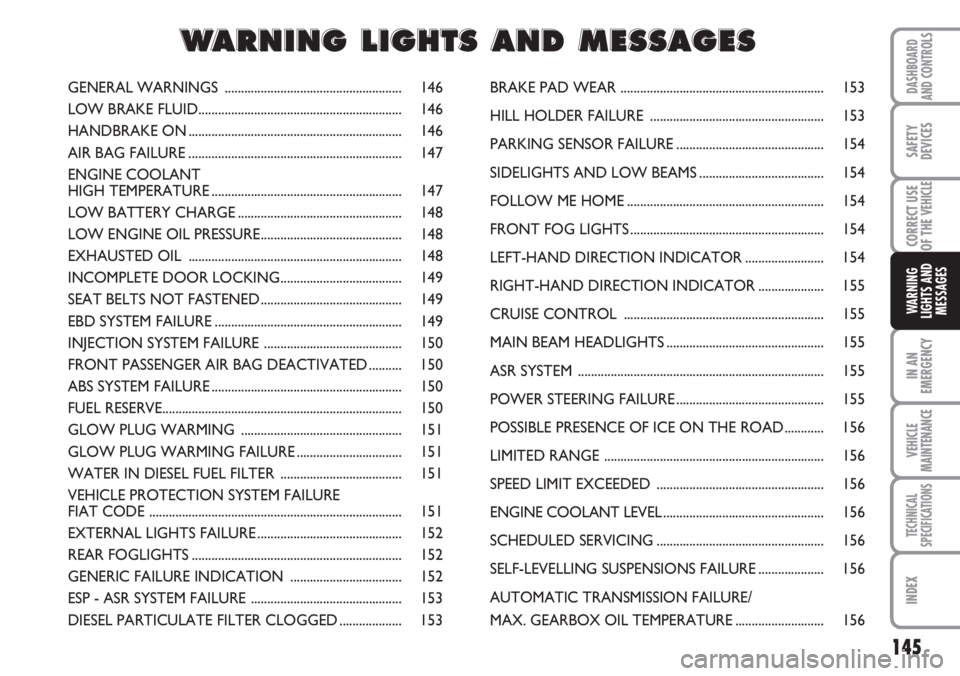

GENERAL WARNINGS ...................................................... 146
LOW BRAKE FLUID.............................................................. 146
HANDBRAKE ON ................................................................. 146
AIR BAG FAILURE ................................................................. 147
ENGINE COOLANT
HIGH TEMPERATURE .......................................................... 147
LOW BATTERY CHARGE .................................................. 148
LOW ENGINE OIL PRESSURE........................................... 148
EXHAUSTED OIL ................................................................. 148
INCOMPLETE DOOR LOCKING..................................... 149
SEAT BELTS NOT FASTENED ........................................... 149
EBD SYSTEM FAILURE ......................................................... 149
INJECTION SYSTEM FAILURE .......................................... 150
FRONT PASSENGER AIR BAG DEACTIVATED .......... 150
ABS SYSTEM FAILURE .......................................................... 150
FUEL RESERVE......................................................................... 150
GLOW PLUG WARMING ................................................. 151
GLOW PLUG WARMING FAILURE ................................ 151
WATER IN DIESEL FUEL FILTER ..................................... 151
VEHICLE PROTECTION SYSTEM FAILURE
FIAT CODE ............................................................................. 151
EXTERNAL LIGHTS FAILURE ............................................ 152
REAR FOGLIGHTS ................................................................ 152
GENERIC FAILURE INDICATION .................................. 152
ESP - ASR SYSTEM FAILURE .............................................. 153
DIESEL PARTICULATE FILTER CLOGGED ................... 153BRAKE PAD WEAR .............................................................. 153
HILL HOLDER FAILURE ..................................................... 153
PARKING SENSOR FAILURE ............................................. 154
SIDELIGHTS AND LOW BEAMS ...................................... 154
FOLLOW ME HOME ............................................................ 154
FRONT FOG LIGHTS ........................................................... 154
LEFT-HAND DIRECTION INDICATOR ........................ 154
RIGHT-HAND DIRECTION INDICATOR .................... 155
CRUISE CONTROL ............................................................. 155
MAIN BEAM HEADLIGHTS ................................................ 155
ASR SYSTEM ........................................................................... 155
POWER STEERING FAILURE ............................................. 155
POSSIBLE PRESENCE OF ICE ON THE ROAD ............ 156
LIMITED RANGE ................................................................... 156
SPEED LIMIT EXCEEDED ................................................... 156
ENGINE COOLANT LEVEL................................................. 156
SCHEDULED SERVICING ................................................... 156
SELF-LEVELLING SUSPENSIONS FAILURE .................... 156
AUTOMATIC TRANSMISSION FAILURE/
MAX. GEARBOX OIL TEMPERATURE ........................... 156
W W
A A
R R
N N
I I
N N
G G
L L
I I
G G
H H
T T
S S
A A
N N
D D
M M
E E
S S
S S
A A
G G
E E
S S

152
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES

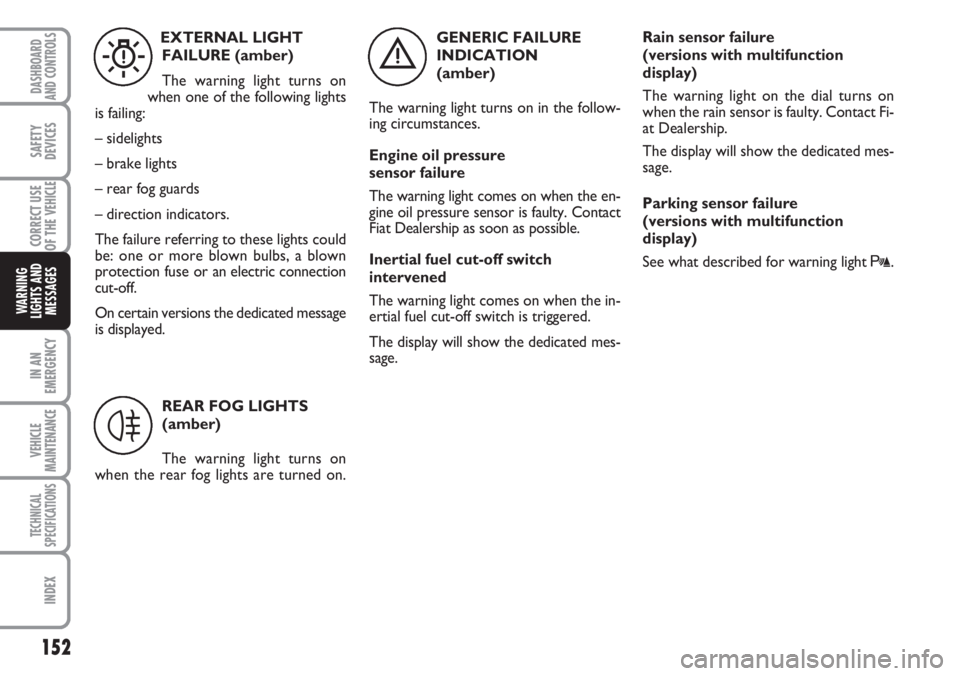

GENERIC FAILURE
INDICATION
(amber)
The warning light turns on in the follow-
ing circumstances.
Engine oil pressure
sensor failure
The warning light comes on when the en-
gine oil pressure sensor is faulty. Contact
Fiat Dealership as soon as possible.
Inertial fuel cut-off switch
intervened
The warning light comes on when the in-
ertial fuel cut-off switch is triggered.
The display will show the dedicated mes-
sage.
è
EXTERNAL LIGHT
FAILURE (amber)
The warning light turns on
when one of the following lights
is failing:
– sidelights
– brake lights
– rear fog guards
– direction indicators.
The failure referring to these lights could
be: one or more blown bulbs, a blown
protection fuse or an electric connection
cut-off.
On certain versions the dedicated message
is displayed.
W
REAR FOG LIGHTS
(amber)
The warning light turns on
when the rear fog lights are turned on.
4
Rain sensor failure
(versions with multifunction
display)
The warning light on the dial turns on
when the rain sensor is faulty. Contact Fi-
at Dealership.
The display will show the dedicated mes-
sage.
Parking sensor failure
(versions with multifunction
display)
See what described for warning light
t.

154
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES

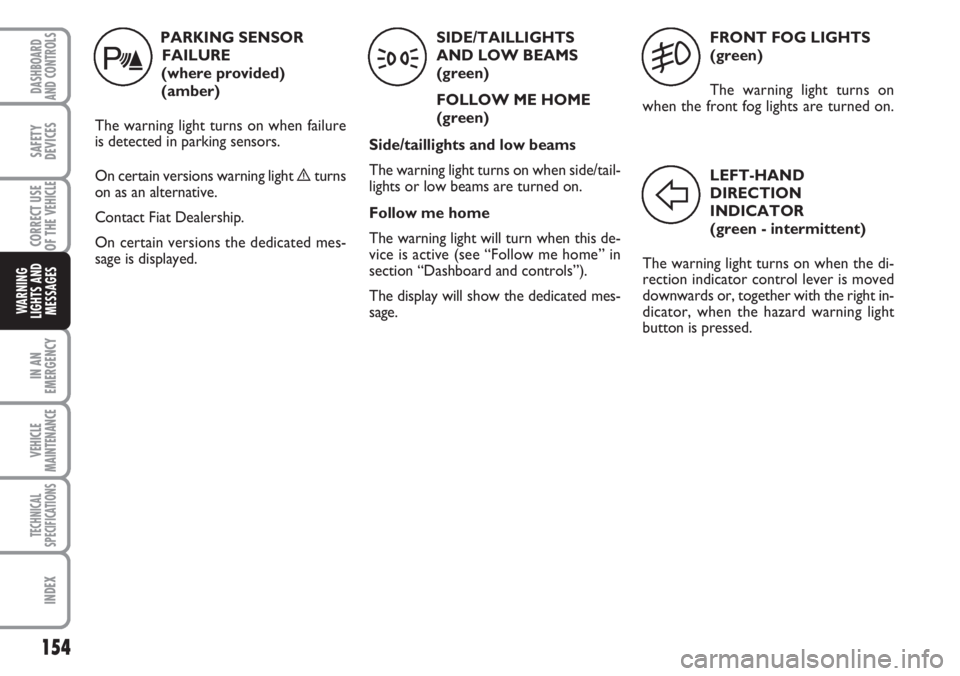

FRONT FOG LIGHTS
(green)
The warning light turns on
when the front fog lights are turned on.
5
LEFT-HAND
DIRECTION
INDICATOR
(green - intermittent)
The warning light turns on when the di-
rection indicator control lever is moved
downwards or, together with the right in-
dicator, when the hazard warning light
button is pressed.
F
PARKING SENSOR
FAILURE
(where provided)
(amber)
The warning light turns on when failure
is detected in parking sensors.
On certain versions warning light èturns
on as an alternative.
Contact Fiat Dealership.
On certain versions the dedicated mes-
sage is displayed.
t
SIDE/TAILLIGHTS
AND LOW BEAMS
(green)
FOLLOW ME HOME
(green)
Side/taillights and low beams
The warning light turns on when side/tail-
lights or low beams are turned on.
Follow me home
The warning light will turn when this de-
vice is active (see “Follow me home” in
section “Dashboard and controls”).
The display will show the dedicated mes-
sage.
3

181
WARNING
LIGHTS AND
MESSAGES
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY

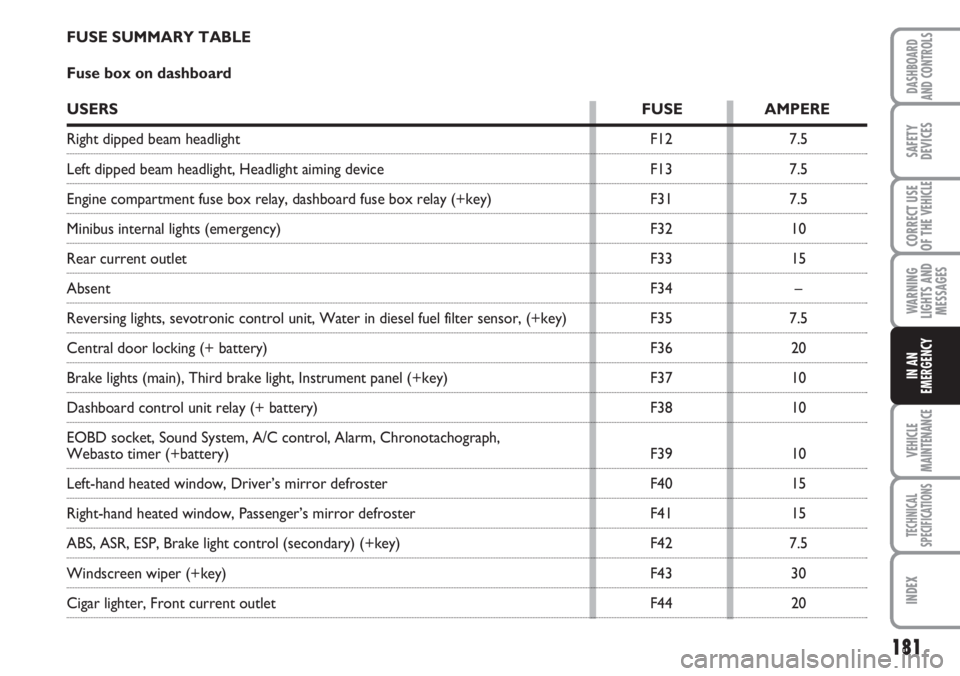

FUSE SUMMARY TABLE
Fuse box on dashboard
USERSFUSE AMPERE
Right dipped beam headlight F12 7.5
Left dipped beam headlight, Headlight aiming device F13 7.5
Engine compartment fuse box relay, dashboard fuse box relay (+key) F31 7.5
Minibus internal lights (emergency) F32 10
Rear current outlet F33 15
AbsentF34 –
Reversing lights, sevotronic control unit, Water in diesel fuel filter sensor, (+key) F35 7.5
Central door locking (+ battery) F36 20
Brake lights (main), Third brake light, Instrument panel (+key) F37 10
Dashboard control unit relay (+ battery) F38 10
EOBD socket, Sound System, A/C control, Alarm, Chronotachograph,
Webasto timer (+battery) F39 10
Left-hand heated window, Driver’s mirror defroster F40 15
Right-hand heated window, Passenger’s mirror defroster F41 15
ABS, ASR, ESP, Brake light control (secondary) (+key) F42 7.5
Windscreen wiper (+key) F43 30
Cigar lighter, Front current outlet F44 20

182
WARNING
LIGHTS AND
MESSAGES
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY

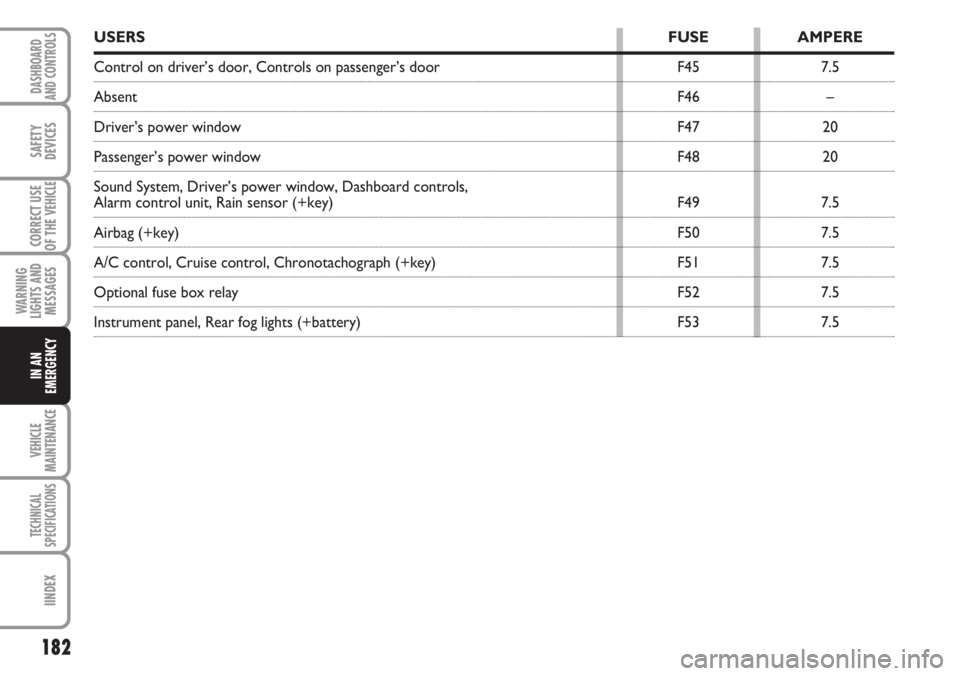

USERSFUSE AMPERE
Control on driver’s door, Controls on passenger’s door F45 7.5
AbsentF46 –
Driver’s power window F47 20
Passenger’s power window F48 20
Sound System, Driver’s power window, Dashboard controls,
Alarm control unit, Rain sensor (+key) F49 7.5
Airbag (+key)F50 7.5
A/C control, Cruise control, Chronotachograph (+key) F51 7.5
Optional fuse box relay F52 7.5
Instrument panel, Rear fog lights (+battery) F53 7.5

201
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE

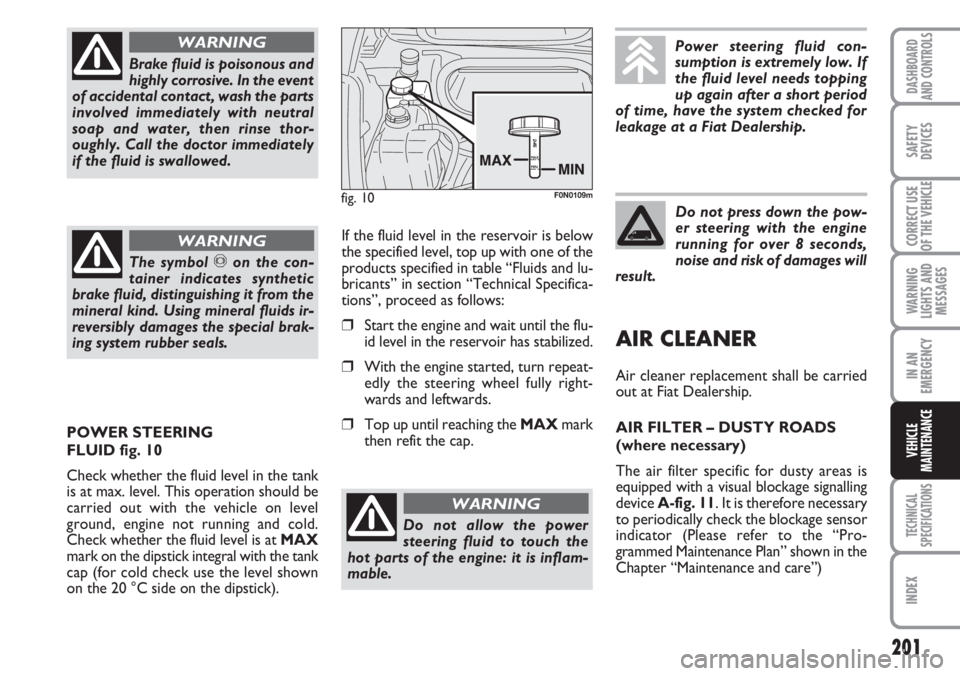

Brake fluid is poisonous and
highly corrosive. In the event
of accidental contact, wash the parts
involved immediately with neutral
soap and water, then rinse thor-
oughly. Call the doctor immediately
if the fluid is swallowed.
WARNING
The symbol πon the con-
tainer indicates synthetic
brake fluid, distinguishing it from the
mineral kind. Using mineral fluids ir-
reversibly damages the special brak-
ing system rubber seals.
WARNING
POWER STEERING
FLUID fig. 10
Check whether the fluid level in the tank
is at max. level. This operation should be
carried out with the vehicle on level
ground, engine not running and cold.
Check whether the fluid level is at MAX
mark on the dipstick integral with the tank
cap (for cold check use the level shown
on the 20 °C side on the dipstick).If the fluid level in the reservoir is below
the specified level, top up with one of the
products specified in table “Fluids and lu-
bricants” in section “Technical Specifica-
tions”, proceed as follows:
❒Start the engine and wait until the flu-
id level in the reservoir has stabilized.
❒With the engine started, turn repeat-
edly the steering wheel fully right-
wards and leftwards.
❒Top up until reaching the MAXmark
then refit the cap.
fig. 10F0N0109m
Do not allow the power
steering fluid to touch the
hot parts of the engine: it is inflam-
mable.
WARNING
Do not press down the pow-
er steering with the engine
running for over 8 seconds,
noise and risk of damages will
result.
Power steering fluid con-
sumption is extremely low. If
the fluid level needs topping
up again after a short period
of time, have the system checked for
leakage at a Fiat Dealership.
AIR CLEANER
Air cleaner replacement shall be carried
out at Fiat Dealership.
AIR FILTER – DUSTY ROADS
(where necessary)
The air filter specific for dusty areas is
equipped with a visual blockage signalling
device A-fig. 11. It is therefore necessary
to periodically check the blockage sensor
indicator (Please refer to the “Pro-
grammed Maintenance Plan” shown in the
Chapter “Maintenance and care”)

270
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
– jump starting .................................. 158
– recharging......................................... 185
– replacing .......................................... 202
Bodywork
– maintenance ................................... 208
– version codes ................................. 212
Bonnet .................................................... 98
Brake Assist
(brake assist in an emergency) ....... 103
Brake fluid level..................................... 200
Brakes
– fluid level ......................................... 200
– technical data ................................. 218
Bulb (replacement)
– bulb types ........................................ 168
– general instructions ....................... 168
Ceiling lights
– front................................................... 81
– rear .................................................... 82
Chassis (marking) ................................ 213
Checking fluid levels ............................ 196Child restraint systems
(specifications for use)...................... 119
Cigar lighter .......................................... 87
CO
2exhaust emissions ..................... 265
Code card............................................... 8
Consumption
– engine oil .......................................... 198
– fuel ..................................................... 264
Containing running costs .................... 138
Control buttons .................................. 82
Correct use of the vehicle ................. 133
Cruise Control .................................... 79
Current outlet....................................... 88
Dashboard (left hand drive version) 5
Dashboard (right hand drive version) 6
Dashboard and controls ..................... 4
Dead lock device
– activation/deactivation .................. 94
Digital display ......................................... 20
Dimensions ........................................... 223
Dipped beam headlights
– bulb replacement .......................... 171
ABS ........................................................ 102
Accessories purchased by
the user ............................................... 109
Additional climate control system
(rear). .................................................... 73
Additional rear heater ......................... 72
Air bags (front)...................................... 123
Air bags (side)........................................ 125
Air cleaner.............................................. 201
Air vents ................................................ 47
Armrest
– front................................................... 38
Ashtray .................................................... 87
ASR ......................................................... 105
– activation/deactivation ................. 105
At the filling station .............................. 125
Automatic climate control system .. 55
Automatic headlight sensor
(daylight sensor) ................................. 92
Battery
– checking the charge ...................... 202
I I
N N
D D
E E
X X

272
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Oddment compartment under
the front passenger's seat ................ 86
Oddment compartments .................. 85
Operation at low temperatures ...... 110
Paint ...................................................... 208
Parking ................................................... 136
Parking sensors .................................... 107
Performance ......................................... 229
Plates
– body paint ........................................ 213
– identification data ........................... 212
Pollen filter ............................................. 202
Power steering fluid level ................... 201
Power windows
– controls ........................................... 97
Pretensioners......................................... 116
Protecting the environment ............. 112
Radio-controlled remote control
– government type-approval........... 266
Radio transmitters and cellular
telephones ........................................... 110
Rain sensor ........................................... 78
Reading/writing desk............................ 88
Rear ceiling lights– bulb replacement .......................... 176
– control .............................................. 82
Rear double door ................................. 96
Rear fog lights
– bulb replacement .......................... 173
– control button ............................... 83
Rearview camera .............................. 40-89
Rearview mirrors ................................. 45
– door mirrors .................................. 45
– driving mirror ................................ 45
– electric ............................................. 46
Refrigerated compartment................. 85
Refuelling ............................................... 111
Rev counter .......................................... 18
Reversing light ...................................... 173
Rims
– understanding rim marking .......... 220
Roof rack/ski rack ................................ 100
Safety devices ....................................... 113
Seat adjustment ................................... 37
Seat belts ................................................ 114
– general warnings ........................... 117
– load limiters ..................................... 116
– maintenance ................................... 109 Interiors ................................................. 209
Isofix ........................................................ 124
Jacking the vehicle .............................. 186
Key with remote control ................. 9
Key without remote control ............ 11
Levels
– brake fluid ....................................... 200
– engine coolant ............................... 199
– engine oil ......................................... 198
– power steering fluid ..................... 201
– windscreen/rear window/
headlight washer............................. 200
Load limiters ......................................... 116
Main beam headlights
– bulb replacement .......................... 171
– control ............................................. 75
– flashing ............................................. 75
Manual climate control system ......... 51
Mobile footboard.................................. 95
Multifunction display ........................... 26
Multimeter ............................................ 91
Number plate light ............................ 175
