technical specifications FIAT DUCATO 2007 Owner handbook (in English)

214
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS

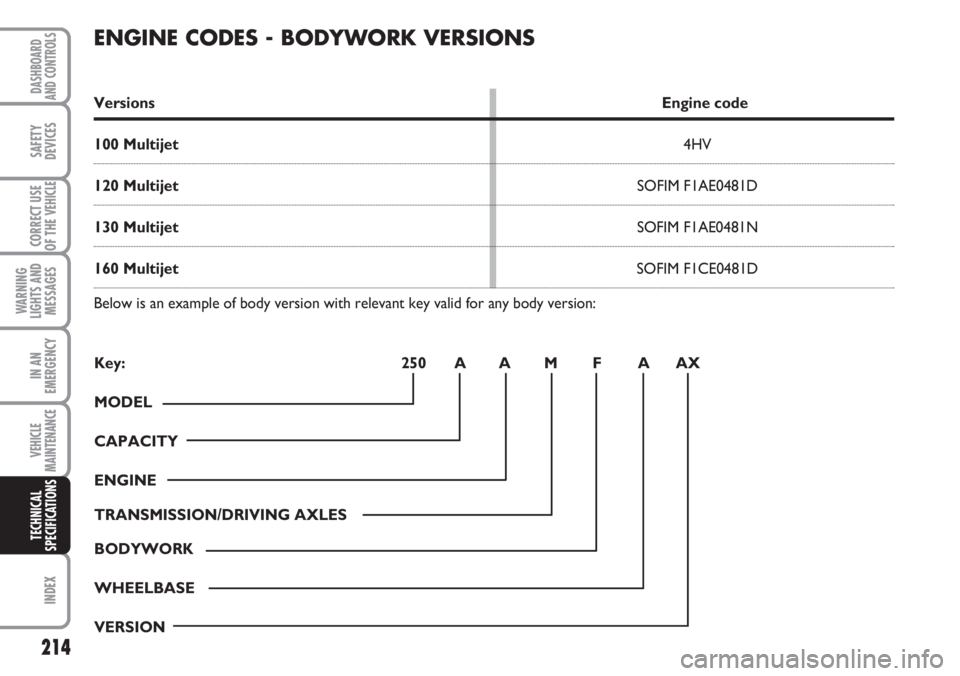

ENGINE CODES - BODYWORK VERSIONS
VersionsEngine code
100 Multijet4HV
120 MultijetSOFIM F1AE0481D
130 MultijetSOFIM F1AE0481N
160 MultijetSOFIM F1CE0481D
Below is an example of body version with relevant key valid for any body version:
Key: 250 A A M F A AX
MODEL
CAPACITY
ENGINE
TRANSMISSION/DRIVING AXLES
BODYWORK
WHEELBASE
VERSION

215
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS

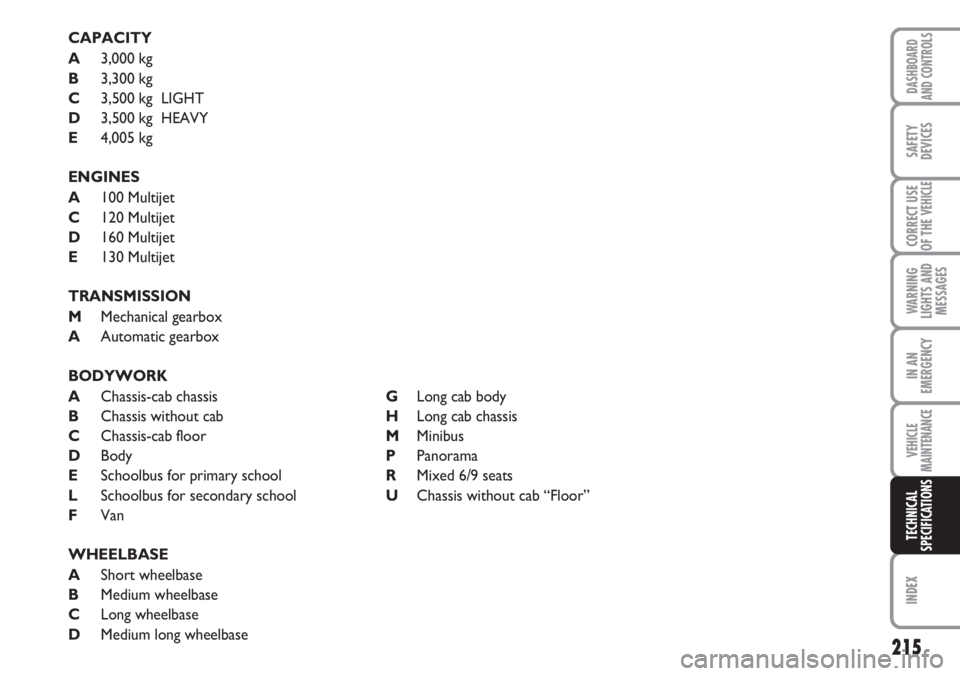

CAPACITY
A3,000 kg
B3,300 kg
C3,500 kg LIGHT
D3,500 kg HEAVY
E4,005 kg
ENGINES
A100 Multijet
C120 Multijet
D160 Multijet
E130 Multijet
TRANSMISSION
MMechanical gearbox
AAutomatic gearbox
BODYWORK
AChassis-cab chassisGLong cab body
BChassis without cabHLong cab chassis
CChassis-cab floorMMinibus
DBodyPPanorama
ESchoolbus for primary schoolRMixed 6/9 seats
LSchoolbus for secondary schoolUChassis without cab “Floor”
FVan
WHEELBASE
AShort wheelbase
BMedium wheelbase
CLong wheelbase
DMedium long wheelbase

216
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS

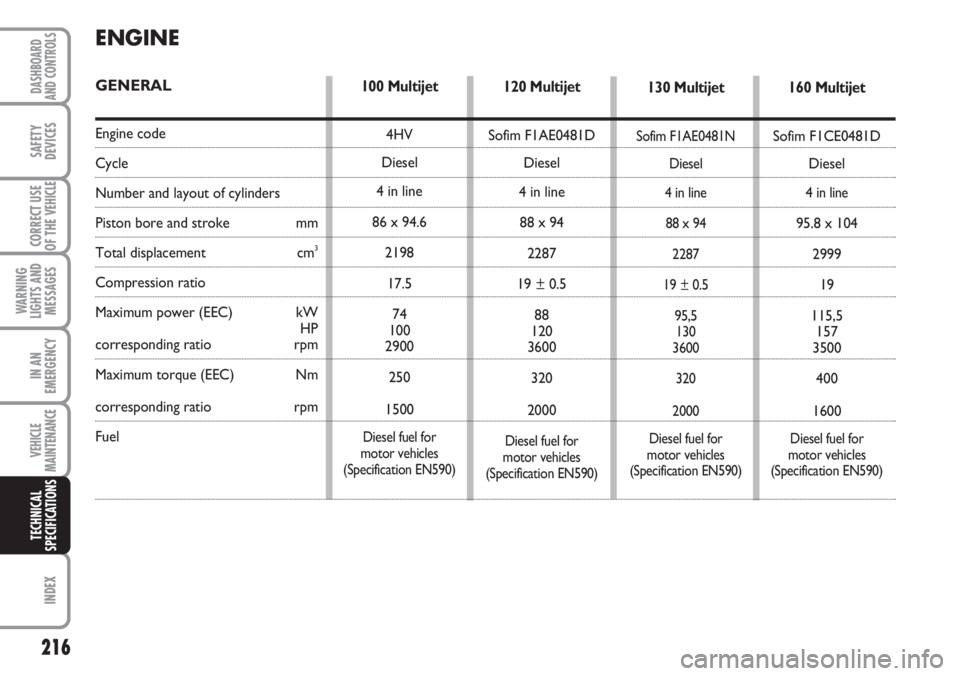

ENGINE
GENERAL
Engine code
Cycle
Number and layout of cylinders
Piston bore and stroke mm
Total displacement cm3
Compression ratio
Maximum power (EEC) kW
HP
corresponding ratio rpm
Maximum torque (EEC) Nm
corresponding ratio rpm
Fuel
120 Multijet
Sofim F1AE0481D
Diesel
4 in line
88 x 94
2287
19 ± 0.5
88
120
3600
320
2000
Diesel fuel for
motor vehicles
(Specification EN590)
130 Multijet
Sofim F1AE0481N
Diesel
4 in line
88 x 94
2287
19 ± 0.5
95,5
130
3600
320
2000
Diesel fuel for
motor vehicles
(Specification EN590)
160 Multijet
Sofim F1CE0481D
Diesel
4
in line
95.8 x 104
2999
19
115,5
157
3500
400
1600
Diesel fuel for
motor vehicles
(Specification EN590)
100 Multijet
4HV
Diesel
4 in line
86 x 94.6
2198
17.5
74
100
2900
250
1500
Diesel fuel for
motor vehicles
(Specification EN590)

217
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS

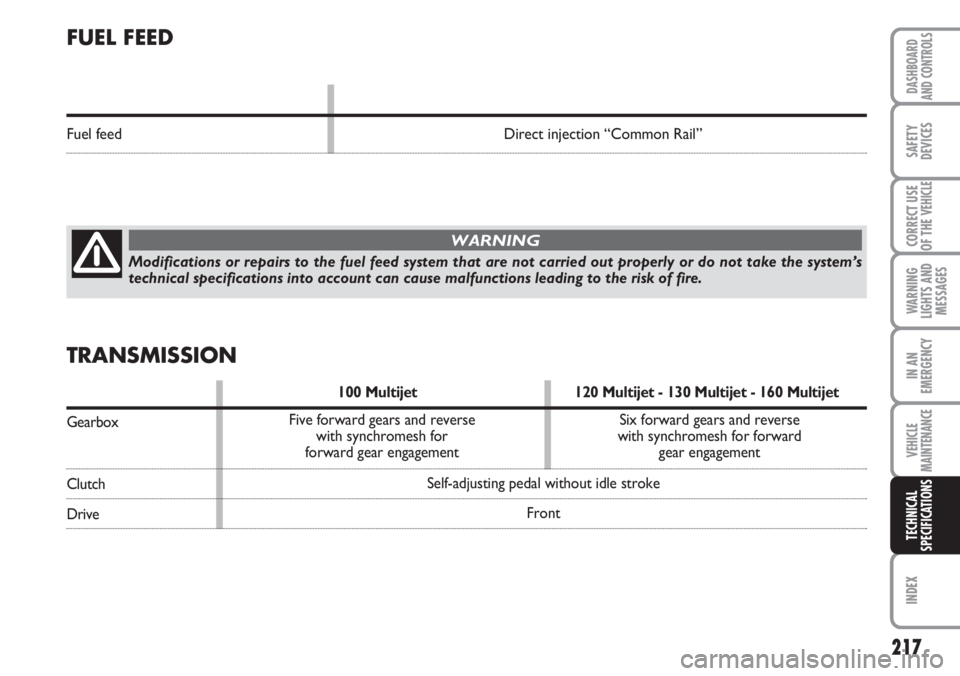

FUEL FEED
Fuel feed Direct injection “Common Rail”
Modifications or repairs to the fuel feed system that are not carried out properly or do not take the system’s
technical specifications into account can cause malfunctions leading to the risk of fire.
WARNING
TRANSMISSION
100 Multijet 120 Multijet - 130 Multijet - 160 Multijet
Gearbox
Clutch
DriveSelf-adjusting pedal without idle stroke
Front Five forward gears and reverse
with synchromesh for
forward gear engagementSix forward gears and reverse
with synchromesh for forward
gear engagement

218
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS

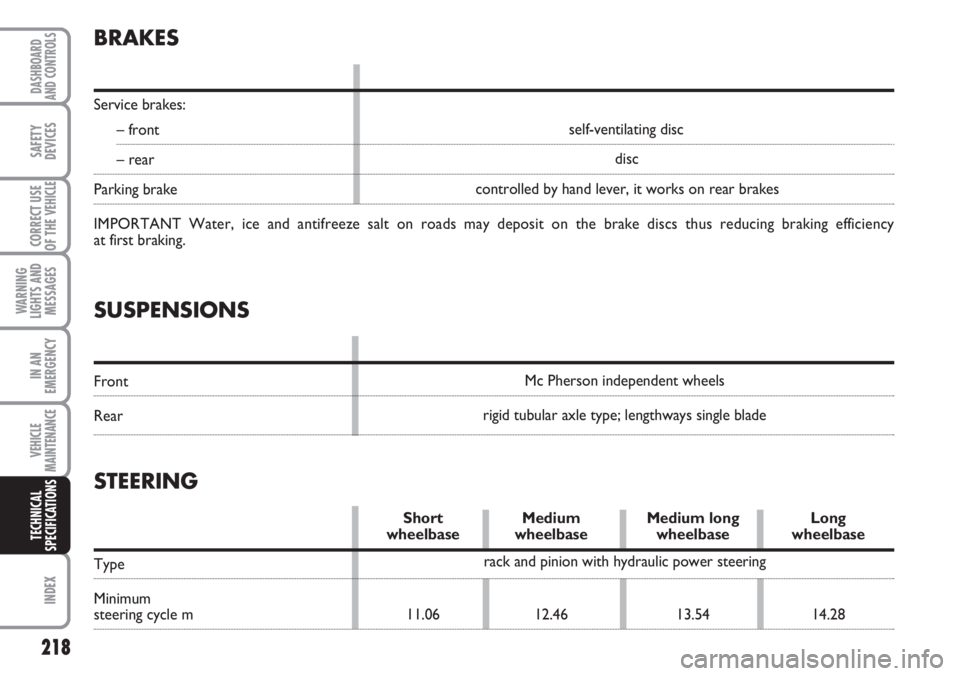

SUSPENSIONS
Front
Rear
BRAKES
Service brakes:
– front
– rear
Parking brake
IMPORTANT Water, ice and antifreeze salt on roads may deposit on the brake discs thus reducing braking efficiency
at first braking.
Mc Pherson independent wheels
rigid tubular axle type; lengthways single blade controlled by hand lever, it works on rear brakesdisc self-ventilating disc
rack and pinion with hydraulic power steering
STEERING
Short Medium Medium long Long wheelbase wheelbase wheelbase wheelbase
Type
Minimum
steering cycle m 11.06 12.46 13.54 14.28

219
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS

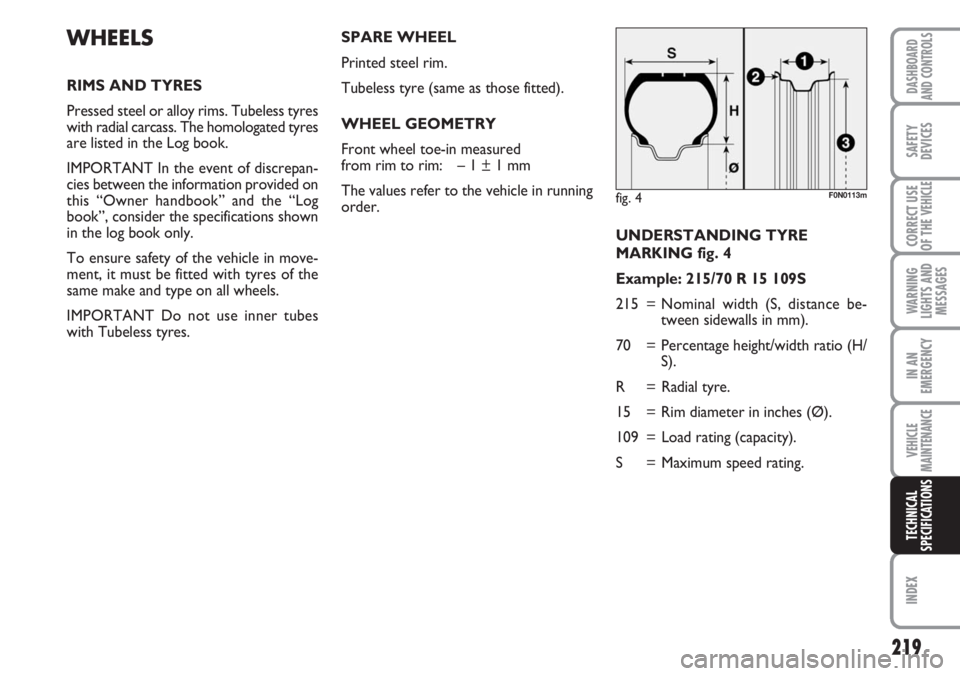

UNDERSTANDING TYRE
MARKING fig. 4
Example: 215/70 R 15 109S
215 = Nominal width (S, distance be-
tween sidewalls in mm).
70 = Percentage height/width ratio (H/
S).
R = Radial tyre.
15 = Rim diameter in inches (Ø).
109 = Load rating (capacity).
S = Maximum speed rating.
WHEELS
RIMS AND TYRES
Pressed steel or alloy rims. Tubeless tyres
with radial carcass. The homologated tyres
are listed in the Log book.
IMPORTANT In the event of discrepan-
cies between the information provided on
this “Owner handbook” and the “Log
book”, consider the specifications shown
in the log book only.
To ensure safety of the vehicle in move-
ment, it must be fitted with tyres of the
same make and type on all wheels.
IMPORTANT Do not use inner tubes
with Tubeless tyres.
fig. 4F0N0113m
SPARE WHEEL
Printed steel rim.
Tubeless tyre (same as those fitted).
WHEEL GEOMETRY
Front wheel toe-in measured
from rim to rim: – 1 ± 1 mm
The values refer to the vehicle in running
order.

220
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS

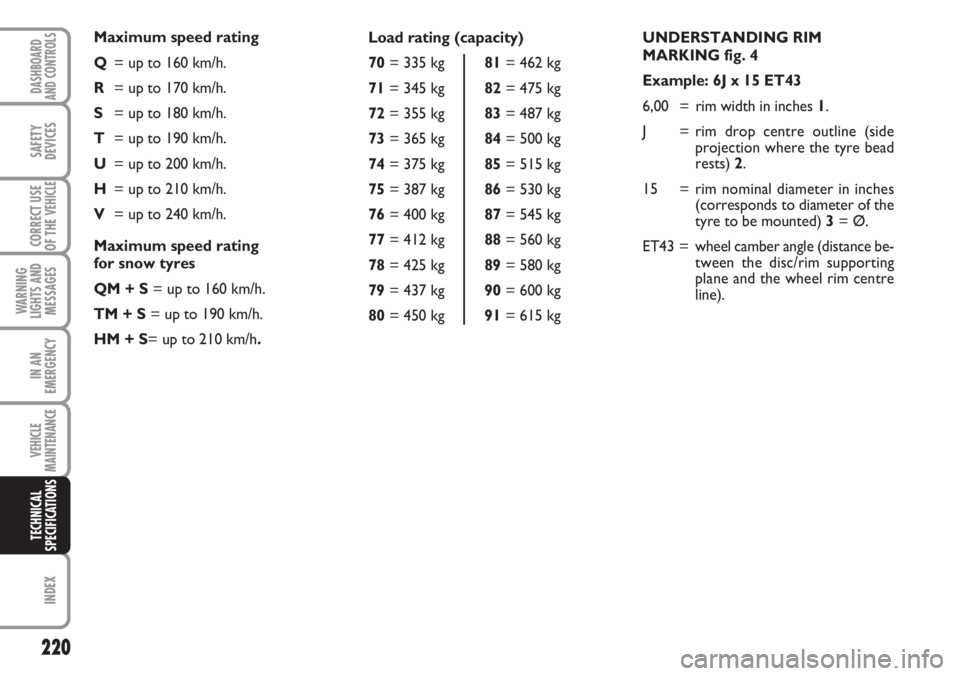

UNDERSTANDING RIM
MARKING fig. 4
Example: 6J x 15 ET43
6,00 = rim width in inches 1.
J = rim drop centre outline (side
projection where the tyre bead
rests) 2.
15 = rim nominal diameter in inches
(corresponds to diameter of the
tyre to be mounted) 3= Ø.
ET43 = wheel camber angle (distance be-
tween the disc/rim supporting
plane and the wheel rim centre
line). Load rating (capacity)
70= 335 kg 81= 462 kg
71= 345 kg 82= 475 kg
72= 355 kg 83= 487 kg
73= 365 kg 84= 500 kg
74= 375 kg 85= 515 kg
75= 387 kg 86= 530 kg
76= 400 kg 87= 545 kg
77= 412 kg 88= 560 kg
78= 425 kg 89= 580 kg
79= 437 kg 90= 600 kg
80= 450 kg 91= 615 kg Maximum speed rating
Q= up to 160 km/h.
R= up to 170 km/h.
S= up to 180 km/h.
T= up to 190 km/h.
U= up to 200 km/h.
H= up to 210 km/h.
V= up to 240 km/h.
Maximum speed rating
for snow tyres
QM + S= up to 160 km/h.
TM + S= up to 190 km/h.
HM + S= up to 210 km/h.

221
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
215/70 R15C 109/107S
225/70 R15C 112/110S
215/70 R15CP 109/107Q
215/75 R16C 116/114R
225/75 R16C 118/116R
225/75 R16CP 116/114Q 6J x 15” - H2
6J x 15” - H2
6J x 16” - H2
6J x 16” - H2
Versions Rims Standard tyres
Ducato
(excluding free time)
Ducato
(free time)
Ducato Maxi
(excluding free time)
Ducato Maxi
(free time)

222
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS

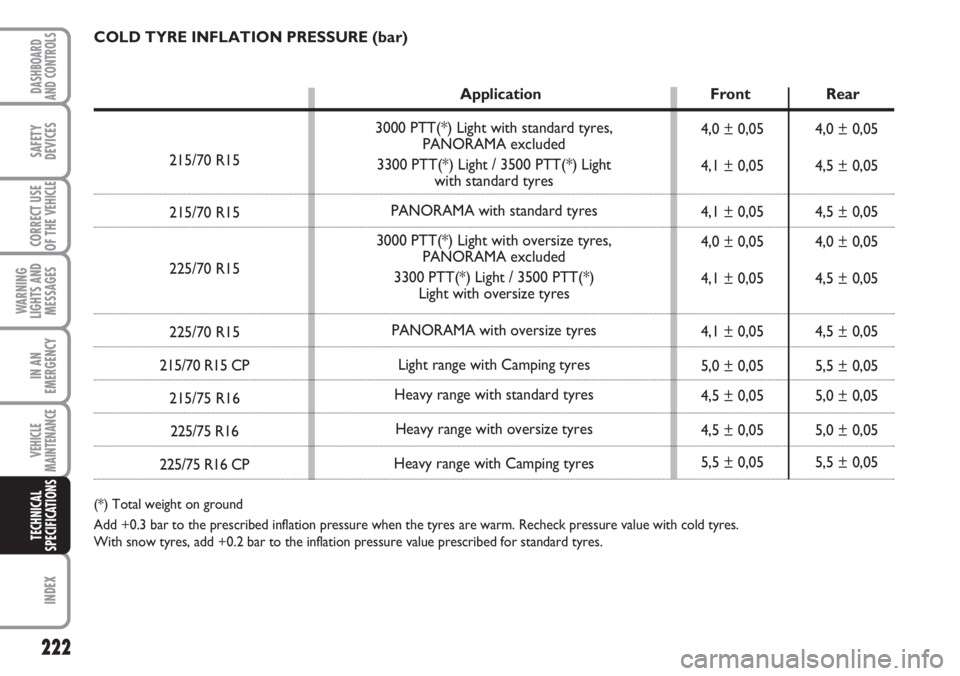

3000 PTT(*) Light with standard tyres,
PANORAMA excluded
3300 PTT(*) Light / 3500 PTT(*) Light
with standard tyres
PANORAMA with standard tyres
3000 PTT(*) Light with oversize tyres,
PANORAMA excluded
3300 PTT(*) Light / 3500 PTT(*)
Light with oversize tyres
PANORAMA with oversize tyres
Light range with Camping tyres
Heavy range with standard tyres
Heavy range with oversize tyres
Heavy range with Camping tyres COLD TYRE INFLATION PRESSURE (bar)
Application Front Rear
215/70 R15
215/70 R15
225/70 R15
225/70 R15
215/70 R15 CP
215/75 R16
225/75 R16
225/75 R16 CP
(*) Total weight on ground
Add +0.3 bar to the prescribed inflation pressure when the tyres are warm. Recheck pressure value with cold tyres.
With snow tyres, add +0.2 bar to the inflation pressure value prescribed for standard tyres.
4,0 ± 0,05 4,0 ± 0,05
4,1 ± 0,05 4,5 ± 0,05
4,1 ± 0,05 4,5 ± 0,05
4,0 ± 0,05 4,0 ± 0,05
4,1 ± 0,05 4,5 ± 0,05
4,1 ± 0,05 4,5 ± 0,05
5,0 ± 0,05 5,5 ± 0,05
4,5 ± 0,05 5,0 ± 0,05
4,5 ± 0,05 5,0 ± 0,05
5,5 ± 0,05 5,5 ± 0,05

223
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS

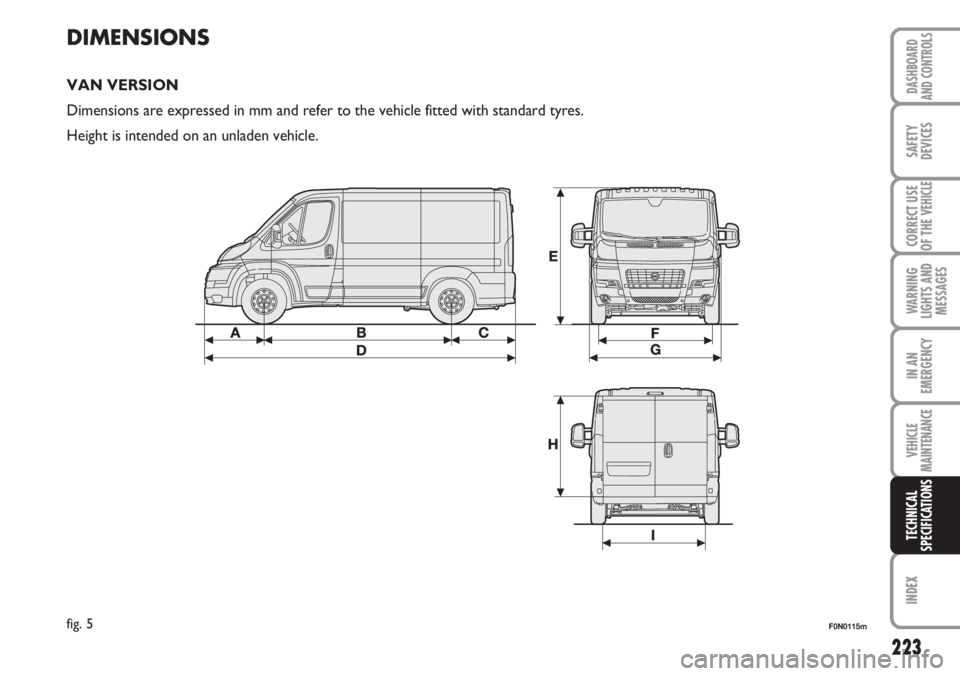

DIMENSIONS
VAN VERSION
Dimensions are expressed in mm and refer to the vehicle fitted with standard tyres.
Height is intended on an unladen vehicle.
F0N0115mfig. 5
